Siel SAFEPOWER S User manual

IV375E Rev.00
Installation and user manual
Date of issue : 2015-06-25
Page 0 of 63 + FR
10-40kVA UPS
INSTALLATION AND USER MANUAL
SAFEPOWER S
KEEP FOR FUTURE REFERENCE
for the entire life of the appliance

IV375E Rev.00
Installation and user manual
Date of issue : 2015-06-25
Page 1 of 65 + FR
All rights reserved.
The information in this document is subject to change without notice.
Publish statement
Thank you for purchasing this series UPS.
This series UPS is an intelligent, three phase in Three phase out, high frequency online
UPS designed by our R&D team who is with years of designing experiences on UPS.
With excellent electrical performance, perfect intelligent monitoring and network
functions, smart appearance, complying with EMC and safety standards, The UPS
meets the world’s advanced level.
Read this manual carefully before installation
This manual provides technical support to the operator of the equipment.

IV375E Rev.00
Installation and user manual
Date of issue : 2015-06-25
Page 2 of 65 + FR
Contents
1κSafety............................................................................................................................................................ 4
1.1 Safety notes ....................................................................................................................................... 4
1.2 Symbols used in this guide............................................................................................................ 5
2κMain Features............................................................................................................................................. 6
2.1 Summarization................................................................................................................................... 6
2.2 Functions and Features .................................................................................................................. 6
3κInstallation................................................................................................................................................... 8
3.1 Installation .......................................................................................................................................... 8
3.2 Cabinet Outlook .............................................................................................................................. 11
3.3 LCD control panel........................................................................................................................... 14
3.4 Installation notes............................................................................................................................. 14
3.5 External Protective Devices.......................................................................................................... 15
3.6 Power Cables................................................................................................................................... 15
3.7 Power cable connect ...................................................................................................................... 16
3.8 Battery connection ......................................................................................................................... 18
3.9 UPS parallel Installation................................................................................................................. 20
3.10 Computer access.......................................................................................................................... 21
4κOperation................................................................................................................................................... 23
4.1 Operation Modes ............................................................................................................................. 23
4.2 Turn on/off UPS ............................................................................................................................... 24
4.3 The LCD Display.............................................................................................................................. 30
4.4 Parameters setting ......................................................................................................................... 35
4.5 Parallel system commissioning.................................................................................................. 41
4.6 Display Messages/Troubleshooting........................................................................................... 42
4.7 Options .............................................................................................................................................. 44
Appendix 1 Specifications .......................................................................................................................... 46
Appendix 2 Problems and Solution.......................................................................................................... 50
Appendix 3 USB communication port definition .................................................................................. 52
Appendix 4 RS232 communication port definition............................................................................... 54

IV375E Rev.00
Installation and user manual
Date of issue : 2015-06-25
Page 3 of 65 + FR
Appendix 5 RS485 communication port definition............................................................................... 56
Appendix 6 Dry contact port communication port definition ............................................................ 57
Appendix 7 REPO instruction .................................................................................................................... 58
Appendix 8 Battery replacement............................................................................................................... 59
Appendix 9 Dust-proof net replacement ................................................................................................. 62

IV375E Rev.00
Installation and user manual
Date of issue : 2015-06-25
Page 4 of 65 + FR
1κSafety
Important safety instructions - Save these instructions
There exists dangerous voltage and high temperature inside the UPS. During the
installation, operation and maintenance, please abide the local safety instructions and relative
laws, otherwise it will result in personnel injury or equipment damage. Safety instructions in this
manual act as a supplementary for the local safety instructions. Our company will not assume
the liability that caused by disobeying safety instructions.
1.1 Safety notes
1. Even no connection with utility power, 220/230/240VAC voltage may still exist at UPS
terminals!
2. For the sake of human being safety, please well earth the UPS before starting it.
3ˊDon’t open or damage battery, for the liquid spilled from the battery is strongly poisonous and
do harmful to body!
4ˊPlease avoid short circuit between anode and cathode of battery, otherwise, it will cause
spark or fire!
5ˊDon’t disassemble the UPS cover, or there may be an electric shock!
6ˊCheck if there exists high voltage before touching the battery
7κWorking environment and storage way will affect the lifetime and reliability of the UPS. Avoid
the UPS from working under following environment for long time
ƹArea where the humidity and temperature is out of the specified range(temperature 0
to 40ć, relative humidity 5%-95%)
ƹDirect sunlight or location nearby heat
ƹVibration Area with possibility to get the UPS crashed.
ƹArea with erosive gas, flammable gas, excessive dust, etc
8κKeep ventilation in good conditions otherwise the components inside the UPS will be
over-heated which may affect the life of the UPS.

IV375E Rev.00
Installation and user manual
Date of issue : 2015-06-25
Page 5 of 65 + FR
1.2 Symbols used in this guide
WARNING!
Risk of electric shock
CAUTION!
Read this information to avoid equipment damage

IV375E Rev.00
Installation and user manual
Date of issue : 2015-06-25
Page 6 of 65 + FR
2κMain Features
2.1 Summarization
This series UPS is a kind of three-in-three-out high frequency online UPS.
The UPS can solve most of the power supply problems, such as blackout, over-voltage,
under-voltage, voltage sudden drop, oscillating of decreasing extent, high voltage pulse, voltage
fluctuation, surge, inrush current, harmonic distortion (THD), noise interference, frequency
fluctuation, etc..
This UPS can be applied to different applications from computer device, automatic equipment,
communication system to industry equipment.
2.2 Functions and Features
ƹ3Phase In/3Phase Out UPS
It is 3Phase In/3Phase Out high-density UPS system, of which input current is kept in balance.
No unbalance problem might occur.
ƹDigital Control
This series UPS is controlled by Digital Signal Processor (DSP); enhance, it increases
reliability, performance, self-protection, and self-diagnostics and so on.
ƹBattery Configurable
10-30kVA: from 16 blocks to 20 blocks, the battery voltage of this series UPS can be configured
at 16 blocks, 18 blocks or 20 blocks according to your convenience.
40kVA: from 32 blocks to 40 blocks, the battery voltage of this series UPS can be configured at
32 blocks, 34 blocks, 36 blocks, 38 blocks or 40 blocks according to your convenience.
ƹCharging Current is configurable
Via setting tool, the user may set the capacity of the batteries as well as reasonable charging
current as well as maximum charging current. Constant voltage mode, constant current mode or
floating mode can be switched automatically and smoothly.
ƹIntelligent Charging Method
The series UPS adopts advanced three-stage charging method—
1st stage: high current constant current charging
to guarantee to charge back to 90%;
2nd-stage: Constant Voltage
In order to vitalize battery and make sure batteries are fully charged
3rd stage: floating mode.

IV375E Rev.00
Installation and user manual
Date of issue : 2015-06-25
Page 7 of 65 + FR
With this 3-stage charging method, it extends the life of the batteries and guarantees fast charging.
ƹLCD Display
With LCD plus LED displays, the user may easily get UPS status and its operational
parameters, such as input/output voltage, frequency & load%, battery % and ambient
temperature, etc...
ƹIntelligent Monitoring Function
Via optional SNMP Card, you may remotely control and monitor the UPS.
ƹEPO Function
The series UPS may be completely shut off when the EPO is pressed. REPO function
(Remote EPO) is also available in this series UPS.

IV375E Rev.00
Installation and user manual
Date of issue : 2015-06-25
Page 8 of 65 + FR
3κInstallation
3.1 Installation
3.1.1 Dimension (mm)
3.1.2 Installation

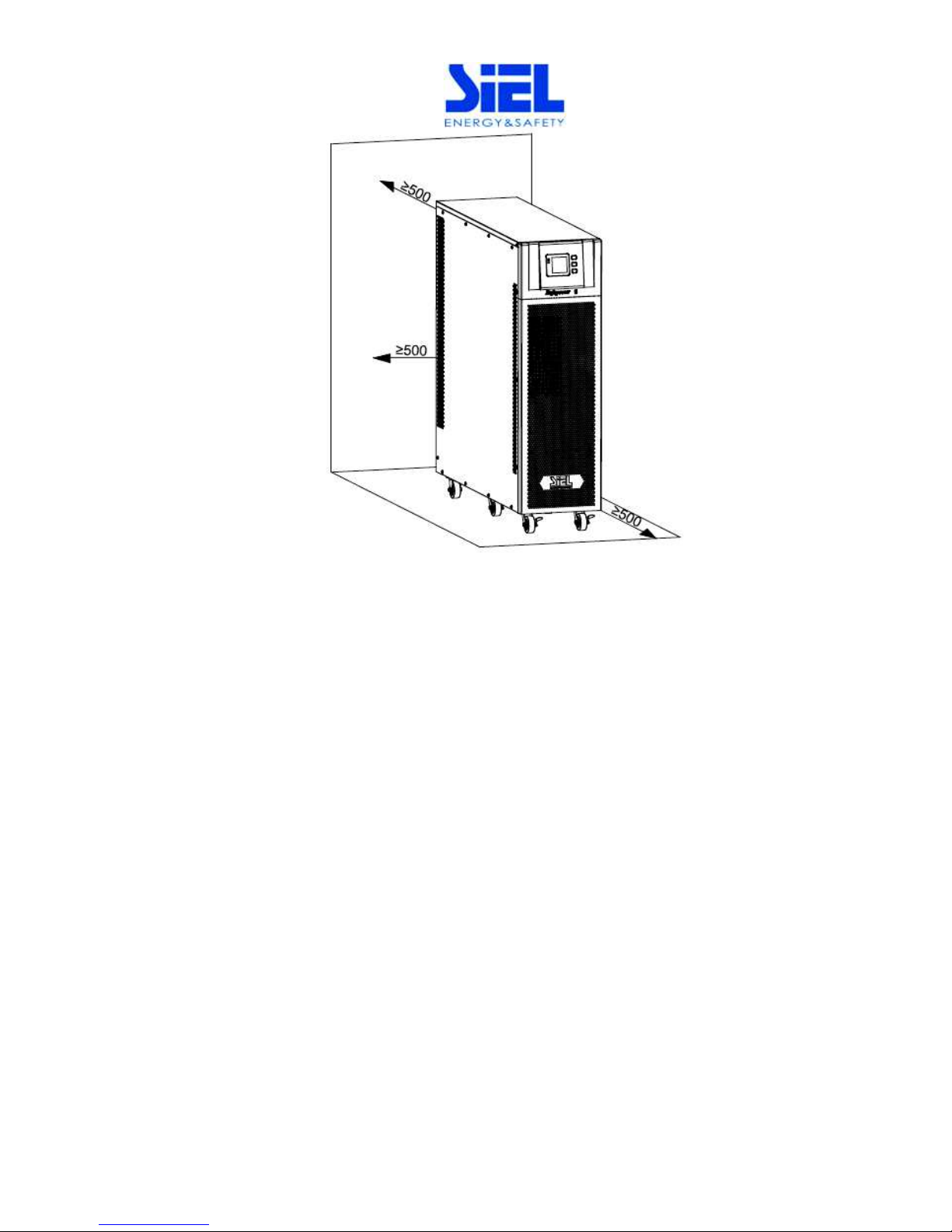

Leave some space around the cabinet for operation and ventilation
1. Leave at least 500mm space in the front for ventilation
2. Leave at least 500mm space at the right and left for operation
3. Leave at least 500mm space at the back for ventilation

IV375E Rev.00
Installation and user manual
Date of issue : 2015-06-25
Page 9 of 65 + FR
3.1.3 Unpack checking
1. Don’t lean the UPS when moving it out from the packaging
2. Check the appearance to see if the UPS is damaged or not during the transportation, do not
switch on the UPS if any damage found. Please contact the dealer right away.
3. Check the accessories according to the packing list and contact the dealer in case of missing
parts.

IV375E Rev.00
Installation and user manual
Date of issue : 2015-06-25
Page 10 of 65 + FR

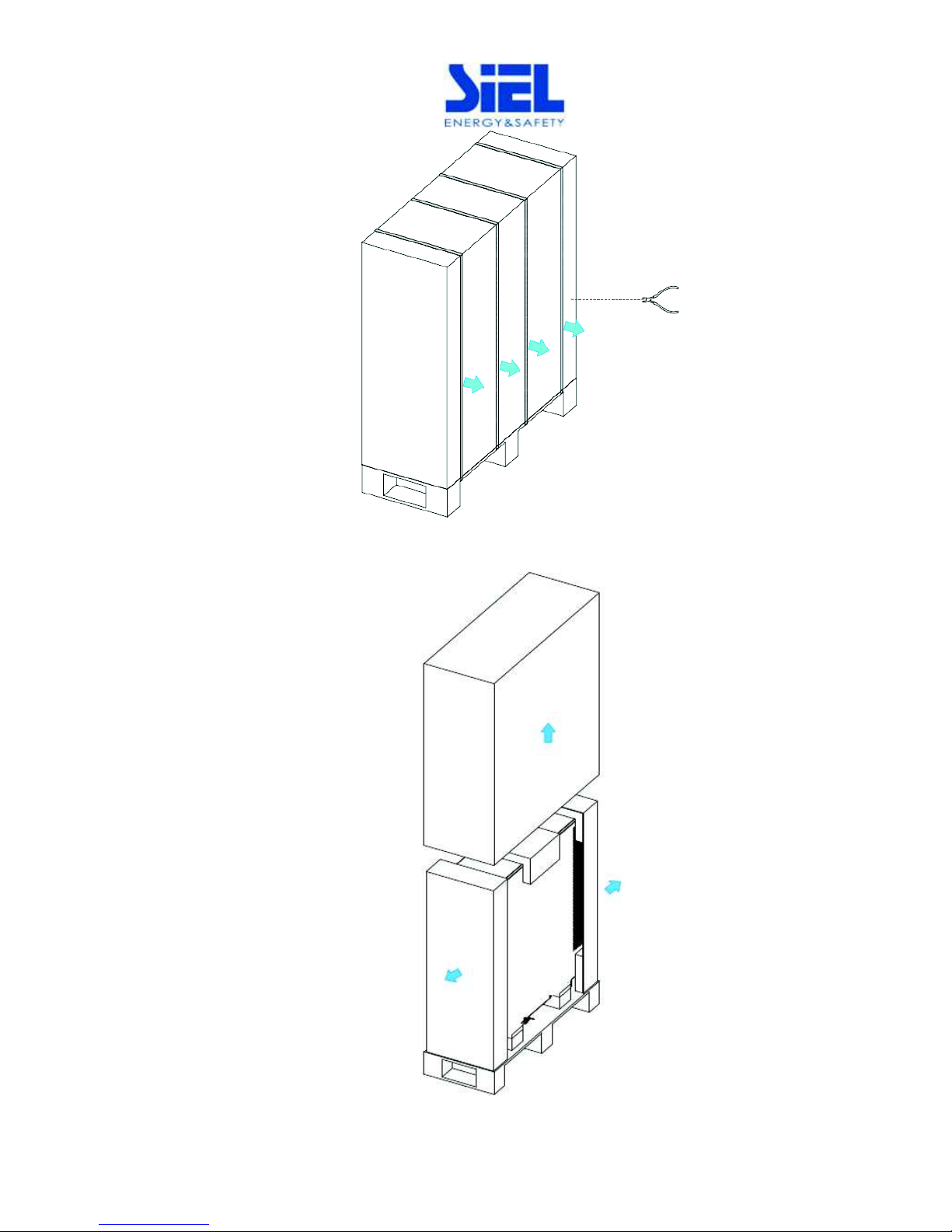

Cut off the bandage

IV375E Rev.00
Installation and user manual
Date of issue : 2015-06-25
Page 11 of 65 + FR
Remove the package
3.2 Cabinet Outlook


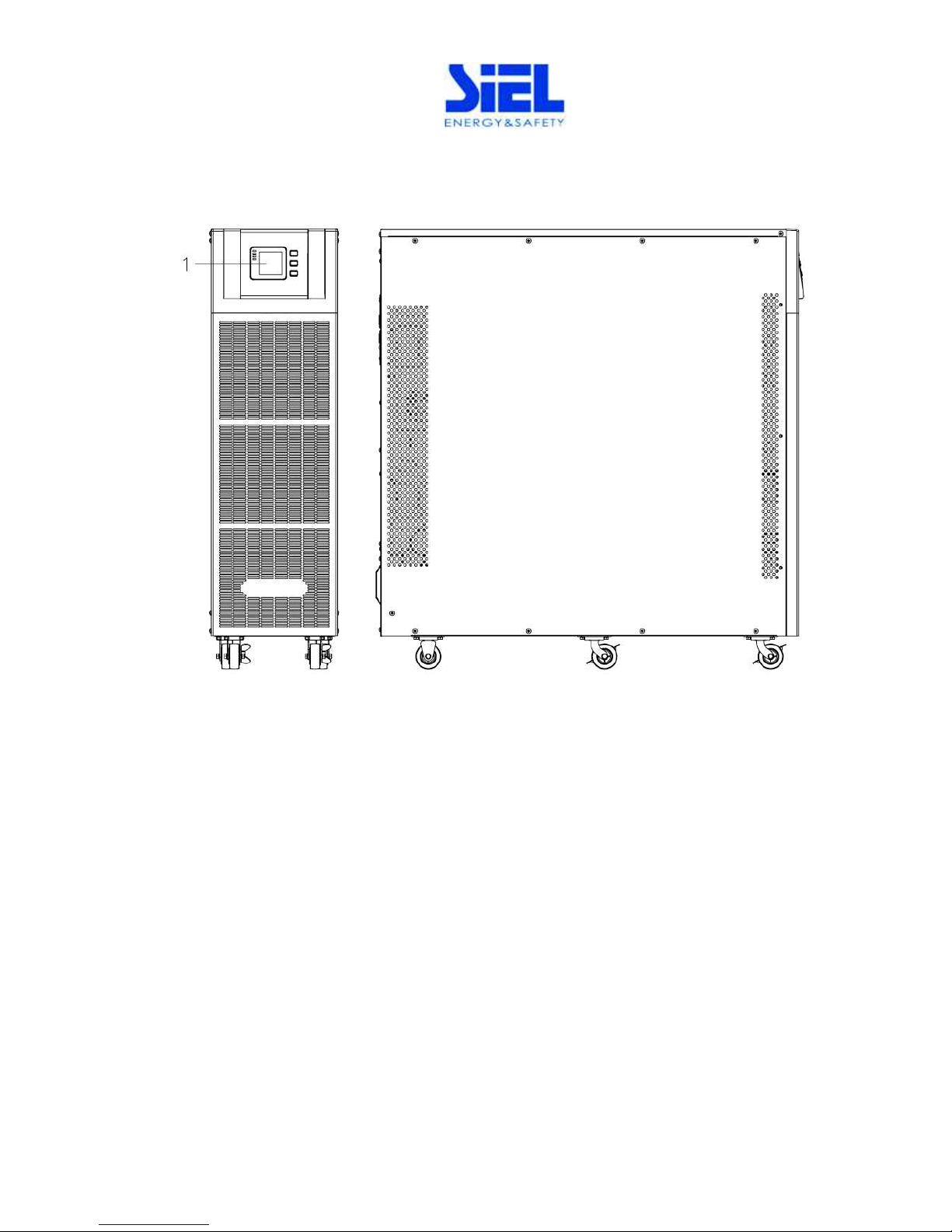

Front View Side View

IV375E Rev.00
Installation and user manual
Date of issue : 2015-06-25
Page 12 of 65 + FR

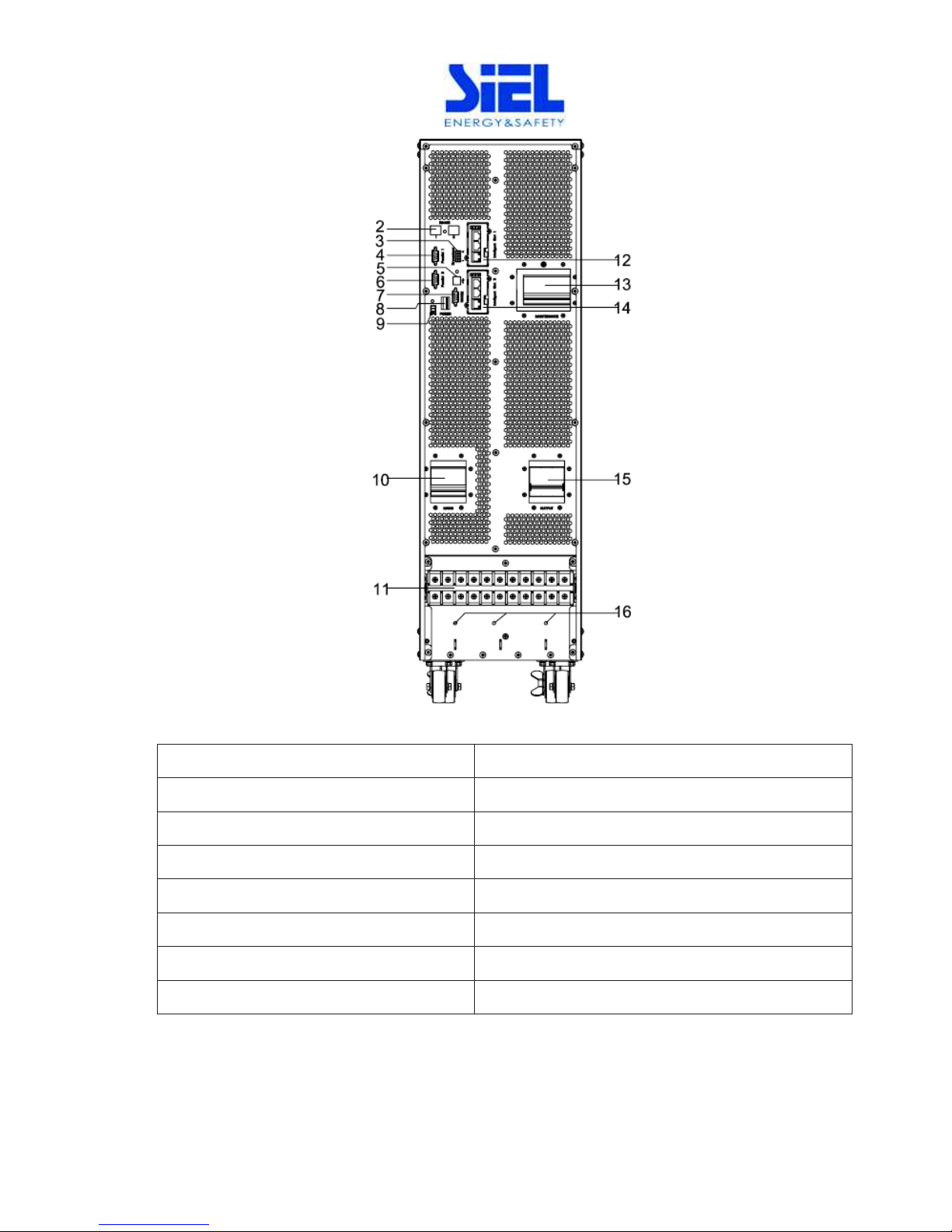

10-20kVA Rear View (terminal block without cover)
(1)
LCD panel
(2)
RS485 port
(3)
Dry contact port
(4)
Parallel port 1
(5)
USB port
(6)
Parallel port 2
(7)
RS232
(8)
Power Switch
(9)
REPO port
(10)
I/P Switch
(11)
Terminal block
(12)
Intelligent Slot
1 (SNMP card/ Relay card)
(13)
Maintenance switch & its cover
(14)
Intelligent Slot 2 (SNMP card/ Relay card)
(15)
O/P Switch
(16)
Ground

IV375E Rev.00
Installation and user manual
Date of issue : 2015-06-25
Page 13 of 65 + FR
30-40kVA Rear View (terminal block without cover)
(1)
LCD panel
(2)
Intelligent Slot
1 (SNMP card/ Relay card)
(3)
Intelligent Slot
2 (SNMP card/ Relay card)
(4)
Battery Power Switch
(5)
Dry contact port
(6)
USB port
(7)
RS485 port
(8)
REPO port
(9)
RS232
(10)
Parallel port
(11)
Maintenance switch & its cover
(12)
I/P Switch
(13)
O/P Switch
(14)
Terminal block for Input, output & battery
(15)
Ground

IV375E Rev.00
Installation and user manual
Date of issue : 2015-06-25
Page 14 of 65 + FR
3.3 LCD control panel
LCD control panel introduction
δ1εLEDδfrom top to bottom: “alarm”, “bypass”, “battery”, “inverter”炸δ2εLCD displayδ3ε
scroll button δ4εOff buttonδ5εOn button(battery cold start switch)
3.4 Installation notes
Note: Consider for the convenience of operation and maintenance, the space in
front and back of the cabinet should be left at least 100cm and 80cm respectively when
installing the cabinet.
ƹPlease place the UPS in a clean, stable environment, avoid the vibration, dust, humidity,
flammable gas and liquid, corrosive. To avoid from high room temperature, a system of room
extractor fans is recommended to be installed. Optional air filters are available if the UPS operates
in a dusty environment.
ƹThe environment temperature around UPS should keep in a range of 0ć40ć. If the
environment temperature exceeds 40ć, the rated load capacity should be reduced by 12ˁper
5ć. The max temperature can't be higher than 50ć.
ƹIf the UPS is dismantled under low temperature, it might be in a condensing condition. The
UPS can't be installed unless the internal and external of the equipment is fully dry. Otherwise,
there will be in danger of electric shock.
ƹBatteries should be mounted in an environment where the temperature is within the required
specs. Temperature is a major factor in determining battery life and capacity. In a normal
installation, the battery temperature is maintained between 15°C and 25°C. Keep batteries away
from heat sources or main air ventilation area, etc.
WARNING!
Typical battery performance data are quoted for an operating
temperature between 20°C and 25°C. Operating it above this range will
reduce the battery life while operation below this range will reduce the
battery capacity.
ƹShould the equipment not be installed immediately it must be stored in a room so as to
protect it against excessive humidity and or heat sources.
CAUTION!
An unused battery must be recharged every 6months Temporarily
connecting the UPS to a suitable AC supply mains and activating it for
the time required for recharging the batteries.
ƹThe highest altitude that UPS may work normally with full load is 1500 meters. The load

IV375E Rev.00
Installation and user manual
Date of issue : 2015-06-25
Page 15 of 65 + FR
capacity should be reduced when this UPS is installed in place whose altitude is higher than 1500
meters, shown as the following table:
(Load coefficient equals max load in high altitude place divided by nominal power of the UPS)
Altitude(
m
)
1500
2000
2500
3000
3500
4000
4500
5000
Load
coefficient
100%
95%
90%
85%
80%
75%
70%
65%
ƹThe UPS cooling is depending on fan, so it should be kept in good air ventilation area.
There are many ventilation holes on the front and rear, so they should not be blocked by any exotic
obstacles.
3.5 External Protective Devices
For safety reasons, it is necessary to install, external circuit breaker at the input A.C. supply and
the battery. This chapter provides guidelines for qualified installers that must have the knowledge of
local wiring practices for the equipment to be installed.
ƹExternal Battery
The UPS and its associated batteries are protected against the effect of over-current
through a DC compatible thermo-magnetic circuit-breaker (or a set of fuses) located close to
the battery.
ƹUPS Output
Any external distribution board used for load distribution shall be fitted with protective
devices that may avoid the risk of UPS overloaded.
ƹOver-current
Protection device shall be installed at the distribution panel of the incoming main supply. It
may identify the power cables current capacity as well as the overload capacity of the system.
CAUTION!
Select a thermo magnetic circuit-breaker with an IEC 60947-2 trip
curve C (normal) for 125% of the current as listed below.
3.6 Power Cables
ƹThe cable design shall comply with the voltages and currents provided in this section, Kindly
follow local wiring practices and take into consideration the environmental conditions (temperature
and physical support media) .
WARNING!
Upon starting. Please ensure that you are aware of the location and
operation of the external isolators which are connected to the UPS
input/bypass supply of the mains distribution panel. Check to see if
these supplies are electrically isolated. And post and necessary
warning signs to prevent any inadvertent operation.
ƹFor future expansion purpose, it is economical to install power cable according to the full rating
capacity initially. The diameter of cable is shown bellowφ

IV375E Rev.00
Installation and user manual
Date of issue : 2015-06-25
Page 16 of 65 + FR
UP
S
cabinet
Cable Dimension
AC Input
(mm
2
)
AC Output
(mm
2
)
DC Input
(mm
2
)
Grounding
(mm
2
)
10KVA
4
4
10
4
15KVA
6
6
16
6
20KVA
8
8
20
8
30kVA
12
12
35
8
40kVA
16
16
35
10
CAUTION!
Protective earth cable: Connect each cabinet to the main ground
system. For Grounding connection, follow the shortest route
possible.
WARNING!
Failure to follow adequate earthing procedures may result in
electromagnetic interference or in hazards involving electric shock
and fire
3.7 Power cable connect
Once the equipment has been finally positioned and secured, connect the power cables as
described in the following procedure.
Verify the UPS is totally isolated from its external power source and also all power isolators of the
UPS are open. Check to see if they are electrically isolated, and post any necessary warning signs to
prevent their inadvertent operation.
Remove the cover of terminals for wiring easily.

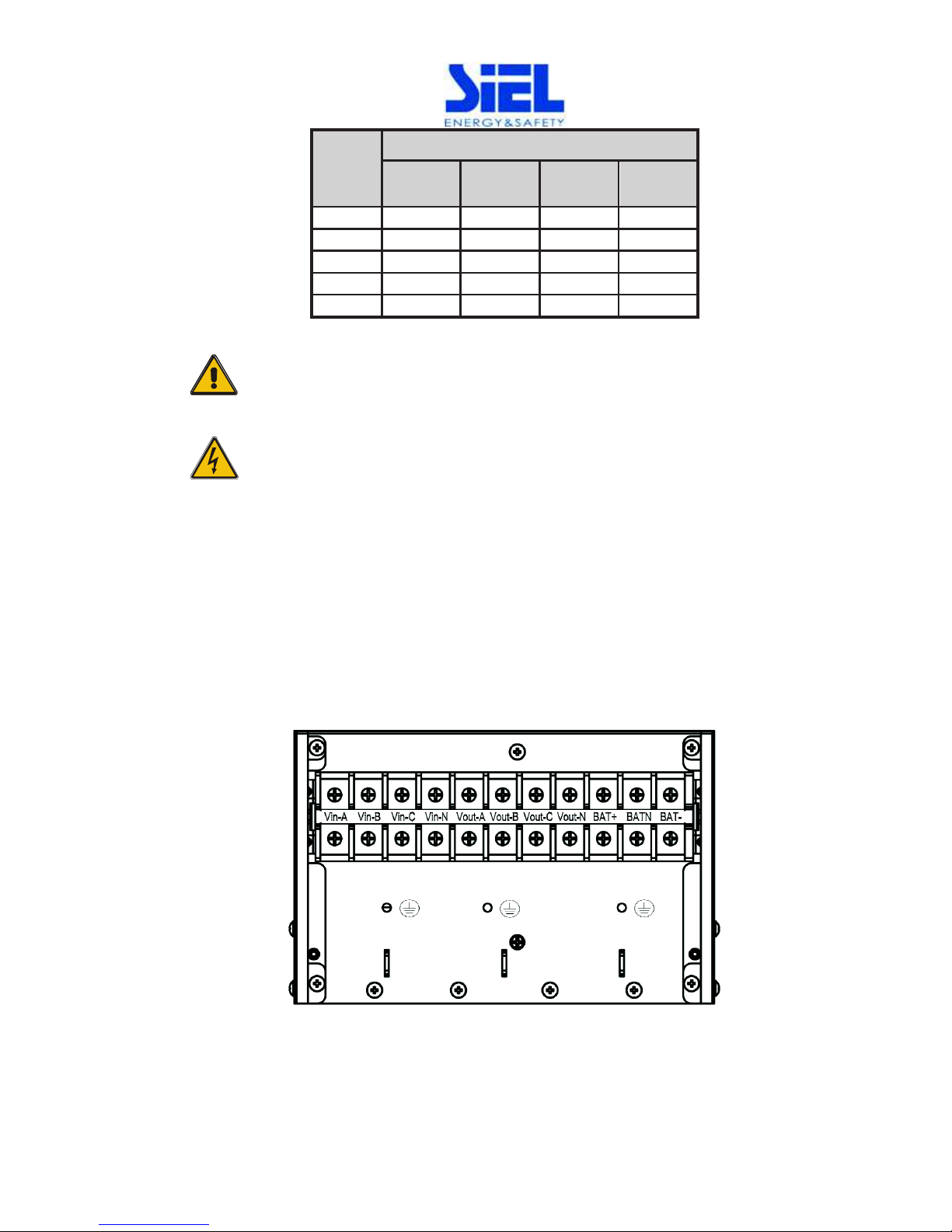

10-20kVA:
Terminal sequence from left to right: Input phase A(L1), input phase B(L2), input phase
C(L3), input Neutral line, output phase A(L1), output phase B(L2), output phase C(L3), output
Neutral line, battery positive, battery Neutral, battery negative. There are 3 connectors of
GROUND under the terminal block.

IV375E Rev.00
Installation and user manual
Date of issue : 2015-06-25
Page 17 of 65 + FR
30-40kVA:
Terminal sequence from left to right: Input phase A(L1), input phase B(L2), input phase
C(L3), input Neutral line, output phase A(L1), output phase B(L2), output phase C(L3), output
and battery Neutral line, battery positive, battery negative. There are 3 connectors of GROUND
under the terminal block.
Choose appropriate power cable. (Refer to the table above) and pay attention to the
diameter of the connection terminal of the cable that should be greater than or equal to that of
the connection poles;
WARNING!
If the load equipment is not ready to accept power on the
arrival of the commissioning engineer then ensure that the system
output cables are safely isolated at their ends
Connect the safety earth and any necessary bonding earth
cables to the copper earth screw located on the floor of the
equipment below the power connections. All cabinets in the UPS
must be grounded properly.
CAUTION!
The earthing and neutral bonding arrangement must be in
accordance with local and national codes of practice.

IV375E Rev.00
Installation and user manual
Date of issue : 2015-06-25
Page 18 of 65 + FR
3.8 Battery connection
10-30kVA:

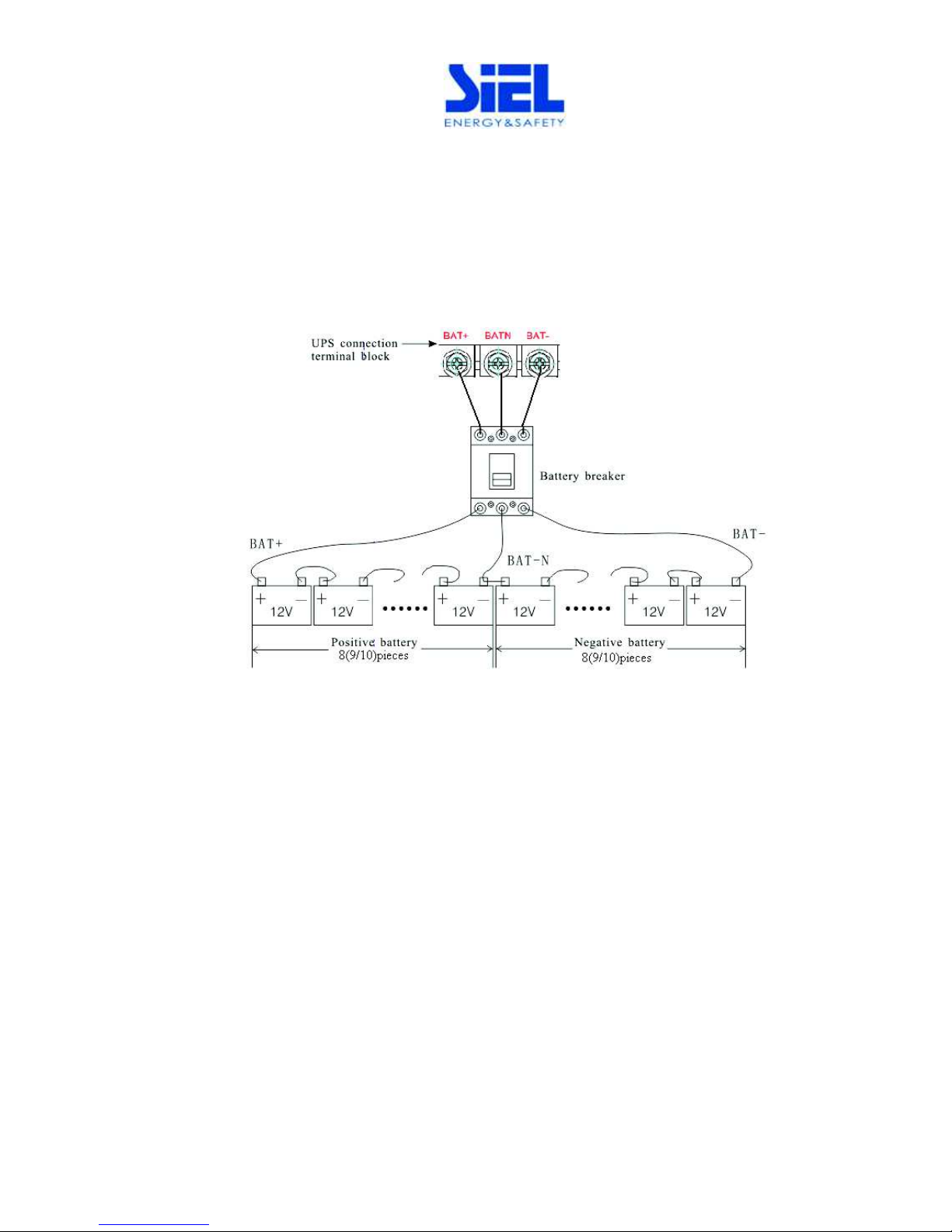

The UPS adopts positive and negative double battery framework, totally 16pcs (optional 18/20)
in series. A neutral cable is retrieved from the joint between the cathode of the 8th (9th/10th) and the
anode of the 9th (10th/11th) of the batteries. Then the neutral cable, the battery Positive and the battery
negative are connected with the UPS respectively. The battery sets between the Battery anode and
the neutral are called positive batteries and that between neutral and cathode are called negative
ones. The user can choose the capacity and the numbers of the batteries according to their desire.
External battery connections for long-run units.
40kVA:
The UPS adopts positive and negative double battery framework, totally 16pcs (optional 18/20)
in series. A neutral cable is retrieved from the joint between the cathode of the 16th (17th/18th/19th/20 th)
and the anode of the 17th (18th/19th/20th/21th) of the batteries. Then the neutral cable, the battery
Positive and the battery negative are connected with the UPS respectively. The battery sets between
the Battery anode and the neutral are called positive batteries and that between neutral and cathode
are called negative ones. The user can choose the capacity and the numbers of the batteries
according to their desire.
External battery connections for long-run units.
