Siemens MFI User manual

Access Control
SiPass integrated
Multi Function Interface (MFI)
Technical Manual
MP 2.80
A6V12068740
Smart Infrastructure
2020-09-07

Copyright
2 | 18
A6V12068740
2020-09-07
Copyright
Technical specifications and availability subject to change without notice.
We reserve all rights in this document and in the subject thereof. By
acceptance of the document the recipient acknowledges these rights and
undertakes not to publish the document nor the subject thereof in full or in
part, nor to make them available to any third party without our prior express
written authorization, nor to use it for any purpose other than for which it was
delivered to him.
Edition: 2020-09-07
Document ID: A6V12068740
© Siemens Switzerland Ltd, 2020

A6V12068740
2020-09-07
3 | 18
Table of Contents
1 Product description......................................................................................5
2 Technical Specifications .............................................................................6
3 Multi-Function Interface Module ...............................................................7
3.1 Description of Numbered Items in the Diagram...............................................7
4 Scope of delivery ..........................................................................................9
5 Installation...................................................................................................10
6 Connections and LEDs ..............................................................................11
6.1 Connections related to Doorset ........................................................................ 11
6.2 OSDP Reader wiring............................................................................................ 12
6.3 Wiring of monitored input................................................................................... 12
6.4 LEDs ....................................................................................................................... 12
7 Configuration and Firmware download...................................................14
8 Cable Specifications ..................................................................................15
9 Addendum ...................................................................................................16

Product description
1
A6V12068740
2020-09-07
5 | 18
1Product description
The MFI is a Multi-Function Interface module that can be configured as reader
interface or IO (input and output) module. It provides an interface between an
(ACC AP) and up to eight OSDP readers and four doors.

Technical Specifications
2
6 | 18
Restricted
A6V12068740
2020-09-07
2Technical Specifications
Electrical
Power Supply
●20 - 29 V DC
●1Vpp ripple
Power Consumption
116 mA @ 24V DC:
No relays activated, and no inputs connected to MFI.
183 mA @ 24V DC:
All relays active, inputs double balanced.
193 mA @ 24V DC:
All relays active, inputs current loop.
Inputs
Up to 8 Monitored inputs are used for Door position sensor inputs
and REX inputs with MFI configured in Door Controller mode.
These 8 inputs can be used as general input points with MFI
configured in input-output controller mode.
Relay outputs
8 relay outputs,
max 30 V DC , 2A
Open Collector Outputs
3 Open Collector Outputs, Max load 0.5A
Reader Connections
Supports maximum up to 8 OSDP Readers with OSDP V1 and OSDP
V2 encryption.
Power output
12V DC, max 500mA protected by firmware controlled e-fuse
Can be used to connect readers or any other load, but restricted to
500mA overall current output.
24V DC, max 1500mA protected by firmware controlled e-fuse
Can be used to connect readers or any other load, but restricted to
1500mA overall current output.
24V DC, max current restricted by MFI power supply capability
Can be used for powering door locks. However, it is not suggested
for powering readers as there is no firmware controlled fuse to
detect over current draw.
Temperature range
- 40 C to +55 C
Dimensions
(W × H × D)
239 × 156 × 53 mm
Weight
630 grams
Tamper switch
Opening tamper switch and removal tamper switch
Environmental class
II, IEC 60839 -11-1

Multi-Function Interface Module
Description of Numbered Items in the Diagram
3
A6V12068740
2020-09-07
7 | 18
3Multi-Function Interface Module
Figure 1: Multi-Function Interface Module
3.1 Description of Numbered Items in the Diagram
Following are the numbered items and their descriptions:
Item
Number
Description
1
OSDP Card reader port:
RS485 communication + 12V output .
To source power from this port to the readers, a jumper setting is required.
(Refer item 8 in this table)
2
12V, 200mA output
Can be used for any load.
3
OC 1, 2, 3 - Open Collector Outputs.
Can be used to connect any custom load, that is, either powered from MFI board or
powered externally.
(Refer Section 9 Addendum)
4a
Enable/disable EOL for Reader communication port (J500).
Jumper on the two upper pins –EOL ON.
Jumper on the two lower pins –EOL OFF.
4b
Reader type selector
Only OSDP protocol is supported by default (no jumper required).
5
Opening tamper switch
Detects if the lid is removed.
6
Not used

Multi-Function Interface Module
Description of Numbered Items in the Diagram
3
8 | 18
Restricted
A6V12068740
2020-09-07
Item
Number
Description
7
Status LEDs
●Yellow: E –fuse 12 V
●Red: Error
●Orange: Communication
●Yellow: E- fuse V OUT
●Green: Power
Refer section 6.4 LEDs for a complete list of LED functional assignments.
8
Reader power selector (J501)
READER + will be 12V if the jumper is placed over the two lower pins. This selection
will limit the reader current to 500mA shared with 12V port.
(Refer item 17 in this table)
READER + will be same as V IN if the jumper is placed over the two upper pins. This
selection will limit the reader current to 1500mA , if V IN is 24V. 1500mA current with
this selection will be shared with load on 12V port (Refer item 17 in this table) and
load on V OUT port (Refer item 14 in this table).
9
Reset button
Factory reset.
10
Input LEDs
Indicates the status of the inputs.
11
Output LEDs
Light up when the output relays are active.
12
Master communication FLN port (RS485 port 2 –2A & 2B) EOL enable/disable jumper
(J503)
- EOL enabled condition
13
Voltage input
V IN –Power supply 24 V DC +/- 10% 1Vpp ripple
14
V OUT
An electronically fused power output that follows V IN. Max current delivery - 1.5A.
Current on this output is shared with READER power output port.
15
Master COMMS FLN port
RS485 bus Connection to ACC AP - 2A and 2B is used for FLN communication.
Note: 1A, 1B not used.
16
Removal tamper
Detects if the MFI is removed from the wall, provided that the screw is mounted.
17
12V output, max 500mA - shared with the reader when the power supply of 12V is
used.
(Refer item 8 in this table).
18 - 21
Input Channels
IN 1, 3, 5, 7 - Request to exit input (REX)
IN 2, 4, 6, 8 - Door contact
22 - 29
Relay outputs
RLY 1, 2, 3, 4 - Door lock / strike relay driven output
RLY 5, 6, 7, 8 - Auxiliary Relay Outputs

Scope of delivery
4
A6V12068740
2020-09-07
Restricted
9 | 18
4Scope of delivery
1 x MFI board with required resisters and jumpers.
1 x installation manual English.

Installation
5
10 | 18
Restricted
A6V12068740
2020-09-07
5Installation
Required tools & material
●Medium-duty drill and associated drill-bits
●4 mounting screws or standoffs (approx. 4 mm)
●Flat-blade terminal screwdriver
●Wire cutters
●Cable strippers
Expected installation time
30 minutes
Mounting instructions
1. Remove the MFI from its carton and discard the packaging material.
2. Place the MFI against the surface to which it is to be affixed and mark the
location of the mounting holes. We recommend mounting the MFI within a
cabinet.
It is recommended that you affix the MFI at all four of the mounting
locations provided.
WARNING
Type and source of hazard
Do not apply power to the MFI or associated components at this stage.
3. Select the appropriate drill bit according to the mounting surface / hole size
and drill the holes in the locations marked (if required).
4. Connect the cabling to the MFI PCB. Refer Section 6: Connections and
LEDs. Open the top cover before connecting cables and close after
connections done.
5. Apply power to the MFI and test its operation. This step may require
installation and programming of the access control host software and
download of the firmware instruction set. Alternatively, the firmware and
configuration may be carried out using the FLN Field Service Tool Version
2.5.3 or later.

Connections and LEDs
Connections related to Doorset
6
A6V12068740
2020-09-07
Restricted
11 | 18
6Connections and LEDs
6.1 Connections related to Doorset
It is recommended that you wear a grounding strap while carrying out this
procedure.
1. Connect OSDP readers to the appropriate READER port of MFI. Up to 8
OSDP readers can be connected.
Each reader must be wired correctly. Refer Section 6.2 OSDP Reader wiring.
The total resistance for each reader cable must not exceed 16.8 Ohms.
2. If required, connect the Request to Exit (REX) switch (e.g. door opener
button) to the appropriate REX input on the MFI.
3. If required, connect each door contact (door monitor) to the appropriate
D/C input port on the MFI. For example, connect the contact for Door 1.
Resistors must be connected to the wiring for each input device (this applies
to all inputs), if they are to be monitored. Refer Section 6.3 Wiring of
monitored input.
The total cable run resistance must not exceed 100 Ohms.
4. Connect each door lock to the appropriate RELAY OUT port on the MFI.
Access doors can only be connected to output relays that are controlled by
readers. (RELAY number 1-4)
5. For example, connect the lock for door 1 to the “RELAY1 OUT” connection
on the MFI. Ensure that the power supply used to drive the lock is
sufficiently rated.
6. Connect any auxiliary output devices to the AUX OUT ports (RELAY
number 5-8) on the MFI.
7. Connect any load device to the Open Collector output if required.
8. Connect the FLN wires (from the ACC-AP) to the FLN RS485 (COMM 2A
and 2B) port of MFI.
9. Connect the Power Supply Unit (PSU) to the V IN port. Ensure the polarity
of the connection is made correctly.
10. Check all jumpers.
11. Check all connections thoroughly, including the polarity of each connection.
Once you have verified all connections power can be applied to the MFI.

Connections and LEDs
OSDP Reader wiring
6
12 | 18
Restricted
A6V12068740
2020-09-07

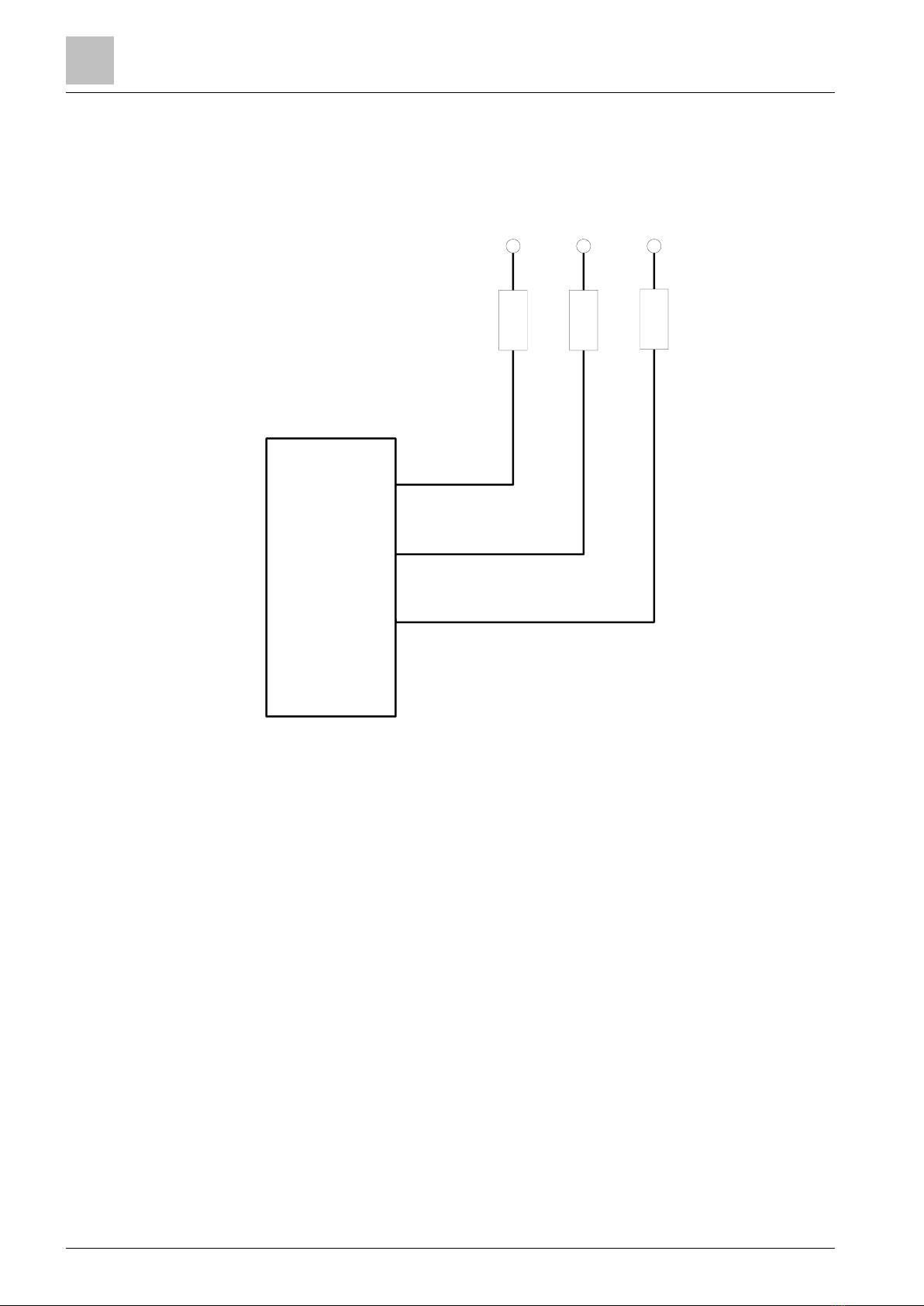

6.2 OSDP Reader wiring
Reader connection via OSDP with or without encryption. The readers should be
connected to the appropriate terminal blocks (A, B, -, +) of the READER port
Mapping from MFI board to the Reader ports.

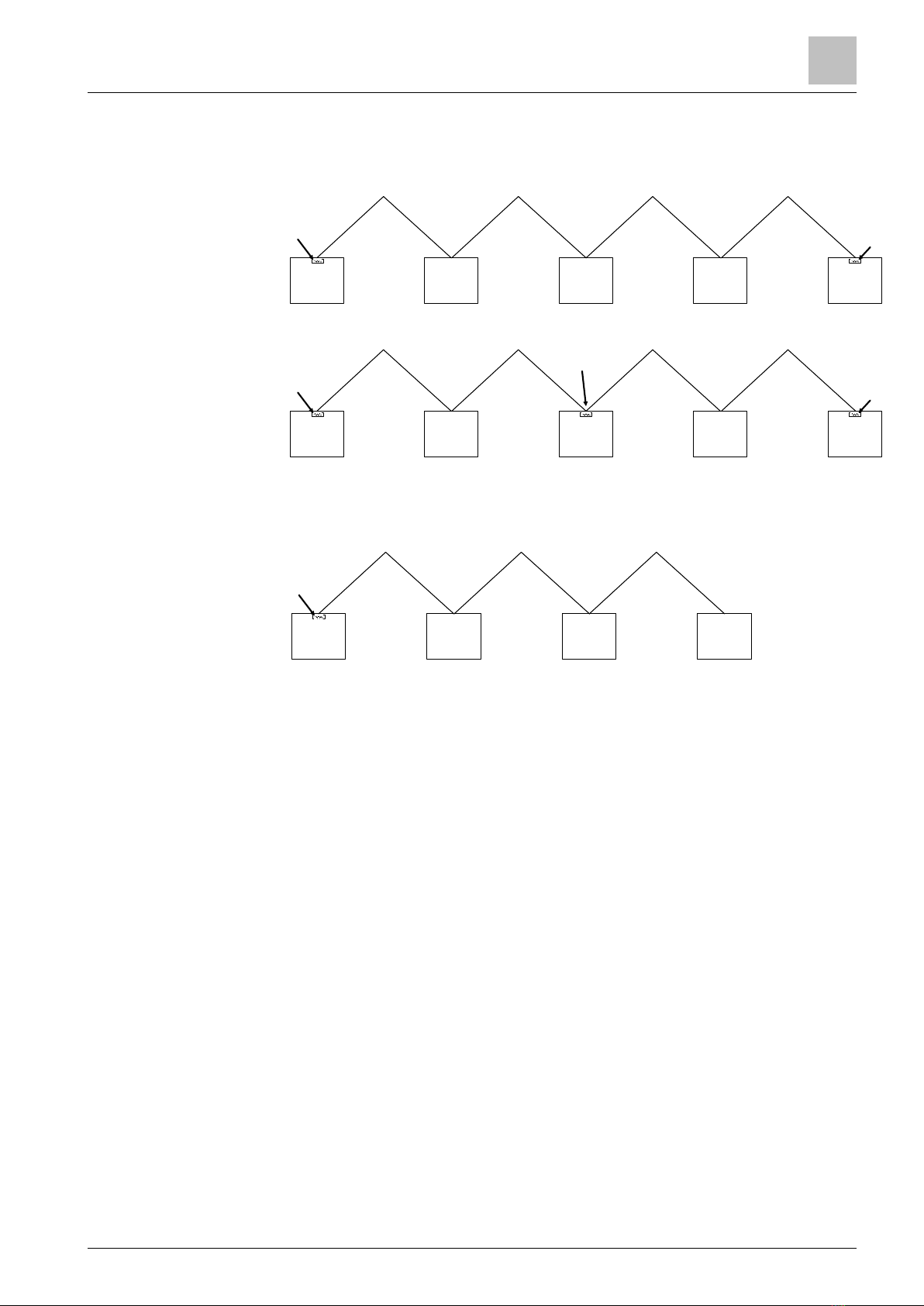

Up to 8 OSDP readers can be daisy chained (from one reader to another) on the
same connection.
Labels on
MFI board
A
B
-
+
Labels on the
Reader ports
(HID,
Vanderbilt
Readers)
GPIO 1
A
GPIO 2
B
GND
-
+VDC
+

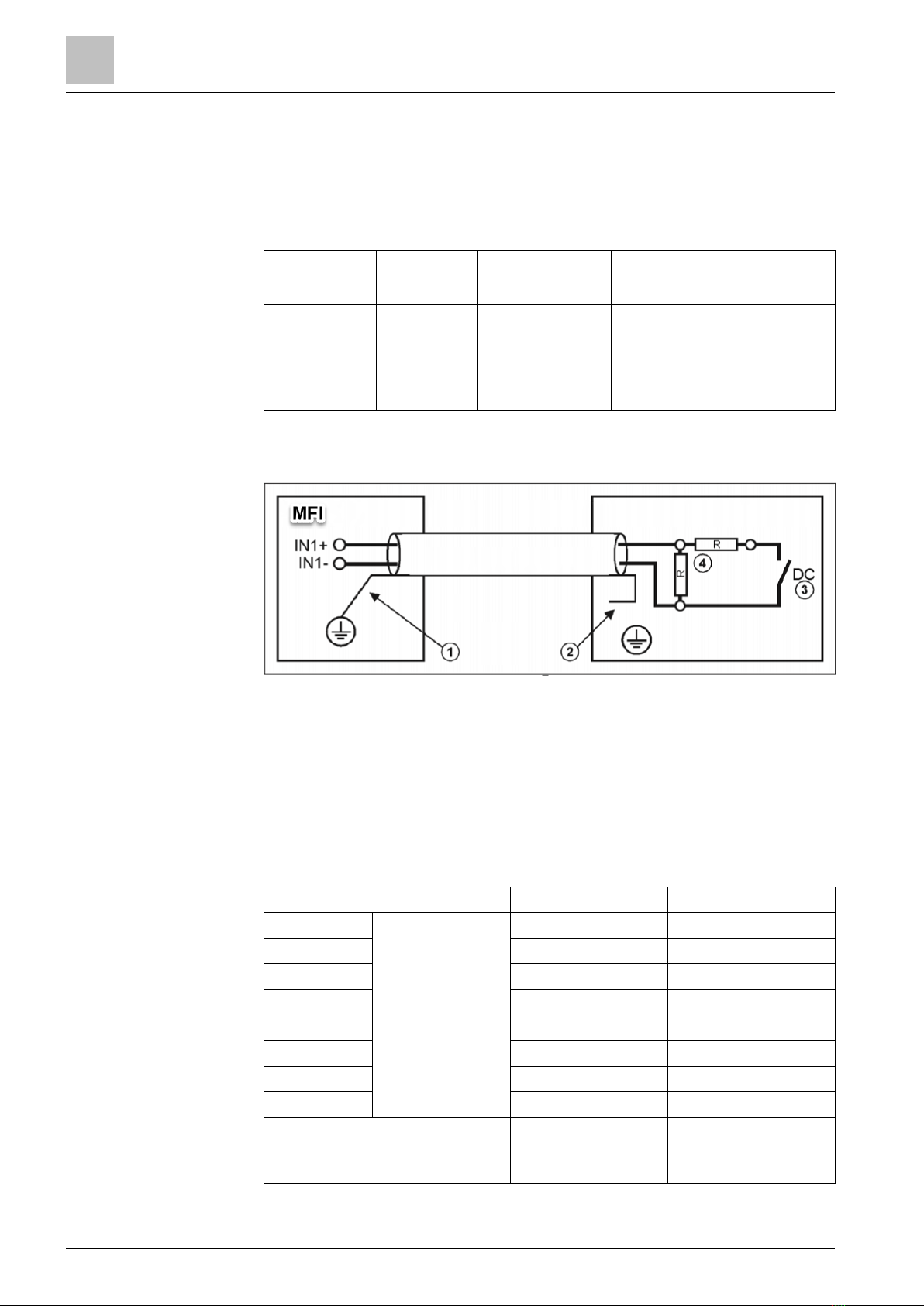

6.3 Wiring of monitored input
1. Connect the shielding to the housing earth.
2. Insulate the shielding at the input (e.g. door contact), do not connect it.
3. DC: door contact
4. R: terminating resistors each 22 kOhm
6.4 LEDs
LED function
Name on the board
Color of LED
RLY 1
Status LEDs
Indicates
activated/deactivated
H715
White
RLY 2
H716
White
RLY 3
H717
White
RLY 4
H718
White
AUX OUT 1
H719
White
AUX OUT 2
H720
White
AUX OUT 3
H721
White
AUX OUT 4
H722
White
INPUT status LEDs
H700 to H707
Red (During tamper)
Green (Normal)
Orange (Alarm)

Connections and LEDs
LEDs
6
A6V12068740
2020-09-07
Restricted
13 | 18
FLN Comm status LED
The LED flashes to indicate
communication between ACC-AP and
MFI.
H712
Orange
Power status LED
H713
Green
Firmware status LED
LED blinking quickly: Firmware must be
downloaded (device running bootloader).
LED blinking slowly (approx. once per
sec): Indicates that firmware is already
downloaded
H711
Green
Unassigned LED
H712

Configuration and Firmware download
7
14 | 18
Restricted
A6V12068740
2020-09-07
7Configuration and Firmware download
The MFI is configured using SiPass Configuration client, through the ACC-AP
AP01P, or using the ACC and FLN Field Service Tool. Refer to the Controller
and Device Installation Guide for more Information.

Cable Specifications
8
A6V12068740
2020-09-07
Restricted
15 | 18
8Cable Specifications
Communication
Type
Recommended Cable Specifications
Cores
Pairs
AWG
Cores
J-Y(St)Y
Diameter
(mm)
Wire
Type
Insulation
Shield
Jacket
RS-485
4
2
28
7 x 36
0.6
Tinned
Copper
Foam
Polyethylene
Aluminium
foil -
Polyester
tape /
braided
shield
PVC
6
3
8
4
6
3
8
4
6
3
8
4
8
4
24
7 x 32
0.6
Tinned
Copper
8
4
24
7 x 32
0.6
Tinned
Copper
Power (12/24
V DC)
2
1
18
19 x
30
1.0
Tinned
Copper
Foam
Polyethylene
Unshielded
PVC

Addendum
9
16 | 18
Restricted
A6V12068740
2020-09-07
9Addendum
(A)Using OC outputs of MFI
MFI’s open collector outputs can be used as depicted below:
OC 1, OC 2, OC 3 points will be grounded, if they are activated from MFI to
trigger current flow through the load(s).
External power or one of MFI’s power output ports can be used for powering
load on OC points. This implies that the following options are available for
driving load on OC points.
●MFI 12V output
●MFI GL12V output
●MFI VOUT output
●External power
If MFI power output ports are used to power load on OCs, overall current usage
shall not exceed the limits (discussed in section 3.1) for each of the output port,
considering other loads that needs to be connected such as readers, door
latches and so on.
(B)EOL terminations
EOL resisters shall be enabled on MFI’s and AP’s if the cable length exceeds 20
meters.
To enable EOL on MFI’s ACC-AP connection port (Refer section 3.1
Description of Numbered Items in the Diagram - Item Number 12)
To enable EOL on MFI’s reader connection port (Refer section 3.1 Description
of Numbered Items in the Diagram - Item Number 4a)
To enable EOL on ACC-AP’s MFI communication port (Refer ACC-AP
Technical Manual)
MFI
Load
1
Load
2
Load
3
VVV
Voltage input
OC 1
OC 2
OC 3

Addendum
9
A6V12068740
2020-09-07
Restricted
17 | 18
With multiple MFIs connected to ACC-AP, EOL must be enabled on ACC-AP
and at the last MFI (on the line), if overall cable length between ACC-AP and
last MFI exceeds 20m.
Sample wiring between ACC-AP and MFIs:
ACC-AP MFI MFI MFI MFI
EOL EOL
MFI MFI ACC-AP MFI MFI
EOL EOL
EOL
With readers connected to MFI, EOL resister must be enabled on MFI if cable
length exceeds 20m.
Sample wiring between MFI and readers:
MFI Reader1 Reader2 Reader 3 ………………………
………………………
………………………
Up to 8
readers
EOL
Note: If Vanderbilt NGCR Readers like VR40S-MF, VR10S-MF are used - EOL
must always be enabled on MFI.

A6V12068740
2020-09-07
Technical Manual
Issued by
Siemens Switzerland Ltd
Smart Infrastructure
Global Headquarters
Theilerstrasse 1a
CH-6300 Zug
[phone]
www.siemens.com/buildingtechnologies
© Siemens Switzerland Ltd, 2020
Technical specifications and availability subject to change without notice.
