Siemens SIMATIC ET 200SP User manual

Communication module CM DP
(6ES7545-5DA00-0AB0)
___________________
___________________
___________________
___________________
___________________
___________________
___________________
___________________
SIMATIC
ET 200SP
Communication module CM DP
(6ES7545-5DA00-0AB0)
Manual
12/2014
A5E33619758-AB
Preface
ET 200SP Documentation
Guide
1
Product overview
2
Wiring
3
Programming
4
Diagnostics, error and
system alarms
5
Technical specifications
6
Dimension drawing
A

Siemens AG
Division Digital Factory
Postfach 48 48
90026 NÜRNBERG
GERMANY
A5E33619758-AB
Ⓟ12/2014 Subject to change
Copyright © Siemens AG 2014.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury
will
result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury
may
result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified
for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

Communication module CM DP (6ES7545-5DA00-0AB0)
4Manual, 12/2014, A5E33619758-AB
Preface
Purpose of the documentation
This manual supplements the system manual ET 200SP distributed I/O system
(http://support.automation.siemens.com/WW/view/en/58649293).
Functions that generally relate to the system are described in this system manual.
The information provided in this manual and in the system/function manuals supports you in
commissioning the ET 200SP distributed I/O system.
Conventions
STEP 7: In this documentation, "STEP 7" is used as a synonym for all versions of the
configuration and programming software "STEP 7 (TIA Portal)".
Please also observe notes marked as follows:
Note
A note contains important information on the product described in the documentation, on the
handling of the product or on the section of the documentation to which particular attention
should be paid.
Security information
Siemens provides products and solutions with industrial security functions that support the
secure operation of plants, solutions, machines, equipment and/or networks. They are
important components in a holistic industrial security concept. With this in mind, Siemens’
products and solutions undergo continuous development. Siemens recommends strongly
that you regularly check for product updates.
For the secure operation of Siemens products and solutions, it is necessary to take suitable
preventive action (e.g. cell protection concept) and integrate each component into a holistic,
state-of-the-art industrial security concept. Third-party products that may be in use should
also be considered. You can find more information about industrial security on the Internet
(http://www.siemens.com/industrialsecurity).
To stay informed about product updates as they occur, sign up for a product-specific
newsletter. You can find more information on the Internet
(http://support.automation.siemens.com).

Communication module CM DP (6ES7545-5DA00-0AB0)
Manual, 12/2014, A5E33619758-AB 5
Table of contents
Preface ................................................................................................................................................... 4
1 ET 200SP Documentation Guide............................................................................................................. 6
2 Product overview .................................................................................................................................... 8
2.1 Properties..................................................................................................................................8
2.2 Operating and display elements .............................................................................................11
3 Wiring ................................................................................................................................................... 12

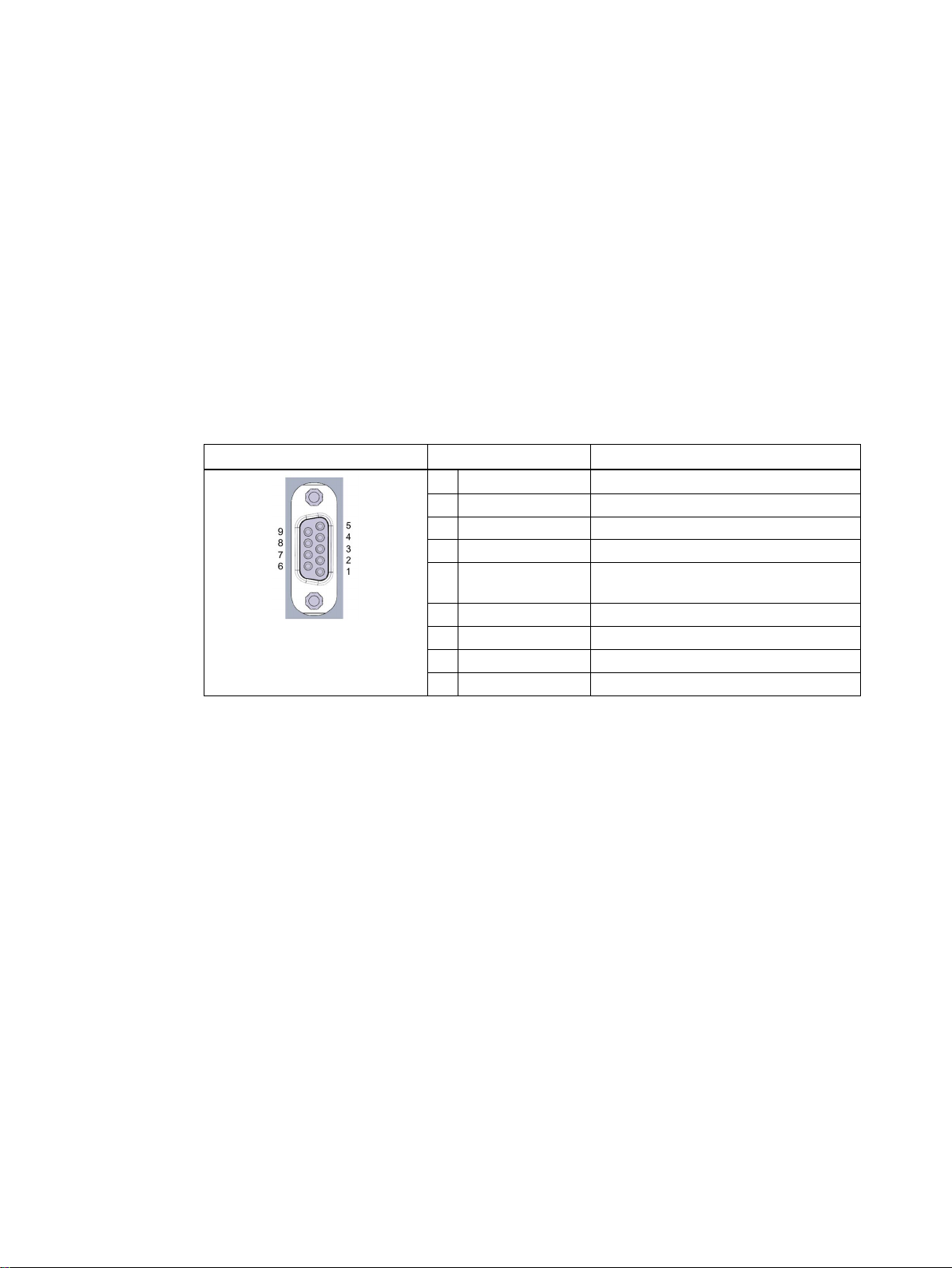

3.1 Pin assignment .......................................................................................................................12

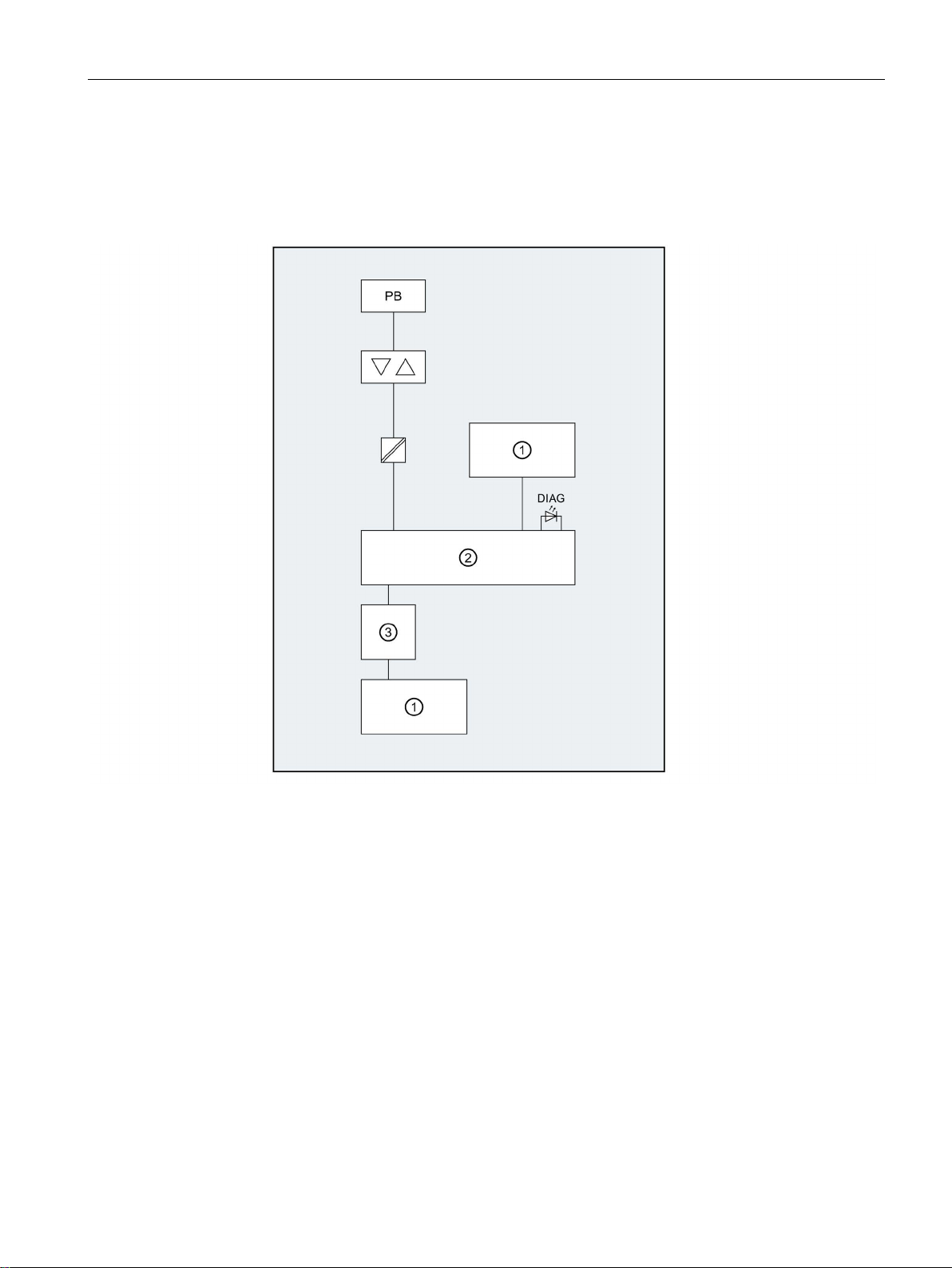

3.2 Block diagram .........................................................................................................................13
4 Programming ........................................................................................................................................ 14
5 Diagnostics, error and system alarms.................................................................................................... 16
5.1 Status and error displays ........................................................................................................16
5.2 DP slave diagnostics...............................................................................................................18
5.3 Standard diagnostics ..............................................................................................................20
5.4 Device-specific diagnostics with DP-V1..................................................................................22
6 Technical specifications ........................................................................................................................ 25
6.1 Technical specifications ..........................................................................................................25
A Dimension drawing ............................................................................................................................... 28
A.1 Dimension drawing of the CM DP communication module ....................................................28

Communication module CM DP (6ES7545-5DA00-0AB0)
6Manual, 12/2014, A5E33619758-AB
ET 200SP Documentation Guide
1

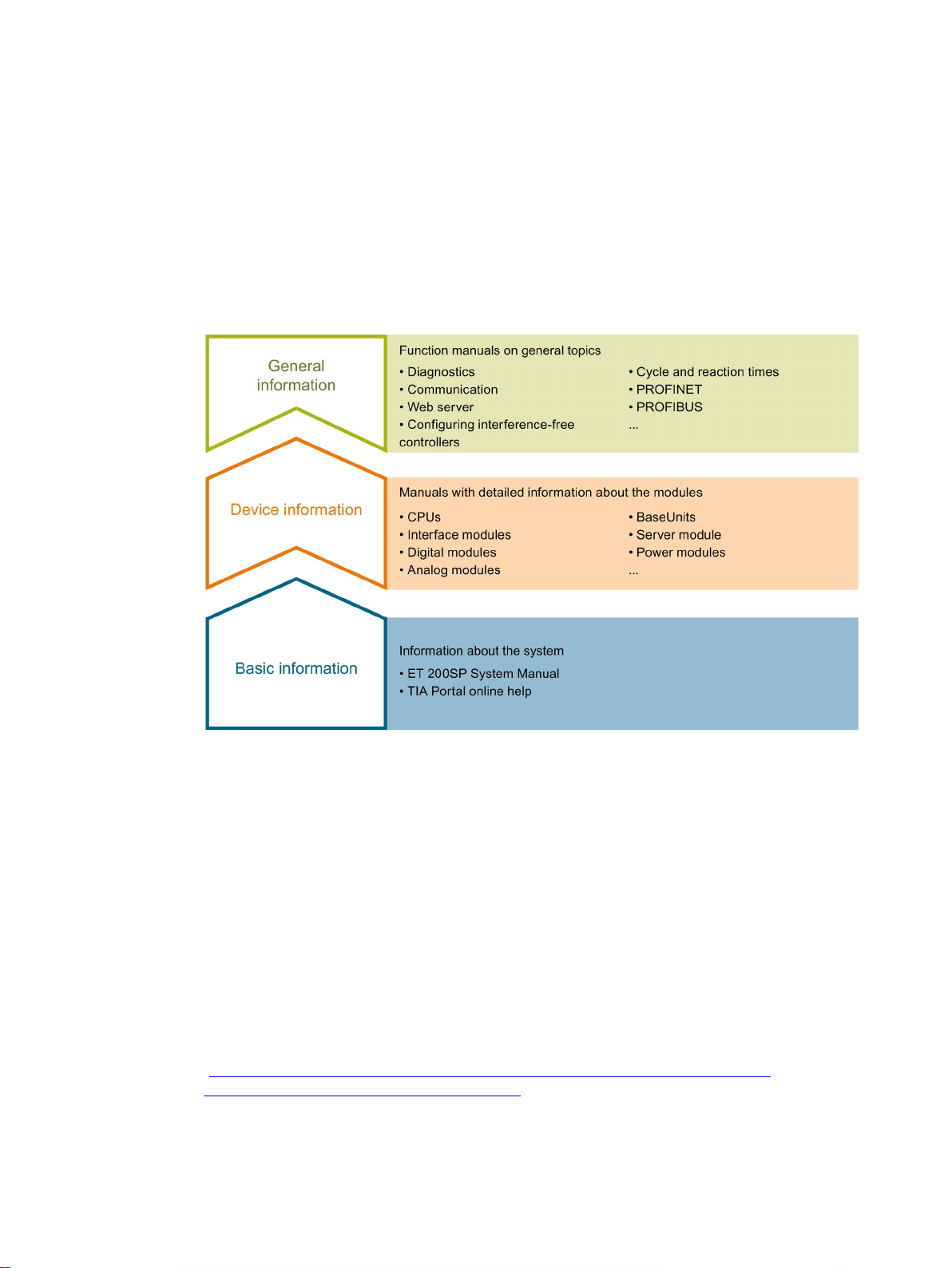

The documentation for the SIMATIC ET 200SP distributed I/O system is arranged into three
areas.
This arrangement enables you to access the specific content you require.
Basic information
The system manual describes in detail the configuration, installation, wiring and
commissioning of the SIMATIC ET 200SP. distributed I/O system. The STEP 7 online help
supports you in the configuration and programming.
Device information
Product manuals contain a compact description of the module-specific information, such as
properties, terminal diagrams, characteristics and technical specifications.
General information
The function manuals contain detailed descriptions on general topics regarding the SIMATIC
ET 200SP distributed I/O system, e.g. diagnostics, communication, Web server, designing
interference-free controllers.
You can download the documentation free of charge from the Internet
(http://w3.siemens.com/mcms/industrial-automation-systems-simatic/en/manual-
overview/tech-doc-et200/Pages/Default.aspx).
Changes and supplements to the manuals are documented in a Product Information.

ET 200SP Documentation Guide
Communication module CM DP (6ES7545-5DA00-0AB0)
Manual, 12/2014, A5E33619758-AB 7
Manual Collection ET 200SP
The Manual Collection contains the complete documentation on the SIMATIC ET 200SP
distributed I/O system gathered together in one file.
You can find the Manual Collection on the Internet
(http://support.automation.siemens.com/WW/view/en/84133942).
My Documentation Manager
The My Documentation Manager is used to combine entire manuals or only parts of these to
your own manual.
You can export the manual as PDF file or in a format that can be edited later.
You can find the My Documentation Manager on the Internet
(http://support.automation.siemens.com/WW/view/en/38715968).
Applications & Tools
Applications & Tools supports you with various tools and examples for solving your
automation tasks. Solutions are shown in interplay with multiple components in the system -
separated from the focus in individual products.
You can find Applications & Tools on the Internet
(http://support.automation.siemens.com/WW/view/en/20208582).
CAx Download Manager
The CAx Download Manager is used to access the current product data for your CAx or CAe
systems.
You configure your own download package with a few clicks.
In doing so you can select:
●Product images, 2D dimension drawings, 3D models, internal circuit diagrams, EPLAN
macro files
●Manuals, characteristics, operating manuals, certificates
●Product master data
You can find the CAx Download Manager on the Internet
(http://support.automation.siemens.com/WW/view/en/42455541).
TIA Selection Tool
With the TIA Selection Tool, you can select, configure and order devices for Totally
Integrated Automation (TIA).
This tool is the successor of the SIMATIC Selection Tool and combines the known
configurators for automation technology into one tool.
With the TIA Selection Tool, you can generate a complete order list from your product
selection or product configuration.
You can find the TIA Selection Tool on the Internet
(http://w3.siemens.com/mcms/topics/en/simatic/tia-selection-tool).

Communication module CM DP (6ES7545-5DA00-0AB0)
8Manual, 12/2014, A5E33619758-AB
Product overview
2
2.1
Properties
Article number
6ES7545-5DA00-0AB0
View of the module

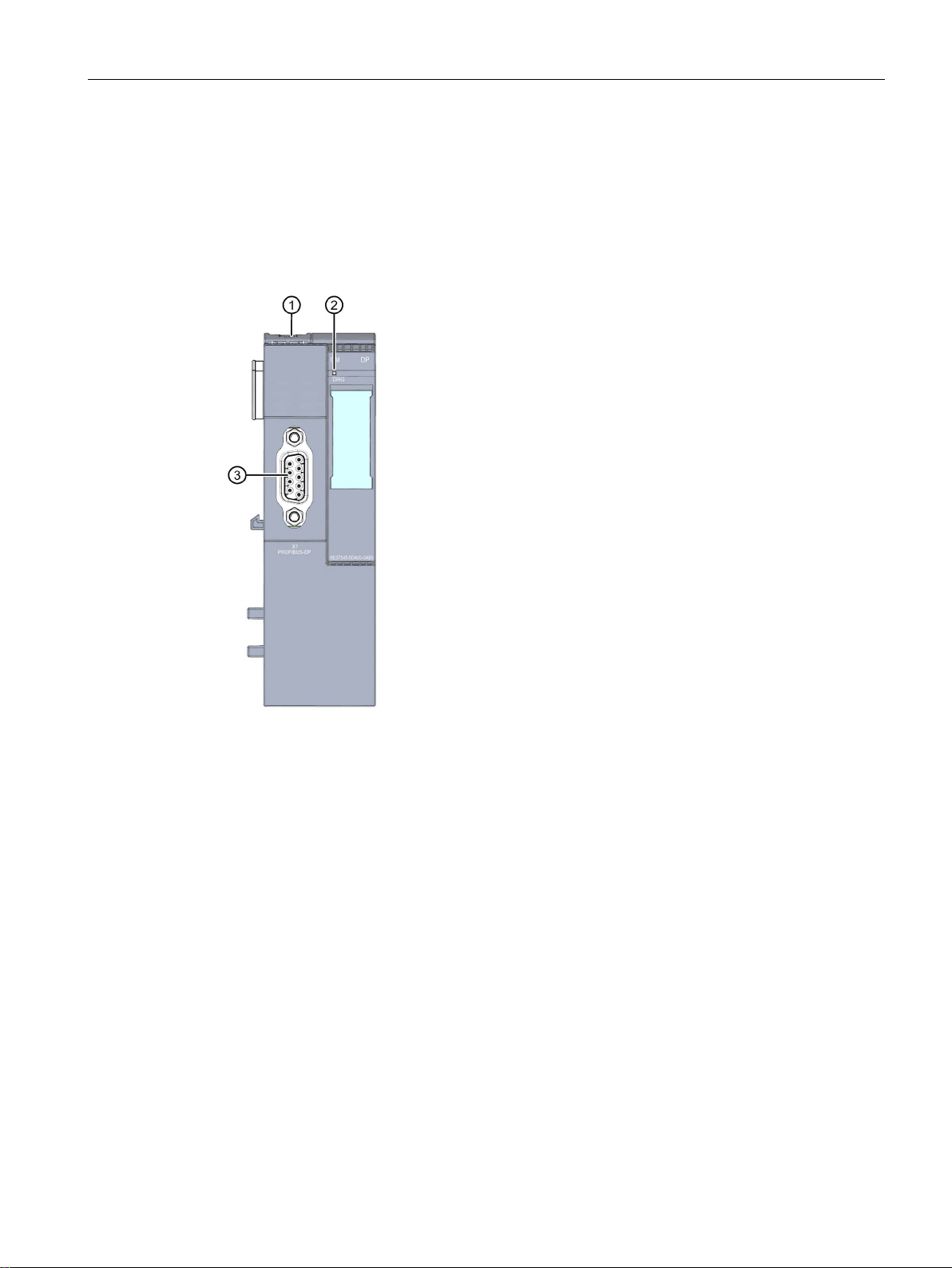

Figure 2-1 View of the CM DP communication module

Product overview
2.1 Properties
Communication module CM DP (6ES7545-5DA00-0AB0)
Manual, 12/2014, A5E33619758-AB 9
Properties
The communication module CM DP can be used with the ET 200SP CPUs. You insert the
communication module to the right next to the CPU.
The communication module has the following properties:
●Technical properties
–Connects the CPU of the ET 200SP distributed I/O system with PROFIBUS DP
–Bus connection via RS485 interface
●Supported functions
–Operation as DP master or DP slave
–Enable/disable DP slave
–Diagnostics requirements
–Identify the bus topology in a DP master system
–Identification data I&M 0
–Time-of-day synchronization
–Line diagnostics
–S7 services
Supported communication services
The communication module supports the following communication services:
●PROFIBUS DP-Master, as of STEP 7 V13, Update 3
–PROFIBUS DP according to IEC 61158 and 61784 DPV1, DP master for DP slaves
according to PROFIBUS DP and DPV1 standard
●PROFIBUS DP slave, as of STEP 7 V13, SP1
–PROFIBUS DP according to IEC 61158 and 61784 DPV1, DP slave and I-slave
Note
DP master or DP slave
Note however: The CM DP only supports alternative operation as DP master or DP slave.

Product overview
2.1 Properties
Communication module CM DP (6ES7545-5DA00-0AB0)
10 Manual, 12/2014, A5E33619758-AB
Maximum configuration as DP Master
Table 2- 1 General characteristics of DP mode
Feature
Explanation/values
Number of operable DP slaves 125
Max. size of the input area over all DP slaves 8 KB
Max. size of the output area via all DP slaves 8 KB
Maximum number of inputs per DP slave 244 bytes
Maximum number of outputs per DP slave 244 bytes
Max. size of the consistency area for a module 128 bytes
Note
Setting the PROFIBUS DP address on the communication module CM DP
The communication module CM DP does not have a DIP switch. You set the PROFIBUS DP
address via STEP 7 (TIA Portal). You can find more information on this topic in the STEP 7
online help.
Accessories
A detailed list of the available accessories can be found in the system manual ET 200SP
distributed I/O system (http://support.automation.siemens.com/WW/view/en/58649293).
Additional information
You can obtain detailed information on the topic of PROFIBUS in the function manual
PROFIBUS (http://support.automation.siemens.com/WW/view/de/59193579/0/en)

Product overview
2.2 Operating and display elements
Communication module CM DP (6ES7545-5DA00-0AB0)
Manual, 12/2014, A5E33619758-AB 11
2.2
Operating and display elements
Operating and connection elements
The following figure shows the operating and connection elements of the CM DP
communication module.
①
Mounting rail release
②
DIAG LED
③
DP interface
Figure 2-2 Operating and display elements of the communication module CM DP

Communication module CM DP (6ES7545-5DA00-0AB0)
12 Manual, 12/2014, A5E33619758-AB
Wiring
3
3.1
Pin assignment
PROFIBUS DP with RS485 interface
The following table shows the signal names and the designations of the pin assignment for
the PROFIBUS DP interface.
Table 3- 1 Pin assignment PROFIBUS DP with RS485 interface
View
Signal name
Designation
1 - -
2 - -
3 RxD/TxD-P Data line B
4 RTS Request To Send
5 M5V2 DP data reference potential
(from station)
6 P5V2 Supply plus (from station)
7 - -
8 RxD/TxD-N Data line A
9 - -

Wiring
3.2 Block diagram
Communication module CM DP (6ES7545-5DA00-0AB0)
Manual, 12/2014, A5E33619758-AB 13
3.2
Block diagram
The following figure shows the block diagram of the CM DP communication module.
①
Backplane bus PB PROFIBUS interface
②
ET 200SP PROFIBUS interface and backplane
bus transmission
DIAG LED diagnostics (green/red)
③
Internal power supply
Figure 3-1 Block diagram of the CM DP

Communication module CM DP (6ES7545-5DA00-0AB0)
14 Manual, 12/2014, A5E33619758-AB
Programming
4
Instructions
Pre-written instructions are available as an interface in your STEP 7 user program for
communication services.
Table 4- 1 Instructions for PROFIBUS DP
Instructions
Meaning when used with CM DP
DP master
DP slave (I-slave)
DPSYC_FR Synchronize DP slaves/Freeze inputs
(SYNC/FREEZE instruction)
-
DPNRM_DG Read diagnostics data of a DP slave -
DP_TOPOL Determine topology for DP master system -
WRREC Write data record of a DP slave -
RDREC Read data record of a DP slave -
GETIO Read process image of a DP standard slave Read process image
SETIO Transfer process image of a DP standard slave Transfer process image
GETIO_PART Read process image area of a DP standard
slave
Read process image area
SETIO_PART Transfer process image area of a DP standard
slave
Transfer process image area
D_ACT_DP Enable/disable DP slaves -
DPRD_DAT Read consistent data of a module (user data)
DPWR_DAT Write consistent data of a module
RALRM Event-driven reading of alarm information
(diagnostics, pull/plug, hardware interrupt) as
well as DPV1-specific interrupts (update, status,
vendor-specific interrupt)
Event-driven reading of interrupt information
(diagnostic interrupt)
Read the documentation for the instructions in the STEP 7 online help

Programming
Communication module CM DP (6ES7545-5DA00-0AB0)
Manual, 12/2014, A5E33619758-AB 15
Calling instructions for distributed I/O
Multiple calls are required for the instructions of the distributed I/O.
The duration of the call processing is dependent on the load, bus cycle time and
transmission rate. Timeouts may occur if these instructions are called in a loop within a
cycle.
Exceptions:
●Only one call is necessary for the RALRM instruction "Receive interrupt".
Program blocks for DPV1 (according to PNO standard) 1):
●"Read data record from a DP slave" RDREC instruction is functionally equivalent to
SFC59 (write record)
●"Write data record to a DP slave" WRREC instruction is functionally equivalent to SFC58
(read record)
●"Read interrupt information from a DP slave" RALRM instruction call is made within an
interrupt OB
1) PNO: PROFIBUS user organization

Communication module CM DP (6ES7545-5DA00-0AB0)
16 Manual, 12/2014, A5E33619758-AB
Diagnostics, error and system alarms
5
5.1
Status and error displays
Introduction
Diagnostics by means of LEDs is an initial tool for error localization. In order to localize
errors still further, you usually evaluate the display of the module status in STEP 7 or the
diagnostics buffer of the CPU. The buffer contains plain text information on the error that has
occurred. For example, you will find the number of the relevant error OB in the plain text
information.
LED display

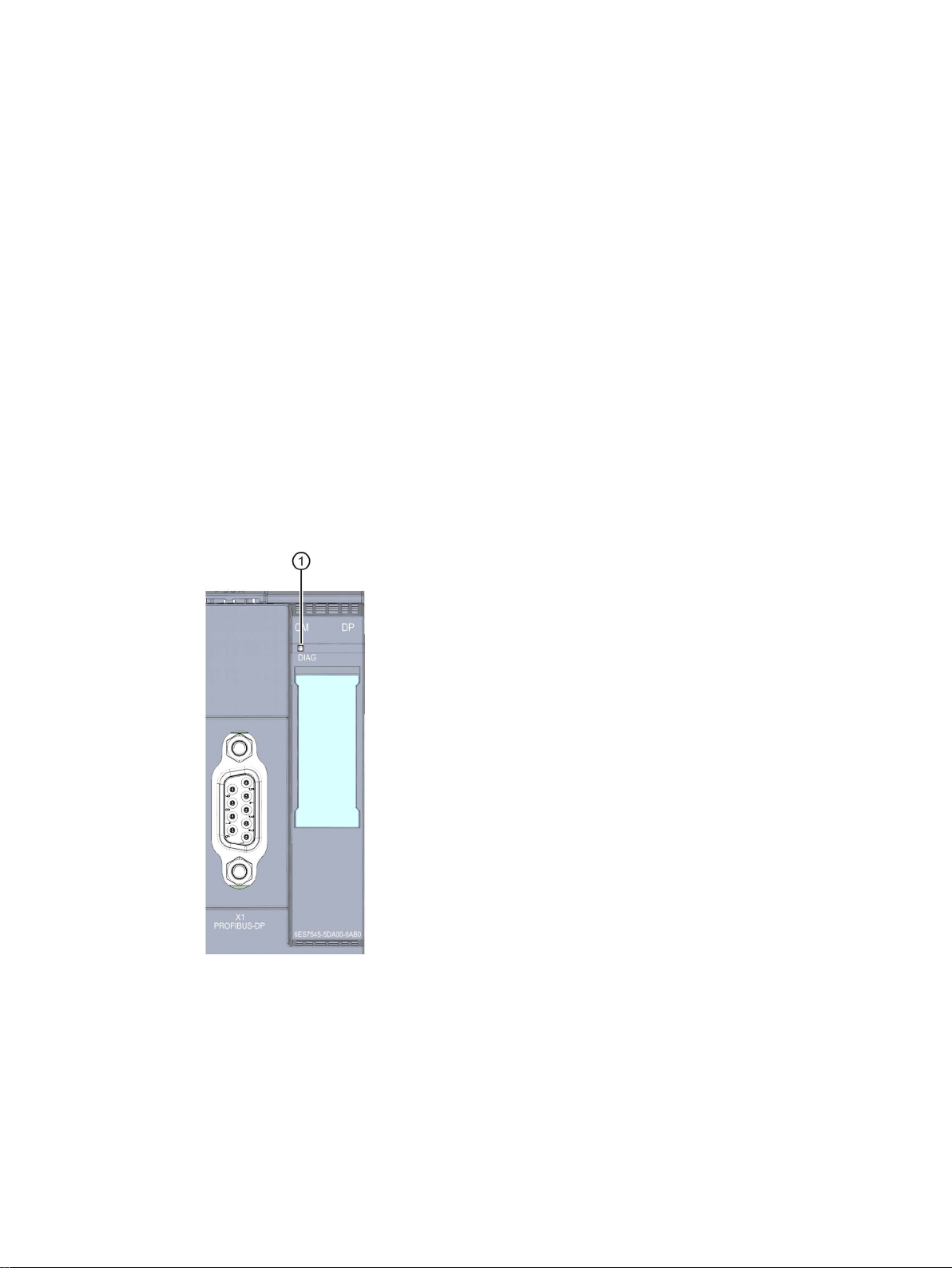

The figure below shows the LED display on the CM DP communication module.
①
DIAG (green/red)
Figure 5-1 LED display on the CM DP communication module

Diagnostics, error and system alarms
5.1 Status and error displays
Communication module CM DP (6ES7545-5DA00-0AB0)
Manual, 12/2014, A5E33619758-AB 17

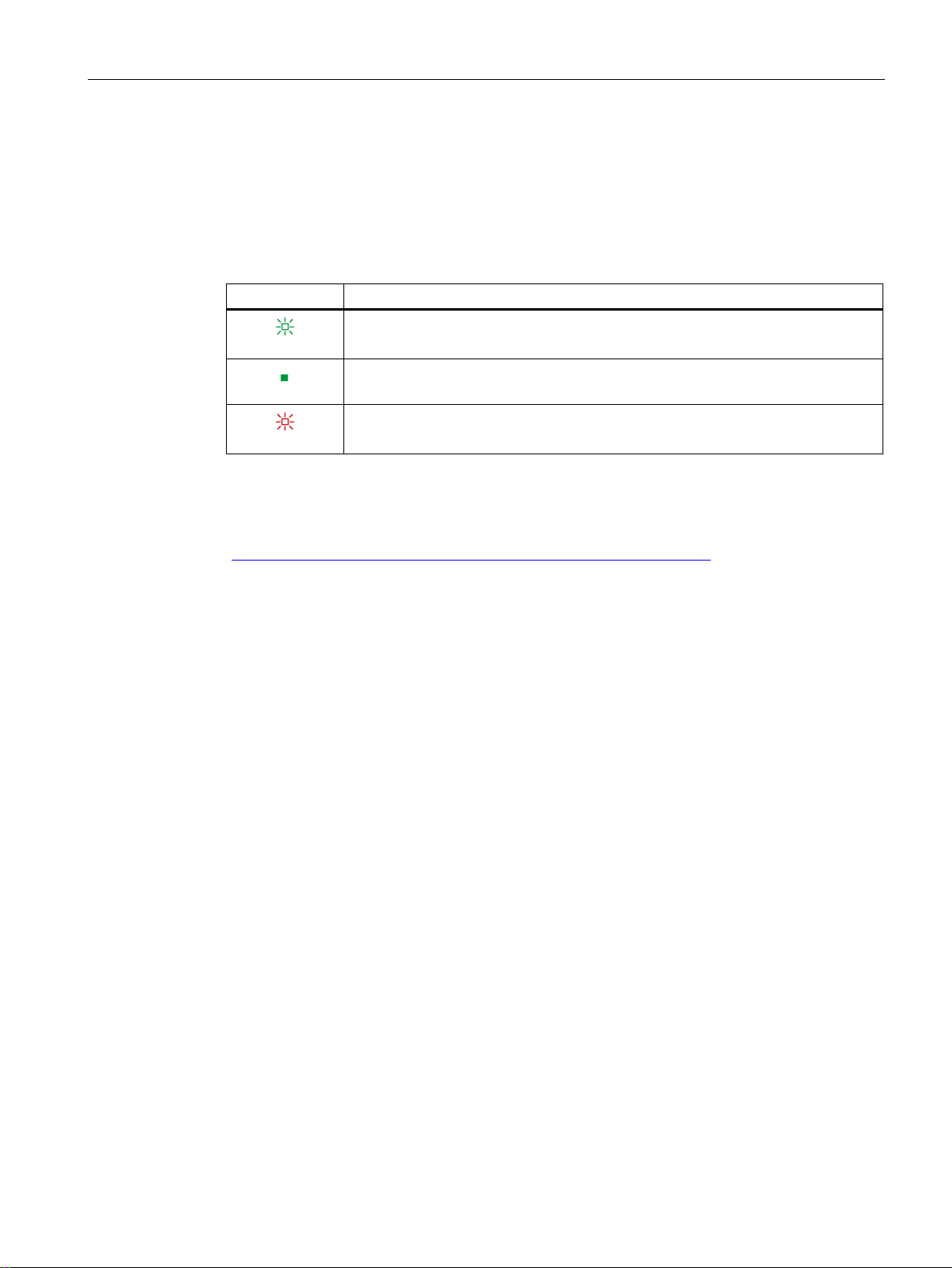

Meaning of the DIAG LED display on the communication module
The CM DP communication module has an LED for monitoring the diagnostics.
DIAG LED
Table 5- 1 DIAG LED fault display
DIAG LED
Meaning
Flashes
Module parameters not assigned
On
Module parameters assigned and no diagnostics
Flashes
Diagnostics of subordinate modules (as of firmware version V1.7)
Additional information
You can find more information on diagnostics in the Diagnostics function manual
(http://support.automation.siemens.com/WW/view/de/59192926/0/en) for diagnostic options
that are available for SIMATIC systems S7-1500, ET 200MP, ET 200SP and ET 200AL.

Diagnostics, error and system alarms
5.2 DP slave diagnostics
Communication module CM DP (6ES7545-5DA00-0AB0)
18 Manual, 12/2014, A5E33619758-AB
5.2
DP slave diagnostics
DP V1 slave: Diagnostic interrupt
Transmission of diagnostic data is made as a diagnostic interrupt. Diagnostic interrupts must
be acknowledged by the DP master.
Supported diagnostic functions
The CM DP supports the following blocks of the DP diagnostics:
●Standard diagnostics (6 bytes)
●Identifier-related diagnostics (2...17 bytes depending on the number of configured transfer
areas)
●Module status (5...35 bytes depending on the number of configured transfer areas)
●Diagnostic interrupt (8 bytes, if any)
User program (DP master)
The "DPNRM_DG" instruction is used to read the diagnostic data of a DP slave (DP single
diagnostics) in the DP master.
The diagnostic interrupts for DP V1 slaves are periodically evaluated in the user program of
the master via the "RALRM" instruction.
You can find the required parameter assignment for the instruction in the STEP 7 online
help.
The following is a structural overview of the diagnostic data.
Overview of standard diagnostics
Standard diagnostics
Byte
Meaning
0 Station status 1
1 Station status 2
2 Station status 3
3 Master address
4...5 Manufacturer ID of the slave

Diagnostics, error and system alarms
5.2 DP slave diagnostics
Communication module CM DP (6ES7545-5DA00-0AB0)
Manual, 12/2014, A5E33619758-AB 19
Overview of device-specific diagnostics
The device-specific diagnostics data depends on the protocol variant in which the DP slave
is operated:
●
DP-V1 slave
Table 5- 2 Overview of device-specific diagnostics of the CM DP for DP V1 slaves
Device-specific diagnostics
Byte
Meaning
0 Header
1 Variant
Interrupt type
Variant
Status type
2 Slot number
3 Variant
Interrupt specifier
Variant
Status specifier
4...62 Module-specific diagnostic data

Diagnostics, error and system alarms
5.3 Standard diagnostics
Communication module CM DP (6ES7545-5DA00-0AB0)
20 Manual, 12/2014, A5E33619758-AB
5.3
Standard diagnostics
Standard diagnostics
The coding of the standard diagnostic bytes is explained below.
Byte 0: Station status 1
Table 5- 3 Structure of station status byte 1
Bit no.
Name
Explanation
7 Master_Lock The DP slave was configured by a different DP master. The DP slave can only be
accessed read-only by the DP master configured as productive.
This bit is set by the DP master when its bus address does not match the
configured address.
6 Parameter_Fault The most recently received parameter frame was corrupt or not permitted. This bit
is set by the DP slave.
Remedy: Check the parameter assignment with respect to invalid parameters.
5 Invalid_Slave_Response This bit is set by the DP master if an implausible response has been received by
the DP slave.
4 Service_Not_Supported This bit is set by the DP master if a function is called by the master that is not
supported by the DP slave.
Remedy: Disable the parameter assignment of the required function at the master.
3 Ext_Diag This bit is set by the slave.
•Bit =1: Diagnostic data is available in the diagnostic area specific to the slave.
The diagnostic data can be evaluated in the user program of the master.
•Bit =0: A status message can be available in the diagnostic area specific to the
slave. The status message can be evaluated in the user program of the master.
2 Slave_Config_Check_Fault The configuration data sent by the DP master is rejected by the DP slave.
Cause: Configuration error. Remedy: Change the configuration.
1 Station_Not_Ready The DP slave is not yet ready for productive data exchange.
This is a temporary condition and cannot be influenced by the DP master.
0 Station_Non_Existent The DP slave is not responding on the bus.
This bit is set by the DP master 1 (the slave permanently sets this bit to 0). If the bit
is set, the diagnostic bits contain the status of the last diagnostic alarm or the initial
value.
