Siemens TC35 User manual

s
User Guide
TC35Terminal
www.siemens.com/wm be inspired Wireless
Modules
www.siemens.com/wm

1
Safety information
Radio devices have limitations in the vicinity
of electronic devices:
•Switch the TC35 Terminal off when you
are in a hospital or near medical devices
like pacemakers or hearing aids. The
Terminal may interfere with the operation
of these devices.
•Switch the TC35 Terminal off when flying.
Secure it so that it cannot be switched on
inadvertently.
•Switch the TC35 Terminal off when you
are near petrol stations, fuel depots,
chemical plants or blasting operations.
The Terminal can disturb the operation of
technical equipment.
•Interference can occur if the device is
used near televisions, radios or PCs.
•In order to avoid possible damage, we
recommend that you only use the
specified accessories. These have been
tested and shown to work well with the
Terminal. However, the warranty does not
cover these accessories.
The warranty does not apply in the event
of improper use.

2
Contents
Safety information ................................ 1
Contents ................................................. 2
Overview ................................................ 4
Front view.......................................... 4
Rear view ........................................... 4
Product description............................... 5
Highlights ........................................... 6
Applications ....................................... 6
Features.................................................. 7
Product data....................................... 7
Certification........................................ 7
Audio.................................................. 7
SMS ................................................... 7
Data ................................................... 7
Fax ..................................................... 7
Supplementary services .................... 8
External interfaces ............................. 8
Accessories....................................... 8
Installation ............................................. 9
Package contents /
scope of delivery................................ 9
Safety and installation information..... 9
Attaching theTerminal....................... 9
Interface description........................... 11
Plug-in power supply unit................ 11
Handset connector .......................... 15
Antenna connector
FME (male) ...................................... 21
RS232 interface ............................... 23
Startup ................................................. 26
Switching onTerminal ..................... 26
Switching off /
resetting the Terminal...................... 27

3
Contents
Operating states / LED ........................ 29
POWER DOWN ............................... 30
Network search ............................... 31
Standby............................................ 31
Talk.................................................. 31
AT command control .......................... 32
SW update ........................................... 33
Compatibility ....................................... 34
Compatibility withthe predecessor,
the M20Terminal ............................ 34
Certification / maintenance ................ 35
Certification...................................... 35
Maintenance tips ............................. 35
Index ..................................................... 36

4
Overview
Front view
Rear view
Plug-in power
Antenna
connector
RS232 interface
(9-pin D-Sub)
LED display
Handset
connector
Mini-SIM
card holder

5
Product description

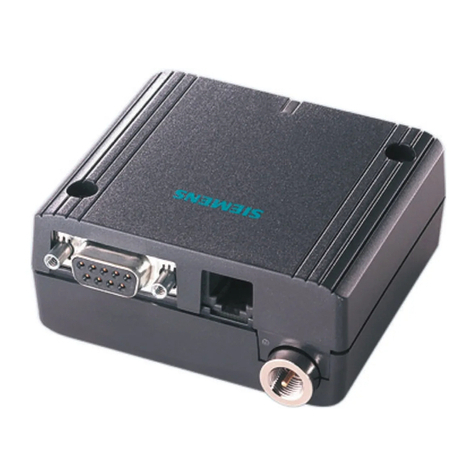

The TC35 Terminal is a compact GSM
modem for the transfer of data, voice,
SMSand faxes in GSM networks. Industrial
standard interfaces and an integrated
SIMcard reader mean it can be used rapidly,
easily and universally as a dual band GSM
Terminal. Its performance band width and
the robust housing make it easier to quickly
implement new applications in areas such as
telemetry and telematics.
The features, functions and interfaces of the
GSM Terminal TC35 T are described below.
The functionality of the Terminal
corresponds to the features of the TC35
module, to which a SIM card reader, an
RS232 interface, an analog interface for the
handset interface and a greater supply
voltage range have been added.
All the external interfaces of the GSM
Terminal TC35 T are integrated permanently
in the housing. The plug-in connections are
standardised and suitable for use under
vibration.

6
Product description
Highlights •Dual-band EGSM900 / GSM1800
•Data, voice, SMS and fax
•R&TTE approval, GCF approval
•Easy to integrate
•Industrial interfaces
•LED display
•Wide input voltage range
•Highly compact, light and powerful
Applications •Fleet management
•Teleservice
•Security systems
•Telematics
•Telemetry
•Remote monitoring
•Remote meter reading
•Vending machines

7
Features
Product data •Dual-band EGSM900 and GSM1800
•Certified in accordance with GSM
phase2/2+
•Output performance:
–Class 4 (2 W) for EGSM900
–Class 1 (1 W) for GSM1800
•Control via AT commands
•Input voltage range +8V ... +30V
•Dimensions: 65 x 74 x 33mm
•Weight: approx. 130g
Certification •R&TTE approval
•GCF approval
Audio •Half rate (HR)
•Full rate (FR)
•Enhanced full rate (EFR)
SMS •Point-to-point MT and MO
•SMS cell broadcast
•Text and PDU mode
Data •CSD up to 14.4kbps
•USSD
•Non-transparent mode
•V.110, V.32
Fax •Group 3, classes 1, 2

8
Features
Supplementary
services
•Phone book
•Multiparty
•DTMF (Dual Tone Multi Frequency)
External interfaces •Connector for plug-in power supply unit
•Handset audio interface
•Mini-SIM card holder
•Antenna connector FME (male)
•RS232 interface (V.24/V.28 on the Sub-D
socket)
Accessories Antennae, SIM cards, power supply units,
RS232 cables, handsets and a mounting kit
for top-hat rails can be obtained from
different manufacturers. Recommended
suppliers are listed in the corresponding
interface description.

9
Installation
Package contents /
scope of delivery
•Package unit:
TC35 Terminal
and user guide L36880-N8600-A100
•TC35 Terminal S30880-S8600-A10
•User guide A31008-H8600-A1-*-7619
Safety and
installation
information
•The Terminal should be installed and set
up only by qualified personnel.
•Connect a fast 1.25A fuse to the incoming
line for the positive supply voltage to
protect the Terminal.
•If a power supply unit is used to supply the
TC35 Terminal, it must meet the demands
placed on SELV circuits in accordance with
EN60950. When using batteries and
accumulators, adhere to the relevant
regulations.
•The maximum permissible connection
length between the TC35 Terminal and
the supply source is 3m.
•Your supplier will be pleased to provide
you with a detailed technical description
and technical support for the SIEMENS
TC35 Terminal.
Attaching
theTerminal
The TC35 Terminal can be attached with two
screws. Use screws approx.50 mm long
and Ø 3mm. The TC35 Terminal can be
attached to a top-hat rail using an additional
fixture (see the following page).

10
Installation
Mounting kit for top-hat rail installation
The TC35 Terminal can be attached to a
35mm top-hat rail using this mounting kit.
There are two screws that are used tofix the
top-hat rail adapter to the TC35 Terminal.
The TC35 Terminal can be inserted onto the
top-hat rail using this adapter.

11
Interface description
The following interfaces are available on the
TC35Terminal:
•Connector for the plug-in power supply
unit
•Handset connector
•Mini-SIM card holder
•Antenna connector FME (male)
•RS232 interface (V.24/V.28 on the D-Sub
socket)
Plug-in power
supply unit
The TC35 Terminal receives its power supply
in a wide voltage range (+8 V ... +30 V) via
the power supply connectors. Two
additional control lines are used for
switching the Terminal on/off (resetting). The
connection is implemented by a 6-pin Mini-
Western connector.
Connector for the plug-in power supply unit
3
2
1
4
5
6
1 +
2 free
3 PD_IN
4 IGT_IN
5 free
6 GND

12
Interface description
Purpose of the connectors/connections
Use and operation
The power supply is implemented by the
+- and the GND wire. To switch the TC35
Terminal on, proceed as follows:
–Either activate the DTR control line via the
RS232 interface
–Or connect IGT_IN to +. This connection
has already been set up in the specified
plug-in power supply unit below, see
"Connectible plug-in power supply unit" on
page14.
Signal
name
PIN I/O Description Parameters
+1IPositive supply voltage
connection
+8V...+30V
max. 33V for
1min
2Free
PD_IN 3IReset input
high active
UIH >+5V
(>3.5s)
UIL <+2V
IGT_IN 4IIgnition input
high active
UIH > +5V
(>200ms)
UIL <+2V
5Free
GND 6INegative supply voltage
connection
Reference potential for
PD_IN and IGT_IN
0V

13
Interface description
Polarity reversal protection
Polarity reversal protection is implemented
by means of a power diode. The diode has a
reverse voltage of 400V.
Overvoltage protection
Overvoltages are suppressed by a Zener
diode after the polarity reversal protection
diode.
Fuses
A permanently installed, non-replaceable
fuse in the TC35 Terminal ensures electrical
safety in the event of faults. Connect a fast
1.25A fuse to the supply line of the positive
supply voltage for general protection of the
Terminal, see "Safety and installation
information" on page9.

14
Interface description
Interference immunity
•The cable length must not exceed 3m
•Current carrying capacity <1.5A (Western
modular jack)
•Nominal signal range: 0...+30V
•Max. load current 1.5A
•Electrical fast transient burst
requirements in accordance with
ETS 300-342-1
•Surge immunity requirements in
accordance with ETS 300-342-1
•Electrostatic discharge requirements in
accordance with ETS 300-342-1
•Immunity RF common mode
0.15–80MHz in accordance with
ETS 300-342-1
•Transients and surges in a vehicular
environment
•Voltages dips and interruption
Connectible plug-in power supply unit
Item Order no. Supplier
Plug-in power supply
unit for the TC35
Terminal
39001 Sphere Design
Saarpfalz-Park 10
D-66450 Bexbach Saar
Tel.: +49 6826 / 5200-0
Fax: +49 6826 / 5200-25
E-mail: [email protected]

15
Interface description
Handset connector The handset is connected via a 4-pin Mini-
Western socket. The audio interface has a
symmetrical design. The audio interface can
be configured by AT commands.
Threeaudio modes are prepared in the GSM
module for this purpose.
Mode 1 (default):
The "Handset for Cellular Engine Siemens
Terminal M20T, MC35T, TC35T, DSB35"
can be connected to the TC35 Terminal
(approved configuration and recommended
handset).
Mode 4:
Any handset can be connected to the
TC35Terminal. The audio parameters can be
adapted by means of AT commands. New
approval must be obtained for this
combination.
Mode 5:
The frequency responses have a linear
setting in this mode for any audio
equipment. Echo suppression and side tone
are switched off.

16
Interface description
Handset connector
Purpose of the connectors/connections
2
1
3
4
1 MICN
2 EPN
3 EPP
4 MICP
Signal
name
PIN I/O Description Parameters
MICN 1DC:O
AC:I
Microphone input
minus
DC (no load):
U0=6.0V±10%
(MICP)
U0=0V (MICN)
Ri=4.7k (MICP)
Ri=4.7k (MICN)
AC: Uimax =1.03VPP
Zi=2kΩ
Gain range:0...42dB
MICP 4DC:O
AC:I
Microphone input
plus
EPN 2OEarpiece
connector
U0max =3.7VPP, no load
Ri=15Ω
Gain range:–18...0dB
EPP 3OEarpiece
connector

17
Interface description
Use and operation
A connected handset can be used when the
customer application initiates the TALK state
with AT commands via the RS232 interface.
Interference immunity
•The connecting cable must not exceed
3m in length.
•Electrical fast transient burst
requirements (cable is >3m)
•Surge immunity requirements not
specified
•Electrostatic discharge requirements in
accordance with ETS 300-342-1
•Immunity RF common mode
0.15–80MHz in accordance with
ETS300-342-1
Connectible handset
Item Order no. Supplier
Votronic handset
Handset for
the TC35 Terminal
HH-SI-30.3/
V1.1/0
Votronic GmbH
Saarbrücker Str. 8
D-86386 St. Ingbert
Tel.: [phone]
Fax: [phone]

18
Interface description
SIM card connector
The connector is intended for 3V SIM cards
in accordance with GSM11.12 phase2 to
operate the Terminal.
The SIM card (3V type) must be inserted in
the card holder to put the TC35 Terminal into
operation.
1. Make sure that there is no voltage applied
to the TC35 Terminal.
2.Operate the eject mechanism (yellow pin
next to the card holder) to open the card
holder by pressing it down with a pen, for
example.
