SIMATIC
HMI devices
IFP2200 INOX MT ETH
Compact Operating Instructions
03/2018
A5E42185570
-AA
Preface
Overview
1
Safety instructions and
further information
2
Installing and connecting the
device
3
Maintenance and care
4
Technical specifications
5
Technical Support
A
List of abbreviations
B
Siemens Drives & PLCs

Siemens AG
Division Digital Factory
Postfach 48 48
90026 NÜRNBERG
GERMANY
A5E42185570-AA
Ⓟ
03/2018 Subject to change
Copyright © Siemens AG 2018.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified
for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

IFP2200 INOX MT ETH
Compact Operating Instructions, 03/2018, A5E42185570-AA 3
Preface
Scope of validity
These compact operating instructions apply to the following INOX device:
●SIMATIC IFP2200 INOX MT ETH, article number 6AV7485-6BE00-0AA0
The INOX device is based on the following standard device:
●SIMATIC IFP2200, article number 6AV7863-4MA20-0AA0
With regard to electronics and interfaces, the device is based on the Ethernet monitor
IFP2200 ETH with capacitive multi-touch screen and corresponding functionality. You can
find a description of the IFP2200 ETH in the operating instructions "Industrial Flat Panel
IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP1900 ETH, IFP2200 ETH
(http://support.automation.siemens.com/WW/view/en/65288650)", on which these compact
operating instructions are based.
The compact operating instructions provided here describe the technical differences as
compared to the IFP2200 ETH standard device.
Unless otherwise described in this document, all specifications in the underlying operating
instructions for IFP2200 ETH, which means specifications regarding hardware, software,
maintenance and service, apply to this device.
However, the information in these compact operating instructions take precedence over
statements in the underlying operating instructions, in the release notes and in the online
help.
Note
This document belongs to the device and will also be required for repeat commissioning.
Keep all supplied and supplementary documentation for the entire service life of the device.
Pass on all of these documents to a future owner of the device.
Siemens Drives & PLCs

Preface
IFP2200 INOX MT ETH
4Compact Operating Instructions, 03/2018, A5E42185570-AA
Style conventions
Style Convention
Scope
"Add screen" •Terms that occur in the user interface, for example, dialog name, tab,
button, menu command
•Necessary entries, for example, limit value, tag value
•Path specification
"File > Edit"
Operating sequences, for example, menu item, shortcut menu command
<F1>, <Alt+P>
Designation of a key on a keyboard
You should also observe notes that are marked as follows:
Note
A note contains important information about the product described in the document and its
handling, or a specific section of the document to which you should pay particular attention.
Naming conventions
Term
Applies to
System •System
•Machining center
•One or more machines
Device, built-in device,
Ethernet monitor
•SIMATIC IFP2200 INOX MT ETH
MT
Multitouch
ETH
Ethernet monitor
Touch HMI device
Device with capacitive multi-touch screen
Touch screen
Multi-touch screen
Touch operation Multitouch
Figures
This document contains illustrations of the described devices. The figures can deviate from
the particularities of the delivered device.

IFP2200 INOX MT ETH
Compact Operating Instructions, 03/2018, A5E42185570-AA 5
Table of contents
Preface ........................................................................................................................................3
1 Overview......................................................................................................................................7
1.1 Product overview................................................................................................................. 7
1.2 Scope of delivery................................................................................................................. 8
1.3 Structure of the devices....................................................................................................... 9
1.4 Accessories......................................................................................................................... 9
2 Safety instructions and further information...................................................................................... 10
2.1 General safety instructions ................................................................................................ 10
2.2 Operating the capacitive multi-touch screen....................................................................... 12
3 Installing and connecting the device .............................................................................................. 14
3.1 Preparing for installation .................................................................................................... 14
3.1.1 Check the scope of delivery............................................................................................... 14
3.1.2 Checking the operating conditions ..................................................................................... 14
3.1.3 Permitted mounting positions............................................................................................. 14
3.1.4 Notes on installation .......................................................................................................... 16
3.1.5 Checking clearances ......................................................................................................... 17
3.2 Inserting the mounting seal................................................................................................ 18
3.3 Mounting the device .......................................................................................................... 19
3.4 Connecting the power supply............................................................................................. 22
3.4.1 Securing the cables........................................................................................................... 22
4 Maintenance and care.................................................................................................................. 23
4.1 Cleaning and maintenance ................................................................................................ 23
4.2 Working with pressure washers ......................................................................................... 25
4.3 Working with stainless steel surfaces................................................................................. 27
4.4 Clean screen for Touch HMI devices ................................................................................. 27
4.5 Chemical Resistance......................................................................................................... 28
4.6 Calibrate touch screen....................................................................................................... 29
Siemens Drives & PLCs

Table of contents
IFP2200 INOX MT ETH
6Compact Operating Instructions, 03/2018, A5E42185570-AA
5 Technical specifications............................................................................................................... 30
5.1 Certificates and approvals ..................................................................................................30
5.2 Dimension drawings ...........................................................................................................33
5.2.1 Dimension drawing 22" device............................................................................................33
5.2.2 Dimension drawing 22" clamping frame..............................................................................34
5.3 Rating plate........................................................................................................................35
5.4 Technical specifications......................................................................................................35
5.5 Ambient conditions .............................................................................................................36
5.5.1 Transport and storage conditions........................................................................................36
5.5.2 Operating conditions ..........................................................................................................37
5.5.3 Electromagnetic compatibility .............................................................................................39
5.5.4 Information on insulation tests, protection class and degree of protection............................40
A Technical Support....................................................................................................................... 41
A.1 Service and support ...........................................................................................................41
B List of abbreviations .................................................................................................................... 42

IFP2200 INOX MT ETH
Compact Operating Instructions, 03/2018, A5E42185570-AA 7
Overview
1
1.1
Product overview
The INOX devices with touch screen and glass front are designed for use in ambient
conditions that prevail in the food and beverage industry and the pharmaceutical industry.
The devices are suitable for use in the spray area (according to DIN 1762-2) as well as for
indirect contact with acidic, alcoholic and dry food (intended use).
Indirect contact in this case means alternating contact of the device and food in the process
by the operating personnel.
To comply with the permissible limits for indirect contact with food, the device must be
regularly cleaned (see section "Cleaning and maintenance (Page 23)").
Particular attention has been paid to ensuring that the device is easy to clean and can be
disinfected when needed. The devices with stainless steel front have therefore been
developed according to DIN EN 1672-2 "Food Processing Machinery - Safety and Hygiene
Requirements".
●Resistant to scratch and impact, hardened glass (Mohs 6) in stainless steel frame
●Resistant glass and sturdy stainless steel front with minimized grooves and crevices
●Optimized frame design with minimized protrusions to the control cabinet and for
automatic runoff of liquids
●The glass front has a 45° beveled surface. Therefore, if the device is installed at a
maximum inclination of 35°, there are still 10° for safe water runoff.
●Stainless steel surface polished with grain size 240
●IP66K/P69K degree of protection on front
Siemens Drives & PLCs

Overview
1.2 Scope of delivery
IFP2200 INOX MT ETH
8Compact Operating Instructions, 03/2018, A5E42185570-AA
●Chemical resistance to cleaning agents and disinfectants as described in section
"Chemical Resistance (Page 28)".
●Food-grade mounting gasket, exchangeable
●Rear clamping frame for even application pressure of the mounting gasket
●Mounting cutout and interfaces correspond to the standard device.
1.2
Scope of delivery
Depending on the order, the scope of delivery includes:
●1 × device
●1 × accessory pack with the following contents:
–1 mounting gasket
–1 clamping frame
–1 power supply connector
–Mounting clips (see section "Mounting the device (Page 19)")
–Product information, mounting instructions
●3 × product information (approvals, explosion protection), individually enclosed

Overview
1.3 Structure of the devices
IFP2200 INOX MT ETH
Compact Operating Instructions, 03/2018, A5E42185570-AA 9
1.3
Structure of the devices

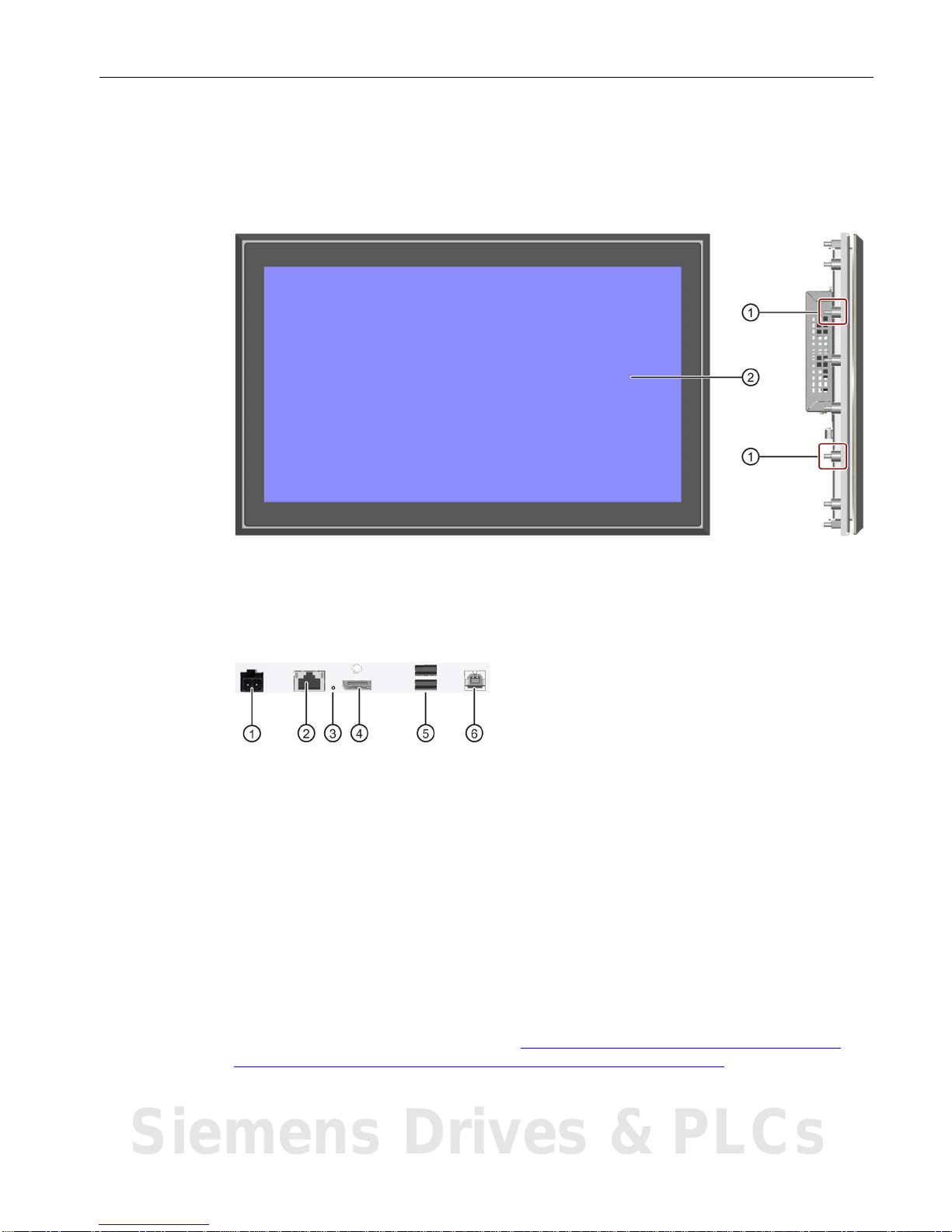

Front and side views without Siemens logo
①
Recesses for one mounting clip each
②
Display with touch screen
Interfaces
①
X80
Connection for 24
V DC power supply
②
X1
Ethernet interface
③
Reset button
④
X70
DisplayPort port
⑤
X61/X62
USB Type A
⑥
X60
USB Type B
1.4
Accessories
Accessories can be ordered on the Internet at:
Expansion components and accessories (http://www.automation.siemens.com/mcms/pc-
based-automation/en/industrial-pc/expansion_components_accessories)
You need service packs to replace the gasket or as spare parts for mounting material.
Siemens Drives & PLCs

IFP2200 INOX MT ETH
10 Compact Operating Instructions, 03/2018, A5E42185570-AA
Safety instructions and further information
2
The general safety instructions in the "Industrial Flat Panel IFP1500, IFP1900, IFP2200,
IFP1900 PRO, IFP1900 ETH, IFP2200 ETH" operating instructions apply to all devices with
a capacitive multi-touch screen and Ethernet monitors.
2.1
General safety instructions
Installation according to the instructions
WARNING
The device may only be used in machines which comply with the Machinery Directive
The "Machinery Directive" governs, among other things, the precautions to be taken when
commissioning and operating machines within the European Economic Area.
Failure to follow these precautions is a breach of the Machinery Directive. Such failure may
also cause personal injury and damage depending on the machine operated.
The machine in which the HMI device is to be operated must conform to Directive
2006/42/EC.
Hazardous areas
When operating the HMI device in hazardous areas the following warning applies.
WARNING
Explosion Hazard
Do not disconnect while circuit is live unless area is known to be non-hazardous.
Substitution of components may impair suitability for Class I, Division 2 or Zone 2.
Risque d'Explosion
Ne pas déconnecter pendant que le circuit est sous tension, sauf si la zone est non-
dangereuse. Le remplacement de composants peut compromettre leur capacité à satisfaire
à la Classe I, Division 2 ou Zone 2.

Safety instructions and further information
2.1 General safety instructions
IFP2200 INOX MT ETH
Compact Operating Instructions, 03/2018, A5E42185570-AA 11
Notes on the touch screen
WARNING
Danger of explosion in hazardous areas, personal injury or property damage due to
defective touch screen
Massive force applied to the front of the device is not intended use of the device and can
destroy its touch screen, e.g. break the glass front. In hazardous areas, there is then a risk
of explosion, injury and food contamination with further consequential and health damages.
Make sure that excessive force cannot be applied to the device front.
If the touch screen of the device is defective, follow these steps:
•Stop production.
•Immediately shut down the affected machine and label it accordingly.
•Handle any potentially contaminated product in accordance with legal regulations.
•Replace the device immediately. When replacing the device, please note the section
"Installing and connecting the device (Page 14)".
•Clean the machine before putting it back into operation.
ESD
Electrostatically sensitive components include almost all electrical, electronic, optoelectronic
and electromechanical components. These components are sensitive to overvoltage for
technical reasons and their function may be impaired or destroyed by electrostatic discharge.
Observe the regulations governing the handling of ESD components.
Pulse-shaped interference
IFP2200 MT devices have been tested for high-energy single pulses (surge) in accordance
with IEC 61000-4-5.
An external protective circuit is required for operation with 24 V DC; see function manual
"SIMATIC S7-1500, ET 200MP, ET 200SP, ET 200AL Designing interference-free
controllers", section 7 "Lightning protection and overvoltage protection", which is available on
the Internet (https://support.industry.siemens.com/cs/ww/en/view/59193566).
The following lightning protection element was used during the testing of the Industrial Flat
Panel:
Dehn BVT AVD 24" (Order No. 918 422)
Siemens Drives & PLCs

Safety instructions and further information
2.2 Operating the capacitive multi-touch screen
IFP2200 INOX MT ETH
12 Compact Operating Instructions, 03/2018, A5E42185570-AA
2.2
Operating the capacitive multi-touch screen
You operate the multi-touch screen with one or multiple fingers. You can also operate it
using gestures with up to five fingers at a time.
WARNING
Personal injury or property damage due to no earth connection
An inadequate earth connection or the lack of one may cause malfunction of the capacitive
touch screen. Functions may not work properly. This can result in personal injury or
property damage.
•Always connect the device to an earth conductor.
•The earth conductor from the device must be connected directly to earth with low
impedance (short connection, minimum cross-section 2.5 mm2).
WARNING
Personal injury or property damage due to maloperation
Incorrect operation of devices with a touch screen can occur. This can result in personal
injury or property damage.
Take the following precautions:
•Configure the plant so that safety-related functions are not operated with the touch
screen.
•Switch off the device for cleaning and maintenance.
WARNING
Danger of malfunction due to improper execution of gestures on the touch screen
If gestures are executed incorrectly on the touch screen with multi-touch function, these
gestures may not be recognized or could be recognized incorrectly. The entries made are
then not implemented by the device or are implemented incorrectly or in an unintended
manner.
Incorrect execution of multi-touch functions can lead to errors in the operation of the plant
and thus to physical injury.
Note the following when operating the touch screen with multi-touch function:
•The touch screen reacts to contact on its surface, not to pressure.
•When using a touch pen: Operate the touch screen only with a touch pen for capacitive
touch.
•Avoid unintended multiple touches, for example, with your knuckles.
Before you start to operate the device, make sure you are familiar with the multi-touch
functions of the Windows operating system, as well as with the application to be used and
its functions. Ensure that the gestures which the user executes on the multi-touch display
are recognized by the application. It is possible that certain gestures need to be trained
beforehand.

Safety instructions and further information
2.2 Operating the capacitive multi-touch screen
IFP2200 INOX MT ETH
Compact Operating Instructions, 03/2018, A5E42185570-AA 13
Notes on operation
Note
Do not touch the touch screen during startup
The device automatically calibrates the capacitive multi
-touch screen during startup. The
touch screen is locked during calibration.
Do not
touch the touch screen during startup. Make sure that you do
not
rest on the touch
screen with the palm of your hand
during startup.
Make sure that there are no
conductive liquids on the touch screen during startup.
Note when operating the multi-touch screen:
●Surface contact with a diameter of about 5 to 20 mm is required for an operator action to
be detected.
●An operation with gloves with a material thickness of <2 mm is detected in most cases.
However, check the usefulness of the gloves you are using.
●To avoid incorrect operation, certain inputs are ignored and blocked from further entry:
–Simultaneous operation with more than 5 fingers.
–Surface contact with a diameter of > 3 cm, for example, resting the palm of the hand
on the touch screen
–As soon as the touch screen is no longer touched, input is possible again.
Functions of the multi-touch screen
General functions
●Detection of up to 5 finger touches at a time.
●Detection of gestures that are supported by the operating system or the software installed
on the device.
Note
Multi-
touch operation can provide advanced features or pose limitations depending on the
operating system and the software installed on the device. Read the corresponding
documentation.
●You do not need to calibrate the touch screen. Some operating systems do offer touch
calibration. However, this calibration does not result in an improvement of the accuracy.
Security functions in an industrial environment
The touch screen is locked for security reasons when following happens:
●There is a conductive liquid on the touch screen with ground contact via the enclosure or
the operator, for example.
●Electromagnetic interference is present that exceeds the specification according to
EN 61000-4-2.
Once the interference is over, the touch screen is no longer locked.
Siemens Drives & PLCs

IFP2200 INOX MT ETH
14 Compact Operating Instructions, 03/2018, A5E42185570-AA
Installing and connecting the device
3
3.1
Preparing for installation
3.1.1
Check the scope of delivery
Check the scope of delivery for visible signs of damages caused during transport and for
completeness, see chapter "Scope of delivery (Page 8)".
NOTICE
Damaged parts
A damaged part can cause device malfunctions.
Do not install damaged parts.
In the case of damaged parts or incomplete delivery, contact your Siemens representative.
3.1.2
Checking the operating conditions
Note the following aspects before installing the device:
1. Familiarize yourself with the standards, approvals, EMC parameters and technical
specifications for operation of the device. This information is available in the following
chapters:
–Certificates and approvals (Page 30)
–See the operating instructions for electromagnetic compatibility
2. Check the mechanical and climatic ambient conditions for operation of the device; see
Ambient conditions (Page 36).
3. Follow the notes on use in the operating instructions.
3.1.3
Permitted mounting positions
The device is suitable for installation in:
●Mounting cabinets
●Control cabinets
●Switchboards
●Consoles
In the following, all of these mounting options are referred to by the general term "cabinet".

Installing and connecting the device
3.1 Preparing for installation
IFP2200 INOX MT ETH
Compact Operating Instructions, 03/2018, A5E42185570-AA 15
The device is self-ventilated and approved for inclined mounting at angles up to +/-35° in
stationary cabinets.
NOTICE
Damage due to overheating
Inclined installation reduces the convection by the device and therefore the maximum
permitted ambient temperature for operation.
If there is sufficient forced ventilation, the device can also be operated in the inclined
mounting position up to the maximum permitted ambient temperature for vertical
installation. The device may otherwise be damaged and its certifications and warranty will
be rendered null and void.
For information on permitted ambient temperatures, refer to the section Operating conditions
(Page 37).

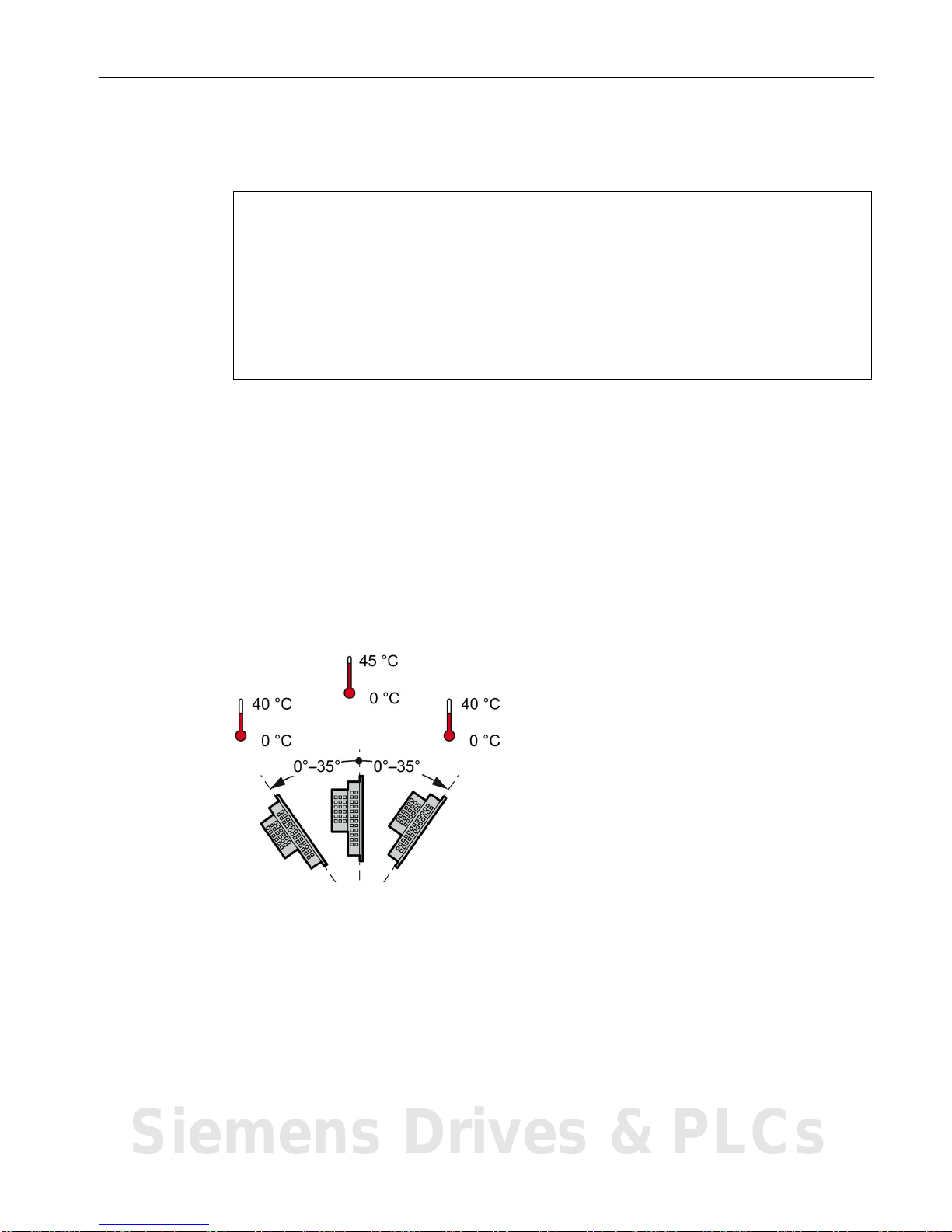

Mounting position
Select one of the approved mounting positions for your device. The approved mounting
positions are described in the following sections.
Mounting in horizontal format
The device is intended for installation in landscape format.
A maximum ambient temperature of +45 °C is permissible for vertical installation.
Siemens Drives & PLCs

Installing and connecting the device
3.1 Preparing for installation
IFP2200 INOX MT ETH
16 Compact Operating Instructions, 03/2018, A5E42185570-AA
Mounting in vertical format
You can also install the device in portrait format.
A maximum ambient temperature of +40 °C is permissible for vertical mounting (0° tilt angle);
a maximum of +35 °C is permitted for inclined mounting.
3.1.4
Notes on installation
Mounting cutout
The HMI device can be installed in control cabinets (see table for material thickness). No
special tools are required for mounting. The HMI device can be operated both in landscape
and portrait format with a vertical inclination of up to +/-35°. Due to the surrounding beveling
of the stainless steel front of 45°, liquids are able to drain off even in an inclined installation
position of +/-35°.
The following conditions apply to the mounting cutout:
The front material has to consist of sheet steel or material of a strength that corresponds to
at least the stability of sheet steel.
Mounting cutout
Dimensions
Material thickness
1.5 to 6 mm
Permitted deviation from plane
This condition must be fulfilled for the mounted HMI device.
≤0.5 mm
Permitted surface roughness in the area of the mounting seal
≤120 µm (R
z
120)

Installing and connecting the device
3.1 Preparing for installation
IFP2200 INOX MT ETH
Compact Operating Instructions, 03/2018, A5E42185570-AA 17
3.1.5

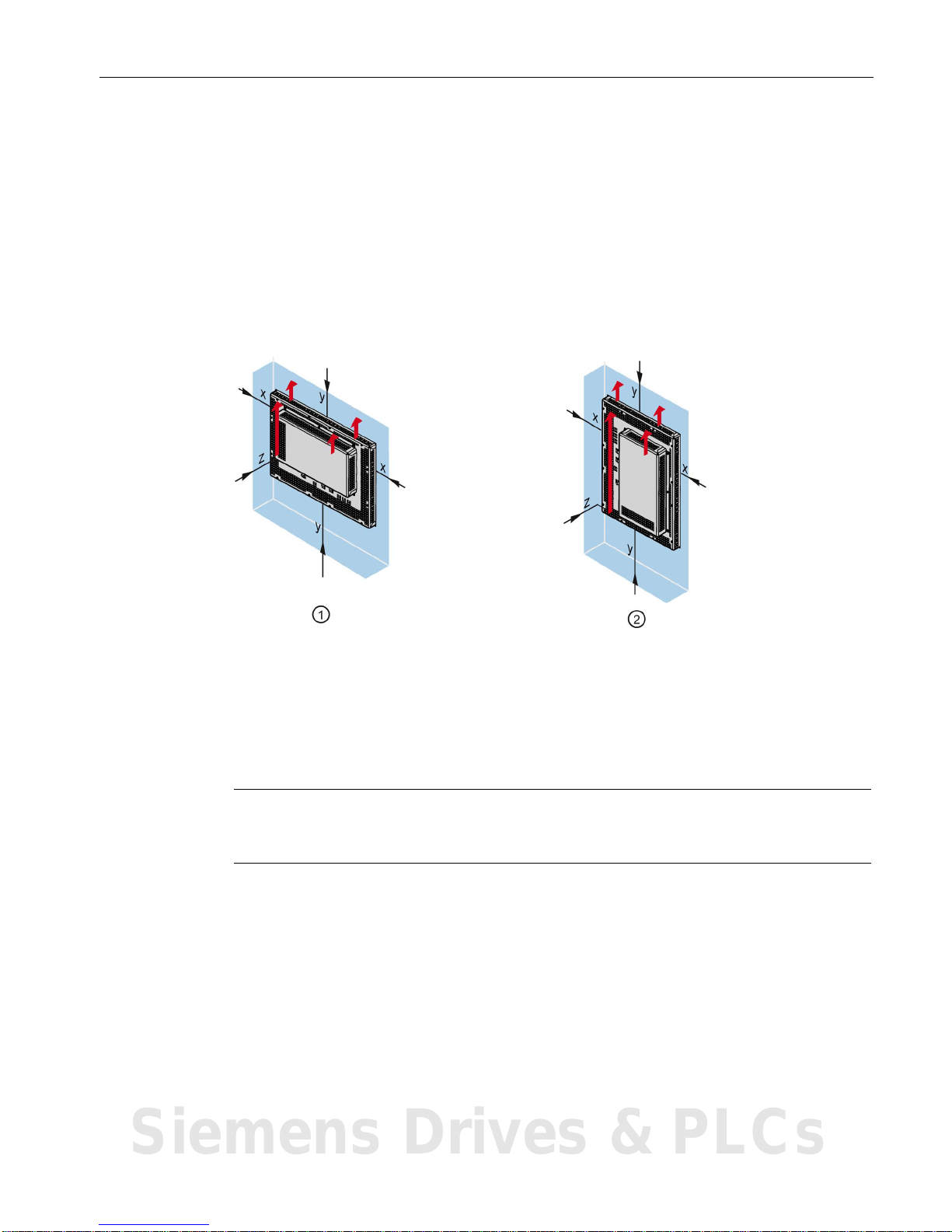

Checking clearances
The following clearances are required around the device to ensure adequate self-ventilation:
●At least 15 mm to the right and left of the mounting cutout (in x direction) to allow for
insertion of the mounting clips during installation
●At least 50 mm above and below the mounting cutout (in y direction) for ventilation
●At least 10 mm behind the rear panel of the device (in z direction)
The figure below shows the clearances required with horizontal and vertical installation of the
device:
①
Clearance for horizontal installation (all devices)
②
Clearance for vertical installation (monitor and touch versions only)
x
At least 15 mm distance
y
At least 50 mm distance
z
At least 10 mm distance
Note
Ensure that the maximum ambient temperature is not exceeded when mounting the device
in a cabinet and especially in a closed enclosure.
Siemens Drives & PLCs

Installing and connecting the device
3.2 Inserting the mounting seal
IFP2200 INOX MT ETH
18 Compact Operating Instructions, 03/2018, A5E42185570-AA
3.2
Inserting the mounting seal
To prevent the mounting seal from being inserted in the wrong direction, it has an
asymmetric coding tap. The coding tap is located at the bottom left of all mounting seals of
the INOX devices, relative to the rear of the device.
Note
Use a new mounting seal for each installation, because the promised degree of protection
cannot be guaranteed otherwise.
Procedure
1. Look for the coding tap on the mounting seal. Turn the mounting seal so that the coding
tap is on the bottom left as seen in the figure below:
①
Coding tap
②
Positioning hooks
③
Seal corner

Installing and connecting the device
3.3 Mounting the device
IFP2200 INOX MT ETH
Compact Operating Instructions, 03/2018, A5E42185570-AA 19

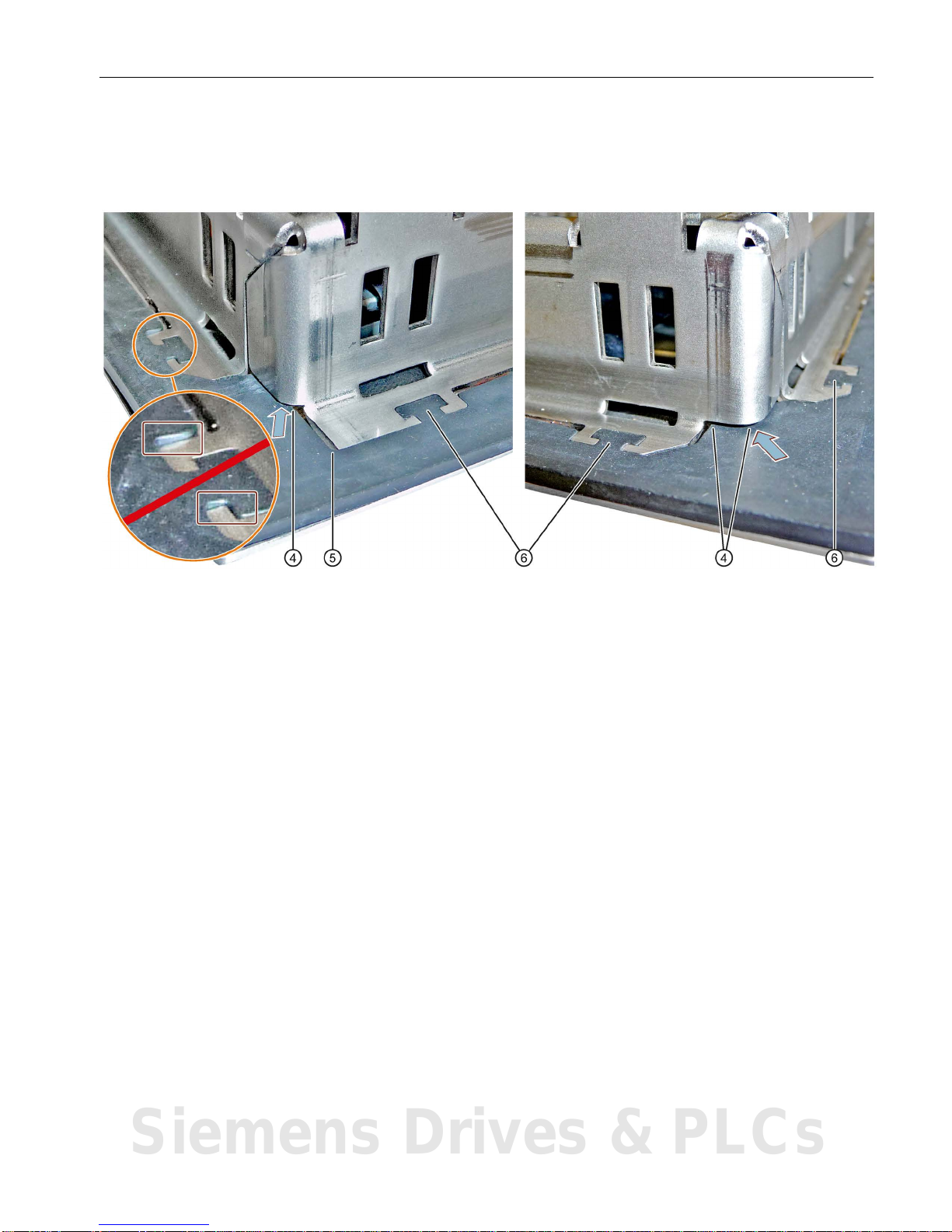

2. Carefully place the device on the front panel (interfaces pointing to you), and insert the
mounting seal into the stainless steel front panel as shown. Also pay attention to numbers
④- ⑥.
④
Seal corner is underneath the housing frame.
⑤
The coding tap is flush on the provided cutout.
⑥
Positioning hook of the seal engages completely in cutout, flush and without overhang.
Similar to figure
3. Check the correct fit of the mounting seal:
–The coding tap is placed at the specified location.
–All positioning hooks rest flush in their cutouts. The mounting seal is installed correctly
when it lies flat on the entire stainless steel front. There must be no distortions or
overhangs as shown in the picture detail.
If necessary, adjust the seat: To do this, press the mounting seal into the cutout at the
marked points.
–The edge of the mounting seal is flush with the edge of the stainless steel front all
around.
3.3
Mounting the device
Requirement
●All packaging components and the edge protection tape, if present, have been removed.
●1 clamping frame
●1 torque wrench for 1.3 Nm with 2.5 mm with hex socket insert.
●Fasteners: 30 mounting clips
Siemens Drives & PLCs

Installing and connecting the device
3.3 Mounting the device
IFP2200 INOX MT ETH
20 Compact Operating Instructions, 03/2018, A5E42185570-AA
Note additional product information included in the scope of delivery, if available.
Note
Use a tightening torque of 1.3
Nm when tightening the mounting clips with the torque
wrench, because the promised degree of protection cannot be guaranteed otherwise. The
sealing concept includes a defined seal compression with mechanical end stop.

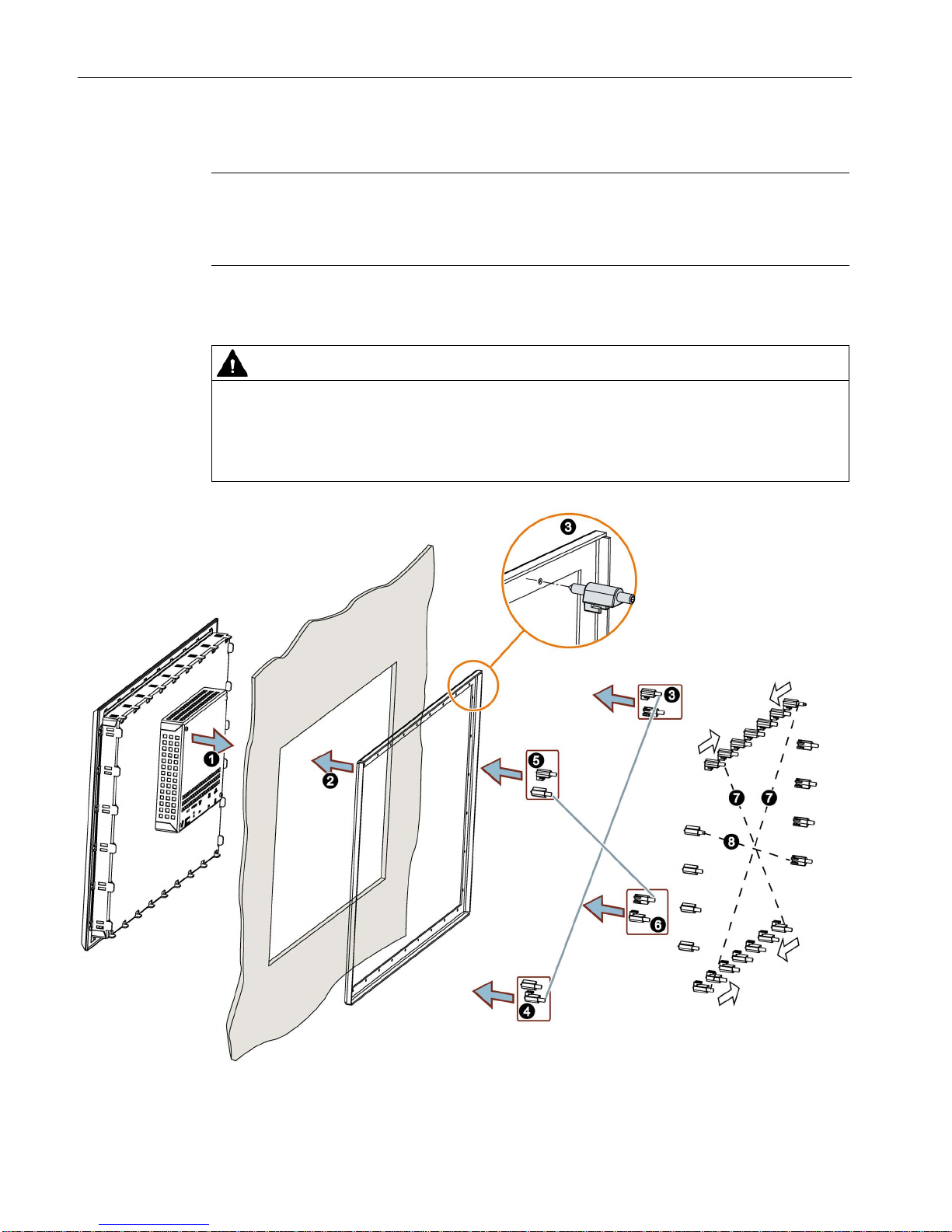

Installation
CAUTION
Risk of injury from falling device
An unsecured device can fall down. This may result in injuries and damages to machines
and the device.
Protect the device from falling down throughout the entire assembly process.
Similar to figure
