SIMATIC Ident
RFID systems
Wide-range power supply unit for SIMATIC RF systems
Compact Operating Instructions
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent damage to property. The
notices referring to your personal safety are highlighted in the manual by a safety alert symbol, notices referring only to property damage
have no safety alert symbol. These notices shown below are graded according to the degree of danger.
DANGER
indicates that death or severe personal injury
will
result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will be used. A notice warning of
injury to persons with a safety alert symbol may also include a warning relating to property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified
for the specific task in accordance with
the relevant documentation, in particular its warning notices and safety instructions. Qualified personnel are those who, based on their
training and experience, are capable of identifying risks and avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products
and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage,
installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any
problems. The permissible ambient conditions must be complied with. The information in the relevant documentation must be observed.

Wide-range power supply unit for SIMATIC RF systems
2J31069-D0169-U001-A5-7618, 07/2016
1
Features
The wide range power supply unit for SIMATIC RF systems is a primary switched device for supplying power and for use on
single phase AC systems. The two DC outputs (sockets) are connected in parallel and protected by a built-in voltage limiting
circuit against overload and short-circuits.
The device is vacuum-cast and prepared for Safety Class I applications. The EU and UK versions satisfy the low-voltage
directive as well as the current EU standards for CE conformity. Furthermore, the US version has been UL-certified for the
US and Canada.
Table 1-1 Wide-range power supply unit for SIMATIC RF systems
Characteristics
Area of application Voltage supply for Siemens Ident de-
vices
Degree of protection
IP67
Design features •
Mechanically and electrically rug-
ged design
•Short-circuit and no-load stability
•
Suitable for frame mounting

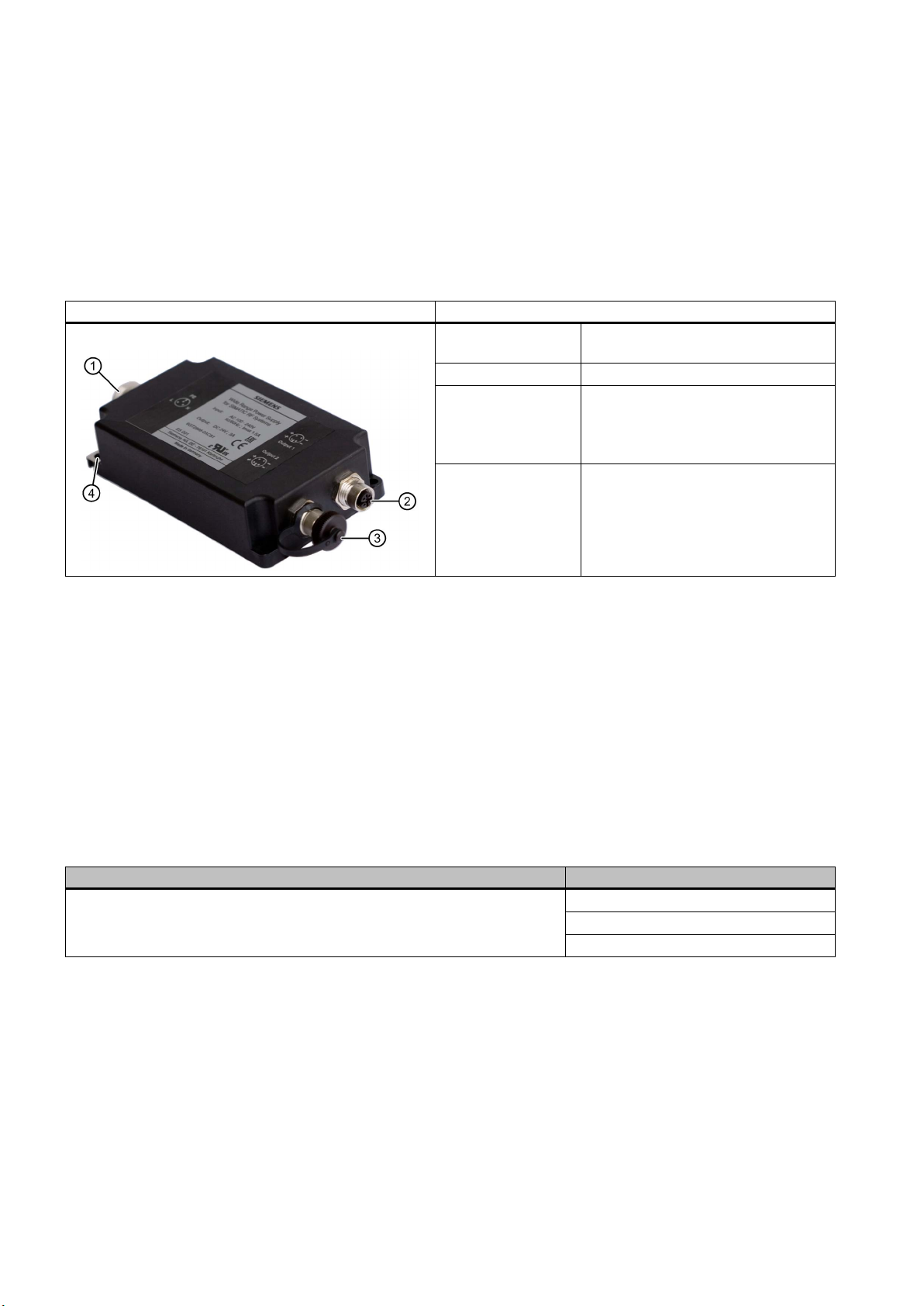

Structure
①
Network connector (PE)
②DC output 1
③DC output 2
④Ground connection
2
Scope of supply
●Wide-range power supply unit for SIMATIC RF systems
●Country-specific power cable (2 m)
●Protective cover for flange outlet
●Operating Instructions
3
Ordering data
Table 3-1 Ordering data for the wide-range power supply unit for SIMATIC RF systems
Article number
Wide-range power supply unit for SIMATIC RFsystems
(100 - 240 VAC / 24 VDC / 3 A)
with 2 m connecting cable with country-specific power cable/plug, 2 m
EU: 6GT2898-0AC00
UK: 6GT2898-0AC10
US: 6GT2898-0AC20

Wide-range power supply unit for SIMATIC RF systems
J31069-D0169-U001-A5-7618, 07/2016 3
Table 3-2 Ordering data accessories for the wide-range power supply unit for SIMATIC RF systems
Article number
24 VDC connecting cable
for SIMATIC RF600 readers RF620R/RF630R/RF640R/RF670R
5 m 6GT2891-0NH50
24 VDC connecting cable
for SIMATIC RF600 readers RF650R/RF680R/RF685R
5 m 6GT2891-0PH50
24 VDC connecting cable
for readers of the SIMATIC product family MOBY D
5 m 6GT2491-1HH50
24 VDC connecting cable
for SIMATIC RF200 / RF300 readers with RS-232
5 m 6GT2891-4KH50
24 VDC connecting cable
for SIMATIC RF200 / RF300 readers with open ends at the power
supply unit end
5 m 6GT2891-4KH50-0AX0
24 VDC connecting cable
for SIMATIC RF200 / RF300 readers with RS-232
M8 plug at the 24 V end, reader plug angled
5 m 6GT2891-4KH50-0AX1
4
Safety Information
WARNING
Danger to life
It is not permitted to open the device or to modify the device.
The following must also be taken into account:
•Failure to observe this requirement shall constitute a revocation of the CE approval, UL certification for the US and
Canada as well as the manufacturer's warranty.
•For installation of the power supply, compliance with the DIN/VDE requirements or the country-specific regulations is
essential.
•The area of application of the power supply unit is limited to "Information technology equipment" within the scope of
validity of the EN 60950/VDE 0805 standard.
•When the equipment is installed, it must be ensured that the mains socket outlet is freely accessible.
•Within the operating temperature range of the power supply unit, above an ambient temperature of +25 °C, very high
temperatures (max. approx. +81.5 °C at an ambient temperature of +70 °C) can occur on the housing due to the
internal heating of the device. In this case, make sure that the housing is covered in order to protect people from
coming into contact with the hot housing. Adequate ventilation of the power supply must be maintained under these
conditions.
Note
Operating range und use of the wide-range power supply unit
The wide
-
range power supply unit must only be used for SIMATIC products in the specifically described operating range and
for the documented intended use.
NOTICE
Liability
If the wide input range power supply for SIMATIC RF systems is connected to third-party products, the end user is
responsible and liable for operation of the system or end product that includes the wide input range power supply for
SIMATIC RF systems.
Note the conditions specified in the UL approval.

Wide-range power supply unit for SIMATIC RF systems
4J31069-D0169-U001-A5-7618, 07/2016
NOTICE
Restriction to the approval of the wide-range power supply
Alterations to the SIMATIC RFID modules and devices as well as the use of SIMATIC RFID components with third-party
RFID devices are not permitted.
Failure to observe this requirement shall constitute a revocation of the radio equipment approvals, CE approval and
manufacturer's warranty. Furthermore, the compliance to any salient safety specifications of VDE/DIN, IEC, EN, UL and
CSA will not be guaranteed.
Safety notes for the US and Canada
The readers of the SIMATIC RF600 series may only be operated with the wide range power supply unit for SIMATIC RF
systems - as an optional component – or with power supply units that are UL-listed in combination with the safety standards
specified below:
●UL 60950-1 - Information Technology Equipment Safety - Part 1: General Requirements
●CSA C22.2 No. 60950 -1 - Safety of Information Technology Equipment
NOTICE
Warranty
The compliance of the SIMATIC RFID systems to the safety standards mentioned above and the conditions in the UL
approval will not be guaranteed if neither the wide-range power supply unit for SIMATIC RF systems nor power supplies
listed according to the safety standards named are used.
5
Mounting & connecting
The wide-range power supply unit for SIMATIC RF systems is sold with a country-specific power cable for EU, UK and US.
Note
Country-specific adaptation of the connector
When necessary, the primary cable can be adapted to country
-specific conditions. The connector can be replaced by a
country
-specific connector.
If you do this, make sure that the protective conductor is connected in the connector and that grounding is ensured. If the
protective conductor cannot be connected through the plug, you must connect the grounding connection to the mounting
hole
④provided by the metal shoe.
Follow the steps below to mount and connect the wide-range power supply unit:
1. Mount the wide-range power supply using the 4x screws.
Remember to make the grounding connection with the mounting hole ④provided by the metal shoe.
For detailed information on grounding and compliance with the EMC directives, refer to the "Grounding connection"
section below.
2. Connect the reader to the outputs ②and ③of the wide-range power supply unit.
3. Connect the power cable to the primary input (PE) ①of the wide-range power supply unit.
4. Connect the power cable of the wide-range power supply unit to the voltage supply.
NOTICE
Plugging/pulling the power supply cable
Plugging or pulling the power cable of the wide-range power supply unit is only permitted when no voltage is applied
(powered-down)

Wide-range power supply unit for SIMATIC RF systems
J31069-D0169-U001-A5-7618, 07/2016 5
NOTICE
Strain on the power cable connector
The power cable is attached to / removed from the power supply using the knurled nut integrated in the plug. Avoid twisting
the plug once it is mounted. If high shock and vibration occurs, this stress must be absorbed by the power cable.
NOTICE
Restriction for maximum load
If the readers are operated permanently at full load and the digital inputs/outputs are loaded with the maximum total current
of 1.1 A, the maximum current consumption of a reader can reach 2 A. In this case, a maximum of one reader may be
connected per wide-range power supply unit.
The wide-range power supply unit (protection class I, degree of protection IP67) has four mounting holes for securing the
device.
Installation instructions
The power supply unit must be connected with the described connecting cables in the primary and secondary circuits. The
connectors at the power supply unit end may only be removed or inserted when no voltage is applied. The degree of
protection IP67 is only achieved with correctly connected and locked connectors. Adequate spacing around the power
supply unit should be provided to ensure free convection. The connection of the voltage supply must be made taking into
account the valid country-specific regulations. It must be possible to de-energize the power supply unit using a suitable
device outside the voltage supply. The device is connected with connectors “L” to phase and “N” to the neutral conductor of
the power network. The “PE” connector must be connected to the protective conductor (see dimensions and pin
assignment). The power supply unit may only be operated with a connected protective conductor. The power supply unit is
maintenance-free and contains no parts to be changed by the user. The power derating when operating at an ambient
temperature of above 50 °C must be ensured by the user. The base area of the power supply unit is screwed onto the
mounting plate or mounting wall using the four mounting holes (e.g. screw and washer M5). Optimum cooling by natural
convection must be assured at the mounting location. When used where CSA C22.2 No 107.1-01 applies a separating
element must be provided for the output circuit.
Grounding connection
For reasons of EMC, the device should also be grounded via the grounding connection ④, which is connected to the
primary input (PE) ①. Ensure that this connection is as short as possible and has a cable cross-section of at least 10 mm².
This will ensure that any faults occurring on the shielding can be dissipated as well as possible.
The grounding connection ④must be electrically connected to the ground potential using a contact disc. Tighten the screw
with a torque of ≃ 1.5 Nm.
Grounding connection
(a)
Hexagon-head screw (M5)
(b)
Flat washer
(c)
Cable lug
(d) Contact washer:
To make ground contact, use contact washers accord-
ing to the Siemens standard: SN 70093-6-FStflNnnc-
480h, Siemens item no.: H70093-A60-Z3

Wide-range power supply unit for SIMATIC RF systems
6J31069-D0169-U001-A5-7618, 07/2016
Degree of protection
The wide-range power supply unit for SIMATIC RF systems meets degree of protection IP67.
●Dust-tight: No ingress of dust
●Protected against harm from temporary submersion in water: Water must not enter in amounts that can cause damage, if
the housing is immersed in water 1 m deep for 30 minutes.
All information applies only when connected and locked. The assignment of degrees of protection is subject to standardized
test methods. If no secondary cables are connected, close the secondary sockets with a protective cap.
6

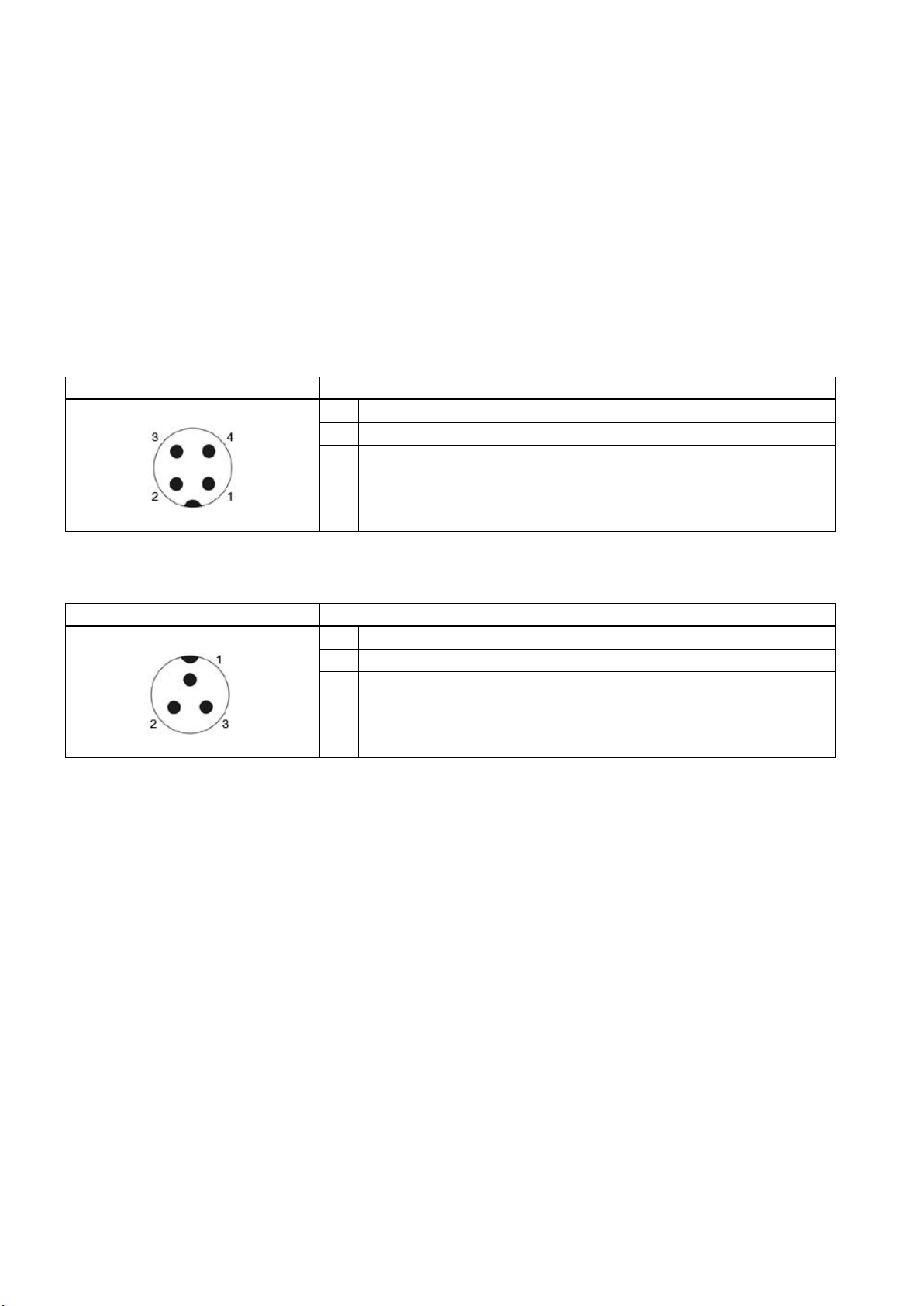

Pin assignment of DC outputs and mains connection
Table 6-1 Pin assignment of the DC outputs
Assignment
1
Ground (0 V)
2
+24 VDC
3
+24 VDC
4 Ground (0 V)
Table 6-2 Pin assignment of the mains connector
Assignment
1
PE
2
L (100 … 240 VAC)
3 N (100 … 240 VAC)

Wide-range power supply unit for SIMATIC RF systems
J31069-D0169-U001-A5-7618, 07/2016 7
7
Technical specifications
Table 7-1 Technical specifications
6GT2898-0ACx0
Product type designation
Wide-range power supply unit for SIMATIC RF systems
Electrical data
Insulation strength (prim./sec.) Uisol p/s AC 3.3 kV
Primary- secondary side are galvanically isolated
Insulation resistance R
ins
> 1 GΩ
Leakage current Ileak < 200 µA
at U
in
= 230 VAC, f = 50 Hz
Mains buffering th≥ 50 ms
at U
in
= 230 VAC
Power supply unit classification Level 3
acc. to CSA
Mechanical specifications
Housing
•
Material
Polyamide, glass-fiber reinforced
Casting compound: Polyurethane
•
Color
Black
Housing classification UL94-V0
MTBF in years 255
Permitted ambient conditions
Ambient temperature
•
During operation
•
-25 … +70 °C
•
During transportation and storage
•
-40 … +85 °C
Self-heating on full-load
max. 45 K
Surface temperature
Max. +81.5 ℃
Degree of protection to EN 60529
IP67
Protection class according to SELV/PELV Separation of output voltage according to
EN 60950-1 / EN 50178
Electrical safety
EN 60950 / UL 60950 / CAN/CSA 22.2 950, 3 Edition
Conducted interference EN 61000-6-3 / EN 55011
Class B
Noise emission EN 61000-6-3 / EN 55011
Class B

Wide-range power supply unit for SIMATIC RF systems
8J31069-D0169-U001-A5-7618, 07/2016
6GT2898-0ACx0
Noise immunity
•ESD EN 61000-6-2 / EN 61000-4-2
Contact discharge: 4 kV
(air discharge): 8 kV
•
Burst
EN 61000-6-2 / EN 61 000-4-4
Symmetrical: 2 kV
Asymmetrical: 2 kV
•
Surge
EN 61000-6-5 / EN 61 000-4-5
Symmetrical: 1 kV
asymmetrical 2 kV
•
HF field
EN 61000-6-2 / EN 61000-4-3
10 V, 3 V, 1 V (80 MHz ... 2.7 GHz)
HF coupling EN 61000-6-2 / EN 61000-4-6
10 Veff
Line interruption EN 61000-6-2 / EN 61000-4-11
Design, dimensions and weights
Dimensions (L × W × H)
•
Without plug
140 × 85 × 35 mm
•
With plug
172.7 × 85 × 35 mm
Weight
720 g
Technical specifications of the input
Rated input voltage Uin
100 to 240 VAC
Input frequency fin
50/60 Hz
Radio interference level
EN 55011/B
Switching frequency fsw
approx. 70 kHz typ.
Connector type 7/8", 2-pin + PE
6 ... 8 mm
Technical specifications of the outputs
Output voltage tolerance ∆Uout Uout nom ≤ +2 % / -1 %
at U
in
= 230 VAC, f = 50 Hz
Overvoltage protection
U
out nom
+20 % typ.
Noise ∆ULF ≤ 1 % Uout
at U
in
= min., BW: 1 MHz
Noise ∆UHF ≤ 2 % Uout
U
in
= min., BW: 20 MHz
Regulation
•Line regulation •≤ 1.0%
at Uin = min./max.
•Load regulation •≤ 1.0%
at I
out
= 10...90...10%
Short-circuit current Imax 105 ... 130 % Inom
at I
nom
= 3 A (+50 °C)
Settling time tRload variations < 5 ms
at I
out
= 10...90...10 %
Temperature coefficient ε 0.01 % / K
at TA= -25 °C ... +70 °C

Wide-range power supply unit for SIMATIC RF systems
J31069-D0169-U001-A5-7618, 07/2016 9
6GT2898-0ACx0
Overload behavior P
over
Constant current
Short-circuit protection/
No-load response
Continuous/no-load stability
Derating 2 % / K
at T
A
> +50 °C ... +70 °C
Connector type M12, 4-pin
two sockets
Table 7-2 Output configurations
Input
Outputs
U1 = U2
ILoad = I1 + I2
Efficiency (%)
Remarks
110 VAC
24 VDC
0 A
--
No-load protection
110 VAC
24 VDC
3 A
≥ 88
--
220 VAC
24 VDC
0 A
--
No-load protection
220 VAC
24 VDC
3 A
≥90
--
All values are measured at full-load and at an ambient temperature of 25 °C (unless specified otherwise).
8
Dimension drawing

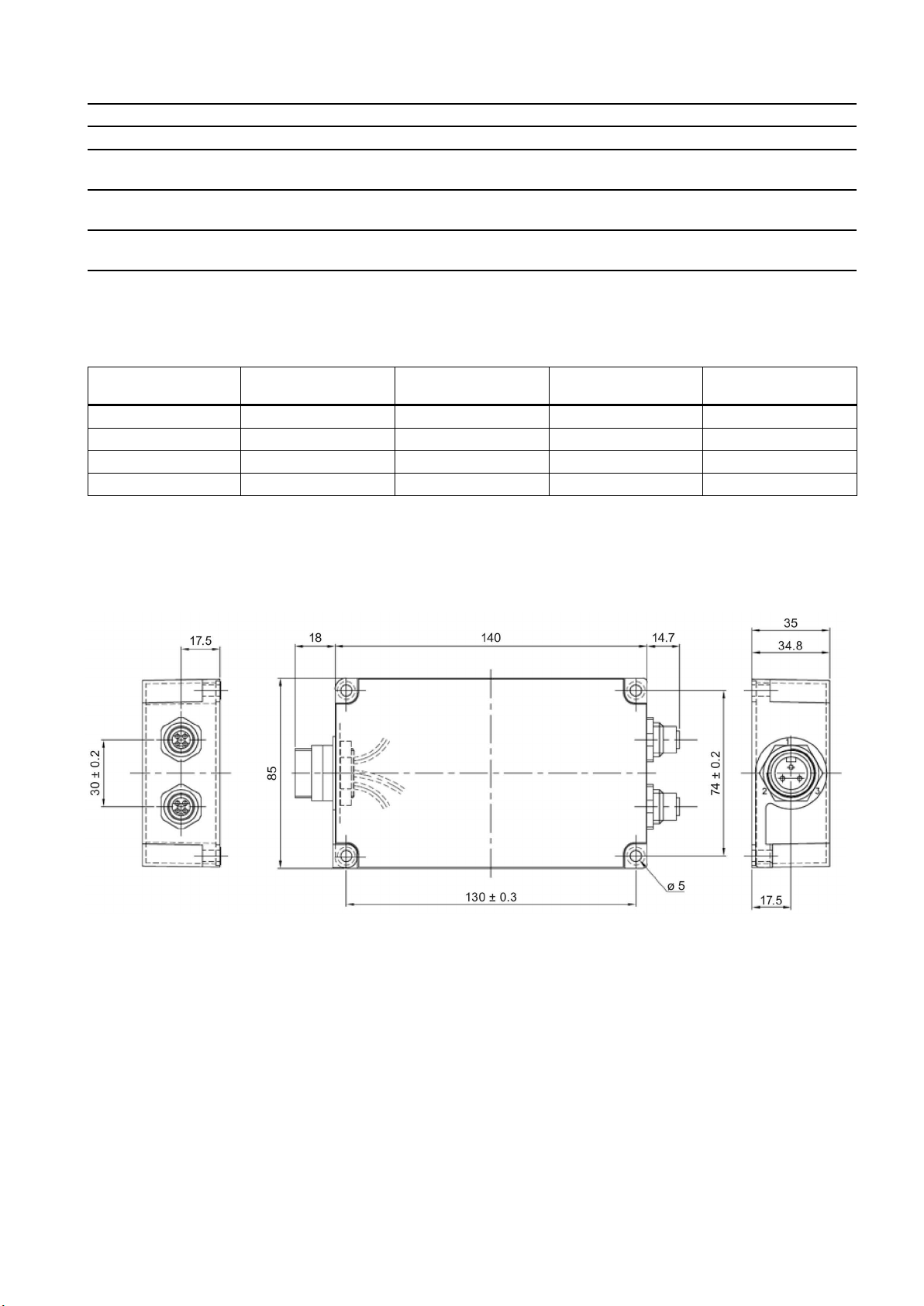

Figure 8-1 Dimension drawing wide-range power supply unit for SIMATIC RF systems
All dimensions in mm

Wide-range power supply unit for SIMATIC RF systems
10 J31069-D0169-U001-A5-7618, 07/2016
9
Certificates and approvals
Table 9-1 Approvals for wide-range power supply unit for SIMATIC RF systems (Europe, UK): 6GT2898-0AC00,
6GT2898-0AC10
Marking
Description
CE approval acc. to
•2004/108/EG - EMC
•
2006/95/EG - Voltage directive
Radio approval for Russia, Belarus, Kazakhstan
Table 9-2 Approvals for wide-range power supply unit for SIMATIC RF systems (USA): 6GT2898-0AC20
Marking
Description
This product is UL-certified for the US and Canada.
It meets the following safety standards:
•UL 60950-1
Information Technology Equipment - Safety - Part 1: General Requirements
•CAN/CSA C22.2 No. 60950-1-07
Safety of Information Technology Equipment.
•cURus +CB - UL/IEC 60950-1
and Limited power source under UL 1310
•
UL Report E 205089

Wide-range power supply unit for SIMATIC RF systems
J31069-D0169-U001-A5-7618, 07/2016 11
Engineering Conditions of Acceptability
For use only in or with complete equipment where the acceptability of the combination is determined by ULLLC. When
installed in an end-product, consideration must be given to the following:
●Reference temperatures on the unit enclosure were measured during heating test. The max obtained temperature with
condition C at Enclosure I was 81.5 °C. See chapter "Technical specifications (Page 7)" Additional Information for normal
load condition details.
●The unit is completely encapsulated. Potting improve mechanical and thermal properties of the unit.
●The following Production-Line tests are conducted for this product: Electric Strength, Earthing Continuity
●The end-product Electric Strength Test is to be based upon a maximum working voltage of: Primary-Earthed Dead Metal:
300 Vrms, 342 Vpk; Primary-SELV: 300 Vrms, 613 Vpk
●The following secondary output circuits are SELV: 24 Vdc output of the unit.
●The following secondary output circuits are at non-hazardous energy levels: 24 Vdc output.
●The following secondary output circuits are supplied by a Limited Power Source: 24 Vdc output.
●The following output terminals were referenced to earth during performance testing: Terminal P4 (-) during
DETERMINATION OF WORKING VOLTAGE - WORKING VOLTAGE MEASUREMENT TEST.
●The maximum investigated branch circuit rating is: 20 A
●The investigated Pollution Degree is: 2
●Proper bonding to the end-product main protective earthing termination is: Required
●An investigation of the protective bonding terminals has: Been conducted
●The following input terminals/connectors must be connected to the end-product supply neutral:
Please see chapter "Mounting & connecting (Page 4)".
●The equipment is suitable for direct connection to: AC mains supply
●Output is supplied by circuit that complies with NEC Class 2 requirements (additional evaluation acc. UL1310 has been
conducted during the product investigation).
Wide-range power supply unit for SIMATIC RF systems
J31069
-D0169-U001-A5-7618, 07/2016
Trademarks
All names identified by ® are registered trademarks of
Siemens AG. The remaining trademarks in this publication may be tra
demarks whose
use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software described. Since varia
nce cannot
be precluded entirely, we cannot guarantee full consistency. However, the information in this publication is reviewed regular
ly and any
necessary corrections are included in subsequent editions.
Siemens AG
Division Process Industries and Drives
Postfach 48 48
90026 NÜRNBERG
GERMANY
