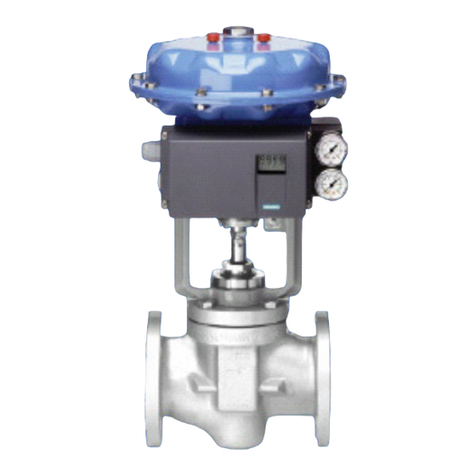

Siemens SIPART PS2 Assembly instructions

12/2014Edition
Answers for industry.
Installation Instructions
Smart Valve Positioner
Venting Gauge Block
SIPART PS2

SIPART PS2
Smart Valve Positioner
Venting Gauge Block
Installation Instructions
Hardware Installation Manual
12/2014
A5E34388399
-AD
Introduction
1
Safety notes
2
Installing/mounting
3
Service and maintenance
4
Dimension drawings
5

Siemens AG
Industry Sector
Postfach 48 48
90026 NÜRNBERG
GERMANY
Order number: A5E34388399
Ⓟ
12/2014 Subject to change
Copyright © Siemens AG 2014.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified
for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

Venting Gauge Block Installation Instructions
Hardware Installation Manual, 12/2014, A5E34388399-AD 3
Table of contents
1 Introduction............................................................................................................................................. 5
1.1 History.......................................................................................................................................5
1.2 Checking the consignment .......................................................................................................5
1.3 Transportation and storage.......................................................................................................6
1.4 Notes on Warranty ....................................................................................................................6
2 Safety notes............................................................................................................................................ 7
2.1 Warning Symbols......................................................................................................................7
2.2 Laws and directives ..................................................................................................................8
2.3 Conformity with European directives ........................................................................................8
2.4 Loss of safety of device with type of protection "Intrinsic safety Ex i" ......................................9
3 Installing/mounting ................................................................................................................................ 11
3.1 Basic Safety Instructions ........................................................................................................11
3.1.1 Improper Commissioning ........................................................................................................11
3.1.2 Unsuitable Compressed Air ....................................................................................................13
3.1.3 Prior to working on the control valve.......................................................................................13
3.1.4 Proper Mounting .....................................................................................................................14
3.2 Introduction .............................................................................................................................15
3.3 Pneumatic Connections ..........................................................................................................16
4 Service and maintenance...................................................................................................................... 19
4.1 Maintenance ...........................................................................................................................19
5 Dimension drawings.............................................................................................................................. 21
5.1 Installation and Outline Drawings ...........................................................................................21
Index..................................................................................................................................................... 23
Tables
Table 3- 1 Weight ..........................................................................................................................................15
Figures
Figure 3-1 SIPART PS2 Venting Gauge Block .............................................................................................15

Table of contents
Venting Gauge Block Installation Instructions
4Hardware Installation Manual, 12/2014, A5E34388399-AD

Venting Gauge Block Installation Instructions
Hardware Installation Manual, 12/2014, A5E34388399-AD 5
Introduction
1
These instructions contain all information required to commission and use the device. Read
the instructions carefully prior to installation and commissioning. In order to use the device
correctly, first review its principle of operation.
The instructions are aimed at persons mechanically installing the device, connecting it
electronically, configuring the parameters and commissioning it, as well as service and
maintenance engineers.
1.1
History
The contents of these instructions are regularly reviewed and corrections are included in
subsequent editions. We welcome suggestions for improvement.
The following table shows the most important changes in the documentation compared to
each previous edition.
Edition
Remarks
10/2014
First edition of Installation Instructions for the SIPART PS2 Venting Gauge Block.
1.2
Checking the consignment
1. Check the packaging and the delivered items for visible damage.
2. Report any claims for damages immediately to the shipping company.
3. Retain damaged parts for clarification.
4. Check the scope of delivery by comparing your order to the shipping documents for
correctness and completeness.
WARNING
Using a damaged or incomplete device
Danger of explosion in hazardous areas.
•Do not use damaged or incomplete devices.

Introduction
1.3 Transportation and storage
Venting Gauge Block Installation Instructions
6Hardware Installation Manual, 12/2014, A5E34388399-AD
1.3
Transportation and storage
To guarantee sufficient protection during transport and storage, observe the following:
●Keep the original packaging for subsequent transportation.
●Devices/replacement parts should be returned in their original packaging.
●If the original packaging is no longer available, ensure that all shipments are properly
packaged to provide sufficient protection during transport. Siemens cannot assume
liability for any costs associated with transportation damages.
CAUTION
Insufficient protection during storage
The packaging only provides limited protection against moisture and infiltration.
•Provide additional packaging as necessary.
1.4
Notes on Warranty
The sales contract contains the entire obligation of Siemens. The warranty contained in the
contract between the parties is the sole warranty of Siemens. Any statements continued
herein do not create new warranties or modify the existing warranty.
For warranty and non-warranty service, refer to Customer/Product Support in this
publication.
All product designations may be trademarks or product names of Siemens Industry, Inc. or
other supplier companies whose use by third parties for their own purposes could violate the
rights of the owners.
Siemens Industry, Inc. assumes no liability for errors or omissions in this document or for the
application and use of information in this document. The information herein is subject to
change without notice.
Procedures in this document have been reviewed for compliance with applicable approval
agency requirements and are considered sound practice. Neither Siemens Industry, Inc. nor
these agencies are responsible for product uses not included in the approval certification(s)
or for repairs or modifications made by the user.

Venting Gauge Block Installation Instructions
Hardware Installation Manual, 12/2014, A5E34388399-AD 7
Safety notes
2
This device left the factory in good working condition. In order to maintain this status and to
ensure safe operation of the device, observe these instructions and all the specifications
relevant to safety.
Observe the information and symbols on the device. Do not remove any information or
symbols from the device. Always keep the information and symbols in a completely legible
state.
2.1
Warning Symbols
Symbol
Explanation
Consult operating instructions
Hot surface
Dangerous electrical voltage
Corrosive materials
Toxic materials
Isolate the device from power using a circuit-breaker
Protect the device from impact otherwise loss of degree of protection
Protective insulation; device in protection class II

Safety notes
2.2 Laws and directives
Venting Gauge Block Installation Instructions
8Hardware Installation Manual, 12/2014, A5E34388399-AD
2.2
Laws and directives
Observe the test certification, provisions and laws applicable in your country during
connection, assembly and operation. These include, for example:
●National Electrical Code (NEC - NFPA 70) (USA)
●Canadian Electrical Code (CEC) (Canada)
Further provisions for hazardous area applications are for example:
●IEC 60079-14 (international)
●EN 60079-14 (EC)
2.3
Conformity with European directives
The CE marking on the device shows conformity with the regulations of the following
European guidelines:
Electromagnetic Compatibi
l-
i
ty EMC
2004/108/EC
Directive of the European Parliament and of the Council on the
approximation of the laws of the Member States relating to elec-
tromagnetic compatibility and repealing Directive 89/336/EEC.
Atmosphère explosible
ATEX
94/9/EC
Directive of the European Parliament and the Council on the
a
pproximation of the laws of the Member States concerning
equi
pment and protective systems intended for use in potential-
ly explosive atmospheres.
LVD 2006/95/EC
Directive of the European Parliament and of the Council of the
harmonisation of the laws of Member States relating to electr
i-
cal equipment designed for use within certain voltage limits.
The applied standards can be found in the EC conformity declaration of the device.
WARNING
Improper device modifications
Danger to personnel, system and environment can result from modifications to the device,
particularly in hazardous areas.
•Only carry out modifications that are described in the instructions for the device. Failure
to observe this requirement cancels the manufacturer's warranty and the product
approvals.

Safety notes
2.4 Loss of safety of device with type of protection "Intrinsic safety Ex i"
Venting Gauge Block Installation Instructions
Hardware Installation Manual, 12/2014, A5E34388399-AD 9
Qualified personnel for hazardous area applications
Persons who install, connect, commission, operate, and service the device in a hazardous
area must have the following specific qualifications:
●They are authorized, trained or instructed in operating and maintaining devices and
systems according to the safety regulations for electrical circuits, high pressures,
aggressive, and hazardous media.
●They are authorized, trained, or instructed in carrying out work on electrical circuits for
hazardous systems.
●They are trained or instructed in maintenance and use of appropriate safety equipment
according to the pertinent safety regulations.
WARNING
Unsuitable device for the hazardous area
Danger of explosion.
•Only use equipment that is approved for use in the intended hazardous area and
labelled accordingly.
2.4
Loss of safety of device with type of protection "Intrinsic safety Ex i"
WARNING
Loss of safety of device with type of protection "Intrinsic safety Ex i"
If the device has already been operated in non-intrinsically safe circuits or the electrical
specifications have not been observed, the safety of the device is no longer ensured for use
in hazardous areas. There is a danger of explosion.
•Connect the device with type of protection "Intrinsic safety" solely to an intrinsically safe
circuit.
•Observe the specifications for the electrical data on the certificate and/or in Chapter
"Technical data".

Safety notes
2.4 Loss of safety of device with type of protection "Intrinsic safety Ex i"
Venting Gauge Block Installation Instructions
10 Hardware Installation Manual, 12/2014, A5E34388399-AD

Venting Gauge Block Installation Instructions
Hardware Installation Manual, 12/2014, A5E34388399-AD 11
Installing/mounting
3
3.1
Basic Safety Instructions
3.1.1
Improper Commissioning
WARNING
Improper commissioning
These instructions are valid solely for the installation and commissioning of the Booster.
It is absolutely necessary that you follow the safety rules, notes and requirements of the
compact operating instructions before assembly, commissioning and also during operation
of the positioner. You can find the compact operating instructions on the supplied CD or on
the Internet under: http://www.siemens.com/processinstrumentation/documentation
(http://www.siemens.com/processinstrumentation/documentation)
WARNING
High operating force with pneumatic actuators
Risk of injury when working on control valves due to the high operating force of the
pneumatic actuator.
•Please observe the corresponding safety instructions for the pneumatic actuator in use.
WARNING
Lever for position detection
Danger of crushing and shearing with mounting kits which use a lever for position
detection.
During commissioning and ongoing operation, severing or squeezing of limbs could occur
as a result of the lever. Risk of injury when working on control valves due to the high
operating force of the pneumatic actuator.
•Do not reach into the range of motion of the lever following mounting of the positioner
and mounting kit.

Installing/mounting
3.1 Basic Safety Instructions
Venting Gauge Block Installation Instructions
12 Hardware Installation Manual, 12/2014, A5E34388399-AD
WARNING
Impermissible accessories and spare parts
Danger of explosion in areas subject to explosion hazard.
•Only use original accessories or original spare parts.
•Observe all relevant installation and safety instructions described in the instructions for
the device or enclosed with the accessory or spare part.
WARNING
It is possible to damage the cover gasket
If the cover gasket is not positioned correctly in the groove of the base plate, it could be
damaged when the cover is mounted and screwed tight.
•Therefore make sure that the gasket is seated correctly.
WARNING
Open cable inlet or incorrect cable gland
Danger of explosion in hazardous areas.
•Close the cable inlets for the electrical connections. Only use cable glands or plugs
which are approved for the relevant type of protection.
WARNING
Exceeded maximum ambient or process media temperature
Danger of explosion in hazardous areas.
Device damage.

Installing/mounting
3.1 Basic Safety Instructions
Venting Gauge Block Installation Instructions
Hardware Installation Manual, 12/2014, A5E34388399-AD 13
3.1.2
Unsuitable Compressed Air
NOTICE
Caution
Use of process fluids other than instrument air is not recommended. No claim is made as to
the suitability of this product for use with other process fluids.
3.1.3
Prior to working on the control valve
CAUTION
Please note the following before working on the control valve and when attaching the
positioner
Danger of injury.
•Prior to working on the control valve, you must move the control valve into a completely
unpressurized. Proceed as follows:
–Depressurize the actuator chambers.
–Switch off the supply air PZ.
–Lock the valve in its position.
•Make sure that the valve has reached the unpressurized state.
•If you interrupt the pneumatic auxiliary power to the positioner, the unpressurized
position may only be reached after a certain waiting time.
•When mounting, observe the following sequence imperatively to avoid injuries or
mechanical damage to the positioner/mounting kit:
–Mount the positioner mechanically.
–Connect the electrical auxiliary power supply.
–Connect the pneumatic auxiliary power supply.
–
Commission the positioner.
WARNING
Mechanical impact energy
In order to ensure the degree of protection of the housing (IP66), protect the housing
versions of the positioners listed here from mechanical impact energy:
•6DR5..3; not greater than 2 Joule
•6DR5..0; not greater than 1 Joule
•6DR5..1 with inspection window; not greater than 1 Joule

Installing/mounting
3.1 Basic Safety Instructions
Venting Gauge Block Installation Instructions
14 Hardware Installation Manual, 12/2014, A5E34388399-AD
3.1.4
Proper Mounting
NOTICE
Incorrect mounting
The device can be damaged, destroyed, or its functionality impaired through improper
mounting.
•Before installing ensure there is no visible damage to the device.
•Make sure that process connectors are clean, and suitable gaskets and glands are
used.
CAUTION
Loss of degree of protection
Damage to device if the enclosure is open or not properly closed. The degree of protection
specified on the nameplate is no longer guaranteed.
•Make sure that the device is securely closed.

Installing/mounting
3.2 Introduction
Venting Gauge Block Installation Instructions
Hardware Installation Manual, 12/2014, A5E34388399-AD 15
3.2
Introduction
In that condition where you are using a Double Acting SIPART PS2 with a Single Acting
actuator, the following must be considered:
With loss of supply air the Double Acting SIPART PS2 will lock in the last position. This
prevents the actuator spring from returning the valve to its fail-safe position. By using the
"venting" gauge block and properly piping the positioner to the actuator the air on the side
opposite the spring can be exhausted back through the air supply line.
Figure 3-1 SIPART PS2 Venting Gauge Block
Specifications
Supply Pressure
= 7 BAR (101.5 PSI)
Table 3- 1 Weight
Makrolon
Explosion Proof
With PS2
Kit only
With PS2
Kit only
Venting
Gauge
Block
1.7 kg (3.8 lbs) 680.39 g (1.5 lbs) 5.3 kg (11.6
lbs)
680.39 g (1.5 lbs)
Ordering Information
The booster can be ordered as a kit to add to an existing positioner in the field, or can
ordered as an option on a new unit.
Kit Numbers
6DR4004-2RF Venting Gauge Block, Double Acting, ¼” NPT connections
6DR4004-2RE Venting Gauge Block, Double Acting, G 1/4 connections

Installing/mounting
3.3 Pneumatic Connections
Venting Gauge Block Installation Instructions
16 Hardware Installation Manual, 12/2014, A5E34388399-AD
Model Option Codes
R2F Venting Gauge Block, Double Acting, ¼” NPT connections
R2E Venting Gauge Block, Double Acting, G 1/4 connections
3.3
Pneumatic Connections
Refer to Installation drawings for the locations of the pneumatic connections. The supply and
output connections are 1/4" NPT. Ideally the SIPART PS2 Venting Gauge Block assembly
should be close coupled to the actuator. Tubing of 1/4" O.D. or larger is recommended for
piping.
Blow out all piping before connections are made to prevent the possibility of dirt or chips
entering the relay. Use pipe sealant sparingly, and then only on the male threads. A non-
hardening sealant is strongly recommended. Connect the relay to a source of clean, dry, oil-
free instrument air. See Instrument Air Requirements.
NOTICE
Caution
Pressure in excess of 7 BAR (101.5 PSI) to any connection may cause damage to the
relay. In any event, maximum actuator pressure should never be exceeded.
Instrument Air Requirements
NOTICE
Caution
Use of process fluids other than instrument air is not recommended. No claim is made as to
the suitability of this product for use with other process fluids.
NOTICE
Caution
Synthetic compressor lubricants in the air system at the instrument may cause the
instrument to fail.
There are many types of synthetic compressor lubricants. Some may not be compatible with
materials used in construction of the relay. Wetting of these materials with such an oil mist or
oil vapor, etc., may cause deterioration and may ultimately result in the failure of the
instrument. Refer to Specifications for a list of materials.
The requirements for a quality air supply can be found in the Instrument Society of America’s
“Quality Standard for Instrument Air” (ISA-S7.3). Basically this standard calls for the
following:
Particle Size – The particle size in the air stream at the instrument shall be no larger than 3
microns.
Dew Point – The dew point, at line pressure, should be at least 10°C (18°F) below the
minimum temperature to which any part of the instrument air system is exposed at any

Installing/mounting
3.3 Pneumatic Connections
Venting Gauge Block Installation Instructions
Hardware Installation Manual, 12/2014, A5E34388399-AD 17
season of the year. Under no circumstances should the dew point, at line pressure, exceed
2°C (35.6°F).
Oil Content – The maximum total oil or hydrocarbon content, exclusive of non-condensable,
should not exceed 1 ppm under normal operating conditions.
