SignaMax FO-065-7330 User manual

USER’S GUIDE
SignamaxConnectivity Systems
FO-065-7330
FO-065-7340
16 / 24 Ports Ethernet Switch

SignamaxConnectivity Systems
F0-065-7330
F0-065-7340
16 / 24 Ports Ethernet Switch
User’s Guide

SignamaxFO-065-7330 / 7340 Ethernet Switch
User’s Manual
1
FCC Statement
The FCC (Federal Communications Commission) restricts
the amount of radio frequency emission and radiation coming
from computer equipment.
The equipment introduced in this manual has been tested
and found to comply with the limits for a Class A digital
device pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment.
This equipment generates, uses, and can radiate radio
frequency energy, and if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user is required
to correct the interference at his/her own expense.
Any changes or modifications not expressly approved by the
manufacture would void the user’s authority to operate the
equipment.
Trademarks
Product names mentioned in this manual may be trademarks
or registered trademarks of those products.
All trademarks or brand names mentioned are properties of
their respective companies.

SignamaxFO-065-7330 / 7340 Ethernet Switch
User’s Manual
2
Preface
This manual describes how to install and use the SignamaxFO-
065-7330 / 7340, 16 / 24 Ports Ethernet Switch. The TX ports of
the switch introduced here auto-negotiates the presence of
10/100Mbps and full/half-duplex mode and auto-MDIX. In
addition, it allows an optional 100BaseFX multi-mode or single-
mode fiber module, enabling long distance connection.
To get the most out of this manual, you should have an
understanding of networking concepts such as bridging, IEEE
802.3 10BaseT Ethernet, IEEE 802.3u 100BaseTX/FX Fast
Ethernet, and local area networks (LANs).
For more information about these topics, please refer to the
Appendices.
In this manual, you will find:
•Introduction on the SignamaxFO-065-7330 /
7340 Ethernet Switch
•Product features
•Illustrative LEDs functions
•Installation instructions
•Specifications

SignamaxFO-065-7330 / 7340 Ethernet Switch
User’s Manual
3
Table of Contents
FCC STATEMENT1
TRADEMARKS 1
PREFACE 2
TABLE OF CONTENTS 3
PRODUCT OVERVIEW 4
FRONT VIEW 4
PACKAGE CONTENTS 4
PRODUCT FEATURES 5
FRONT PANEL DISPLAY 6
PHYSICAL PORTS 7
INSTALLATION 8
SELECTING A SITE FOR THE EQUIPMENT 8
DECIDING HOW TO INSTALL 9
HOW TO INSTALL MODULE 10
CONNECTING TO POWER 11
CONNECTING TO YOUR NETWORK 11
TECHNICAL SPECIFICATIONS 13
PHYSICAL SPECIFICATIONS 14

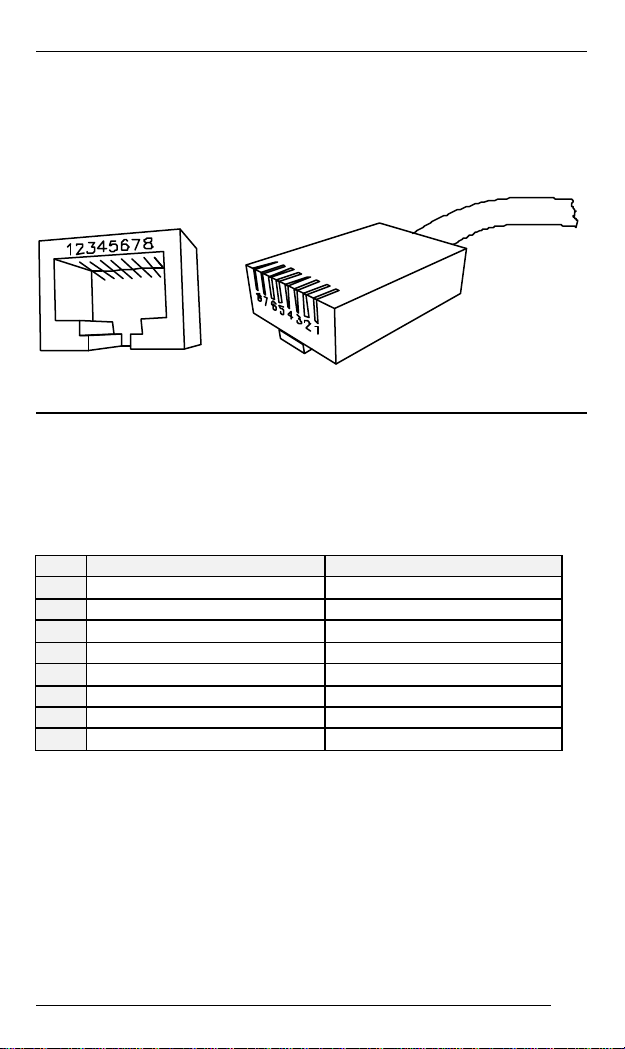

CONNECTOR PINOUTS 15
ORDERING INFORMATION 16
CONTACT INFORMATION 17

SignamaxFO-065-7330 / 7340 Ethernet Switch
User’s Manual
4
Product Overview
Front View
Figure 1: The SignamaxFO-065-7330, 16 Ports Ethernet Switch
Figure 2: The SignamaxFO-065-7340, 24 Ports Ethernet Switch
Package Contents
When you unpack the product package, you shall find these items
listed below.
lThe SignamaxFO-065-7330 / 7340 Ethernet Switch
lOne AC power cord
lUser’s Manual
lAccessories: brackets (2 pcs) & bracket screws (6 pcs)
Please inspect the contents, and report any apparent damage or
missing items immediately to your authorized reseller.

SignamaxFO-065-7330 / 7340 Ethernet Switch
User’s Manual
5
Product Features
♦PROVIDES 16 OR 24 × 10/100MBPS PORTS USING RJ-45
CONNECTORS
♦AN OPTIONAL SINGLE-PORT FIBER MODULE ALLOWS:
-100BASEFX MULTI-MODE FIBER WITH SC, ST, MT-RJ, VF-45 OR LC
CONNECTOR
-100BASEFX SINGLE-MODE FIBER WITH SC CONNECTOR
♦AUTO-NEGOTIATION FOR SPEED AND DUPLEX MODE ONTX
PORTS
♦AUTO-MDIX FOR ALL TX PORTS
♦TRUE NON-BLOCKING ARCHITECTURE
♦FULL WIRE SPEED FORWARDING RATE
♦STORE-AND-FORWARD MECHANISM
♦BROADCAST STORM FILTERING CONTROL
♦BACK-PRESSURE AND IEEE 802.3X COMPLIANT FLOW
CONTROL
♦SUPPORTS 8K MAC ADDRESSES
♦4M BITS BUFFER MEMORY FOR THE 16-PORT SWITCH
♦2M BITS BUFFER MEMORY FOR THE 24-PORT SWITCH
♦FRONT PANEL PUSH BUTTON TO CHOOSE 100BASEFX OR
PORT 16 OR 24
♦FRONT PANEL PORT STATUS LEDS
♦STANDARD 19” RACKMOUNT SIZE, ONE-UNIT-HEIGHT

SignamaxFO-065-7330 / 7340 Ethernet Switch
User’s Manual
6
Front Panel Display
An array of LED indicators on the front panel provides you with
instant feedback on each port status, and, helps you monitor and
troubleshoot the switch.
Figure 3: Front Panel LEDs
ΠPower
This LED comes on when the switch is properly connected to power and
turned on.
• Push Button
The push button is located at the right side of port 16 on the 16-Port Switch
or of port 24 on the 24-Port Switch.
Depress this button to use port 16 or 24, and press this button to use the
100BaseFX module.
Ž Port Status
The RJ-45 ports numbered from 1 to 16 on the 16-Port Switch, or 1 to 24 on
the 24-Port Switch.
The LEDs are located at the left side of the switch, displaying status for each
respective port. Please refer to the table below for more information.
Consult the following table for details.
iBefore you use this table for troubleshooting, make sure the switch is
properly connected to power and turned on.

SignamaxFO-065-7330 / 7340 Ethernet Switch
User’s Manual
7
Physical Ports
The 16 / 24 Ports Switch has sixteen or twenty-four 10/100Mbps
ports using RJ-45 connectors and provides one optional slot for
single-port fiber module. The optional module allows fiber type
(multi-mode or single-mode fiber) and connector (SC, ST, MT-RJ,
VF-45, or LC) at user’s discretion.
UNDERSTANDING FRONT PANEL DESIGN
On Power feeding in
Power switched off
Power LED Off Improper connection
On A valid network connection
LNK stands for LINK
Flashing Transmitting or receiving data
ACT stands for ACTIVITY
LNK/ACT
Off No connection
On A valid 100Mbps connection
100 stands for 100Mbps
Port LED
100M
Off A valid 10Mbps connection

SignamaxFO-065-7330 / 7340 Ethernet Switch
User’s Manual
8
Installation
Selecting a Site for the Equipment
As with any electric device, you should place the equipment where
it will not be subjected to extreme temperatures, humidity, or
electromagnetic interference. Specifically, the site you select
should meet the following requirements:
-The ambient temperature should be between 32 and 104
degrees Fahrenheit (0 to 40 degrees Celsius).
-The relative humidity should be less than 90 percent,
non-condensing.
-Surrounding electrical devices should not exceed the
electromagnetic field (RFC) standards for IEC 801-3, Level 2
(3V/M) field strength.
-Make sure that the equipment receives adequate ventilation.
Do not block the ventilation holes on each side of the switch or
the fan exhaust port on the side or rear of the equipment.
-The power outlet should be within 1.8 meters of the switch.

SignamaxFO-065-7330 / 7340 Ethernet Switch
User’s Manual
9
Deciding How to Install
MOUNTED TO 19-INCH STANDARD RACK
Locate the accessories supplied in the product package. Use the
rackmount brackets and screws to install the switch into any EIA
19” standard rack.
Step 1: Attach the brackets to each side of the chassis.
Step 2: Apply the screws to each side and secure them tightly.
Step 3: Carefully position the switch into the rack.
Step 4: Align the brackets to the side holes on the rack and use rack
screws to secure the chassis with the rack.
Step 5:Proceed to the “Connecting to Power” section.
DESKTOP OR ANY FLAT SURFACE
The switch can sit on desktop or any flat surface with adequate
space and ventilation. If you want to place it onto a shelf, make
sure the shelf can withstand the weight of the switch.
Step 1: Simply put the switch on the desired place.
Step 2: Ensure the switch receives good ventilation.
Step 3: Proceed to the “Connecting to Power” section.

SignamaxFO-065-7330 / 7340 Ethernet Switch
User’s Manual
10

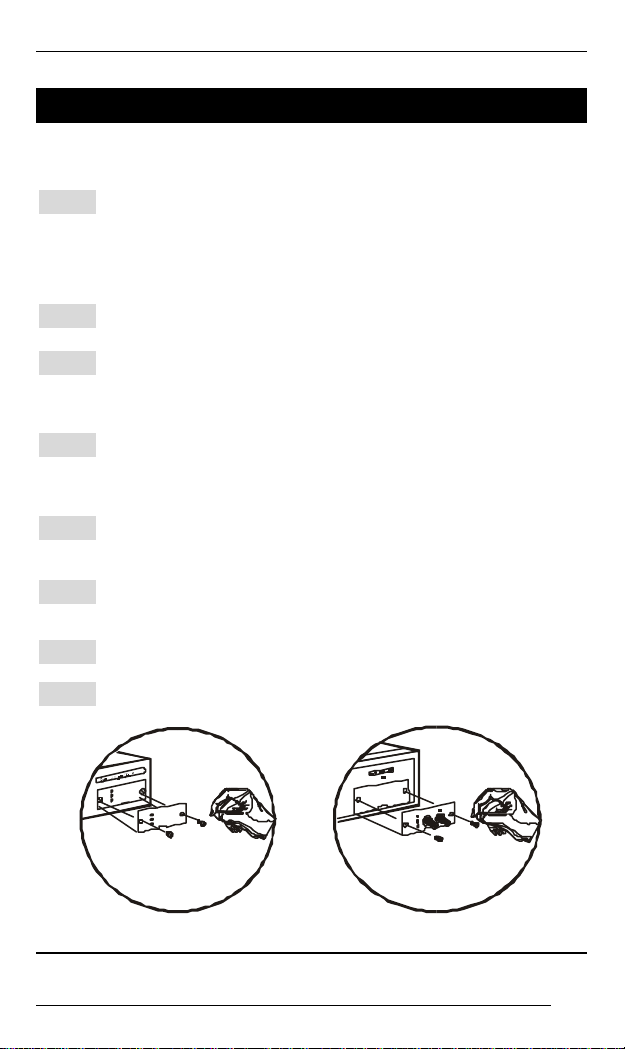

How to Install Module
Consult the following illustrations before installation.
Step 1: Make sure the power is switched off. The module is not hot-
swappable.
iIt may cause electric shock or any possible damage to the switch if the
power is not switched off.
Step 2: Remove the module from the static-free container.
Step 3: Unscrew the cover plate of the expansion slot.
(The slot for single-port module is located at the right side of the
switch.)
Step 4: Remove the plate.
(Keep it for future use when you decide to remove this module
later.)
Step 5: Carefully slide the module into the slot, following the internal
plastic guide rails.
Step 6:Once it is fully slid in, snap in the module to make a proper
connection.
Step 7:Fasten the module screws then.
Step 8:Finally, turn on the power.
Figure 4: Removal of cover plate Fiber module being installed

SignamaxFO-065-7330 / 7340 Ethernet Switch
User’s Manual
11
Connecting to Power
Locate the supplied AC power cord.
Step 1:Connect the AC power cord to the receptacle at the back of the
switch.
Step 2:Attach the plug into a standard AC outlet with a voltage range from
100~240Vac.
Step 3:The power LED on the front panel will come on then.
Figure 5: Rear view of the switch
Connecting to Your Network
CABLING
Step 1: First, ensure the power of the switch and end devices is turned off.
iIt may cause electric shock or any possible harm to you if the power is
not switched off.
Step 2: Prepare cable with corresponding connectors for each type of port
in use.
Consult the table below for cabling requirements based on
connectors and speed considerations.
Step 3: Connect one end of the cable to the switch and the other end to a
desired device.
Step 4: Once the connections between two end devices are made
successfully, turn on the power and the switch is operational.

SignamaxFO-065-7330 / 7340 Ethernet Switch
User’s Manual
12
NETWORK SEGMENTATION
The maximum segment distance between a node and a directly
connected switch port on a 100BaseFX network is 75km using
10/125 (or 9/125)µmsingle-mode fiber optic cable. It is capable of
spanning at most 2km when use of 62.5/125 (or 50/125)µmmulti-
mode fiber-optic cable.
Cable Specifications Table
Ethernet
Standards Connector Port Speed
Half/Full
Duplex
CableMax.
Distance
10BaseT RJ-45 10/20
Mbps Cat. 3, 4 or 5 UTP/STP 100 m
100BaseTX RJ-45 100/200
Mbps Cat. 5 UTP/STP 100 m
100BaseFX
Multi-mode ST, SC,
MT-RJ,
VF-45, LC
100/200
Mbps 62.5/125 µm multi-mode
fiber
2 km
100BaseFX
Single-mode SC 100/200
Mbps10/125 µm single-mode
fiber
15 km
100BaseFX
Single-mode SC 100/200
Mbps 10/125 µm single-mode
fiber
40 km
100BaseFX
Single-mode SC 100/200
Mbps 10/125 µm single-mode
fiber
75 km

SignamaxFO-065-7330 / 7340 Ethernet Switch
User’s Manual
13
Technical Specifications
Signamax
 FO-065-7330 / 7340
Ethernet Switch
Applicable
Standards IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX/FX
Fixed Ports Sixteen ports for the 16-Port Switch
Twenty-four ports for the 24-Port Switch
Optional 1-port
Module Type 100BaseFX multi-mode or single-mode module
100BaseTX/FX:
200Mbps for full-duplex; 100Mbps for half-duplex
Speed
10BaseT:
20Mbps for full-duplex; 10Mbps for half-duplex
Switching
Method Store-and-Forward
Performance 148,800pps forwarding rate per port for 100Mbps
14,880pps forwarding rate per port for 10Mbps
PowerChassis LED
Indicators For ports:
LNK/ACT; 100M (2 LEDs)

SignamaxFO-065-7330 / 7340 Ethernet Switch
User’s Manual
14
Physical Specifications
Signamax
 FO-065-7330 / 7340
Ethernet Switch
Dimensions 440 × 205 × 45 mm (17.3 × 8.1 × 1.8 inch)
19” Rackmount Size, 1U
Weight Approx. 2.8kg
Power Input 100 ~ 240 Vac, 50~60 Hz
Input Fuse 2.5A
Power
Consumption 8.25W Max.
Operating
Temperature 0° ~ 40°C (32° ~ 104°F)
Storage
Temperature -25° ~ 70°C (-13° ~ 158°F)
Humidity
10 ~ 90%, non-condensing
Emissions FCC part 15 Class A, CE Mark

SignamaxFO-065-7330 / 7340 Ethernet Switch
User’s Manual
15
Connector Pinouts
Pin arrangement of RJ-45 connectors:
Figure 6: RJ-45 Connector and Cable Pins
The following table lists the pinout of 10/100BaseT/TX ports.
Connector Pin-Out
Pin Regular Ports Uplink port
1Input Receive Data + Output Transmit Data +
2Input Receive Data-Output Transmit Data-
3Output Transmit Data + Input Receive Data +
4NC NC
5NC NC
6Output Transmit Data-Input Receive Data-
7NC NC
8NC NC

SignamaxFO-065-7330 / 7340 Ethernet Switch
User’s Manual
16
Ordering Information
16 / 24 Fixed Ports Single-Port Module
Cable
Connector Distance Speed Cable (/125µm) Connector Distance P
100FX MMF
(50µmor 62.5µm)
SC
2km
100FX MMF
(50µmor 62.5µm)
ST
2km
100FX MMF
(50µmor 62.5µm)
MT-RJ
2km
100FX MMF
(50µmor 62.5µm)
VF-45
2km
100FX SMF
(50µmor 62.5µm)
LC 2km
100FX SMF
(9µmor 10µm)
SC
15km
100FX SMF
(9µmor 10µm)
SC 40km
100BaseTX:
Cat. 5
UTP/STP
RJ-45
OR
10BaseT:
Cat. 3,4 or 5
UTP/STP
RJ-45
100m
100FX SMF
(9µmor 10µm)
SC 75km
i
i. The maximum node-to-node network distance is in full-duplex operation.
ii. MMF denotes Multi-Mode Fiber. SMF denotes Single-Mode Fiber.

SignamaxFO-065-7330 / 7340 Ethernet Switch
User’s Manual
17
Contact Information
SIGNAMAX  CONNECTIVITY SYSTEMS
An AESP Company
1810 N.E. 144th Street.
North Miami, Florida 33181, U.S.A.
Phone: [phone] Fax: [phone]
Sales: 800-446-2377 Tech. Support: 800-446-2377, ext. 201
Http://www.signamax.com
E-mail: [email protected]
EUROPE
AESP Ukraine. (UKRAINE)
2 Timiryazevskaya St. 47
252014 Kiev, Ukraine
Phone: [phone]
Fax: [phone]
Http://www.aesp.com.ua
E-mail: [email protected]
AESP Sweden. (SWEDEN)
Grevegatan 19-21 SE-815
40 TIERP. SWEDEN
Phone:[phone]
Fax:[phone]
Phone:[phone]
Http://www.aesp.se
E-mail: [email protected]
JOTEC AESP AS. (NORWAY)
Telefon [phone] Ordrefax
23 14 17 10 Karihaugveien 102
Postboks 50 Ellingsrudasen
1006 Oslo, Norway
Phone:[phone]
Fax:[phone]
Http://www.jotec.no
E-mail: [email protected]
AESP Russia. (RUSSIA)
Kronshtadtsky Blv.
125499 Moscow, Russia
Phone:[phone]
Phone:[phone]
Fax:[phone]
Http://www.aesp.ru
E-mail: [email protected]
AESP Germany GmbH
(GERMANY)
Weisserfelderstr.2 D-85551
Kircheim b. München, Germany
Phone:[phone]
Fax:[phone]
E-mail: [e-mail]
INTELEK spol.s.r.o
(CZECH REPUBLIC)
Vlarska 22,
Brno, CZ 62700
CZE Czech Republic
Phone: [phone]
Fax: [phone]
Http://www.intelek.cz
E-mail : [email protected]
