SIIG CE-H20311-S1 User manual

1
Introducing the HDMI over CAT5e Transmitter
TheHDMI over CAT5e Transmitter providesacosteffective
solution by which high definition video and high quality
audio can be transmitted to mulitiple locations over long
distances using inexpensive CAT5e/6 cables.
FeaturesandBenefits
• Extends video/audio transmission from an HDMI
source to an HDMI display over one economical
CAT5e/6 cable
• Minimize cable skew with the adjustable 8-level
equilization knob
• Embedded EDID feature support & learning the
EDID of the connected HDMI display
• Supports local HDMI display
• Supports distances up to 60m/200ft @ 1080i or
40m/130ft @ 1080p with CAT5e cables
• Supports up to 15m/50ft HDMI cables (Input/
Output)
TechnicalSpecifications
• HDMI 1.2a compliant & HDCP compatible
• Video bandwidth: 1.65 Gbps
• Input: 1x HDMI (female, 19 pin)
• Output:1xHDMI(female,19pin),1xRJ45,1x3.5mm
stereo audio jack
04-0505A
HDMIoverCAT5eTransmitter
Quick Installation Guide

2
Figure 1: Rear Panel
• HDMI In LED: will light up when your HDMI
source is powered on and working properly
• DIP Switch: 1 = Off: use default EDID; 1 = ON: Learn
EDID from the display connected to HDMI Out;
2 = OFF: HDMI with 5.1ch/7.1ch audio mode;
2 = ON: HDMI with stereo audio mode
• HDMI In: connect your HDMI source via HDMI
M-M cable here (cable not included)
• Audio Out: 3.5mm audio jack, plug in your local
stereo speakers here
• HDMI Out: connect a local display here
• RJ-45 Out: link to the next transceiver/receiver
(optional) or remote display via RJ45 adapter. The
two LEDs will light up when the HDMI over CAT5e
Transmitter is powered up
• Power Jack: plug in the 5V power adapter here
HDMI In
LED
DIP
Switch
HDMI
In
Audio
Out
HDMI
Out
RJ-45
Out
Power Jack
LED
PackageContents
•HDMI over CAT5e Transceiver & 4 rubber pads
• Power adapter (5V DC)
• Quick Installation Guide
Layout

3
Hardware Installation
Please read and follow the safety guidelines to protect
yourself from possible injury and to minimize the risk of
damage to your equipment.
• Do not attempt to service the unit yourself.
• Provide proper ventilation and air circulation, do
not use near water
• Keep objects that might damage the device a safe
distance away, place the unit on a stable surface.
• Use only the power adapter and accessories that
came with the unit.
• Do not use liquid or aerosol cleaners to clean the
unit. Always unplug the power to the unit before
cleaning.
1. Turn off all devices, including displays.
2. Connect a local HDMI display to the HDMI Out
connector of the HDMI over CAT5e Transmitter, then
connect a speaker to the Audio Out connector.
3. Connect an HDMI source, such as Blu-Ray disc
player, to HDMI In.
4. Connect the next transceiver (for cascading) or
receiver to the RJ-45 Out using a CAT5e cable
(optional).
5. Plug the included power adapter into the Power
Jack, then plug the power adapter into a reliable
power source.
6. Power on all devices.

4
Speakers
HDMI display
Transmitter
Figure 2: Application
CAT5e cable
(up to 200ft)
Transceiver
Speakers
CAT5e cable to
Transceiver or
Receiver
HDMI
source
HDMI cable
HDMI display
Power adapter
Power adapter

5

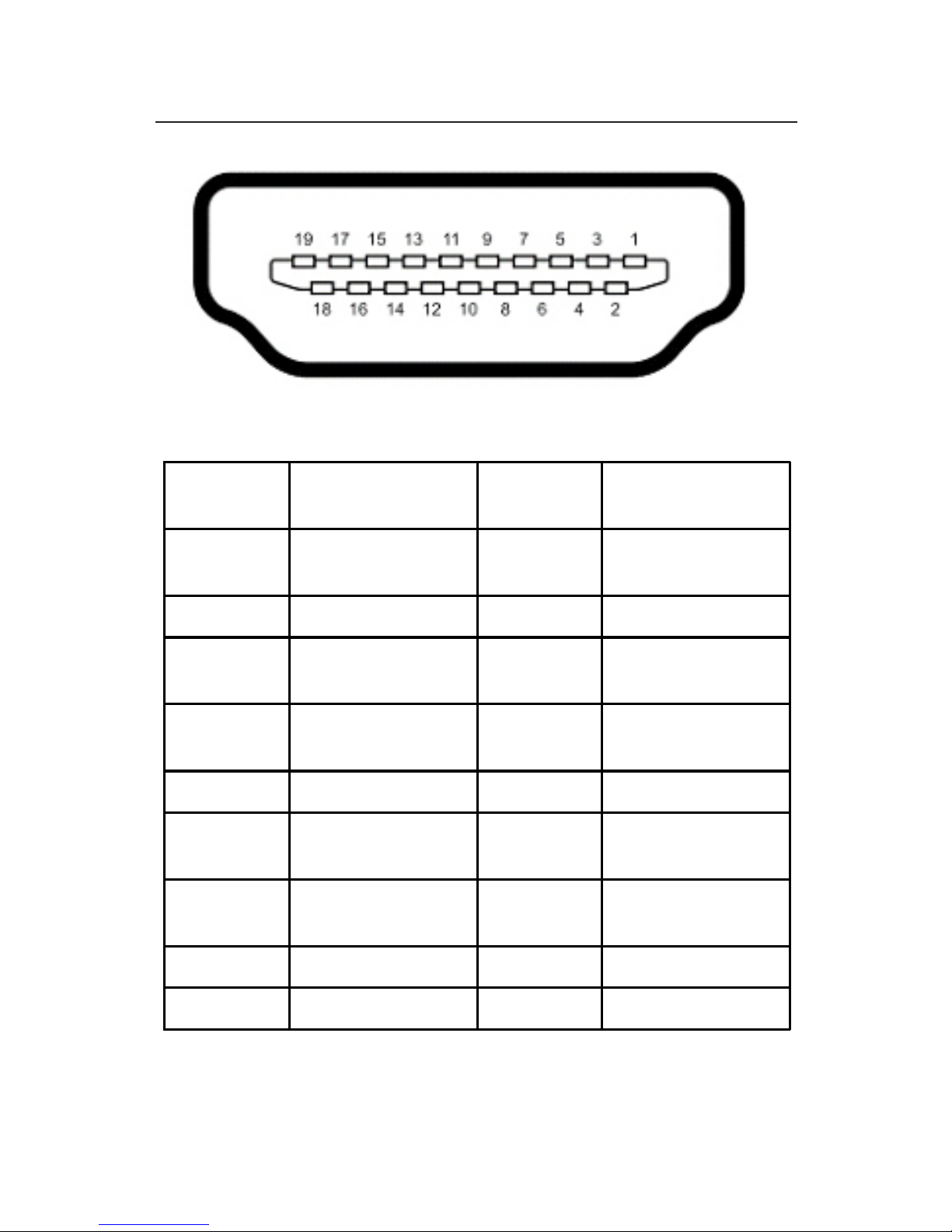

HDMI Pin Definition
Pin 1 TMDS Data2+ Pin 11 TMDS Clock
Shield
Pin 2 TMDS Data2
Shield Pin 12 TMDS Clock-
Pin 3 TMDS Data2- Pin 13 CEC
Pin 4 TMDS Data1+ Pin 14 Reserved (N.C. on
device)
Pin 5 TMDS Data1
Shield Pin 15 SCL
Pin 6 TMDS Data1- Pin 16 SDA
Pin 7 TMDS Data0+ Pin 17 DDC/CEC
Ground
Pin 8 TMDS Data0
Shield Pin 18 +5V Power
Pin 9 TMDS Data0- Pin 19 Hot Plug Detect
Pin 10 TMDS Clock+
Table 2: HDMI Pin Definition

6
Notes
1. Transmission length is affected by the type of LAN
cables, the type of A/V sources, and the type of
A/V displays. Test results show that solid LAN
cables (usually in 300m/1000ft form) can transmit
over longer distances than stranded LAN cables
(patch cords), shielded STP cables perform better
than unshielded UTP cables, and solid UTP CAT5e
cables show longer transmission distances than
stranded STP CAT6 cables. For users that require
long transmission distances, solid cables are your
best choice.
2. When sending resolutions greater than 1080i or
1280x1024, a CAT6 cable is recommended.

7
Technical Support and Warranty
QUESTIONS? SIIG’sOnline Support hasanswers! Simplyvisitour
web site at www.siig.com and click Support. Our online support
database is updated daily with new drivers and solutions. Answers
toyour questions could bejust a few clicksaway. You can also submit
questions online and a technical support analysts will promptly
respond.
SIIGoffersa 2-year manufacturer warranty with this product. Please
see our web site for more warranty details. If you encounter any
problems with this product, please follow the procedures below.
A) If it is within the store's return policy period, please return the
product to the store where you purchased from.
B) Ifyour purchase has passed thestore's return policy period, please
follow these steps to have the product repaired or replaced.
Step 1: Submit your RMA request.
Go to www.siig.com, click Support, then RMA to submit a
request to SIIG RMA. If the product is determined to be
defective, an RMA number will be issued.
Step 2: After obtaining an RMA number, ship the product.
•Properly pack the product for shipping. All software, cable(s)
and any other accessories that came with the original package
must be included.
•Clearly write your RMA number on the top of the returned
package. SIIG will refuse to accept any shipping package, and
will not be responsible for a product returned without an
RMA number posted on the outside of the shipping carton.
•You are responsible for the cost of shipping. Ship the product
to the following address:
SIIG, Inc.
6078 Stewart Avenue
Fremont, CA 94538-3152, USA
RMA #:
•SIIG will ship the repaired or replaced product via Ground
in the U.S. and International Economy outside of the U.S. at
no cost to the customer.

HDMI over CAT5e Transmitter is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered
trademarks of SIIG, Inc. Other names used in this publication are for identification only and may be
trademarksoftheirrespectivecompanies.
October, 2008 Copyright © 2008 by SIIG, Inc. All rights reserved.
About SIIG, Inc.
Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer
of I/O connectivity products, including PCIe, PCI & ISA serial and
parallel ports, USB, Serial ATA & UltraATA controllers, FireWire
(1394a/b),networking, soundcards, andother accessories. SIIGis the
premier one-stop source of upgrades.
SIIGproducts offercomprehensive usermanuals, manyuser-friendly
features, and are backed by an extensive manufacturer warranty.
High-quality control standards are evident by the overall ease of
installation and compatibility of our products, as well as one of the
lowest defective return rates in the industry. SIIG products can be
found in computer retail stores, mail order catalogs, through major
distributors, system integrators, and VARs in the Americas and the
UK, and through e-commerce sites.
