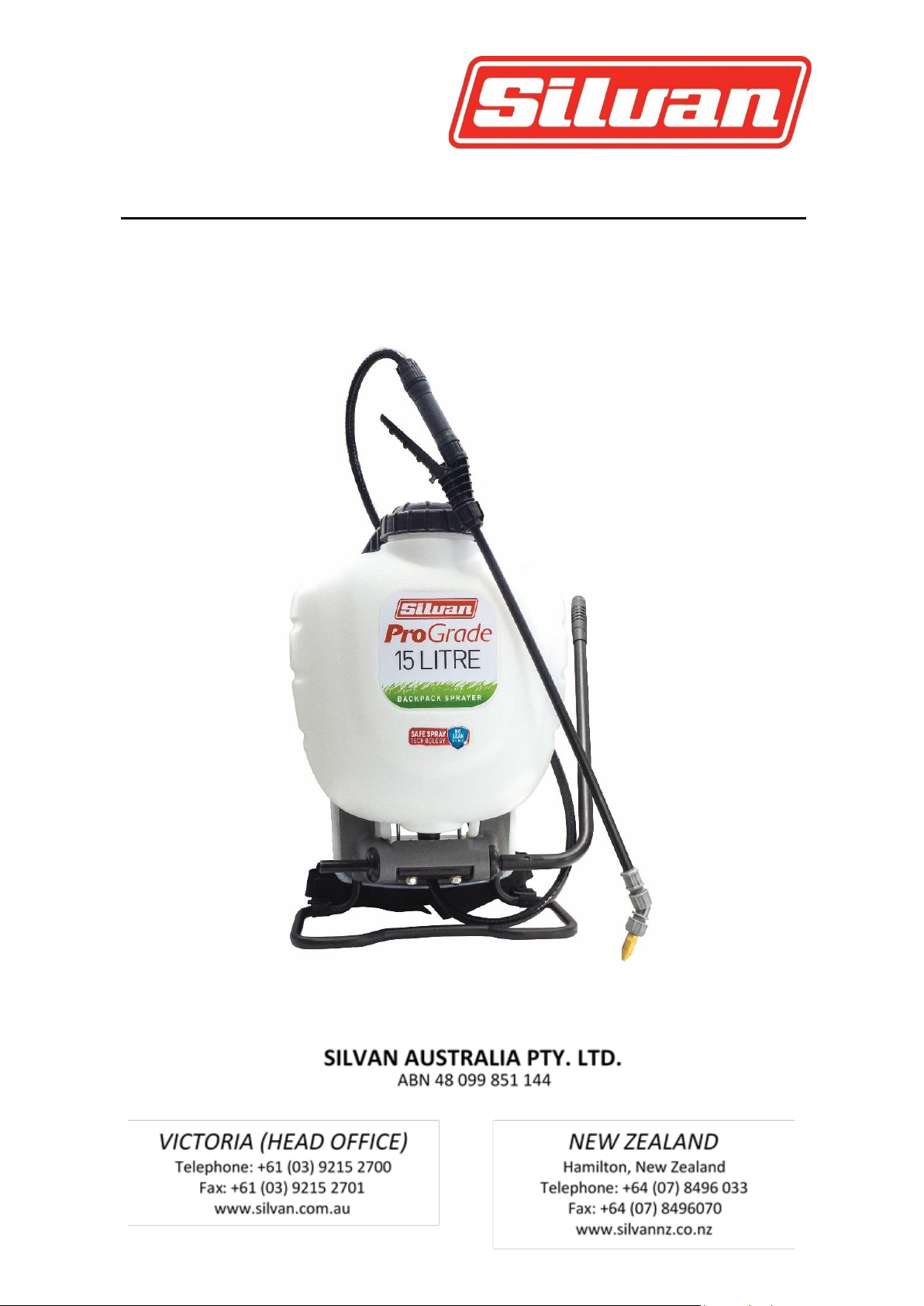

Silvan Selecta 190547 User manual

Instruction Manual
MAN190547 REV A 23/04/18
PRO GRADE NO LEAKS SPRAYER 15L
190547, 190550

2
WARNINGS
•This sprayer is designed and manufactured solely for the purpose of applying
agricultural chemicals. Under no circumstances may it be used for any other purpose.
•Read owner’s manual completely before operating this sprayer.
•Test the sprayer with water before using chemicals
•Before using chemicals refer to the chemical manufacturer’s label and safety
instructions for safe handling procedures and the recommended personal protective
clothing and safety equipment.
•Spray when air is calm to prevent drift of chemicals.
•Always release pressure when sprayer is not in use and before performing any
maintenance.
•Do not leave sprayer in the sun when not in use.
•Never use flammable liquids, caustics, acids, or hot water in this tank.
•Do not use sprayer near open flame or anything that could cause ignition of the spray.
•Always inspect the hose and all hose connections before each use. A damaged hose, or
loose hose connection can result in unintended exposure to the pressurised chemical,
resulting in serious injury or property damage.
•Do not pressurize with any mechanical device such as an air compressor since this can
create a dangerous pressure level and bursting of parts resulting in serious injury. Only
use original pump.
•Do not lift or carry sprayer by the hose, shut-off valve, or wand extension. Carry by the
handle only.
•Do not store chemicals in this tank.
•Clean and rinse sprayer thoroughly after each use and before and maintenance.
•Never attempt to alter sprayer from original condition.
•Exercise care to ensure proper stability when carrying or operating in hilly or uneven
terrain, particularly if the ground is wet or loose. Wear non-slip shoes
•Keep the sprayer and all chemicals out of the reach of children.
If you experience problems or have questions in Australia, please contact our toll-free Customer
Service Centre at 1300 745 826, or email: [e-mail], or access online at:
www.silvan.com.au
In New Zealand phone [phone]or email: [e-mail]
WARRANTY: This product is warranted to be free from defects in materials and workmanship for the warranty period
of 5 years from the date of retail sale. In the event of failure return the goods to the place of purchase at your cost
and within the warranty period along with evidence of the purchase date. If the fault is assessed to be a failure due to
faulty materials or manufacturing, then the product will be repaired or replaced without charge for labour or any
defective parts. If the original supplier cannot be contacted, then contact Silvan and we can direct you on how to
proceed with your warranty claim. Our goods come with guarantees that cannot be excluded under the Australian &
New Zealand Consumer Law.
Safety Instructions

3

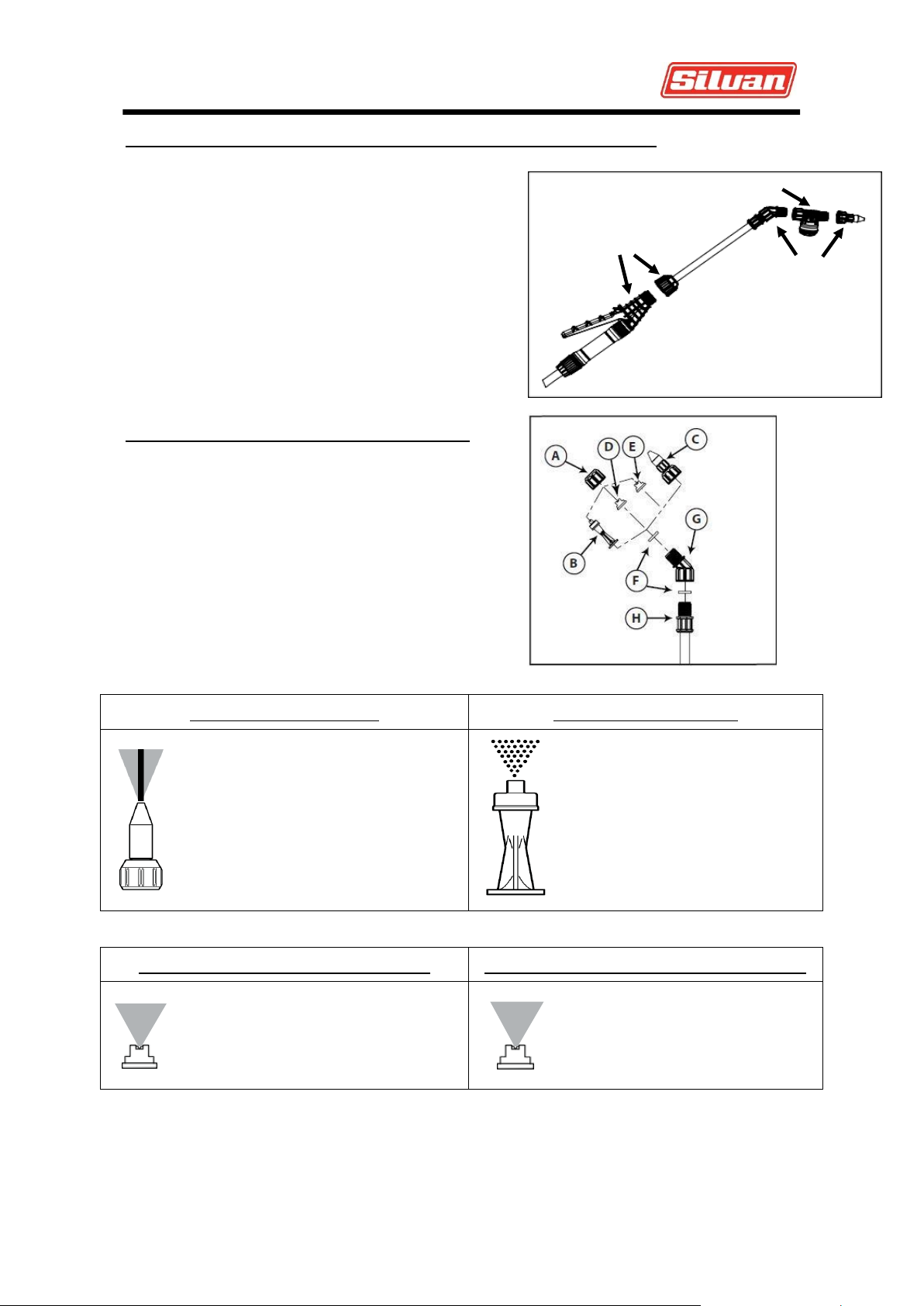

Assemble Extension, Shut-Off, Nozzle and Spray Optimizer:
1. Install the extension “wand” onto the shut-
off assembly and tighten the nut securely.
(See Figure A)
2. Install Spray Optimiser for low pressure (low
drift) applications. This will help prevent
weed killer formulas from drifting into
undesired areas. (Do not over tighten,
actual position will vary. See Figure B)
3. Install selected nozzle onto the end of the
extension or optimiser (if installed) and
tighten securely (See Figure C)
SELECT USING NOZZLE CHART BELOW:
(Nozzle selections vary by model)
A. Cap Nut
B. Foaming Nozzle
C. Adjustable Cone Nozzle
D. Red High-Volume Fan Nozzle
E. Yellow Low-Volume Fan Nozzle
F. Flat Seal
G. Adapter Elbow
H. Extension
ADJUSTABLE CONE USES
FOAMING NOZZLE USES
• Spot spraying in or around flower
beds, trees, and shrubs.
• Edging along fences, driveways, and
walkways.
• Preparing garden beds for planting
of ornamentals and vegetables.
• Spot spraying in flower beds,
walkways, driveways, and
patios, around trees and shrubs.
• Edging along fences, driveways
and walkways.
• Reduces drift.
RED HIGH VOLUME FAN NOZZLE USES
YELLOW LOW VOLUME FAN NOZZLE USES
• Lawn replacement. Kill lawn and
weeds before planting a new lawn.
• Preparing large areas for planting of
ornamental and vegetable gardens.
• For precision spraying in
confined areas such as gardens
and flower beds.
Assembly
Figure A
Figure B
Figure C

4

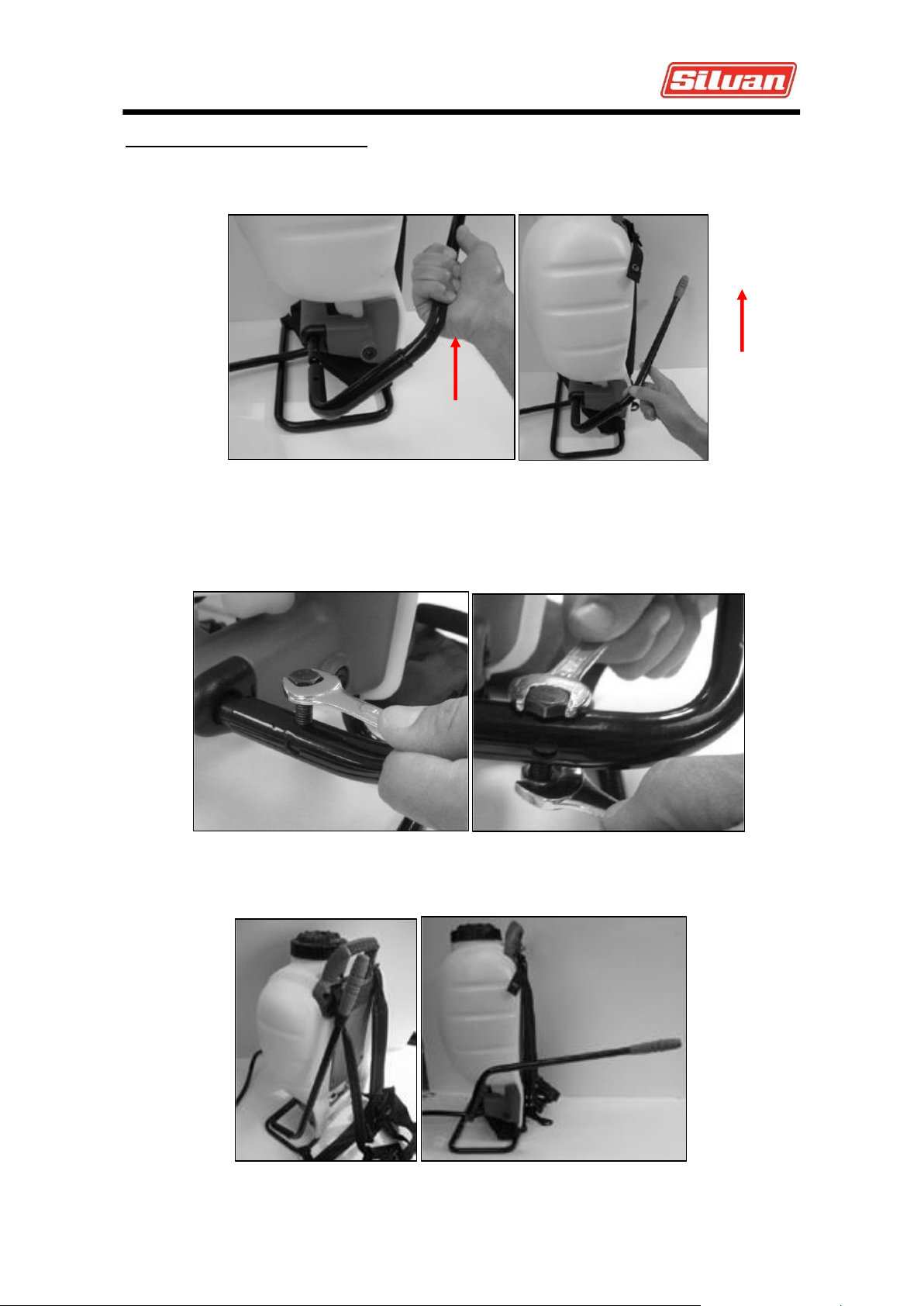

ASSEMBLE PUMP HANDLE:
Step 1: Insert handle onto the drive shaft.
Step 2: Line up holes so that pump handle is angled upward.
Step 1 Step 2
Step 3: Thread hex bolt through pump handle and drive shaft, tighten with a 13mm or
adjustable wrench. Thread locknut onto hex bolt and tighten using a 13mm or adjustable
wrench.
Step 3
Note: Handle has different positions for different uses.
Storage Position Pumping position
Assembly (cont.)
Upward
position

5
Always conduct a test using clean water before mixing chemicals.
Filling:
Always refer to chemical manufacturer for
proper mixture.
1. Remove the cap from the tank.
2. Make sure the filter basket is in place in the
neck of the tank. The filter basket includes
the seal and must be in place to prevent
leaks.
3. Fill the tank with water and chemical to the
desired level.
4. Reinstall the cap.
Pressurising and Spraying:
1. To begin pressurising, be sure the spray gun shut-off lever is not on. Pump handle up
and down in a smooth motion (See Figure E). Operating pressure is reached when
pumping becomes difficult, which is no more than5-7 full pumps. (Do not over-
pressurise)
2. Direct nozzle away from you and squeeze shut-off lever to begin spraying.
3. To maintain pressure while spraying, operate pump handle every 8 sec. or as needed.
4. For continuous spraying, squeeze lever and rotate lock. (See Figure F)
5. Unlock if needed and release shut-off lever to stop spraying.
Figure E Figure F
Cleaning:
1. Fill the tank with clean tap water. Replace the cap and tighten securely. (Never use hot
water for cleaning)
2. Agitate the tank to rinse the chemical from the tank walls.
3. Remove the cap and empty the contents into gravel or bare soil.
4. Refill the tank with clean tap water. Replace the cap and tighten securely.
5. Pressurise the tank as described in the Pressurising and Spraying section.
6. Direct the nozzle away from you and activate the shut-off for at least 30 seconds to
clean the pressure chamber, hose and shut-off.
7. Remove the cap and empty the contents into gravel or bare soil.
8. Repeat steps 4 - 7 until thoroughly cleaned. Remove nozzle when flushing pump system.
Clean nozzle before replacing.
Operation

6
Sprayer Storage:
1. Never store sprayer with pressure in chamber or liquid in any part of sprayer.
2. Sprayer tank should be hung upside down, with the cap removed, to dry completely.
3. Do not store or leave any solution in the tank after use.
4. Store in a dry location out of direct sunlight.
5. Keep the sprayer and all chemicals out of the reach of children.
Tank Maintenance:
1. After each use, rinse the tank with clean water.
2. Check the check valve (See Figure G) and filter basket gasket.
(See Figure H) Make sure they do not show signs of wear and
are operating properly. Replace them as required.
3. Clean any dirt or debris from the filter basket.
4. Periodically check the straps for fraying. Replace them as
required.
Shut-off Maintenance:
Always depressurise sprayer before maintenance by
activating shut-off and spraying contents out.
1. Unscrew the handle from the shut-off assembly.
2. Remove the filter from the shut-off assembly.
3. Clean any debris from inside the handle,
shut-off assembly, or the filter by rinsing with clean
water.
4. Reassemble the components as shown and tighten
all connections securely.
Pressure Chamber Maintenance:
WARNING: Always depressurise sprayer before cleaning or
replacing pressure chamber by activating shut-off and
spraying out all pressure.
1. Remove the tank cap and strainer (See Figure I).
2. Reach into the tank and turn the chamber 1/4 turn
counter clockwise (See Figure J) to unlock the
chamber from the pump then remove chamber
from tank (See Figure K).
3. Rinse out any debris that may have accumulated in
the chamber.
4. Reinstall the chamber into the pump by aligning the
tabs on the chamber with the slots in the pump,
push firmly into pump and turn clockwise until
pump stops.
5. Reinstall the strainer and tank cap (Figure L).
Nozzle Maintenance:
1. If nozzle clogs, remove and disassemble the nozzle assembly.
2. Clean the openings of any obstructions and reassemble.
Installation
Assembly

7
Prior To Servicing And/Or Repairs:
1. Empty contents of tank.
2. While squeezing shut-off, pump sprayer until all liquid is expelled.
3. Continue squeezing shut-off without pumping to release all air pressure.
Sprayer Servicing Steps:
1. Unscrew cap from tank. Remove and replace check valve. (See Figure 1)
2. Remove pressure chamber as outlined in Pressure Chamber Maintenance section of
the manual. Remove and replace O-ring. Lubricate O-ring with petroleum jelly. (See
Figure 2)
3. Unsnap agitator from piston rod. Remove from tank. (See Figure 3)
Figure 1 Figure 2 Figure 3
4. Position pump handle to the furthest downward position. Remove pump handle from
sprayer. (See Figure 4)
5. Disassemble carry handle by removing the (6) screws. (See Figure 5)
6. Remove hitch pin and lift pivot clip off the piston rod. (See Figure 6)
Figure 4 Figure 5 Figure 6
Servicing

8

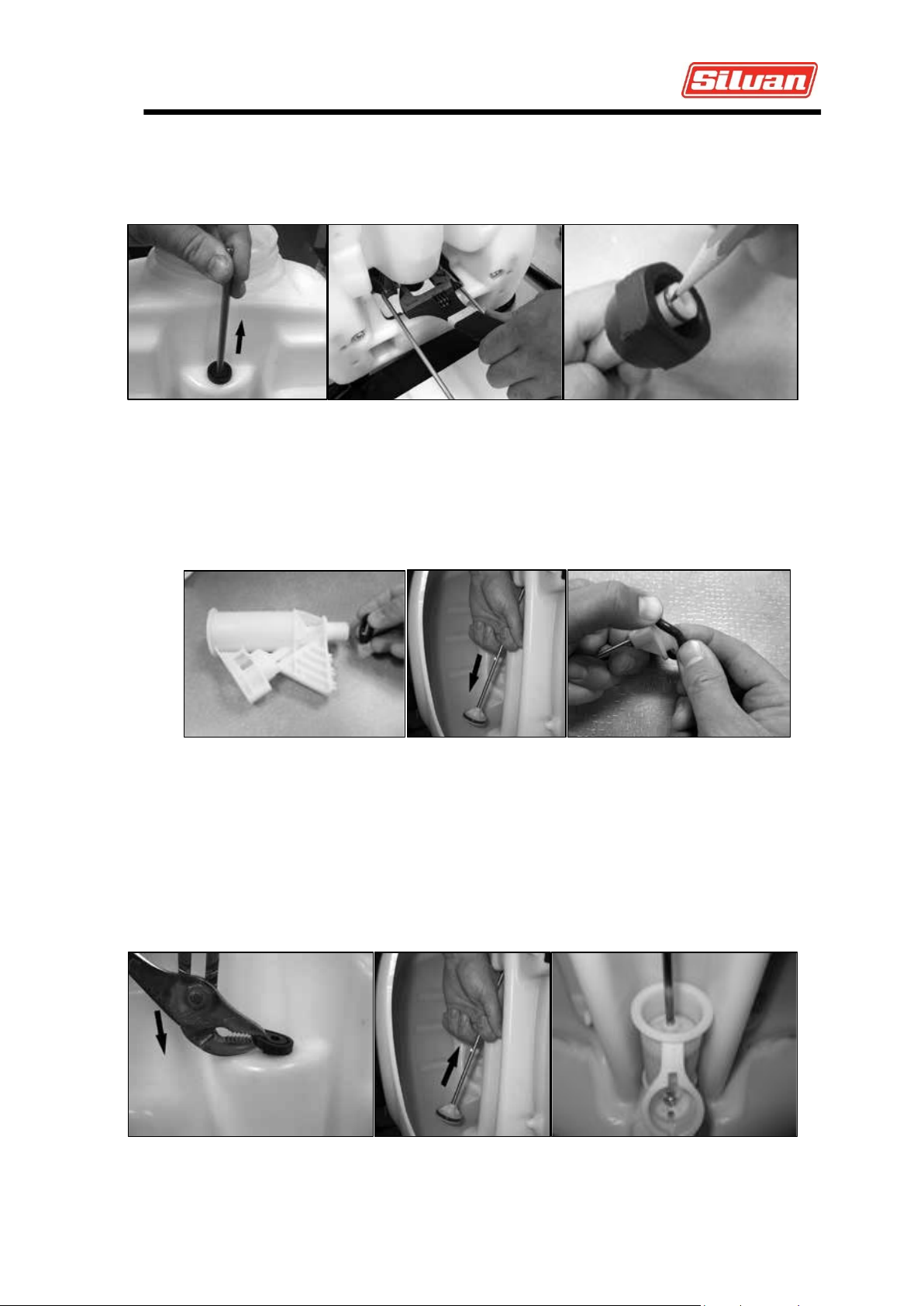

7. Pull upward to slide piston rod out of pump. (See Figure 7)
8. While holding onto the pump, use an adjustable wrench to unthread pump nut from
pump. Remove nut, hose and barb assembly. (See Figure 8)
9. Inspect (2) O-rings on barb assembly. If damaged, replace hose assembly. (See Figure 9)
Figure 7 Figure 8 Figure 9
10. Remove pump out of tank. Remove and replace gasket. (See Figure 10)
11. Slide piston rod assembly down and out of grommet and remove from tank. (See
Figure 11)
12. Carefully remove and replace o-ring from piston. Lubricate o-ring with petroleum
jelly. (Figure 12)
Figure 10 Figure 11 Figure 12
13. Remove grommet from tank using pliers to grasp the head of the grommet while
flexing the grommet out of the hole in the tank. Press or tap new grommet into
tank. Lubricate hole in grommet with petroleum jelly. (See Figure 13)
14. Insert piston rod assembly into tank and through grommet. (See Figure 14)
15. Reassemble pump with gasket into tank. (See Figure 15 for correct orientation).
Tighten pump nut securely with adjustable wrench while holding pump to
maintain correct orientation. Push piston assembly into pump.
Figure 13 Figure 14 Figure 15
Servicing (cont.)

9

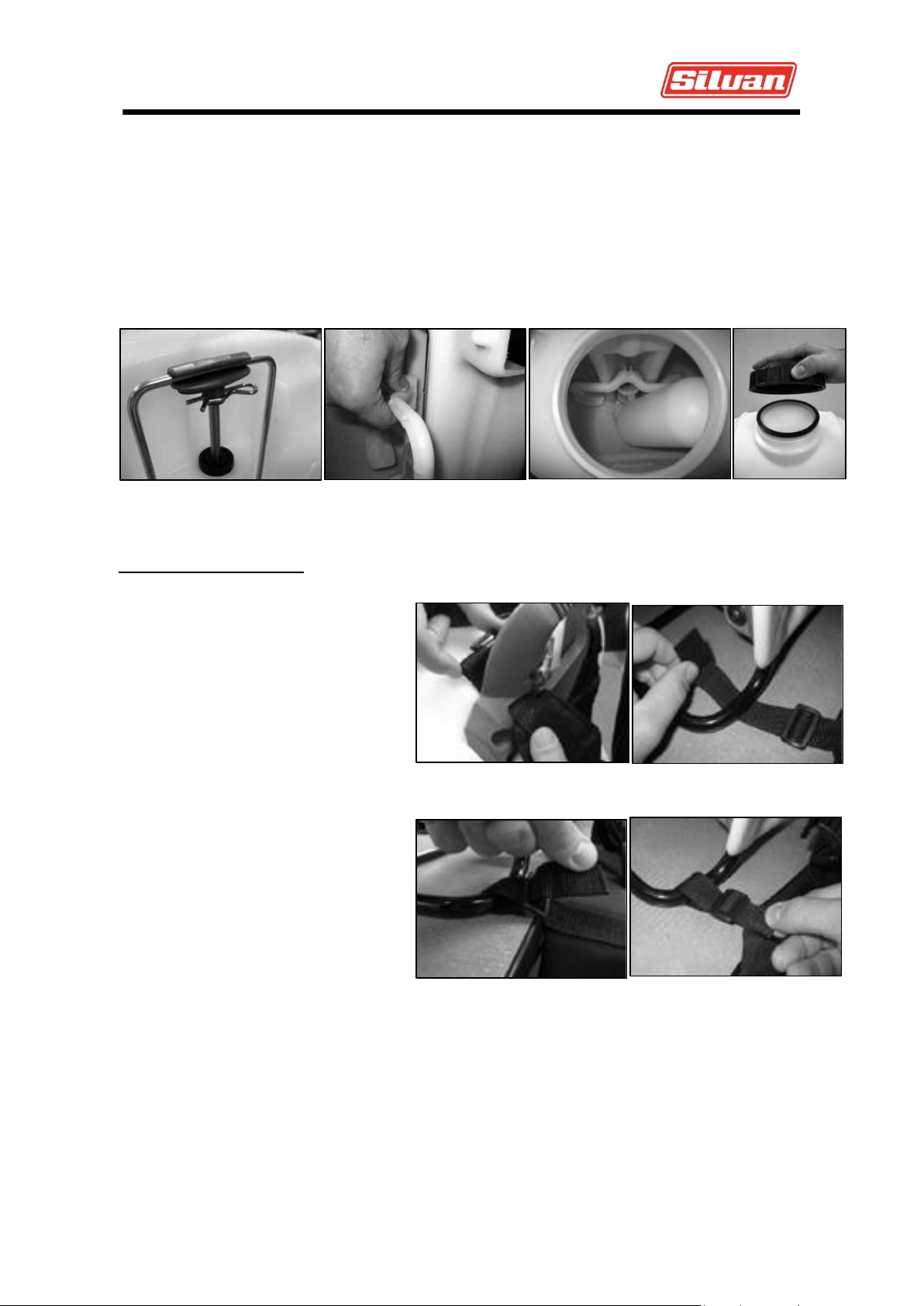

16. Attach pivot clip to piston rod and insert hitch pin. Note orientation of piston rod must
match the pivot clip. (See Figure 16)
17. Reassemble carry handle onto tank. Tighten all (6) screws. (See Figure 5)
18. To reinstall the agitator, line the notch up on the agitator with the wedge on piston rod
and snap into place. (See Figure 17)
19. Reinstall pressure chamber as outlined in the Pressure Chamber Maintenance section.
(Figure 18)
20. Replace tank cap, filter (See Figure 19) and pump handle (See Figure 4).
Figure 16 Figure 17 Figure 18 Figure 19
Harness Installation:
1. For each side, remove the small
plastic clips from the two
shoulder strap loops and thread
each loop through the slots at
the top of the carry handle.
Replace the clips through the
loops and pull strap securing the
two shoulder straps in place.
(Figure 20)
2. To install lower end of the straps,
remove strap from top portion
of buckles and place around the
foot stand, starting from
underneath. (See Figure 21)
3. Loop strap through the first
section of buckle. (See Figure 22)
4. Next loop strap through other
section of buckle and tighten
(See Figure 23). Adjust the
shoulder pads and strap length
for a comfortable fit.
Servicing (cont.)
Figure 20 Figure 21
Figure 22 Figure 23

10
PROBLEM
REASON
SOLUTION
Sprayer starts to spray when
pumping sprayer will not
stop spraying when shut-off
lever is released.
Shut-off lock is engaged.
Squeeze shut-off lever and disengage
the lock, See Pressurising and
Spraying section.
Sprayer will not build
pressure.
1. Pressure chamber (Fig 18)
not installed.
2. Dirty, damaged or worn
pump or chamber O-ring
(Fig 12)
3. Dirty poppet in pump.
1. Install pressure chamber as
described in Pressure Chamber
Maintenance section.
2. Clean and lubricate or replace O-
ring as described in Servicing
section.
3. Clean sprayer as described in
Cleaning section.
Sprayer will not spray.
1. Sprayer pressurisation.
2. Shut-off clogged.
3. Nozzle clogged.
1. Pressurising and Spraying section.
2. Clean shut-off as described in Shut-
off Maintenance section.
3. Clean nozzle as described in Nozzle
Maintenance section.
Sprayer leaks from the
bottom of the tank.
1. Loose pump nut (Fig 8)
2. Damaged or worn O-rings
or seals (Service Kit
183868)
1. Tighten pump nut as described in
Servicing section.
2. Replace O-rings and seals as
described in Servicing section.
Sprayer leaks where piston
rod enters top of the tank.
Dirty, damaged, or worn
grommet (Fig 13)
Clean and lubricate hole in grommet
or replace grommet as described in
Servicing section.
Hose leaks at tank
connection.
Cracked, swollen or faulty
hose.
Replace hose.
Hose leaks at shut-off.
Cracked, swollen or faulty
hose.
Replace shut-off assembly.
Pump handle is difficult to
operate.
1. Swollen or damaged
pump piston O-ring (Fig
12)
2. Dirty, dry or damaged
grommet (Fig 13)
1. Clean and lubricate O-ring as
described in Servicing section.
2. Clean and lubricate hole in
grommetor replace grommet as
described in Servicing section.
Nozzle drips when shut-off
lever is released.
1. Dirt or debris in shut-off
valve.
2. Damaged O-ring or seal in
shut-off (Service Kit
183859)
1. Clean shut-off as described in Shut-
off Maintenance section.
2. Service shut-off seals as described
in Shut-off Maintenance section.
Nozzle tip leaks, poor spray
pattern, partial spray or
complete stoppage.
1. Flat seal is missing or
damaged.
2. Spray extension or nozzle
clogged.
1. Replace flat seal at extension tip
(Service Kit 183863)
2. Remove nozzle and clean as
described in Nozzle Maintenance
section.
Troubleshoot

11
Code
Description
1
183864
Shoulder Harness
2
183862
Nozzle Kit
3
183859
Trigger Assembly (Shut Off Assembly)
3A
183863
Trigger Assembly& Wand Repair Kit
4
183867
Pump Handle
5
183860
Stainless Steel Wand
6
183861
Poly Wand
7
183865
Cap
8
183866
Filter Basket
9
183868
Knapsack Pump Repair Kit
Spare Parts
