General Information 1-3
General Information
Introduction
Vehicle, Engine and Transmission ID
and VIN Location, Derivative and
Usage
5028742

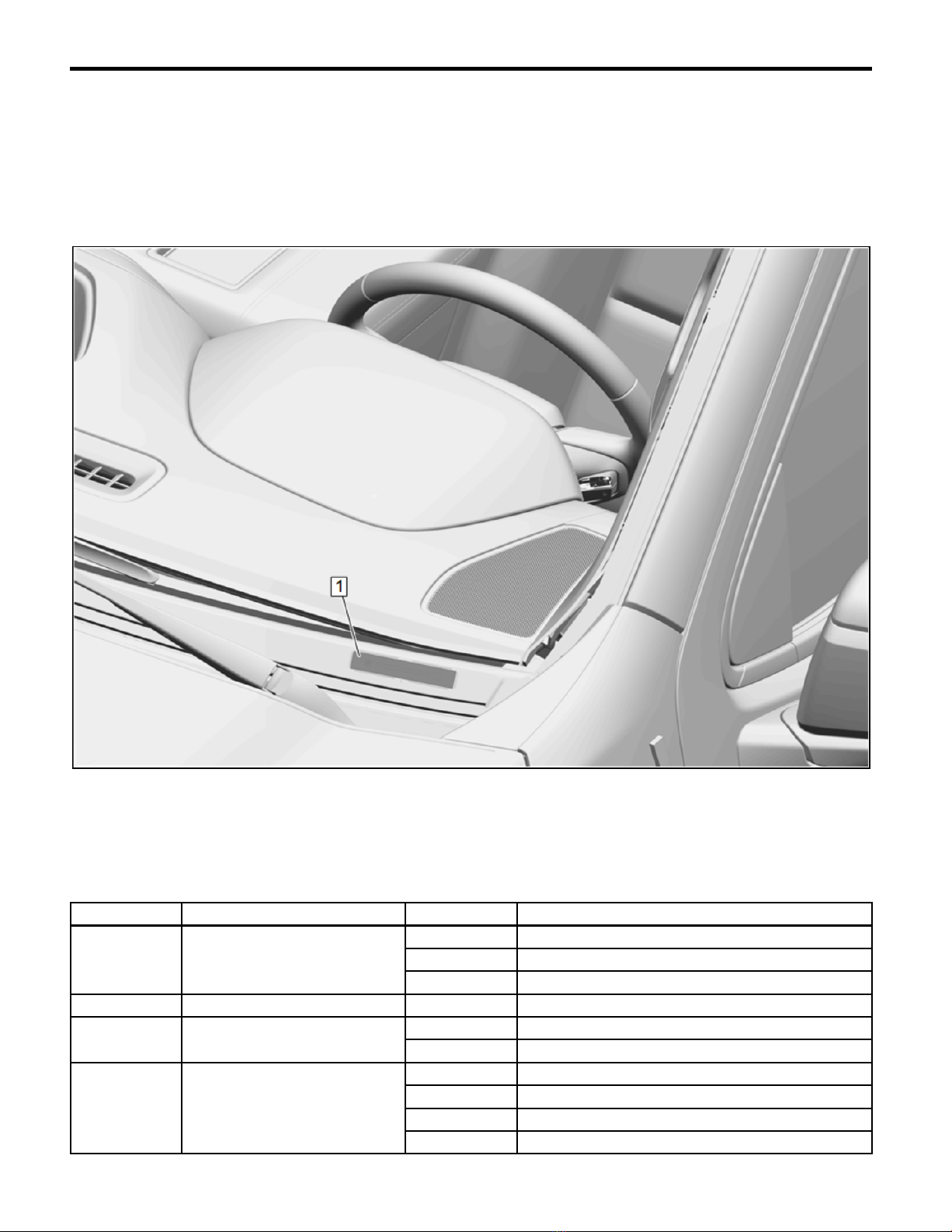

The vehicle identification number (VIN) plate (1) is the
legal identifier of the vehicle. The VIN plate is located
on the upper left corner of the instrument panel. The
VIN number can be seen through the windshield from
the outside of the vehicle:
Vehicle Identification Number (VIN) System
Position Definition Character Description
1 Country of Origin
1 United States
2 Canada
3 Mexico
2 Manufacturer G General Motors
3 Vehicle Brand/Type B Chevrolet Incomplete
C Chevrolet Truck
4 GVWR/Brake System/Body Style
N 6,001–7,000 lbs/Hydraulic/Standard Cab
P 6,001–7,000 lbs/Hydraulic/Crew Cab
R 6,001–7,000 lbs/Hydraulic/Extended Cab
U 7,001–8,000 lbs/Hydraulic/Crew Cab
2022 - Silverado 1500 (New) Electrical Body Builder Manual

1-4 General Information
Vehicle Identification Number (VIN) System (cont'd)
Position Definition Character Description
V 7,001–8,000 lbs/Hydraulic/Extended Cab
5/6 Line Chassis/Series
A/A 4x2, 1500 Chevrolet Silverado, Work Truck
A/B 4x2, 1500 Chevrolet Silverado, Custom
A/C 4x2, 1500 Chevrolet Silverado, LT
A/D 4x2, 1500 Chevrolet Silverado, RST
A/E 4x2, 1500 Chevrolet Silverado, LTZ
A/F 4x2, 1500 Chevrolet Silverado, High Country
D/9 4x2, 1500 Chevrolet Silverado, (Non-US, Non-Canada)
D/A 4x4, 1500 Chevrolet Silverado, Work Truck
D/B 4x4, 1500 Chevrolet Silverado, Custom
D/C 4x4, 1500 Chevrolet Silverado, Trail Boss Custom
D/D 4x4, 1500 Chevrolet Silverado, LT
D/E 4x4, 1500 Chevrolet Silverado, RST
D/F 4x4, 1500 Chevrolet Silverado, Trail Boss - LT
D/G 4x4, 1500 Chevrolet Silverado, LTZ
D/H 4x4, 1500 Chevrolet Silverado ZR2
D/J 4x4, 1500 Chevrolet Silverado High Country
D/K 4x4, 1500 Chevrolet Silverado LTD LT-L
D/9 4x4, 1500 Chevrolet Silverado, (Non-US, Non-Canada)
7 Restraint System E
RPO AY0 –Active Manual Belts, Airbags –Driver and
Passenger –Front (1st row), Front Seat Side (1st row),
Roof Side (all seating rows)
8 Engine Type
DRPO L84, Engine Gas, 8 Cylinder, 5.3L, DI, DFM*,
Aluminum, GEN 5, VAR 2
KRPO L3B, Engine Gas, 4 Cylinder, L4, 2.7L, SIDI VVT,
Turbo, DOHC, Aluminum
LRPO L87, Engine Gas, 8 Cylinder, V8, 6.2L, DI AFM,
Aluminum, GEN 5
TRPO LM2, Engine Diesel, 6 Cylinder, 3.0L, CRI, V6,
DOHC, Turbo, VGT, Aluminum
9 Check Digit —Check Digit
10 Model Year N 2022
11 Plant Location
Z Fort Wayne, Indiana, USA
1 Oshawa, Canada
G Silao, Mexico
12–17 Plant Sequence Number —Plant Sequence Number
2.7L (L3B) Engine ID and VIN Derivative Location
Engine Identification
3.0L (LM2) Diesel Engine ID and VIN Derivative
Location
Engine Identification
5.3L (L84) or 6.2L (L87) Engine ID and VIN
Derivative Location
Engine Identification
10L80 (MQB) Transmission ID and VIN Derivative
Location
Transmission Identification Information
8L90 (MQE) Transmission ID and VIN Derivative
Location
Transmission Identification Information
2022 - Silverado 1500 (New) Electrical Body Builder Manual

General Information 1-5
Vehicle Certification, Tire Placard,
and Anti-Theft Label
4992823
Vehicle Certification Label

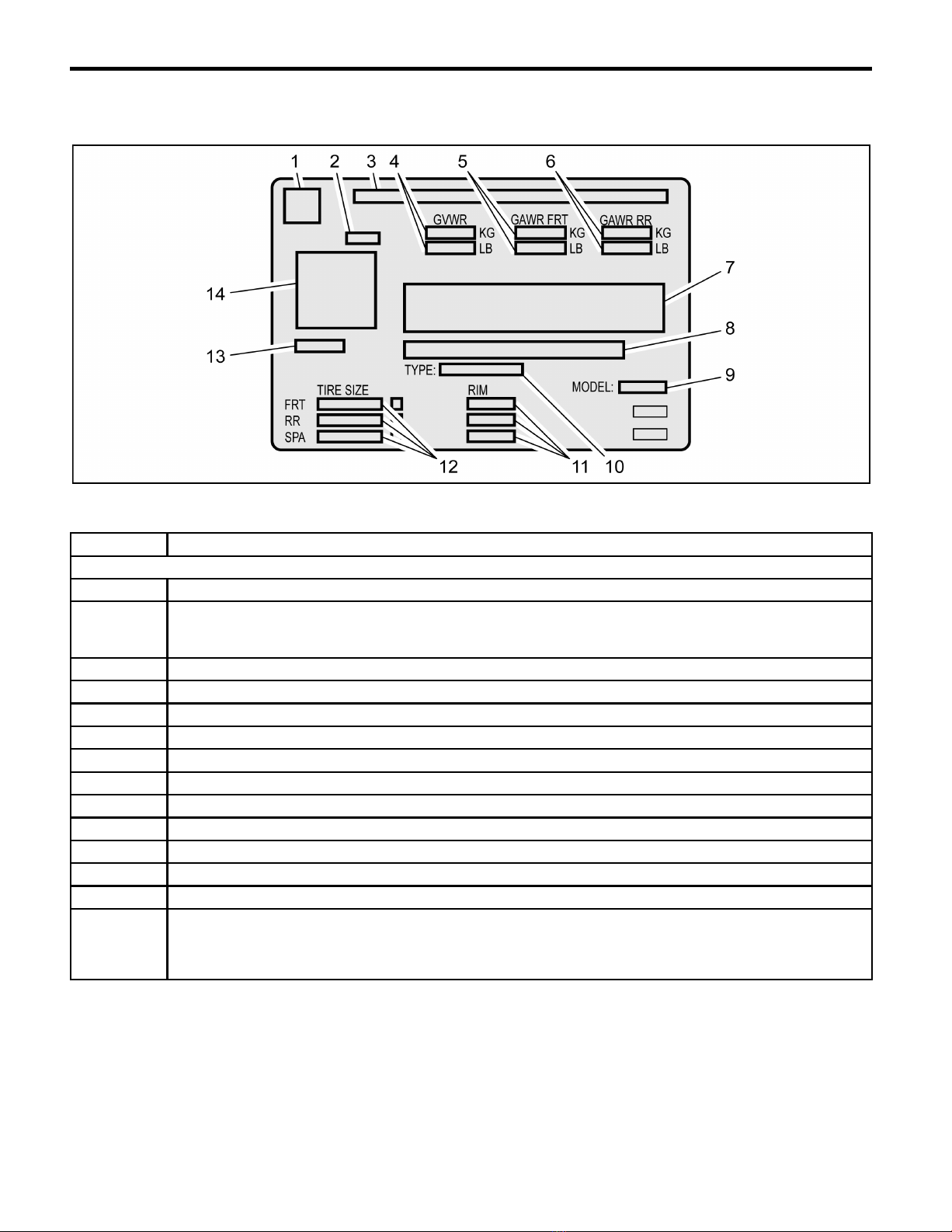

Callout Description
A vehicle-specific Certification label is attached to the vehicle's center pillar (B-pillar) and displays the following assessments:
1 Logo
2
Final Date of Manufacture (Month and Year MM/YY)
Date of manufacture is to reflect the date that the vehicle is counted as built. In those cases where a replacement
label is needed, the replacement label should reflect the actual build date not the date of replacement.
3 Name of Manufacturer
4 Maximum Gross Vehicle Weight Rating (GVWR)
5 Maximum Gross Axle Weight Rating (GAWR) - Front
6 Maximum Gross Axle Weight Rating (GAWR) - Rear
7 Certification Statement
8 Vehicle Identification Number (VIN)
9 Engineering Model Number
10 Vehicle Class Type (Pass Car, etc.)
11 Original Equipment Rim Size
12 Original Equipment Tire Size
13 Paint Code
14
QR Code
Once the QR code is scanned, the information will appear in this order on your smartphone or laptop: VIN, Model
Year, Model, Build Month, Year, Engineering Book, Vehicle Order Number, 3 Digit RPO Codes sorted
alphanumerically and the Paint Code (same code appears the lower left of the QR code)
2022 - Silverado 1500 (New) Electrical Body Builder Manual

1-6 General Information
4962282
Tire Placard
Callout Description
A vehicle-specific Tire and Loading Information label is attached to the vehicle's center pillar (B-pillar) and displays the following
assessments:
1 Specified Occupant Seating Positions
2 Maximum Vehicle Capacity Weight
3 Original Equipment Tire Size
4 Tire Pressure, Front, Rear, and Spare (Cold)
4962289
2022 - Silverado 1500 (New) Electrical Body Builder Manual

General Information 1-7
Anti-Theft Label
Callout Description
This legal identifier is in the front corner of the instrument panel, on the driver side of the vehicle. It can be seen through the
windshield from outside. The Vehicle Identification Number (VIN) also appears on the Vehicle Certification and certificates of title
and registration.
1 Vehicle Identification Number (VIN)
RPO Code List
The following table provides the description of the
Regular Production Option (RPO) codes that are
available on the vehicle. The vehicle's RPO list is
printed on the Service Parts Identification Label.
RPO Description
00D IDENTIFICATION-NOT EQUIPPED WITH
VISUAL AUTO TEMP ON HVAC DIALS
00V IDENTIFICATION-NOT EQUIPPED WITH
FRONT HEAT/VENT SEATS
1CX PACKAGE-CX OPTION 1
1LT PACKAGE-LT OPTION 1
1LZ PACKAGE-LZ OPTION 1
1SP PACKAGE-OPTION 14
1WT PACKAGE-WT OPTION 1
2CX PACKAGE-CX OPTION 2
2FL PACKAGE-FL OPTION 2
2LT PACKAGE-LT OPTION 2
3LZ PACKAGE-LZ OPTION 3
4AA INTERIOR TRIM-JET BLACK
4JJ INTERIOR TRIM-GIDEON/VY DK
ATMOSPHERE
4JS INTERIOR TRIM-JET BLACK/UMBER
5A7 WHEEL SPARE-NONE
5JL ACCESSORY-BRAKE UPGRADE PKG 1 -
COMPLETE
5JY ACCESSORY-TONNEAU - RR COMPT -
SOFT FOLDING
5LE ACCESSORY-GARAGE DOOR OPENER
5LL ACCESSORY-DECAL PACKAGE -
BODYSIDE - DESIGN 10
5LM ACCESSORY-DECAL PACKAGE -
BODYSIDE - DESIGN 11
5VE ACCESSORY-EXHAUST TIP - DESIGN 5
5VF ACCESSORY-EXHAUST TIP - DESIGN 3
5VG ACCESSORY-EXHAUST TIP - DESIGN 4
5VI ACCESSORY-TIE DOWN RINGS -
CARGO AREA
5W4 SALES PACKAGE-SPECIAL SERVICE,
MUNICIPAL
5W7 ACCESSORY-AIR FILTER -
PERFORMANCE
63G ACCESSORY-TAILGATE ASSIST
LIGHTING
65C LABEL, WARNING-CALIFORNIA, PROP 65
COMPLIANT
RPO Description
6K5 SALES PACKAGE-CONVENIENCE II
9J4 BUMPER RR-(NONE)
9L3 TIRE SPARE-NONE
9L7 EQUIPMENT-ACSRY WRG JUNC BLK
A2S ADJUSTER DRIVER SEAT-4WAY,
DISCONT MAN RECLINE, MAN FORE/AFT
A2X
ADJUSTER DRIVER SEAT-8WAY, PWR
RECLINE, PWR FORE/AFT, PWR HEIGHT,
PWR TILT
A45 MEMORY-SEAT ADJUSTER, MIRROR,
POWER, DRIVER, PERSONALIZATION
A48 WINDOW RR-FULL WIDTH, SLIDING,
POWER
A50 SEAT-FRT BKT
A60 LOCK CONTROL RR CMPT-LID, TAILGATE,
KEY ACTIVATED
A68 SEAT RR-SPLIT, FOLDING
A6Q
WINDOW REG DRVR DR-MANUAL
OPERATED (DO NOT USE NEXT NEW
MAJOR)
A6R
WINDOW REG PASS DR-MANUAL
OPERATED (DO NOT USE NEXT NEW
MAJOR)
A7E ADJUSTER PASS ST-4WAY, DISCONT
MAN RECLINE, MAN FORE/AFT
A7K
ADJUSTER PASS ST-8WAY, PWR
RECLINE, PWR FORE/AFT, PWR HEIGHT,
PWR TILT
AAK ACCESSORY-FLOOR LINER -
CONTOURED - ALT DESIGN 1
AE7 SEAT-FRT SPLIT, DRIVER, PASS
AED
WINDOW REG PASS DR-POWER
OPERATED,EXPRESS DOWN (DO NOT
USE NEXT NEW MAJOR)
AEF
WINDOW REG PASS DR-POWER
OPERATED, EXPRESS UP/DOWN (DO
NOT USE NEXT NEW MAJOR)
AEQ
WINDOW REG REAR DR-POWER
OPERATED, EXPRESS DOWN (DO NOT
USE NEXT NEW MAJOR)
AKO WINDOW TYPE-PRIVACY
AKP WINDOW TYPE-SOLAR ABSORBING
AL0
SENSOR INDICATOR-INFLATABLE
RESTRAINT, FRT PASS/CHILD PRESENCE
DETECTOR
AMK VEHICLE-EFFECTIVE POINT CONTROL,
2022 M.Y.
2022 - Silverado 1500 (New) Electrical Body Builder Manual

1-8 General Information
RPO Description
AQQ
LOCK CONTROL, ENTRY-REMOTE
ENTRY, EXTENDED RANGE (MY 09 AND
FUTURE)
ASV EQUIPMENT-SENSOR AIR MOISTURE &
W/S TEMP
AU3 LOCK CONTROL-SIDE DR, ELEC
AVJ
LOCK CONTROL, ENTRY-REMOTE
ENTRY, EXTENDED RANGE, PASSIVE
ENTRY, FRONT DOORS
AXG
WINDOW REG DRVR DR-POWER
OPERATED, EXPRESS UP/DOWN (DO
NOT USE NEXT NEW MAJOR)
AXK VEHICLE TYPE-TRUCK
AY0
RESTRAINT SYSTEM-SEAT, INFLATABLE,
DRIVER & PASS FRT, SEAT SIDE,
ROOF SIDE
AZ3 SEAT-FRT SPLIT, DRIVER, PASS, FULL
FEATURE CENTER
B1J LINER-RR WHEELHOUSE
B26 SALES PACKAGE-SAFETY PACKAGE
VAR. 1
B30 COVERING FLOOR-CARPET
B32 COVERING FRT-FLOOR MATS, AUX
B33 COVERING REAR-FLOOR MATS, AUX
B34 COVERING FRT-FLOOR MATS,
CARPETED INSERT
B35 COVERING REAR-FLOOR MATS,
CARPETED INSERT
B4U PERFORMANCE PACKAGE-SPORT
B59 SALES PACKAGE-FUNCTIONAL
PACKAGE
BAQ SALES PACKAGE-STYLE VAR 1
BG9 COVERING FLOOR-RUBBER
BGP SALES PACKAGE-SAFETY PACKAGE
VAR. 2
BKE COVERING REAR-FLOOR MATS, FLOOR
LINER CARPET INSERT
BKF COVERING FRT-FLOOR MATS, FLOOR
LINER CARPET INSERT
BPH APPEARANCE PACKAGE-CHEVROLET
"OFF ROAD"
BRS STEPS, RUNNINGBOARD-SIDE,
RETRACTABLE, POWER, BRIGHT
BTM SWITCH-START, KEYLESS
BTV REMOTE START-VEHICLE
BVT STEPS, RUNNINGBOARD-SIDE, CHROME
BWN STEPS-CORNER ASSIST, BUMPER
C32
HEATER AIR SYSTEM-HEATING/
DEFROSTER SYSTEM, REINFORCED,
ELECTRIC
C49 DEFOGGER-RR WINDOW, ELECTRIC
C4P
HVAC SYSTEM-AIR CONDITIONER FRT,
SEMIAUTOMATIC, ELECTRONIC
CONTROLS
C59 VENT-AIR, CONSOLE, RR
RPO Description
C67 HVAC SYSTEM-AIR CONDITIONER FRT,
ELECTRONIC CONTROLS
CF5 ROOF-SUN, GLASS, SLIDING, ELEC (DO
NOT USE NEXT NEW MAJOR)
CGN LINER-PUBX, SPRAY ON
CJ2 HVAC SYSTEM-AIR CONDITIONER FRT,
AUTO TEMP CONT, AUX TEMP CONT
CTT HITCH ASSIST-GUIDELINES
CWM SALES PACKAGE-TECHNOLOGY
CXH SALES PACKAGE-INTERIOR LEATHER
PACKAGE
D07 CONSOLE-FRT COMPT, FLOOR, CUSTOM
D31 MIRROR I/S R/V-TILT
D4J COUNTRY-US VIRGIN ISLAND
D72 HANDLE O/S DOOR-BLACK
D75 HANDLE O/S DOOR-BODY COLOR
DD8 MIRROR I/S R/V-LT SENSITIVE
DEN MIRROR O/S-LH & RH, MANUAL, MANUAL
FOLD, FLAT/DRVR, CNVX/PASS
DEZ
MIRROR O/S-LH & RH, ELEC REMOTE,
POWER FOLD, HEAT, PERM LIGHT, LT
SENSITIVE DRVR, FLAT/DRVR,
CNVX/PASS
DH6
MIRROR I/S FRT VAN-LH & RH,
SUNSHADE, ILLUM (DO NOT USE NEXT
NEW MAJOR)
DLF MIRROR O/S-LH & RH, RC, ELEC, HEAT,
MAN FOLD, FLAT/DRVR, CNVXPASS
DNS EQUIPMENT-SUPPLIER INSTALLED
DP6 MIRROR PROVISIONS-HOUSING,
PAINTED
DP9 MIRROR PROVISIONS-HOUSING,
CHROME
DPO
MIRROR O/S-LH & RH, WIDE FIELD OF
VIEW, MAN EXTEND, MAN FOLD,
HEATED, REMOTE CONT, AUX CARGO
LMP, AUX CLEAR LMP
DQS
MIRROR O/S-LH & RH, WIDE LOAD, VERT
GLS,MAN EXT,PWR FLD,HTD,TURN SIG
IND,R/CON,MEMORY,AUX CLEAR LP,AUX
CARGO LP
DRZ MIRROR I/S R/V-LT SENSITIVE, FULL
VIDEO DISPLAY
E20 HANDLE O/S DOOR-CHROME
E35 PICKUP BOX INNER-STEEL
E63 BODY EQUIPMENT-FLEETSIDE PICK-
UP BOX
E6J COUNTRY-PUERTO RICO
EF7 COUNTRY-UNITED STATES OF
AMERICA (USA)
ENL ENG CONTROL DISABLE-STOP/START,
NON-LATCHING
F48
CHASSIS DRIVE LINE-ALL WHEEL DRIVE
(AWD)/FOUR WHEEL DRIVE(4WD),
DRIVER SELECT
FE9 CERTIFICATION-EMISSION, FEDERAL
2022 - Silverado 1500 (New) Electrical Body Builder Manual

General Information 1-9
RPO Description
FHS VEHICLE FUEL-GASOLINE E85
FHX VEHICLE FUEL-DIESEL B20
FJW VEHICLE FUEL-GASOLINE E15
FWI PLANT CODE-FT WAYNE, IN, USA
G0S SALES PACKAGE-CAMO EDITION
G1W PRIMARY COLOR-EXTERIOR, ABALONE
WHITE TRICOAT(140X)
G7C PRIMARY COLOR-EXTERIOR, PULL ME
OVER RED SOLID (130X)
G80 AXLE POSITRACTION-LIMITED SLIP
G93 AXLE-FRT ELECTRONIC LOCKING
DIFFERENTIAL, DRIVER SELECT
G94 AXLE-RR ELECTRONIC LOCKING
DIFFERENTIAL, DRIVER SELECT
G9K PRIMARY COLOR-EXTERIOR, SATIN
STEEL GRAY MET-3 (464C)
GA0 PRIMARY COLOR-EXTERIOR, SOME
KINDA BLUE MET -1 (619D)
GAN PRIMARY COLOR-EXTERIOR,
SWITCHBLADE SILVER MET (G) 636R
GAZ PRIMARY COLOR-EXTERIOR, SUMMIT
WHITE (G) 8624
GB8 PRIMARY COLOR-EXTERIOR, BLACK
MEET KETTLE MET (384A)
GBA PRIMARY COLOR-EXTERIOR, BLACK
(G) 8555
GEY
HANDLING CHARGE-FROM FT WAYNE
ASM, TO GROUND EFFECTS LTD., FT
WAYNE, IN, BACK TO FT WAYNE ASM.
GF2 TRIM PACKAGE-CUSTOM
GF3 TRIM PACKAGE-LT
GF4 TRIM PACKAGE-TRAIL BOSS LT
GF5 TRIM PACKAGE-WORK TRUCK
GF9 TRIM PACKAGE-LTZ
GFC TRIM PACKAGE-RST
GFD TRIM PACKAGE-HIGH COUNTRY
GG0 TRIM PACKAGE-LT-L
GJI PRIMARY COLOR-EXTERIOR, DARK
SHADOW MET -1 (626D)
GNK PRIMARY COLOR-EXTERIOR, OXFORD
MET-1 (334E)
GPZ TRIM PACKAGE-TRAIL BOSS CUSTOM
GSK PRIMARY COLOR-EXTERIOR, CHERRY
POP TINT-1 (252F)
GT4 AXLE REAR-3.73 RATIO
GU5 AXLE REAR-3.23 RATIO
GU6 AXLE REAR-3.42 RATIO
H0U INTERIOR TRIM CONFIG-CLOTH, LEVEL
2, JET BLACK
H0Y INTERIOR TRIM CONFIG-LEATHER,
LEVEL 1, JET BLACK
H1T INTERIOR TRIM CONFIG-CLOTH, LEVEL
1, JET BLACK
RPO Description
H1Y INTERIOR TRIM CONFIG-LEATHER,
LEVEL 2, JET BLACK
H2G INTERIOR TRIM CONFIG-VINYL, LEVEL 1,
JET BLACK
H2U INTERIOR TRIM CONFIG-LEATHER,
LEVEL 3, JET BLACK
HS1 ALERT-SAFETY HAPTIC SEAT
HV5 INTERIOR TRIM CONFIG-CLOTH, LEVEL
2, GIDEON/VY DK ATMOSPHERE
HVC INTERIOR TRIM CONFIG-LEATHER,
LEVEL 1, GIDEON/VY DK ATMOSPHERE
HVE INTERIOR TRIM CONFIG-LEATHER,
LEVEL 2, GIDEON/VY DK ATMOSPHERE
HVG INTERIOR TRIM CONFIG-LEATHER,
LEVEL 3, JET BLACK / UMBER
IOK
INFOTAINMENT SYSTEM - 3.X MID/HIGH
HMI,ENHANCED CONNECTIVITY 2.0,
VOICE RECOGNITION
IOR RADIO-INFOTAINMENT SYSTEM - 3.X
LOW HMI, MIDLEVEL CONNECTIVITY 3.X
IOS
RADIO-INFOTAINMENT SYSTEM - 3.X MID/
HIGH HMI, ENHANCED CONNECTIVITY,
VOICE RECOGNITION, MID SD NAV
CAPABLE
IOT
RADIO-INFOTAINMENT SYSTEM - 3.X MID/
HIGH HMI, ENHANCED CONNECTIVITY,
VOICE RECOGNITION, PREMIUM SD NAV
J21 ENGINEERING YEAR-2021
J61 BRAKE SYSTEM-POWER, FRT & RR DISC,
ABS, 17"
JBP BRAKE LINING WEAR SY-LIFE SPAN
PROGNOSTIC INDICATOR
JHD BRK APL CTRL FEATURE-HILL DESCENT,
GEAR HOLD
JL1 BRK APL CTRL FEATURE-INTEGRATED
TRAILER BRAKE
K05 HEATER ENG-BLOCK
K34 CRUISE CONTROL-AUTOMATIC,
ELECTRONIC
K47 AIR CLEANER-HIGH CAPACITY
K4C CHARGER-INDUCTIVE PORTABLE
WIRELESS DEVICE
KA1 HEATER SEAT FRT-DRVR & PASS
KA6 HEATER SEAT-REAR
KC4 COOLING SYSTEM-ENG OIL
KC5 RECEPTACLE-ELECTRICAL, ACCESSORY
KC9 RECEPTACLE PUBX-ELECTRICAL,
110 VOLT
KI3 STEERING WHEEL HEAT-AUTOMATIC
KI4 RECEPTACLE I/P-ELECTRICAL, 110 VOLT
KL9
ENG CONTROL-STOP/START SYS,
CONVENTIONAL AT, CONVENTIONAL MT
OR BRAKE RELEASE LATE RESTART
KNP COOLING SYSTEM-TRANS, HD
KPA RECEPTACLE-ELECTRICAL, FRT
CONSOLE RR, 12 VOLT
2022 - Silverado 1500 (New) Electrical Body Builder Manual

1-10 General Information
RPO Description
KQV HEATER-SEAT, VENTED, FRT (DO NOT
USE NEXT NEW MAJOR, USE KU9)
KSG CRUISE CONTROL-AUTOMATIC,
ADAPTIVE, WITH STOP/GO
KW5 GENERATOR-220 AMP
KW7 GENERATOR-170 AMP
L3B ENGINE-GAS, 4 CYL, L4, 2.7L, SIDI, VVT,
TURBO, DOHC, ALUM
L84 ENGINE-GAS, 8 CYL, 5.3L, V8, DI, DFM,
ALUM, GEN 5
L87 ENGINE-GAS, 8 CYL, V8, 6.2L, DI, DFM,
ALUM, GEN 5
LM2
ENGINE-DIESEL, 6 CYL, 3.0L, CRI, L6,
DOHC, TURBO, VGT, ALUM, CSS50V,
VAR. 1
MAH MARKETING AREA-US, PUERTO
RICO/USVI
MCR RECEPTACLE-MEMORY CARD (DO NOT
USE NEXT NEW MAJOR)
MCZ PORT, MULTI ELEK DEV-USB (DO NOT
USE NEXT NEW MAJOR, SEE BFO)
MQB TRANSMISSION-AUTO 10 SPD, 10L80,
ATSS, CPA, GEN 2
MQE TRANSMISSION-AUTO 8 SPD, 8L90, ATSS,
CPA, GEN 1
MSL PLANT CODE-SILAO, MEXICO
N06 STEERING COLUMN LOCK-ELECTRICAL
N10 EXHAUST SYSTEM-DUAL
N33 STEERING COLUMN-TILT TYPE
N37 STEERING COLUMN-TILT, TELESCOPING
NB5 EXHAUST SYSTEM-SINGLE (DO NOT USE
NEXT NEW MAJOR, USE NC2)
NE1
CERTIFICATION-EMISSION,
GEOGRAPHICALLY RESTRICTED
REGISTRATION
NHT PERFORMANCE PACKAGE-ENHANCED
TOWING
NK5 STEERING WHEEL-STANDARD
NP0 TRANSFER CASE-ACTIVE, SINGLE
SPEED,SWITCH ACTIVATED,ALUM
NP5 STEERING WHEEL-LEATHER WRAPPED
NQH TRANSFER CASE-ACTIVE, TWO SPEED,
SWITCH ACTIVATED, ALUM
NSS IDENTIFICATION-NOT EQUIPPED WITH
STOP/START SYS
NTB EMISSION SYSTEM-FEDERAL, TIER 3
NUC EMISSION SYSTEM-CALIFORNIA, ULEV50
NUF EMISSION SYSTEM-CALIFORNIA,
ULEV125
NZJ WHEEL-20 X 9.0, J, ALUMINUM, DESIGN 9
NZP WHEEL-20 X 9.0, J, ALUMINUM,
DESIGN 12
NZZ SALES PACKAGE-SKID PLATE, "OFF
ROAD" SPORT
PTT TRAILER TIRE PRESSUR-MANUAL LEARN
RPO Description
PZ8 IMAGE ADJUSTMENT-HITCH VIEW
PZX WHEEL-18 X 8.5, J, ALUMINUM, DESIGN 2
Q5U WHEEL-17 X 8.0, J, ALUMINUM, DESIGN 2
QAB TIRE ALL-275/60R20 SL 115S BW AL2
QAE TIRE ALL-275/60R20 SL 115S BW AT
QAQ TIRE SPARE-255/80R17 SL 115S BW SPR
QBN TIRE ALL-255/70R17 SL 112S BW ALS
VAR 1
QBR TIRE SPARE-255/70R17 SL 112S BW
ALS VAR1
QDF TIRE ALL-265/65R18 SL 114T BW ALS
VAR 1
QDS TIRE ALL-265/65R18 SL 114T WOL AT
VAR 1
QDV TIRE ALL-265/70R17 SL 115S BW AT VAR 1
QFV TIRE ALL-LT265/60R20 C 110/107S BW
OOR, VAR 1
QK1 GATE TYPE-PUBX END STANDARD
QK2 GATE TYPE-PUBX END ENHANCED
QT2 GATE FUNCTION-MANUAL
QT5 GATE FUNCTION-MANUAL ASSIST
POWER RELEASE
QT6 GATE FUNCTION-POWER
R3O TIRE ALL-LT275/65R18 C 113/110Q BW
OOR, VAR1
R7O SEAT RR-SPLIT, FOLDING, BASE
STORAGE
R88 ACCESSORY-ILLUMINATED EMBLEM -
EXTERIOR - DESIGN 2
RBR WHEEL-22 X 9.0, J, STEEL, DESIGN 1
RC5 TIRE ALL-LT265/70R17 C 112Q BW AT
RCP ACCESSORY TIRE-TIRE ALL - LT275/
65R18 C 113/110Q BW OOR VAR1
RD1 WHEEL-18 X 8.5, J, ALUMINUM, DESIGN 6
RD2 WHEEL-20 X 9.0, J, ALUMINUM, DESIGN 2
RD4 WHEEL-20 X 9.0, J, ALUMINUM, DESIGN 4
RD5 WHEEL-20 X 9.0, J, ALUMINUM, DESIGN 5
RD6 WHEEL-17 X 8.0, J, STEEL, DESIGN 2
RDI ACCESSORY-KEYLESS ENTRY
RHM TIRE SPARE-LT265/70R17 C 112Q BW AT
RIA ACCESSORY-FLOOR LINER -
CONTOURED
RIK ACCESSORY-BADGE - EXTERIOR,
PACKAGE, DESIGN 1
RIN ACCESSORY-BADGE - EXTERIOR,
PACKAGE, DESIGN 2
RM7 WHEEL SPARE-17 X 8.0, J, STEEL,
DESIGN 1
RN2 ACCESSORY-ILLUMINATED EMBLEM -
EXTERIOR - DESIGN 1
RPP WHEEL-17 X 8.0, J, STEEL, DESIGN 4
2022 - Silverado 1500 (New) Electrical Body Builder Manual

General Information 1-11
RPO Description
RPS WHEEL-20 X 9.0, J, ALUMINUM,
DESIGN 13
RVA WHEEL-22 X 9.0, J, ALUMINUM, DESIGN 1
RVG ACCESSORY-ADAPTER - TRAILER
HARNESS
RVQ ACCESSORY-ASSIST STEPS - TUBULAR -
OVAL - BLACK
RVS ACCESSORY-ASSIST STEPS - TUBULAR -
ROUND - BLACK
RW9 ACCESSORY-BED STORAGE BOX - SIDE
FULL LENGTH - COMPOSITE
RWL CHASSIS DRIVE LINE-REAR WHEEL
DRIVE (RWD)
RWR ACCESSORY-CAMERA - REAR VISION
RWS ACCESSORY-FLOOR MATS - CARPET
RXC ACCESSORY-AIR, POLLUTANT, ODOR,
FINE DUST, ALLERGEN
RXH ACCESSORY-CENTER CAP - WHEEL -
DESIGN 1
RXJ ACCESSORY-CENTER CAP - WHEEL -
DESIGN 2
RXQ ACCESSORY-CONVENIENCE NET - BED
MOUNTED
RYT ACCESSORY-FIRST AID KIT
S08 ACCESSORY-HIGHWAY SAFETY KIT
S0M ACCESSORY-ILLUMINATED DOOR SILLS
S0P ACCESSORY-INSERT - FLOOR CONSOLE
S0T ACCESSORY-INTERIOR TRIM KIT -
ALTERNATE FINISH 1
S0Y ACCESSORY-LAMPS - CARGO AREA
S1O ACCESSORY-CONTAINER - LOCKABLE
STORAGE - INTERIOR
S1V ACCESSORY-HEADPHONES - RSE
S2B WHEEL SPARE-17 X 7.0, J, ALUMINUM,
DESIGN 1
S3I ACCESSORY-LAMPS - PERIMETER
ILLUMINATION
S3U ACCESSORY-LAMP KIT - FRONT FOG
S41 ACCESSORY-LINER - WHEEL HOUSE
S47 ACCESSORY-LUG NUTS
S4X ACCESSORY-MIRROR COVERS/SKULL
CAPS - ALTERNATE FINISH - PAINTED
S4Z ACCESSORY-MIRRORS - TRAILER
EXTENSION
S6L ACCESSORY-PROTECTOR - ROCKER
PANEL
S6N ACCESSORY-RECEIVER COVER -
TRAILER HITCH
S6P ACCESSORY-REMOTE START KIT
S6Z ACCESSORY-SEAT COVER - TAILORED -
ALTERNATE MATERIAL
SAF LOCK-SPARE TIRE, HOIST SHAFT
SB1 ACCESSORY-SPLASH GUARDS - FLAT
RPO Description
SB7 ACCESSORY-DECAL PACKAGE -
DESIGN 1
SB9 ACCESSORY-DECAL PACKAGE -
DESIGN 2
SBY ACCESSORY-SPORT BAR - BED
MOUNTED - DESIGN 1
SD5 ACCESSORY-TIRE PRESSURE MONITOR
SDA ACCESSORY-TOW HOOKS
SDE ACCESSORY-TRAILER HITCH -
REMOVABLE
SE5 ACCESSORY-WHEEL - 18" - ALUMINUM -
DESIGN 2
SEH ACCESSORY-WHEEL - 20" - ALUMINUM -
DESIGN 1
SES ACCESSORY-WHEEL - 22 X 9.0 - J -
ALUMINUM - DESIGN 1
SEU ACCESSORY-WHEEL - 22 X 9.0 - J -
ALUMINUM - DESIGN 2
SEV ACCESSORY-WHEEL - 22 X 9.0 - J -
ALUMINUM - DESIGN 3
SEW ACCESSORY-WHEEL - 22 X 9.0 - J -
ALUMINUM - DESIGN 4
SEZ ACCESSORY-WHEEL - 22 X 9.0 - J -
ALUMINUM - DESIGN 6
SF0 ACCESSORY-WHEEL - 22 X 9.0 - J -
ALUMINUM - DESIGN 7
SF1 ACCESSORY-WHEEL - 22 X 9.0 - J -
ALUMINUM - DESIGN 8
SF5 ACCESSORY-WHEEL FLARES -
ALTERNATE DESIGN - MOLDED COLOR
SF8 ACCESSORY-DECAL PACKAGE -
DESIGN 3
SFE ACCESSORY-WHEEL LOCKS
SFJ ACCESSORY-WINDOW SHADES -
REFLECTIVE
SFZ ACCESSORY-EMBLEM - EXTERIOR -
DESIGN 1
SG3 ACCESSORY-SPRINGS - SPORT
SUSPENSION
SGM ACCESSORY-WHEEL - 22 X 9.0 - J -
ALUMINUM - DESIGN 9
SHD ACCESSORY-WHEEL - 22 X 9.0 - J -
ALUMINUM - DESIGN 10
SIE ACCESSORY-PUBX TIERED STORAGE
SIL
ACCESSORY-RSE - PORTABLE MEDIA
CONNECTIVITY PKG - W/INTEGRATED
POWER
SJB ACCESSORY-GRILLE / GRILLE INSERTS -
ALTERNATE FINISH 3
SKY ACCESSORY-WHEEL - 18 X 8.5 - J -
ALUMINUM - DESIGN 1
SL7 ACCESSORY-PUBX LADDER / UTILITY
RACK STANCHIONS
SNR SEAT RR-SPLIT, FOLDING, DELUXE
STORAGE
2022 - Silverado 1500 (New) Electrical Body Builder Manual

1-12 General Information
RPO Description
SNS ACCESSORY-DECAL PACKAGE -
DESIGN 28
SPY ACCESSORY-LUG NUTS - ALT FINISH
SPZ ACCESSORY-WHEEL LOCKS - ALT FINISH
SR3
ACCESSORY-RSE - DUAL HEADREST
DISPLAY W/WIRELESS CONNECTIVITY
& DVD
STH SALES PACKAGE-RALLY 2
SUR ACCESSORY-TRAILER TIRE PRESSURE
MONITOR
T3U LAMP FRT FOG-FRT FOG
TDM MODE TEEN DRIVER-SETTINGS,
INFOTAINMENT
THS TRAILERING ASSIST-REVERSE
TQ5 HEADLAMP HIGH BEAM-AUTO CONTROL
TRO ACCESSORY-CAMERA PKG -
TRAILERING AUX MOUNTED
TT0 ACCESSORY-TRAILERING HOOKUP
ASSIST
TUF ORNAMENTATION-EMBLEM, "TEXAS
EDITION"
U12 LAMP-EXTR, OSRV MIRROR, TASK
U1D INDICATOR-TRAILER INFORMATION
U2J DIGITAL AUDIO SYSTEM-S-BAND - NONE
(DNU NEXT NEW MAJOR)
U2K DIGITAL AUDIO SYSTEM-S-BAND
U73 ANTENNA-FIXED, RADIO
U95 SPEAKER SYSTEM-2, BASE
UD5 PARK ASSIST-FRONT AND REAR
UD7 PARK ASSIST-REAR
UDC DISPLAY INSTRUMENT-DRIVER INFO
ENHANCED (ONE COLOR GRAPHIC)
UDD
DISPLAY INSTRUMENT-DRIVER INFO
ENHANCED (MULTI COLOR STANDARD
GRAPHIC)
UDU PROVISIONS-REAR CAMERA PREP
UE0 COMMUNICATION SYSTEM-VEHICLE -
NONE (DO NOT USE NEXT NEW MAJOR)
UE1 COMMUNICATION SYSTEM-VEHICLE,
ONSTAR
UE4 SENSOR INDICATOR-FOLLOWING
DISTANCE
UEU SENSOR INDICATOR-FORWARD
COLLISION ALERT
UF2 LAMP-CARGO
UFG REAR CROSS TRAFFIC-ALERT
UG1 OPENER-GARAGE DOOR, UNIVERSAL
UGA HOOK-TOW, RED
UHL VEHICLE-U-HAUL
UHS
DISPLAY INSTRUMENT-DRIVER INFO
ENHANCED (MULTI COLOR ENHANCED
GRAPHIC)
UHX LANE ACTIVE SAFETY-KEEP ASSIST
RPO Description
UHY
COLL IMMINENT BRK-LOW SPEED, VEH
FWD MOVEMENT, BRAKE PREFILL,
INTEGRATED BRAKE ASSIST
UIJ INFOTAINMENT DISPLAY-NORMALLY
BLACK COLOR (TFT), 8", WVGA 800X480P
UIK
INFOTAINMENT DISPLAY-NORMALLY
BLACK COLOR (TFT), 8", WXGA
1280X768P
UIR INFOTAINMENT DISPLAY-NORMALLY
BLACK COLOR (TFT), 7", WVGA 800X480P
UJM TIRE PRESS INDICATOR-MANUAL LEARN
UK3 CONTROL-STEERING WHEEL,
ACCESSORY
UKC SIDE ACTIVE SAFETY-OBSTACLE
DETECTION ENHANCED
UKJ PED DETECTION FRT-BASIC,
PEDESTRIANS
ULK ACCESSORY-TOW HOOKS - RED
UMN SPEEDOMETER-INST, MILES & KILO,
MILES ODOMETER
UQA SPEAKER SYSTEM-PREMIUM AUDIO,
BRANDED AMPLIFIER
UQF SPEAKER SYSTEM-STANDARD AUDIO
URC SWITCH-FLEXRIDE MODE SYSTEM
USS RECEPTACLE-USB CHARGE PORT (DO
NOT USE NEXT NEW MAJOR, SEE BFO)
UTJ THEFT DETERENT-ELECTRICAL,
UNAUTHORIZED ENTRY
UV6 HEAD UP DISPLAY-WINDSHIELD
UVB VISION-REAR VIEW, MONO, HD DIGITAL
UVC VISION-REAR VIEW, MONO, ANALOG
UVI
VISION-270 & REAR TRAILER VIEW,
MONO, HD DIGITAL(DO NOT USE AFTER
MY2022)
UVN VISION AUXILIARY-CARGO BED
UVS VISION-360 & TRAILER VIEW, MONO, HD
DIGITAL (DO NOT USE AFTER MY2022)
V46 BUMPER FRT-CHROME
V76 HOOK-TOW
V8D VEHICLE STATEMENT-VEHICLE LABEL
CONTENT - U.S. FMVSS
VAV ACCESSORY-FLOOR MATS - ALL
WEATHER
VB5 BUMPER FRT-COLOR
VBJ ACCESSORY-UNDERSEAT STORAGE
VBN ACCESSORY-PUBX CARPET
VBR ACCESSORY-PUBX RUBBER MAT
VGC PROTECTOR-FILM, PAINT ETCH
PREVENTIVE
VH6 BUMPER FRT-BLACK
VJG BUMPER RR-BLACK
VJH BUMPER RR-CHROME
VK3 LICENSE PLATE FRONT-FRT
MOUNTING PKG
2022 - Silverado 1500 (New) Electrical Body Builder Manual

General Information 1-13
RPO Description
VKU ACCESSORY-MIRROR CAPS - CHROME
VKW ACCESSORY-ORGANIZER - FRONT
CONSOLE
VKY ACCESSORY-DOOR HANDLES -
ALTERNATE FINISH - CHROME
VLQ HOOK-TOW, CHROME
VMK ACCESSORY-CARGO MANAGEMENT
SYSTEM RAILS
VNI ACCESSORY-REAR FASCIA APPLIQUE -
ALTERNATIVE FINISH 1
VOZ ACCESSORY-TONNEAU - RR COMPT -
HARD FOLDING - ALT DESIGN
VPB
ACCESSORY-TONNEAU - RR COMPT -
VINYL W/ INTEGRAL CROSSBOW
SUPPORTS
VPI ACCESSORY-REAR FASCIA APPLIQUE -
ALTERNATIVE FINISH 2
VQK ACCESSORY-SPLASH GUARDS -
CUSTOM MOLDED
VQM ACCESSORY-ASSIST STEPS - CHROME
VQO ACCESSORY-ASSIST STEPS - BLACK
VQY ACCESSORY-TOW HOOKS - CHROME
VQZ ACCESSORY-EXHAUST TIP - DESIGN 1
VST ACCESSORY-SILL PLATES - ALTERNATE
DESIGN 1
VSX LABEL-TOWING
VT2 ACCESSORY-ASSIST STEPS -
ALTERNATE FINISH
VT5 BUMPER RR-COLOR KEYED
VT7 OWNERS MANUAL-ENGLISH LANGUAGE
VTA ACCESSORY-EXHAUST TIP - DESIGN 2
VTI SHUTTERS-FRONT GRILLE, ACTIVE, UPR
VUK ACCESSORY-TAILGATE LINER - PUBX
VV4 COMMUNICATION EQUIP-MOBILE
INTERNET CONNECTIVITY
VW9 ACCESSORY-CENTER CAP - WHEEL -
DESIGN 3
VWD ACCESSORY-CENTER CAP - WHEEL -
DESIGN 4
VXH ACCESSORY-ASSIST STEPS - TUBULAR -
CHROME - OVAL
VXJ ACCESSORY-ASSIST STEPS - TUBULAR -
CHROME - ROUND
VXT VEHICLE TYPE-INCOMPLETE
VXW ACCESSORY-ASSIST STEPS - MOLDED
VYU PROVISIONS-SNOW PLOW PREP
VZX ACCESSORY-PUBX BEDLINER
W09 ACCESSORY-TAILGATE GAP COVER
W1V ACCESSORY-FLOOR MATS - PREMIUM
CARPET - ALT DESIGN
W2D ACCESSORY-CARGO NET
WBC ACCESSORY-EXHAUST UPGRADE
WGQ SALES PACKAGE-REDLINE
RPO Description
WJP SALES PACKAGE-MIDNIGHT EDITION
WLD WINDOW CONTROL-REMOTE EXPRESS
DOWN, ALL WINDOWS
WMI SHUTTERS-FRONT GRILLE, ACTIVE, UPR
AND LWR
WMW VIN MODEL YEAR-2022
WPC SALES PACKAGE-COMFORT AND
CONVENIENCE
WPF SALES PACKAGE-PREFERRED
WPQ SALES PACKAGE-PROTECTION
X88 MARKET BRAND-CHEVROLET
XCE TIRE ALL-275/50R22 SL 111T BW AL2
VAR 1
XCK TIRE ALL-265/65R18 SL 114T BW AT VAR1
XCQ TIRE SPARE-265/70R17 SL 115S BW
SPR VAR1
XD5 ACCESSORY TIRE-TIRE ALL-275/50R22
SL 111T BW AL2
XDF ACCESSORY TIRE-TIRE ALL - 275/60R20
SL 115S BW AT
YF5 CERTIFICATION-EMISSION, CALIFORNIA
Z45 CHASSIS PACKAGE-CONTINUOUS
DAMPING CONTROL
Z60 CHASSIS PACKAGE-HIGH
PERFORMANCE
Z71 CHASSIS PACKAGE-"OFF ROAD"
Z7X CHASSIS PACKAGE-"OFF ROAD" 2
INCH LIFT
Z82 TRAILER PROVISIONS-SPECIAL
EQUIPMENT, H.D.
Z85 CHASSIS PACKAGE-INCREASED
CAPACITY
ZL3 SALES PACKAGE-CONVENIENCE
ZL6 SALES PACKAGE-TRAILER INTEGRATION
ZLA SALES PACKAGE-INFOTAINMENT
ZLQ SALES PACKAGE-LS FLEET
ZW9 BODY EQUIPMENT-BASE BODY OR
CHASSIS
2022 - Silverado 1500 (New) Electrical Body Builder Manual

1-14 General Information
BLANK
2022 - Silverado 1500 (New) Electrical Body Builder Manual

Table of Contents 2-1
Section 2
Body Systems
Fixed and Moveable Windows ................ 2-3
Schematic and Routing Diagrams ...............2-3
Moveable Window Schematics . . . . . . . . . . . . . . . . . . 2-4
Defogger Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Description and Operation ......................2-11
Power Windows Description and Operation . . . . 2-11
Rear Window Defogger Description and
Operation ...................................... 2-11
Horns and Pedestrian Alerts ................ 2-12
Schematic and Routing Diagrams ..............2-12
HornSchematics ............................... 2-13
Description and Operation ......................2-14
Horns System Description and Operation . . . . . . 2-14
Lighting ........................................ 2-15
Schematic and Routing Diagrams ..............2-15
Headlights/Daytime Running Lights (DRL)
Schematics .................................... 2-16
Fog Lights Schematics . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
Exterior Lights Schematics . . . . . . . . . . . . . . . . . . . . . 2-21
Interior Lights Schematics . . . . . . . . . . . . . . . . . . . . . . 2-34
Interior Lights Dimming Schematics . . . . . . . . . . . . 2-36
Description and Operation ......................2-40
Exterior Lighting Systems Description and
Operation ...................................... 2-40
Interior Lighting Systems Description and
Operation ...................................... 2-43
Mirrors ......................................... 2-45
Schematic and Routing Diagrams ..............2-45
Inside Rearview Mirror Schematics . . . . . . . . . . . . . 2-46
Outside Rearview Mirror Schematics . . . . . . . . . . . 2-47
Description and Operation ......................2-50
Automatic Day-Night Mirror Description and
Operation ...................................... 2-50
Outside Mirror Description and Operation . . . . . . 2-51
Trailering Systems ........................... 2-53
Schematic and Routing Diagrams ..............2-53
Trailering Systems Schematics . . . . . . . . . . . . . . . . . 2-54
Description and Operation ......................2-59
Trailering Description and Operation . . . . . . . . . . . 2-59
Vehicle Access ............................... 2-66
Schematic and Routing Diagrams ..............2-66
Door Lock/Indicator Schematics . . . . . . . . . . . . . . . . 2-67
Release Systems Schematics . . . . . . . . . . . . . . . . . . 2-73
Endgate Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-74
Description and Operation ......................2-78
Door Ajar Indicator Description and
Operation ...................................... 2-78
Endgate Description and Operation (QT6) . . . . . . 2-78
Endgate Description and Operation (QT5
Without MultiPro Tailgate) . . . . . . . . . . . . . . . . . . . . . 2-79
Endgate Description and Operation (QT5 With
MultiPro Tailgate) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-79
Hood Ajar Indicator Description and
Operation ...................................... 2-80
Power Door Locks Description and
Operation ...................................... 2-80
2022 - Silverado 1500 (New) Electrical Body Builder Manual

2-2 Table of Contents
BLANK
2022 - Silverado 1500 (New) Electrical Body Builder Manual

Fixed and Moveable Windows 2-3
Fixed and Moveable Windows
Schematic and Routing Diagrams
2022 - Silverado 1500 (New) Electrical Body Builder Manual

2-4 Fixed and Moveable Windows

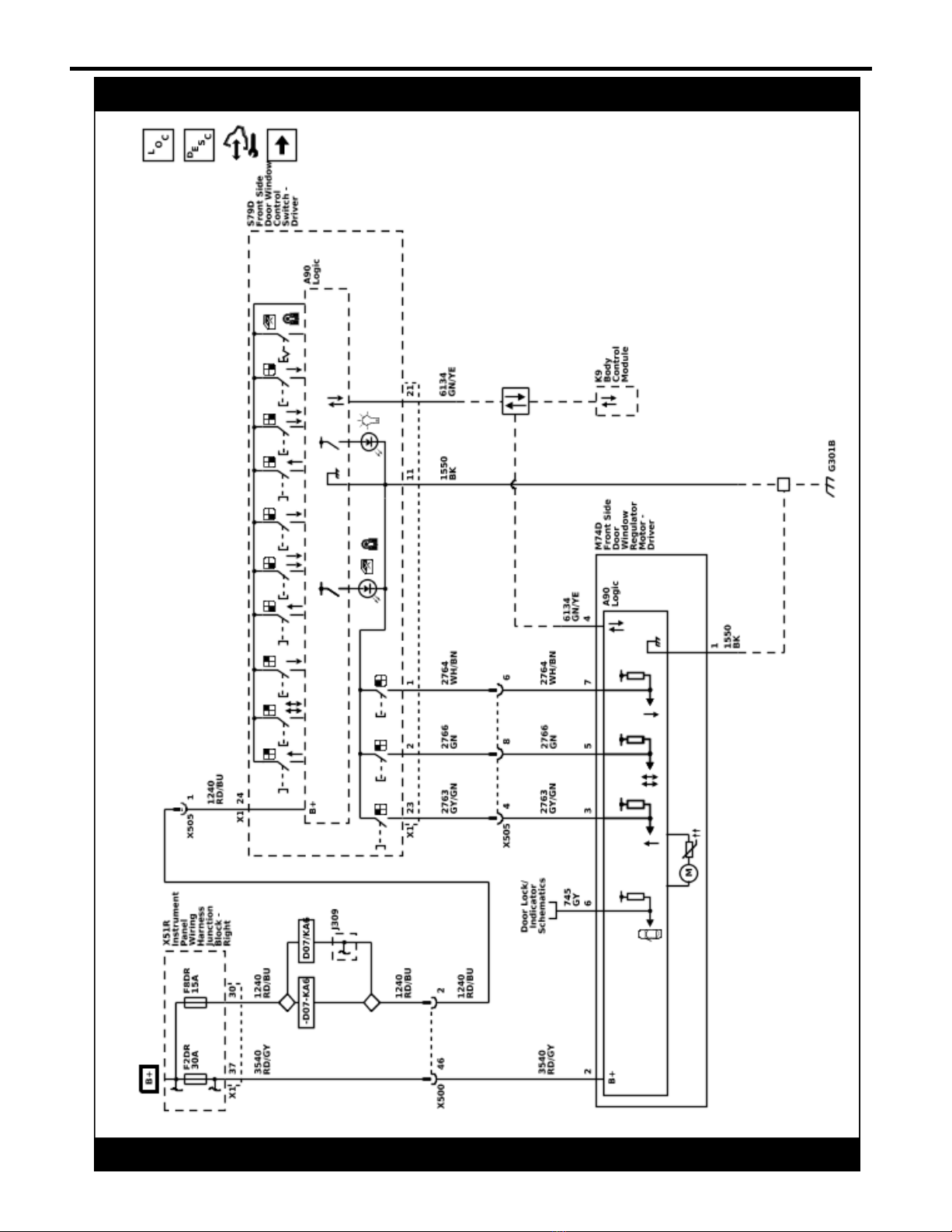

Moveable Window Schematics (Driver Window (AXG))
5967328
2022 - Silverado 1500 (New) Electrical Body Builder Manual
