BLUETOOTH®HANDS-FREE KIT KH 2357
Safety instructions
Please read these operating instructions carefully and fold out the page with
illustrations when you do so. Closely heed this information when operating the
appliance. Should you have any further questions regarding use, please contact
the service department responsible for your country. Keep these operating instruc-
tions in a safe place and pass them on to whomsover might later acquire the
appliance.
Traffic safety has priority!
• Comply with all local laws. When driving, your hands must ALWAYS be free
to operate the vehicle safely. Traffic safety must ALWAYS take priority whilst
driving.
• Only manipulate the hands-free appliance on those occasions in which the
traffic situation permits it and in which you will not endanger, injure, obstruct or
cause annoyance to other road users.
• Do not permit your concentration on the road traffic to be compromised by the
manipulation and displays of the handsfree appliance!
• Become familiar with the operation of it before driving off and practice the
safe operation of the facility!
• Install the hands-free appliance in the vehicle such that your view is not
obstructed and that the appliance is not located in an impact zone in the
passenger compartment or in the inflation area of airbags.
3
IB_KH2357_DT37974_GB.qxd 23.10.2009 9:36 Uhr Seite 3

General safety instructions
• Do not attempt to open or repair the appliance. Should you do so, appliance
safety can no longer be assured and the warranty becomes void.
• Have the defective device repaired by customer service or an authorised
specialist only. No liability will be accepted for damage caused by misuse,
improper handling, use of force or unauthorized modification.
• Never subject the appliance to moisture, extreme temperatures or extreme
vibrations.
• Do not allow children and people subject to supervision play with the
appliance, they could injure themselves or cause damage to the appliance.
Connection to other mobile telephones
• If you wish to connect the appliance to another appliance, read the operating
instructions to obtain detailed safety instructions. Do not connect it to a product
that is not compatible.
High frequency signals in vehicles
HF signals can, under circumstances, negatively influence the function of not
properly installed or not sufficiently shielded electronic systems in vehicles,
e.g. electronic ABS, electronic tempo controllers and airbag systems. For further
information about your vehicle or its possible ancillaries make contact with the
respective manufacturer or their representative.
4
IB_KH2357_DT37974_GB.qxd 23.10.2009 9:36 Uhr Seite 4

Correct Usage
The Bluetooth®Hands-Free Kit KH 2357 is designed for use in vehicles with a
voltage of 12-24 V. The handsfree phone system uses both Bluetooth®radio tech-
nology as well as a digital signal processor (DSP) to carry out telephone functions.
This device may be used ONLY for private domestic purposes, not for industrial
or commercial applications. The product at hand is, by default, NOT intended
for use in medicinal, lifesaving or life support applications. All of the additional
connecting cables and external devices used MUST match the safety-related,
electromagnetic compatability and shielding quality standards of the device at
hand. With regard to CE Conformity, this device fulfills all of the relevant norms
and guidelines. In the event of modifications being made to the device without
agreement from the manufacturer, compliance with these norms and guidelines
can no longer be assured. Use only the accessories specified by the manufactu-
rer. If you are using the device outside the territory of the Federal Republic of
Germany you must pay heed to the national regulations resp. the laws of the
country in which it is being used.
5
IB_KH2357_DT37974_GB.qxd 23.10.2009 9:36 Uhr Seite 5

Introduction
Bluetooth®is a wireless communication system with a short range. It makes
possible wireless connections between Bluetooth®appliances, such as for example
mobile telephones, PDA and PCs. Bluetooth®relates itself to a worldwide stan-
dard for operation in the internationally recognised ISM Frequency Range
(Industrial, Scientific and Medical). Within the ISM Frequency Range
(2,402 - 2,480 GHz), a data transfer range of ca. 10 Meters (Klasse II) is
achieved. The disturbance susceptibility through other users of the ISM
Frequency Range, such as for example microwaves, WLAN (802.116) or
garage door openers, is minimised by so-called „Frequency-Hopping“.
With Frequency-Hopping, a change of frequency levels takes place at up to 1600
times per second, thereby Bluetooth®is also reckoned to be relatively tap-proof.
The HSP (Headset-Profil) makes possible standard functions such as voice
transference, as well as the acceptance and rejection of calls.
The HFP (Handsfree-Profil) makes possible the hands-free call functions of a
mobile telephone, for example with the help of voice commands.
Items supplied
Bluetooth®Hands-Free Kit KH 2357
Operating instructions
6
IB_KH2357_DT37974_GB.qxd 23.10.2009 9:36 Uhr Seite 6

Technical data
Operational voltage: 12-24 Volt DC / 500 mA
Bluetooth®Specification: Version 2.1 + EDR, 10 Meter range.
Supported Bluetooth®profiles: HSP and HFP
Dimensions (L x W x H): 15.5 x 5.5 x 3.2 cm
Weight: 67 g
Operational temperature: +5° to +40°C
Storage temperature: -10° to +60°C
Humidity: 5 to 90% (no condensation)

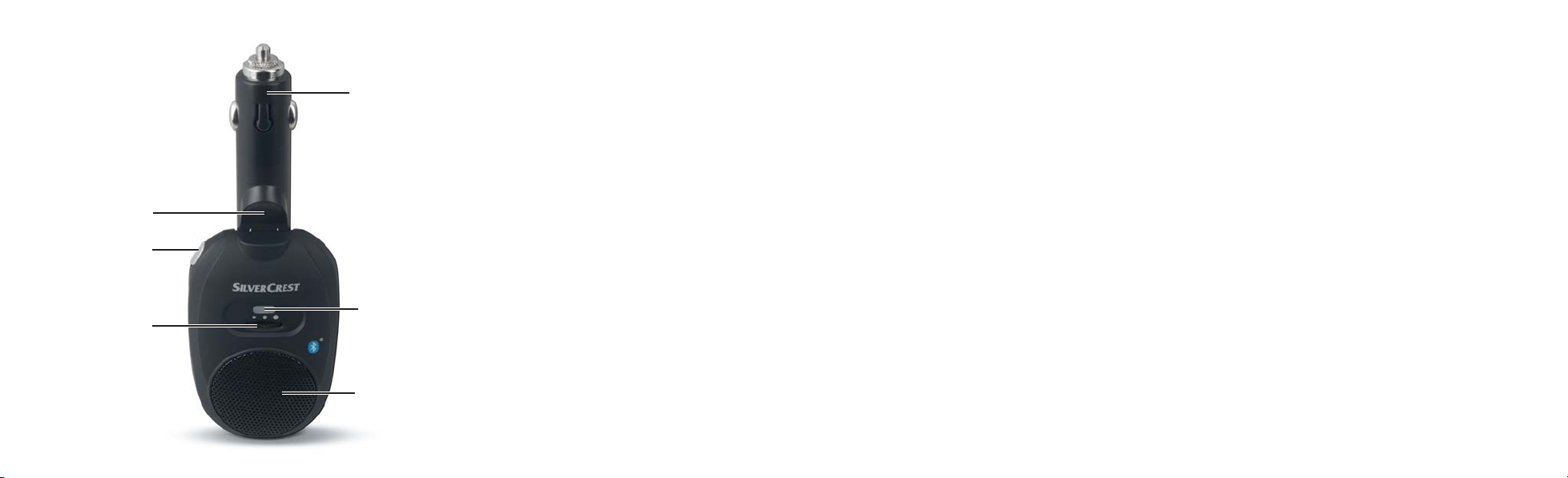

Operating Elements
1Vehicle connector plug
2Loudspeaker
3Volume control
4Multi-function button
5Microphone
6LED status display
7
IB_KH2357_DT37974_GB.qxd 23.10.2009 9:36 Uhr Seite 7

Installing the hands-free appliance in a vehicle
So that the hands-free appliance can function correctly, it is con-nected to the
vehicle cigar lighter socket and provided with electricity from there.
• Ensure that the hands-free appliance engages completely and that the
operation of the vehicle is not negatively influenced. The LED status indicator
6lights up every 3 seconds and a short high signl tone sounds once.
The appliance is in standby mode.
Note:
It is possible that the cigar lighter only functions when the vehicle ignition is
switched on. In cases of doubt, consult the operating instructions for the
particular vehicle.
CAUTION:
For vehicles in which the cigar lighter, resp. the vehicle circuit plug, also functions
when the ignition is switched off:
• Use the hands-free appliance only when the motor is running. Otherwise, the
vehicle batteries could become discharged over an extended period of time.
Note:
When you are not using the hands-free equipment remove it from the vehicles
cigarette lighter socket. Store it in a dry, dust free location protected from direct
sunlight.
8
IB_KH2357_DT37974_GB.qxd 23.10.2009 9:36 Uhr Seite 8

Switching the hands-free appliance on and off
Switching on: The appliance is switched off.
• Press and hold the multi-function button 4for 3 seconds, until a short and
high signal tone is heard. The LED status display 6blinks every 3 seconds.
Switching off: The appliance is in standby mode.
• Press and hold the multi-function button 4for 3 seconds, until a long and
deep signal tone is heard. The LED status display 6extinguishes.
Coupling the hands-free appliance with a mobile
telephone
The hands-free appliance has been especially developed for mobile telephones
that support the Bluetooth®Profile „Handsfree (HFP) and Headset (HSP)“.
Further information about Bluetooth®radio technology is to be found in the
operating instructions for your mobile telephone.
Before you can use the hands-free appliance, you must connect it with a
compatible mobile telephone (pairing).
• Check to make sure the mobile telephone is switched on.
• Programme the mobile telephone so that it searches for Bluetooth®applian-
ces. A detailed description of how to do this is to be found in the operating
instructions for your mobile telephone.
• Ensure that the hands-free appliance is correctly set up and switched off.
9
IB_KH2357_DT37974_GB.qxd 23.10.2009 9:36 Uhr Seite 9

• To switch the device off, press and hold the multi-function button 4for about
3 seconds. A long, low signal tone will be heard and the LED status display 6
extinguishes.
• Position the hands-free appliance and the mobile telephone so that they are
not more than 1 metre away from each other.
• Press and hold down the multi-function button 4for 6 seconds until, after
3 seconds a short, high signal tone and after a further 3 seconds a succes-
sion of low and high signal tones are heard. The LED status display 6lights
up constantly and the hands-free equipment is now in the coupling mode.
• Select the hands-free provision „Car Kit“ from the list of available appliances
for the mobile telephone.
• Enter in the pre-programmed pass code „9999“ and then confirm it, which
couples the appliances with each other. This mobile telephone will now
become the standard telephone for the hands-free appliance. You will hear
a longer signal tone and the LED status display 6blinks every 3 seconds.
• You can now use the hands-free appliance.
Note:
If the coupling is not completed within 2 minutes, the hands-free appliance swit-
ches itself off. The LED status display 6extinguishes and you will hear a long
and deep signal tone. With some mobile telephones it is possible that coupling
does not automatically take place. In this case coupling must be carried out
additionally on the mobile telephone. The LED status display 6 blinks twice every
3 seconds until this has been carried out. Further information can be found in
your mobile telephone’s operating instructions.
10
IB_KH2357_DT37974_GB.qxd 23.10.2009 9:36 Uhr Seite 10

Coupling the hands-free appliance with several mobile
telephones
You can couple the hands-free appliance with up to eight mobile telephones.
However, it can only be connected with one mobiletelephone. If a further mobile
telephone is coupled with the hands-free appliance, the coupling information of
the first coupled mobile telephone is erased.
When the hands-free appliance is switched on, within a few seconds it tries to
create a connection with the standard or the last used mobile telephone.
Should no connection be possible, the hands-free appliance remains nonetheless
recognisable for other mobile telephones. To use the hands-free appliance with a
coupled mobile telephone which is not the standard or the last used mobile
telephone, a connection must be made over the Bluetooth®menu of the mobile
telephone.
Separating the connection
If you wish separate the mobile telephone from the hands-free appliance,
for example, to connect it to another Bluetooth®appliance:
• Switch the hands-free appliance off
or
• separate the connection over the Bluetooth®menu in the mobile telephone.
You need not erase the coupling with the hands-free appliance in the Bluetooth®
menu to separate the connection.
11
IB_KH2357_DT37974_GB.qxd 23.10.2009 9:36 Uhr Seite 11

Re-establishing the connection
If you wish to re-connect the hands-free appliance with the standard, resp. the
last used, mobile telephone:
• Check to see that Bluetooth®is activated in the mobile telephone, then switch
the hands-free appliance on.
When connecting to a previously coupled mobile telephone it is not necessary to
enter a pass-code. You can set your mobile telephone so that when the hands-free
equipment is switched on a connection with the mobile telephone is automatically
established. As soon as the hands-free equipment is connected to the previously
coupled mobile telephone a short, high signal tone is emitted confirming the con-
nection. Further information regarding automatic coupling can be found in your
mobile telephone’s operating instructions.
Using the hands-free appliance
After successful coupling, the following functions are available to you. Some of
the described functions are only possible with a mobile telephone that supports
the Handsfree Profile (HFP).
Call function
• Use your mobile telephone in the usual way to make a call.
• For redialing of the last number called, shortly press the multi-function button
4twice.
• For activation of voice dialling, shortly press the multi-function button 4once.
12
IB_KH2357_DT37974_GB.qxd 23.10.2009 9:36 Uhr Seite 12

Note:
Voice dialing is only available with mobile telephones that support this function.
Further information regarding voice dialing is to be found in the operating
instructions for your mobile telephone.
Accepting and ending a call
When you receive a call the LED status display 6blinks and you hear a call
tone from the hands-free appliance. When the call signal in your mobile telephone
is switched off, the calling tone will nonetheless be sounded via the handsfree set.
• Press the multi-function button 4shortly once, to accept the call.
• Press the multi-function button 4shortly once, to terminate the accepted call.
You can also accept and terminate the call over the mobile telephone.
Automatic call acceptance
If automatic call acceptance is activated in the mobile telephone, it accepts the
incoming call after a determined time period and then passes it on to the
hands-free appliance. Further information regarding automatic call acceptance
is to be found in the operating instructions for your mobile telephone.
Rejection of a call
• Press the multi-function button 4for 3 seconds to reject an incoming
telephone call.
13
IB_KH2357_DT37974_GB.qxd 23.10.2009 9:36 Uhr Seite 13

Adjusting the volume of the hands-free appliance
You can adjust the volume of the hands-free appliance with the assistance of the
volume controller 3.
• During a call, turn the volume controller 3until the desired volume level is
heard.
Troubleshooting
If you cannot connect the hands-free appliance with a compatible mobile
telephone, proceed as follows:
• Ensure that the Bluetooth®function in the mobile telephone is activated.
• Ensure that the hands-free appliance is correctly installed, switched on and
supplied with electricity.
• If you use several Bluetooth®appliances, ensure that a previously created
Bluetooth®connection of the mobile telephone is separated.
• Ensure that the hands-free appliance is distanced a maximum of 10 metres
from the mobile telephone and that there are no barriers or electronic devices
between them.
If these measures do not correct the problem, please contact the appropriate
service partner for your country.
14
IB_KH2357_DT37974_GB.qxd 23.10.2009 9:36 Uhr Seite 14

Cleaning and Care
Danger of electrocution!
• Before cleaning, always separate the electricity supply from the appliance!
• NEVER submerse the appliance in water or other liquids!
• Do not permit liquids to permeate into the housing!
• Never open the housing of the appliance! There are no user-serviceable
elements inside.
• Do not use strong detergents, solvents or abrasive cleaning agents to clean
the appliance. These could damage the housing surfaces.
• Clean the housing surfaces with a slightly moist soft cloth.
Disposal
Do not dispose of the appliance in your normal domestic waste.
This product is subject to the European guideline 2002/96/EC.
Dispose of the appliance through an approved dis-posal centre or at your
community waste facility. Observe the currently applicable regulations.
In case of doubt, please contact your waste disposal centre.
Dispose of all packaging materials in an environmentally responsible
manner.
15
IB_KH2357_DT37974_GB.qxd 23.10.2009 9:36 Uhr Seite 15

Warranty & Service
The warranty for this appliance is for 3 years from the date of purchase.
The appliance has been manufactured with care and meticulously examined
before delivery. Please retain your receipt as proof of purchase. In the event of a
warranty claim, please make contact by telephone with our Service Department.
Only in this way can a post-free despatch for your goods be assured.
The warranty covers only claims for material and maufacturing defects, but not
for transport damage, for wearing parts or for damage to fragile components,
e.g. buttons or batteries. This product is for private use only and is not intended
for commercial use.
The warranty is void in the case of abusive and improper handling, use of force
and internal tampering not carried out by our authorized service branch.
Your statutory rights are not restricted in any way by this warranty.
The warranty period will not be extended by repairs made unter warranty.
This applies also to replaced and repaired parts. Any damage and defects
extant on purchase must be reported immediately after unpacking the appliance,
at the latest, two days after the purchase date. Repairs made after the expiration
of the warranty period are subject to payment.
16
IB_KH2357_DT37974_GB.qxd 23.10.2009 9:36 Uhr Seite 16

DES UK LTD
Tel.: [phone] (£ 0,10 / minute)
e-mail: [e-mail]
Kompernass Service Ireland
Tel: [phone] (0,082 EUR/Min.)
Standard call rates apply. Mobile operators may vary.
e-mail: [e-mail]
Importer
KOMPERNASS GMBH
BURGSTRASSE 21
D-44867 BOCHUM, GERMANY
www.kompernass.com
17
IB_KH2357_DT37974_GB.qxd 23.10.2009 9:36 Uhr Seite 17

Information regarding the conformity declaration
We, Kompernaß GmbH, declare that the product KH 2357 Bluetooth®Hands-
Free Kit conforms to the basic requirements and other relevant provisions of the
vehicle directive 2004/104/EC and the R&TTE directive 99/5/EC of the
European Union council.
The complete Conformity Declaration can be viewed at the Importers premises.
Bluetooth®is a registered trademark of Bluetooth SIG, Inc.
The content of this document is presented as it currently exists. Kompernaß GmbH
does not accept, neither emphatically nor tacitly, any guarantee for the correct-
ness or completeness of the content of this document. Kompernaß GmbH retains
for itself the right, at any time and without previous notice, to make amendments
to this document or to withdraw it completely.
18
IB_KH2357_DT37974_GB.qxd 23.10.2009 9:36 Uhr Seite 18
