Silvercrest STV 45 E1 Product information sheet

V1.4
English.................................................................................2
Deutsch .............................................................................14

SilverCrest STV 45 E1
2 - English
Contents
1. Intended use................................................................................................... 3
2. Package contents............................................................................................ 3
3. Overview ....................................................................................................... 3
4. Technical data................................................................................................. 4
4.1 Information requirements...........................................................................................................4
5. Safety instructions .......................................................................................... 4
6. Copyright........................................................................................................ 8
7. Before initial use............................................................................................. 8
7.1 Unpacking..................................................................................................................................8
7.2 Assembly ....................................................................................................................................8
8. Initial use ........................................................................................................ 9
8.1 Switching the fan on and off.....................................................................................................9
8.2 Configuring the fan speed ........................................................................................................9
8.3 Configuring the TIMER ..............................................................................................................9
8.4 Oscillation ............................................................................................................................... 10
9. Maintenance/cleaning.................................................................................. 10
10. Environmental and waste disposal information.......................................... 11
11. Marks of conformity ................................................................................... 11
12. Notes on guarantee and service ................................................................. 12

SilverCrest STV 45 E1
English - 3
Congratulations!
By purchasing the SilverCrest STV 45 E1 tower fan, hereinafter referred to as the ‘fan’, you have
opted for a high-quality product.
Familiarise yourself with the fan before using it for the first time and read these operating instructions
carefully. Observe the safety instructions and only use the fan in the manner described in these
operating instructions and for the indicated fields of application.
Keep these operating instructions in a safe place. Hand over all documents in the event that you pass
on the fan to a third party.
1. Intended use
This fan is intended to circulate air for cooling. The fan must not be used outside of closed rooms or
in regions with a tropical climate. The fan is not intended for business or commercial use. Use the fan
solely for private purposes in living areas; any other use is deemed improper. This fan meets the
requirements of all relevant standards related to CE conformity. Compliance with these standards is
no longer guaranteed if a change is made to the fan without the authorisation of the manufacturer.
The manufacturer shall not be liable for any damages or faults arising as a result. Only use the
accessories specified by the manufacturer.
Please observe the national regulations and/or laws of the country in which the device is used.
2. Package contents
•SilverCrest STV 45 E1 tower fan
•Base (2-part)
•Fastening nut
•This operating manual

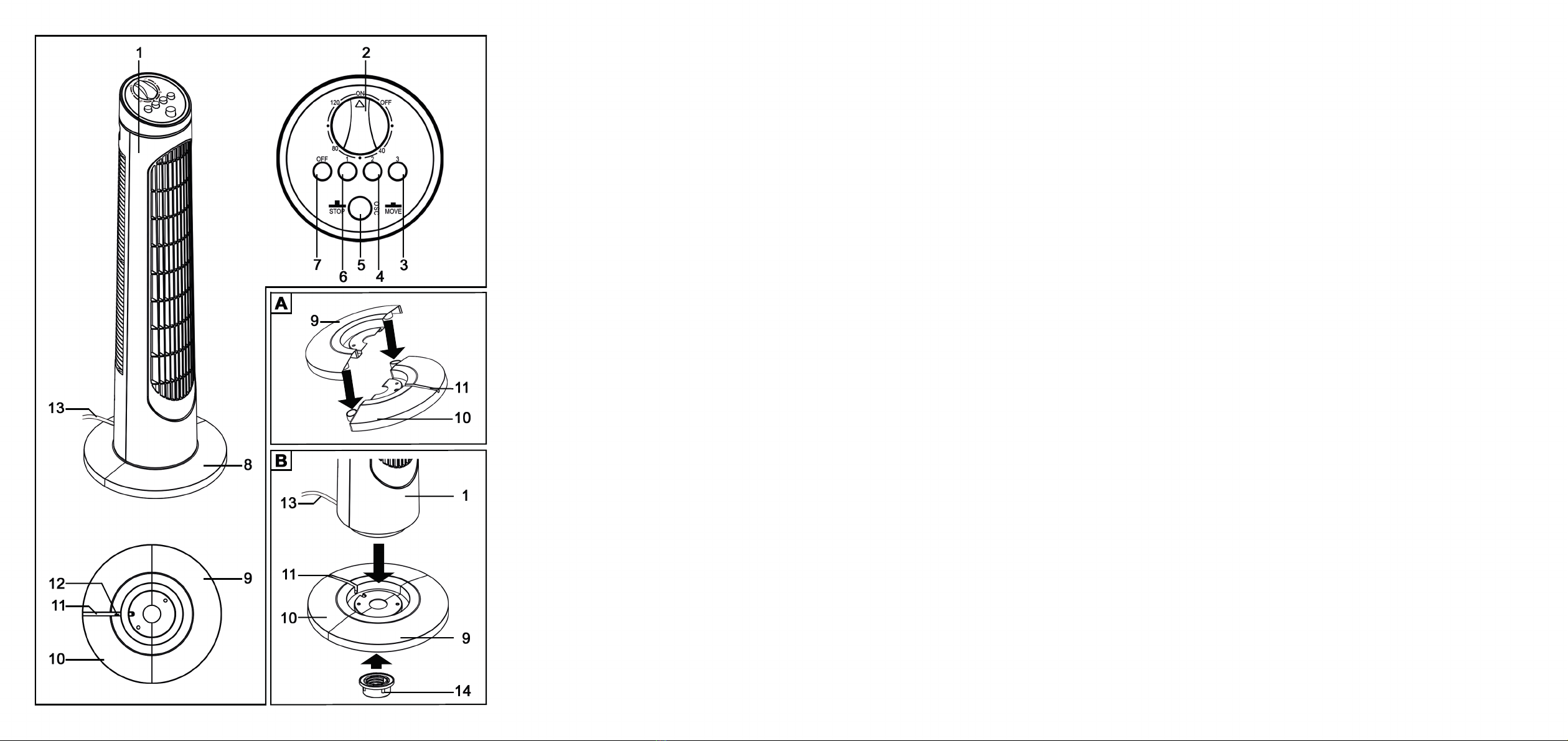

3. Overview
This operating manual also has a cover that can be unfolded. The inside of the cover provides a
schematic of the fan and a number key. The numbers identify the following parts/functions:
1 Tower fan
2 Rotary switch (turn power on/off/set timer)
3 Button 3 – fan speed high
4 Button 2 – fan speed medium
5 OSC button (oscillating function)
6 Button 1 – fan speed low
7 OFF button – switch off
8 Base (consists of parts 9 and 10)
9 Front half of the base
10 Rear half of the base
11 Power cable opening

SilverCrest STV 45 E1
4 - English
12 Plastic strip
13 Power cable
14 Fastening nut (for the base)
4. Technical data
Input voltage 220–240 V~ (AC voltage), 50 Hz
Power consumption 50 W
Protection class II /
Dimensions (W x H x D) approx. 24 x 76 x 24 cm
Weight approx. 2.4 kg
The specifications and design are subject to change without notice.
4.1 Information requirements
Information to identify the model(s) to which the information relates:
SilverCrest STV 45 E1, IAN 338870_1907
Designation Symbol Value Unit
Maximum volume flow F 10.34 m3/min
Fan power consumption P 39.50 W
Service value SV 0.26 (m3/min)/W
Power consumption in standby mode PSB - - W
Power consumption in off mode POFF 0 W
Fan sound power level LWA 58.39 dB(A)
Maximum air velocity c 6.03 m/s
Seasonal energy consumption Q 12.64 kWh/a
Measurement standard for the
calculation of the service value
IEC 60879:1986 (corr. 1992)
Contact address for further
information
TARGA GmbH, Coesterweg 45, 59494 Soest,
GERMANY
5. Safety instructions
Before using the fan for the first time, read the following
instructions carefully and observe all warnings, even if you are
familiar with using electronic devices. Keep this operating manual
in a safe place for future reference. If you give the fan away or
sell it, please ensure that you also pass on this operating manual.

SilverCrest STV 45 E1
English - 5
DANGER! This icon, in conjunction with the word
‘Danger’, indicates an impending dangerous situation
which, if not prevented, may lead to serious injuries or
even death.
WARNING! This icon, in conjunction with the word
‘Warning’, indicates important information for the safe
operation of the device and user safety.
CAUTION! This icon, together with the word ‘Caution’,
indicates important information for protection against
damage to property.
This icon indicates that further information on the topic is
available.
DANGER! Personal safety
This fan can be used by children ages eight and up, as well as
by people with reduced physical, sensory or mental abilities or
who lack experience and knowledge, provided they are
supervised or have been instructed in the safe use of the fan and
understand the resulting dangers. Children must not play with the
fan. Cleaning and user maintenance must not be carried out by
children unless they are supervised. Also keep the packaging film
away from children. There is a risk of suffocation.
DANGER! Risk of electric shock!
•Protect the product from moisture and humidity as well as from
dripping or splashing water. Never immerse the product in
water or any other liquid!

SilverCrest STV 45 E1
6 - English
•Should liquid enter the product, immediately remove the plug
from the socket. Have the product examined by a qualified
specialist before using it again.
•Do not handle the product with wet or damp hands.
•Do not reach for the product if it is in water or any other liquid.
In such cases, immediately remove the plug from the socket.
•Do not use the product if the plug or the connecting cable are
damaged, if it does not operate as intended, if it has been
dropped on the floor or in water or if it exhibits any other
damage. In such cases, contact a qualified specialist for repair.
•Only connect the plug to a socket that has been properly
installed, is easily accessible and the mains voltage of which
corresponds with the information specified in the ‘Technical
data’ section. The socket must continue to be easily accessible
after the plug has been connected.
•Ensure that the connecting cable cannot be damaged by sharp
edges or hot surfaces.
•When using the product, ensure that the connecting cable is not
jammed or squashed.
•The product is also not fully disconnected from the power
supply once it has been switched off. Remove the plug from the
socket to fully disconnect it from the power supply. Always pull
at the plug to remove it from the socket; never pull on the cable.
•Remove the plug from the socket
oif a fault occurs,
oif you are not using the product,
oduring assembly,

SilverCrest STV 45 E1
English - 7
obefore cleaning the product and
oduring thunderstorms.
•Do not attempt to repair the product yourself. In the event of a
defect, switch the product off, remove the plug and contact our
service department.
•If this product’s connecting cable is damaged, it must be
replaced by the manufacturer, their service department or a
similarly qualified person in order to prevent any hazards.
WARNING! Risk of injury!
•Do not insert your fingers or any objects into the product while
it is in operation.
•Do not use the product near explosive or flammable materials.
•Keep hair, clothing and other objects clear of the protective
grille while it is in operation.
•Do not transport the product while it is operation.
CAUTION! Damage to property!
•This product is not intended for operation with an external timer
or a separate remote-control system.
•Never place the product on hot surfaces (e.g., hobs) or near
sources of heat or open flames.
•Only use the original accessories.
•Do not hang or mount the product to the ceiling or wall.
•Only operate the product on a flat, stable surface.

SilverCrest STV 45 E1
8 - English
•Never operate the product near highly flammable materials,
such as curtains, drapes etc. Keep the product at least 50 cm
away from flammable and combustible materials.
The product must not be exposed to direct sources of heat (e.g.,
heaters), direct sunlight or strong artificial light. Also avoid
contact with splashing and dripping water as well as aggressive
liquids. Do not operate the product near water. In particular, the
product must never be immersed (do not place any objects filled
with liquids, e.g., vases or drinks, on the product). Also make sure
that the product is not exposed to excessive shocks and
vibrations. Furthermore, no foreign bodies should penetrate into
the device.
6. Copyright
All contents of this operating manual are subject to copyright law and are provided to the user solely
as a source of information. Any form of copying or reproduction of data and information without the
express written permission of the author is prohibited. This also concerns commercial use of the
content and data. The text and illustrations correspond to the technical standards at the time of
printing. Subject to alterations.
7. Before initial use
7.1 Unpacking
•Take the product out of the packaging.
•Completely remove all packaging materials.
•Check the package contents for completeness. Contact Service immediately in case of missing
components.
7.2 Assembly
•Figure A: Put the front half (9) and the back half (10) of the base (8) together.
•Figure B: Insert the thread on the bottom of the tower fan (1) through the base (8). Make
sure that the power cable (13) is pinned in the power cable opening (11) so that the opening
is completely filled and the power cable (13) is not twisted. To do this, insert the power cable
(13) by rotating it slightly under the plastic strip (12) in the power cable opening (11). Then,
screw the fastening nut (14) onto the thread. Hand-screw the fixing nut (14) to tighten it.

SilverCrest STV 45 E1
English - 9
8. Initial use
8.1 Switching the fan on and off
Proceed as follows to put the fan into operation:
•Select a location that meets the safety instructions in Section 5.
•Operate the fan on a flat, stable surface.
•Insert the plug into a properly installed socket.
•Turn the power supply on by setting the
rotary switch (2) to the ON position.
•Turn the power supply off by setting the
rotary switch (2) to the OFF position.
8.2 Configuring the fan speed
•Fan speed low: Press button 1(6) until it locks in place.
•Fan speed medium: Press button 2(4) until it locks in place.
•Fan speed high: Press button 3(3) until it locks in place.
•Stop the ventilation by pressing the OFF button (7).
8.3 Configuring the TIMER
The TIMER enables you to set a running time between 0 and 120 minutes.
•Turn the TIMER on by setting the rotary
switch (2) to any position between 0 and
120 minutes. This will also turn the
power supply on.
•Please note that the TIMER cannot be set
to a precise minute.
•Turn the TIMER off by turning the rotary
switch (2) to the OFF position.

SilverCrest STV 45 E1
10 - English
8.4 Oscillation
The fan can oscillate horizontally.
•Press the OSC (5) button into the lower MOVE position to start the oscillation.
•Press the OSC (5) button again to stop it. The OSC (5) button is now in the upper STOP
position.
9. Maintenance/cleaning
DANGER! Risk of electric shock!
•Disconnect the fan from the mains before cleaning commences.
•Do not immerse the fan in water.
•Do not allow any water or cleaning agent to enter the fan.
Maintenance work is required if the fan has been damaged; for example, if the device housing is
damaged, liquids or objects have got inside the fan or if the fan has been exposed to rain or moisture.
Maintenance work is also required if the fan does not work properly or has been dropped. If you
notice any smoke or unusual noises or smells, disconnect the fan from the mains immediately. If this
happens, you must stop using the fan until it has been checked by a technician. All maintenance work
should only be carried out by qualified specialists. Never open the housing of the fan.
•Remove coarse dust deposits with a vacuum cleaner.
•Clean the fan using a clean, slightly damp cloth. Never use abrasive liquids during cleaning.
•Use some washing up-liquid on the damp cloth for stubborn stains.
•If required, the protective grille can be cleaned with a soft brush.

SilverCrest STV 45 E1
English - 11
10. Environmental and waste disposal information
If a product features this icon of a crossed-through waste bin, the product is subject to
European Directive 2012/19/EU. Electrical and electronic equipment must not be put
in the household waste, but must be disposed of via designated public disposal centres.
By properly disposing of the old device, you can avoid environmental damage and
hazards to health.
Further information on disposing of old devices can be obtained from your local authority
or the shop where you purchased the product.
Make sure that the packaging is disposed of in an environmentally friendly manner.
Cardboard packaging can be put out for waste-paper collection or taken to public
collection points for recycling. The plastic packaging used for your device is collected
by your local waste management company and disposed of in an environmentally
friendly manner.
Please pay attention to the labels on packaging materials when you separate waste;
these are marked with abbreviations (a) and numbers (b) that mean the following:
1–7: Plastics/20–22: Paper and cardboard/80–98: Composite materials.
11. Marks of conformity
This product fulfils the requirements specified in the applicable European and national
policies. This product’s conformity has been verified. The declarations and documents
are stored with the manufacturer.
You can download the full EU declaration of conformity at the following link:
https://www.targa.gmbh/downloads/conformity/338870_1907.pdf

SilverCrest STV 45 E1
12 - English
12. Notes on guarantee and service
Warranty of TARGA GmbH
Dear Customer,
This device is sold with three years warranty from the date of purchase. In the event of product defects,
you have legal rights towards the seller. These statutory rights are not restricted by our warranty as
described below.
Warranty conditions
The warranty period commences upon the date of purchase. Please keep the original receipt in a
safe place as it is required as proof of purchase. If any material or manufacturing faults occur within
three years of purchase of this product, we will repair or replace the product free of charge as we
deem appropriate.
Warranty period and legal warranty rights
The warranty period is not extended in the event of a warranty claim. This also applies to replaced
and repaired parts. Any damage or defects discovered upon purchase must be reported immediately
when the product has been unpacked. Any repairs required after the warranty period will be subject
to charge.
Scope of warranty
The device was carefully manufactured in compliance with stringent quality guidelines and subjected
to thorough testing before it left the works. The warranty applies to material and manufacturing faults.
This warranty does not cover product components which are subject to normal wear and which can
therefore be regarded as wearing parts, or damage to fragile components such as switches,
rechargeable batteries or components made of glass. This warranty is void if the product is damaged,
incorrectly used or serviced. To ensure correct use of the product, always comply fully with all
instructions contained in the user manual. The warnings and recommendations in the user manual
regarding correct and incorrect use and handling of the product must always be observed and
complied with. The product is solely designed for private use and is not suitable for commercial
applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is
subjected to force, and also if any person other than our authorised service technicians interfere with
the device. No new warranty period commences if the product is repaired or replaced.
Submitting warranty claims
To ensure speedy handling of your complaint, please note the following:
-Before using your product for the first time, please read the enclosed documentation
carefully. Should any problems arise which cannot be solved in this way, please call our
hotline.
-Always have your receipt, the product article number as well as the serial number (if
available) to hand as proof of purchase.
-If it is not possible to solve the problem on the phone, our hotline support staff will initiate
further servicing procedures depending on the fault.

SilverCrest STV 45 E1
English - 13
Service
Phone: [phone]
E-Mail: [email protected]
Phone: [phone]
E-Mail: [email protected]
Phone: [phone]
E-Mail: [email protected]
Phone: [phone]
E-Mail: [email protected]
IAN: 338870_1907
Manufacturer
Please note that the following address is not a service address. First contact the service point stated
above.
TARGA GmbH
Coesterweg 45
59494 Soest
GERMANY

SilverCrest STV 45 E1
14 - Deutsch
Inhaltsverzeichnis
1. Bestimmungsgemäße Verwendung .............................................................. 15
2. Lieferumfang ................................................................................................ 15
3. Übersicht ...................................................................................................... 15
4. Technische Daten .......................................................................................... 16
4.1 Informationsanforderungen.................................................................................................... 16
5. Sicherheitshinweise ...................................................................................... 16
6. Urheberrecht ................................................................................................ 21
7. Vor der Inbetriebnahme ............................................................................... 21
7.1 Auspacken............................................................................................................................... 21
7.2 Montage.................................................................................................................................. 21
8. Inbetriebnahme............................................................................................ 21
8.1 Ventilator ein- und ausschalten .............................................................................................. 21
8.2 Gebläsestufe einstellen........................................................................................................... 22
8.3 TIMER einstellen...................................................................................................................... 22
8.4 Oszillation ............................................................................................................................... 22
9. Wartung/Reinigung...................................................................................... 23
10. Umwelthinweise und Entsorgungsangaben................................................ 24
11. Konformitätsvermerke ............................................................................... 24
12. Hinweise zu Garantie und Serviceabwicklung............................................ 25

SilverCrest STV 45 E1
Deutsch - 15
Herzlichen Glückwunsch!
Mit dem Kauf des Tower-Ventilators SilverCrest STV 45 E1, nachfolgend als Ventilator bezeichnet,
haben Sie sich für ein hochwertiges Produkt entschieden.
Machen Sie sich vor der ersten Inbetriebnahme mit dem Ventilator vertraut und lesen Sie diese
Bedienungsanleitung aufmerksam durch. Beachten Sie vor allem die Sicherheitshinweise und
benutzen Sie den Ventilator nur wie in dieser Bedienungsanleitung beschrieben und für die
angegebenen Einsatzbereiche.
Bewahren Sie diese Bedienungsanleitung gut auf. Händigen Sie alle Unterlagen bei Weitergabe des
Ventilators an Dritte ebenfalls mit aus.
1. Bestimmungsgemäße Verwendung
Dieser Ventilator dient zur Erzeugung einer kühlenden Luftzirkulation. Der Ventilator darf nicht
außerhalb von geschlossenen Räumen und in tropischen Klimaregionen genutzt werden. Dieser
Ventilator ist nicht für den Betrieb in einem Unternehmen bzw. den gewerblichen Einsatz vorgesehen.
Verwenden Sie den Ventilator ausschließlich in Wohnbereichen für den privaten Gebrauch, jede
andere Verwendung ist nicht bestimmungsgemäß. Dieser Ventilator erfüllt alle, im Zusammenhang
mit der CE-Konformität, relevanten Normen und Standards. Bei einer nicht mit dem Hersteller
abgestimmten Änderung des Ventilators ist die Einhaltung dieser Normen nicht mehr gewährleistet.
Aus hieraus resultierenden Schäden oder Störungen ist jegliche Haftung seitens des Herstellers
ausgeschlossen. Benutzen Sie nur das vom Hersteller angegebene Zubehör.
Bitte beachten Sie die Landesvorschriften bzw. Gesetze des Einsatzlandes.
2. Lieferumfang
•Tower-Ventilator SilverCrest STV 45 E1
•Standfuß (2-teilig)
•Befestigungsmutter
•Diese Bedienungsanleitung
3. Übersicht
Diese Bedienungsanleitung ist mit einem ausklappbaren Umschlag versehen. Auf der Innenseite des
Umschlags ist der Ventilator mit einer Bezifferung abgebildet. Die Ziffern haben folgende
Bedeutung:
1 Tower-Ventilator
2 Drehschalter (Stromversorgung ein- bzw. ausschalten/Timer einstellen)
3 Taste 3 – starke Gebläsestufe
4 Taste 2 – mittlere Gebläsestufe
5 Taste OSC (Schwenkfunktion)
6 Taste 1 - schwache Gebläsestufe
7 Taste OFF - Ausschalten

SilverCrest STV 45 E1
16 - Deutsch
8 Standfuß (besteht aus den Teilen 9 und 10)
9 Vordere Hälfte Standfuß
10 Hintere Hälfte Standfuß
11 Netzkabelaussparung
12 Kunststoffnase
13 Netzkabel
14 Befestigungsmutter (für Standfuß)
4. Technische Daten
Eingangsspannung 220 V - 240 V~ (Wechselspannung), 50 Hz
Leistungsaufnahme 50 W
Schutzklasse II /
Abmessungen (B x H x T) ca. 24 x 76 x 24 cm
Gewicht ca. 2,4 kg
Änderungen der technischen Daten sowie des Designs können ohne Ankündigung erfolgen.
4.1 Informationsanforderungen
Informationen zur Angabe des Modells/der Modelle, auf das/die sich die
Informationen beziehen: SilverCrest STV 45 E1 , IAN 338870_1907
Bezeichnung Symbol Wert Einheit
Maximaler Volumenstrom F 10,34 m3/ min
Ventilator-Leistungsaufnahme P 39,50 W
Serviceverhältnis SV 0,26 (m3/ min) / W
Leistungsaufnahme im
Bereitschaftszustand
PSB - - W
Leistungsaufnahme im
ausgeschalteten Zustand
POFF 0 W
Ventilator-Schallleistungspegel LWA 58,39 dB(A)
Maximale Luftgeschwindigkeit c 6,03 m / s
Saisonaler Energieverbrauch Q 12,64 kWh/a
Messnorm für die Ermittlung des
Serviceverhältnisses
IEC 60879:1986 (corr.1992)
Kontaktadresse für weitere
Informationen
TARGA GmbH, Coesterweg 45, 59494 Soest,
DEUTSCHLAND
5. Sicherheitshinweise
Vor der ersten Verwendung des Ventilators lesen Sie die
folgenden Anweisungen genau durch und beachten Sie alle

SilverCrest STV 45 E1
Deutsch - 17
Warnhinweise, selbst wenn Ihnen der Umgang mit
elektronischen Geräten vertraut ist. Bewahren Sie diese
Bedienungsanleitung sorgfältig als zukünftige Referenz auf.
Wenn Sie den Ventilator verkaufen oder weitergeben, händigen
Sie unbedingt auch diese Bedienungsanleitung aus.
GEFAHR! Dieses Symbol in Verbindung mit dem
Hinweis „Gefahr“ kennzeichnet eine drohende
gefährliche Situation, die, wenn Sie nicht verhindert
wird, zu schweren Verletzungen oder sogar zum Tod
führen kann.
WARNUNG! Dieses Symbol in Verbindung mit dem
Hinweis „Warnung“ kennzeichnet wichtige Hinweise für
den sicheren Betrieb des Gerätes und zum Schutz des
Anwenders.
ACHTUNG! Dieses Symbol, mit dem Hinweis
„Achtung“, kennzeichnet wichtige Hinweise zum Schutz
vor Sachschäden.
Dieses Symbol kennzeichnet weitere informative
Hinweise zum Thema.
GEFAHR! Personensicherheit
Dieser Ventilator kann von Kindern ab 8 Jahren und darüber
sowie von Personen mit verringerten physischen, sensorischen
oder mentalen Fähigkeiten oder Mangel an Erfahrung und
Wissen benutzt werden, wenn sie beaufsichtigt oder bezüglich
des sicheren Gebrauchs des Ventilators unterwiesen wurden und
die daraus resultierenden Gefahren verstehen. Kinder dürfen

SilverCrest STV 45 E1
18 - Deutsch
nicht mit dem Ventilator spielen. Reinigung und Benutzerwartung
dürfen nicht von Kindern ohne Beaufsichtigung durchgeführt
werden. Halten Sie auch die Verpackungsfolien von Kindern
fern. Es besteht Erstickungsgefahr.
GEFAHR! Gefahr eines Stromschlags!
•Schützen Sie das Produkt vor Nässe und Feuchtigkeit, Tropf-
oder Spritzwasser. Niemals in Wasser oder andere
Flüssigkeiten tauchen!
•Sollte Flüssigkeit in das Produkt gelangen, ziehen Sie sofort den
Netzstecker. Lassen Sie das Produkt vor einer erneuten
Inbetriebnahme durch eine entsprechende Fachkraft prüfen.
•Bedienen Sie das Produkt nicht mit feuchten oder nassen
Händen.
•Greifen Sie nicht nach dem Produkt, wenn es sich in Wasser
oder anderen Flüssigkeiten befindet. Ziehen Sie in einem
solchen Fall sofort den Netzstecker aus der Steckdose.
•Verwenden Sie das Produkt nicht, wenn der Netzstecker oder
die Netzanschlussleitung beschädigt sind, es nicht
bestimmungsgemäß funktioniert, wenn es zu Boden oder in
Wasser gefallen ist oder sonstige Beschädigungen aufweist.
Wenden Sie sich in einem solchen Fall zur Reparatur an eine
entsprechende Fachkraft.
•Schließen Sie den Netzstecker nur an eine ordnungsgemäß
installierte, leicht zugängliche Steckdose an, deren Spannung
der Angabe entsprechend dem Kapitel „Technische Daten“
entspricht. Die Steckdose muss auch nach dem Anschließen
weiterhin leicht zugänglich sein.
