SilverStar FREZNO 250 HEX User manual

MODEL: SS826XH
FREZNO 250 HEX
USER MANUAL
FREZNO 250 HEX
SS826

1
1 PRODUCT
1.1 TECHNICAL SPECIFICATIONS
Type SS826XH
LED colors RGBALC 250W LED
Power 250W
Voltage Range AC100~240V,50/60Hz
Protection IP20
Operation
Temperature 0℃~45℃

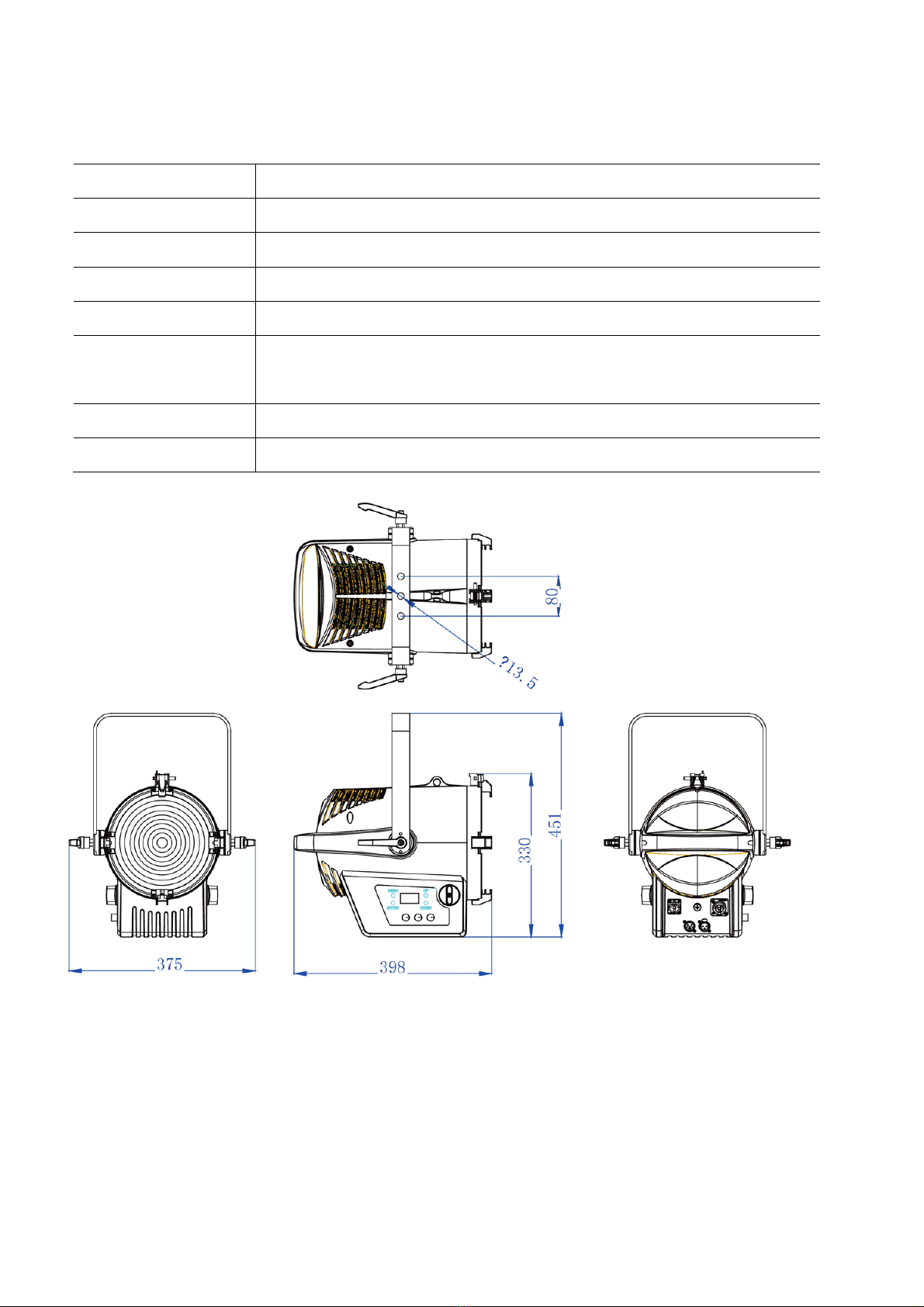

Dimensions 375X254X393mm
Weight 8.8kg

2
1.2 Safety Notes
IMPORTANT
．．．．．．．．．
 This product must be installed by a qualified professional.
 In order to maintain this condition and to ensure a safe operation, it is absolutely necessary
for the user to follow the safety instructions and warning notes
 The manufacturer will not accept liability for any resulting damages caused by the
non-observance of this manual or any unauthorized modification to the device.
CAUTION!
．．．．．．．．
 Make sure that the available voltage is not higher than stated on the rear panel.
 Do not touch the power cables if your hands are wet.
 The earth wire must always be connected to the ground. Therefore it is essential to connect
the yellow/green conductor to earth.
 Make sure that the power-cord is never crimped or damaged by sharp edges. Check the
device and the power-cord from time to time. The electric connection, repairs and servicing
must be carried out by a qualified employee.
 Always disconnect power input cable to completely remove power from unit when not in use
or before cleaning or servicing the fixture.
 Do not switch the fixture on and off in short intervals as this would reduce the lamp’s life.
 Do not touch the device’s housing bare hands during its operation (housing becomes hot)!
The surface of the product’s casing can reach up to 70° C (158° F) during operation. Avoid
contact by persons and materials. Do not install the product in a location where there is a risk
of accidental contact. Allow the product to cool for at least 10 minutes before handling.
 For replacement use lamps and fuses of same type and rating only.
 Please protect the fixture and avoid destroy during transport and installation. If there is any
damage to the coating, the shell may be corroded.
 When hanging lamps and lanterns, it is necessary to verify that facilities and hooks can bear
at least 10 times the weight of lamps and lanterns.
 Fix the safety rope at the correct holes only. Only operate the fixture after having checked
that the housing is firmly closed and all screws are tightly fastened.
 The maximum ambient temperature 45°C must never be exceeded. Do not operate the
product if the ambient temperature (Ta) exceeds 45° C (115° F).
E
．
lectrical
．．．．．．．．．
W
．
arning
．．．．．．
 The light source contained in this luminaire shall only be replaced by the manufacturer or his
service agent or a similar qualified person

3
2 INSTALLATION
2.1MOUNTING
UPRIGHT
．．．．．．．
 For overhead use, always install a safety cable that can hold at least 10 times the weight of
the fixture.
 For overhead installation, the fixture must be always secured with a safety wire that can bear
at least 10 times the weight of the fixture；Secure the fixture with a safety cable through the
rear safety eye as shown.
 Ensure that the structure (truss) to which you are attaching the fixture is secure
Hanging layout
2.2 POWER CONNECTIONS
 SS826XH POWER Linking: 2 units@110V；5 units@220V.
 This product has an auto-ranging power supply that can work with an input voltage range of
100–240 VAC, 50/60 Hz.
AC Plug
Connection Wire (U.S. Wire(Europe) Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green

4

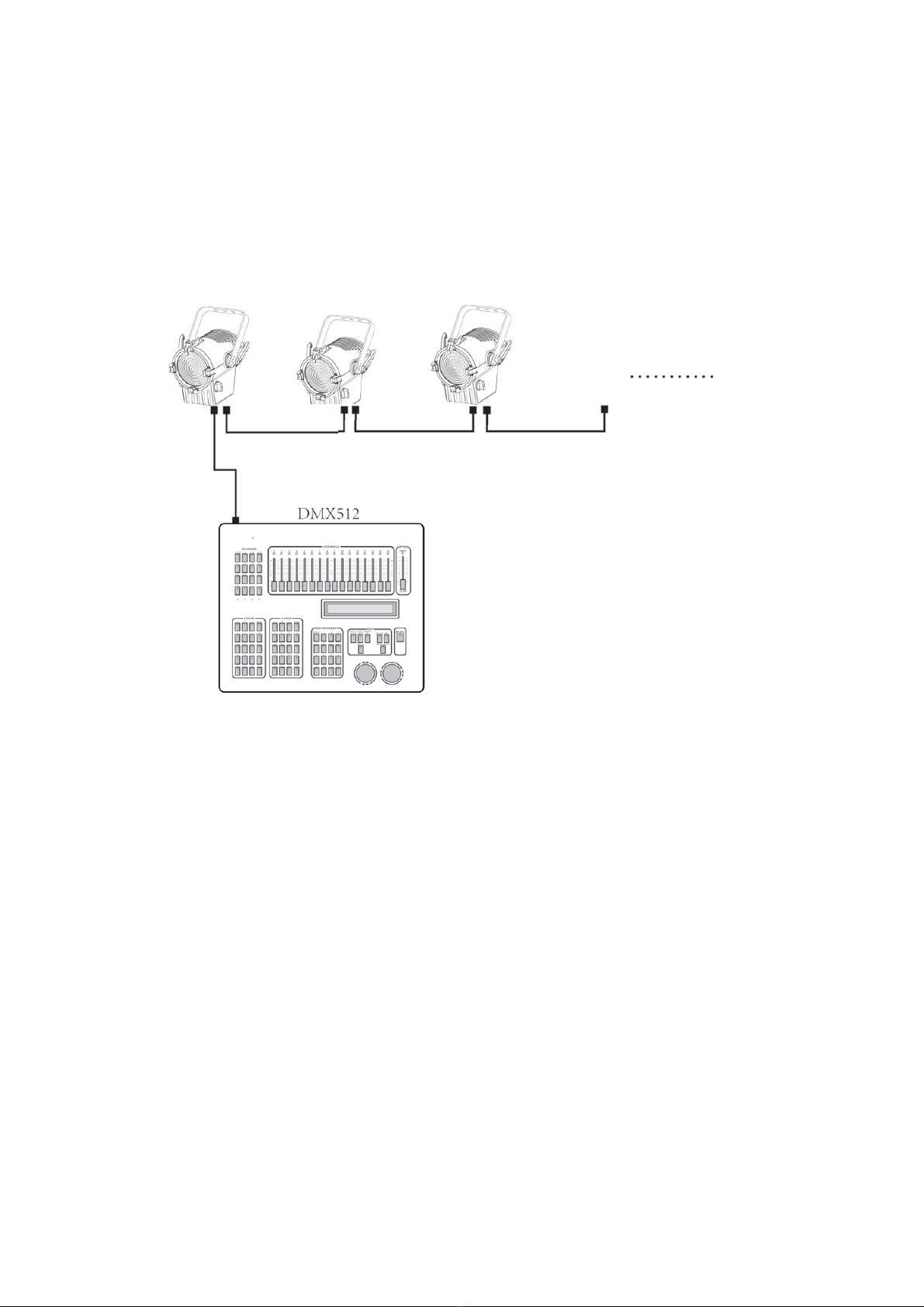

2.3 Data network requirements
 Connect the DMX512 controller to the units in series. A DMX 512 data link is required in
order to control the fixture via DMX. The fixture has 3/5-pin XLR connectors for DMX data
input and output.
 Each unit has 13 DMX channels so the DMX Addresses should increase by increments of 1，
(Nx1)+1，(Nx2)+1，(Nx3)+1...
 Any DMX address in the range from 001 to 512 may be used.

5
3 FUNCTIONS AND SETTINGS
3.1 DISPLAY OPERATION
 MENU：Used to access the menu or to return a previous menu option;
 ENTER：Used to select and store the current menu or confirm the current function value or
option within a menu;
 UP：Navigates downwards through the menu list and increases the numeric value when in a
function;
 DOWN：Navigates upwards through the menu list and decreases the numeric value when in
a function；
3.2 Menu Map
KNOB MODE 1.Dimmer、2.CCT、3.GREEN Knob mode select
STATIC RED 0-255 Combine
[RED][GREEN][BLUE][LIME][AMBER][CYAN]to
create an infinite range of colors(0-255).
Set the value of the [STROBE](0-25Hz).
GREEN 0-255
BLUE 0-255
AMBER 0-255
LIME 0-255
CYAN 0-255
STROBE 0-25
ADDRESS 001-512（default001） Set the DMX ADDRESS
RUN MODE DMX（default） [DMX] Using the DMX 512 controller to
control;[SLAVE] Master--Slave operation.
SLAVE
PERSONALITY BASIC Use the menu to select desired channel mode
SSP
TOUR（default）
TR16
HSIC
CMY
AUTO
PROGRAM
AUTO 1 0-255 Selects automatic AUTO program and AUTO
program speed.
Programs [CUSTOM 1] to [CUSTOM 2] are fully
pre-programmed and can be edited in [EDIT]
mode.
AUOT 2 0-255
... 0-255
AUTO 10 0-255
PR 1
PR 2
EDIT PROGRAM
1-2
SCENE
01-10
RED 0-255 Enter the [EDIT] mode to edit the custom
programs [PROGRAM01] to [PROGRAM2].
Each custom program has 30 scenes that can
be edited.
Fade transition time, time 0-255 unit is second,
fade time setting should be less than time
setting.
After editing the program, Play in AUTO.
GREEN 0-255
BLUE 0-255
AMBER 0-255
LIME 0-255
CYAN 0-255
STROBE 0-25
TIME 0-255
FADE 0-255

6
UPLOAD **** SEND Select [UPLOAD] to upload the custom programs
SETTING **** RESET **** RESET Restore factory settings
DIMMER DIM4（default） Dimming curves DIM1 (fast) to DIM4 (slow)；
OFF
DMX
ERROR
SAVE（default） Hold after loss of DMX signal
BLACK Blackout after loss of DMX signal
LED PWM 1200HZ（default） Sets the PWM frequency
2400HZ
4000HZ
6000HZ
25000HZ
PERFORM LIVE（default） Fan mode low speed
POWER Fast rotation of fan，all power
STUDIO Automatic rotation of fan
DISP KEY ON（default） Locks display (passcode is <UP>,
<DOWN>,<UP>, <DOWN>, <ENTER>)
OFF
DISP TIME ON Display backlight always on
10s Turns off display backlight after 10s/30s
/2min of inactivity
30s（default）
2min
INFO FIXTURE HOURS Hours of fixture use
VERSION Software versions
RDM UID 0x388Axxxxxxxx Check fixture's ID
LABEL FREZNO 250 HEX Check fixture's LABEL
CCT 1800K Preset color temperatures
2200K
2700K
3000K
3200K
4000K
4500K
5000K
5600K
6000K
6500K
7000K
8000K
10000K
PRESET
COLOR
COLOR 1 Preset colour （See Annex I for details）
COLOR 2
...
COLOR 48
All passwords of this product are <UP>, <DOWN>,<UP>, <DOWN>, <ENTER>)

7
4 USING A DMX512 CONTROLLER
4.1 DMX CONTROL
HSIC
(7CH) Value Function
CH.1 0-255 INTENSIYT
CH.2 0-255 HUE
CH.3 0-255 HUE FINE
CH.4 0-255 SATURATION
CH.5
CCT
0-9 NO FUNCTION
10 1800K
25 2200K
40 2700K
55 3000K
70 3200K
85 4000K
100 4500K
115 5000K
130 5600K
145 6000K
160 6500K
175 7000K
190 8000K
205 10000K
255 10000K
CH.6
STROBE
0-9 NO FUNCTION
10-99 STROBE FROM SLOD TO FAST (0-25Hz)
100-109 NO FUNCTION
110-179 THUNDER STROBE
180-189 NO FUNCTION
190-255 RANDOM SROBE
CH.7
CONTROL（EXECUTE AFTER 3 SECONDS）
000-010 NO FUNCTION
011-060 RESERVED
061-070 LIVE
071-080 STUDIO
081-090 POWER

8
091-100 RESERVED
101-110 DIMMER OFF
111-120 DIMMER DIM4
121-150 RESERVED
151-160 1200Hz
161-170 2400Hz
171-180 4000Hz
181-190 6000Hz
191-200 25000Hz
201-210 ALL RESET
211-255 RESERVED
BASIC
（3CH）
SSP
（8CH）
TOUR
（13CH）
TR16
（20CH） Value Function
CH.1 CH.1 CH.1 CH.1 0-255 MASTER DIMMER
-- -- -- CH.2 0-255 MASTER DIMMER FINE
-- CH.2 CH.2 CH.3 0-255 RED
-- -- -- CH.4 0-255 RED FINE
-- CH.3 CH.3 CH.5 0-255 GREEN
-- -- -- CH.6 0-255 GREEN FINE
-- CH.4 CH.4 CH.7 0-255 BLUE
-- -- -- CH.8 0-255 BLUE FINE
-- CH.5 CH.5 CH.9 0-255 AMBER
-- -- -- CH.10 0-255 AMBER FINE
-- CH.6 CH.6 CH.11 0-255 LIME
-- -- -- CH.12 0-255 LIME FINE
-- CH.7 CH.7 CH.13 0-255 CYAN
-- -- -- CH.14 0-255 CYAN FINE
CH.2 -- CH.8 CH.15
PRESET COLOR
0-10 NO FUNCTION
11-255 PRESET COLOR（See Annex I for details）
CH.3 -- CH.9 CH.16
CCT
0-9 NO FUNCTION
10 1800K
25 2200K
40 2700K
55 3000K
70 3200K
85 4000K
100 4500K

9
115 5000K
130 5600K
145 6000K
160 6500K
175 7000K
190 8000K
205 10000K
255 10000K
-- -- CH.10 CH.17
AUTO
0-40 NO FUNCTION
41-50 AUTO 1
51-60 AUTO 2
61-70 AUTO 3
71-80 AUTO 4
81-90 AUTO 5
91-100 AUTO 6
101-110 AUTO 7
111-120 AUTO 8
121-130 AUTO 9
131-140 AUTO 10
141-150 PROGRAM 1
151-160 PROGRAM 2
161-255 NO FUNCTION
-- -- CH.11 CH.18 0-255 AUTO SPEED ADJUSTMENT
-- CH.8 CH.12 CH.19
STROBE
0-9 NO FUNCTION
10-99 STROBE FROM SLOD TO FAST (0-25Hz)
100-109 NO FUNCTION
110-179 THUNDER STROBE
180-189 NO FUNCTION
190-255 RANDOM SROBE
-- -- CH.13 CH.20
CONTROL（EXECUTE AFTER 3 SECONDS）
000-010 NO FUNCTION
011-060 RESERVED
061-070 LIVE
071-080 STUDIO
081-090 POWER
091-100 RESERVED
101-110 DIMMER OFF

10
111-120 DIMMER DIM4
121-150 RESERVED
151-160 1200Hz
161-170 2400Hz
171-180 4000Hz
181-190 6000Hz
191-200 25000Hz
201-210 ALL RESET
211-255 RESERVED
CMY
（10CH） Value Function
CH.1 0-255 DIMMER
CH.2 0-255 CYAN
CH.3 0-255 MAGENT
CH.4 0-255 YELLOW
CH.5
PRESET COLOR
0-10 NO FUNCTION
11-255 PRESET COLOR（See Annex I for details）
CH.6
CCT
0-9 NO FUNCTION
10 1800K
25 2200K
40 2700K
55 3000K
70 3200K
85 4000K
100 4500K
115 5000K
130 5600K
145 6000K
160 6500K
175 7000K
190 8000K
205 10000K
255 10000K
CH.7
AUTO
0-40 NO FUNCTION
41-50 AUTO1

11
51-60 AUTO2
61-70 AUTO3
71-80 AUTO4
81-90 AUTO5
91-100 AUTO6
101-110 AUTO7
111-120 AUTO8
121-130 AUTO9
131-140 AUTO10
141-150 CUSTOM1
151-160 CUSTOM2
161-255 NO FUNCTION
CH.8 0-255 AUTO SPEED ADJUSTMENT
CH.9
Effect of center STROBE
0-9 NO FUNCTION
10-99 STROBE FROM （SLOD TO FAST ，0-25Hz）
100-109 NO FUNCTION
110-179 LIGHTNING STROBE
180-189 NO FUNCTION
190-255 RANDOM STROBE
CH.10
CONTROL（EXECUTE AFTER 3 SECONDS）
000-010 NO FUNCTION
011-060 RESERVED
061-070 LIVE
071-080 STUDIO
081-090 POWER
091-100 RESERVED
101-110 DIMMER OFF
111-120 DIMMER DIM4
121-150 RESERVED
151-160 1200Hz
161-170 2400Hz
171-180 4000Hz
181-190 6000Hz
191-200 25000Hz
201-210 ALL RESET
211-255 RESERVED

12
Annex 1
PRESET COLOR
V
alue Color Names x
y
0-10 NO FUNCTION
COLOR 1 11-15 L176 Lovin
g
Amber 0.407 0.321
COLOR 2 16-20 R40 Li
g
ht Salmon 0.499 0.321
COLOR 3 21-25 L24 Scarlet 0.561 0.296
COLOR 4 26-30 L164 Flame Red 0.659 0.302
COLOR 5 31-35 L747 Eas
y
White 0.389 0.344
COLOR 6 36-40 R303 Warm Peach 0.448 0.353
COLOR 7 41-45 L08 Dark Salmon 0.498 0.347
COLOR 8 46-50 L25 Sunset Red 0.566 0.359
COLOR 9 51-55 L04 Medium Bastard Amber 0.37 0.335
COLOR 10 56-60 L237 CID
(
To Tu n
g
sten
)
0.43 0.365
COLOR 11 61-65 R321 Soft Golden Amber 0.477 0.406
COLOR 12 66-70 L652 Urban Sodium 0.535 0.399
COLOR 13 71-75 L212 LCT Yellow
(
Y1
)
0.34 0.363
COLOR 14 76-80 L765 LEE Yellow 0.389 0.412
COLOR 15 81-85 L513 Ice And A Slice 0.38 0.447
COLOR 16 86-90 L100 S
p
rin
g
Yellow 0.41 0.502
COLOR 17 91-95 L244 LEE Plus Green 0.324 0.388
COLOR 18 96-100 R4430 CalColor 30 Green 0.318 0.44
COLOR 19 101-105 L122 Fern Green 0.234 0.543
COLOR 20 106-110 L90 Dark Yellow Green 0.184 0.641
COLOR 21 111-115 L243 LEE Fluorescent3600K 0.286 0.37
COLOR 22 116-120 R92 Tui
q
uoise 0.235 0.36
COLOR 23 121-125 R94 Kell
y
Green 0.185 0.459
COLOR 24 126-130 L327 Forest Green 0.162 0.496
COLOR 25 131-135 L191 Cosmetic A
q
ua Blue 0.3 0.318
COLOR 26 136-140 L728 Steel Green 0.256 0.302
COLOR 27 141-145 L117 Steel Blue 0.223 0.278
COLOR 28 146-150 L354 S
p
ecial Steel Blue 0.173 0.265
COLOR 29 151-155 L53 Paler Lavender 0.284 0.284
COLOR 30 156-160 L501 New Colour Blue 0.246 0.249
COLOR 31 161-165 L174 Dark Steel Blue 0.204 0.205
COLOR 32 166-170 L165 Da
y
li
g
ht Blue 0.159 0.158
COLOR 33 171-175 L136 Pale Lavender 0.288 0.254
COLOR 34 176-180 L194 Sur
p
rise Pink 0.24 0.183
COLOR 35 181-185 L142 Pale Violet 0.209 0.148
COLOR 36 186-190 L700 Perfect Lavender 0.177 0.07
COLOR 37 191-195 L35 Li
g
ht Pink 0.335 0.289
COLOR 38 196-200 L794 Prett
y
'n Pink 0.335 0.251
COLOR 39 201-205 L328 Follies Pink 0.335 0.18
COLOR 40 206-210 L795 Ma
g
ical Ma
g
enta 0.327 0.138
COLOR 41 211-215 L154 Pale Rose 0.35 0.318
COLOR 42 216-220 L127 Smoke
y
Pink 0.397 0.265
COLOR 43 221-225 L192 Flesh Pink 0.41 0.237
COLOR 44 226-230 L332 S
p
ecial Rose Pink 0.465 0.193
COLOR 45 231-235 L790 Moroccan Pink 0.378 0.324
COLOR 46 236-240 L157 Pink 0.457 0.272
COLOR 47 241-245 R332 Cherr
y
Rose 0.489 0.295
COLOR 48 246-250 L128 Cool LED Bri
g
ht Pink 0.57 0.263
251-255 NO FUNCTION
