Simon 10032108 Series User manual

ENCHUFE HUB PRO IO ESPAÑOL
DESCRIPCIÓN
Una vez conectado al Enchufe iO Simon (ref.1003x108-xxx), este dispositivo con antenas WiFi, Z-Wave,
Bluetooth Low Energy y Zigbee permite enlazarse vía App Simon iO a un dispositivo smart (móvil o tablet)
para dar de alta una instalación conectiva iO Simon. Permite el alta y control remoto de cualquier dispositivo
iO Simon y otros Z-Wave compatibles que esté dentro de la misma instalación.
Además, permite realizar el control ON/OFF de una carga enchufada vía pulsación local o wireless
y cuenta con funciones ampliadas (temporización, calendario, limitación de potencia, medir potencia, etc)
configurables desde la App.
Este dispositivo es un producto Z-Wave Plus con seguridad habilitada que puede usar mensajes cifrados
Z-Wave Plus para comunicarse con otros productos Z-Wave Plus con seguridad habilitada.
CONFORMIDAD CON PROTOCOLO ZWAVE
Este producto se puede incluir ygestionar en una red Z-Wave, trabajando con dispositivos yaplicaciones certificados
Z-Wave de otrosfabricantes.Todos los dispositivos que no vayan a baterías actúan como repetidores dentro de la red
Z-Wave con el fin de incrementar la fiabilidad de la red.
* Si el LED del pulsador se ilumina o parpadea en Azul el resto de señalizaciones no se visualizarán.
* Si al dejar de pulsarla pulsación estuviera bloqueada el LED del pulsadorparpadearía en rojo 3 veces a una frecuencia de 0,5s.
* Algunas de las funciones o respuestas pueden cambiarenfunción.
* Este dispositivo solo se podrá incluir o excluir en una red Z-Wave si no tiene añadido ningún otro equipo a su propia red Z-Wave.
USO DE TECLADO Y RESPUESTAS
GRUPOS DE ASOCIACIÓN
1 (Lifeline)
“Lifeline”
3
COMMAND_CLASS_DEVICE_RESET_LOCALLY_NOTIFICATION
Se manda a los nodos asociados cuando se elimina el dispositivo de la red Z-Wave
ID
Nombre
Max. Nodos
CommandClass
Asociadas
Para desmontar es necesario el uso
de herramienta aplicada en las zonas marcadas.
SIMON iO
Este enchufe NO se puede reemplazar por un enchufe IO (ref.10002432-XXX,
1000246X-XXX). Todas las piezas son exclusivas de esta referencia.
ESPECIFIACIONES Z-WAVE
COMMAND CLASSES CONTROLADAS
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION GROUP INFORMATION_V3
COMMAND_CLASS_BASIC_V2
COMMAND_CLASS_BATTERY_V1
COMMAND_CLASS_CENTRAL SCENE_V3
COMMAND_CLASS_CONFIGURATION_V4
COMMAND_CLASS_CRC 16 ENCAPSULATION_V1
COMMAND_CLASS_DEVICE RESET LOCALLY_1
COMMAND_CLASS_DOOR LOCK_V3
COMMAND_CLASS_INCLUSION CONTROLLER_V1
COMMAND_CLASS_MANUFACTURER SPECIFIC_V2
COMMAND_CLASS_METER_V3
COMMAND_CLASS_NOTIFICATION _V8
COMMAND_CLASS_SENSOR BINARY_V2
COMMAND_CLASS_SENSOR_MULTILEVEL_V11
COMMAND_CLASS_SWITCH BINARY_V2
COMMAND_CLASS_SWITCH MULTILEVEL_V4
COMMAND_CLASS_POWER LEVEL_V1
COMMAND_CLASS_SECURITY0_V1
COMMAND_CLASS_SECURITY2_V1
COMMAND_CLASS_SUPERVISION_V1
COMMAND_CLASS_THERMOSTAT FAN MODE_V4
COMMAND_CLASS_THERMOSTAT FAN STATE_VE
COMMAND_CLASS_THERMOSTAT MODE_V3
COMMAND_CLASS_THERMOSTAT OPERATING STATE_V2
COMMAND_CLASS_THERMOSTAT SET POINT_V3
COMMAND_CLASS_TIME PARAMETERS_V1
COMMAND_CLASS_TRANSPORT SERVICE_V2
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_WAKE UP_V2
COMMAND_CLASS_ZWAVE PLUS INFO_V2
ESPECIFICACIÓN DEL DISPOSITIVO ZWAVE
Tipo de dispositivo CENTRAL_CONTROLLER
Tipodedispositivogenérico GENERIC_TYPE_STATIC_CONTROLLER
Tipodedispositivoespecífico SPECIFIC_TYPE
Tipode función ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
CC BASIC MAPEADO DE VALORES
El Enchufe HUB Pro iO puede
controlar un dispositivo que
soporte Basic Command Class
Pero cualquierBasic Command
Class que reciba será ignorado y
no ejecutará ninguna acción
INSTALACIÓN
Características técnicas
230 VAC
50Hz
(±10%)
16A
LED/CFL
5A
** INCLUSION_CONTROLLER_V1 y CLASS_NW_INCLUSION solo están presentes si el ZIPGW es un controlador de inclusión.
COMMAND_CLASS_APPLICATION_STATUS_V1
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3
COMMAND_CLASS_CRC_16_ENCAP_V1
COMMAND_CLASS_DEVICE_RESET_LOCALLY_V1
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5
COMMAND_CLASS_INCLUSION_CONTROLLER_V1**
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_MULTI_CMD_V1
COMMAND_CLASS_NODE_PROVISIONING_V1
COMMAND_CLASS_NW_MGMT_BASIC_V2
COMMAND_CLASS_NW_INCLUSION**
COMMAND_CLASS_NW_INSTALLATION_MAINTENANCE_V1
COMMAND_CLASS_NW_MGMT_PROXY_V2
COMMAND_CLASS_POWERLEVEL_V1
COMMAND_CLASS_SECURITY_V1
COMMAND_CLASS_SECURITY_2_V1
COMMAND_CLASS_SUPERVISION_V1
COMMAND_CLASS_TRANSPORT_SERVICE_V2
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
INCLUSION
NO SEGURA INCLUSION SEGURA
SEGURA NO SEGURA
COMMAND CLASSES SOPORTADAS
10032108-xxx 10033108-xxx
ESTADO DEL
EQUIPO FEEDBACK LEDS
SUCESO ACCIÓN
TECLADO ACTUACIÓN DEL EQUIPO
Intermitencialentaen el LEDbotón enazul
Intermitencia rápida en LED botón en
blanco o verde según estado de carga
Intermitencia rápida en el LED
botón en azul
Ledbotón fijo en azul
CargaON sin limitacionde potencia
LEDbotón fijoen verde
CargaON con limitación de potencia
LEDbotón fijo ennaranja
CargaOFF con o sin limitación de
potenciaLED botónfijoen blanco
Carga OFF por exceso de potencia LED
botónfijoen rojo
Baliza, los LEDs 1…7 regulan su intensidad
segúnparámetro3
Carga ON
Carga OFF
Botón bloqueado
Inicializando
Inicializando
Wi-Fi
Wi-Fiactivada o
conectada
No presionado
Pulsación corta
(t<2s)
Pulsación larga
(10s<t<15s)
Pulsación larga 2s<t<10s Se apagan todos los LEDs
Pulsación larga
(15s<t<30s)
Pulsación larga
(t>30s)
Pulsar botón
Vincular con
App iO Simon
Reset / Restablecer
valores de fábrica
Reiniciar dispositivo
LEDbotón verdepasaa LEDbotón
fijoen blanco
LEDbotónblanco pasaaLED fijo enverde
LEDbotón parpadealento 3veces en
rojoyvuelveal colorsegún estadocarga
LED botón parpadea lento hasta
fijo en azul
LED botón realiza una secuencia de
intermitencia rápida en verde, azul y
morado mientras se esta reseteando
el Enchufe HUB Pro iO
LED botón parpadea rápido
hasta que recupera el estado de
no presionado en azul
Al soltar la pulsación, LED botón
queda en azul; Esta indicación finaliza
una vez que el usuario se conecta al
HUB iO mediante la App iO Simon
Sila potenciaconectada excedeel
límiteestablecido sedesactivará lacarga
Reinicia la interfaz Wi-Fi del
dispositivo
Se vuelve al estado de fábrica y
todos los dispositivos Simon que no
son baterías quedan también en
estado de fábrica
Se desactiva carga
Seactiva carga
Activando Wi-Fi
Vinculadoa App
SimoniO o unared
Z-Wave
Sila potenciaconectada
excede16A se desactivarála carga

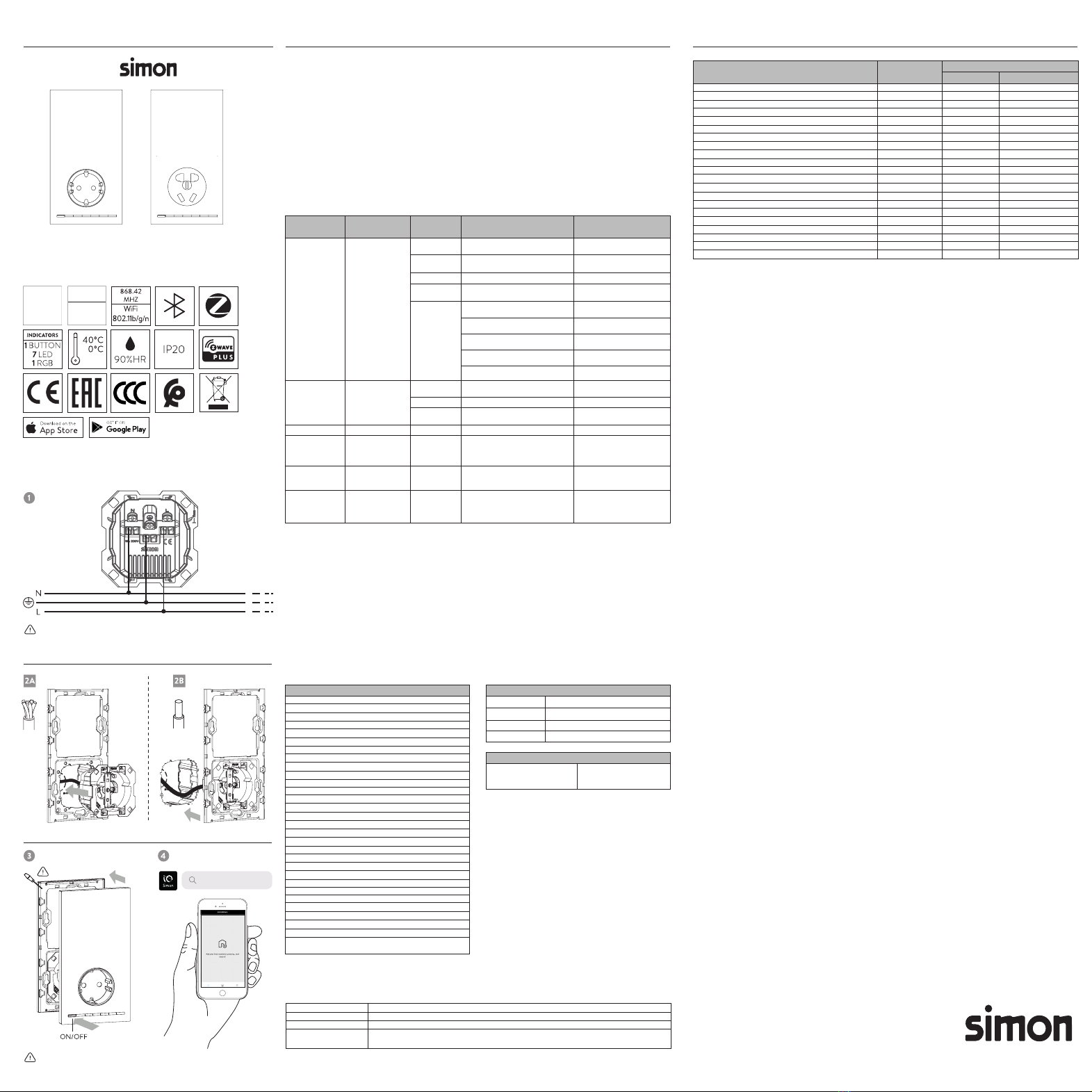

HUB PRO IO SOCKET ENGLISH
DESCRIPTION
Once connected to the iO Simon Socket, (art. no. 1003x108-xxx), this device has WiFi antennas, Z-Wave, Low
Energy Bluetooth and Zigbee so you can use the iO Simon Appto connect to a smart device (phone or tablet)
to register an iO Simon connected installation. It allows you to register and remotely control any iO Simon
device and other Z-Wave compatible devices in the same installation.
Plus, you can perform ON/OFF controls for plugged-in devices using local or wireless controls, and enjoy
extensive functions (timing, scheduling, power restrictions, power measurement, etc.), configurable using
the App.
This device is a Z-Wave Plus product with enabled security that can use Z-Wave Plus encrypted messages to
communicate with other Z-Wave Plus products with enabled security.
COMPLIANCE WITH ZWAVE PROTOCOL
This product may be added to and managed in a Z-Wave network, working with Z-Wave certified devices and
applications from other manufacturers. All the devices that do not run on batteries will act as repeaters in the
Z-Wave network in orderto increase network reliability.
* If the LED onthe button turns on or blinks Blue, the other signals will not be displayed.
* If the button was pressed while locked, the LED button will blink red 3 times when released, at an interval of 0.5 seconds.
* Some of thefunctions or responses maychange.
* This device may onlybe added or removed from a Z-Wave network if no other devices are added to its own Z-wave network.
USE OF KEYPAD AND ANSWERS
GROUP ASSOCIATION
1 (Lifeline)
“Lifeline”
3
COMMAND_CLASS_DEVICE_RESET_LOCALLY_NOTIFICATION. Sent to the
associated nodes when the device is removed from the Z-Wave network
ID
Name
Max. Nodes
Associated
CommandClass
To remove, it is necessary to use a tool
applied in the marked areas.
SIMON iO
This socket can NOT be replaced by an IO socket (art. no. 10002432-XXX,
1000246X-XXX). All the parts are exclusive for this article number.
Z-WAVE SPECIFICATIONS
CONTROLLED COMMAND CLASSES
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION GROUP INFORMATION_V3
COMMAND_CLASS_BASIC_V2
COMMAND_CLASS_BATTERY_V1
COMMAND_CLASS_CENTRAL SCENE_V3
COMMAND_CLASS_CONFIGURATION_V4
COMMAND_CLASS_CRC 16 ENCAPSULATION_V1
COMMAND_CLASS_DEVICE RESET LOCALLY_1
COMMAND_CLASS_DOOR LOCK_V3
COMMAND_CLASS_INCLUSION CONTROLLER_V1
COMMAND_CLASS_MANUFACTURER SPECIFIC_V2
COMMAND_CLASS_METER_V3
COMMAND_CLASS_NOTIFICATION _V8
COMMAND_CLASS_SENSOR BINARY_V2
COMMAND_CLASS_SENSOR_MULTILEVEL_V11
COMMAND_CLASS_SWITCH BINARY_V2
COMMAND_CLASS_SWITCH MULTILEVEL_V4
COMMAND_CLASS_POWER LEVEL_V1
COMMAND_CLASS_SECURITY0_V1
COMMAND_CLASS_SECURITY2_V1
COMMAND_CLASS_SUPERVISION_V1
COMMAND_CLASS_THERMOSTAT FAN MODE_V4
COMMAND_CLASS_THERMOSTAT FAN STATE_VE
COMMAND_CLASS_THERMOSTAT MODE_V3
COMMAND_CLASS_THERMOSTAT OPERATING STATE_V2
COMMAND_CLASS_THERMOSTAT SET POINT_V3
COMMAND_CLASS_TIME PARAMETERS_V1
COMMAND_CLASS_TRANSPORT SERVICE_V2
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_WAKE UP_V2
COMMAND_CLASS_ZWAVE PLUS INFO_V2
ZWAVE DEVICE SPECIFICATION
Type of device CENTRAL_CONTROLLER
Generic type of device GENERIC_TYPE_STATIC_CONTROLLER
Specific type of device SPECIFIC_TYPE
Function type ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
CC BASIC MAPPING VALUES
The HUB Pro iO socket can
be controlled bya device that
supports Basic Command Class.
However, anyBasic Command
Class received will be ignored and
no action will be taken.
INSTALLATION
Technical features
230 VAC
50Hz
(±10%)
16A
LED/CFL
5A
** INCLUSION_CONTROLLER_V1 AND CLASS_NW_INCLUSION are only available if the ZIPGW is an inclusion controller.
COMMAND_CLASS_APPLICATION_STATUS_V1
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3
COMMAND_CLASS_CRC_16_ENCAP_V1
COMMAND_CLASS_DEVICE_RESET_LOCALLY_V1
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5
COMMAND_CLASS_INCLUSION_CONTROLLER_V1**
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_MULTI_CMD_V1
COMMAND_CLASS_NODE_PROVISIONING_V1
COMMAND_CLASS_NW_MGMT_BASIC_V2
COMMAND_CLASS_NW_INCLUSION**
COMMAND_CLASS_NW_INSTALLATION_MAINTENANCE_V1
COMMAND_CLASS_NW_MGMT_PROXY_V2
COMMAND_CLASS_POWERLEVEL_V1
COMMAND_CLASS_SECURITY_V1
COMMAND_CLASS_SECURITY_2_V1
COMMAND_CLASS_SUPERVISION_V1
COMMAND_CLASS_TRANSPORT_SERVICE_V2
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
UNSAFE
INCLUSION SAFE INCLUSION
SAFE UNSAFE
SUPPORTED COMMAND CLASSES
10032108-xxx 10033108-xxx
SIMON, S.A.U. Diputación, 390-392 / 08013 Barcelona
[email protected] Tel: [phone]
www.simonelectric.com A991525 5-12-2019 1/5
DEVICE
STATUS LED FEEDBACK
EVENT KEYPAD
ACTION DEVICE PERFORMANCE
Slow blue blinking on LED button
Fast white orgreen blinking on LED button
depending on charging status.
Fast blue blinking on LED button
Solid blue LED button
Charging ON with no power restrictions,
solid green LED button
Charging ON with power restrictions,
solid orange LED button
Charging OFF with or without power
restrictions, solid white LED button
Charging OFF for power excess, solid
red LED button
Beacon, LEDs 1-7 will adjust intensity based
on parameter 3
Charging ON
Charging OFF
Button locked
Initializing
Initializing
Wi-Fi
Wi-Fi enabled or
connected
Not pressed
Short press
(<2 seconds)
Long press for
10s<t <15 seconds
Long press for 2s<t<10s All LEDs turn o
Long press for
15s<t <30 seconds
Long press for
t>30 seconds
Press button
Link with the iO
Simon app
Reset/Factory Reset
Restart device
Green LED button changes to solid
white LED button
WhiteLED buttonchanges tosolid greenLED
LED button blinks slowly 3 times in red, then
changes colour based on charging status
LED button blinks slowly before changing
to solid blue
The LED button performs a fast blinking
sequence in green, blue and purple while
the HUB PRO iO socket is being reset
Fast blue blinking LED button
until it is released
When button is released, the LED
button will remain blue; this indica-
tion stops once the user connectsto
the iO HUB via the iO Simon App
Ifthepowerconnected exceedsthe
establishedlimit, chargingwill deactivate
Restart the device’s WiFi interface
It will return tofactory settings and
all Simon devices except batteries
are also set to the factory state
Charging deactivated
Charging enabled
Enabling Wi-Fi
Connected to
the iO SIMON
APP or a Z-Wave
network.
If the powerconnected exceeds
16 A, charging will deactivate

TOMADA HUB PRO IO PORTUGUÊS
DESCRIÇÃO
Uma vez ligado à Tomada iO Simon (ref.1003x108-xxx), este dispositivo com antenas Wi-Fi, Z-Wave, Bluetooth
Low Energy e Zigbee permite a ligação através da App Simon iO a um dispositivo smart (telemóvel ou tablet) para
registar uma instalação de ligações iO Simon. Permite o registo e o controlo remoto de qualquer dispositivo iO
Simon e de outros compatíveis com Z-Wave que estejam dentro da mesma instalação.
Além disso, permite realizar o controlo ON/OFF de uma carga ligada através de pressão local ou wireless e conta
com funções ampliadas (temporização, calendário, limitação de potência, medir potência, etc.) configuráveis a
partir da App.
Este dispositivo é um produto Z-Wave Plus com segurança ativada que pode usar mensagens cifradas Z-Wave Plus
para comunicar com outros produtos Z-Wave Plus com segurança ativada.
CONFORMIDADE COM PROTOCOLO ZWAVE
Este produto pode ser incluído e gerido numa rede Z-Wave, trabalhando com aplicações e dispositivos certificados
Z-Wave de outros fabricantes. Todos os dispositivos que não utilizem baterias atuam como repetidores dentro da
rede Z-Wave com o objetivo de aumentar a fiabilidade da rede.
* Se o LED do botão de pressão ficar iluminado ou piscar a Azul as restantes sinalizações não serão visualizadas.
* Se ao deixar de pressionar, a pressão estiver bloqueada, o LED do botão de pressão piscará a vermelho 3 vezes com
uma frequência de 0,5 s.
* Algumas das funções ou respostas podem mudarem função dos parâmetros de configuração.
* Este dispositivo apenas se poderá incluir ou excluir numa rede Z-Wave se não tiver adicionado qualquer outro
equipamento à sua própria rede Z-Wave.
USO DE TECLADOS E RESPOSTAS
GRUPO DE ASSOCIAÇÃO
1 (Lifeline)
“Lifeline”
3
COMMAND_CLASS_DEVICE_RESET_LOCALLY_NOTIFICATION. Envio aos nós associados
quando o dispositivo é eliminado da rede Z-Wave
ID
Nome
Max. Nós
Command Class
Associadas
Para desmontar é necessária a utilização de ferramenta
aplicada nas zonas marcadas.
SIMON iO
Esta tomada NÃO pode ser substituída por uma tomada IO (ref. 10002432-XXX,
1000246X-XXX). Todas as peças são exclusivas desta referência.
ESPECIFICAÇÕES Z-WAVE
COMMAND CLASSES CONTROLADAS
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION GROUP INFORMATION_V3
COMMAND_CLASS_BASIC_V2
COMMAND_CLASS_BATTERY_V1
COMMAND_CLASS_CENTRAL SCENE_V3
COMMAND_CLASS_CONFIGURATION_V4
COMMAND_CLASS_CRC 16 ENCAPSULATION_V1
COMMAND_CLASS_DEVICE RESET LOCALLY_1
COMMAND_CLASS_DOOR LOCK_V3
COMMAND_CLASS_INCLUSION CONTROLLER_V1
COMMAND_CLASS_MANUFACTURER SPECIFIC_V2
COMMAND_CLASS_METER_V3
COMMAND_CLASS_NOTIFICATION _V8
COMMAND_CLASS_SENSOR BINARY_V2
COMMAND_CLASS_SENSOR_MULTILEVEL_V11
COMMAND_CLASS_SWITCH BINARY_V2
COMMAND_CLASS_SWITCH MULTILEVEL_V4
COMMAND_CLASS_POWER LEVEL_V1
COMMAND_CLASS_SECURITY0_V1
COMMAND_CLASS_SECURITY2_V1
COMMAND_CLASS_SUPERVISION_V1
COMMAND_CLASS_THERMOSTAT FAN MODE_V4
COMMAND_CLASS_THERMOSTAT FAN STATE_VE
COMMAND_CLASS_THERMOSTAT MODE_V3
COMMAND_CLASS_THERMOSTAT OPERATING STATE_V2
COMMAND_CLASS_THERMOSTAT SET POINT_V3
COMMAND_CLASS_TIME PARAMETERS_V1
COMMAND_CLASS_TRANSPORT SERVICE_V2
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_WAKE UP_V2
COMMAND_CLASS_ZWAVE PLUS INFO_V2
ESPECIFICAÇÃO DO DISPOSITIVO ZWAVE
Tipo de dispositivo CENTRAL_CONTROLLER
Tipo de dispositivo genérico GENERIC_TYPE_STATIC_CONTROLLER
Tipo de dispositivo específico SPECIFIC_TYPE
Tipo de função ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
CC BASIC MAPEAMENTO DE VALORES
A Tomada HUB Pro iO pode con-
trolar um dispositivo que suporte
Basic Command Class.
Mas qualquer Basic Command
Class que receba será ignorada e
não executará qualquer ação.
INSTALAÇÃO
Características técnicas
230 VAC
50Hz
(±10%)
16A
LED/CFL
5A
**INCLUSION_CONTROLLER_V1 E CLASS_NW_INCLUSION só estão presentes se o ZIPGW forum controlador de inclusão.
COMMAND_CLASS_APPLICATION_STATUS_V1
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3
COMMAND_CLASS_CRC_16_ENCAP_V1
COMMAND_CLASS_DEVICE_RESET_LOCALLY_V1
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5
COMMAND_CLASS_INCLUSION_CONTROLLER_V1**
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_MULTI_CMD_V1
COMMAND_CLASS_NODE_PROVISIONING_V1
COMMAND_CLASS_NW_MGMT_BASIC_V2
COMMAND_CLASS_NW_INCLUSION**
COMMAND_CLASS_NW_INSTALLATION_MAINTENANCE_V1
COMMAND_CLASS_NW_MGMT_PROXY_V2
COMMAND_CLASS_POWERLEVEL_V1
COMMAND_CLASS_SECURITY_V1
COMMAND_CLASS_SECURITY_2_V1
COMMAND_CLASS_SUPERVISION_V1
COMMAND_CLASS_TRANSPORT_SERVICE_V2
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
INCLUSÃO
NÃO SEGURA INCLUSÃO SEGURA
SEGURA NÃO SEGURA
COMMAND CLASSES SUPORTADAS
10032108-xxx 10033108-xxx
ESTADO DO
EQUIPAMENTO LEDS FEEDBACK
OCORRÊNCIA AÇÃO
TECLADO ATUAÇÃO DO EQUIPAMENTO
Intermitência lenta no botão LED a azul
Intermitência rápida no botão LED a branco
ou verde segundo o estado de carga
Intermitência rápida no botão LED a azul
Botão LED fixo a azul
Carga ON sem limitação de potência,
botão LED fixo a verde
Carga ON com limitação de potência,
botão LED fixo a laranja
Carga OFF com ou sem limitação de
potência, botão LED fixo a branco
Carga OFF por excesso de potência,
botão LED fixo a vermelho
Baliza, os LED 1…7 regulam a sua intensi-
dade segundo o parâmetro 3
Carga ON
Carga OFF
Botão bloqueado
A inicializar
A inicializar Wi-Fi
Wi-Fi ativado ou
ligado
Não
pressionado
Pressão curta
(t<2 s)
Pressão longa
(10 s<- t<15 s)
Pressão longa
2 s<t<10 s Apagam-se todos os LED
Pressão longa
(15 s<t<30 s)
Pressão longa
(t>30 s)
Pressionar botão
Vincular com a App
iO Simon
Reset / Restabelecer
valores de fábrica
Reiniciar dispositivo
Botão LED verde passa a botão LED
fixo a branco
Botão LED branco passa a LED fixo a verde
Botão LED pisca lentamente 3 vezes a
vermelho e volta à corsegundo o estado
de carga
Botão LED pisca lentamente até ficar
fixo a azul
O botão LED realiza uma sequência
de intermitência rápida a verde, azul e
roxo enquanto aTomada HUB Pro iO
é reiniciada
O botão LED pisca rapidamente até que
recupera o estado de não pressionado
a azul
Ao deixar de pressionar, o botão LED
fica a azul. Esta indicação termina
quando o utilizador se liga ao HUB
iO através da App iO Simon
Se a potência ligada exceder o
limite estabelecido a carga será
desativada
Reinicia a interface Wi-Fi do
dispositivo
Regresso ao estado defábrica e
todos os dispositivos Simon que não
são baterias ficam também no
estado de fábrica
A carga é desativada
A carga é ativada
A ativar Wi-Fi
Vinculado à App
Simon iO ou a uma
rede Z-Wave
Se a potência ligada exceder os
16 A a carga será desativada

PRISE HUB PRO IO FRANÇAIS
DESCRIPTION
Après avoirété fixé à la Prise iO Simon (réf.1003x108-xxx), cet appareil doté d’antennes Wi-Fi, Z-Wave, Bluetooth
Low Energy et Zigbee permet de se connecter via l’App Simon iO à un appareil smart (téléphone portable ou
tablette) pouractiver une installation de connexion iO Simon. Il permet la mise en marche et le contrôle à distance
de n’importe quel appareil iO Simon et autres Z-Wave compatibles intégrés à l’installation.
Il permet également d’activer le bouton ON/OFF d’une charge branchée via impulsion locale ou sans fil et
est doté de fonctions étendues (minuterie, calendrier, limitation de puissance, mesure de la puissance, etc.)
configurables depuis l’App.
Cet appareil est un produit Z-Wave Plus avec sécurité intégrée pouvant utiliser des messages chirés Z-Wave
Plus afin de communiquer avec d’autres produits Z-Wave Plus avec sécurité intégrée.
CONFORMITÉ AVEC LE PROTOCOLE ZWAVE
Ce produit peut être incorporé et géré sur un réseau Z-Wave fonctionnant avec des appareils et des applications
certifiés Z-Wave d’autres fabricants. Tous les appareils n’incluant pas les batteries agissent comme des relais au
sein du réseau Z-Wave dans le but d’en augmenter la fiabilité.
* Si la LED du bouton poussoir émet une lumière ou un clignotement bleu, le reste des signaux n’est pas visible.
* Si, lorsque la touche est lâchée, celle-ci se bloquait, la LED du bouton poussoirémettrait 3clignotements rouges
à une fréquence de 0,5s.
* Certaines des fonctions ou réponses peuvent changer.
* Cet appareil ne pourra être intégré ou exclu d’un réseau Z-Wave que si aucun autre équipement n’est ajouté à
son propre réseau Z-Wave.
UTILISATION DE TOUCHE ET REPONSES
GROUPE D’ASSOCIATION
1 (Lifeline)
“Lifeline”
3
COMMAND_CLASS_DEVICE_RESET_LOCALLY_NOTIFICATION. Commande les
nœuds associés lorsque l’appareil est supprimé du réseau Z-Wave
ID
Nom
Max. Noeuds
CommandClass
Associées
Le démontage requiert l’utilisation d’outils
à employer dans les zones indiquées.
SIMON iO
Cette prise NE peut PAS être remplacée par une prise IO (réf. 10002432-XXX,
1000246X-XXX). Toutes les pièces sont uniquement destinées à cette référence.
SPÉCIFICATIONS Z-WAVE
COMMAND CLASSES CONTRÔLÉES
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION GROUP INFORMATION_V3
COMMAND_CLASS_BASIC_V2
COMMAND_CLASS_BATTERY_V1
COMMAND_CLASS_CENTRAL SCENE_V3
COMMAND_CLASS_CONFIGURATION_V4
COMMAND_CLASS_CRC 16 ENCAPSULATION_V1
COMMAND_CLASS_DEVICE RESET LOCALLY_1
COMMAND_CLASS_DOOR LOCK_V3
COMMAND_CLASS_INCLUSION CONTROLLER_V1
COMMAND_CLASS_MANUFACTURER SPECIFIC_V2
COMMAND_CLASS_METER_V3
COMMAND_CLASS_NOTIFICATION _V8
COMMAND_CLASS_SENSOR BINARY_V2
COMMAND_CLASS_SENSOR_MULTILEVEL_V11
COMMAND_CLASS_SWITCH BINARY_V2
COMMAND_CLASS_SWITCH MULTILEVEL_V4
COMMAND_CLASS_POWER LEVEL_V1
COMMAND_CLASS_SECURITY0_V1
COMMAND_CLASS_SECURITY2_V1
COMMAND_CLASS_SUPERVISION_V1
COMMAND_CLASS_THERMOSTAT FAN MODE_V4
COMMAND_CLASS_THERMOSTAT FAN STATE_VE
COMMAND_CLASS_THERMOSTAT MODE_V3
COMMAND_CLASS_THERMOSTAT OPERATING STATE_V2
COMMAND_CLASS_THERMOSTAT SET POINT_V3
COMMAND_CLASS_TIME PARAMETERS_V1
COMMAND_CLASS_TRANSPORT SERVICE_V2
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_WAKE UP_V2
COMMAND_CLASS_ZWAVE PLUS INFO_V2
SPÉCIFICATION DE L’APPAREIL ZWAVE
Type d’appareil CENTRAL_CONTROLLER
Type d’appareil générique GENERIC_TYPE_STATIC_CONTROLLER
Type d’appareil spécifique SPECIFIC_TYPE
Type de fonction ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
MAPPAGE DE VALEURS CC BASIC
La prise HUB Pro iO peut
contrôler un appareil qui intègre
Basic Command Class
Il faut cependant considérer
que les Basic Command Class
venant en ajout n’auront aucune
incidence et n’effectueront
aucune action.
INSTALLATION
Caractéristiques techniques
230 VAC
50Hz
(±10%)
16A
LED/CFL
5A
**INCLUSION_CONTROLLER_V1 ET CLASS_nw_inclusion uniquement présentes si le ZIPGW est un régulateur d’inclusion.
COMMAND_CLASS_APPLICATION_STATUS_V1
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3
COMMAND_CLASS_CRC_16_ENCAP_V1
COMMAND_CLASS_DEVICE_RESET_LOCALLY_V1
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5
COMMAND_CLASS_INCLUSION_CONTROLLER_V1**
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_MULTI_CMD_V1
COMMAND_CLASS_NODE_PROVISIONING_V1
COMMAND_CLASS_NW_MGMT_BASIC_V2
COMMAND_CLASS_NW_INCLUSION**
COMMAND_CLASS_NW_INSTALLATION_MAINTENANCE_V1
COMMAND_CLASS_NW_MGMT_PROXY_V2
COMMAND_CLASS_POWERLEVEL_V1
COMMAND_CLASS_SECURITY_V1
COMMAND_CLASS_SECURITY_2_V1
COMMAND_CLASS_SUPERVISION_V1
COMMAND_CLASS_TRANSPORT_SERVICE_V2
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
INCLUSION
NON SÉCURISÉE INCLUSION SÉCURISÉE
SÉCURISÉE NON SÉCURISÉE
COMMAND CLASSES TOLÉRÉES
10032108-xxx 10033108-xxx
SIMON, S.A.U. Diputación, 390-392 / 08013 Barcelona
[email protected] Tel: [phone]
www.simonelectric.com A991525 5-12-2019 2/5
ÉTAT DU
DISPOSITIF TÉMOINSÉVÉNEMENT ACTION TOUCHE COMPORTEMENT DU DISPOSITIF
LaLED dubouton émetun clignotementlent bleu
LaLED duboutonémet un clignotementrapide
vertou blanc enfonction de l’état de la charge
La LED du bouton émet un clignotement
rapide bleu
La LED du bouton est fixe et de couleur
bleue
Charge ON sans limite de puissance, bouton
LED voyant vertfixe
Charge ON avec limite de puissance,
bouton LED voyant orange fixe
Charge OFF avec ou sans limite de puissance,
bouton LED voyant blancfixe
Charge OFF pour excès de puissance LED
voyant rouge fixe
Fonction balise, régulation de l’intensité des
LED 1…7, selon paramètre 3
Charge ON
Charge OFF
Bouton bloqué
Démarrage
Démarrage
du Wi-Fi
Wi-Fi activé ou
connecté
Sans pression
Pression courte
(t<2s)
Pression longue
(10s<t<15s)
Pressionlongue2s<t<10s Toutes les LED s’éteignent
Pression longue
(15s<t<30s)
Pression longue
(t>30s)
Presser le
bouton
Connexion à l’App
iO Simon
Reset / Réinitiali-
sation aux valeurs
d’usine
Réinitialisation du
dispositif
La LED du bouton est fixe et passe de
vert à blanc
La LED du bouton est fixe et passe de
blanc à vert
La LED du bouton émet trois fois un
clignotement rouge et redevient de la
couleur indiquant l’état de la charge
Le bouton de la LED émet un clignotement
lent jusqu’à devenir fixe en bleu
Le bouton de la LED émet un clignotement
rapide en alternant le vert, le bleu et le
violet pendant que la prise HUB Pro iO
se réinitialise.
Le bouton de la LED émet un clignotement
rapide usqu’à redevenirbleu indiquant que le
bouton n’est plus pressé
À l’arrêt de la pression, le bouton de
la LED reste bleu. Ce signal cesse
lorsque l’utilisateur se connecte au
système HUB iO via l’App iO Simon
Si la puissance connectée dépasse la
limite fixée, la charge se désactive
Réinitialise l’interface Wi-Fi du
dispositif
Les paramètres d’usine sont rétablis
et tous les dispositifs Simon hors
batteries affichent de nouveau les
paramètres d’usine
Charging deactivated
Charging enabled
Activation du Wi-Fi
Connecté à App
Simon iO ou au
réseau Z-Wave
Si la puissance connectée dépasse
les 16A, la charge se désactive

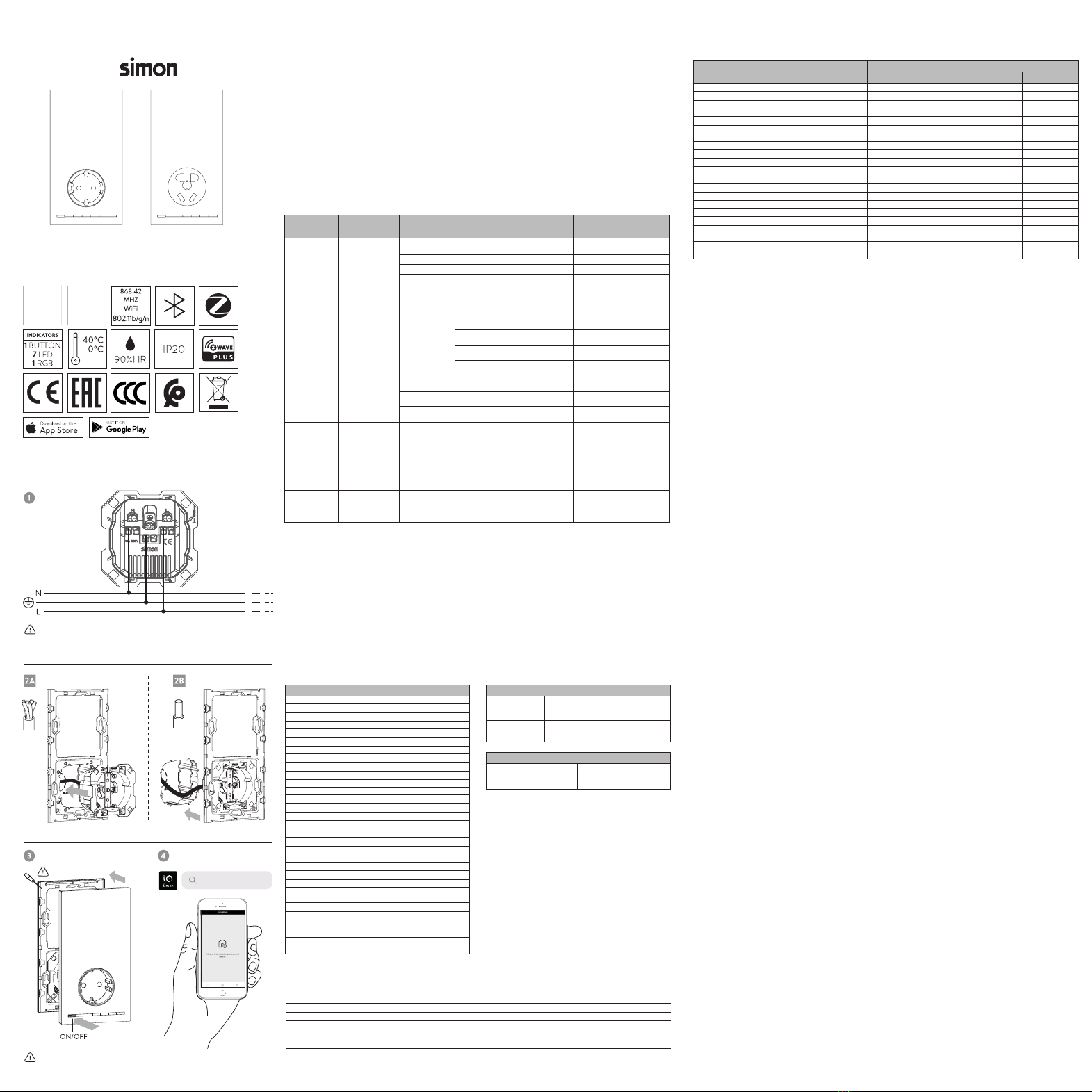

STIKKONTAKT PRO IO HUB NORSK
BESKRIVELSE
Når iO-stikkontakten fra Simon (ref.1003x108-xxx) er koblet til, kan denne enheten med antenner av typene Wi-
Fi, Z-Wave, Bluetooth Low Energy og Zigbee via Simons iO-app kobles til en smartenhet (mobil eller nettbrett) for
å registrere en iO-koblingsinstalasjon fra Simon. Dette tilrettelegger for registrering og ernkontroll av hvilken
som helst iO-enhet fra Simon og andre i samme installasjon som er kompatible med Z-Wave.
Det tilrettelegger også for PÅ/AV-kontroll av en tilkoblet last via lokal trykknapp eller trådløst. I tillegg kommer
utvidede funksjoner (tidsinnstilling, kalender, eektbegrensning, eektmåling osv.) som kan konfigureres i appen.
Denne enheten er et Z-Wave Plus-produkt med aktivert sikkerhet som kan bruke krypterte Z-Wave Plus-meldinger
til å kommunisere med andre Z-Wave Plus-produkter med aktivert sikkerhet.
SAMSVAR MED ZWAVEPROTOKOLLEN
Dette produktet kan innlemmes og administreres i et Z-Wave-nettverk, og fungerer sammen med sertifiserte
Z-Wave-enheter og -applikasjoner fra andre produsenter. Alle enhetene som ikke går på batteri, fungerer som
signalforsterkere i Z-Wave-nettverket for å gjøre nettverket mer pålitelig.
* Hvis LED-en på trykknappen lysereller blinker blått, vises ikke resten av signalene.
* Ved blokkering nårman slutter å trykke, vil LED-en på trykknappen blinke rødt 3 ganger med enfrekvens på 0,5 s
* Enkelte av funksjonene eller responsene kan endres.
* Denne enheten kan bare inkluderes ellerekskluderes i et Z-Wave-nettverk hvis den ikke harlagt til annet utstyr i sitt
eget Z-Wave-nettverk.
BRUK AV TASTATURER OG SVAR
TILKNYTNINGSGRUPPE
1 (Lifeline)
“Lifeline”
3
COMMAND_CLASS_DEVICE_RESET_LOCALLY_NOTIFICATION. Sendes til de tilknyttede
nodene når apparatet ernesfra Z-Wave-nettverket.
ID
Navn
Maks Noder
Tilknyttede
CommandClass
Til demontering må det brukes verktøy på de markerte
stedene.
SIMON iO
Denne stikkontakten kan IKKE erstattes av en iO-stikkontakt (ref. 10002432-XXX,
1000246X-XXX). Alle delene er eksklusive for denne referansen.
Z-WAVE-SPESIFIKASJONER
KONTROLLERTE COMMAND CLASSES
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION GROUP INFORMATION_V3
COMMAND_CLASS_BASIC_V2
COMMAND_CLASS_BATTERY_V1
COMMAND_CLASS_CENTRAL SCENE_V3
COMMAND_CLASS_CONFIGURATION_V4
COMMAND_CLASS_CRC 16 ENCAPSULATION_V1
COMMAND_CLASS_DEVICE RESET LOCALLY_1
COMMAND_CLASS_DOOR LOCK_V3
COMMAND_CLASS_INCLUSION CONTROLLER_V1
COMMAND_CLASS_MANUFACTURER SPECIFIC_V2
COMMAND_CLASS_METER_V3
COMMAND_CLASS_NOTIFICATION _V8
COMMAND_CLASS_SENSOR BINARY_V2
COMMAND_CLASS_SENSOR_MULTILEVEL_V11
COMMAND_CLASS_SWITCH BINARY_V2
COMMAND_CLASS_SWITCH MULTILEVEL_V4
COMMAND_CLASS_POWER LEVEL_V1
COMMAND_CLASS_SECURITY0_V1
COMMAND_CLASS_SECURITY2_V1
COMMAND_CLASS_SUPERVISION_V1
COMMAND_CLASS_THERMOSTAT FAN MODE_V4
COMMAND_CLASS_THERMOSTAT FAN STATE_VE
COMMAND_CLASS_THERMOSTAT MODE_V3
COMMAND_CLASS_THERMOSTAT OPERATING STATE_V2
COMMAND_CLASS_THERMOSTAT SET POINT_V3
COMMAND_CLASS_TIME PARAMETERS_V1
COMMAND_CLASS_TRANSPORT SERVICE_V2
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_WAKE UP_V2
COMMAND_CLASS_ZWAVE PLUS INFO_V2
SPESIFIKASJON FOR ZWAVEENHETEN
Type enhet CENTRAL_CONTROLLER
Type generisk enhet GENERIC_TYPE_STATIC_CONTROLLER
Type spesifikk enhet SPECIFIC_TYPE
Type funksjon ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
CC BASIC MAPPING AV VERDIER
Stikkontakten HUB Pro iO kan
kontrollere en enhet som støtter
Basic Command Class
Men alle Basic Command Class
som den mottar, vil bli ignorert og
vil ikke kjøre noen handling.
INSTALLERING
Tekniske spesifikasjoner
230 VAC
50Hz
(±10%)
16A
LED/CFL
5A
**INCLUSION_CONTROLLER_V1 OG CLASS_nw_inclusion erbare til stede hvis ZIPGW er en inkluderingskontroller.
COMMAND_CLASS_APPLICATION_STATUS_V1
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3
COMMAND_CLASS_CRC_16_ENCAP_V1
COMMAND_CLASS_DEVICE_RESET_LOCALLY_V1
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5
COMMAND_CLASS_INCLUSION_CONTROLLER_V1**
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_MULTI_CMD_V1
COMMAND_CLASS_NODE_PROVISIONING_V1
COMMAND_CLASS_NW_MGMT_BASIC_V2
COMMAND_CLASS_NW_INCLUSION**
COMMAND_CLASS_NW_INSTALLATION_MAINTENANCE_V1
COMMAND_CLASS_NW_MGMT_PROXY_V2
COMMAND_CLASS_POWERLEVEL_V1
COMMAND_CLASS_SECURITY_V1
COMMAND_CLASS_SECURITY_2_V1
COMMAND_CLASS_SUPERVISION_V1
COMMAND_CLASS_TRANSPORT_SERVICE_V2
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
INKLUDERINGEN
ER IKKE SIKKER INKLUDERINGEN ER SIKKER
SIKKER IKKE SIKKER
STØTTEDE COMMAND CLASSES
10032108-xxx 10033108-xxx
UTSTYRETS
STATUS TILBAKEMELDINGS-LED-ERHENDELSE TASTATURH- ANDLING ATUAÇÃO DO EQUIPAMENTO
LED-knappen blinker sakte i blått
LED-knappen blinker raskt i hvitt eller grønt
iht. ladestatus
LED-knappen blinker raskt i blått
LED-knapp lyser fast i blått
Last PÅ uten eektbegrensning
LED-knapp lyser fast grønt
Last PÅ med eektbegrensning
LED-knapp lyser fast oransje
Last AV med elleruten eektbegrens-
ning LED-knapp lyser fast hvitt
Last AV pga.for høy eekt LED-knapp
lyser fast rødt
Markering, LED-ene 1…7 regulerer inten-
siteten sin etter parameter 3
Last PÅ
Last AV
Knapp blokkert
Initialiserer
Initialiserer Wi-Fi
Wi-Fi aktivert eller
tilkoblet
Ikke trykket
Kort trykk
(t<2s)
Langt trykk
(10s<t<15s)
Langttrykk 2s <t <10s Alle LED-ene slås av
Langt trykk
(15s <t< 30s)
Langt trykk
(t>30s)
Trykk på knapp
Tilknytte til Simons
iO-app
Tilbakestill til
fabrikkinnstillinger
Start enhet på nytt
Grønn LED-knapp skiftertil LED-knapp
som lyser fast i hvitt
Hvit LED-knapp skiftertil LED-knapp som
lyser fast i grønt
LED-knapp blinker sakte 3 gangeri rødt
og skifter farge etter lastens status
LED-knapp blinker sakte før den lyser
fast i blått
LED-knappen gjennomføreren rask
blinkesekvens i grønt, blått og mørk
fiolett mens stikkontakten HUB Pro iO
tilbakestilles
LED-knapp blinker raskt til den går tilbake
til status forikke trykket i blått
Når den slippes, blirLED-knappen
værende på blått. Denne signa-
liseringen avsluttes når brukeren
kobler segtil iO-HUB-en gjennom
Simons iO-app
Hvis den tilkoblede eekten
overskrider den fastsatte
grensen, deaktiveres lasten
Start enhetens Wi-Fi-grensesnitt
på nytt
Går tilbake til fabrikktilstand og
alle Simon-enhetene som ikke er
batterier, gårogså overtil
fabrikktilstand
Last deaktiveres
Last aktiveres
Aktiverer Wi-Fi
Koblet til Simons
iO-app eller et
Z-Wave-nettverk
Hvis eekten overskrider 16A,
deaktiveres lasten

HUBB PRO-KONTAKT IO SVENSKA
BESKRIVNING
När den är ansluten till Simon iO-kontakten (ref.1003x108-xxx) kan denna enhet, med antennerför WiFi, Z-Wave,
Bluetooth Low Energy och Zigbee, anslutas med appen Simon iO till en smart enhet (mobil eller surfplatta) för att
aktivera en iO Simon-anslutning. Den tillåter aktivering och ärrstyrning av vilken iO Simon-enhet som helst och
andra kompatibla Z-Wave-enheter som finns inom samma installation.
Dessutom tillåter den AV/PÅ-slagning av en ansluten last med lokal knapptryckning eller trådlös kontroll och med
utökade funktioner (tidsinställning, kalender, eektbegränsning, eektmätning etc.) som kan konfigureras från
appen.
Den här enheten är en produkt med Z-Wave Plus, med säkerhet aktiverad, där meddelanden kan skickas krypterat
till andra Z-Wave Plus-produkter som har säkerhet aktiverat.
ÖVERENSSTÄMMELSE MED ZWAVEPROTOKOLLET
Denna produkt kan inkluderas i och hantera ett Z-Wave-nätverk som arbetar med Z-Wave-certifierade enheter
och program från andra tillverkare. Alla enheter utan batterier fungerar som repeaters inom Z-Wave-nätverket
för att öka nätets tillförlitlighet.
* Om tryckknappen lyser eller blinkar i blått kommer inte resten av signalerna att visas.
* Om tryckning är blockerad kommer tryckknappen att blinka i rött 3 gånger med en frekvens på 0,5 s när du
slutar trycka.
* Några av funktionerna eller responserna kan ändras i funktion.
* Den här enheten kan bara inkluderas i eller tas bort från ett Z-Wave-nätverk om du inte har lagt till någon annan
utrustning i ditt Z-Wave-nätverk.
ANVÄNDNING AV KNAPPAR OCH RESPONS
ASSOCIERINGSGRUPP
1 (Lifeline)
“Lifeline”
3
COMMAND_CLASS_DEVICE_RESET_LOCALLY_NOTIFICATION. Den skickas till
associerade noder när enheten tas bort från Z-Wave-nätverket.
ID
Namn
Max. Noder
Associerad
CommandClass
För demontering är det nödvändigt att använda
ett verktyg i de markerade områdena.
SIMON iO
Denna kontakt kan INTE ersättas av en IO-kontakt (ref. 10002432-XXX,
1000246X-XXX). Alla delar är exklusiva för denna modell.
SPECIFIKATIONER Z-WAVE
COMMAND CLASSES SOM KAN STYRAS
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION GROUP INFORMATION_V3
COMMAND_CLASS_BASIC_V2
COMMAND_CLASS_BATTERY_V1
COMMAND_CLASS_CENTRAL SCENE_V3
COMMAND_CLASS_CONFIGURATION_V4
COMMAND_CLASS_CRC 16 ENCAPSULATION_V1
COMMAND_CLASS_DEVICE RESET LOCALLY_1
COMMAND_CLASS_DOOR LOCK_V3
COMMAND_CLASS_INCLUSION CONTROLLER_V1
COMMAND_CLASS_MANUFACTURER SPECIFIC_V2
COMMAND_CLASS_METER_V3
COMMAND_CLASS_NOTIFICATION _V8
COMMAND_CLASS_SENSOR BINARY_V2
COMMAND_CLASS_SENSOR_MULTILEVEL_V11
COMMAND_CLASS_SWITCH BINARY_V2
COMMAND_CLASS_SWITCH MULTILEVEL_V4
COMMAND_CLASS_POWER LEVEL_V1
COMMAND_CLASS_SECURITY0_V1
COMMAND_CLASS_SECURITY2_V1
COMMAND_CLASS_SUPERVISION_V1
COMMAND_CLASS_THERMOSTAT FAN MODE_V4
COMMAND_CLASS_THERMOSTAT FAN STATE_VE
COMMAND_CLASS_THERMOSTAT MODE_V3
COMMAND_CLASS_THERMOSTAT OPERATING STATE_V2
COMMAND_CLASS_THERMOSTAT SET POINT_V3
COMMAND_CLASS_TIME PARAMETERS_V1
COMMAND_CLASS_TRANSPORT SERVICE_V2
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_WAKE UP_V2
COMMAND_CLASS_ZWAVE PLUS INFO_V2
SPECIFIKATION AV ZWAVEENHET
Enhetstyp CENTRAL_CONTROLLER
Generell enhetstyp GENERIC_TYPE_STATIC_CONTROLLER
Specifik enhetstyp SPECIFIC_TYPE
Funktionstyp ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
CC BASIC MAPPNING AV VÄRDEN
HUBB Pro iO-kontakten kan
styra en enhet som stöder Basic
Command Class
Men alla Basic Command
Class som mottas kommeratt
ignoreras och inga åtgärder
kommer att vidtas.
INSTALLATION
Tekniska egenskaper
230 VAC
50Hz
(±10%)
16A
LED/CFL
5A
**INCLUSION_CONTROLLER_V1 OCH CLASS_nw_inclusion ärbara tillgängliga om ZIPGW är en integrationskontroller.
COMMAND_CLASS_APPLICATION_STATUS_V1
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3
COMMAND_CLASS_CRC_16_ENCAP_V1
COMMAND_CLASS_DEVICE_RESET_LOCALLY_V1
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5
COMMAND_CLASS_INCLUSION_CONTROLLER_V1**
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_MULTI_CMD_V1
COMMAND_CLASS_NODE_PROVISIONING_V1
COMMAND_CLASS_NW_MGMT_BASIC_V2
COMMAND_CLASS_NW_INCLUSION**
COMMAND_CLASS_NW_INSTALLATION_MAINTENANCE_V1
COMMAND_CLASS_NW_MGMT_PROXY_V2
COMMAND_CLASS_POWERLEVEL_V1
COMMAND_CLASS_SECURITY_V1
COMMAND_CLASS_SECURITY_2_V1
COMMAND_CLASS_SUPERVISION_V1
COMMAND_CLASS_TRANSPORT_SERVICE_V2
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
OSÄKER
INKLUDERING SÄKER INKLUDERING
SÄKER OSÄKER
COMMAND CLASSES SOM STÖDS
10032108-xxx 10033108-xxx
SIMON, S.A.U. Diputación, 390-392 / 08013 Barcelona
[email protected] Tel: [phone]
www.simonelectric.com A991525 5-12-2019 3/5
STATUS PÅ
UTRUSTNING LAMPORNAS RESPONS
HÄNDELSE TANGENT-
BORDSÅTGÄRD BETEENDE HOS UTRUSTNING
LED-knappen blinkar långsamt i blått
LED-knapp blinkar snabbt i vitt ellergrönt
beroende på lasttillstånd
LED-knappen blinkar snabbt i blått
LED-knapp fast sken i blått
Last PÅ utan eektbegränsning,
LED-knapp fast sken i grönt
Last PÅ med eektbegränsning,
LED-knapp fast sken i orange
Last AV med ellerutan eektbegräns-
ning, LED-knapp fast sken i vitt
Last AV på grund av för hög eekt,
LED-knapp fast sken i rött
Sändare, lamporna 1…7 reglerarsina inten-
siteter enligt parameter 3
Last PÅ
Last AV
Knapp blockerad
Initiering
Initiering av Wi-Fi
Wi-Fi aktiverat
eller anslutet
Ingen tryckning
Kort tryckning
<2 s
Lång tryckning
10–15 s
Långtryckning 2–10s Alla lampor slocknar
Lång tryckning
15–30 s
Lång tryckning
>30 s
Tryck på knapp
Länka med iO
Simon-appen
Återställ
fabriksinställnin-
garna
Återställ enheten
LED-knapp med grönt sken ändrastill
fast sken i vitt
LED-knapp med vitt sken ändras tillfast
sken i grönt
LED-knappen blinkar långsamt tre gånger
i rött och återgårtill färg enligt laststatus
LED-knappen blinkar långsamt tills den
är fast i blått
LED-knappen utför en snabb blinkande
sekvens i grönt, blått och lila medan
HUBB Pro iO-kontakten återställs
LED-knappen blinkar snabbt i blått tills
den släpps upp
När du slutar trycka förblir LED-kna-
ppen i blått. Denna indikation slutar
när användaren ansluter till HUBB iO
via Simon iO-appen
Om den anslutna eekten
överskrider den inställda gränsen
kommer lasten att avaktiveras
Starta om enhetens
Wi-Fi-gränssnitt
Den återgårtill fabriksstatus och
alla Simon-enheter utan batterier
stannar också kvar i fabriksstatus
Lasten avaktiveras
Lasten aktiveras
Aktivering av Wi-Fi
Länkad till appen
Simon iO eller ett
Z-Wave-nätverk
Om den anslutna effekten överstiger
16A kommer lasten att avaktiveras

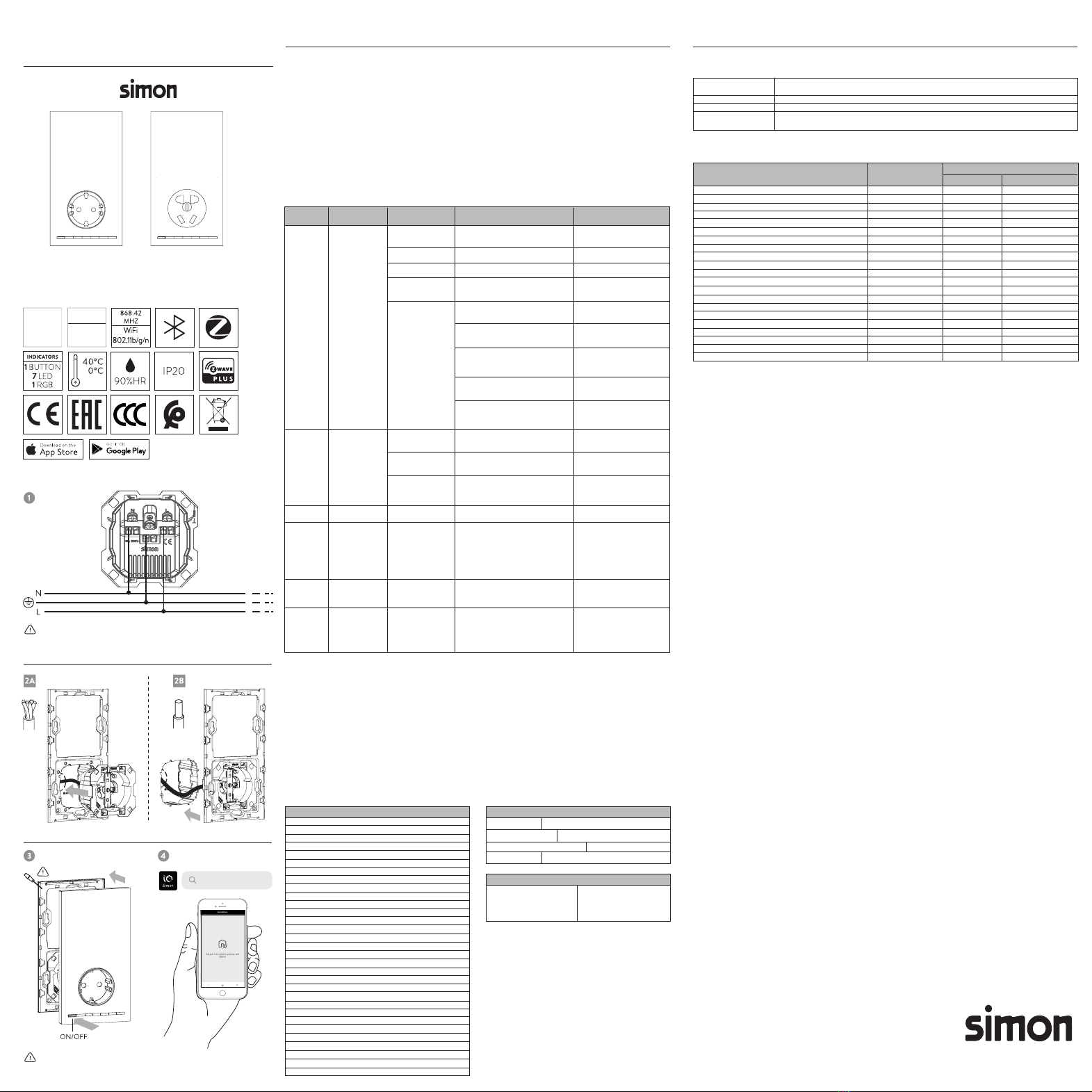

GNIAZDO HUB PRO IO POLSKI
OPIS
Po podłączeniu do gniazda iO Simon (ref. 1003x108-xxx), to urządzenie z antenami WiFi, Z-Wave, Bluetooth Low
Energy i Zigbee umożliwia połączenie za pośrednictwem aplikacji Simon iO z urządzeniem inteligentnym (telefo-
nem komórkowym lub tabletem) w celu zarejestrowania instalacji łączącej iO Simon. Umożliwia ono rejestrację i
zdalne sterowanie dowolnym urządzeniem iO Simon i innymi kompatybilnymi produktami Z-Wave, które obejmuje
ta sama instalacja.
Ponadto umożliwia sterowanie włączaniem/wyłączaniem podłączonego ładowania za pomocą wyłącznika lub ko-
munikacji bezprzewodowej, oferuje też rozszerzone funkcje (programowanie czasu, kalendarz, ograniczenie mocy,
pomiar mocy itd.) konfigurowane z poziomu aplikacji.
To urządzenie jest produktem Z-Wave Plus z włączonymi zabezpieczeniami, może on wykorzystywać zaszyfrowane
komunikaty Z-Wave Plus do komunikacji z innymi produktami Z-Wave Plus z włączonymi zabezpieczeniami.
ZGODNOŚĆ Z PROTOKOŁEM ZWAVE
Produkt ten nadaje się do użytku i zarządzania w zasięgu sieci Z-Wave i współpracy z urządzeniami i aplikacjami innych
producentów zatwierdzonych przez Z-Wave. Wszystkie urządzenia niezasilane bateriami działają jak przekaźniki sygnału
w zasięgu sieci Z-Wave, abyzwiększyć jej niezawodność.
* Jeśli dioda LED przycisku zaświeci się lub zamiga na niebiesko, pozostała sygnalizacja nie będzie wyświetlana.
* Jeśli po naciśnięciu przycisk jest zablokowany, dioda Led przycisku zamiga na czerwono 3 razy z częstością co 0,5 sekundy.
* Niektóre funkcje lub odpowiedzi mogą się różnić.
* To urządzenie może zostać włączone do sieci Z-Wave lub wyłączone z niej tylko wtedy, gdy do jego własnej sieci Z-Wave nie
dodano żadnego innego sprzętu.
UŻYWANIE KLAWIATURY I ODPOWIEDZI
GRUPA SKOJARZENIA
1 (Linia bezpieczeństwa)
“Linia bezpieczeństwa”
3
COMMAND_CLASS_DEVICE_RESET_LOCALLY_NOTIFICATION. Przesyła się do skojarzonych
węzłów, gdyusuwa się urządzenie z sieci Z-Wave.
ID
Nazwa
Maks. liczba węzłów
Powiązane klasy poleceń
Do demontażu konieczne jest użycie narzędzia
stosowanego w zaznaczonych obszarach.
SIMON iO
Tego gniazda NIE można zastąpić gniazdem IO (ref. 10002432-XXX,
1000246X-XXX). Wszystkie elementysą objęte wyłącznie tą referencją.
DANE TECHNICZNE Z-WAVE
KONTROLOWANE KLASYPOLECEŃ
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION GROUP INFORMATION_V3
COMMAND_CLASS_BASIC_V2
COMMAND_CLASS_BATTERY_V1
COMMAND_CLASS_CENTRAL SCENE_V3
COMMAND_CLASS_CONFIGURATION_V4
COMMAND_CLASS_CRC 16 ENCAPSULATION_V1
COMMAND_CLASS_DEVICE RESET LOCALLY_1
COMMAND_CLASS_DOOR LOCK_V3
COMMAND_CLASS_INCLUSION CONTROLLER_V1
COMMAND_CLASS_MANUFACTURER SPECIFIC_V2
COMMAND_CLASS_METER_V3
COMMAND_CLASS_NOTIFICATION _V8
COMMAND_CLASS_SENSOR BINARY_V2
COMMAND_CLASS_SENSOR_MULTILEVEL_V11
COMMAND_CLASS_SWITCH BINARY_V2
COMMAND_CLASS_SWITCH MULTILEVEL_V4
COMMAND_CLASS_POWER LEVEL_V1
COMMAND_CLASS_SECURITY0_V1
COMMAND_CLASS_SECURITY2_V1
COMMAND_CLASS_SUPERVISION_V1
COMMAND_CLASS_THERMOSTAT FAN MODE_V4
COMMAND_CLASS_THERMOSTAT FAN STATE_VE
COMMAND_CLASS_THERMOSTAT MODE_V3
COMMAND_CLASS_THERMOSTAT OPERATING STATE_V2
COMMAND_CLASS_THERMOSTAT SET POINT_V3
COMMAND_CLASS_TIME PARAMETERS_V1
COMMAND_CLASS_TRANSPORT SERVICE_V2
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_WAKE UP_V2
COMMAND_CLASS_ZWAVE PLUS INFO_V2
DANETECHNICZNE URZĄDZENIA ZWAVE
Typ urządzenia CENTRAL_CONTROLLER
Typnadrzędnego urządzenia GENERIC_TYPE_STATIC_CONTROLLER
Typ indywidualnego urządzenia SPECIFIC_TYPE
Typ funkcji ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
MAPOWANIE WARTOŚCI CC BASIC
Gniazdo HUB Pro iO może ste-
rować urządzeniem obsługującym
podstawową klasę poleceń
Jednak każda podstawowa klasa
poleceń, którą otrzyma, zostanie
pominięta i nie zostaną podjęte
żadne działania.
INSTALACJA
Dane techniczne
230 VAC
50Hz
(±10%)
16A
LED/CFL
5A
**INCLUSION_CONTROLLER_V1 Y CLASS_nw_inclusion występują tylko wtedy, gdy ZIPGW jest sterownikiem włączenia.
COMMAND_CLASS_APPLICATION_STATUS_V1
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3
COMMAND_CLASS_CRC_16_ENCAP_V1
COMMAND_CLASS_DEVICE_RESET_LOCALLY_V1
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5
COMMAND_CLASS_INCLUSION_CONTROLLER_V1**
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_MULTI_CMD_V1
COMMAND_CLASS_NODE_PROVISIONING_V1
COMMAND_CLASS_NW_MGMT_BASIC_V2
COMMAND_CLASS_NW_INCLUSION**
COMMAND_CLASS_NW_INSTALLATION_MAINTENANCE_V1
COMMAND_CLASS_NW_MGMT_PROXY_V2
COMMAND_CLASS_POWERLEVEL_V1
COMMAND_CLASS_SECURITY_V1
COMMAND_CLASS_SECURITY_2_V1
COMMAND_CLASS_SUPERVISION_V1
COMMAND_CLASS_TRANSPORT_SERVICE_V2
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
WŁĄCZENIE
NIEBEZPIECZNE WŁĄCZENIE BEZPIECZNE
BEZPIECZNE NIEBEZPIECZNE
OBSŁUGIWANE KLASY POLECEŃ
10032108-xxx 10033108-xxx
STAN
SPRZĘTU ODPOWIEDŹ ZWROTNA DIOD LED
ZDARZENIE DZIAŁANIE
KLAWIATURY DZIAŁANIE SPRZĘTU
Wolne miganie przycisku LED na niebiesko
Szybkie miganie przycisku LED na biało lub
zielono w zależności od stanu ładowania
Szybkie miganie przycisku LED na niebiesko
Ciągłe świecenie przycisku LED na
niebiesko
ŁadowanieWŁĄCZONE bez ograniczenia
mocy,ciągłe świecenieprzycisku LEDna zielono
Ładowanie WŁĄCZONE z ograniczeniem
mocy, ciągłe świecenie przycisku LED na
pomarańczowo
Ładowanie WYŁĄCZONE z ograniczeniem
mocy lub bez niego, ciągłe świecenie
przycisku LED na biało
Ładowanie WYŁĄCZONE z powodu
nadmiaru mocy, ciągłe świecenie przycisku
LED na czerwono
Sygnalizacja, diody LED 1… 7 regulują jej in-
tensywność zgodnie z parametrem 3
Ładowanie
włączone
Ładowanie
wyłączone
Przycisk
zablokowany
Uruchamianie
Uruchamianie Wi-Fi
Wi-Fi włączone
lub podłączone
Nieprzyciśnięta
Krótkie
przyciśnięcie
(t <2 s)
Długie
przyciśnięcie
(10s <t< 15 s)
Długieprzyciśnięcie 2 s
<t < 10s Wszystkie diody LED gasną
Długie
przyciśnięcie
(15s <t<30 s)
Długie
przyciśnięcie
(t >30 s)
Przyciśnięcie
przycisku
Łączenie z
Aplikacją iO
Simon
Reset / Przywró-
cenie ustawień
fabrycznych
Resetowanie
urządzenia
Zielony przycisk LED zmienia się w przycisk
LED świecący w sposób ciągłyna biało
Biały przycisk LED zmienia się w przycisk
LED świecący w sposób ciągłyna zielono
Przycisk LED miga powoli 3 razyna
czerwono i powraca do koloru zgodnego ze
stanem ładowania
Przycisk LED miga powoli, aż zaświeci
się w sposób ciągły na niebiesko
Podczas resetowania gniazda HUB
ProiO, przycisk LED wykonuje sekwencję
szybkiego migania na zielono, niebiesko
i fioletowo
Przycisk LED miga szybko dopóki nie
odzyska stanu nieprzyciśniętego w kolorze
niebieskim
Po zwolnieniu przycisk LED
pozostaje niebieski do momentu,
gdy użytkownik połączy się z HUB iO
za pośrednictwem aplikacji iO Simon
Jeśli podłączona moc przekroczy
ustawiony limit, ładowanie zostanie
wyłączone
Uruchamia się ponownie interfejs
Wi-Fi urządzenia
Przywrócony zostaje stan fabryczny
i wszystkie urządzenia firmySimon,
które nie są bateriami, pozostają
również w stanie fabrycznym
Wyłącza się ładowanie
Włącza się ładowanie
Włączenie Wi-Fi
Łączenie z aplikacją
Simon iO lub siecią
Z-Wave
Jeśli podłączona moc przekroczy16
A, ładowanie zostanie wyłączone



РУССКИЙ
ОПИСАНИЕ











СООТВЕТСТВИЕ ПРОТОКОЛУ Z-WAVE

          







ИСПОЛЬЗОВАНИЕ КЛАВИАТУРЫ И ВАРИАНТЫ ИНДИКАЦИИ
СВЯЗАННАЯ ГРУППА
1 (Lifeline)
“Lifeline”
3
COMMAND_CLASS_DEVICE_RESET_LOCALLY_NOTIFICATION. 










SIMON iO



СПЕЦИФИКАЦИЯ Z-WAVE
КОНТРОЛИРУЕМЫЕ КЛАССЫ КОМАНД
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION GROUP INFORMATION_V3
COMMAND_CLASS_BASIC_V2
COMMAND_CLASS_BATTERY_V1
COMMAND_CLASS_CENTRAL SCENE_V3
COMMAND_CLASS_CONFIGURATION_V4
COMMAND_CLASS_CRC 16 ENCAPSULATION_V1
COMMAND_CLASS_DEVICE RESET LOCALLY_1
COMMAND_CLASS_DOOR LOCK_V3
COMMAND_CLASS_INCLUSION CONTROLLER_V1
COMMAND_CLASS_MANUFACTURER SPECIFIC_V2
COMMAND_CLASS_METER_V3
COMMAND_CLASS_NOTIFICATION _V8
COMMAND_CLASS_SENSOR BINARY_V2
COMMAND_CLASS_SENSOR_MULTILEVEL_V11
COMMAND_CLASS_SWITCH BINARY_V2
COMMAND_CLASS_SWITCH MULTILEVEL_V4
COMMAND_CLASS_POWER LEVEL_V1
COMMAND_CLASS_SECURITY0_V1
COMMAND_CLASS_SECURITY2_V1
COMMAND_CLASS_SUPERVISION_V1
COMMAND_CLASS_THERMOSTAT FAN MODE_V4
COMMAND_CLASS_THERMOSTAT FAN STATE_VE
COMMAND_CLASS_THERMOSTAT MODE_V3
COMMAND_CLASS_THERMOSTAT OPERATING STATE_V2
COMMAND_CLASS_THERMOSTAT SET POINT_V3
COMMAND_CLASS_TIME PARAMETERS_V1
COMMAND_CLASS_TRANSPORT SERVICE_V2
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_WAKE UP_V2
COMMAND_CLASS_ZWAVE PLUS INFO_V2
СПЕЦИФИКАЦИЯ УСТРОЙСТВА Z-WAVE
CENTRAL_CONTROLLER
 GENERIC_TYPE_STATIC_CONTROLLER
 SPECIFIC_TYPE
 ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
СВЕДЕНИЯ ОБ ОСНОВНЫХ НАСТРОЙКАХ









МОНТАЖ
Технические характеристики
230 VAC
50Hz
(±10%)
16A
LED/CFL
5A
10032108-xxx 10033108-xxx
SIMON, S.A.U. Diputación, 390-392 / 08013 Barcelona
[email protected] Tel: [phone]
www.simonelectric.com A991525 5-12-2019 4/5
**

COMMAND_CLASS_APPLICATION_STATUS_V1
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3
COMMAND_CLASS_CRC_16_ENCAP_V1
COMMAND_CLASS_DEVICE_RESET_LOCALLY_V1
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5
COMMAND_CLASS_INCLUSION_CONTROLLER_V1**
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_MULTI_CMD_V1
COMMAND_CLASS_NODE_PROVISIONING_V1
COMMAND_CLASS_NW_MGMT_BASIC_V2
COMMAND_CLASS_NW_INCLUSION**
COMMAND_CLASS_NW_INSTALLATION_MAINTENANCE_V1
COMMAND_CLASS_NW_MGMT_PROXY_V2
COMMAND_CLASS_POWERLEVEL_V1
COMMAND_CLASS_SECURITY_V1
COMMAND_CLASS_SECURITY_2_V1
COMMAND_CLASS_SUPERVISION_V1
COMMAND_CLASS_TRANSPORT_SERVICE_V2
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
НЕБЕЗОПАСНОЕ
ВКЛЮЧЕНИЕ
БЕЗОПАСНОЕ ВКЛЮЧЕНИЕ
БЕЗОПАСНОЕ НЕБЕЗОПАСНОЕ
ПОДДЕРЖИВАЕМЫЕ КЛАССЫ КОМАНД
СОСТОЯНИЕ
ОБОРУДОВАНИЯ СВЕТОДИОДНАЯ ИНДИКАЦИЯ СОСТОЯНИЯ
СОБЫТИЕ ДЕЙСТВИЯ С
КЛАВИАТУРОЙ ОБНОВЛЕНИЕ ОБОРУДОВАНИЯ











  
































































































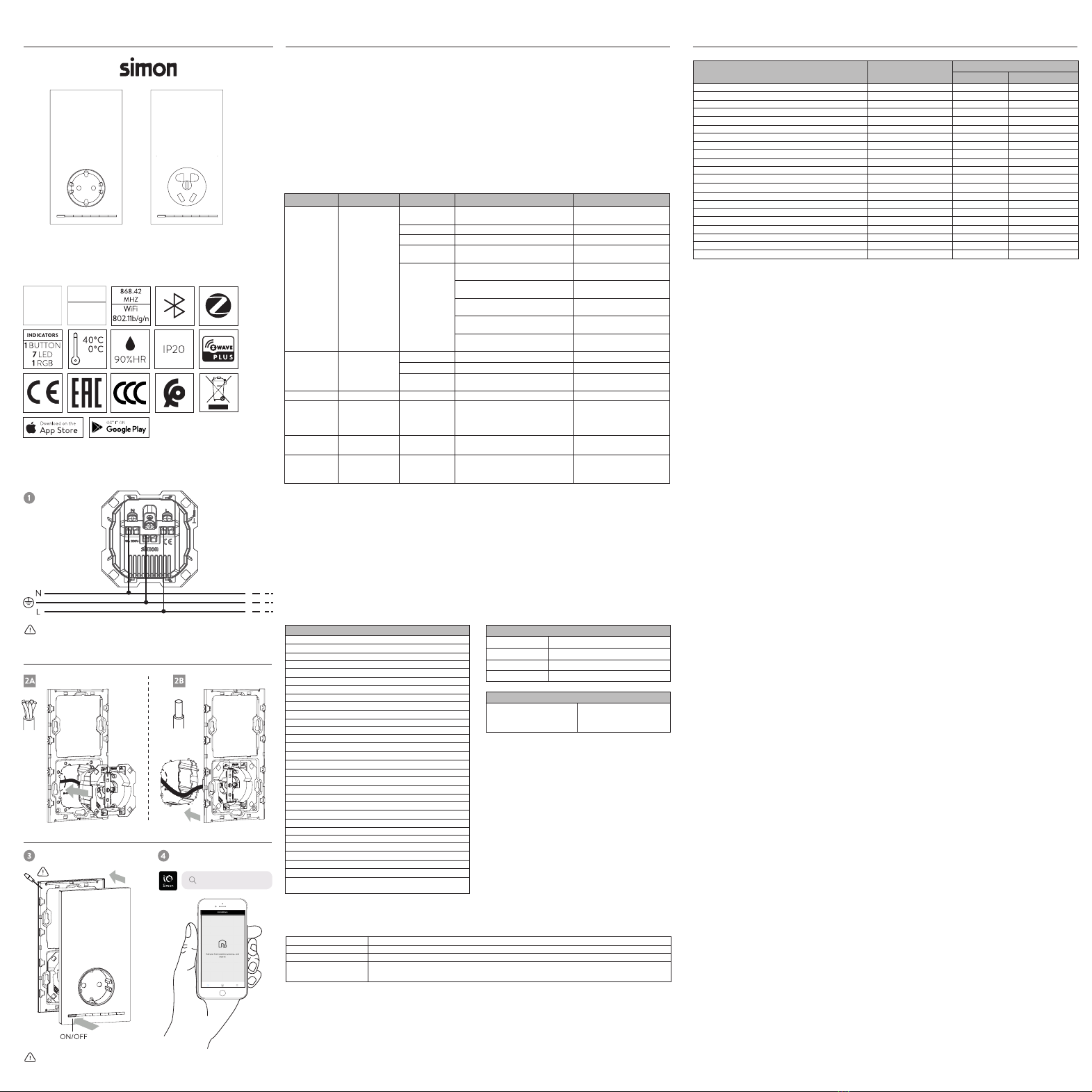

HUB PRO IO 插头 中文
描述
一旦连接到iO Simon（编号1003x108-xxx）插头，带有WiFi、Z-Wave、蓝牙低功耗和Zigbee天
线的此设备即可让您通过Simon iO App连接到智能设备（手机或平板电脑），来进行iO Simon
的连接安装。它允许注册和远程控制同一安装中的任何iO Simon设备和其他兼容的Z-Wave设
备。此外，它还允许您通过本地或无线脉冲对充电的插头执行开启/关闭控制，并且可从App
设置扩展功能（定时、日历、功率限制、功率测量等）。
该设备是启用了安全性的Z-Wave Plus产品，可以使用Z-Wave Plus加密信息与启用了安全性
的其他Z-Wave Plus产品进行通信。
符合Z-WAVE协议
该产品包括在Z-Wave网络内并在该网络中受到管理，可与其他制造商的Z-Wave认证设备和应用程序一起使用。为了提高该网络的
可靠性, 所有不使用电池的设备都可在Z-Wave网络中充当中继器。
* 若按钮的LED灯呈蓝色或呈蓝色闪烁，则其他信号将不显示。
* 当停止按压时，按压是锁住的状态，则按钮的LED灯将以0.5秒的频率呈红色闪烁3次。
* 某些功能或响应可能会有所不同。
* 如果您尚未在自己的Z-Wave网络中添加任何其他设备，则本设备只能包含在Z-Wave网络中或排除在Z-Wave网络外。
关联组
1 (Linia bezpieczeństwa)
“Linia bezpieczeństwa”
3
COMMAND_CLASS_DEVICE_RESET_LOCALLY_NOTIFICATION.当设备从Z-Wave网络中删除时，向关联节点
发送命令。
ID
名称
最大节点
关联的指令类
拆卸时，必须在标记处使用工具。
SIMON iO
此插头不可替换为IO插头（编号10002432-XXX、1000246X-XXX）。在此
编号下的所有零件都是专用的。
Z-Wave的规格
受控的指令类
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION GROUP INFORMATION_V3
COMMAND_CLASS_BASIC_V2
COMMAND_CLASS_BATTERY_V1
COMMAND_CLASS_CENTRAL SCENE_V3
COMMAND_CLASS_CONFIGURATION_V4
COMMAND_CLASS_CRC 16 ENCAPSULATION_V1
COMMAND_CLASS_DEVICE RESET LOCALLY_1
COMMAND_CLASS_DOOR LOCK_V3
COMMAND_CLASS_INCLUSION CONTROLLER_V1
COMMAND_CLASS_MANUFACTURER SPECIFIC_V2
COMMAND_CLASS_METER_V3
COMMAND_CLASS_NOTIFICATION _V8
COMMAND_CLASS_SENSOR BINARY_V2
COMMAND_CLASS_SENSOR_MULTILEVEL_V11
COMMAND_CLASS_SWITCH BINARY_V2
COMMAND_CLASS_SWITCH MULTILEVEL_V4
COMMAND_CLASS_POWER LEVEL_V1
COMMAND_CLASS_SECURITY0_V1
COMMAND_CLASS_SECURITY2_V1
COMMAND_CLASS_SUPERVISION_V1
COMMAND_CLASS_THERMOSTAT FAN MODE_V4
COMMAND_CLASS_THERMOSTAT FAN STATE_VE
COMMAND_CLASS_THERMOSTAT MODE_V3
COMMAND_CLASS_THERMOSTAT OPERATING STATE_V2
COMMAND_CLASS_THERMOSTAT SET POINT_V3
COMMAND_CLASS_TIME PARAMETERS_V1
COMMAND_CLASS_TRANSPORT SERVICE_V2
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_WAKE UP_V2
COMMAND_CLASS_ZWAVE PLUS INFO_V2
Z-WAVE设备的规格
设备类型 CENTRAL_CONTROLLER
通用设备类型 GENERIC_TYPE_STATIC_CONTROLLER
专用设备类型 SPECIFIC_TYPE
功能类型 ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
CC BASIC（基本指令类）值的映射
HUB Pro iO插头可以控制支持
Basic Command Class（基本
指令类）的设备
但收到的任何Basic Command
Class（基本指令类），都将
被忽略且不会执行任何动作。
安装
技术特点
230 VAC
50Hz
(±10%)
16A
LED/CFL
5A
**仅当ZIPGW是包含式控制器时，INCLUSION_CONTROLLER_v1和CLASS_nw_inclusion才会呈现。
COMMAND_CLASS_APPLICATION_STATUS_V1
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3
COMMAND_CLASS_CRC_16_ENCAP_V1
COMMAND_CLASS_DEVICE_RESET_LOCALLY_V1
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5
COMMAND_CLASS_INCLUSION_CONTROLLER_V1**
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_MULTI_CMD_V1
COMMAND_CLASS_NODE_PROVISIONING_V1
COMMAND_CLASS_NW_MGMT_BASIC_V2
COMMAND_CLASS_NW_INCLUSION**
COMMAND_CLASS_NW_INSTALLATION_MAINTENANCE_V1
COMMAND_CLASS_NW_MGMT_PROXY_V2
COMMAND_CLASS_POWERLEVEL_V1
COMMAND_CLASS_SECURITY_V1
COMMAND_CLASS_SECURITY_2_V1
COMMAND_CLASS_SUPERVISION_V1
COMMAND_CLASS_TRANSPORT_SERVICE_V2
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
不安全的包含 安全的包含
安全 不安全
支持的指令类
10032108-xxx 10033108-xxx
键盘的使用和响应
设备的状态 LED灯的响应活动 键盘活动 设备性能
LED按钮呈蓝色慢速闪烁
根据充电状态，LED按钮呈白色或绿色
快速闪烁
LED按钮呈蓝色快速闪烁
LED按钮呈蓝色常亮
充电开启，无功率限制，LED按钮呈
绿色常亮
充电开启，有功率限制，LED按钮呈
橙色常亮
充电关闭，有或无功率限制，LED按
钮呈白色常亮
因超过功率，充电关闭，LED按钮呈
红色常亮
信号灯，LED 1…7根据参数3调节
其强度
充电开启
充电关闭
按钮已锁住
初始化中
Wi-Fi初始化中
Wi-Fi已启用或
已连接
未按压
短按（小于2秒）
长按（10秒-15
秒）
长按（2秒-10秒） 所有LED指示灯熄灭
长按（15秒-30
秒）
长按（大于30秒）
按下按钮
与iO Simon
App连接
重置/恢复出
厂值
重启设备
LED按钮从绿色变为呈白色常亮
LED按钮从白色变为呈绿色常亮
LED按钮呈红色缓慢闪烁3次，然后根
据充电状态恢复为相应颜色
LED按钮缓慢闪烁，直到呈蓝色常亮
重置HUB ProiO插头时，LED按钮以绿
色、蓝色和紫色的顺序快速闪烁
LED按钮快速闪烁
直至恢复到未按下时的蓝色状态
松开按钮时，LED按钮
呈蓝色常亮；一旦用户通过
Simon iO App连接到HUB iO，
则该指示结束
如果连接的电源超过设置的限
制，则充电将断开
重启设备的Wi-Fi界面
恢复出厂状态，且
电池之外的所有Simon设备也
处于出厂状态
充电断开
充电启动
启动Wi-Fi
连接到Simon
iO App或Z-Wave
网络
如果连接的电源超过16A，则
充电将断开

 ةيبرعلا
















(Lifeline) 1
“Lifeline”
3
ID





SIMON iO




COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION GROUP INFORMATION_V3
COMMAND_CLASS_BASIC_V2
COMMAND_CLASS_BATTERY_V1
COMMAND_CLASS_CENTRAL SCENE_V3
COMMAND_CLASS_CONFIGURATION_V4
COMMAND_CLASS_CRC 16 ENCAPSULATION_V1
COMMAND_CLASS_DEVICE RESET LOCALLY_1
COMMAND_CLASS_DOOR LOCK_V3
COMMAND_CLASS_INCLUSION CONTROLLER_V1
COMMAND_CLASS_MANUFACTURER SPECIFIC_V2
COMMAND_CLASS_METER_V3
COMMAND_CLASS_NOTIFICATION _V8
COMMAND_CLASS_SENSOR BINARY_V2
COMMAND_CLASS_SENSOR_MULTILEVEL_V11
COMMAND_CLASS_SWITCH BINARY_V2
COMMAND_CLASS_SWITCH MULTILEVEL_V4
COMMAND_CLASS_POWER LEVEL_V1
COMMAND_CLASS_SECURITY0_V1
COMMAND_CLASS_SECURITY2_V1
COMMAND_CLASS_SUPERVISION_V1
COMMAND_CLASS_THERMOSTAT FAN MODE_V4
COMMAND_CLASS_THERMOSTAT FAN STATE_VE
COMMAND_CLASS_THERMOSTAT MODE_V3
COMMAND_CLASS_THERMOSTAT OPERATING STATE_V2
COMMAND_CLASS_THERMOSTAT SET POINT_V3
COMMAND_CLASS_TIME PARAMETERS_V1
COMMAND_CLASS_TRANSPORT SERVICE_V2
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_WAKE UP_V2
COMMAND_CLASS_ZWAVE PLUS INFO_V2

CENTRAL_CONTROLLER
GENERIC_TYPE_STATIC_CONTROLLER
SPECIFIC_TYPE
ROLE_TYPE_CONTROLLER_CENTRAL_STATIC










230 VAC
50Hz
(±10%)
16A
LED/CFL
5A


COMMAND_CLASS_APPLICATION_STATUS_V1
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3
COMMAND_CLASS_CRC_16_ENCAP_V1
COMMAND_CLASS_DEVICE_RESET_LOCALLY_V1
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5
COMMAND_CLASS_INCLUSION_CONTROLLER_V1**
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_MULTI_CMD_V1
COMMAND_CLASS_NODE_PROVISIONING_V1
COMMAND_CLASS_NW_MGMT_BASIC_V2
COMMAND_CLASS_NW_INCLUSION**
COMMAND_CLASS_NW_INSTALLATION_MAINTENANCE_V1
COMMAND_CLASS_NW_MGMT_PROXY_V2
COMMAND_CLASS_POWERLEVEL_V1
COMMAND_CLASS_SECURITY_V1
COMMAND_CLASS_SECURITY_2_V1
COMMAND_CLASS_SUPERVISION_V1
COMMAND_CLASS_TRANSPORT_SERVICE_V2
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
 
 

10032108-xxx 10033108-xxx

 











































































SIMON, S.A.U. Diputación, 390-392 / 08013 Barcelona
[email protected] Tel: [phone]
www.simonelectric.com A991525 5-12-2019 5/5
