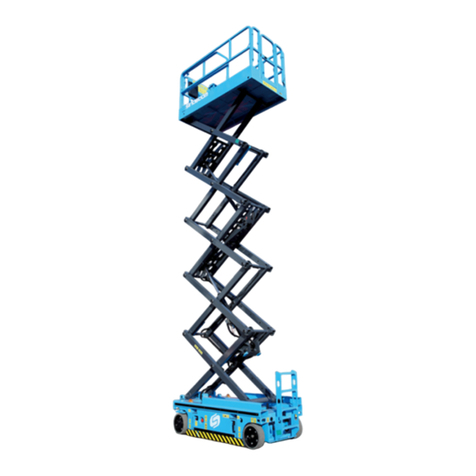

Sinoboom GTJZ1012E User manual

GTJZ1012E/1012E/3346E
GTJZ1212E/1212E/4047E
for Sinoboom Poland
Operation
Manual
Part No.PL501048100002
Rev: A
Jun 2022
GTJZ
0608E (2132E)
GTJZ
0808E (2732E)
GTJZ
0808E (2732E)
GTJZ
0808E (2732E)
长沙市宁乡高新技术产业园区金洲大道东
128 号
0731-87116111 hr@sinoboom . c om . cn ww w .sinoboom . c om . cn
Al w ays F or B e t t er A cc ess Solution s
我们一直在追求新的高 度
尺寸 ：
210×285mm
20mm
20mm
产品说明书
PRODU C T MAN U AL

Operating, servicing and maintaining this vehicle or
equipment can expose you to chemicals including engine
exhaust, carbon monoxide, phthalates, and lead, which
are known to the State of California to cause cancer and
birth defects or other reproductive harm. To minimize
exposure, avoid breathing exhaust, do not idle the engine
except as necessary, service your vehicle or equipment in
a well-ventilated area and wear gloves or wash your
hands frequently when servicing. For more information
go to: www.P65warnings.ca.gov.
For disposal, please follow your nation regulation.

Please contact us:
Website : www.sinoboom.com
E-mail : [email protected]
Sales Tel : [phone]
Service Tel : [phone]
Address : No.128, East Jinzhou Avenue, Ningxiang High-tech Industrial Park, Changsha,
Hunan, China
Zip Code : 410600
Copyright © Hunan Sinoboom Intelligent Equipment Co., Ltd. All Rights Reserved
The final interpretation right of this manual belongs to Hunan Sinoboom Intelligent Equipment Co., Ltd.
Manual revision history:
REV DATE DESCRIPTION REMARK
AJun, 2022 Original issue of the manual

APPLICATION
Use the following table to identify the specific serial number for models included in this manual. Check
the model of your machine before consulting the manual, and then use the correct manual according to
the serial number of the model. See the nameplate on your machine to identify the model and serial
number.(See Decals/Nameplates Inspection of the Operation Manual for details.)
MODELS
Trade identification
SERIAL NO.
Metric Imperial
GTJZ1012E 1012E 3346E ANSI/CSA: From PL0104800100 to Present
GTJZ1212E 1212E 4047E CE: From PL0106700100 to Present
ANSI/CSA: From PL0104900100 to Present
NOTE:
•Product model is applied in product nameplate for distinction of products of different main
parameters.
•Product trade identification is applied in marketing and machine decals for distinction of products of
different main parameters, and can be classified as metric type and imperial type: The metric type of
trade identification is applicable to machines for countries/regions using metric system or as
specially required by customers; The imperial type of trade identification is applicable to the
machines for countries/regions using imperial system or as specially required by customers.

This Page Intentionally Left Blank

STATEMENTS
Hunan Sinoboom Intelligent Equipment Co., Ltd. (Hereinafter referred to as Sinoboom) will upload the
latest product manual information to the website www.sinoboom.com as soon as possible. However,
due to continuous product improvement, the information in this manual is subject to change without prior
notice.
This manual covers the basic parts information of one or more products. Therefore, please use this
manual according to your needs. If you find problems in the manual or have suggestions for improve-
ment, feel free to share your feedback with Sinoboom, and we will address these issues as soon as
possible.
Feel free to consult and download the Operation Manual,Maintenance Manual and Parts Manual of the
products you need online at www.sinoboom.com.
Hunan Sinoboom Intelligent Equipment Co., Ltd. retains the right of final interpretation of the manual.
All of the above are registered trademarks of Hunan Si-
noboom Intelligent Equipment Co., Ltd..

This Page Intentionally Left Blank

GTJZ1012E&1212E Operation Manual i© Jun 2022
TABLE OF CONTENTS
Introduction ............................. iii
1 Performance Parameters ...... 1-1
2 Machine Components .......... 2-1
3 Safety............................... 3-1
Safety Definitions .. ... . . . .. . . . . ... . . .. 3-1
Reporting Accidents... . . . .. . . . . ... . . .. 3-1
Electrocution Hazards. .. . . . ... . . ... . . . 3-2
Tipping Hazards and Rated Load . . . .. 3-2
Work Environment Hazards.. . . . .. . . . . 3-4
Unsafe Operation Hazards. . . .. . . . ... . 3-5
FallHazards...........................3-6
Collision Hazards .. . ... . . ... . . . ... . . . . 3-7
Crush Hazards . . . ... . . . ... . . ... . . ... . . 3-8
Explosion and Fire Hazards. . . ... . . ... 3-8
Damaged Machine Hazards ... . . . .. . . 3-8
Bodily Injury Hazards . . . ... . . ... . . . .. . 3-9
Battery Hazards.. . . ... . . . .. . . . . ... . . .. 3-9
Welding and Polishing Requirements3-10
After Using the Machine. .. .. . .. . .. .. . 3-11
4 Jobsite Inspection............... 4-1
5 Pre-operation Inspection ...... 5-1
Tips for Conducting a Pre-operation
Inspection.............................5-1
Conducting a Pre-operation
Inspection.............................5-2
Inspecting Parts. . . . ... . . . .. . . . . ... . . .. 5-2
Inspecting Entire Machine ... . . . .. . . . . 5-2
Inspect Hydraulic Oil Level. . . ... . . ... . 5-3
Inspect Battery Level. . . ... . . ... . . ... . . 5-3
Indoor/Outdoor Mode Verification-
GTJZ1212E...........................5-4
6 Pre-operation Function Test .. 6-1
Preparing for a Pre-operation Func-
tionTest...............................6-1
Testing the Ground Controller. . . ... . . . 6-1
Testing the Platform Controller
(SINOBOOM) . . .. . . . ... . . ... . . . . .. . . . . 6-3
Testing the Platform Controller (DTC). 6-5
Testing the Drive Speed. . . ... . . . .. . . . . 6-7
Testing the Emergency Lowering
Function...............................6-8
Testing the Tilt Protection Function .. . 6-9
Testing the Pothole Guard .. . . ... . . . .6-10
Testing the Weighing System
(optional).............................6-10
7 Operating the machine ......... 7-1
Emergency Stop .. . . . ... . . ... . . . .. . . . . 7-1
Using the Emergency Lowering
Feature................................7-1
Emergency Towing/Dragging ... . . ... . 7-2
Operation from Ground . . ... . . . ... . . . . 7-3
Operation from Platform . .. . . . . ... . . .. 7-3
SINOBOOM system ... . . . .. . . . ... . . 7-3
DTC system . . . . .. . . . ... . . ... . . . .. . . 7-4
Operating with the Platform Control-
ler on the Ground . .. . . . . .. . . . ... . . ... . 7-4
Extending/Retracting the Platform ... . 7-5
Folding/Unfolding the Rails .. . . ... . . .. 7-5
Driving on a Slope.. ... . . . .. . . . . ... . . .. 7-5
Charging the Battery . . . . ... . . ... . . . .. . 7-6
Charger Operating Instructions .. . . ... 7-8
Delta-q Charger.. ... . . . ... . . . ... . . .. 7-8
Green Power Charger ... . . ... . . ... . 7-9
Selecting A Charge Profile ... . . . ... . . . 7-9
Delta-q Charger.. ... . . . ... . . . ... . . .. 7-9
Green Power Charger . . ... . . . .. . . .7-10

© Jun 2022 ii GTJZ1012E&1212E Operation Manual
Indoor/Outdoor Mode Setting-
GTJZ1212E..........................7-11
SINOBOOM system . .. .. . .. . .. .. . . 7-11
DTC system . . .. .. . .. . .. .. . .. .. . .. . 7-11
8 Transporting and Lifting the
Machine........................... 8-1
Lifting the Machine with a Forklift .. . . . 8-1
Lifting the Machine with a Crane .. . . . . 8-2
Transporting the Machine . . . ... . . ... . . 8-2
9 Maintenance ...................... 9-1
Conducting a Pre-delivery Inspection . 9-1
Following a Maintenance Schedule . . . 9-2
Completing a Repair & Inspection
Report.................................9-2
10 Decals/Nameplates
Inspection ....................... 10-1
Decals/Nameplates (CE-Metric) ...10-2
Decals/Nameplates (CE-Imperial) .10-5
Decals/Nameplates (CE-PL) . . . . ..10-8
Decals/Nameplates (ANSI) ... . . . .10-11
Decals/Nameplates (CSA).. . . .. . 10-14
Appendix 1: Symbols and
Description.......................A-1
Appendix 2: Prepare the Work
Record Before Delivery ....... A-5
Appendix 3: Repair & Inspection
Report .............................A-7

GTJZ1012E&1212E Operation Manual iii © Jun 2022
INTRODUCTION
Thank you for choosing and using the machinery of
Hunan Sinoboom Intelligent Equipment Co., Ltd. Al-
ways read, understand and become familiar with the
operation requirements of the machine and its associ-
ated safety procedures before operating, maintaining
and repairing the machine. Operating the machine with-
out becoming familiar with its specific operation require-
ments and safety procedures poses serious risks.
Operators who follow safety rules and operate the ma-
chine carefully and effectively will prevent personal in-
jury, property loss and accidents.
Use this machine only to transport tools to work loca-
tions and for performing tasks on the work platform. Op-
erators must be competent and must obtain training to
carefully use the machine and follow safety procedures.
Only trained and authorized personnel may operate the
machine.
This manual guides the operator in operating and using
the machine. The operator is responsible for reading,
understanding and implementing the operation and
safety procedures in this manual and for following the
manufacturer’s instructions before beginning any work.
Read, understand and follow all safety rules and oper-
ating instructions. The operator must also consider the
machine’s uses and limitations and the conditions at
the jobsite before using this machine. Strictly following
all safety requirements in this manual is critical.
Consider this manual a part of the machine, along with
Maintenance Manual and Parts Manual, and always
keep the manuals with the machine. The owner or ad-
ministrator of the machine shall offer all manuals and
other necessary information provided by the machine
manufacturer regarding the daily inspection and main-
tenance to each of the renters. If the machine is sold,
the owner or administrator must pass along the man-
uals and other necessary information to the purchaser.
The owner or administrator of the machine shall also
provide the manufacturer’s maintenance information to
the person responsible for maintaining the machine.
If you have any questions, contact Hunan Sinoboom In-
telligent Equipment Co., Ltd..

© Jun 2022 iv GTJZ1012E&1212E Operation Manual
This Page Intentionally Left Blank

GTJZ1012E&1212E Operation Manual 1-1 © Jun 2022
1PERFORMANCE PARAMETERS
Table 1-1 GTJZ1012E Specifications
MEASURE 1012E (METRIC) 3346E (IMPERIAL)
DIMENSION PARAMETERS
Max. platform height 10m 32ft 10in.
Max. working height 12m 39ft 4.5in.
Max. horizontal extension 0.9m 3ft
Length 2.45m 8ft
Width 1.17m 3ft 10in.
Height (stowed, rails folded) 1.86m 6ft 1in.
Height (stowed, rails up) 2.48m 8ft 1.6in.
Wheel base 1.88m 6ft 2in.
Wheel span 1.025m 3.4ft
Ground clearance (pothole guards
retracted) 0.1mm 4in.
Ground clearance (pothole guards
deployed) 25mm 0.98in.
Tire size (diameter × width / type) Φ380×125mm/Solid Φ15×5in./solid
Platform dimension (Length × Width ×
Height) 2.3×1.15×1.1m 7ft 6.5in.×3ft 9in.×3ft 7in.
PERFORMANCE PARAMETERS
Rated load capacity of platform 320kg 705.6 lb
Max. load capability of extended platform 120kg 265 lb
Max. platform occupancy (indoor/outdoor) 2 persons (indoor)/1 person (outdoor)
Drive speed (stowed) 0~4 km/h 0～2.5 mph
Drive speed (raised) 0～0.8 km/h 0～0.5 mph
Uptime (in a no-load state) 53～58 s
Downtime (in a no-load state) 40～45 s
Gradeability 25%
Max. allowable inclination 3° (Front to back)/1.5° (Left to right)
Turning radius (inside) 0m 0ft
Turning radius (outside) 2.35m 7ft 8.5in.
Max. allowable manual force (indoor/
outdoor) 400N (indoor)/200N (outdoor) 90 lbf (indoor)/45 lbf (outdoor)

© Jun 2022 1-2 GTJZ1012E&1212E Operation Manual
PERFORMANCE PARAMETERS
Table 1-1 GTJZ1012E Specifications (continued)
MEASURE 1012E (METRIC) 3346E (IMPERIAL)
Max. noise 72dB
POWER PARAMETERS
Hydraulic tank capacity 15L 3.3 gal (imperial)/4 gal (US)
Hydraulic system capacity (including tank) 34L 7.5 gal (imperial)/9 gal (US)
Hydraulic system pressure 21MPa 3046 Psi
Battery specification (quantity × voltage,
capacity) 4×6V, 240Ah
Power system voltage 24VDC
Control voltage 24VDC
GROUND BEARING DATA
Max wheel load 1180 kg 2601 lb
Pressure against ground 1255 KPa 182 Psi
ENVIRONMENTAL REQUIREMENT
Max. allowable wind speed (indoor/
outdoor) 0 m/s (indoor)/12.5 m/s (outdoor) 0 mph (indoor)/28mph (outdoor)
Max. allowable altitude 1000m 3281ft
Allowable ambient temperature (lead-acid
batteries) -10℃to 40℃14℉to 104℉
Allowable ambient temperature (lithium
batteries) -20℃to 40℃-4℉to 104℉
Max. allowable ambient relative humidity 90%
Storage condition Stored at -20℃to 50℃(-4℉to 122℉) in a well-ventilated environ- ment with 90% relative humidity (20℃[68℉]), and away from rain,
sun, corrosive gas and inflammables and explosives.
WEIGHT
Weight (in a no-load state) (indoor/
outdoor) 2815kg 6206 lb
Weight (in a no-load state) (indoor only) 2645kg 5831 lb
Table 1-2 GTJZ1212E Specifications
MEASURE 1212E (METRIC) 4047E (IMPERIAL)
DIMENSION PARAMETERS
Max. platform height 11.9m (indoor)/9m (outdoor) 39ft (indoor)/29.5 (outdoor)
Max. working height 13.9m (indoor)/11m (outdoor) 45.6ft (indoor)/36ft (outdoor)
Max. horizontal extension 0.9m 3ft
Length 2.45m 8ft

PERFORMANCE PARAMETERS
GTJZ1012E&1212E Operation Manual 1-3 © Jun 2022
Table 1-2 GTJZ1212E Specifications (continued)
MEASURE 1212E (METRIC) 4047E (IMPERIAL)
Width 1.17m 3ft 10in.
Height (stowed, rails folded) 1.98m 6ft 6in.
Height (stowed, rails up) 2.6m 8ft 6in.
Wheel base 1.88m 6ft 2in.
Wheel span 1.025m 3.4ft
Ground clearance (pothole guards
retracted) 0.1mm 4in.
Ground clearance (pothole guards
deployed) 25mm 0.98in.
Tire size (diameter × width / type) Φ380×125mm/Solid Φ15×5in./solid
Platform dimension (Length × Width ×
Height) 2.3×1.15×1.1m 7ft 6.5in.×3ft 9in.×3ft 7in.
PERFORMANCE PARAMETERS
Rated load capacity of platform 320kg 705.6 lb
Max. load capability of extended platform 120kg 265 lb
Max. platform occupancy (indoor/outdoor) 2 persons (indoor)/1 person (outdoor)
Drive speed (stowed) 0~4 km/h 0～2.5 mph
Drive speed (raised) 0～0.8 km/h 0～0.5 mph
Uptime (in a no-load state) 63～68 s
Downtime (in a no-load state) 44～49 s
Gradeability 25%
Max. allowable inclination 3° (Front to back)/1.5° (Left to right)
Turning radius (inside) 0m 0ft
Turning radius (outside) 2.35m 7ft 8.5in.
Max. allowable manual force (indoor/
outdoor) 400N (indoor)/200N (outdoor) 90 lbf (indoor)/45 lbf (outdoor)
Max. noise 72dB
POWER PARAMETERS
Hydraulic tank capacity 15L 3.3 gal (imperial)/4 gal (US)
Hydraulic system capacity (including tank) 34L 7.5 gal (imperial)/9 gal (US)
Hydraulic system pressure 21MPa 3046 Psi
Battery specification (quantity × voltage,
capacity) 4×6V, 240Ah
Power system voltage 24VDC
Control voltage 24VDC

© Jun 2022 1-4 GTJZ1012E&1212E Operation Manual
PERFORMANCE PARAMETERS
Table 1-2 GTJZ1212E Specifications (continued)
MEASURE 1212E (METRIC) 4047E (IMPERIAL)
GROUND BEARING DATA
Max wheel load 1180 kg 2601 lb
Pressure against ground 1255 KPa 182 Psi
ENVIRONMENTAL REQUIREMENT
Max. allowable wind speed (indoor/
outdoor) 0 m/s (indoor)/12.5 m/s (outdoor) 0 mph (indoor)/28mph (outdoor)
Max. allowable altitude 1000m 3281ft
Allowable ambient temperature (lead-acid
batteries) -10℃to 40℃14℉to 104℉
Allowable ambient temperature (lithium
batteries) -20℃to 40℃-4℉to 104℉
Max. allowable ambient relative humidity 90%
Storage condition Stored at -20℃to 50℃(-4℉to 122℉) in a well-ventilated environ- ment with 90% relative humidity (20℃[68℉]), and away from rain,
sun, corrosive gas and inflammables and explosives.
WEIGHT
Weight (in a no-load state) (indoor/
outdoor) 3210kg 7077 lb
Weight (in a no-load state) (indoor only) 3100kg 6834 lb
NOTE:
a) The platform height plus operator height (taken as 2m (6ft 7in) is the working height.
b) In different areas, hydraulic oil, engine oil, coolant, fuel and lubricant should be added in accordance with the en-
vironmental temperature.
c) In cold weather, auxiliary devices are needed to start the machines.
d) The ground bearing data is approximate values not considering different options and only applicable when it is
safe enough.
e) The loads of persons, accessories, tools and materials are factored into the rated platform capacity.

GTJZ1012E&1212E Operation Manual 2-1 © Jun 2022
2MACHINE COMPONENTS
Figure 2-1
1
2
3
4
5
6
7
8
9
10
11
12
131415
16
17
18
19
20
21
22
24
2526
23
27
2930
28
31
32
33

© Jun 2022 2-2 GTJZ1012E&1212E Operation Manual
MACHINE COMPONENTS
Component China CE CSA ANSI AS Japan Korea Poland
1. Fixed Platform √
2. Foot Switch √
3. Extended Platform √
4. Manual Storage
Container √
5. Overhead Protection √
6. Working Light √
7. Platform Control Box √
8. AC Power Socket √ √
9. Platform Entry Gate √
10. Safety Arm √
11. Scissor Components √
12. Lift Cylinder √
13. Industrial Plug √
14. Emergency Decent
Handle √
15. Charger Plug √
16. Pothole Protection
Plate √
17. Battery charger √
18. Main Power Handle
Assembly √
19. Battery √
20. Chassis √
21. RCBO √√
22. Level Sensor √
23. Flash Light √√
24. Steer Cylinder √
25. Steer Wheel √
26. Drive Reducer, DC √
27. Ground Controller √
28. Power Unit √
29. Hydraulic Oil Tank √
30. Rear Wheel √
31. Right turntable cover √

MACHINE COMPONENTS
GTJZ1012E&1212E Operation Manual 2-3 © Jun 2022
Component China CE CSA ANSI AS Japan Korea Poland
32. Left turntable cover √
33. Ladder √
Machine positions
Stowed position:
The machine comes in stowed position when fully
retracted.
Non-operating position:
The machine remains in non-operating position when
the down limit switch does not disengage.
Operating/raised position:
The machine comes in operating/raised position
when the platform is raised until the down limit switch
disengages.
Note: The platform heights are as follows (from
ground to platform floor) when the down limit switch
disengages:
•GTJZ1012E: 2.8±0.3m (9ft 2in±10in)
•GTJZ1212E: 2.8±0.3m (9ft 2in±10in)

© Jun 2022 2-4 GTJZ1012E&1212E Operation Manual
This Page Intentionally Left Blank
MACHINE COMPONENTS
