Sinoboom AB22EJ Plus User manual

AB22EJ Plus/AB710EJ Plus
Maintenance
Manual
Part No.503009110002
Rev: B
Nov. 2022
GTJZ
0608E (2132E)
GTJZ
0808E (2732E)
GTJZ
0808E (2732E)
GTJZ
0808E (2732E)
长沙市宁乡高新技术产业园区金洲大道东
128 号
0731-87116111 hr@sinoboom . c om . cn ww w .sinoboom . c om . cn
Al w ays F or B e t t er A cc ess Solution s
我们一直在追求新的高 度
尺寸 ：
210×285mm
20mm
20mm
产品说明书
PRODU C T MAN U AL

Operating, servicing and maintaining this vehicle or
equipment can expose you to chemicals including engine
exhaust, carbon monoxide, phthalates, and lead, which
are known to the State of California to cause cancer and
birth defects or other reproductive harm. To minimize
exposure, avoid breathing exhaust, do not idle the engine
except as necessary, service your vehicle or equipment in
a well-ventilated area and wear gloves or wash your
hands frequently when servicing. For more information
go to: www.P65warnings.ca.gov.
For disposal, please follow your nation regulation.

Please contact us:
Website : www.sinoboom.com
E-mail : [email protected]
Sales Tel : [phone]
Service Tel : [phone]
Address : No.128, East Jinzhou Avenue, Ningxiang High-tech Industrial Park, Changsha,
Hunan, China
Zip Code : 410600
Copyright © Hunan Sinoboom Intelligent Equipment Co., Ltd. All Rights Reserved
The final interpretation right of this manual belongs to Hunan Sinoboom Intelligent Equipment Co., Ltd.
Manual revision history:
REV DATE DESCRIPTION REMARK
AApr. 2022 Original issue
B Nov. 2022 Updated manual, implemented the BS EN 280-
1:2022 standard requirements, revised the logic
description of drive speed select switch, etc.

APPLICABLE RANGE
Use the following table to identify the specific serial number for models included in this manual. Check
the model of your machine before consulting the manual, and then use the correct manual according to
the serial number of the model. See the nameplate on your machine to identify the model and serial
number. (See Decals/Nameplates Inspection of the Operation Manual for details.)
Model
Trade Identification
Serial No.
Metric Imperial
AB22EJ
Plus
AB22EJ
Plus
AB710EJ
Plus From 0300900148 to present
NOTE:
•Product model is applied in product nameplate for distinction of products of different main
parameters.
•Product trade identification is applied in marketing and machine decals for distinction of products of
different main parameters, and can be classified as metric type and imperial type: metric trade
identification is applicable to machines for countries/regions using metric system or as specially
required by customers; imperial trade identification is applicable to the machines for countries/
regions using imperial system or as specially required by customers.

This Page Intentionally Left Blank

STATEMENTS
Hunan Sinoboom Intelligent Equipment Co., Ltd. (Hereinafter referred to as Sinoboom) will upload the
latest product manual information to the website www. sinoboom. com as soon as possible. However,
due to continuous product improvement, the information in this manual is subject to change without prior
notice.
This manual covers the basic parts information of one or more products. Therefore, please use this
manual according to your needs. If you find problems in the manual or have suggestions for improve-
ment, feel free to share your feedback with Sinoboom, and we will address these issues as soon as
possible.
Feel free to consult and download the Operation Manual,Maintenance Manual and Parts Manual of the
products you need online at www.sinoboom.com.
Hunan Sinoboom Intelligent Equipment Co., Ltd. retains the right of final interpretation of the manual.
All of the above are registered trademarks of Hunan Si-
noboom Intelligent Equipment Co., Ltd..

This Page Intentionally Left Blank

AB22EJ Plus Maintenance Manual i© Nov. 2022
TABLE OF CONTENTS
Introduction ..............................v
1 Safety............................... 1-1
Safety Definitions . . . . . . . . .. . . . . . . . . . . . 1-1
Reporting Accidents. . . . . . . . . . . . . . . . . . . 1-1
Electrocution Hazards. . . . . . . . . . . . . . . . . 1-2
Tipping Hazard and Rated Load . . . . . . 1-2
Work Environment Hazards . . . . . . . . . . . 1-4
Unsafe Operation Hazards. . . . . . . . . . . . 1-6
FallHazards...........................1-7
Collision Hazards . . . . . . . . . . . . . . . . . . . . . 1-7
Crush Hazards . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Explosion and Fire Hazards. . . . . . . . . . . 1-9
Damaged Machine Hazards . . . . . . . . . . 1-9
Bodily Injury Hazards . . . . . . . . . . . . . . . . . 1-9
Battery Hazards . . . . . . . . . . . . . . . . . . . . . .1-10
Hydraulic Hazards . . . . . . . . . . . . . . . . . . . 1-11
Welding and Polishing Requirements 1-11
After Using the Machine. . . . . . . . . . . . . .1-12
2 Specifications .................... 2-1
Performance Parameters . . . . . . . . . . . . . 2-1
Motor Specifications . . . . . . . . . . . . . . . . . . 2-5
Speed of Function Operations . . . . . . . . 2-5
Weight of Major Components . . . . . . . . . 2-6
Hydraulic System Specifications . . . . . . 2-7
Hydraulic Hose and Fitting
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Hydraulic Hose Torque . . . . . . . . . . . . . 2-7
Hydraulic Fitting Torque . . . . . . . . . . . . 2-8
Hydraulic Hose and Fitting Tight-
ening Procedure . . . . . . . . . . . . . . . . . . .2-10
Fastener Torque Specifications . . . . . . 2-11
3 System Descriptions............ 3-1
Power System. . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Hydraulic System . . . . . . . . . . . . . . . . . . . . . 3-1
Electrical System. . . . . . . . . . . . . . . . . . . . . . 3-1
Machine Control. . . . . . . . . . . . . . . . . . . . . . . 3-1
Safety Measures . . . . . . . . . . . . . . . . . . . . . . 3-1
4 Service and Guidelines......... 4-1
Machine Preparation, Inspection and
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
General.............................4-1
Preparation, inspection and
maintenance . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Qualified Sinoboom equipment
mechanics..........................4-1
Pre-operation inspection. . . . . . . . . . . . 4-1
Pre-delivery inspection and
frequent inspection . . . . . . . . . . . . . . . . . 4-1
Annual machine inspection . . . . . . . . . 4-1
Preventive maintenance . . . . . . . . . . . . 4-2
Storage .............................4-3
Maintenance and Servicing
Precautions ...........................4-3
General.............................4-3
Safety and workmanship . . . . . . . . . . . 4-3
Cleanliness . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Component removal and installation4-4
Component disassembly and
assembly ...........................4-4
Scrap of structural parts . . . . . . . . . . . . 4-4
Pressure-fit parts . . . . . . . . . . . . . . . . . . . 4-5
Bearings ............................4-5
Gaskets.............................4-5
Bolt usage and torque application . . 4-5
Hydraulic lines and electrical wiring 4-5
Hydraulic system . . . . . . . . . . . . . .. . . . . 4-5
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Battery..............................4-5
Pins and composite bearing. . . . . . . . . . . 4-5

© Nov. 2022 ii AB22EJ Plus Maintenance Manual
Application of Insulating Silicone
Grease to Electrical Connections . . . . . 4-6
5 Maintenance ...................... 5-1
Conducting a Pre-delivery Inspection . 5-2
Following a Maintenance Schedule . . . 5-2
Completing a Repair & Inspection
Report.................................5-3
Major Modification and Repair Record 5-5
Checklist A Procedures . . . . . . . . . . . . . . . 5-6
A-1 Inspect All Manuals. . . . . . . . . . . . . 5-6
A-2 Inspect All Decals . . . . . . . . . . . . . . 5-6
A-3 Inspect Damaged, Loose or
LostParts...........................5-6
A-4 Inspect Hydraulic Oil Level . . . . . 5-7
A-5 Check for Hydraulic Oil
Leakage ............................5-7
A-6 Perform Functional Test . . . . . . . . 5-8
A-7 Perform Maintenance after 30
Days...............................5-10
A-8 Exhaust Oscillate Cylinder . . . .5-10
A-9 Check Battery Level . . . . . . . . . . .5-10
Checklist B Procedures . . . . . . . . . . . . . . 5-11
B-1 Inspect and Replace Hydraulic
Oil Tank Return Filter Element . . . . . 5-11
B-2 Inspect Rim, Tire and
Fasteners..........................5-12
B-3 Check Hydraulic Oil . . . . . . . . . . .5-12
B-4 Inspect Electrical Wiring . . . . . . .5-12
B-5 Inspect Emergency Lowering .5-13
B-6 Inspect Air Filter of Hydraulic
Tank ...............................5-13
B-7 Replace High-Pressure Filter
Element............................5-13
B-8 Test Drive Speed . . . . . . . . . . . . . .5-14
B-9 Inspect Boom Envelope Limit
Travel Switch . . . . . . . . . . . . . . . . . . . . . .5-14
B-10 Inspect Tilt Protection . . . . . . . .5-15
B-11 Inspect Drive Reducer Oil
Level...............................5-16
B-12 Inspect Slewing Reducer Oil
Level...............................5-16
B-13 Inspect Slewing Bearing
Bolts ...............................5-16
B-14 Lubricate Slewing Bearing . . .5-18
B-15 Inspect Platform Oscillating
Cylinder Fasteners . . . . . . . . . . . . . . . .5-18
B-16 Test Cylinder Drift . . . . . . . . . . . .5-19
B-17 Test Counterbalance Valve
Locking ............................5-19
B-18 Test Oscillate Outriggers . . . . .5-20
B-19 Inspect Battery . . . .. . . . . . . . . . .5-20
B-20 Test Braking Distance . . . . . . . .5-21
Checklist C Procedures . . . . . . . . . . . . . .5-21
C-1 Replace Air Filter of Hydraulic
Tank ...............................5-21
C-2 Inspect Weighing System . . . . .5-21
Checklist D Procedures . . . . . . . . . . . . . .5-22
D-1 Replace Drive Reducer Gear
Oil..................................5-22
D-2 Replace Slewing Reducer
GearOil............................5-23
D-3 Replace Hydraulic Oil . . . . . . . . .5-23
D-4 Replace Hydraulic Tank
Suction Filter. . . . . . . . . . . . . . . . . . . . . . .5-23
D-5 Inspect Boom Wear Pads . . . . .5-24
6 Repair Procedures .............. 6-1
Boom and Platform Components . . . . . 6-1
Boom and Platform System. . . . . . . . . 6-1
Platform Controller. . . . . . . . . . . . . . . . . . 6-1
Platform.............................6-2
Platform Oscillating Motor . . . . . . . . . . 6-2
Jib Boom Assembly. . . . . . . . . . . . . . . . . 6-2
Platform Leveling Cylinder. . . . . . . . . . 6-3
Cable Track Assembly . . . . . . . . .. . . . . 6-4
Main Boom Assembly . . . . . . . . . . . . . . 6-4
Telescopic Boom Assembly . . . . . . . . 6-5
Articulated Boom Assembly . . . . . . . . 6-6
Chassis and Turntable Components . . 6-7

AB22EJ Plus Maintenance Manual iii © Nov. 2022
Tires and Rims. . . . . . . . . . . . . . . . . . . . . . 6-7
Reducer and Drive Motor . . . . . . . . . . . 6-8
Turntable Slewing Mechanism. . . . . . 6-9
Battery Box . . . . . . . . . . . . . . . . . . . . . . . . 6-11
Battery.............................6-11
Hydraulic System . . . . . . . . . . . . . . . . . . . .6-12
Layout of Hydraulic Elements. . . . . .6-12
Function Valves. . . . . . . . . . . . . . . . . . . .6-14
Hydraulic Symbols . . . . . . . . . . . . . . . . .6-23
Hydraulic Schematic Diagram . . . . .6-24
Electrical System. . . . . . . . . . . . . . . . . . . . .6-25
Fault Code Description . . . . . . . . . . . .6-25
Use and Maintenance of Battery. . .6-43
Electrical Symbols . . . . . . . . . . . . . . . . .6-46
Electrical Schematic Diagram . . . . .6-49
7 Rexroth control system ........ 7-1
Display interface . . . . . . . . . . . . . . . . . . . . . . 7-1
Home interface after booting . . . . . . . . . . 7-2
State monitor . . . . . . . . . . . . . . . . . . . . .. . . . . 7-3
Fault inquiry . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Parameter setting . . . . . . . . . . . . . . . . . . . . . 7-4
Machine Parameter Setting. . . . . . . . . 7-4
Time setting. . . . . . . . . . . . . . . . . . . . . . . . . 7-8
Machine information . . . . . . . . . . . . . . . . 7-8
Language setting . . . . . . . . . . . . . . . . . . . 7-8
Unit setting. . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
Appendix 1: Prepare the Work
Record before Delivery........ A-1
Appendix 2: Repair & Inspection
Report .............................A-3
Appendix 3: Major Modification
and Repair Record ............. A-7

© Nov. 2022 iv AB22EJ Plus Maintenance Manual

AB22EJ Plus Maintenance Manual v© Nov. 2022
INTRODUCTION
Thank you for choosing and using the machinery of
Hunan Sinoboom Intelligent Equipment Co., Ltd. Al-
ways read, understand and become familiar with the
operation requirements of the machine and its associ-
ated safety procedures before operating, maintaining
and repairing the machine. Operating the machine with-
out becoming familiar with its specific operation require-
ments and safety procedures poses serious risks.
Operators who follow safety rules and operate the ma-
chine carefully and effectively will prevent personal in-
jury, property loss and accidents.
Use this machine only to transport tools to work loca-
tions and for performing tasks on the work platform. Op-
erators must be competent and must obtain training to
carefully use the machine and follow safety procedures.
Only trained and authorized personnel may operate the
machine.
This manual guides the operator in operating and using
the machine. The operator is responsible for reading,
understanding and implementing the operation and
safety procedures in this manual and for following the
manufacturer’s instructions before beginning any work.
Read, understand and follow all safety rules and oper-
ating instructions. The operator must also consider the
machine’s uses and limitations and the conditions at
the jobsite before using this machine. Strictly following
all safety requirements in this manual is critical.
Consider this manual a part of the machine, along with
Maintenance Manual and Parts Manual, and always
keep the manuals with the machine. The owner or ad-
ministrator of the machine shall offer all manuals and
other necessary information provided by the machine
manufacturer regarding the daily inspection and main-
tenance to each of the renters. If the machine is sold,
the owner or administrator must pass along the man-
uals and other necessary information to the purchaser.
The owner or administrator of the machine shall also
provide the manufacturer’s maintenance information to
the person responsible for maintaining the machine.
If you have any questions, contact Hunan Sinoboom In-
telligent Equipment Co., Ltd..

© Nov. 2022 vi AB22EJ Plus Maintenance Manual
This Page Intentionally Left Blank

AB22EJ Plus Maintenance Manual 1-1 © Nov. 2022
1SAFETY
Read, understand and comply with the safety rules and
regulations of your workplace and your government.
Before using the machine,ensure the operator is
properly trained and qualified in safely operating the
machine. The training includes but is not limited to：
•Warning and instruction decals on the machine
•Pre-operation inspection
•Any factors that may affect the machine stability
•Common hazards and countermeasures
•Jobsite inspection
•Functions of all controls and associated knowledge,
including emergency control.
•Personal protection equipment that suits the task,
workplace and environment.
•Safety operation
•Transporting the machine
•Measures against unauthorized use
•Operating instructions
Understand that as the operator you have the
responsibility and right to shut down the machine in
case of failure with the machine or other emergency at
your workplace.
NOTICE
People suffering from heart disease, hypertension,
epilepsy and other diseases and people who fear
heights must never operate or use this machine.
Also, people who have alcohol or drugs in their
system, or experience excessive fatigue or
depression, are prohibited from operating or using
this machine.
SAFETY DEFINITIONS
This safety alert symbol appears with
most safety statements. It means
attention, become alert, your safety is
involved! Please read and abide by the
message that follows the safety alert
symbol.
Indicates a hazardous situation that, if not
avoided, will result in death or serious injury.
Indicates a hazardous situation that, if not
avoided, could result in death or serious injury.
Indicates a hazardous situation that, if not
avoided, could result in minor or moderate injury.
NOTICE
Indicates a situation that can cause damage to the
engine, personal property and/or the environment, or
cause the equipment to operate improperly.
NOTE: Indicates a procedure, practice or condition that
should be followed in order for the engine or
component to function in the manner intended.
REPORTING ACCIDENTS
In case of any accident involving the machinery of
Hunan Sinoboom Intelligent Equipment Co., Ltd., notify
Hunan Sinoboom Intelligent Equipment Co., Ltd.
Immediately, even if no personal injury or property
damage occurs during the accident. Contact Hunan
Sinoboom Intelligent Equipment Co., Ltd. by telephone
and provide all necessary details. Failure to notify the
manufacturer within 48 hours of the incident involving
the machinery of Hunan Sinoboom Intelligent
Equipment Co., Ltd. may void the product's warranty.
NOTICE
Thoroughly inspect the machine and all its functions
after any accident, being sure to test first from the
ground controller and then from the platform
controller. Ensure the machine's lifting height does
not exceed 3 m(9.8 ft) until all damage has been
repaired and all controllers operate properly.

© Nov. 2022 1-2 AB22EJ Plus Maintenance Manual
SAFETY
ELECTROCUTION
HAZARDS
NOTE: This machine is not insulated and does not
have an electric shock protection function.
All operators and managers shall comply with national
or local regulations regarding the minimum safe
distance of live conductors above the ground. In the
absence of such requirements, operators and
managers should follow the minimum safety distance
requirements in Table 1-1 Minimum Safe Distance,
page 1-2.
ELECTRICAL SHOCK HAZARDS
• Always maintain a safe distance
from power lines and electrical
equipment in accordance with
applicable government
regulations and see Table 1-1
Minimum Safe Distance, page 1-2.
• Consider platform and boom
movement, wire swinging or
drooping, beware of strong winds
or gusts, and do not operate the
machine when there is lightning
or heavy rain.
• If the machine comes into contact
with live wires, keep away from
the machine. Personnel on the
ground or on the platform must
not touch or operate the machine
until the power is switched off.
• Do not use the machine as a
ground wire during welding and
polishing operations.
Table 1-1 Minimum Safe Distance
Voltage
(Phase to Phase, kV)
Minimum Safe Distance
(m/ft)
0-50 3.05 (10)
50-200 4.60 (15)
200-350 6.10 (20)
350 -500 7.62 (25)
500 -750 10.67 (35)
750 -1000 13.725 (45)
TIPPING HAZARD AND
RATED LOAD
Maximum rated load bearing capacity of the platform:
Table 1-2
AB22EJ Plus
Metric
230kg (unrestricted/2 persons & tools)
340kg (restricted/3 persons & tools)
454kg (restricted/3 persons & tools)
Imperial
507 lb (unrestricted/2 persons & tools)
750 lb (restricted/3 persons & tools)
1000 lb (restricted/3 persons & tools)

SAFETY
AB22EJ Plus Maintenance Manual 1-3 © Nov. 2022

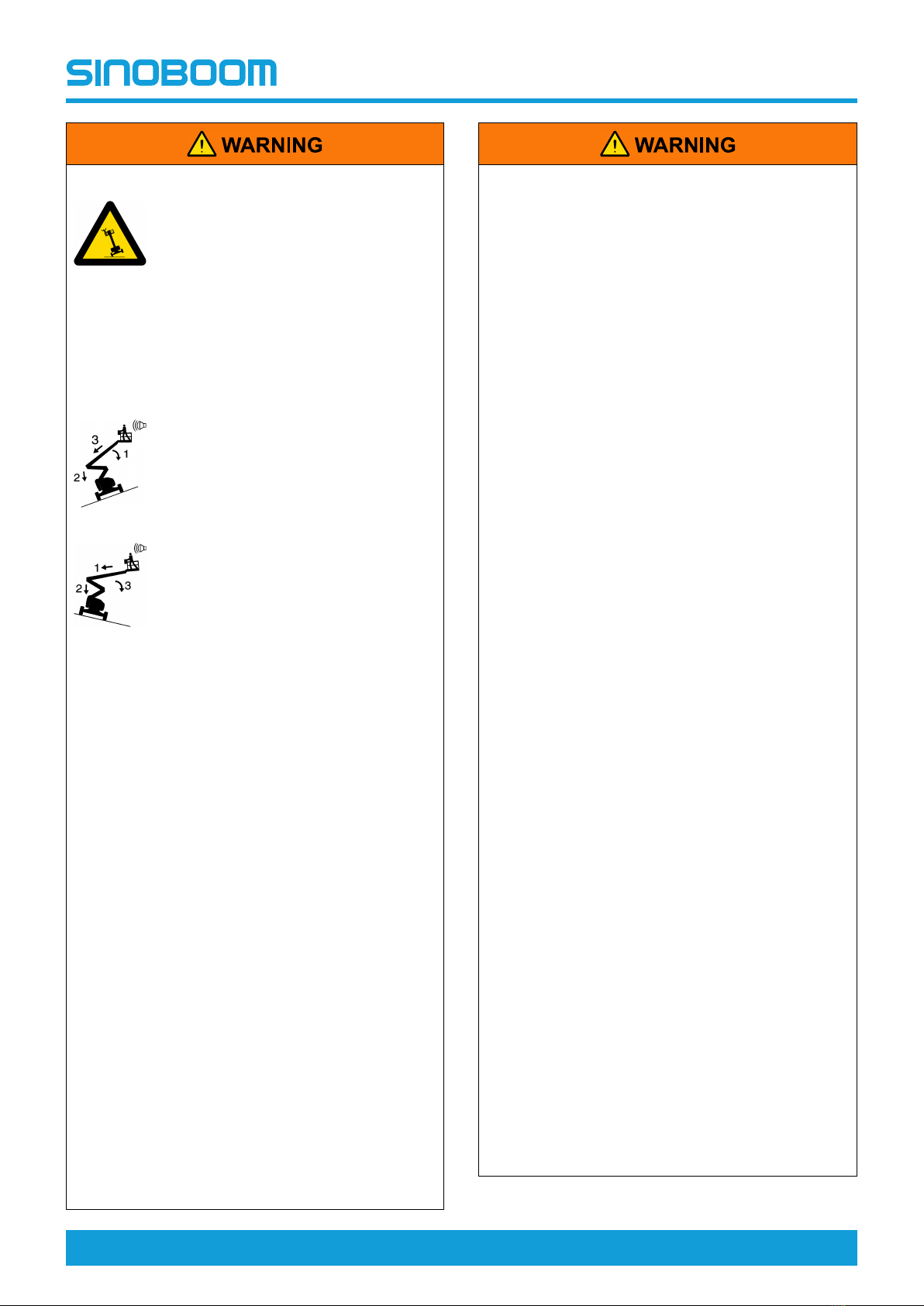

TIPPING HAZARD
• Personnel, equipment and
materials on the platform shall not
exceed the maximum load
capacity.
• Only raise or extend the boom
when the machine is on solid,
level ground.
• Select only low speed when
driving the machine on a slope.
• Do not use the tilt alarm as a level
indicator. The tilt alarm on the
platform will sound only if the
machine is heavily tilted.
• If the tilt alarm sounds when the
machine drives up a slope, please
lower the boom per the following
procedure and move the machine
onto firm level ground. Make sure
not to rotate the boom when
lowering it.
1. Lower the main boom;
2. Lower the articulated boom;
3. Retract the telescopic boom.
• If the tilt alarm sounds when the
machine drives down a slope,
please lower the boom per the
following procedure and move the
machine onto firm level ground.
Make sure not to rotate the boom
when lowering it.
1. Retract the boom;
2. Lower the articulated boom;
3. Lower the main boom.
• Do not drive the machine faster
than 1.1km/h (0.68mph) when the
platform is raised.
• When the platform is raised, the
machine cannot be driven on
uneven terrain, unstable surfaces
or in other dangerous conditions.
• Do not operate the machine in
strong or gusty wind, and do not
increase the surface area of the
platform or load. Increasing the
area exposed to the wind will
reduce the stability of the
machine.
• When the machine is driven on
uneven ground, gravel or other
uneven surfaces, or near holes
TIPPING HAZARD
and steep slopes, maintain a
minimum distance of 0.6m (2ft)
and reduce the speed.
• When on the platform, do not
push and pull objects outside of
it. The maximum lateral force
allowed is 400 N (90 lbf).
• Tow the machine only from the tie-
down/lifting points on the chassis.
• Never use the boom or platform to
stabilize or support any objects
outside of the machine.
• Do not change any machine parts
that may affect safety and
stability.
• Do not replace key parts that
affect machine stability with parts
of different weights or
specifications.
• Do not modify or change moving
aerial platforms without the
manufacturer’s prior written
permission.
• On the platform, do not attach an
additional device for placing tools
or other materials to the guardrail.
This will increase the platform
weight, surface area and load.
• Do not place or fasten any
overhanging load on or to any
part of this machine.
• Do not place ladders or
scaffolding on the platform or
against any parts of the machine.
• Do not operate the machine on a
moving or active surface or on a
vehicle. Ensure all tires are in
good condition, the slotted nuts
tightened and the cotter pins
complete.
• Do not use any battery that
weighs less than the original one
(375kg [827 lb]) or the original
lithium battery (155kg [342 lb]),
and do not remove or modify the
counterweight or other parts in
the battery box. The battery not
only provides power, but also
serves as a counterweight. The
battery is vital to maintaining the
stability of the machine.

© Nov. 2022 1-4 AB22EJ Plus Maintenance Manual
SAFETY
TIPPING HAZARD
• Do not use the platform or boom
assembly to push other machines
or objects.
• Do not allow the platform or boom
assembly touch nearby
structures.
• Do not tie off the platform with
rope or other binding materials to
the nearby structures.
• Do not put any load outside the
platform.
• When the platform is caught or
stuck or when other objects in the
vicinity impede its normal
movement, do not use the
platform controller to lower the
platform. If you intend to lower the
platform with the ground
controller, you must operate it
only after all personnel have left
the platform.
WORK ENVIRONMENT
HAZARDS
UNSAFE JOBSITE HAZARDS
• Do not operate the machine on
surfaces, edges or potholes that
cannot bear the weight of the
machine. Raise or extend the
boom only when the machine is
on firm, flat ground.
• Never travel on uneven terrain or
unstable surfaces or in other
dangerous conditions when the
platform is raised.
• When the machine is on rough
ground with gravel or other
uneven surfaces, or near holes
and steep slopes, maintain a
minimum distance of 0.6m (2ft)
and reduce the speed.
• Do not use the tilt alarm as a level
indicator. The tilt alarm on the
platform will sound only when the
machine is heavily tilted.
• If the tilt alarm sounds when the
machine drives up a slope, lower
the boom as per the following
procedures and move the
machine onto firm level ground.
Make sure not to rotate the boom
while lowering the boom.
1. Lower the main boom;
2. Lower the articulated boom;
3. Retract the telescopic boom.
• If the tilt alarm sounds when the
machine drives down a slope,
lower the boom as per the
following procedures and move
the machine onto firm level
ground. Make sure not to rotate
the boom while lowering the
boom.
1. Retract the telescopic boom;
2. Lower the articulated boom;
3. Lower the main boom.
• The drive speed should not
exceed 1.1 km/h (0.68 mph) when
the platform is raised.
• If the machine can be used
outdoors, never operate it in

SAFETY
AB22EJ Plus Maintenance Manual 1-5 © Nov. 2022
UNSAFE JOBSITE HAZARDS
strong or gusty wind. Do not lift
the platform when the wind speed
exceeds 12.5 m/s (28 mph). If the
wind speed exceeds 12.5 m/s (28
mph) after the platform is raised,
lower the platform and stop
operating the machine.
• Do not use any device that may
increase the wind load on the
machine.
• Do not drive or lift the machine on
slopes, steps or vaulted surfaces
that exceed the maximum
gradeability of the machine.
UNSAFE JOBSITE HAZARDS
• Do not lift the machine and drive
the machine sideways on slopes
greater than 5°.
Before or during the operation of machine, check the
jobsite for possible hazards, and pay attention to
environmental restrictions, including flammable and
explosive gases/dust. If the machine is to be used in
any special workplace or by any special work method
other than those specified by Hunan Sinoboom
Intelligent Equipment Co., Ltd., the manufacturer’s
approval and guidance should be obtained first.
Table 1-3
BEAUFORT
SCALE
METERS/
SECOND
MILE/
HOUR
DESCRIPTI-
ON GROUND CONDITION
0 0～0.2 0～0.5 Calm Calm. Smoke rises vertically.
1 0.3～1.5 1～3Light air Wind motion visible in smoke.
2 1.6～3.3 4～7Light breeze Wind felt on exposed skin. Leaves rustle.
3 3.4～5.4 8～12 Gentle
breeze Leaves and smaller twigs in constant motion.
4 5.5～7.9 13～18 Moderate
breeze
Dust and loose paper rise. Small branches begin
to move.
5 8.0～10.7 19～24 Fresh breeze Smaller trees sway.
6 10.8～13.8 25～31 Strong
breeze
Large branches in motion. Flags waving near
horizontal. Umbrella use becomes difficult.
7 13.9～17.1 32～38
Near gale/
moderate
gale
Whole trees in motion. Effort needed to walk
against the wind.
8 17.2～20.7 39～46 Fresh gale Twigs broken from trees. Cars veer on road.
9 20.8～24.4 47～54 Strong gale Light structure damage.
NOTICE
Maximum gradeability is applicable for machines with
platform retracted. The maximum climbing angle of
the machine: 40%/21°.
Gradeability refers to the maximum allowable tilt
angle of the machine when it is on solid ground and
the platform is only carrying one person. As the
weight of the machine’s platform increases, the
machine’s climbing capacity will be decreased.
GRADEABILITY:
Uphill: 40%/21°

© Nov. 2022 1-6 AB22EJ Plus Maintenance Manual
SAFETY
Downhill: 30%/16.5°
Sideslope: 25%/14°
UNSAFE OPERATION
HAZARDS
At a minimum, operators must operate and maintain the
machine as stated in the Operation Manual and the
Maintenance Manual in addition to following more
stringent industry regulations and workplace rules.
Do not use the machine in the following situations:
•Unrelated personnel/equipment is present in the
working envelope of the machine.
•Use as a crane (except the custom-made ones with
such function).
•Use on the truck, trailer, tracked vehicle, ship,
scaffold and the like without written consent by the
manufacturer or qualified professionals.
•Improper securing of the machine to another object
by just leaning, fastening or binding.
•Stunt or imprudent use of the machine.
•Overloaded or over-moment situation.
•Other prohibited conditions specified in the
Operation Manual and the Maintenance Manual.
UNSAFE OPERATION HAZARDS
• Do not push/pull any object
outside the platform. The
maximum lateral force allowed
is 400N (90 lbf).
• Tow the machine only from the
tie-down/lifting points on the
chassis.
• Never use the boom or platform
to stabilize or support any
objects outside the machine.
• Do not modify any component
that may affect the machine
safety and stability.
• Do not replace key parts that
affect machine stability with
parts of different weights or
specifications.
• Do not change or modify
moving aerial work platforms
without the manufacturer’s
written permission.
• On the platform, do not attach
an additional device for placing
tools or other materials to the
guardrail. This will increase the
platform weight, surface area
and load.
• Do not put ladders or
scaffolding on the platform or
against any part of this
machine.
• Do not use additional devices
to increase the working height
of the machine.
• Do not use the machine on any
mobile or movable surface or
vehicle. Ensure all tires are in
good condition, the slotted nuts
tightened and the cotter pins
complete.
• Do not use a battery that
weighs less than the original
storage battery (375kg [827 lb]
or the original lithium battery
(155kg [342 lb], and do not
remove or modify the
counterweight or other parts
inside the battery box. The
battery not only provides
power, but also serves as a
counterweight. The battery is
vital to maintaining the stability
of the machine.
