SinoCon KonNad C2000-D2-DCTZ02 User manual
Last updated: 2019-12-26
C2000-D2-DCTZ02
User Manual
ZigBee Gateway
Sensor — ZigBee Gateway
SinoCon Co., Ltd.
Copyright Notice
©2000 - 2019 SinoCon Co., Ltd. All Rights Reserved.
Trademarks
The KonNaD logo is a registered trademark of SinoCon Co., Ltd. All other trademarks or registered marks in this
manual belong to their respective manufacturers.
Disclaimer
This document only provides information about KonNaD products. No license to any intellectual property rights is
granted by this document, including any intellectual property licenses, expressed or implied, or by any means.
SinoCon assumes no responsibility other than the liability stated by SinoCon in the terms and conditions of sale of
its products and SinoCon makes no warranties regarding the sale or use of KonNaD products, including the
suitability for the specific use of the products, and marketability, and SinoCon doesn't guarantee that it won't
infringe any patent, copyright or other intellectual property rights, etc.
Information in this document is subject to change without notice and does not represent a commitment on the
part of SinoCon.
Contact US
SinoCon Co., Ltd.
Address: 16th Floor, Tower A, Zhongyin Building, Caitian Road, Futian District, Shenzhen, China
Web: www.sinoconsys.com
Tel: +86 0755-88865168
C2000-D2-DCTZ02 User Manual
3 / 11
SinoCon Co., Ltd. www.sinoconsys.com
C2000-D2-DCTZ02 User Manual
4 / 11
SinoCon Co., Ltd. www.sinoconsys.com
1. Hardware Description
1.1. Specifications
Classification Parameter Specification
Ethernet No. of Ports 1
Bandwidth 10/100M
Communication Distance 100m
Industrial Protocols Modbus TCP
Response Time < 500ms
Transmitter Power ≥ 4.5dBm
Serial Interface Serial Standard RS485
No. of Ports 1
Connector Terminal block
Communication Distance 1200m
Support No. of Temperature & Humidity 65
Power Power Connector Terminal block
Input Voltage 9~27VDC
Physical Characteristics Dimensions 75*105*30mm+171*37mm
Installation Din-rail or wall
Environmental Limits Operating Temperature -10℃ ~ 55℃
Ambient Relative Humidity 5% ~ 95% RH, non-condensing
C2000-D2-DCTZ02 User Manual
5 / 11
SinoCon Co., Ltd. www.sinoconsys.com
1.3. Indicators
Classification Indicator Description Meaning
ZigBee ZB ZigBee data
receive/transmit
indicator
Flashing：ZigBee transmitting data
Off：ZigBee no transmitting data
Downstream
Serial Port
Px RS485 data
receive/transmit
indicator
Steady on：RS485 line fault，please check if the
positive and negative poles of 485 line are reversed
Flashing：RS485 receiving/transmitting data
Off：RS485 no receiving/transmitting data
Ethernet SPD 10/100Mbps
indicator
Steady on：100M network connected
Off：Not connected to the 100M network
LINK Network status
indicator
Steady on：Network connection enabled
Flashing：Transmit or receive data
Off：The network port is not plugged into the
network cable
Power PWR Power indicator Steady on：Normal power supply
Off：No power or abnormal power supply, please
check if the voltage range is 9~27VDC
C2000-D2-DCTZ02 User Manual
7 / 11
SinoCon Co., Ltd. www.sinoconsys.com
1.4. Port Description
Classification Port Description Recommended
wiring
ANT ANT ZigBee antenna, standard SMA female antenna
interface
-
Ethernet Ethernet RJ45 Ethernet port CAT-5e
Downstream Serial
Port
+、-、
GND
RS485+, RS485-, GND (downward) RVSP 3*0.5
DEBUG PORT +、- RS485 debug port positive, RS485 debug port
negative
RVSP 2*0.5
Power Input V+、V- Power supply input positive, power supply input
negative
RVV 2*1.0
C2000-D2-DCTZ02 User Manual
8 / 11
SinoCon Co., Ltd. www.sinoconsys.com
3. Warranty Policy
In the normal use of the products you purchased, free warranty service will be provided from the date of
purchase whenever the quality problems caused by raw materials or production process are concerned. However,
due to the user's failure to install, disassemble or improperly use the product according to the requirements of this
product manual, the company provides maintenance services, but charges appropriate maintenance fees. The
warranty period is as follows:
Product category Warranty Period
Shelled product 6years
Unshelled product 3years
Note: Accessories are not covered by warranty.
Warranty Terms:
1. From the date of purchase, in the case of normal use (determined by the company's authorized
technicians), the failed product will be repaired free of charge during the warranty period.
2. Products that have been repaired or modified by a maintenance personnel other than our company
during the warranty period, or that have been improperly installed, incorrectly input voltage, improperly
used, accidental events or natural disasters, etc., are not covered by the warranty.
3. Before accepting the warranty service, the customer is required to prove the date of purchase of the
product by presenting the warranty card or purchasing the invoice. Otherwise, the warranty cannot be
guaranteed.
4. For all warranty or repair products, the customer bears the risk of shipping and shipping costs.
5. If the product exceeds the warranty period or does not meet the warranty requirements, the company will
provide charge maintenance.
6. The warranty terms for customized and ODM products should be defined in the contract.
7. Other verbal commitments that conflict with this warranty would be executed with reference to this
warranty.
8. Our company's responsibility for the manufacture, sale and use of the products shall not exceed the
original cost of the products. The company does not assume any joint responsibility.
9. The right to interpret this clause belongs to the company.
C2000-D2-DCTZ02 User Manual
11 / 11
SinoCon Co., Ltd. www.sinoconsys.com
Table of contents
Popular Gateway manuals by other brands
RFI

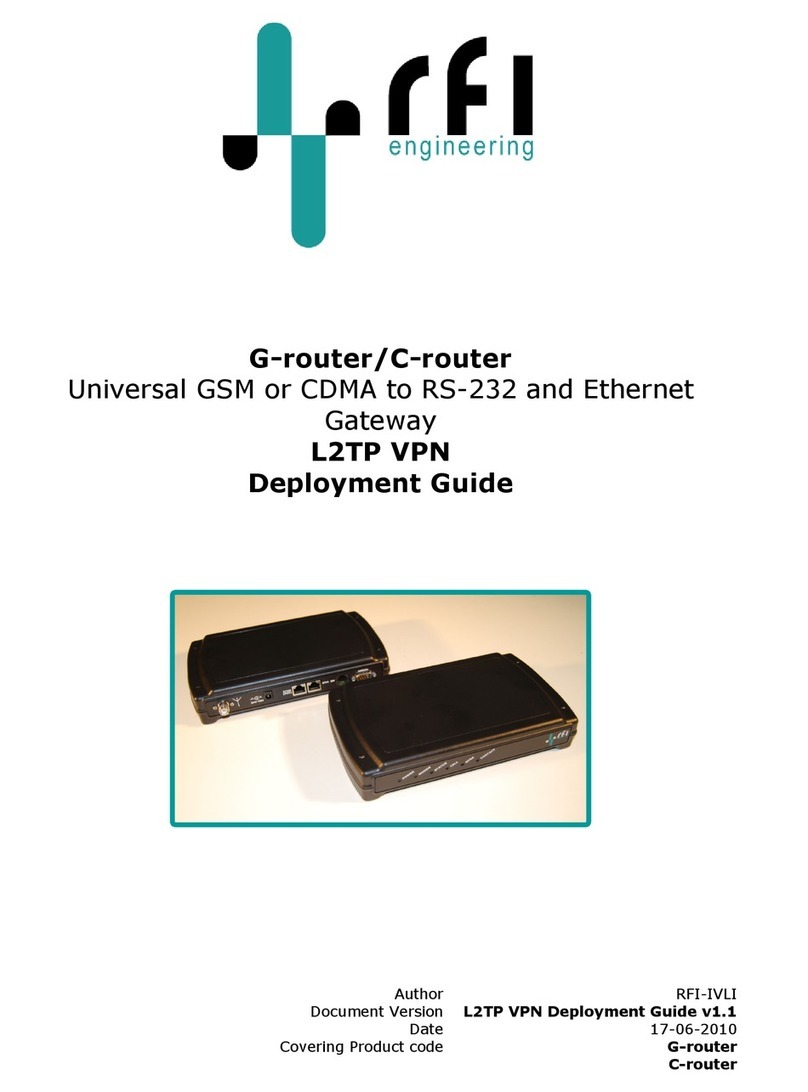

RFI L2TP VPN Deployment guide
