SIP Tempest PH540/150 User manual

WARNING. Read the instructions before using the
machine
SIP Tempest PH540/150
Hot Wash Pressure Washer
SIP Code: 08954

1

2

5
EN
WARNING
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
Read and keep in mind that indicated in the
INSTRUCTION MANUAL  SAFETY WARNINGS.
1 GENERAL INFORMATION
Congratulations for choosing one of our products. We would like to remind you that we took the safety
of the operator, the eciency of its use and the protection of the environment into great consideration
when designing and manufacturing this product.
In order to preserve its features over time, please read and follow these instructions carefully.
Particular attention must be awarded to the parts with the following symbol:
WARNING
as they contain important instructions regarding safety when using the water cleaner.
The Manufacturer is not liable for damage caused by:
• failure to comply with these instructions;
• use of the water cleaner not included in the “Intended Use” section;
• failure to comply with current safety regulations and regulations for the prevention of accidents in the
workplace;
• incorrect installation;
• failure to carry out the prescribed maintenance;
• modications or actions without the authorisation by the Manufacturer;
• use of non-original or unsuitable spare parts for this model of water cleaner;
• repairs which were not carried out by a Skilled Technician.
1.1addrEss of thE ManufacturEr
The address of the manufacturer is given in the declaration of conformity at the end of this part of the
instruction manual.
1.2usE and consErvatIon of thEsE opEratIng and MaIntEnancE Manual
The operating and maintenance instructions are an integral part of the water cleaner and they must be
kept in a safe place for future reference so that they may be readily consulted in case of need.
The operating and maintenance instructions contain important information for the safety of the operator
and of any people near him and for the protection of the environment.
In case of deterioration or loss, a new copy should be requested from the dealer or from an authorised
service centre.
If the water cleaner is passed on to a third party, please make sure these operating and maintenance
instructions are also given to the new owner.
We take great care when drawing up our instructions. If you note any mistakes, please do inform the
Manufacturer or an authorised service centre.
The Manufacturer reserves the right to modify, update and correct these instructions without notice.
It is illegal to copy these instructions, even partially, without prior authorisation by the Manufacturer.
1.3syMbols and tErMs
1.3.1SymbolS
The symbol: WARNING
next to certain parts of the text, is to indicate that there is the rm possibility of injury to persons if the
relative instructions and indications are not followed.
The symbol:
CAUTION
next to certain parts of the text is to indicate that there is the possibility of damaging the water cleaner if
the relative instructions are not followed.
1.3.2termS
• SkilledTechnician: a person, generally from the service centre, who has received appropriate training and
is authorised to carry out special maintenance and repairs on the water cleaner. Any work on is electrical
parts must be carried out by a Skilled Technician who is also a Qualied Eletrician, i.e. a person with
professional training who is authorised to check, install and repair electrical equipment correctly and
EN

6
according to current regulations in the country where the water cleaner is installed.
• Total Stop: this stops operation of the water cleaner every time the control lever on the cleaner gun is
released.
• Easy Start: this aids starting up the water cleaner by lowering the pressure for the rst moments of its
operation.
2 FEATURES AND TECHNICAL SPECIFICATIONS
SIP Tempest PH540/150
ELECTRICAL CONNECTION
Mains power supply 230 V / 1~50 Hz
Absorbed power 2,7 kW
Fuse
13A
HYDRAULIC CONNECTION
Maximum inlet water temperature 40 °C / 104 °F
Minimum inlet water temperature 5 °C / 41 °F
Minimum inlet water ow
700 l/h
Maximum inlet water pressure 0,8 MPa / 8 bar / 116 psi
Maximum priming depth 0 m / 0 ft
PERFORMANCE
Maximum water ow
540 l/h
Maximum pressure
15 MPa / 150 bar / 2176 psi
Maximum water outlet temperature 90 °C - 194 °F
Recoil of cleaner gun 21,4 N
Sound level 82 dB (A)
Operator arm vibrations 1,7 m/s²
WEIGHT AND DIMENSION
Lenght x width x height 890 x 500 x 820 mm / 35 x 19,7 x 32,3 in
Weight
87 kg / 191,8 lb
Diesel tank capacity 20 l
Detergent tank capacity
4,5 l
All features and technical specications are only indications.
The Manufacturer reserves the right to modify the appliance as it deems necessary..
2.1IdEntIfIcatIon of coMponEnts

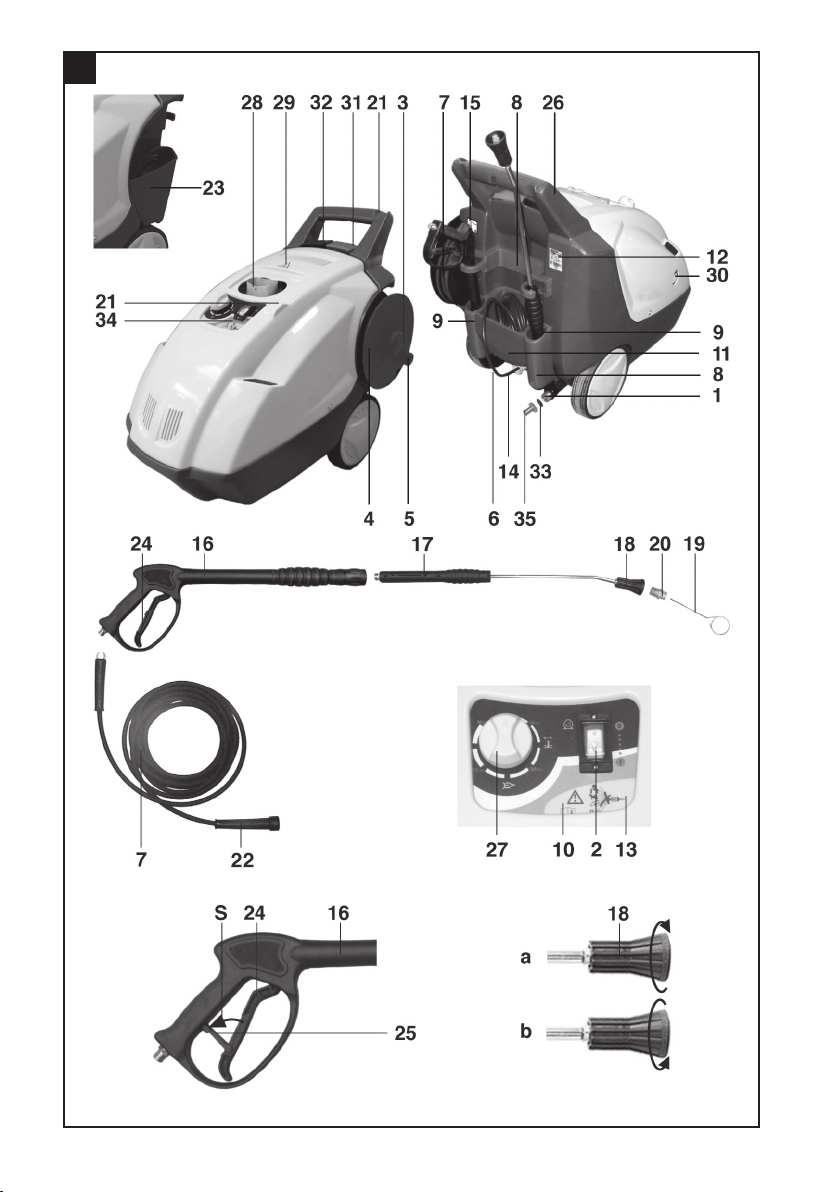

Please also refer to gures 1 to 2, which are located at the start of these operating and maintenance
instructions.
(continues on the next page)
1. Water inlet connector
2. Main switch
3. Hose reel ring nut
4. Hose reel
5. Hose reel knob
6. N/A
7. High pressure hose
8. Accessory tray
9. Seat for water gun/lance hose
11. Object-holding pocket
10. Plate“Read the manual before...”
12. Identication plate
13. Plate“Do not spray towards persons,...”
14. Power supply wire
15. Plate“Guaranteed sound power ”
16. Water gun
17. Lance hose
18. Nozzle-holding head
19. Nozzle cleaning hole
20. Nozzle
21. Lance stand
22. N/A
23. N/A
24. Water gun lever
25. Water gun lever safety stop

7
2.2safEty dEvIcEs
This water cleaner is provided with the following safety devices:
a) Amperometric protector
It is a device that is built in the switch (2) that stops the water cleaner operation in case of current over-
absorption, thus making the switch itself trigger to position“0”.
When it triggers, it is necessary to proceed as follows:
- remove the plug from the power socket;
- press the lever (24) of the water gun, in order to evacuate the possible rest pressure;
- wait 10÷15minutes, so that the water cleaner cools down;
- check the prescriptions described in paragraph “Checks and Connection to the Mains Electricity
Supply”, with special reference to the check of the possibly used extension;
- reconnect the plug into the power socket and repeat the starting procedure described in paragraph
“OPERATION”.
b) Safety valve
It is a maximum pressure valve that is duly calibrated by the Producer and that discharges the pressure
in excess, in case of failure to the pressure and/or temperature adjusting system.
WARNING
• If this safety device cuts in repeatedly, do not use the water cleaner until it has been checked by a Skilled
Technician.
c) Pressure limiting/adjusting valve
It is a valve that is duly calibrated by the Producer and that avoids the generation of pressures that are
higher than the maximum allowed ones, thus making the uid in excess ow back to the pump suction.
d) Temperature limiting/adjusting thermostat
It is a device that avoids to overcome the maximum temperature.
e) Water missing protection
It is a device that prevents the burner from operating in case of water absence.
f) Locking device of the water gun lever
It is a safety stop (25) that allows to block the lever (24) of the water gun (16) in closing position, thus
preventing accidental operations (see picture 1, position S).
2.3IntEndEd usE
WARNING
• This water cleaner is to be used exclusively for:
- cleaningvehicles,machinery,buildings,tools etcwithcold water,possiblywiththe addition ofdetergents
as per the Manufacturer’s instructions;
- distributing detergents as per the Manufacturer’s instructions;
- removing lime scale and unblocking pipe work using the appropriate tools as per the Manufacturer’s
instructions;
- water sanding objects using the appropriate tools as per the Manufacturer’s instructions;
• The water cleaner must not be used to wash people, animals, energized electrical appliances, delicate
objects or the high pressure cleaner itself.
• The high pressure cleaner is not suitable for use in certain situations such as in corrosive or explosive
atmospheres.
• Contact the Manufacturer’s service centre before use on board vehicles, ships or airplanes, as there may be
additional instructions for use.
Any other use is considered improper.
The Manufacturer is not liable for any damage caused by improper or incorrect use.
2.1 Identication of Components (continues)
26. Handle
27. Water adjusting knob
28. Stack
29. Plate“Caution: Hot surfaces”
30. Pressure gauge
31. Detergent tank plug
32. Gas oil tank plug
33. Water suction lter/gasket
34. Control panel
35. Water suction connector
EN

8
3 REMOVING THE APPLIANCE FROM ITS PACKING MATERIALS
WARNING
• Protective gloves and glasses must be worn when removing the appliance from the packing materials to
prevent injury to the hands and eyes.
• The packing materials(plastic bags,staples etc.)must notbe left in reachof children, as they are potentially
dangerous.
• The packing materialsmust be disposed ofaccording to current regulationsin the country wherethe water
cleaner is installed.
Inparticular,plastic bagsand packagingmustnever beabandoned,astheyareharmfultotheenvironment.
• After removing the appliance from the packing materials, check that no parts are missing.
In case of doubt, do not use the water cleaner but contact an authorised service centre so that a Skilled
Technician can check the appliance.
3.1IdEntIfIcatIon labEl and WarnIng labEls
See Fig. 1 at the front of these operating and maintenance instructions.
The identication label (12) contains the serial number and the main technical specications of the water
cleaner.
The warning labels (10 ; 13) inform you of any other risks, such as: do not use the high pressure cleaner
unless you have read the instructions manual; do not use the high pressure cleaner for washing people,
animals, electrical equipment or the high-pressure cleaner itself.
Warning plate (29): informs about a burning danger that is due to the contact with hot parts that are to
be found near the plate itself.
Warning plate (15): informs about the sound pressure value that is guaranteed by the water cleaner.
WARNING
• After removingthe appliance from thepacking materials, check thatthe identication labeland thewarning
labels are present and are legible. If this is not the case, contact your dealer or an authorised service centre
so they can be replaced.
• If the identication label and thewarninglabels deteriorate duringuse,contact yourdealer or an authorised
service centre so they can be replaced.
3.2standard accEssorIEs
Make sure that in the product package that was bought there are the following elements:
• SIP high-pressure water cleaner;
• hose reel complete with high-pressure delivery pipe
• water gun;
• lance hose;
• accessory bag containing:
- nozzle
- nozzle cleaning pin,
- water suction connector
- water suction filter/gasket;
- use and maintenance manual;
- guarantee certificate.
In case of problems, apply to the dealer or to an authorised service centre.
3.3optIonal accEssorIEs
WARNING
• The operation of the water cleaner may be impaired if unsuitable accessories are used and they may even
make it dangerous. Only use original accessories endorsed by the Manufacturer.
Refer to thedocuments providedwith the optional accessories forinformation regardingtheir general use,
safety warnings, installation and maintenance.
• Some accessories have a maximum operating temperature that is lower that the maximum one that can

9
be reached by the water cleaner: with these accessories it is therefore necessary to limit the temperature,
by operating on knob (27) in the due way.
It is possible to build in the standard equipment of the water cleaner with a rich range of accessories.
To buy them, apply to the dealer or to an authorised service centre.
3.3.1optional acceSSorieS with max. operating temperature lower than 90 °c/194 °f
• Pipe draining probe: maximum operating temperature 60 °C/140 °F.
• Rotating nozzle lance hose: maximum operating temperature 60 °C/140 °F (there is also a professional
version with maximum operating temperature of 100 °C/212 °F).
• Floor-washing lance: maximum operating temperature 60 °C/140 °F.
• Rotating water jet brush: maximum operating temperature 60 °C/140 °F.
4 INSTALLATION
See Fig. 2 at the front of these operating and maintenance instructions
4.1assEMblIng thE accEssorIEs
a) Assemble the xed fan-like jet professional nozzle (20) on the nozzle-holding head (18), by tightening
well with a 14-mm socket wrench (not supplied). Operation A of Fig. 2.
b) Screw the end of the high-pressure hose (7) (side without fast coupling for CLASSIC) on the water gun
thread (16) and tighten well with two open end 17-mm wrenches (not supplied). Operation B of Fig.2.
c) Engage the lance hose (17) onto the water gun (16) and screw well. Operation G of Fig. 2.
d) Unwind the high-pressure hose (7), insert the fast-coupling connector (22) onto the water outlet
connector (6), screw and tighten the ring nut by hand (only CLASSIC). Operation C of Fig. 2.
e) Insert the water suction lter/gasket (33) into the water inlet connector (1), by paying attention to position
the projecting side of the lter inside the connector and screw well the water suction connector (35).
Operation D of Fig. 2
4.2chEcks and connEctIon to thE MaIns WatEr supply
CAUTION
• The water supply must be able to guarantee the adequate delivery of water ow to the high pressure
cleaner; refer to the table of technical specications.
In case of doubt, contact a Skilled Technician.
• Do not supply the water cleaner with water at a temperature in excess of 40°C/104°F or below 5°C/41°F.
• The pressure of the water supply must not be in excess of 8 bar/116 psi.
• Do not operate the high pressure cleaner with a priming depth in excess of 0 m/0 ft.
• Do not operate the high pressure cleaner if it is not connected to a water supply.
• Do not supply the high pressure cleaner with salt water or water containing impurities. In this event,
run the high pressure cleaner for a few minutes with clean water.
WARNING
• Followcurrent regulationsfor connection tothe mains watersupply inthecountrywhere the watercleaner
is installed.
4.3chEcks and connEctIon to thE MaIns ElEctrIcIty supply
WARNING
• A Skilled Technician must check that the electrical supply complies with the data indicated on the
identication label(12) on the highpressure cleaner. It is especially important that the supplyvoltage does
not dier more than ±5% from that indicated on the label.
• All connections to mains electricity must be carried out by a Qualied Eletrician according to IEC364
regulations or the equivalent standard in the country where the high pressure cleaner is to be used. It is
especially important that the current outlet where the high pressure cleaner is connected is provided with
an earth conductor anda suitable fuse(accordingto the size indicated onthe identicationlabel and inthe
tableoftechnicalspecications),andmustbeprotected by a magneto-thermal dierential circuit breaker,
whose sensitivity is not in excess of 30 mA.
EN

10
• Ifthepowersupplycableistooshort, anextensioncordcanbeusedprovideditis notlongerthan10m/32.8ft,
thesection of the wires is at least 1,5mm²andtheplugandthesocketare waterproof. Contact a Qualied
Eletrician so that all these requirements are followed.
The use of unsuitable extension cords can be dangerous.
5 OPERATION
WARNING
• The high pressure cleaner must be used with care and attention. It is your responsibility to make sure that
any infrequent users have read these instructions and are acquainted with the operation of the water
cleaner; otherwise do not allow others to use the high pressure cleaner. Water cleaners must not be used
by children or by unauthorised personnel.
• Comply withthe safety warnings inthe operatingand maintenance instructionsof anyoptional accessories
to be used.
• Do not use the high pressure cleaner if:
- the power supply cable or other important parts such as the high pressure pipe, the safety devices, the
cleaner gun and the lance are damaged;
- the high pressure cleaner has been tipped over or has been bumped;
- there are obvious leaks of water.
In these circumstances, the water cleaner should be tested by a Skilled Technician.
• It is especially important to pay great attention when the high pressure cleaner is used in areas where
there are moving vehicles as these can crush or damage the power supply cable, the high pressure pipe,
the cleaner gun etc.
• During operation, never leave the water cleaner unattended and make sure it is out of children’s reach. Pay
particular attention when usingit in kindergartens, nursinghomes and old people’s homes, asunsupervised
children, elderly people and disabled people may be present in such places.
• Before using the water cleaner, make sure it is in a dry place and that it is in a at and stable position in
order to avoid accidents and prevent it from falling over.
• Before moving the water cleaner, follow the instructions in the “Switching o” section.
• Before starting the water cleaner, put on clothing which guarantees adequate protection against the
possibility of incorrect manoeuvres of the jet of pressurised water. Do not operate the water cleaner near
people unless they are also wearing protective clothing.
• High-pressure jets of water can be dangerous if they are not used properly. Do not point the jet in the
direction of people, animals, and energized electrical appliances or towards the water cleaner itself.
• Hold the cleaner gun rmly during use: when operating the lever (24), the operator is subjected to the
backlash of the high pressure. The power of this recoil is indicated in the table of technical specications
(recoil is expressed in N, where 1 N = 0.1 kg).
• Do not point the jet towards oneself or other people in order to clean o clothing or footwear.
• To protectthe environment,vehicle engines and machinery with oil-pressure circuitsmustonlybe cleaned
in areas with a suitable oil trap.
• Vehicle tyres must be cleaned at a distance of at least 50 cm/19 in to safeguard them from being damaged
by the high-pressure jet. The rst evidence of damage to a tyre is a change in colour.
• Do notpointthehigh-pressure jettowardsmaterials, whichcontainasbestos or otherharmfulsubstances.
• Do not use the water cleaner in the rain.
• Pay particular attention to the instructions in the “Checks and connection to the mains electricity
supply” section.
• Pay particular attention to the instructions in the “Use with detergents” section.
• When the water cleaner is not in use, do not leave its plug in the power outlet and disconnect it before any
activity. More precisely, make sure that the mains switch (2) is in position “0”, remove the plug from the
power outlet, press the lever(24) on the cleaner gun to eliminate any remaining pressure and bring the
safety catch in its locked position(25) (Fig.1 - position S):
- before leaving the high power cleaner unattended, even for only a short time;
- after use; in addition, wait until the high pressure cleaner has completely cooled down before cleaning
or maintenance.
• During use, do not lock the lever (24) on the cleaner gun in the open position.
• Do not remove the plug from the power outlet by pulling on the power supply cable.
• Do not put any reducers or adaptors between the electric plug and the power outlet.

11
• Keep the power supply cable, any extension cords, the plugs and the outlets dry. Do not touch them with
wet hands.
• If the supply cord is damaged,it mustbe replaced by the Manufactureror byaSkilled Technician, in order
to avoid a hazard.
• Use only Diesel for motor driving. The use of any other fuel can be dangerous.
• During the operation, do not cover the water cleaner and do not place it where its ventilation could be
impaired; never cover the stack (28) emitting the boiler exhaust gases.
• When you use the water cleaner in closet environments, make sure that the exhaust gases are evacuated
in the correct way and that there is a correct ventilation (poisoning danger).
• Never bend onto the stack (28), nor touch it with bare hands (burning danger).
WARNING
• If you use the water cleaner at room temperature that is higher than 40 °C/104 °F, do not let it directly
under the sun.
• If the water cleaner is used beyond 1000 m/3280 ft of height, apply to a SkilledTechnician for a check
and a possible combustion adjustment.
5.1prElIMInary procEdurEs
• Unroll the high-pressure pipe (7) completely.
If you have a model equipped with hose reel (4), unlock the device by rotating the ring nut in counter-
clockwise direction (3); unwind the hose quantity that you need, by rotating it in counter-clockwise
direction by using knob (5); lock the device by rotating the ring nut (3) in clockwise direction.
• Fix a supply hose having an inner diameter of 18 mm/0.7 in. to the water suction connector (35), by
tightening with a suitable collar clamp. Operation D of Fig. 2.
• Open the water supply tap, by paying attention that there is no dropping. Operation E of Fig. 2.
• Make sure that the main switch (2) and the temperature adjusting knob (27) are set to o (position“0”)
and engage the plug in the power supply socket. Operation F of Fig. 2.
• Set the main switch (2) to position“1”.
• Press the cleaner gun’s control lever (24) and wait for a continuous jet of water to be issued.
• Turn the main switch (2) to position“0” and connect the lance pipe (16)) to the cleaner gun (17).
5.2standard opEratIon (hIgh prEssurE) WIth cold WatEr
• Check that the temperature adjusting knob (27) is set to o (position “0”) and that the nozzle-holding
head (18) is not set to detergent supply (see also paragraph “Operation with detergent”).
• Restart the water cleaner by setting the main switch (2) to“1”.
Note: during this restart phase, the high pressure cleaner will immediately stop operating after the initial
peak, as the Total Stop device will take eect.
• Use the cleaner gun’s lever (24) to start operation of the high pressure cleaner and thus start cleaning.
• The pressure value can be read on the pressure indicator (30).
5.3standard opEratIon (hIgh prEssurE) WIth hot WatEr
WARNING
• During the lling/topping-up operations of the gas oil tank, pay attention not to confuse the tanks. If
you pour gas oil into the detergent tank by mistake, do not use the water cleaner and apply to a Skilled
Technician.
• During the lling operations of the gas oil tank, pay attention not to pour liquid onto the water cleaner.
In case this happens, wait at least 24 hours before restarting the water cleaner, so that the uid that has
possibly entered the device can evaporate.
• Remove the plug (32) and by paying attention not to make the uid overow (we recommend to use a
funnel only for this operation), ll the tank (max. capacity of 20 l/5.3 US gal) with gas oil for motor driving;
close the tank.
CAUTION
• The use of agricultural gas oil for heating or dirt causes excessive deposits onto the burner, thus
impairing its good operation.
EN

12
• Check that the nozzle-holding head (18) is not set to detergent supply (see also paragraph “Operation
with detergent”).
• Restart the water cleaner by setting the main switch (2) to“1”.
Note: during this starting-up the water cleaner stops immediately after the starting pickup, because the
Total Stop device is activated.
• Rotate the temperature adjusting knob (27) in order to select the wished temperature.
• Operate the water cleaner, thus starting the washing operations; you only need to activate the lever (24)
of the water gun.
• The pressure value can be read from the pressure gauge (30).
• If you wish to shift from the operation with hot water to the one with cold water, set the temperature
adjusting knob (27) to“0”.
CAUTION
• Periodically check the gas oil level in the tank and ll it before it empties completely.
• The burner starts to work only after approx. three seconds from the water gun opening and stops when
the water gun is closed or when the set temperature is reached.
5.4usE WIth dEtErgEnts
WARNING
• The high pressure cleanerwas designedto be used with thedetergents recommended by the Manufacturer.
Use of other detergents or chemicals can aect the safety of the high pressure cleaner.
Never suck up liquids, which contain solvents, petrol, diluents, acetone and fuel oil, as these products are
highly inammable, explosive and toxic when nebulized.
• Carefully read the instructions and warnings on the label of the detergent to be used.
• Store detergents in a safe place out of children’s reach.
• Should detergentcome into contactwith youreyes, washimmediately with water. Contact adoctor without
delay and remember to take the container of detergent with you.
• If detergent is swallowed, do not provoke vomiting. Contact a doctor without delay and remember to take
the container of detergent with you.
• When lling the tank with detergent, take care not to spill any detergent on the high pressure cleaner. If
this should happen, wait at least 24 hours before using the high pressure cleaner so that any liquid, which
may have entered the appliance, can evaporate.
The recommended detergents, are over 90% biodegradable.
• Remove the plug (31) and by paying attention not to make the uid overow (we recommend to
use a funnel only for this operation), ll the tank (max. capacity of 4.5 l/1.2 US gal) by following the
recommendations relating to the batching that are reported on the detergent packaging; close the tank.
CAUTION
• During the lling/topping-up operations of the Detergent tank, pay attention not to confuse the
tanks. If you pour detergent into the Diesel tank by mistake, do not use the water cleaner and apply
to a Skilled Technician.
• As for the use mode, refer to the indications on the detergent packaging.
• Rotate the ring nut of the nozzle-holding head (18) as shown in Fig.1-a and then activate the lever (24)
of the water gun and start to spray the detergent. Rotate the nozzle-holding ring nut (18) as shown
in Fig. 1-b to reset the high-pressure operation.
5.5IntErruptIng usE (total stop)
Release the lever (24) on the cleaner gun and the water cleaner will automatically stop.
The water cleaner starts operating normally again when the lever on the cleaner gun is pressed again.
WARNING
• Itisimportant to rememberthatthe high pressurecleaneris still operationalwhenit is in TotalStop mode.
Therefore, always put the main switch (2) in position “0”, remove the plug from the power outlet, press the
lever (24)on the cleaner gunto eliminate any remainingpressure andlock the safety protection device (25)

13
(Fig. 1 - position S), before leaving it unattended, even for a short time.
6 SWITCHING OFF AND STORAGE
After cleaning, switch the water cleaner o and prepare it for storage.
6.1sWItchIng off
• Use the water cleaner with cold water for a couple of minutes.
• Close the tap for the water supply securely.
• Empty the water out of the water cleaner by pressing the lever (24) on the cleaner gun for a few seconds.
• Put the main switch (2) in position“0”
• Remove the plug from the power outlet.
• Press the lever (24) on the cleaner gun to eliminate any remaining pressure in the high-pressure pipe (7).
• Wait for the high pressure cleaner to cool down.
WARNING
• When the water cleaner is left to cool down, take care that:
- the water cleaner is not left unattended in the presence of unsupervised children, elderly or disabled
people.
- the water cleaner is in a stable position and not at risk of falling over.
- the water cleaner is not in contact with inammable materials, or in their immediate vicinity.
6.2storagE
• Wind up the high-pressure pipe (7) carefully and avoid bending it.
If you have a model with hose reel (4), unlock the device by rotating the ring nut in counter-clockwise
direction(3); wind the hose by rotating the reel in clockwise direction by using the knob (5); lock the
device by rotating the ring nut (3) in clockwise direction.
• Wind up the electric power supply cable (14).
• Put the water cleaner in a clean and dry place making sure that the electric power supply cable and the
high-pressure pipe are not damaged.
CAUTION
• The water cleaner is not frost proof.
In order to prevent the formation of ice inside the water cleaner in cold areas, it is possible to make
the high pressure cleaner take up a motor vehicle grade anti freeze before starting the “Switch o”
procedures. Contact a Skilled Technician before attempting this as the pumped liquid could damage
the seals in the high-pressure pump.
If it is not possible to protect the high pressure cleaner in cold areas as described above, it must be
brought into a warm room for the time required to melt any ice which may have formed inside it before
attempting to start it up again.
If these instructions are not followed, the high pressure cleaner may be seriously damaged.
7 CLEANING AND MAINTENANCE
WARNING
• Only start cleaning and maintenance once the instructions in the “Switching o” section have been
completed.
It is particularly important to always disconnect the electricity supply.
• To safeguard the safety of the high pressure cleaner, only use the original spare parts supplied by the
Manufacturer or those endorsed by him.
• Therubberpipes,the couplingandthehigh-pressurelancesareimportantforsafety:onlyusethoseendorsed
by the Manufacturer.
7.1routInE MaIntEnancE
Follow the instructions in the “Switchingo”section and abide by the recommendations in the table below.
EN

14
INTERVAL
FOR MAINTENANCE ACTION
Each time used • Checkthesupplycable,high-pressurepipe,couplings,cleanergun,lancepipe.
Should any of these parts appear to be damaged, do not use the high
pressure cleaner and contact a Skilled Technician.
Weekly • Cleaning the water suction lter/gasket (33).
Usually, it is sucient to pass the lter under running water or in a jet of
compressed air to clean it. In more dicult cases, use a lime scale remover
or replace the lter. Contact an authorised service centre for the purchase
of a new lter.
The inner water inlet lter must be cleaned by a Skilled Technician (see
also paragraph “Special maintenance”).
Monthly • Clean the nozzle (20).
For cleaning, it is generally enough to pass the supplied pin (19) inside
the nozzle hole. If you do not obtain suitable results, replace the nozzle by
applying to an authorised service centre to buy the spare part. To replace
it, use a 14-mm socket wrench (not supplied).
CAUTION
• During use, the high pressure cleaner should not be too noisy and large amounts of water or oil should
not drip from underneath it.
In this event, a Skilled Technician should test the appliance.
7.2spEcIal MaIntEnancE
WARNING
• Only Skilled Technicians are authorised to carry out special maintenance.
Follow the instructions in the table below for special maintenance.
INTERVAL
FOR MAINTENANCE ACTION
Every 100 hours • Check the pump hydraulic circuit.
• Check the pump xing.
• Ad just the electrodes.
• Clean the gas oil nozzle.
• Check/replace the gas oil lter.
• Check/replace the inner water inlet
lter.
Every 200 hours • Replace the pump oil.
• Check the pump suction/delivery
valves.
• Check the pump screws are tightened.
• Check the pump adjustment valve.
• Check the safety devices.
Every 500 hours • Replace the electrodes.
• Replace the gas oil nozzle. • Clean the boiler. • Descale the coil.
CAUTION
• The data in the table are indications.
8 DISMANTLING AND DISPOSAL
Only trained personnel are allowed to dismantle the high pressure cleaner in accordance with the current
regulations in the country where it is installed.
In particular, the symbol on the identication plate (12) indicates the product must not be disposed
of together with normal household waste.
For further information, contact your local authority’s waste disposal service or your local retailer.
WARNING
• Before disposing of the high pressure cleaner, make sure it is no longer possible to operate it, by cutting the
power supply cable for example. Make sure all its parts are inoensive, as they could prove to dangerous

15
to children playing.
9 PROBLEMS, CAUSES AND SOLUTIONS
WARNING
• Before undertaking any action, follow the instructions in the “Switching o” section. If it is not possible
to restore correct operation of the high pressure cleaner using the information in the table below, contact
a Skilled Technician.
PROBLEMS CAUSES SOLUTIONS
By setting the switch(2)
to “1”, the water cleaner
does not start.
Remember also what
mentioned in the note
ofsection “Interrupting
the use (Total Stop)”
A safety device of the system
to which the water cleaner is
connected (fuse, differential
switch, etc.) has triggered.
Reset the protection device.
In case of a new triggering, do not use
the water cleaner and apply to a Skilled
Technician.
The plug of the power supply
cable is not inserted correctly. Disconnect the plug from the socket and reconnect it correctly.
The water cleaner
vibrates a lot and is
noisy.
The water suction filter/
gasket(33) and/or the inner
water inlet lter is dirty.
Observe what mentioned in the section
“Routine maintenance” and “Special
maintenance”.
The water supply is not enough. Check that the tap is completely opened
and that the capacity of the hydraulic
network conforms with what mentioned
in the section “Features and technical
specications”.
The water cleaner does
not reach the maximum
pressure.
The nozzle-holding head (18) is in
low pressure position (Fig. 1-a). Rotate the nozzle-holding head as shown in Fig. 1-b.
The water nozzle (20) is worn. Replace the nozzle according to what
mentioned in the section “Features and
technical specications”.
Poor detergent suction. The nozzle-holding head (18) is in
low pressure position (Fig. 1-b). Rotate the nozzle-holding head as shown in Fig. 1-a.
Theused detergentistooviscous. Use a detergent that is recommended by
the producer,by observing the thinning
indicated on the label.
Product missing in the tank. Add product to the tank.
No water comes out
from the nozzle (20). Water missing. Check that the tap of the water network is completely opened.
Water nozzle clogged. Clean and/or replace the nozzle according
to what mentioned in the section
“Features and technical specications”.
The water cleaner stops
during the operation. A safety device of the system to which the water cleaner is
connected (fuse, differential
switch, etc.) has triggered.
Reset the protection device.
In case of a new triggering, do not use
the water cleaner and apply to a Skilled
Technician.
The amperometric protection
device has cut in. Observe what mentioned in the section “Safety devices”.
Rotating the main
switch (2), the motor
hums but does not start.
The electrical system and/or the
extension are not suitable. Observe what mentioned in the section “Checks and connection to mains
electricity supply”.
The water cleaner does
not supply hot water. The Diesel in the tank is below the minimum level. Add Diesel
The Diesel lter is clogged. Observe what mentioned in the section
“Special maintenance”.
EN

NOTE:

NOTE:

NOTE:

FOR HELP OR ADVICE ON THIS PRODUCT PLEASE CONTACT
YOUR DISTRIBUTOR, OR SIP DIRECTLY ON:
TEL: [phone]
EMAIL: [email protected] or [email protected]
www.sip-group.com
Please dispose of packaging for the product in a
responsible manner. It is suitable for recycling. Help to
protect the environment, take the packaging to the local
amenity tip and place into the appropriate recycling bin.
Never dispose of electrical equipment or batteries in
with your domestic waste. If your supplier offers a disposal
facility please use it or alternatively use a recognised
recycling agent. This will allow the recycling of raw
materials and help protect the environment.
