SIP Tempest TP420/180 User manual

20
Ref: 240216
Please dispose of packaging for the product in a responsible
manner. It is suitable for recycling. Help to protect the
environment, take the packaging to the local amenity tip and
place into the appropriate recycling bin.
Never dispose of electrical equipment or batteries in with your
domestic waste. If your supplier offers a disposal facility please
use it or alternatively use a recognised re-cycling agent. This will
allow the recycling of raw materials and help protect the envi-
ronment.
FOR HELP OR ADVICE ON THIS PRODUCT PLEASE CONTACT YOUR DISTRIBUTOR,
OR SIP DIRECTLY ON:
TEL: [phone]
EMAIL: [e-mail] or [e-mail]
www.sip-group.com
1
Tempest TP420/180
Electric Pressure Washer
Please read and fully understand the instructions in this manual
before operation. Keep this manual safe for future reference.
08910

2
19
Declaration of Conformity
We
SIP (Industrial Products) Ltd
Gelders Hall Road
Shepshed
Loughborough
Leicestershire
LE12 9NH
England
As the manufacturer's authorised representative within the EC
declare that the
Tempest TP420/180 Electric Pressure Washer - SIP Part No. 08910
Conforms to the requirements of the following directive(s), as indicated.
2006/42/EC Machinery Directive
2004/108/EC EMC Directive
2000/14/EC Noise Emission Directive
2011/65/EU RoHS Directive
And the relevant harmonised standard(s), including:
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:1997+A1:2001+A2:2008
EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3:2008
EN 60335-1:2012+A1:2014
EN 60335-2-79:2012
EN 62233:2008
Signed: …………………………………...
Mr P. Ippaso - Managing Director - SIP (Industrial Products) Ltd
Date: 23/08/2015.
DECLARATION OF CONFORMITY

18
NOTES
Ref. No. Description SIP Code Ref. No. Description SIP Code
50. Pump complete PW08-00535 60. O-ring (8.4x1.8) PW08-00545
51. Motor complete PW08-00536 61. ST screw (4.8x16) PW08-00546
52. Bolt (M8x16) PW08-00537 62. ST screw (3.5x13) PW08-00547
53. Spring washer M8 PW08-00538 63. Pistol PW08-00548
54. Washer M8 PW08-00539 Lance PW08-00549
64.
55. Wobble plate PW08-00540 Turbo lance PW08-00550
56. Bearing 51107 PW08-00541 65. Handle cover PW08-00551
57. Fan PW08-00542 66. Wheel stud PW08-00552
58. Detergent tank cap PW08-00543 68. Water inlet cover PW08-00553
59. Detergent tank PW08-00544 N/A. Turbo lance connector PW08-00554
3
CONTENTS
Page No. Description
3. Contents
4. Safety Symbols Used Throughout This Manual
4. Safety Instructions
6. Electrical Connection
8. Guarantee
8. Technical Specifications
9. Getting To Know Your Pressure washer
10. Assembly Instructions
11. Operating Instructions
13. Maintenance
14. Wiring Diagram
15. Troubleshooting
16. Exploded Drawing
17. Parts List
19. Declaration Of Conformity

4
SAFETY SYMBOLS USED THROUGHOUT THIS MANUAL
Danger / Caution: Indicates risk of personal injury and/or the possibility of
damage.
Warning: Risk of electrical injury or damage!
Note: Supplementary information.
SAFETY INSTRUCTIONS
Every SIP pressure washer is carefully packed after assembly; On receiving the pressure
washer, check that it has not been damaged during transportation. If the pressure
washer is damaged, inform your distributor immediately, and, do not put the pressure
washer into operation until the damage has been repaired or the item replaced.
Before starting or servicing the pressure washer, read and understand all instructions.
Failure to follow safety precautions or instructions can cause equipment damage
and/or serious personal injury; Retain all manuals for future reference.
Never use this pressure washer for any application other than that specified by the
manufacturer. Never operate this pressure washer under conditions not approved by
the manufacturer.
Never attempt to modify this pressure washer to perform in any manner not intend-
ed by the manufacturer.
Use only products and parts recommended by the manufacturer for maintenance
and repairs.
Be sure that the pressure washer is operated only by persons who have read and
who understand all of the safety and operating instructions.
Be sure that the pressure washer is placed on a flat level surface prior to and during
operation. The pressure washer must not slide or shift during operation.
Keep all untrained persons away from the pressure washer during operation.
Do not allow persons wearing loose clothing or jewellery to start or operate the pres-
sure washer. Loose clothing or jewellery may become entangled in moving compo-
Important: Please read the following instructions carefully, failure to do
so could lead to serious personal injury and / or damage to the pres-
sure washer.
17
PARTS LIST
Ref. No. Description SIP Code Ref. No. Description SIP Code
1. Switch knob PW08-00495 22. Motor cover PW08-00515
2. Waterproof board PW08-00496 23. Screw (M4x10) PW08-00516
3. Total stop switch PW08-00497 24. Spring washer M4 PW08-00517
4. Lower switch box PW08-00498 25. Washer M4 PW08-00518
5. Switch box PW08-00499 26. Star washer M4 PW08-00519
6. On/Off switch PW08-00500 28. Nozzle cleaner PW08-00520
7. Front cover PW08-00501 29. Capacitor PW08-00521
8. ST screw (4.2x16) PW08-00502 30. Pistol holder rear PW08-00522
9. Sheath PW08-00503 31. Detergent hose PW08-00523
10. Front cover plate PW08-00504 32. Hozelock PW08-00524
11. Handle PW08-00505 33. Hose 5mtr PW08-00525
12. Rubber washer PW08-00506 34. Rear cover PW08-00526
14. Pistol holder front PW08-00507 35. Cable gland PW08-00527
15. Hose connector PW08-00508 36. ST screw (4.8x16) PW08-00528
16. Bolt (M6x65) PW08-00509 37. Cover (u-shape) PW08-00529
17. Spring washer M6 PW08-00510 38. Wheel PW08-00530
18. Washer M6 PW08-00511 39. Wheel cover PW08-00531
19. Mains lead PW08-00512 40. Warning label PW08-00532
20. Gasket PW08-00513 48. Ratings label PW08-00533
21. Mains lead holder PW08-00514 49. Hose holder PW08-00534

16

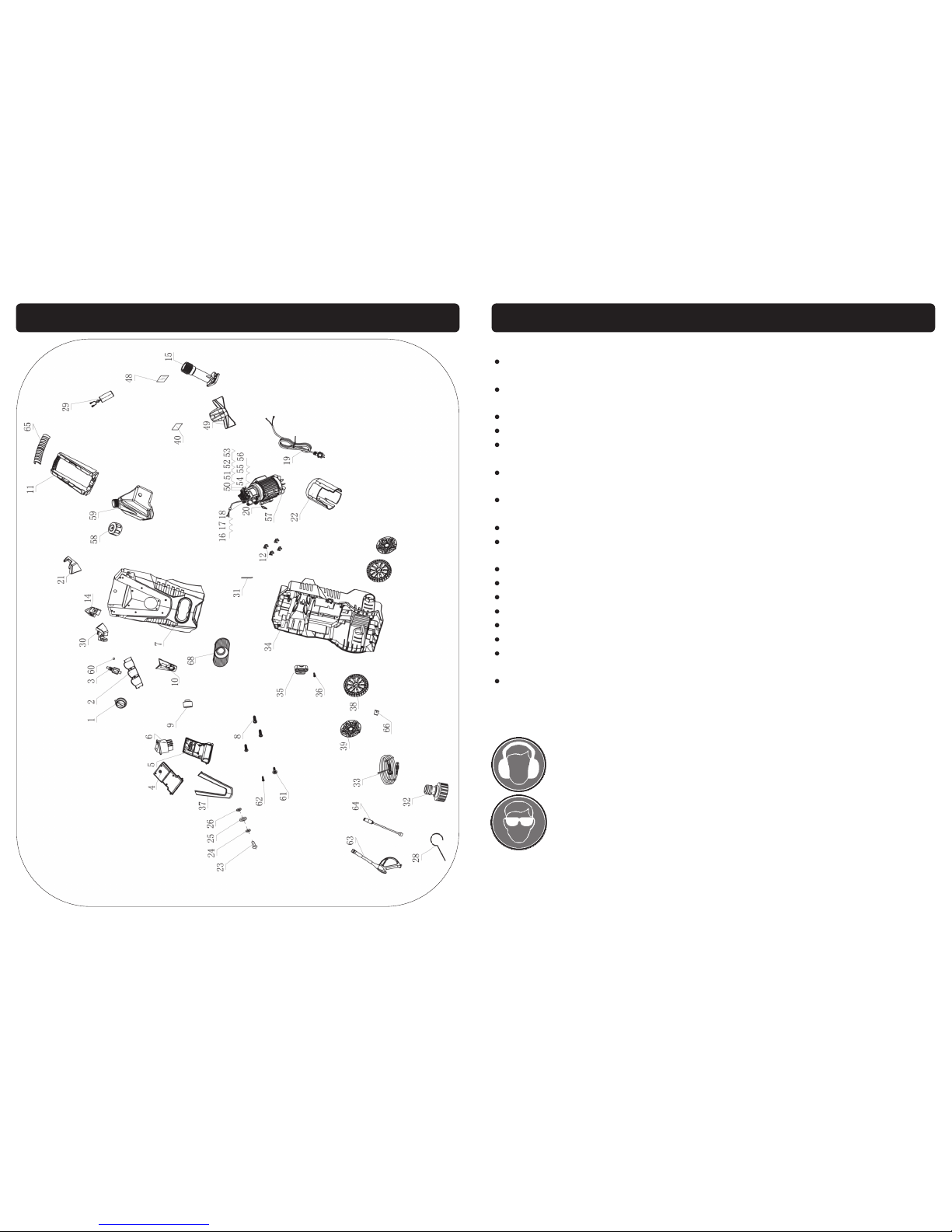

EXPLODED DRAWING
5
SAFETY INSTRUCTIONS….cont
nents, causing equipment damage and/or personal injury.
Be aware of moving parts and hot surfaces that occur during normal operation of
this pressure washer.
Never operate the pressure washer with damaged, broken or missing parts, or with
any guards or covers removed.
Never drag the pressure washer with the hose in order to move it.
Never cover the pressure washer whilst in operation.
Always ensure that the pressure washer is at least 1m (3ft) away from any walls or
buildings to allow correct air flow.
Always connect the water inlet to an adequate supply with enough flow and pres-
sure; such as mains water supply.
Only connect the pressure washer to a cold water supply; never connect to a hot
water supply.
This pressure washer was not designed to ‘suck’ water from a barrel of water.
When not in use, always ensure that the pressure washer is fully drained of any water
and stored in a warm environment to protect it from frost damage.
Never direct the flow of water at other persons or animals.
Never direct the flow of water at electrical or electronic items.
Never direct the flow of water towards the pressure washer itself.
Do not stand or sit on the pressure washer, it was not designed for this purpose.
Never run the pressure washer without a clean water supply connected to it.
Never run the pressure washer for more than 1 minute without depressing the trigger.
Do not tamper with the safety valve or pressure limiting valve, this has been pre-set,
any adjustment will make the pressure washer unsafe to use.
Understand the operating environment; Before each use the operator should assess,
understand and where possible reduce the specific risks and dangers associated
with the operating environment. Bystanders should also be made aware of any risks
associated with the operating environment.
When using the pressure washer, particularly during extended periods; en-
sure the operator as well as those in the area wear ear protection.
When using the pressure washer always ensure the operator as well as
those in the area wear eye protection.

6
Caution: Anyone who operates this pressure washer should read and fully
understand all of the instructions and warnings in this manual.
Caution: The warnings and cautions mentioned in this user manual can not cover all possible
conditions and situations that may occur. It must be understood by the operator that com-
mon sense and caution are factors which cannot be built into this product, but must be ap-
plied.
ELECTRICAL CONNECTION
WARNING! It is the responsibility of the owner and the operator to read, understand
and comply with the following:
You must check all electrical products, before use, to ensure that they are safe.
You must inspect power cables, plugs, sockets and any other connectors for wear or
damage.
You must ensure that the risk of electric shock is minimised by the installation of appro-
priate safety devices; A residual current circuit Breaker (RCCB) should be incorporated
in the main distribution board. We also recommend that a residual current device
(RCD) is used. It is particularly important to use an RCD with portable products that are
plugged into a supply which is not protected by an RCCB. If in any doubt consult a
qualified electrician.
Connecting to the power supply:
This SIP pressure washer is fitted with a standard 230v ~ 13 amp type plug. Before us-
ing the pressure washer, inspect the mains lead and plug to ensure that neither are
damaged. If any damage is visible have the pressure washer inspected / repaired by
a suitably qualified person. If it is necessary to replace the plug a heavy duty impact
resistant plug would be preferable.
The wires for the plug are coloured in the following way:
Yellow / green Earth
Blue Neutral
Brown Live
SAFETY INSTRUCTIONS….cont
15
TROUBLESHOOTING
Symptom Possible Cause Possible Solution
Will not reach full pressure.
Nozzle worn. Replace nozzle.
Water filter blocked. Clean water filter.
Low water supply. Make sure the tap is fully open.
Air being sucked into the system. Check the tightness of the hose
fittings.
Air in the pump.
Turn the pressure washer off,
keep pressing and releasing the
pistol trigger until the water
comes out in a steady flow.
Pressure drops during use.
Water too hot. Make sure its connected to the
cold water supply.
Nozzle clogged. Clean nozzle.
Water filter blocked. Clean water filter.
Motor will not start.
Bad power supply. Check the power supply.
Capacitor problem. Replace capacitor.
Thermal protector cut in. Wait for the thermal protector
to reset its self.
Poor suction of detergent.
Detergent tank empty. Fill tank with detergent.
Detergent is too thick in viscosity. Dilute detergent with water.
Stops during use.
Thermal protector cut in. Wait for the thermal protector
to reset its self.
Fuse blown in plug. Replace fuse.

14
WIRING DIAGRAM
Capacitor
~ Ac Power
Main Switch S
Micro Switch
MS
Motor
Overheat
Switch LM
RM
LA
RA
TP
C
Long Term Storage (1 month or greater).
Be sure the storage area is frost free.
Make sure that no water is left in the system by holding the trigger open and blow-
ing compressed air through the water inlet until all of the water has been removed
from the system.
Note: The pressure washer is not frost proof. In order to prevent the for-
mation of ice inside the pressure washer keep it in a frost free area. If frost is
suspected, before using the pressure washer it should be brought into a
warm environment and left to stand for a couple of hours to allow any frost
or ice which may have formed to melt before starting.
MAINTENANCE INSTRUCTIONS….cont
CLEANING THE NOZZLE
From time to time the nozzle may get blocked, follow the steps below to clean the
nozzle.
Remove the lance from the pistol.
Turn the end of the lance so it spreads the metal strips (fan mode).
Push the nozzle needle down the centre of the nozzle, this will remove any block-
age.
7
As the colours of the wires may not correspond with the markings in your plug, pro-
ceed as follows: The wire which is coloured blue, must be connected to the terminal
marked with N or coloured black. The wire which is coloured brown, must be connect-
ed to the terminal, which is marked L or coloured red. The wire which is coloured yel-
low / green should be connected to the terminal which is coloured the same or
marked
Always secure the wires in the plug terminal carefully and tightly.
Secure the cable in the cord grip carefully.
ELECTRICAL CONNECTION….cont
Warning: Never connect live or neutral wires to the earth terminal of the plug.
Only fit an approved plug with the correct rated fuse. If in doubt consult a
qualified electrician.
Note: If an extension lead is necessary in order to reach the mains supply; The
cross section should be checked so that it is of sufficient size so as to reduce
the chances of voltage drops. Always fully unwind the lead during use.
Note: Always make sure the mains supply is of the correct voltage and the
correct fuse protection is used. In the event of replacing the fuse always
replace the fuse with the same value as the original.

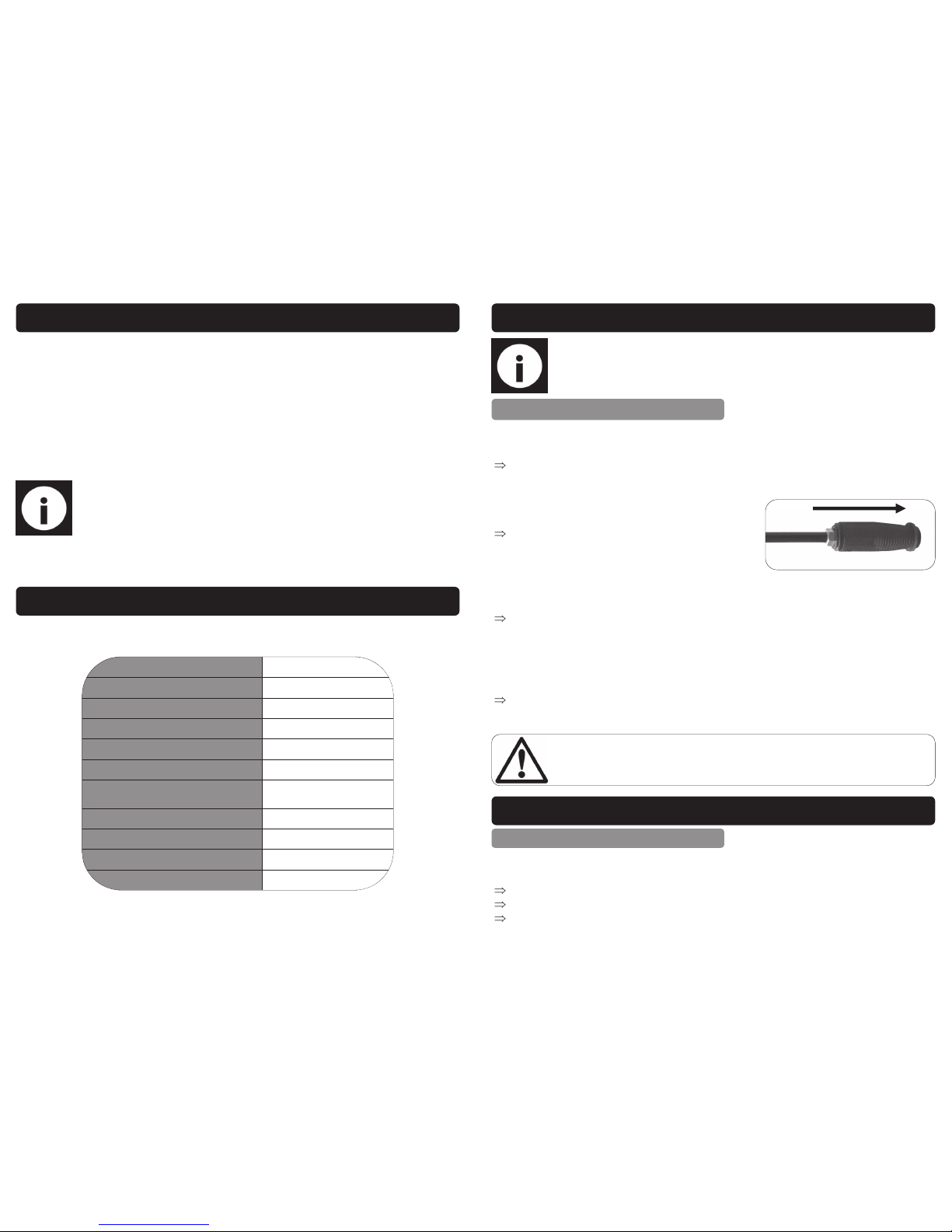

8
GUARANTEE
This SIP pressure washer is covered by a 12 month parts and labour warranty covering
failure due to manufacturers defects. This does not cover failure due to misuse or op-
erating the pressure washer outside the scope of this manual - any claims deemed to
be outside the scope of the warranty may be subject to charges Including, but not
limited to parts, labour and carriage costs.
This guarantee does not cover consumables such as the hose & oil etc.
In the unlikely event of warranty claims, contact your distributor as soon as possible.
Note: Proof of purchase will be required before any warranty can be hon-
oured.
TECHNICAL SPECIFICATIONS
Model Tempest TP420/180
Part No. 08910
Input Voltage 230v ~ 50Hz
Power 2100w
Maximum Pressure 2610psi (180bar)
Maximum Water Flow Rate 420 litres/hour
Cleaning Power
(Max. Pressure Bar x Water Flow Rate) 71400
Protection IPX5
Noise Level 93dB(A)
Hose Length 5 Metres
Net Weight 19kg
13
OPERATING INSTRUCTIONS….cont
Step 2:
Push forward on the end of the lance to select
low pressure, It should now be ready to be used
with detergent.
Step 3:
Switch the machine on and press and hold the trigger, when finished continue to
run the pressure washer for approximately 1 minute, so it clears the system of any
detergent.
Step 4:
Release the trigger, turn off the pressure washer and disconnect from the water
supply & mains supply.
Caution: The incorrect use of detergents can cause severe injuries or toxica-
tion, always follow the detergent suppliers recommendations, if in doubt con-
tact the detergent supplier and request the material safety data sheet.
Note: Hold the trigger open and blow compressed air through the water
inlet until all of the water has been removed from the system.
Step 1:
Remove the detergent tank cap, fill the tank with detergent (make sure to follow
the detergent suppliers recommendations for mixing), refit the detergent tank cap.
USING THE DETERGENT (LOW PRESSURE)
MAINTENANCE INSTRUCTIONS
STORAGE
Normal Storage.
Ensure that all the water is out of the system before storing away.
Coil the hose carefully to avoid any kinks or twists.
Store the pressure washer in a clean, warm and dry place.

12
OPERATING INSTRUCTIONS….cont
Step 3:
Press and hold the trigger on the pistol and
the pressure washer will start to run.
Note: Do not allow the pressure washer to run with no water being pumped
through the lance / machine, this is called dry running and will damage the
pump.
Danger: High pressure jets are dangerous if incorrectly used. Do not aim
the jet directly at people, animals, live electrical equipment or at the ap-
pliance itself.
Note: As much water as possible should be removed from the pressure
washer after use, particularly if the pressure washer will not be used for an
extended period such as when it is in long term storage.
Step 4:
Once all work has been done, release the trigger and the pressure washer will stop
running; Turn off the pressure washer and disconnect from the water supply &
mains supply.
Trigger
Note: The trigger can be locked to stop unwanted or unexpected operation
(see above).
Unlocked Locked
9

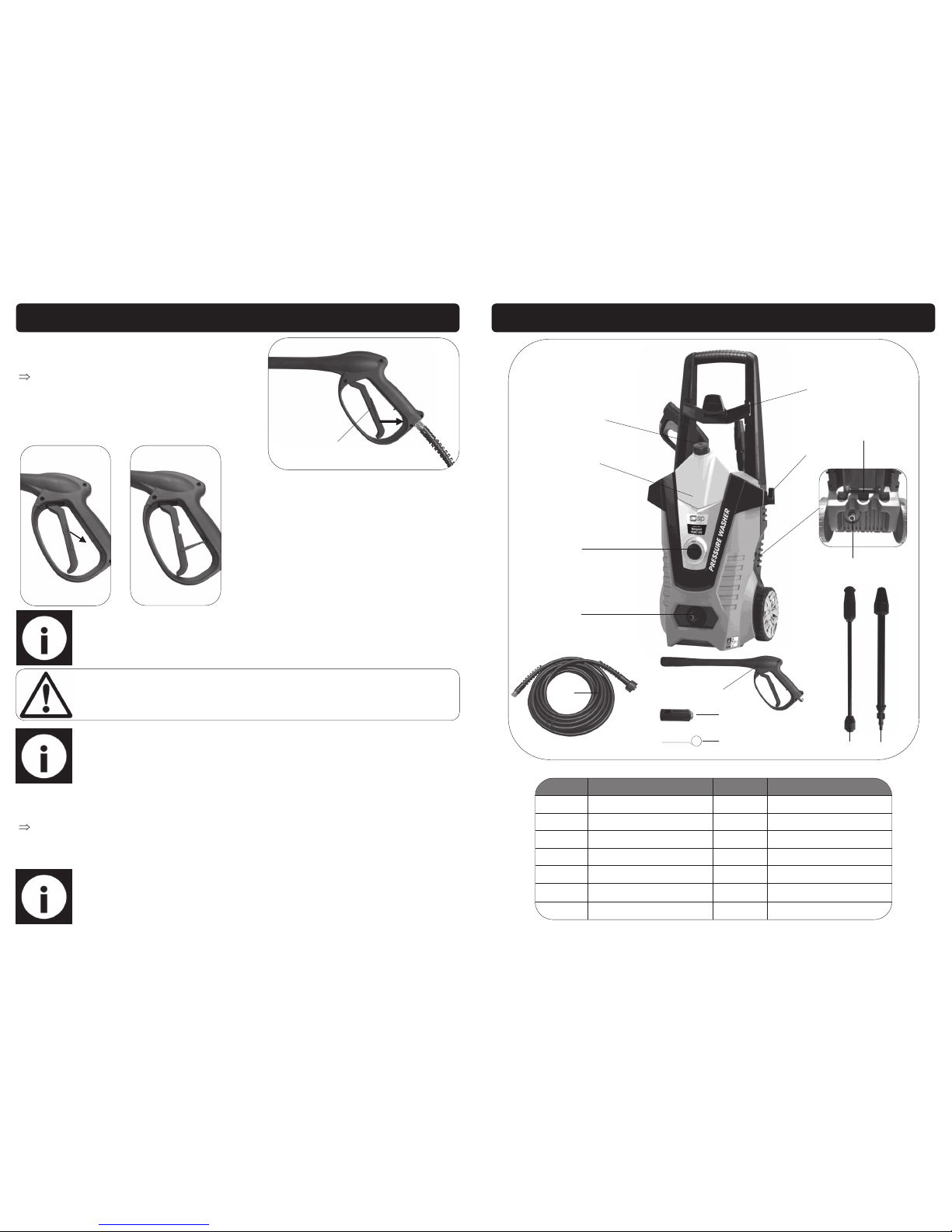

GETTING TO KNOW YOUR PRESSURE WASHER
Ref. No. Description Ref. No. Description
1. Hose 8. Lance/Pistol Holder
2. Water Inlet 9. Water Outlet
3. On/Off Switch 10. Turbo Lance
4. Detergent Tank 11. Standard Lance
5. Detergent Tank Cap 12. Pistol
6. Hose Holder 13. Turbo Lance Connector
7. Mains Lead Holder 14. Nozzle Cleaner
1 12
13
14 11 10
9
8
5
6
4
3
2
7

10
ASSEMBLY INSTRUCTIONS
CONNECTING THE HOSE / PISTOL / LANCE
Push the threaded section of the lance into
the threaded section of the pistol assembly
(see right).
Turn the threaded section of the pistol to
fully secure.
Pistol
Hose
Push the turbo lance connector onto the turbo lance and twist to secure (see be-
low).
Screw the pistol onto the connector and turn the pistol nut to fully secure (see be-
low).
Turbo Lance:
Turbo Lance Turbo Lance Connector Pistol
Lance Pistol
Standard Lance:
The pressure washer comes with two different lance`s.
Standard Lance: High pressure for normal cleaning, low pressure for detergent clean-
ing.
Turbo Lance: Slightly higher pressure, with a vortex jet.
Fit one end of the high pressure hose to the
fitting on the pistol assembly (see right).
Turn the fitting on the hose clockwise to fully
secure.
11
ASSEMBLY INSTRUCTIONS….cont
CONNECTING TO A WATER SUPPLY
The pressure washer is supplied with an equivalent hozelock type adaptor.
The easiest way to connect to a water supply is to fit the equivalent female fitting to
the end of the supply hose.
Push the other end of the high pressure hose into the water outlet (see below).
Turn the fitting on the hose clockwise to fully secure.
OPERATING INSTRUCTIONS
Ensure that the pressure washer is on a flat level surface.
Step 1:
Ensure the pressure washer is connected to a
clean water supply; pull back on the end of the
lance to select high pressure, twist the end of the
lance for either jet or fan cleaning.
HIGH PRESSURE USE
On Position
Step 2:
Turn the switch to the on position.
Water
Outlet
