Sirius Satellite Radio Xact XTR1 User manual

Instruction
Manual
Model XTR1
To activate your Satellite Radio Receiver or for latest news and questions regarding
SIRIUS®Satellite Radio service visit sirius.com or call 1-888-539-SIRIUS (7474).
For accessory & product information visit us at www.getxact.com.

KEEPMOVING

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the Manufacturer for compliance could void the user’s
authority to operate the equipment.
COPYRIGHT / TRADEMARKS
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by
any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of
the publisher.
is a registered trademark of SIRIUS®Satellite Radio. To activate your Satellite Radio Receiver or for latest
news and questions regarding SIRIUS®Satellite Radio service visit sirius.com or
call 1-888-539-SIRIUS (7474).

SAFETY PRECAUTIONS
Warning
Follow these notifications to avoid any traffic accidents or personal injury:
1. Installation must be performed according to this user guide.
2. Do not install the device where it may obstruct your view through the windshield or of your vehicle’s
indicator displays.
3. Do not install the device where it may hinder the function of safety devices such as an airbag. Doing so
may prevent the airbag from functioning properly in the event of an accident.
4. The installation and usage suggestions contained in this user guide are subject to any restrictions or
limitations that may be imposed by applicable law. The purchaser should check applicable law for any
restrictions or limitations before installing and/or operating this device.
5. Failure to follow these safety instructions and warnings may result in a severe accident.
Danger
Be aware of the following precautions to prevent fire and avoid personal injury:
1. To avoid short circuits, never put or leave any metallic objects (coins, tools, etc.) inside the device.
2. If the device emits smoke or strange smells, turn the power off immediately and contact your dealer.
3. Do not drop the device or subject it to strong shocks.
4. If the LCD display becomes damaged or broken, do not touch the liquid crystal fluid. The fluid may be
dangerous to your health or even fatal. If the liquid crystal fluid contacts your body or clothing, immediately
wash it off with soap and water.
Caution
Do not operate this device in a way that might divert your attention from driving safely. As a driver, you are
responsible for safely operating your vehicle in accordance with traffic safety laws at all times.

TABLE OF CONTENTS
Introduction Page 3
Product Overview Page 3
Package Contents Page 3
Components Guide Page 4
Xact Stream Jockey SIRIUS®Radio Page 4
Wireless Remote Control Page 5
Getting Started Page 6
Mounting Your Xact Stream Jockey Satellite Radio at Home Page 6
Mounting Your Xact Stream Jockey Satellite Radio in a Vehicle Page 6
Activating Your SIRIUS®Subscription Page 7
Basic Operations Page 12
Tuning to Different Entertainment Categories Page 12
Searching for Music Page 13
Searching For Music By Channel Page 13
Searching For Music By Artist/Composer Page 13
Searching For Music By Song Page 14
Direct Tuning Page 14
Presetting Channels Page 15
Searching for a Preset Channel/Artist/Song Page 16
S-Seek Function Memo (Memory Search) Button Page 17
Performing S-Seek Function Page 19
Menu Options Settings Page 20
Basic Setting Procedure Page 20
SIRIUS®ID Page 20
Display Settings Page 21
FM Transmitter Page 22
Channel Add/Skip Page 23
Lock Options Page 23
Audio Level Page 25
Antenna Aiming Page 26
SIRIUS® Satellite Map Page 26
Memory Options Page 27
Time Features Page 28
Clock Page 29
Format Page 29
Time Zone Page 29
1

TABLE OF CONTENTS
Daylight Saving Time Page 30
Alarm Clock Page 30
Time Page 30
Program Alert Page 31
Program Day/Time Page 31
Channel Selection Page 32
Auto Shutdown Page 32
Sleep Mode Page 33
Factory Default Page 33
Display Messages Page 35
Problem Solving Page 37
Warranty Page 38
2

3
INTRODUCTION
Product Overview
Thank you for purchasing this product! Your new plug and play XACT Stream Jockey satellite radio is
specifically designed to mount in a vehicle or indoor/outdoor location.
Package Contents
Carefully unpack your kit box and ensure that you have the following items.
•XACT Stream Jockey SIRIUS®Receiver
•Wireless Remote Control
•AAA Batteries (for the Wireless Remote Control)
•User’s Guide
In the event that any item is missing or if you find any mismatch or damage, promptly contact your dealer.
Your Xact Stream Jockey Satellite Radio Receiver must be used in conjunction with any one of the following
Xact Kits, such as the Universal kit, Home kit or Boombox as required by you specific needs.
•Xact Vehicle Kit: Model Number XS021
•Xact Home Kit: Model Number XS022
•Xact Universal Kit: Model Number XS01UK
•Xact Sound Pad Portable Boombox: Model Number XS024
•Xact Sound System Portable Boombox: Model Number XS025
•Xact Sound System Deluxe Portable Boombox: Model Number XS027
•Xact Power Pod Portable Battery Pack: Model Number XS028
The easiest way to activate your Satellite Radio Receiver is to log on to sirius.com.
You may also call 1-888-539-SIRIUS (7474).
3

4

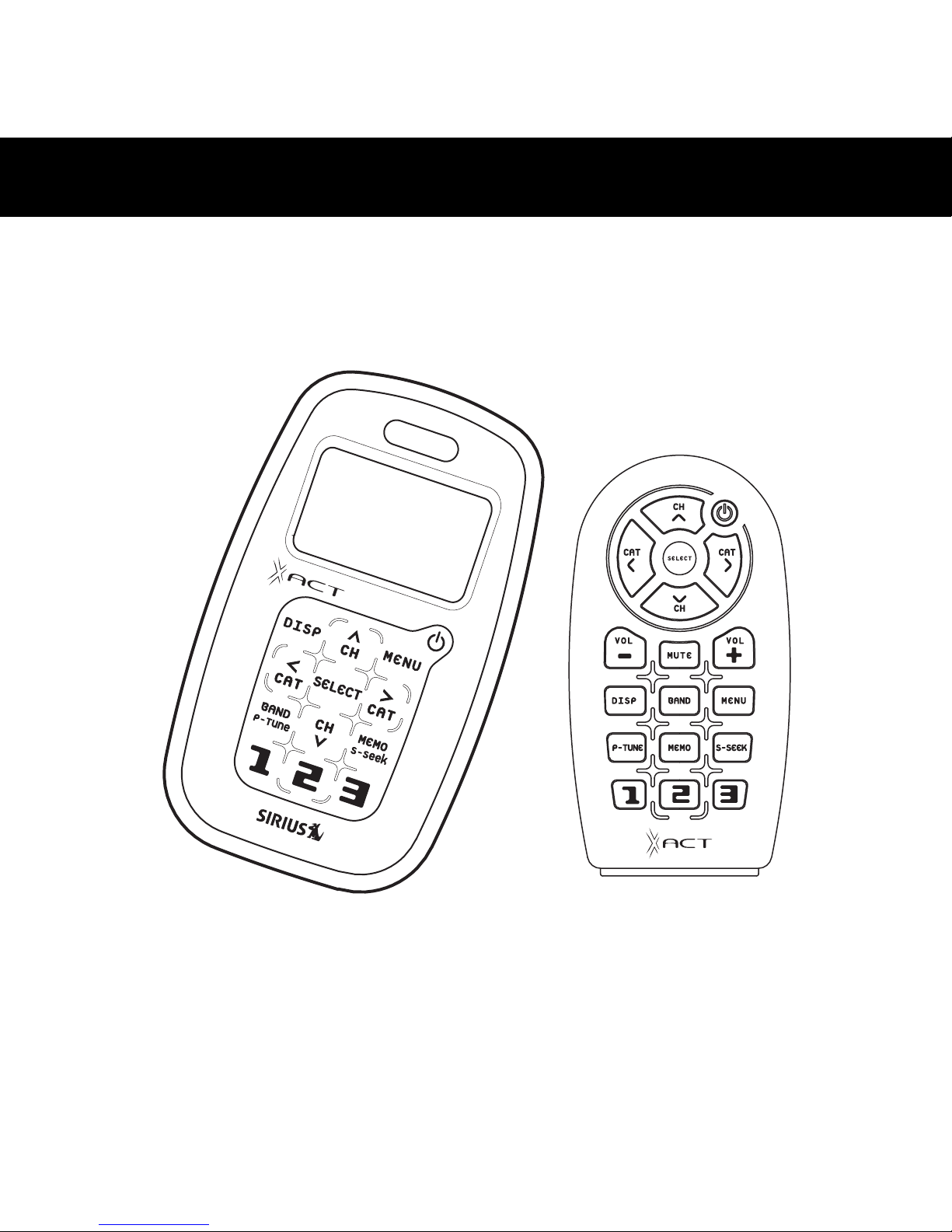

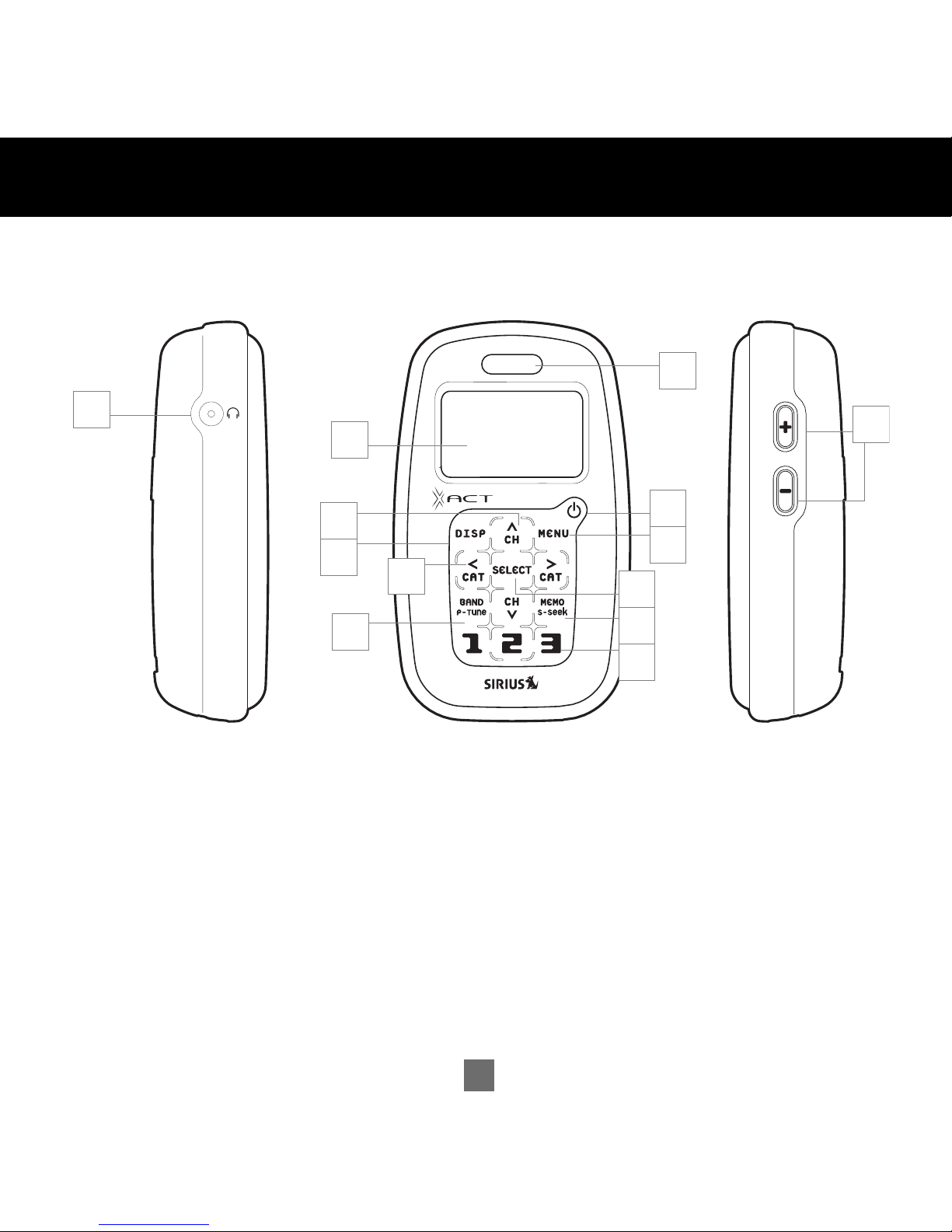

COMPONENTS GUIDE
4
1
2
3
4
6
5
7
8
9
10
11
12
13
XACT Stream Jockey SIRIUS®Radio
1. Earphone Socket
2. LCD Monitor (Main Display)
3. CH (Channel) (Ascend/Descend Buttons)
4. DISP (Display)
5. CAT (Category) (Left/Right Directional Buttons)
6. BAND (P-TUNE)
7. IR for Remote Control
8. Power Button
9. MENU Options List
10. SELECT (OK Button)
11. MEMO (S-seek)
12. Numerical Keys
13. Volume Adjustment

5
1
7
8
9
10
11
12
13
2
3
4
5
6
COMPONENTS GUIDE
5
Wireless Remote Control
The wireless remote control packed with your plug and play XACT Stream Jockey satellite radio mirrors the
operations of your plug and play XACT Stream Jockey satellite radio receiver from a remote location.
1. CH (Channel) (Ascend/Descend Buttons)
2. MUTE
3. BAND
4. DISP (Display)
5. P-TUNE
6. MEMO
7. Power Button
8. SELECT (OK Button)
9. CAT (Category) (Left/Right Directional Buttons)
10. Volume Adjustment
11. MENU Options List
12. S-Seek
13. Numerical Keys

6
GETTING STARTED
Mounting Your XACT Stream Jockey Satellite Radio at Home
Find an appropriate location near your stereo receiver to install your plug and play satellite
radio receiver.
Mounting Your XACT Stream Jockey Satellite Radio in a Vehicle
Find an accessible location in your vehicle to install your plug and play satellite radio receiver;
usually, this is the dashboard.
Do not mount your device where it may obstruct your view through the windshield or your view of your
vehicle’s indicator displays.
Do not mount your device where it may impede your access to the vehicle’s controls.
Do not mount your device where it may hinder the function of safety devices, such as an airbag. Doing
so may prevent the airbag from functioning accordingly in the event of an accident.
Mount your satellite radio where it can be easily reached.
The device must be directly in line-of-sight of the remote controller.
6

7
Activating Your SIRIUS®Subscription
Before beginning to use your new device, you must first register to the SIRIUS®Satellite Radio service.
There are two ways to activate the SIRIUS®Satellite Radio Service:
1. Visit sirius.com and click activate, then follow the on-screen instructions.
2. Call SIRIUS®at 1-866-845-7474. A representative will help you activate your SIRIUS®Satellite Radio Service.
Note: Make sure to have your identification number accessible when calling SIRIUS
®
.
Make Note of Your Identification Number
Activating your SIRIUS®Satellite Radio Service:
1. Press MENU to enter the Menu Options settings.
2. Press the or button select SIRIUS®ID and press the button to enter the sub menu.
Your own device’s 12-digit SIRIUS®ID Number (ESN) will be displayed on the screen.
7
Enter Channel
Unsubscribed
Channel
0123456789
Menu Options
Sirius ID
Display Settings
Category 12:00P
FM Transmitter
Lock Options
Channel Add/Skip
Sirius ID
Category 12:00P
ESN 000492228912

IF YOU HAVE PURCHASED A
VEHICLE KIT
8
INSTALLATION
PLACE CAR BASE HOOKS
INTO LOCKING SLOT & PUSH
THUMB TAB IN...
...ROTATE RECEIVER UNIT BACKWARDS
TO ENGAGE HOOKS
3.
4.
THUMB LATCH
PULLED BACK...
...THUMB LATCH RELEASED,
BRACKET LATCH CLIPS RECEIVER
SECURELY IN PLACE
1. 2.
5.

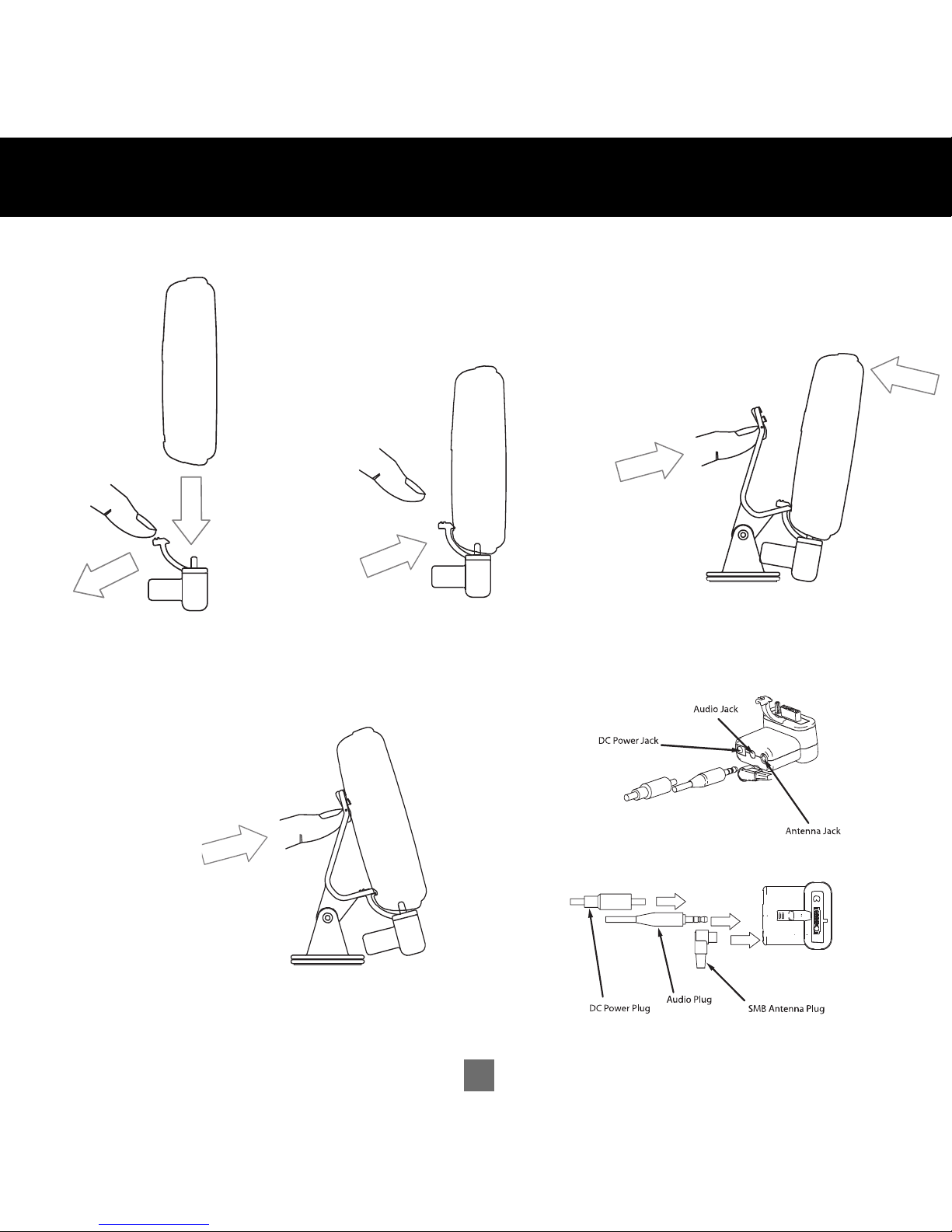

IF YOU HAVE PURCHASED A
HOME KIT
9
FOR HOME DESKTOP
APPLICATION, USER PULLS OUT
FEET USING THUMB GRIP
SMB Antenna Plug
Antenna Jack
Audio Plug
Audio Jack
DC Power Plug
DC Power Jack
3. 4.
THUMB LATCH
PULLED BACK...
...THUMB LATCH RELEASED,
BRACKET LATCH CLIPS RECEIVER
SECURELY IN PLACE
1. 2.
INSTALLATION

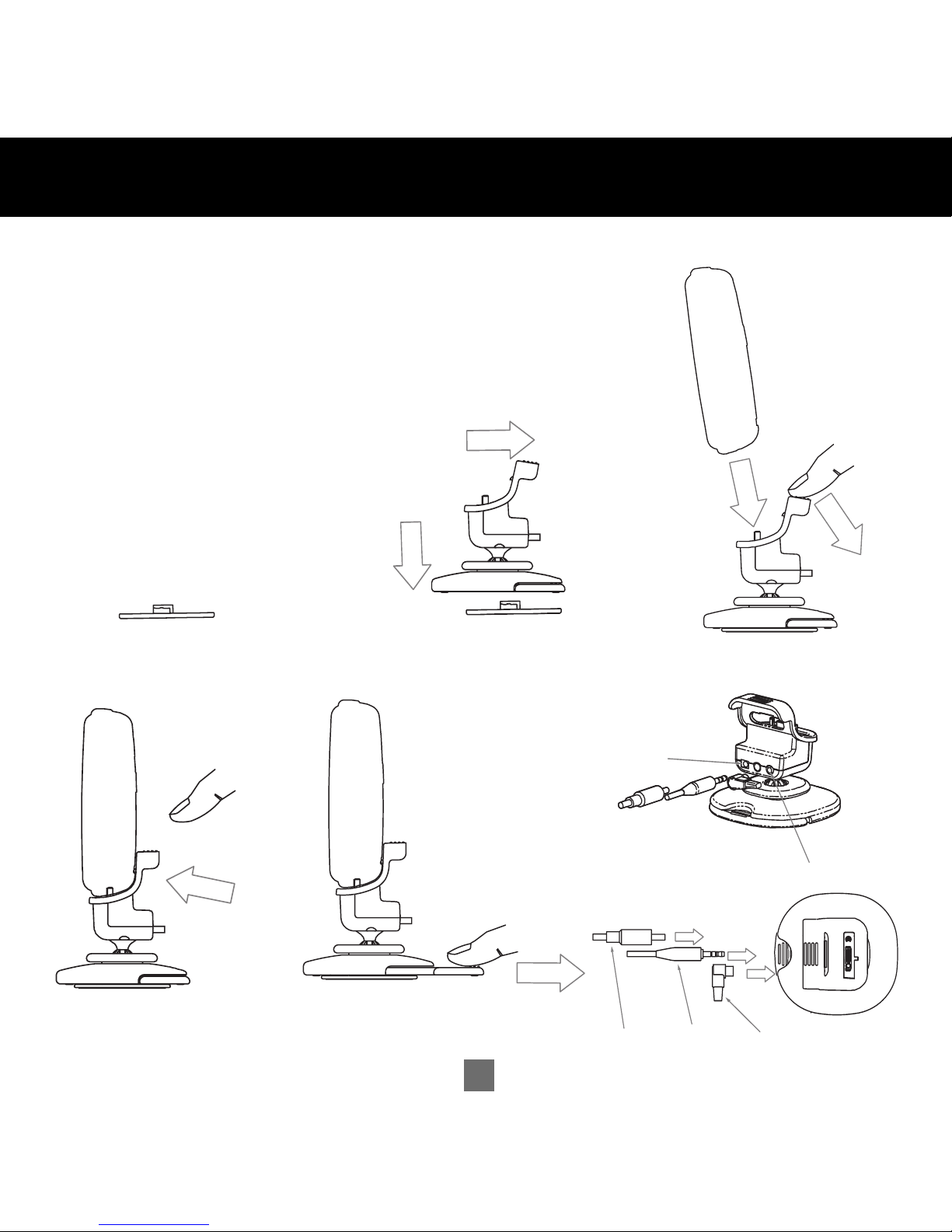

IF YOU HAVE PURCHASED A
UNIVERSAL KIT
10
INSTALLATION
FOR HOME DESKTOP
APPLICATION, USER PULLS OUT
FEET USING THUMB GRIP
SMB Antenna Plug
Antenna Jack
Audio Plug
Audio Jack
DC Power Plug
DC Power Jack
5. 6.
THUMB LATCH
PULLED BACK...
...THUMB LATCH RELEASED,
BRACKET LATCH CLIPS RECEIVER
SECURELY IN PLACE
1.
4.
MOUNT TO VEHICLE
DASH BOARD VIA
ADHESIVE TAPE
PLACE CRADLE OVER
MOUNT PLATE SLIDE BACK
TO LOCK FOR VEHICLE
INSTALLATION
2. 3.

IF YOU HAVE PURCHASED A
BOOMBOX KIT
11
ROTATE RECEIVER AND
CONNECTOR INTO BOOMBOX
3.
2.
LATCH BOOMBOX LOCKS
RECEIVER IN PLACE
1. PUSH RECEIVER ONTO
CONNECTOR
INSTALLATION

12
BASIC OPERATIONS
12
After your SIRIUS®subscription is activated, the Normal (default) Operation screen will pop up.
Tuning to Different Entertainment Categories
1. Press the CAT button to scroll through music and entertainment categories.
2. Press the CH button to search for channels.
3. When the category you desire is highlighted (for example, “Jazz”), press the button to confirm
the setting. The channel will change and the display will revert to the Default Screen for the new channel.
4. To exit this mode without changing to a new channel, press and hold the button.
003
001 Channel Name
001 Channel Name
001 Channel Name
001 Channel Name
Category 12:00P
Artist
Song
Channel Name
A
Category
001 Channel Name
002 Channel Name
003 Channel Name
004 Channel Name
005 Channel Name
003
001 Channel Name
001 Channel Name
001 Channel Name
001 Channel Name
Category 12:00P
Artist
Song
Channel Name
A
3-digit Channel number
song title
signal strength indicator
artist’s name
band or preset bank number
clockcategory name
Channel name

13
Searching Music
Your satellite radio offers you three ways to seek and select music: by the channel name, by artist/composer
and by song title.
Searching For Music By Channel (Channel List)
1. Press and hold the button while in Normal Operation mode. The Channel list screen will be displayed,
numerically indicating all available channels, regardless of music category.
2. Press the or button continuously to choose a preferred channel and press the button to confirm
the setting.
3. Press and hold the button again to exit from the operation.
Note: The selected channels will remain playing until you make a new change.
Searching For Music By Artist/Composer (Artist/Composer List)
1. Press and hold the button while in Normal Operation mode.
2. You will first see the Channel list menu. Press the button again. The Artist/Composer list screen will be
displayed, listing all currently playing artists, regardless of category. On channels that broadcast “composer”
the Composer name will be displayed with the Artist name separated by a slash “/”.
3. Press the or button continuously to choose a preferred artist and press the button to confirm the setting.
4. Press and hold the button again to exit from the operation.
13
002 Channel Name
003 Channel Name
004 Channel Name
005 Channel Name
006 Channel Name
001 Channel Name
002 Artist/Composer
003 Artist/Composer
004 Artist/Composer
005 Artist/Composer
006 Artist/Composer
001 Artist/Composer

14
Searching For Music By Song (Song Title List)
1. Press and hold the button while in Normal Operation mode.
2. Continue pressing the button twice. The Song Title list screen will be displayed, indicating all currently
playing songs, regardless of category. The song title data is listed in ascending order.
3. Press the or button continuously to choose a preferred song and press the button to confirm
the setting.
4. Press and hold the button again to exit from the operation.
Direct Tuning
Your XACT Stream Jockey satellite radio enables you to access your selected channels directly.
1. Press the button to activate the Direct Tuning mode.
2. The corresponding window is displayed and asks you to enter the desired channel number (3 digits).
3. Use the or left/right directional button until the desired digit is highlighted.
4. Press the button to confirm the setting.
14
002 Song Title
003 Song Title
004 Song Title
005 Song Title
006 Song Title
001 Song Title
0123456789
# ___
Enter Channel

15
Presetting Channels
Your XACT Stream Jockey satellite radio allows you to preset 18 channels. This design enables you to directly
select between 6 different bands of preset channels (identified as A, B, C, D, E and F). Each band contains 3
specific channels (indicated as A-1, A-2, A-3....F-1, F-2 and F-3).
1. Press the or button to search for channels.
2. Press the button to switch to your desired bands (A-F) according to your preference.
3. Once the desired band is set, press and hold the 1,2 or 3 numerical button to select the specific channel.
The list will then be recorded in memory.
4. The selected preset number will remain lit on the display screen to demonstrate that it has been
memorized.
Note: If a channel is already recorded in the preset list, the new channel will overwrite the old one.
15
001
Category 12:00P
Artist
Song
A
Channel Name
Preset Tuning Mode
003
001 Channel Name
001 Channel Name
001 Channel Name
001 Channel Name
Category 12:00P
Artist
Song
Channel Name
A-1

16
Searching for a Preset Channel/Artist/Song
1. Press and hold the button while in Normal Operation mode. The screen will switch between the Normal
Operation mode and the Preset Tuning mode.
2. Press and hold the button until the Preset Channel list pops up.
3. Press the button continuously until the preferred Preset Channel list is indicated.
4. Each time you press the button, the Preset lists switches from “Channel Name” to ”Artist/Composer”
to ”Song Title” cyclically.
5. Press the button to confirm the setting.
16
A-2 Channel Name
A-3 Channel Name
B-1 Channel Name
B-2 Channel Name
B-3 Channel Name
A-1 Channel Name
A-2 Artist/Composer
A-3 Artist/Composer
B-1 Artist/Composer
B-2 Artist/Composer
B-3 Artist/Composer
A-1 Artist/Composer
A-2 Song Title
A-3 Song Title
B-1 Song Title
B-2 Song Title
B-3 Song Title
A-1 Song Title
