Sirius XM RAdio DV2 User manual

D
V2
USER GUIDE
Dock & Play Vehicle Kit

2
Table of Contents
Compatibility................................................ 3
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Features ................................................................ 4
Safety and Care Information............................................... 5
What’s in the Box? ....................................................... 7
PowerConnect Vehicle Dock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Vehicle Installation ...........................................10
Step 1: Choose a Location for Your Radio ...................................10
Step 2: Install the Dash or Vent Mount ......................................13
Step 3: Mount the Magnetic Mount Antenna.................................17
Step 4: Route the Magnetic Mount Antenna Cable .......................... 23
Step 5: Connect the Magnetic Mount Antenna and PowerConnect
Power Adapter..........................................................34
Step 6: Connect the Audio ............................................... 35
Troubleshooting ............................................43
Product Specifications ....................................... 47
Patent and Environmental Information .........................48
Patent Information ......................................................48
Environmental Information ...............................................48
FCC Statement .............................................49
Copyrights and Trademarks...................................50

3
Compatibility
This Vehicle Kit is compatible with the following Dock & Play Radios:
•XM XpressEZ
•XM XpressR
•XM XpressRC
•XM XpressRCi
•XM Onyx
•SiriusXM Edge
This Vehicle Kit is not compatible with the following Dock & Play Radios:
•Mirge
•Xpress
•Sportscaster
•All Roady models
•All SkyFi models

4
Introduction
Features
Thank you for purchasing the SiriusXM Dock & Play PowerConnect
Additional Vehicle Kit!
Your new Additional Vehicle Kit has everything you need to use your
compatible SiriusXM Dock & Play Radio in another vehicle.
•Add Satellite Radio to an additional vehicle: No need for a second
subscription. Just install this kit in another vehicle – your spouse’s car,
the family minivan, an RV, or even a boat – and then simply move your
Radio between the two.
•Easy to install: Hear SiriusXM through your existing vehicle radio* with
easy, do-it-yourself installation. The color-coded Vehicle Dock makes it
simple to connect.
For the latest information about this and other SiriusXM products and
accessories, visit www.siriusxm.com or your favorite retailer.
Please read this entire User Guide before installing the Additional Vehicle Kit!
*FM radio required. If your vehicle has an Aux Input, use the included Aux In Cable for
best performance. It will also work with a Cassette Adapter (sold separately).

5
Safety and Care Information
IMPORTANT! Self installation instructions and tips are provided for your
convenience. It is your responsibility to determine if you have the knowledge,
skills, and physical ability required to properly perform an installation.
SiriusXM shall have no liability for damage or injury resulting from the
installation or use of any SiriusXM or third party products. It is your
responsibility to ensure that all products are installed in adherence with local
laws and regulations and in such a manner as to allow a vehicle to be
operated safely and without distraction. SiriusXM product warranties do not
cover the installation, removal or reinstallation of any product.
•Do not expose to extreme temperatures (above 140°F or below -4°F, or
above 60°C or below -20°C).
•Do not expose to moisture. Do not use device near or in water. Do not
touch the device with wet hands.
•Do not let any foreign matter spill into device.
•Do not store in dusty areas.
•Do not expose to chemicals such as benzene and thinners. Do not use
liquid or aerosol cleaners. Clean with a soft damp cloth only.
•Do not expose to direct sunlight for a prolonged period of time, and do
not expose to fire, flame, or other heat sources.
•Do not try to disassemble and/or repair device yourself.
•Do not drop your device or subject it to severe impact.
•Do not place heavy objects on device.
•Do not subject device to excessive pressure.
Introduction

6
Introduction
WARNING!
•Opening the case may result in electric shock.
•Make sure that you insert the PowerConnect Power Adapter’s plug all
the way into the vehicle’s cigarette lighter or power adapter socket.
•If you are using PowerConnect as your audio connection option, it is
advisable not to insert a multi-outlet adapter into the same vehicle
cigarette lighter or power adapter socket to simultaneously power other
devices. Some multi-outlet adapters can prevent the PowerConnect
feature from working properly.
• When using this product, it is always important to keep your eyes on the
road and hands on the wheel. Not doing so could result in personal injury,
death, and/or damage to your device, accessories, and/or to your vehicle or
other property.
• Vehicle installation, service activation, and Radio configuration functions
should not be performed while driving. Park your vehicle in a safe location
before beginning installation.
•This product contains chemicals known to the State of California to
cause cancer and birth defects or other reproductive harm.
Your device should be placed in your vehicle where it will not interfere
with the function of safety features, e.g., deployment of airbags. Failure
to correctly place device may result in injury to you or others, if the unit
becomes detached during an accident and/or obstructs the deployment of
an airbag.

7
What’s in the Box?
TIP! For other accessories you can add to your Vehicle Kit – from a Remote
Control for ease of use, to a Cassette Adapter for vehicles with a cassette
player, to professional installation if you’d rather leave your in-vehicle setup to
the experts – just visit www.siriusxm.com/accessories or your favorite retailer.
PowerConnect™ Vehicle Dock
Magnetic Mount
Antenna
Alcohol
Preparation Pads
PowerConnect
Power Adapter
Aux In Cable
Dash Mount
Antenna Cable
Routing Adapter
Screws (4)
Vent Mount and
Extended Vent Clamps
Introduction

8
Introduction
PowerConnect Vehicle Dock
Color-Coded Connections
The color-coded PowerConnect Vehicle Dock makes it simple to connect.
Just match the colors on the cable ends to the colors on the dock to see
what goes where.
Rear View
AUDIOANT PWRFM
ANT (Silver)
Connection for
the Magnetic
Mount Antenna.
AUDIO (Green)
Connection for Aux In
Cable or optional
Cassette Adapter
(sold separately).
PWR (Red)
Connection for
PowerConnect
Power Adapter.
FM (Blue)
Connection for
optional FM
Direct Adapter
(sold separately).

9
Wire Guide
The PowerConnect Vehicle Dock has a wire guide at the top rear to help
organize the cables and wires connected to the dock. If you need to bring
a cable or wire from one side of the dock to the other, utilize the wire guide
by looping the cable though the wire guide as shown.
Wire Guide
Introduction

10
WARNING! DO NOT attempt to install this Vehicle Kit while driving. Park your
vehicle in a safe location before beginning installation.
Step 1: Choose a Location for Your Radio
When installing the PowerConnect Vehicle Dock in your vehicle, choose a
location where it will not block your vision, interfere with the controls, or
obstruct the air bag. The location should be easily accessible and provide
good visibility of the display, and should not be located where it may be in
direct sunlight, which will affect the visibility of the display screen.
Depending on your preference, you can either choose to use the Dash
Mount or the Vent Mount. On the following two pages, several examples
of the PowerConnect Vehicle Dock and Radio mounted in a vehicle are
shown: Ais the on dash method using the Dash Mount, and Bis the vent
clip method using the Vent Mount. You may want to read the installation
instructions for each type of mount in step 2 to help you select which
mount you will use.
NOTE: Your Radio may be a different model than the Radio shown here.
Vehicle Installation

11
A.
A.
Option 1 - Dash Mount
Option 2 - Dash Mount
A.
Option 3 - Dash Mount
Vehicle Installation

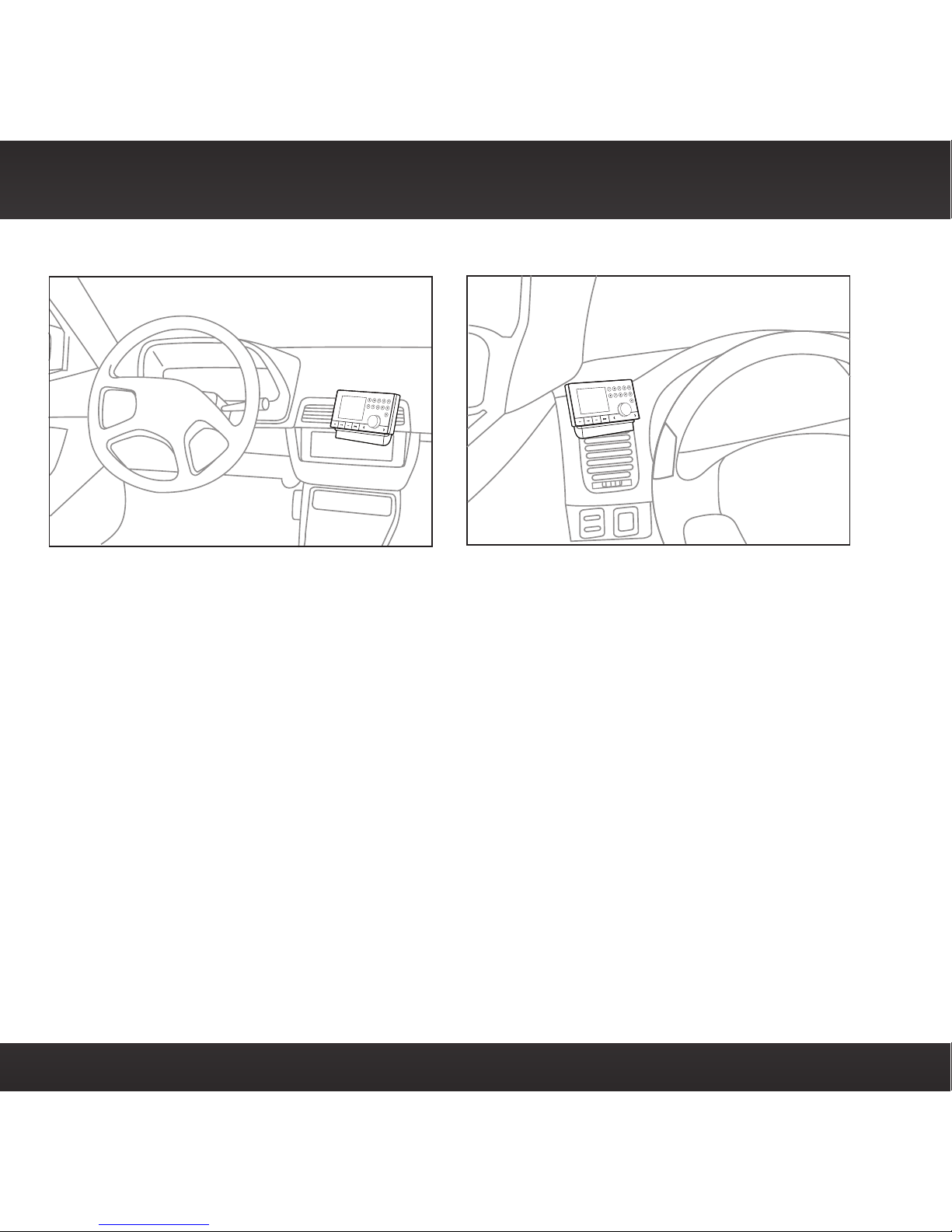

12
Vehicle Installation
B.
B.
Option 4 - Vent Mount Option 5 - Vent Mount

13
Step 2: Install the Dash or Vent Mount
Follow the instructions on the next several pages for the mounting method
you have selected.
NOTE! The PowerConnect Vehicle Dock included with the this Vehicle Kit is
compatible with the T-slot style Dash and Vent Mounts. If you have an existing
Dash Mount or Vent Mount in your vehicle, you can continue to use it with this
dock, and skip this step.
Installing the Dash Mount:
CAUTION! The adhesive used on the Dash Mount may be
difficult to remove. Do not install this mount on leather
surfaces (contact your automobile dealership if you are
unsure about your dash surface), and make sure the air
temperature is at least 60°F (15°C) during installation. If it’s
not at least 60°F, turn on the heater in your vehicle to bring
the temperature up to 60°F.
1. Locate a flat surface for the Dash Mount. Make sure there is ample
room for the PowerConnect Vehicle Dock and Radio when installed.
2. Set the orientation of the Dash Mount before adhering it. Loosen the
knob and adjust the adhesive foot for the location you selected in
“Step 1: Choose a Location for
Your Radio” on page 10.
•Option 1 & Option 3
should be oriented as I.
•Option 2 should be oriented
as II.
3. The dock mounting plate can
be tilted in different directions.
Adjust as necessary for your particular vehicle. When the orientation is
II
I
Vehicle Installation

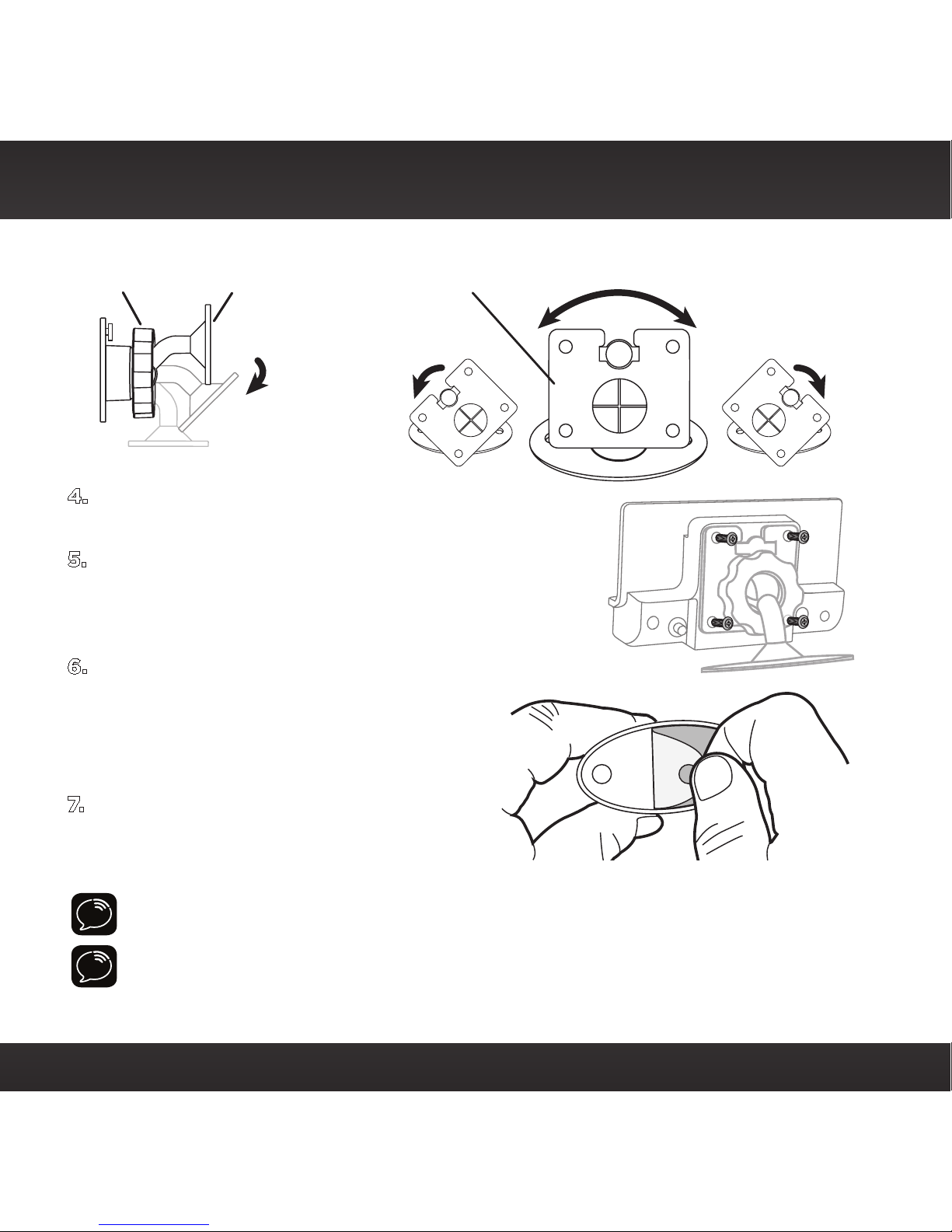

14
correct, tighten the knob.
4. Attach the Dash Mount to the PowerConnect
Vehicle Dock using the 4 provided screws.
5. Before you attach the Dash Mount to the
dash, skip ahead and finish the remainder of
the vehicle installation so that the cables are
attached to the dock.
6. Once the cables have been attached to the
dock, clean the mounting surface
in the vehicle with the alcohol
preparation pad and let it dry
thoroughly.
7. Peel off the adhesive liner. Position,
press, and hold the Dash Mount in
place for 30 seconds.
IMPORTANT! Allow the Dash Mount adhesive to cure (dry) for a minimum of
2-4 hours before using the mount. The best adhesion occurs after 24 hours.
TIP! To remove the Dash Mount, carefully lift the adhesive pad with your
fingers or a spoon. Warming the pad with a hair dryer for several minutes will
help soften the adhesive.
Knob Adhesive Foot Dock Mounting Plate
AUDIO ANT
PWR FM
Vehicle Installation

15
Installing the Vent Mount:
IMPORTANT! To make the cable connections easier, wait until after you have
connected all the cables to the dock before you attach the Vent Mount to a
vent.
1. Locate a vent with horizontal louvers sturdy
enough to hold your PowerConnect Vehicle
Dock and Radio.
2. If the vent louvers in your vehicle are
recessed, you may need to use the longer
vent clamps with the Vent Mount. If so,
remove the shorter vent clamps and install
the longer ones into the Vent Mount. Be
sure to observe the orientation of the vent
clamps as shown.
Slide Short Vent Clamps OutRemove End Cap
Slide Extended Vent Clamps In Replace End Cap
Extended Vent Clamps
Short Vent
Clamps
Vehicle Installation

16
Vehicle Installation
3. Attach the Vent Mount to the
PowerConnect Vehicle Dock using the 4
provided screws.
4. Before you attach the Vent Mount to the
vent, skip ahead and finish the remainder
of the vehicle installation so that the
cables are attached to the dock.
Note! For greater clarity, the next
illustration does not show the dock
attached to the Vent Mount, however, the
dock should be attached before continuing.
5. Once the cables have been attached to the dock, push the Vent Mount
onto the vehicle vent as shown (1) until it hooks on the rear of the vent
louver (2).
6. Rest the foot against the bottom of the vent (2), and adjust the tilt of the
Vent Mount by repositioning the foot to a different adjustment hole (3).
TIP! To remove the Vent Mount, push the mount into the vent. Then lift up
until disengaged from the rear of the vent louver, and remove the Vent
Mount.
PUSH
Dash
Vent
Louver
Vent Vent
Dash Dash
HOOKED
TILT
ADJUSTMENT
HOLES
FOOT
1 2 3
AUDIO ANT
PWR FM

17
Step 3: Mount the Magnetic Mount Antenna
Mount the Magnetic Mount Antenna on the outside of your vehicle, on a
horizontal surface that will always face the sky. The antenna contains a
strong magnet which will stick to any metal part of your vehicle, but will not
damage the vehicle.
To install the Magnetic Mount Antenna:
1. Choose the best location for the antenna considering
your vehicle type. Pay particular attention to any
accessories that you may have like luggage racks and
how frequently you may use them.
Sedan/Coupe: We recommend mounting the antenna just above either
the front windshield or the back window as shown.
Magnet
Vehicle Installation

18
SUV: We recommend mounting the antenna at the rear of the roof as
shown.
Convertible: We recommend mounting the antenna at the leading
edge of the trunk as shown.
Pickup Truck: We recommend
mounting the antenna just above the front
windshield as shown.
IMPORTANT! Consult a professional installer if
your vehicle roof or hood is non-metallic (i.e.,
fiberglass), or you have difficulty finding a
location for your antenna.
2. Clean the surface of the selected mounting
location using the alcohol preparation pad
and let it dry thoroughly.
Vehicle Installation

19
3. If you are installing the antenna at the roof edge, or hood edge, install
the Cable Routing Adapter to direct the antenna cable downward.
Place the antenna
wire into the groove
of the Cable Routing
Adapter
Slide the Cable Routing
Adapter down the antenna
wire and press it into the
antenna until it is flush with
the bottom of the antenna
Without Cable
Routing Adapter
Installed
With Cable
Routing Adapter
Installed
Cable Routing
Adapter orientation
Vehicle Installation

20
TIP! Mount the antenna on the
roof (for most vehicles) or trunk
(for convertibles) where it has a
clear view of the sky in all
directions.
4. Place the antenna in the location you selected. Follow the Tips and
Cautions shown on the next several pages.
Vehicle Installation
