Introduction

6
Introduction
Features
Thank you for purchasing the XM SkyDock!
The XM SkyDock™ has these exciting features to enhance your listening experience:
• Built-in XM tuner, so you can enjoy live Satellite Radio anywhere you drive
controlled by your iPod touch®or iPhone®.
• Uses the Free XM SkyDock App available for download from the App Store.
• Song Tagging allows you to discover new music and easily purchase from iTunes®
to expand your personal music library.
• Pause, rewind, and replay up to 30 minutes of live satellite radio.
• Revolutionary SIRIUS|XM Power Connect™ FM Transmitter works through your
existing car radio.
• Integrated design allows for easy installation and moving from vehicle to vehicle
• Works in portrait or landscape mode.
• Flexible stalk optimizes placement in your vehicle.
• Charges iPod touch or iPhone while you listen.
• Set alerts to notify you when your favorite song, artist or sports team is playing
on other channels.
• Stock and Sports Ticker allows you to track your favorite stocks and teams.
To get the most from your new XM SkyDock, please read this entire User Guide.
NOTE: XM SkyDock works on the XM Network and requires an active XM subscription.
NOTE: All references to iPhone in this manual also apply to the iPod touch, unless
otherwise noted.

7
Compatibility
Your XM SkyDock will work with the following iPhone and iPod touch models running
iPhone OS 3.0 or later:

8
Safety and Care Information
IMPORTANT: Always read and understand all the instructions to avoid injury to
yourself and/or damage to your radio. SIRIUS|XM claims no responsibility for damage
from data loss due to breakdown, repair, or other causes.
• Do not expose to extreme temperatures (above 140°F or below -4°F, or above
60°C or below -20°C).
• Do not expose to moisture. Do not use device near or in water.
• Do not let any foreign matter spill into device.
• Do not store in dusty areas.
• Do not expose to chemicals such as benzene and thinners. Do not use liquid or
aerosol cleaners. Clean with a soft damp cloth only.
• Do not expose to direct sunlight or other heat sources for a prolonged period.
• Do not try to disassemble and/or repair the device yourself.
• Do not drop the device or subject it to severe impact.
• Do not place heavy objects on the device.
• Do not subject the device to excessive pressure.
Introduction

9
Warning!
• Opening the case may result in electric shock.
• The un-insulated parts inside the XM SkyDock may cause electric shock or fire.
For your safety, please do not open the XM SkyDock. Do not let metallic objects,
such as necklaces or coins, come into contact with the XM SkyDock plug.
• To avoid electric shock, use the XM SkyDock only with a power outlet that
matches the shape of its plug.
• Make sure that you insert the XM SkyDock all the way into the power socket.
• Do not plug several devices into the same power outlet.
• Use the XM SkyDock away from water sources to avoid fire or electric shock.
• Do not touch the device with wet hands.
When using this product it is always important to keep your eyes on the road and hands
on the wheel. Not doing so could result in personal injury, death, and/or damage to your
device, accessories, and/or to your vehicle or other property.
Your XM SkyDock should be placed in your vehicle where it will not interfere with the
function of safety features, e.g., deployment of airbags. Failure to correctly place this
device may result in injury to you or others if the unit becomes detached during an
accident and/or obstructs the deployment of an airbag.
WARNING: This product contains chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.

10

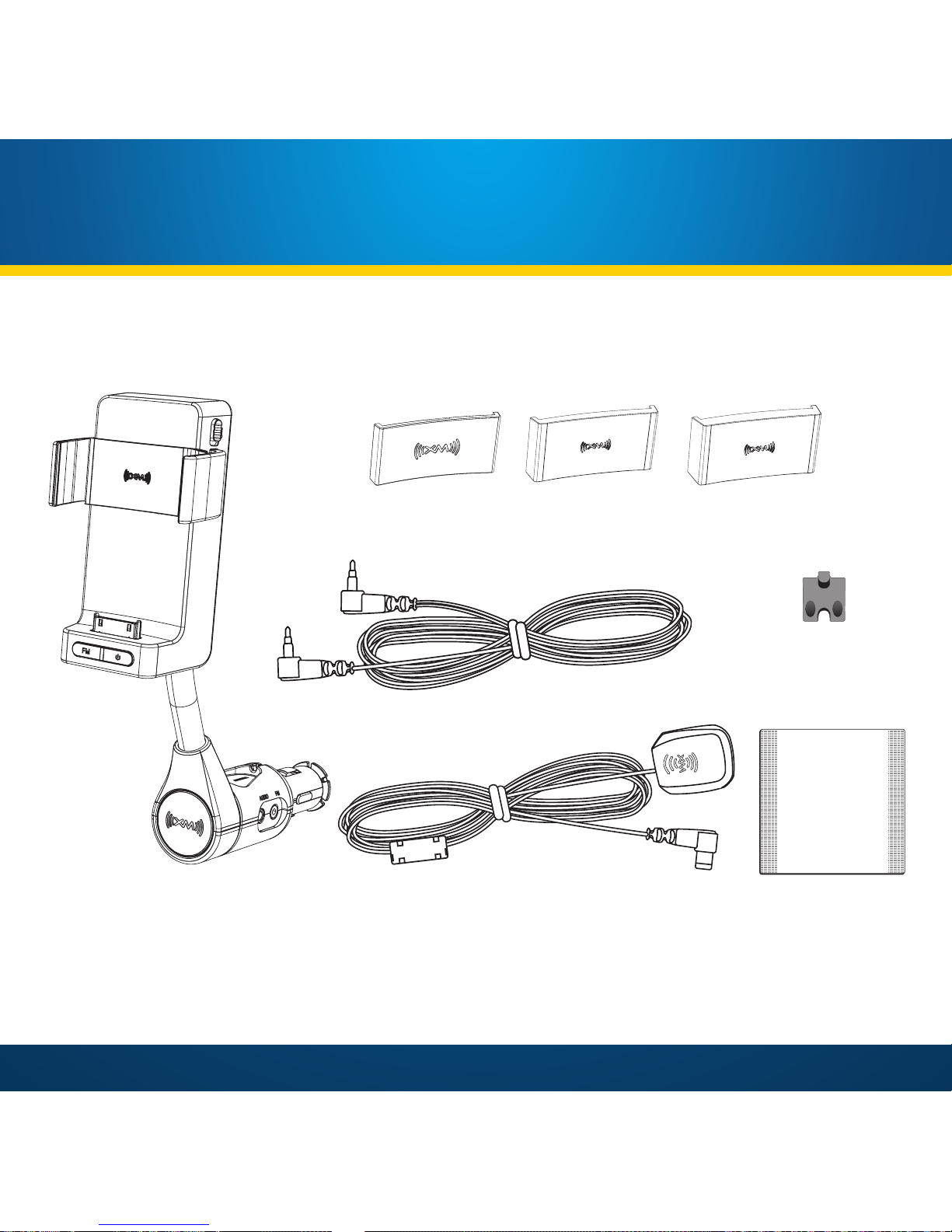

What’s in the Box?
XM SkyDock Satellite Radio
Tuner with Power Connect Magnetic Mount
Antenna
Spacer 3Spacer 2
(shipped attached
to XM SkyDock)
Spacer 1
Aux In Cable
Also Included: This User Guide, a Quick Start Guide, and an XM Channel Guide.
Introduction
Cable
Routing Adapter
Alcohol
Preparation
Pad
Alcohol
Prep Pad

11

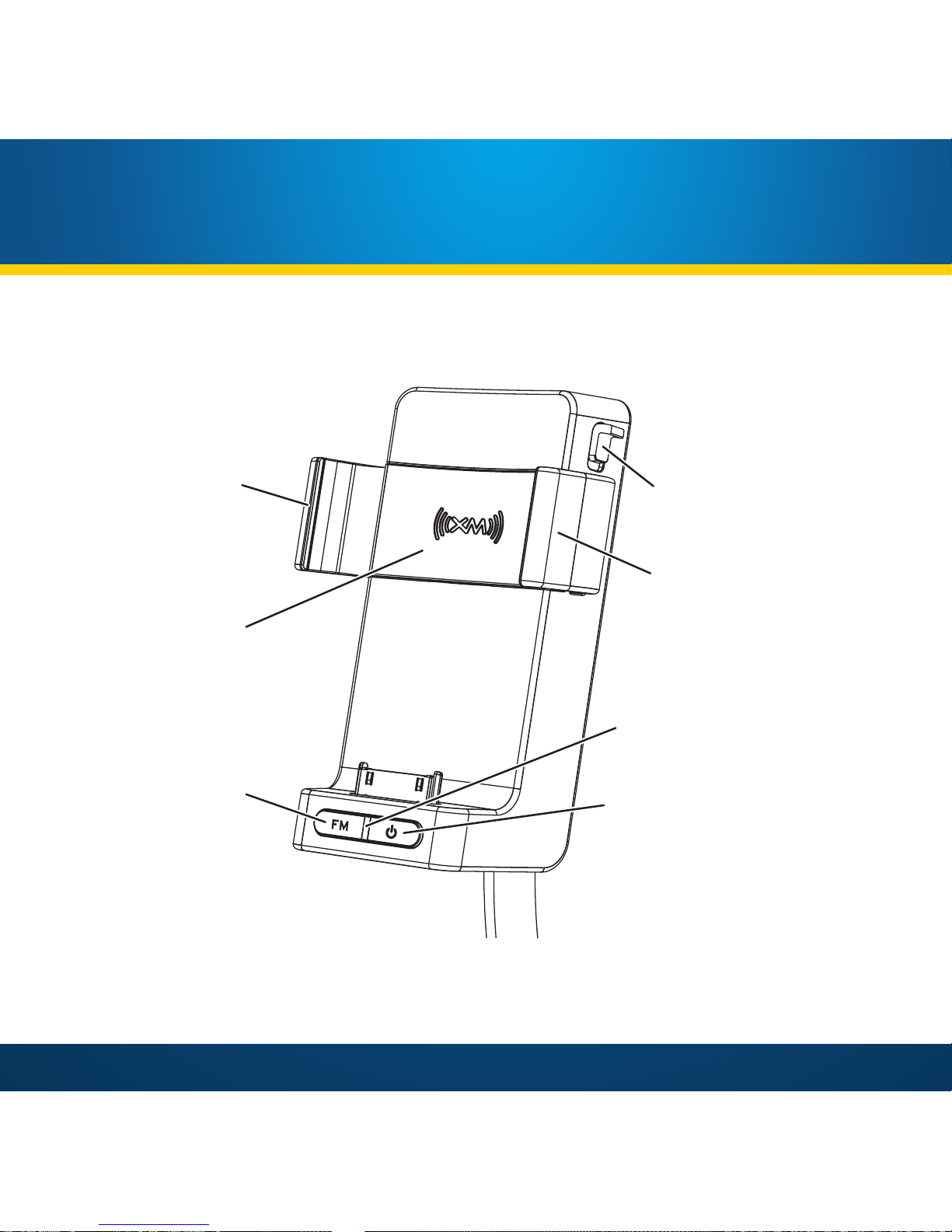

XM SkyDock Features and Controls
Side Grip
Power Button
Power Indicator
Side Grip
Replaceable
Spacer
FM Button
Side Grip
Release Lever

12

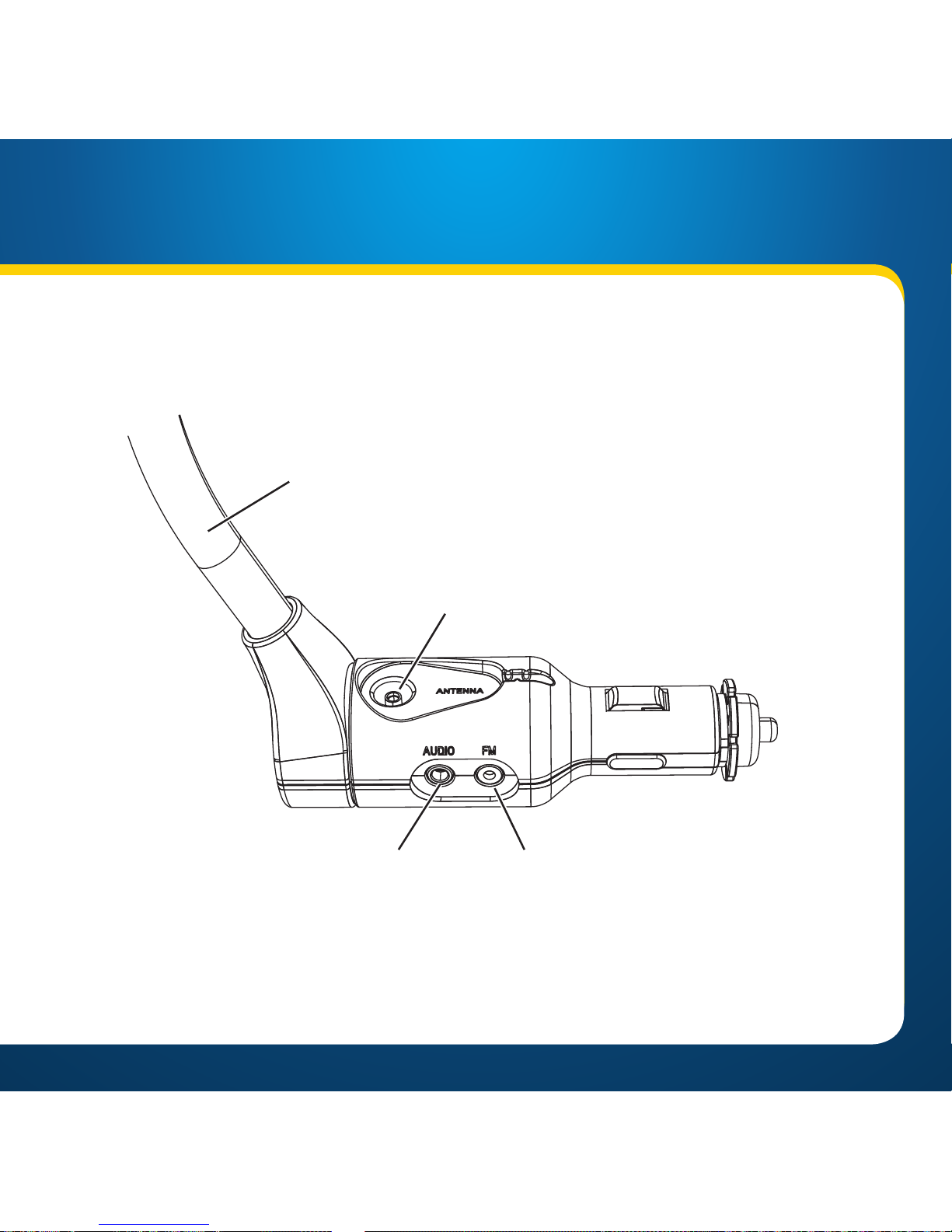

XM SkyDock Features and Connections
Antenna Connector
Flexible Stalk
FM Out ConnectorAudio Connector
Introduction

13
Installing the XM SkyDock App

14
Installing the XM SkyDock Application
To operate the XM SkyDock you will need to install the application from the App
Store. There are two ways to locate and install the XM SkyDock App:
1. You can use your iPhone to install the
XM SkyDock App directly from the App
Store (as long as you are in an area with
Wifi or 3G coverage).
2. From your computer, you can install the
XM SkyDock App directly from the App
Store in iTunes. You will then need to
synchronize your iPhone with iTunes to
complete the installation.
Once the XM SkyDock App has been
successfully installed, the Home Screen will
display the SkyDock icon on the Home screen.
Tap the icon to launch the XM SkyDock App.
iPhone Home Screen with
XM SkyDock App Icon
Installing the XM SkyDock App

15
Vehicle Installation

16
Vehicle Installation
Installing the XM SkyDock in Your Vehicle
WARNING! DO NOT attempt to install the XM SkyDock while driving.
Mounting the Magnetic Mount Antenna
The XM SkyDock incorporates an XM Satellite Radio Tuner.
A special magnetic vehicle mount antenna is included
that, when properly installed, will allow you to receive
the signal. Proper placement is very important. Consult
a professional installer if you are uncomfortable with
installing the antenna yourself.

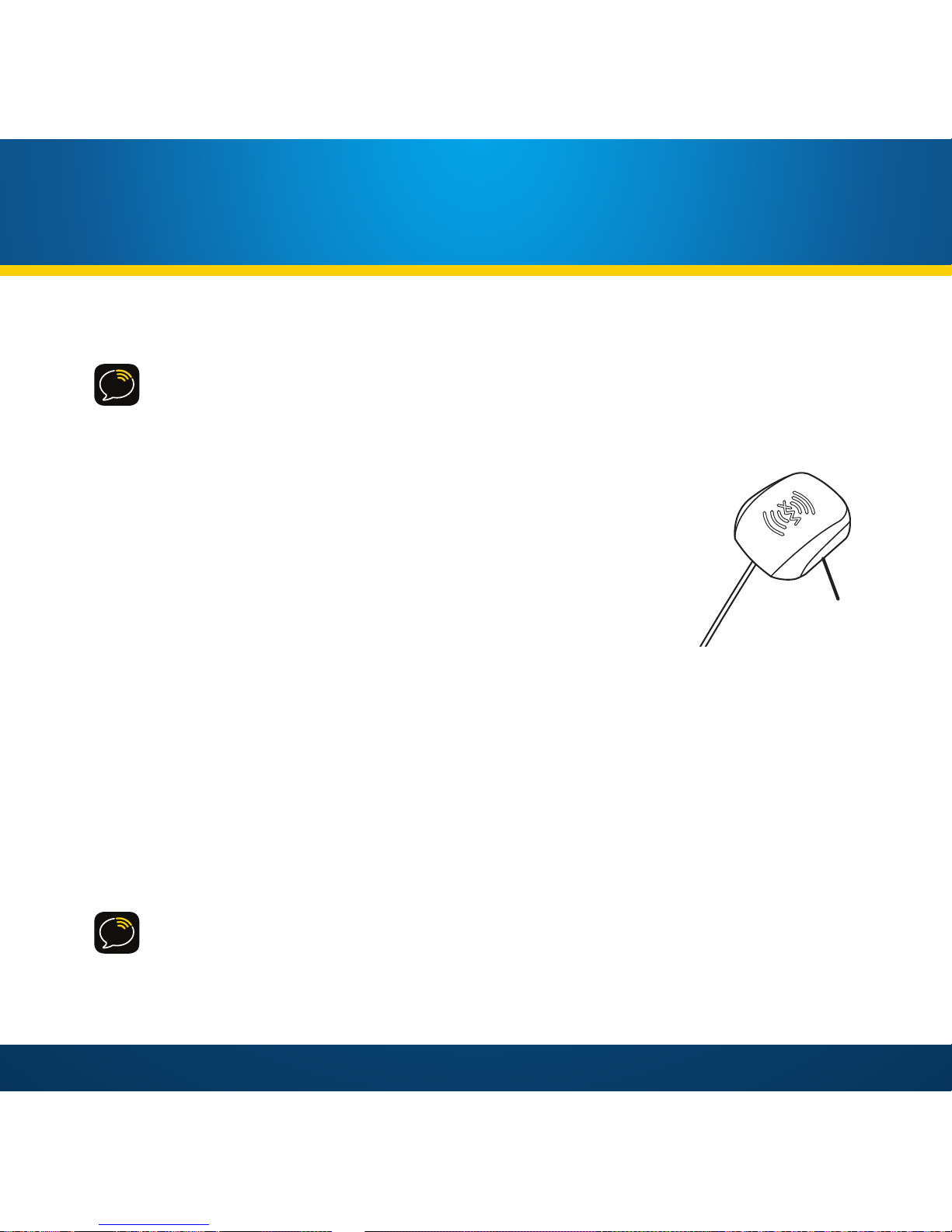

Mount the Magnetic Mount Antenna on the outside
of your vehicle, on a horizontal surface that will always face the sky. The antenna
contains a strong magnet that will stick to any metal part of your vehicle.
For most vehicles the best location is on the roof above the front windshield, as close to
centered between the left and right sides as the cable length will allow. For convertible
vehicles that do not have room above the windshield, place the antenna on the hood
of the vehicle near the back corner. Consult a professional installer if your vehicle roof
or hood is non-metallic (i.e. fiberglass) or you have difficulty finding a location for your
antenna.
IMPORTANT: The XM SkyDock uses a unique antenna. Do not substitute an antenna
from any other XM radio for the XM SkyDock antenna. Replacement XM SkyDock
antennas are available from shop.xmradio.com.
Magnet

17

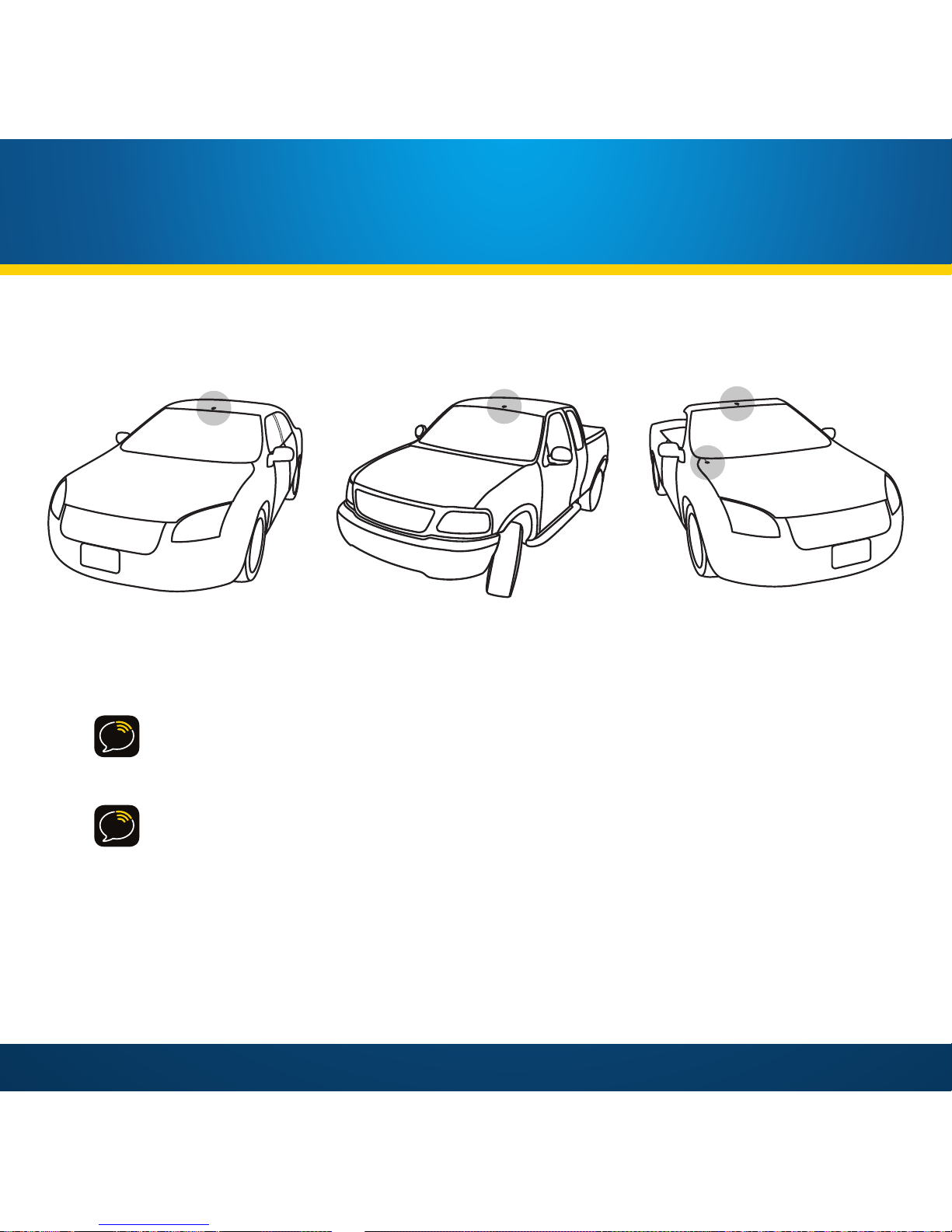

Recommended Antenna Locations
Sedans and Coupes Pickups and SUVs Convertibles*
* If the antenna can not be
placed above the windshield
place on vehicle hood.
TIP: When mounting the Magnetic Mount Antenna, be sure that the area is clean and
dry. Avoid locating the antenna near other antennas (i.e. GPS, Cellular, or AM/FM) as
well as roof rack or other items that can obstruct the view to the satellites.
IMPORTANT! Consult a professional installer if your vehicle roof or hood is non-
metallic (i.e., fiberglass), or you have difficulty finding a location for your antenna. (See
xmradio.com/accessories or visit your favorite retailer.)

18
Vehicle Installation

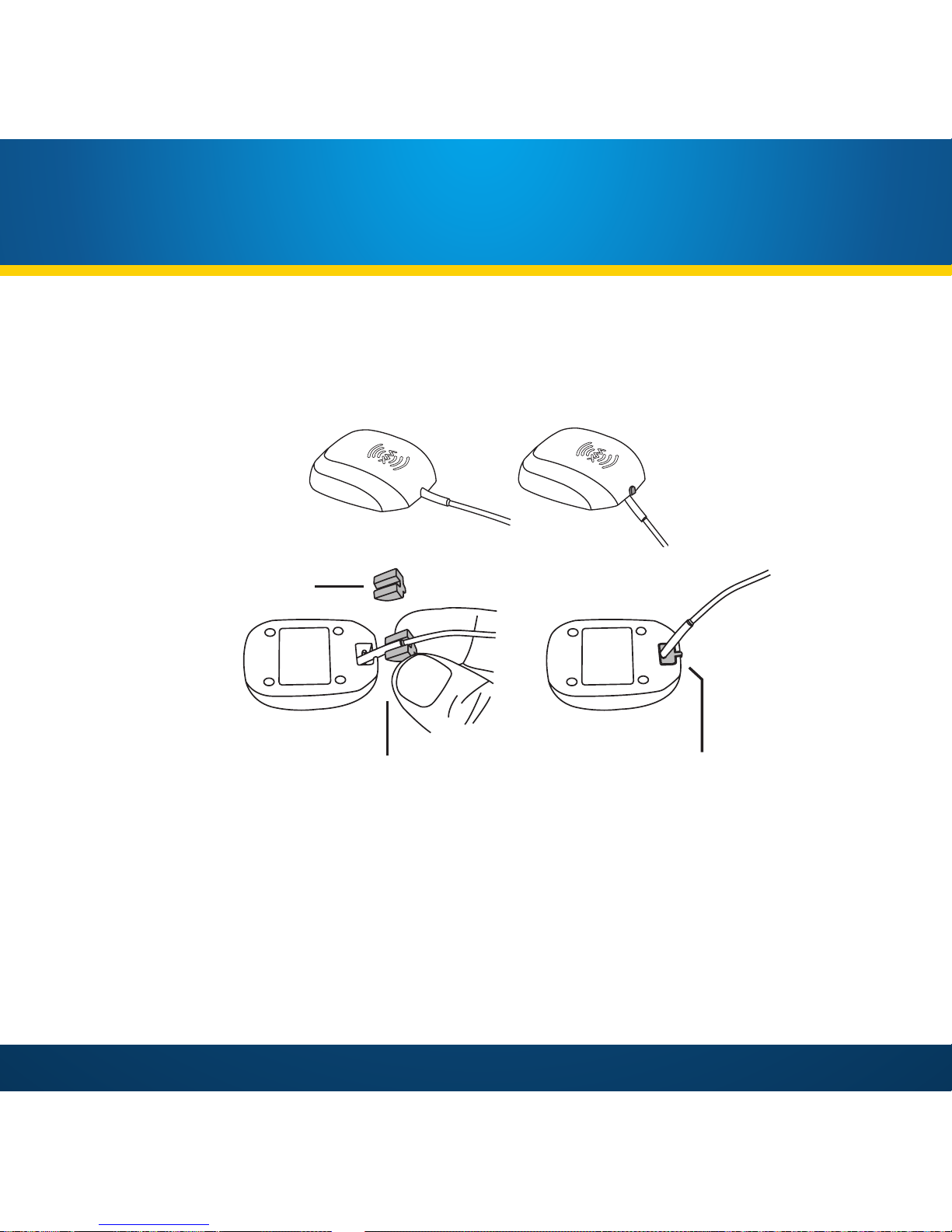

If you are installing the antenna at the roof edge, or hood edge, install the Cable
Routing Adapter to direct the antenna cable downward.
Place the antenna
wire into the groove
of the Cable Routing
Adapter
Slide the Cable Routing
Adapter down the antenna
wire and press it into the
antenna until it is flush with
the bottom of the antenna
Without Cable
Routing Adapter
Installed
With Cable
Routing Adapter
Installed
Cable Routing
Adapter orientation
Press the antenna wire under the rubber molding around the front windshield to the
nearest corner. Then route the cable out of the windshield molding and into the rubber
weather stripping around the door opening. Lift the weather stripping from the opening
and tuck the cable inside it, then replace the weather stripping. Run the cable inside of
the weather stripping to the bottom of the door opening.

19

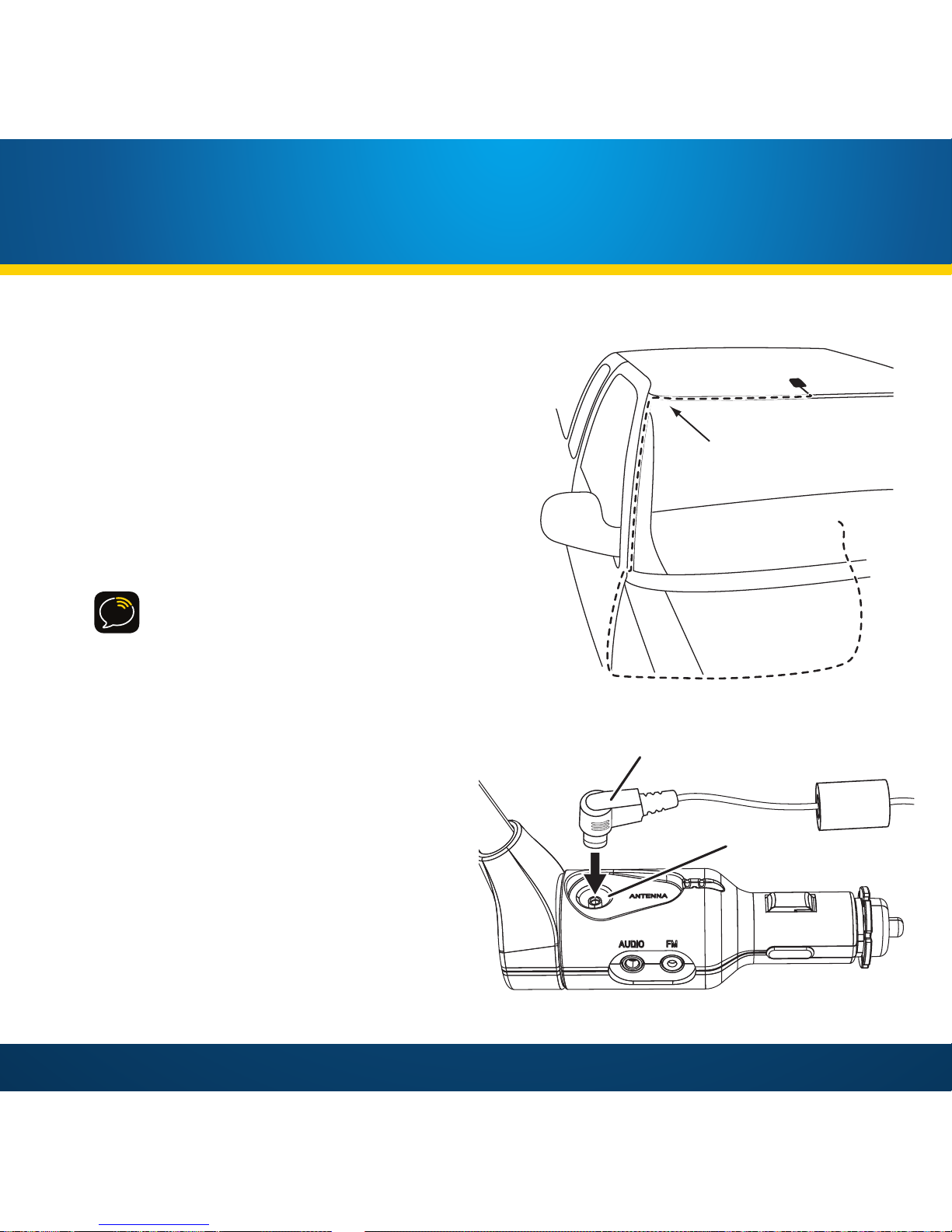

Recommended: Hide the antenna wire inside
the cabin. Pull the cable out of the weather
stripping at the bottom of the door opening and
route it under the carpet toward the cigarette
lighter power adapter socket. Coil any excess
cable in a hidden location, such as under the
carpet, keeping it away from any vehicle pedals
or controls. Secure the excess cable with wire
ties.
TIP: Always be careful to include enough
slack in your routing to accommodate open
doors or trunk lids. Use electrical tape to
secure the cable in areas so that hinges do
not pinch the cable with the door.
Plug the Magnetic Mount Antenna
connector into the XM SkyDock’s
Antenna connector. The antenna plug
and cable will fit into the recess on the
top of the XM SkyDock base.
Place Antenna
Closer to A-Pillar
if Cable Doesn’t Reach
Center of Roof
Cigarette Lighter
or Power Adapter
Location
Antenna
Connector
Antenna
Plug
Connecting the Magnetic Mount Antenna

20
Inserting the Spacers
Your XM SkyDock comes with three numbered rubber spacers that assure a proper fit
with different iPhone and iPod touch models, with and without aftermarket cases that
surround and protect the iPhone or iPod touch.
IMPORTANT: The XM SkyDock will accommodate many,
but not all types of after-market cases. Compatible
cases must be no thicker than 2mm in any dimension
and must have a large enough open area around the
connector at the bottom of the iPhone or iPod touch to
allow it to seat properly in the XM SkyDock.
Spacer 1: For iPhone with compatible case
Spacer 2: For iPhone without case; for iPod touch with
compatible case
Spacer 3: For iPod touch without case
Install the appropriate Spacer by inserting it all the
way into the recess in the XM SkyDock.
Removing the Spacers
1. Use one finger to apply sliding pressure on
the Spacer towards one of the Side Grip
arms.
2. Using another finger, pry up under the edge
of the Spacer to release it.
Recess
Spacer
1. Press Spacer &
Slide Towards
Side Grip
2. Pry Spacer Up
and Remove
Vehicle Installation
