Sirius XM RAdio Stratus 6 User manual

Stratus 6
Radio & Vehicle Kit
User Guide

3
Table of Contents
Introduction ....................4
General Precautions ..................5
Warnings ............................6
What’s in the Box? ....................8
Stratus 6 Front Panel. . . . . . . . . . . . . . . . . 10
PowerConnect Vehicle Dock............11
Vehicle Installation .............13
Step 1: Choose a Location for Your Radio 13
Step 2: Install the Dash or Vent Mount.. 15
Step 3: Mount the Magnetic Mount
Antenna .......................... 19
Step 4: Route the Magnetic Mount
Antenna Cable .....................24
Step 5: Connect the Magnetic Mount
Antenna and PowerConnect Power
Adapter...........................35
Step 6: Connecting Your Stratus 6 to
Your Vehicle’s Audio System .........36
Subscribing to the SiriusXM
Service ......................45
Operation .....................46
Display Screen Information ...........46
Changing Channels and Categories.....47
Selecting Channels Directly
(Direct Tuning).....................47
Channel Presets .....................48
FM Presets/Menu Button .............49
Jump Button ........................50
Menu Options ..................51
Sirius ID ............................52
FM Transmitter ......................53
Settings ............................55
Troubleshooting ................64
Specifications..................65
IC Statement ..................66
Copyrights and Trademarks ......67
Sirius ID ......................68

4
Introduction
Here’s your new Stratus 6 Radio
Your new Stratus 6 comes with everything you need to enjoy SiriusXM in your
car. With available accessories you can use your Stratus 6 just about anywhere.
Your new Stratus 6 gives you powerful features:
• Easy-to-read 3-line display.
• PowerConnect so you can listen to SiriusXM through your car’s FM stereo. An
FM Presets button makes transmitter frequency changes quick and easy.
• Jump button that lets you jump to and from your favourite channel with the
touch of just one button.
Use this manual to familiarize yourself with all of your Stratus 6’s features and
capabilities. For the latest information about your Stratus 6 and other products
and accessories, visit siriusxm.ca.

5
Introduction
General Precautions
Liquid Crystal Precautions
If the LCD screen on the radio is damaged, do not to touch the liquid crystal fluid.
If any of the following situations happen, take the action indicated:
1. If the liquid crystal fluid comes in contact with your skin, wipe the skin area
with a cloth and then wash the skin thoroughly with soap and running water.
2. If the liquid crystal fluid gets into your eye, flush the eye with clean water for
at least 15 minutes. Seek medical care.
3. If the liquid crystal fluid is ingested, flush your mouth thoroughly with water.
Drink large quantities of water and induce vomiting. Seek medical care.
Safety Precautions
Be sure to observe the following warnings. Failure to follow these safety
instructions and warnings may result in a serious accident.
• Do not operate your Stratus 6 in a way that might divert your attention from
driving safely. As a driver, you alone are responsible for safely operating your
vehicle in accordance with traffic safety laws at all times.
• Do not install the unit where it may obstruct your view through the
windshield, or of your vehicle’s indicator displays.
• Do not install the unit where it may hinder the function of safety devices such
as an airbag. Doing so may prevent the airbag from functioning properly in
the event of an accident.
• Be sure the unit is installed as described in the installation instructions which
accompany each accessory kit. Sirius XM Canada Inc is not responsible for
issues arising from installations which were not installed according to the

6
Introduction
instructions.
• To avoid short circuits, do not open the unit, and never put or leave any
metallic objects (coins, tools, etc.) inside the unit.
• If the unit emits smoke or unusual odors, turn the power off immediately, and
disconnect the unit from any power source.
• Do not drop the unit or subject it to strong shocks.
• If the unit doesn’t seem to be working properly, turn the unit off, wait 10
seconds and then turn it on again.
• The installation and use suggestions contained in this manual are subject to
any restrictions or limitations that may be imposed by applicable law. The
purchaser should check applicable law for any restrictions or limitations
before installing and/or operating this unit.
Warnings
Operating Temperature
The Stratus 6 is designed to operate between -20°to +85°C (-4°to +185°F).
Avoid leaving the radio in a vehicle or elsewhere where the temperature may fall
outside this range. Extreme temperatures or extreme temperature fluctuations
can degrade the performance of the LCD display screen, and possibly damage it.
Cleaning and Maintenance
If the radio or accessories become dirty, turn the power off and wipe it clean with
a soft cloth. Do not use hard cloths, strong cleaning fluids, paint thinner, alcohol,
or other volatile solvents to clean. These may cause damage to the radio.

7
Introduction
PowerConnect Power Adapter
The PowerConnect Vehicle Dock cannot be powered directly from a vehicle’s
12VDC power system. It must be powered from the vehicle’s cigarette lighter or
similar power port using the included PowerConnect Power Adapter. Connecting
the PowerConnect Vehicle Dock directly to the vehicle’s 12VDC power system may
result in damage to the PowerConnect Vehicle Dock or Stratus 6 Radio, or both.

8
Introduction
What’s in the Box?
The following items are included with your purchase of the Stratus 6 radio:
Stratus 6 Radio
PowerConnect Power Adapter
Dash Mount
Vent Mount
and Extended
Vent Clamps
PowerConnect Vehicle Dock

9
Introduction
Unpack your Stratus 6 radio carefully and make sure that everything shown is
present. If anything is missing or damaged, or if your the radio fails to operate,
notify your dealer immediately. We recommend that you retain the original carton
and packing materials in case you need to ship your radio in the future.
Antenna & Dash Mount
Alcohol Preparation Pads
Aux In Cable
Magnetic Mount
Antenna
Screws

10
Stratus 6 Front Panel

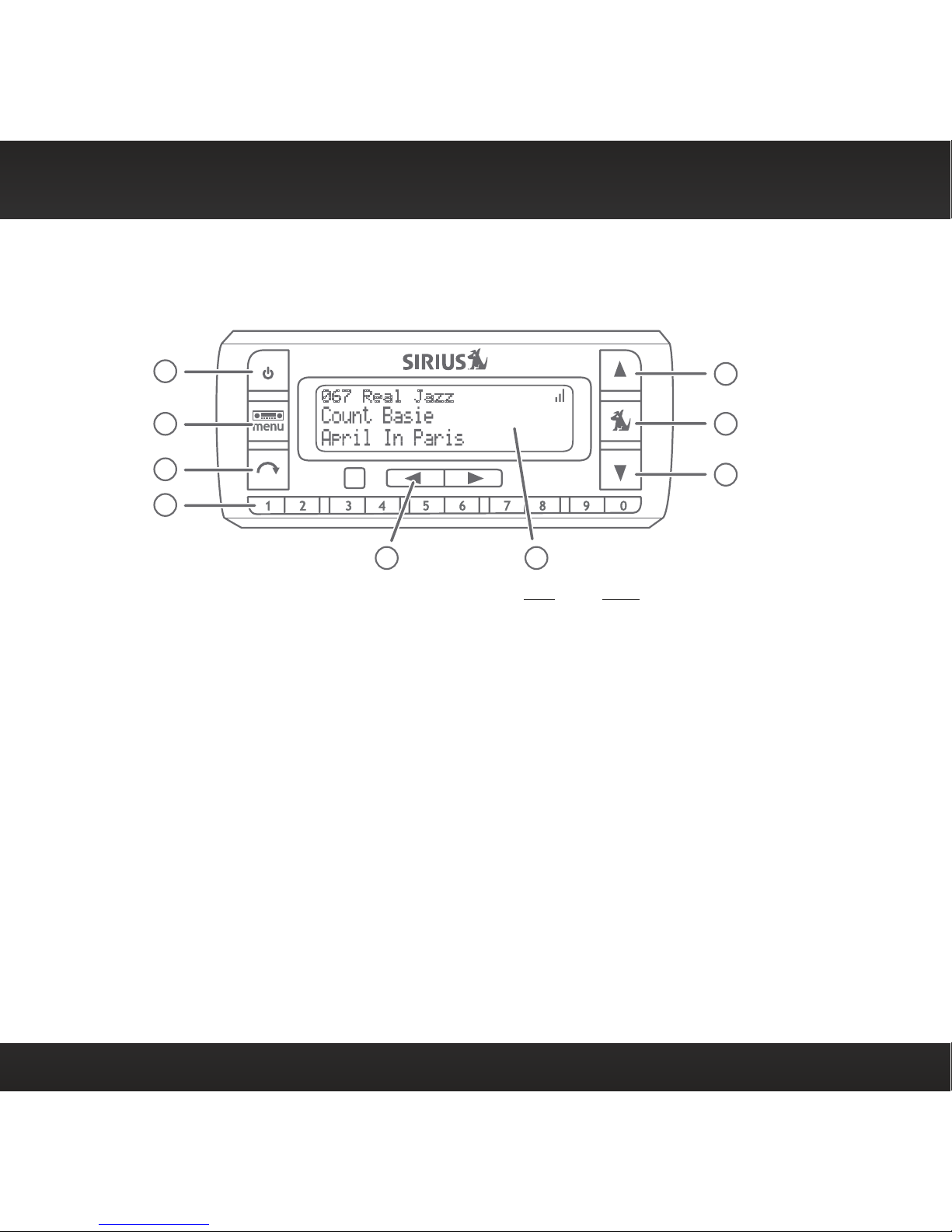

The following section describes the Stratus 6’s buttons and controls.
1. Power Button: Turns the Stratus 6’s power ON and OFF.
2. FM Presets/Menu Button: Selects between different preset frequencies
used by the built-in wireless FM transmitter. Press and hold to access Menu
Options to make setup and feature changes.
3. Jump Button: Jumps to a pre-selected channel.
4. Preset/Direct Tune Buttons (0 – 9): Sets and selects preset channels. Also
lets you directly tune channels by entering the channel number.
5. Category < > Buttons: Navigates through the Category List screen which
displays channel categories.
6. LCD Display: Displays information about the Stratus 6’s operation and about
the program that is playing.
7. Channel Up/Down Buttons: Navigates through channels and display screens.
8. Select Button: Selects items highlighted on the display screen. When at the
Default display screen, a press-and-release will display a prompt to enter a
channel number.
1
2
37
7
8
4
5 6
067 Real Jazz
Introduction

11
Introduction
PowerConnect Vehicle Dock
Colour-Coded Connections
The colour-coded PowerConnect Vehicle Dock makes it simple to connect. Just
match the colours on the cable ends to the colours on the dock to see what goes
where.

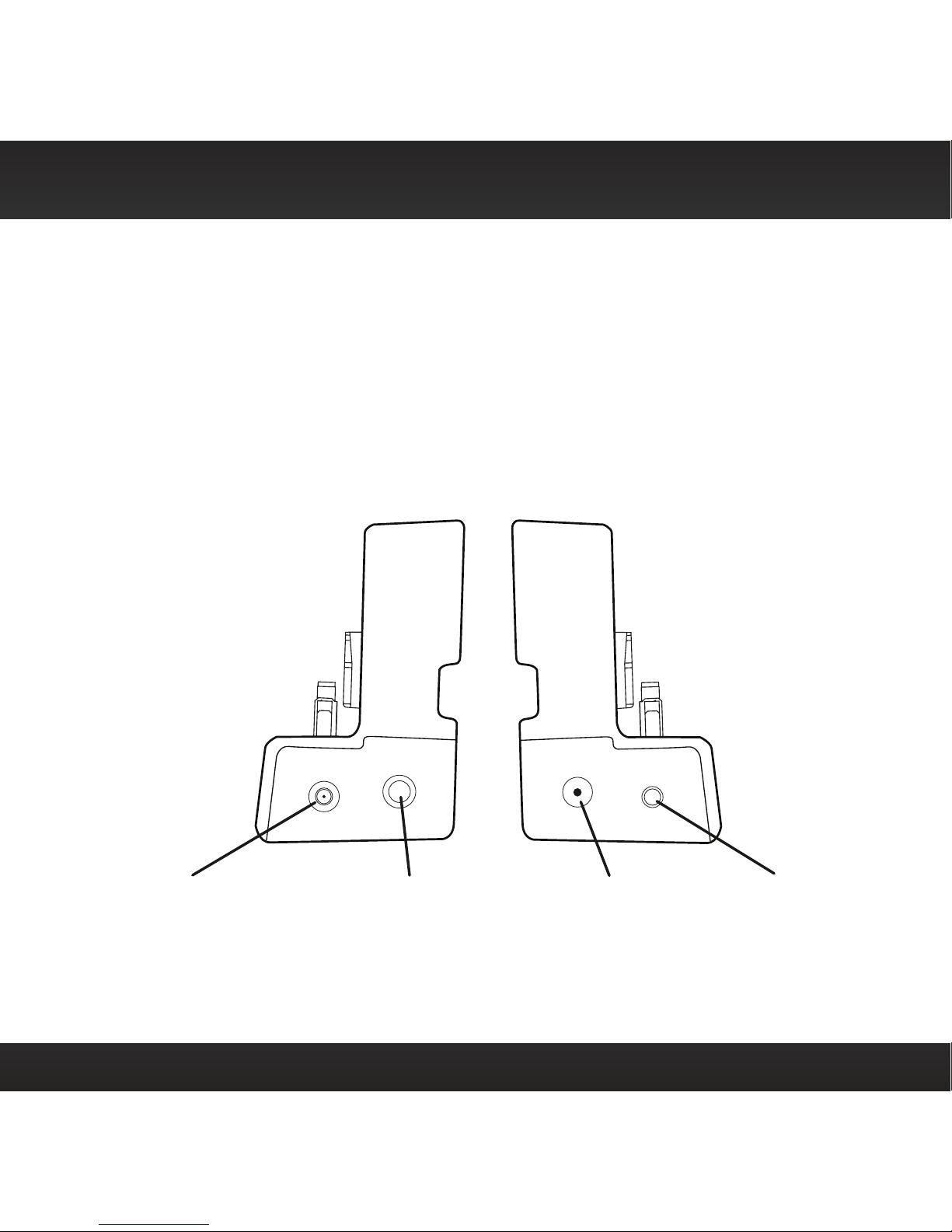

Side View
Right Left
AUDIO
ANT PWR
FM
AUDIO (Green)
Connection for Aux In
Cable or optional
Cassette Adapter
(sold separately).
ANT (Silver)
Connection for
the Magnetic
Mount Antenna.
PWR (Red)
Connection for
PowerConnect
Power Adapter.
FM (Blue)
Connection for
optional FM Direct
Adapter (sold
separately).

12
Introduction
Rear View
Wire Guide
The PowerConnect Vehicle Dock has a channel across the back to help organize
the wires connected to the dock. If you need to bring a wire from one side of the
dock to the other side, utilize the wire guide channel to keep the wires tidy.
Wire Guide
Channel

13
Vehicle Installation
WARNING! DO NOT attempt to install Stratus 6 while driving. Park your vehicle in a
safe location before beginning installation.
Step 1: Choose a Location for Your Radio
When installing Stratus 6 in your vehicle, choose a location where it will not block
your vision, interfere with the controls, or obstruct the air bag. The location
should be easily accessible and provide good visibility of the display, and should
not be located where it will be in direct sunlight, which will affect the visibility of
the display screen.
Several examples of Stratus 6 mounted in a vehicle are shown: Ais the on dash
method using the Dash Mount, and Bis the vent clip method using the Vent
Mount.

14
Vehicle Installation
A. B.
A.
B.

15
Vehicle Installation
Step 2: Install the Dash or Vent Mount
Follow the instructions on the next several pages for the mounting method you
have selected.
NOTE! The PowerConnect Vehicle Dock included with the this Vehicle Kit is
compatible with the T-slot style Dash and Vent Mounts. If you have an existing Dash
Mount or Vent Mount in your vehicle, you can continue to use it with this dock, and
skip this step.
Installing the Dash Mount (A):
CAUTION! The adhesive used on the Adhesive Mount may be
difficult to remove. Do not install this mount on leather surfaces
(contact your automobile dealership if you are unsure about your
dash surface), and make sure the air temperature is at least 60°F
(15°C) during installation. If it’s not at least 60°F, turn on the
heater in your vehicle to bring the temperature up to 60°F.
1. Locate a flat surface for the Adhesive Mount. Make sure there is ample room
for the PowerConnect Vehicle Dock and Stratus 6 when installed.

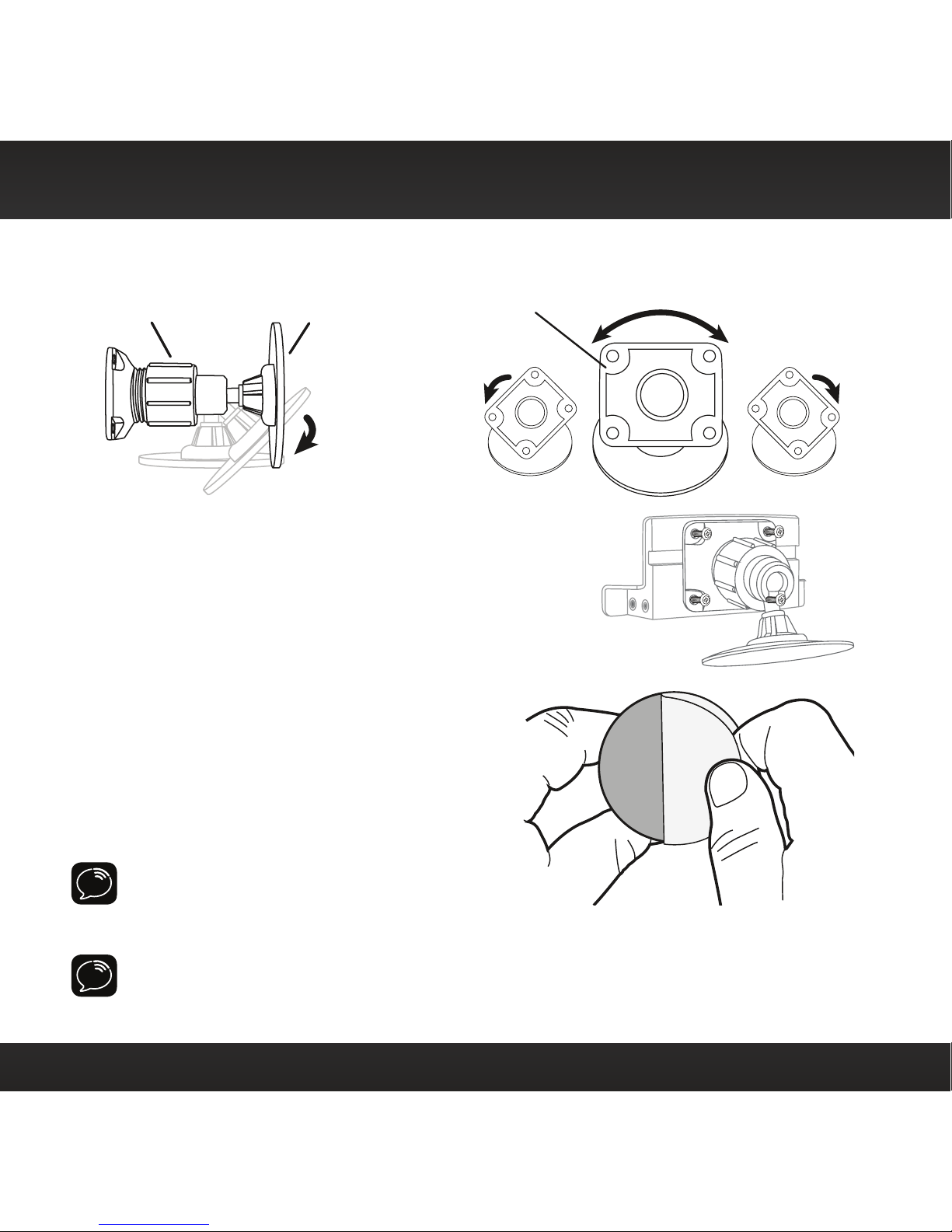

2. Set the orientation of the Adhesive Mount before adhering it. Loosen the
knob and adjust the adhesive foot for the location you selected in “Step 1:
Choose a Location for Your Radio” on page 13.
3. The dock mounting plate can be tilted in different directions. Adjust as
Option 1
Option 3
Option 2 Option 4

16
Vehicle Installation
necessary for your particular vehicle. When the orientation is correct,
tighten the knob.
4. Attach the Adhesive Mount to the PowerConnect
Vehicle Dock using the 4 provided screws. If you
plan to use the wire guide channel across the
back of the Vehicle Dock to organize the wires,
do not fully tighten the screws. If not, tighten the
screws.
5. Once the cables have been attached to
the dock, clean the mounting surface in
the vehicle with the alcohol preparation
pad and let it dry thoroughly.
6. Peel off the adhesive liner. Position, press,
and hold the Adhesive Mount in place for
30 seconds.
IMPORTANT! Allow the Adhesive Mount
adhesive to cure (dry) for a minimum of 2-4
hours before using the mount. The best
adhesion occurs after 24 hours.
TIP! To remove the Adhesive Mount, carefully lift the adhesive pad with your
fingers or a spoon. Warming the pad with a hair dryer for several minutes will help
soften the adhesive.
Knob Adhesive Foot
Dock Mounting Plate

17
Vehicle Installation

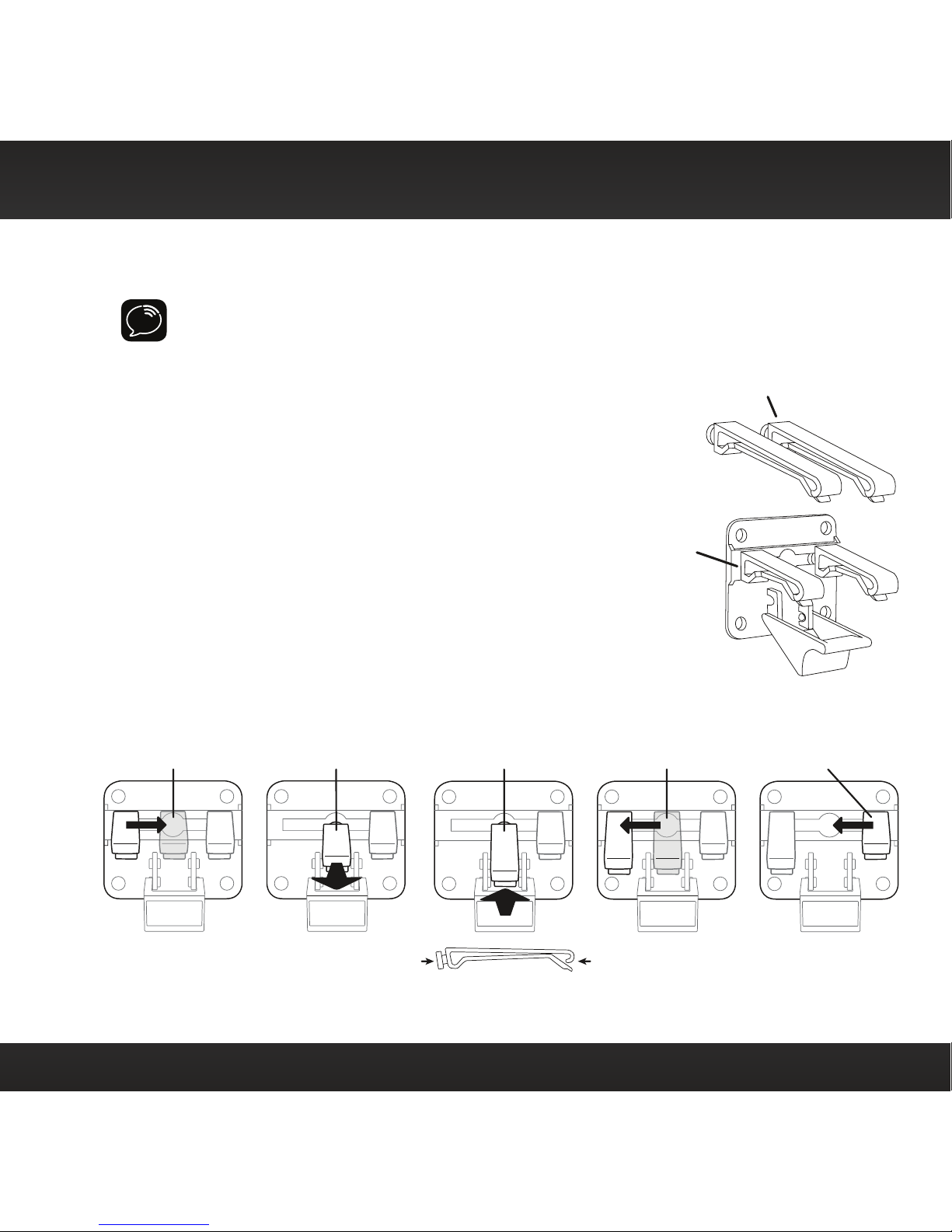

Installing the Vent Mount (B):
IMPORTANT! To make the cable connections easier, wait until after you have
connected all the cables to the dock before you attach the Vent Mount to a vent.
1. Locate a vent with horizontal louvers sturdy
enough to hold your PowerConnect Vehicle
Dock and Stratus 6.
2. If the vent louvers in your vehicle are
recessed, you may need to use the longer
vent clamps with the Vent Mount. If so,
remove the shorter vent clamps and install
the longer ones into the Vent Mount. Be sure
to observe the orientation of the vent clamps
as shown, and replace both vent clamps.
Extended Vent Clamps
Short Vent
Clamps
Vent Mount
Rear View
Round End Orientation
V
ent Mount Rear View
Slide Left Clamp
to
Hole in Center Pull Clamp Out Towards You
Insert Round End
of the Extended
Clamp in the
Center Hole
Slide Clamp to Left
to Complete
Installation Repeat to Replac
e
Right Clamp

18
Vehicle Installation
3. Attach the Vent Mount to the
PowerConnect Vehicle Dock using the 4
provided screws. If you plan to use the
wire guide channel across the back of
the Vehicle Dock to organize the wires,
do not fully tighten the screws. If not,
tighten the screws.
Note! For greater clarity, the next
illustration does not show the dock attached to the Vent Mount, however, the dock
should be attached before continuing.
4. Once the cables have been attached to the dock, push the Vent Mount onto
the vehicle vent as shown (1) until it hooks on the rear of the vent louver (2).
5. Rest the foot against the bottom of the vent (2), and adjust the tilt of the Vent
Mount by repositioning the foot to the other adjustment hole (3).
TIP! To remove the Vent Mount, push the mount into the vent. Then lift up until
disengaged from the rear of the vent louver, and remove the Vent Mount.
Dash
Dash
PUSH
Dash
Vent
Louver
Vent Ve
nt
HOOKED
TILT
ADJUSTMENT
HOLES
FOOT
1 2 3

19
Vehicle Installation
Step 3: Mount the Magnetic Mount Antenna
Mount the Magnetic Mount Antenna on the outside of your vehicle, on a
horizontal surface that will always face the sky. The antenna contains a strong
magnet which will stick to any metal part of your vehicle, but will not damage the
vehicle.
To install the Magnetic Mount Antenna:
1. Choose the best location for your antenna considering your
own personal situation. Pay particular attention to any
accessories that you may have like luggage racks and how
frequently you may use them.
Sedan/Coupe: We recommend mounting the antenna above either the
front windshield or the back window as shown.
Magnet

20
Vehicle Installation

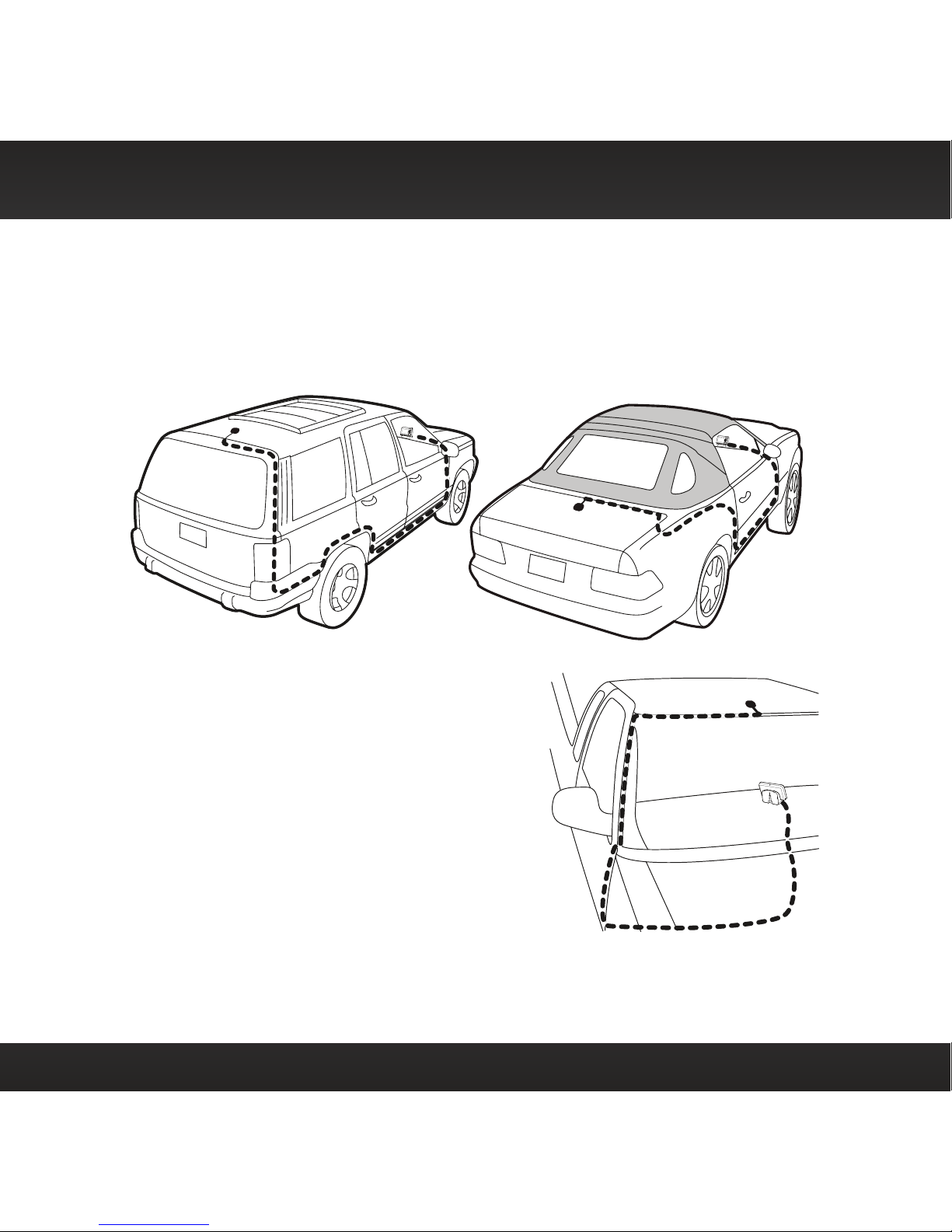

SUV: We recommend mounting the antenna at the rear of the roof as
shown.
Convertible: We recommend mounting the antenna at the leading edge
of the trunk as shown.
Pickup Truck: We recommend
mounting the antenna above the front
windshield as shown.
2. Clean the surface of the selected mounting
location using the alcohol preparation pad
and let it dry thoroughly.
