Sirona Sprayvit C8 User manual

léÉê~íáåÖ=fåëíêìÅíáçåë
MQKOMNR
pmo^vsfq=L=`U=L=b=L=i=L=j
kÉï=~ë=çÑW=
båÖäáëÜ=ErpF
=
Operating instructions

65 45 490 D3286
2D3286.201.03.15.23 04.2015
Table of Contents Sirona Dental Systems GmbH
Operating Instructions SPRAYVIT / C8 / E / L / M
Table of Contents
1Before you begin ….................................................................................................. 4
1.1 Structure of the document............................................................................. 4
1.1.1 Labeling of information..................................................................... 4
1.1.2 Formats and symbols....................................................................... 5
1.2 Service life of Sirona instruments.................................................................. 5
2Safety information .................................................................................................... 6
3Technical description................................................................................................ 7
3.1 Task .............................................................................................................. 7
3.2 SPRAYVIT / C8 / E / L / M design................................................................. 7
3.3 Technical data............................................................................................... 7
4Preparation............................................................................................................... 9
4.1 Initial start-up and longer breaks in use ........................................................ 9
4.2 Prior to starting the work day ........................................................................ 9
4.3 Before each patient ....................................................................................... 9
5Operation.................................................................................................................. 10
5.1 Connect the multifunctional syringe to the supply hose ................................ 10
5.2 Attach/remove the handle sleeve and nozzle ............................................... 10
5.3 Vent supply lines ........................................................................................... 11
5.4 Applying air, water, or spray.......................................................................... 11
6Follow-up.................................................................................................................. 12
6.1 After each treatment session ........................................................................ 12
7Conditioning ............................................................................................................. 13
7.1 Conduct pre-disinfection ............................................................................... 13
7.2 Automated cleaning and disinfecting ... ........................................................ 13
7.2.1 ... with cleaning and disinfection equipment..................................... 13
7.3 Manual cleaning and disinfection .................................................................. 13

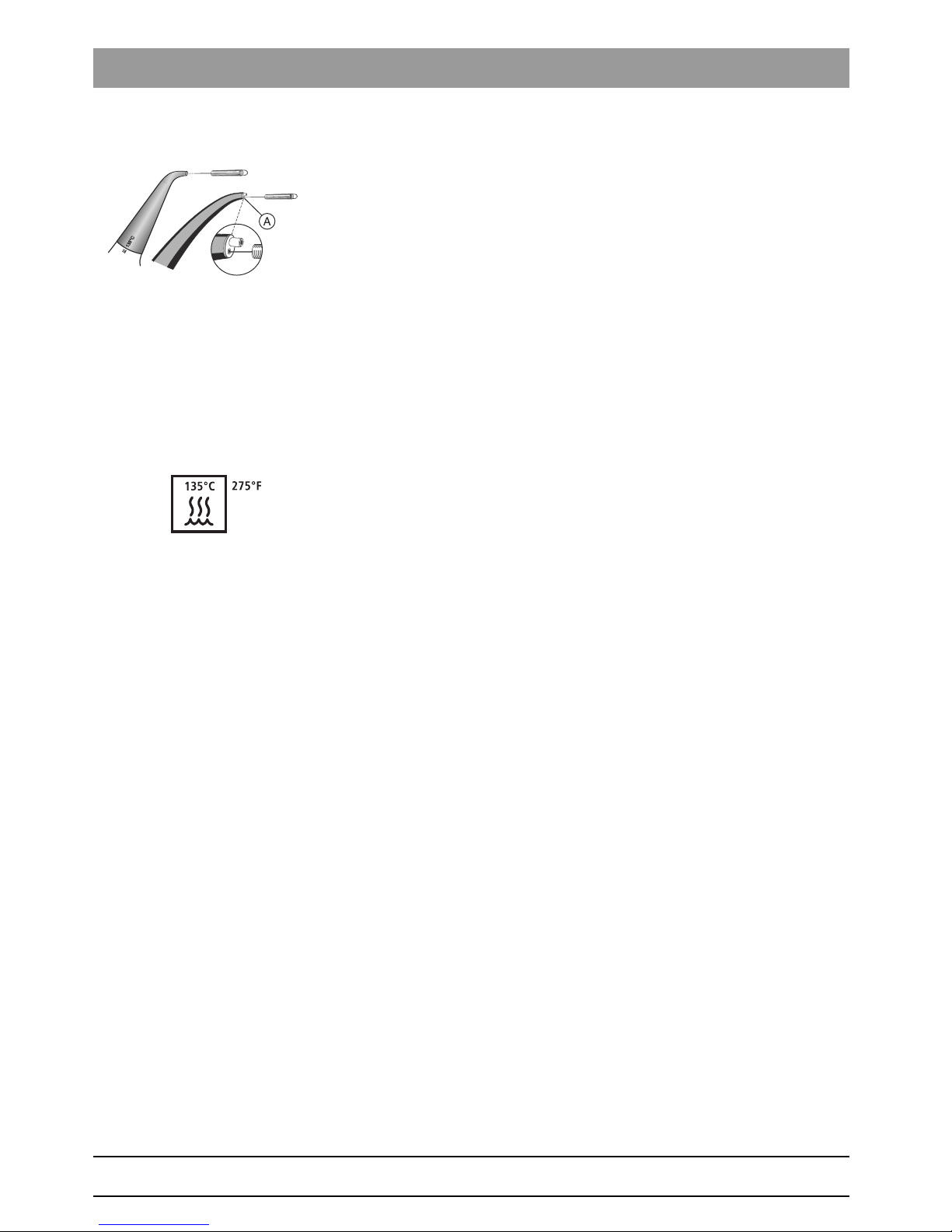

7.3.1 Cleaning the nozzle.......................................................................... 14
7.4 Sterilizing....................................................................................................... 14
8Maintenance............................................................................................................. 15
8.1 Replacing O-rings ......................................................................................... 15

65 45 490 D3286
D3286.201.03.15.23 04.2015 3
Sirona Dental Systems GmbH Table of Contents
Operating Instructions SPRAYVIT / C8 / E / L / M
8.2 Replacing lamps........................................................................................... 15
8.3 Cleaning heating cartridges.......................................................................... 15
8.4 Replacing the heating cartridges.................................................................. 16
9Spare parts and consumables................................................................................. 17

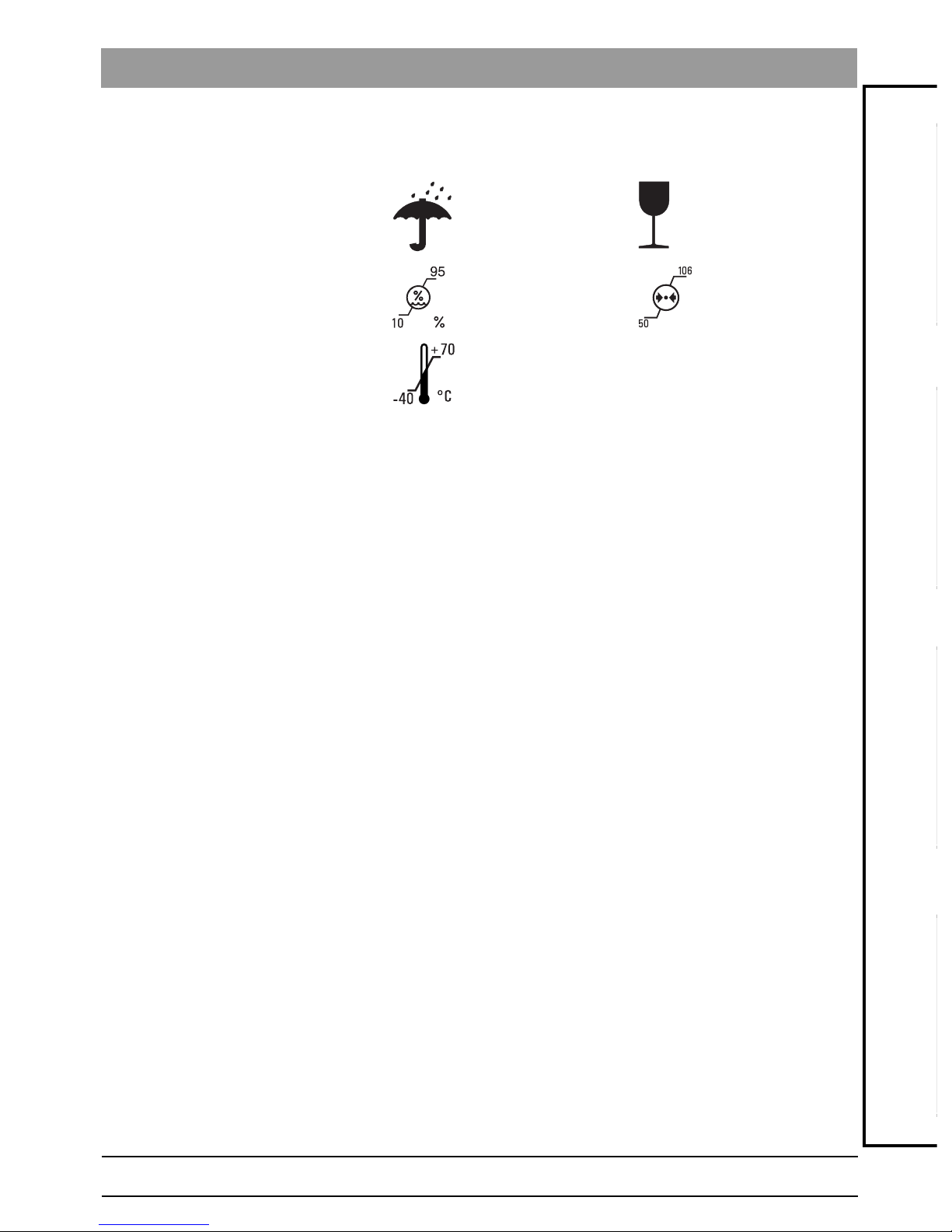

10 Storage and transport conditions............................................................................. 19
11 Disposal................................................................................................................... 20

65 45 490 D3286
4D3286.201.03.15.23 04.2015
1Before you begin … Sirona Dental Systems GmbH
1.1Structure of the document Operating Instructions SPRAYVIT / C8 / E / L / M
1Before you begin …
SPRAYVIT / C8 / E / L / M complies with state-of-the-art technical
regulations.
Read/observe _ general
1. Read the operating instructions prior to using SPRAYVIT / C8 / E / L
/ M.
2. Only use SPRAYVIT / C8 / E / L / M for the applications described in
the operating instructions.
3. Observe the applicable hygiene standards, occupational safety
regulations and accident prevention measures for SPRAYVIT / C8 /
E / L / M.
Intended Use SPRAYVIT
SPRAYVIT M: multifunctional syringe for dental treatment with unheated
air and heated water and to illuminate the preparation field.
SPRAYVIT E: multifunctional syringe for dental treatment with unheated
air and unheated water and to illuminate the preparation field.
SPRAYVIT C8: multifunctional syringe for dental treatment with unheated
air and heated water.
SPRAYVIT L: multifunctional syringe for dental treatment with heated air
and heated water and to illuminate the preparation field.
SPRAYVIT: multifunctional syringe for dental treatment with heated air
and heated water.
Contraindications None
Target group trained dental personnel
This product is intended only for use by trained dental personnel in dental
practices and laboratories.
1.1 Structure of the document
1.1.1 Labeling of information
Warnings ➢ To prevent injuries, please observe all warnings.
Warnings are labeled as follows:
DANGER! indicates a danger leading to death or serious injury if not
avoided.
WARNING! indicates a danger that may lead to death or serious injury if
not avoided.
CAUTION! indicates a danger that may lead to injury if not avoided.
Instructions for use ➢ To prevent material damage and additional expenses, please
observe all instructions for use.
Instructions for use are labeled as follows:
NOTICE! indicates measures for the prevention of material damage.
IMPORTANT: indicates information on the avoidance of additional
expenses and other important information.
Tip: indicates information for facilitating work.

65 45 490 D3286
D3286.201.03.15.23 04.2015 5
Sirona Dental Systems GmbH 1Before you begin …
Operating Instructions SPRAYVIT / C8 / E / L / M 1.2Service life of Sirona instruments
1.1.2 Formats and symbols
The formats and symbols used in this document have the following
meaning:
1.2 Service life of Sirona instruments
Service life 5 + 3 years /3 + 1 1/2 years
When used as intended:
Standard_Sirona
● Non-moving parts of Sirona instruments have a typical service life of
approx. 5 years
● Moving parts of Sirona instruments have a typical service life of
approx. 3 years
No warranty claim can be inferred here, as wear may occur earlier or later
than indicated above depending on use, frequency of sterilization, and
frequency of maintenance.
✔Prerequisite
1. First action step
2. Second action step
or
➢Alternative action
Result
➢Individual action step
Requests you to do something.
Use of formats and symbols [ → 5]. Identifies a reference to another
text passage and specifies its page
number.
● List Identifies a list.

65 45 490 D3286
6D3286.201.03.15.23 04.2015
2Safety information Sirona Dental Systems GmbH
Operating Instructions SPRAYVIT / C8 / E / L / M
2Safety information
Obligations of the user
Obligations of the user ● Use only fault-free materials that do not deviate from the specified
data [ → 7].
● Protect yourself, patients, and others against any foreseeable
dangers. To do this, follow the safety information.
● Comply with the Intended use of the equipment.
● You should always keep these operating instructions within reach for
further reference.
Cross contamination and spread of infections
Preventing the spread of infections and
cross contamination
Sterilization
Prevent the spread of infections and cross contamination between
patients, users, and third parties. Sterilize equipment after each patient.
Take the appropriate hygiene measures, e.g. wear protective gloves.
Risk of scalding
Risk of scalding Test the required media flow amounts [ → 7] before use and conduct a
flow rate check [ → 9].
Malfunction / Damage _ Instruments
Malfunction or damage Discontinue use immediately in case of malfunction, unusual or different
sounds or damage. Damaged instruments may cause injury. Notify the
dental depot or the manufacturer.
Potential explosion hazard
Potential explosion hazard Do not use this product in areas subject to explosion hazards.
Repair _ S yringe
Repair Do not repair the multifunctional syringe yourself.
Accessory parts
Spare and accessory parts Use only original Sirona parts or parts approved by Sirona. Safe
operation is not guaranteed for parts that have not been approved by
Sirona.
Disposable nozzles
Disposable nozzles with an external adapter are not SPRAYVIT / C8 / E
/ L / M components and may not be used.
First aid _ US
If you have any questions, please contact your dental depot or the
manufacturer.

65 45 490 D3286
D3286.201.03.15.23 04.2015 7
Sirona Dental Systems GmbH 3Technical description
Operating Instructions SPRAYVIT / C8 / E / L / M 3.1Task
3Technical description
3.1 Task
Sprayvit
The SPRAYVIT / C8 / E / L / M multifunctional syringe is used for media
supply and illumination during dental treatment.
3.2 SPRAYVIT / C8 / E / L / M design
3.3 Technical data
SPRAYVIT
Multifunctional syringe
A Media lever
B Serial number
Year of manufacture
C Valve body
D Handle sleeve
E Keypad
F Nozzle
G Light emission (only for SPRAYVIT E / L / M)
SN
xxxxx
20xx
SPRAYVIT SPRAYVIT C8 SPRAYVIT E SPRAYVIT L SPRAYVIT M
Available position of the
water button
right xxxxx
left - x x x x
Spray water, heated x - - x x
Spray air, heated x - - x -
Light function
Halogen lamp - - - x -
LED --x-x
Available nozzle version
Long, with light - - x x x
Long, without light x x - - -
Short, with light - - x x x
Short, without light x x - - -
Available for use in the US - x x - x

65 45 490 D3286
8D3286.201.03.15.23 04.2015
3Technical description Sirona Dental Systems GmbH
3.3Technical data Operating Instructions SPRAYVIT / C8 / E / L / M
Electronic supply (if required)
Media supply
Operating conditions
Year of manufacture On the valve body.
This product bears the CE marking in accordance with the provisions of
Council Directive 93/42/EEC of June 14, 1993 concerning medical
devices.
Water heating power in W 60 - 120 (max. 22 V)
Air heating power in W ~ 15 (max. 8 V)
Heating cartridge, electrical
resistance in Ω
4.2 ± 0.21
Lamp voltage in V 3.4 ± 0.1
LED current in mA 100 ± 5
SPRAYVIT SPRAYVIT C8 SPRAYVIT E SPRAYVIT L SPRAYVIT M
At the supply hose inlet, unit end:
Temperature of input medium
in °C
18 ± 3 max. 38 max. 38 18 ± 3 18 ± 3
Water pressure in bar
(flowing)
2 ± 0.1 2 ± 0.1 2 ± 0.1 2 ± 0.1 2 ± 0.1
Water flow rate in ml/min ≥ 130 ≥ 130 ≥ 130 ≥ 130 ≥ 130
Air pressure in bar (flowing) 3.2 ± 0.1 3.2 ± 0.1 3.2 ± 0.1 3.2 ± 0.1 3.2 ± 0.1
Air flow rate in Nl/min ≥ 13 ≥ 13 ≥ 13 ≥ 13 ≥ 13
Ambient temperature 10°C - 40°C, (50°F - 104°F)
Relative humidity in % 30 - 85
Air pressure in hPa 700 - 1060
0123

65 45 490 D3286
D3286.201.03.15.23 04.2015 9
Sirona Dental Systems GmbH 4Preparation
Operating Instructions SPRAYVIT / C8 / E / L / M 4.1Initial start-up and longer breaks in use
4Preparation
4.1 Initial start-up and longer breaks in use
Syringe
➢Sterilize the multifunctional syringe and accessory parts prior to
startup.
➢Clean and maintain the multifunctional syringe after longer breaks in
use.
➢Vent the lines before starting up or if the supply hose was separated
from the treatment center [ → 11].
4.2 Prior to starting the work day
➢Purge the water and air channels for 20-30 seconds.
4.3 Before each patient
Syringe
1. Purge the water and air channels for 30 seconds.
2. Connect the multifunctional syringe.
3. Adjust the media supply at the unit end.
CAUTION! The water may be hot. Risk of scalding! Set the required
media flow rate.
4. Ensure that there is perceptible air flow.
5. Check the water flow rate. It must be at least 130 ml/min.
6. Use filtered water only (< 50 µm).
7. Check the nozzles for blockages and lime deposits, for example, and
clean the nozzles if necessary [ → 14].

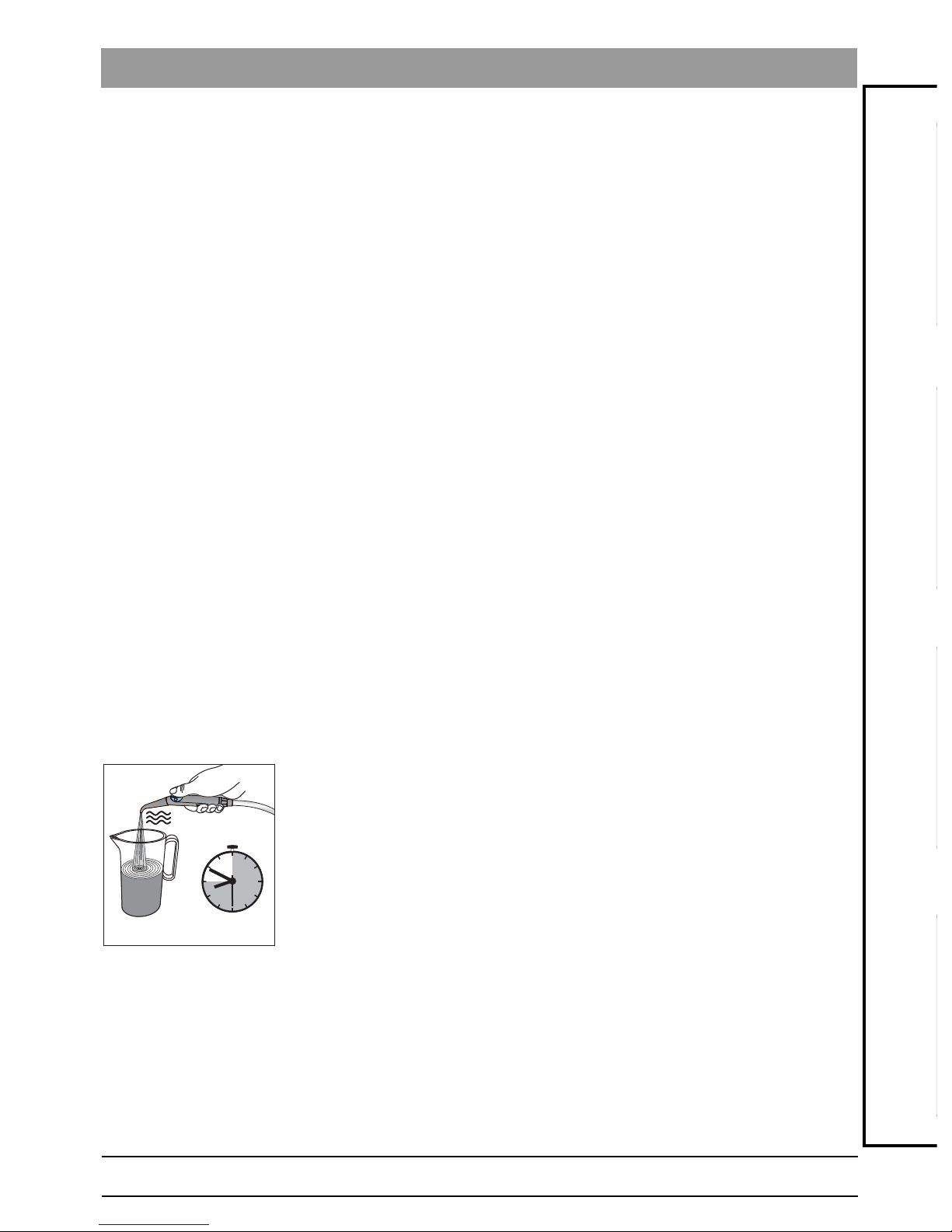

Tip: Conduct a flow rate test to check the water flow quantity and avoid
endangering patients:
Flow rate check
➢Measuring the time required to fill a measuring cup up to the 100 ml
mark with the water button fully actuated.
The maximum filling time is 45 seconds.
If the filling time is not 45 seconds maximum:
CAUTION! Stop using it immediately until the required flow rate is
restored.
➢Clean the nozzles [ → 14] and clean the heating cartridges as
well [ → 15], if any.
or
➢ Have the treatment center checked by a service technician.
100 ml max. 45 sec

65 45 490 D3286
10 D3286.201.03.15.23 04.2015
5Operation Sirona Dental Systems GmbH
5.1Connect the multifunctional syringe to the supply hose Operating Instructions SPRAYVIT / C8 / E / L / M
5Operation
Risk of scalding _ Sprayvit
CAUTION! Too little media supply leads to overheating the water. Risk of
scalding! Set the required media flow rate [ → 7].
Protruding metal tube _ SPRAYVIT
WARNING! A small metal tube protrudes at the tip of the nozzle. Risk of
injury and contamination! Avoid contact with the tip of the nozzle. Do not
attempt to handle with the nozzle attached. Remove the nozzle after
every patient and sterilize.
Unimpeded flow of water/air
IMPORTANT: Air and water flow from the nozzle must be unimpeded. Do
not place the nozzle against a tooth or other object. Do not press the
nozzle into the impression material.
Exposed voltage
CAUTION! There may be exposed voltage! Do not operate the media
lever when the handle is detached! Risk of burns and electric shock!
5.1 Connect the multifunctional syringe to the supply
hose
SPRAYVIT L
Connect SPRAYVIT / E / L / M to the supply hose
Exposed voltage
CAUTION! There may be exposed voltage! Do not operate the media
lever when the handle is detached! Risk of burns and electric shock!
1. Attach the valve body (A) to the supply hose, observing the various
tube diameters. The valve body may also remain in the handle
sleeve.
2. Screw the cap nut (B) onto the valve body and tighten it.
Attach SPRAYVIT L hose
Connect SPRAYVIT C8 to the supply hose
1. Attach the water hose and air hose to the SPRAYVIT C8, ensuring
the correct position of the hoses (C: blue, D: green).
2. Screw the cap nut (B) onto the valve body and tighten it.
5.2 Attach/remove the handle sleeve and nozzle
Attachment
1. Align knob (A) and recess (B) so they face each other.
2. Insert the handle sleeve until it snaps into place.
3. Twist the nozzle onto the handle sleeve.
4. Check to make sure the nozzle is firmly attached.
CAUTION! If the nozzle is not locked in place, it can come loose
when the multifunctional syringe is operated and fall into the patient's
throat.
20xx
REF
xx xx xxx
SN
xxxxx
A
B
A
B

65 45 490 D3286
D3286.201.03.15.23 04.2015 11
Sirona Dental Systems GmbH 5Operation
Operating Instructions SPRAYVIT / C8 / E / L / M 5.3Vent supply lines
Removal
1. Twist the nozzle to detach it from the handle sleeve.
2. Press the lock knob and pull the valve body out of the handle sleeve
at the cap nut. Do not hold or pull on the supply hose!
5.3 Vent supply lines
Because of the automatic air discharge in Sirona treatment centers for the
SPRAYVIT product family, the media can be cold at the start of treatment
even if SPRAYVIT is heated.
5.4 Applying air, water, or spray
IMPORTANT: Regulate heating and lighting from the treatment center.
➢Press the button to release air or water.
➢Press both buttons simultaneously for good spray production.
➢Twist the nozzle to reach the desired direction of spray.

65 45 490 D3286
12 D3286.201.03.15.23 04.2015
6Follow-up Sirona Dental Systems GmbH
6.1After each treatment session Operating Instructions SPRAYVIT / C8 / E / L / M
6Follow-up
6.1 After each treatment session
Immediately after treatment
NOTICE! Condition immediately, or at the latest, one hour after treatment.
SPRAYVIT
✔Wear appropriate protective clothing.
1. Remove any residue, e.g. from impression material or caustic
chemicals immediately.
2. Purge the water and air channels on the treatment center for 30
seconds.
3. Pre-disinfect directly at the treatment center [ → 13].
4. Detach the nozzle and the handle sleeve [ → 10].
5. Transport the nozzle and handle sleeve to the hygiene room in a
suitable transport container.
6. Conduct automatic conditioning [ → 13]. Manual conditioning [ → 13]
is possible in exceptional cases if the national/local regulations are
followed.
7. Sterilize the nozzle and handle sleeve and accessories [ → 14].

65 45 490 D3286
D3286.201.03.15.23 04.2015 13
Sirona Dental Systems GmbH 7Conditioning
Operating Instructions SPRAYVIT / C8 / E / L / M 7.1Conduct pre-disinfection
7Conditioning
7.1 Conduct pre-disinfection
Predisinfection _ Product name _ Variable
✔Wear appropriate protective clothing.
✔All disinfectants must be approved in your country and have proven
bactericidal, fungicidal and virucidal properties. Only use
disinfectants with no protein-fixing properties.
1. Spray the surface with disinfectant.
2. Wipe the disinfectant away with a cloth.
For further processing, SPRAYVIT / C8 / E / L / M should be dry and
free of residue.
Disinfectants in USA und Canada
In the USA and Canada, for example, you can use:
●CAVICIDE
®
● CAVIWIPES ™
Please observe the manufacturer's instructions for using instrument
disinfectants.
7.2 Automated cleaning and disinfecting ...
Except valve body
NOTICE! The valve body is not suitable for conditioning.
7.2.1 ... with cleaning and disinfection equipment
Exception _ product name
NOTICE! SPRAYVIT / C8 / E / L / M is not suitable for use with a cleaning
and disinfection device.
7.3 Manual cleaning and disinfection
Immediately after treatment
NOTICE! Condition immediately, or at the latest, one hour after treatment.
Except valve body
NOTICE! The valve body is not suitable for conditioning.
NOTICE! Never clean in an ultrasound bath!
NOTICE! Never immerse in disinfectants!
Use soft brush
IMPORTANT: Use a soft, clean, and disinfected brush for cleaning.
Procedure _product name _ Brushing off, disinfection, packaging, sterilization
✔Wear appropriate protective clothing.
✔All disinfectants must be approved in your country and have proven
bactericidal, fungicidal and virucidal properties. Only use
disinfectants with no protein-fixing properties.
1. Brush SPRAYVIT / C8 / E / L / M under running water (< 38 °C,
< 100 °F, at least drinking water quality) and good lighting (min. 500
lux) and color rendering index (min. 80 Ra) until no more dirt can be
seen, for at least 10 seconds.
2. Conduct thermal disinfection or unwrapped steam sterilization.
3. Pack SPRAYVIT / C8 / E / L / M in packaging material suitable for
sterilization and storage. e.g. paper/plastic composite packaging.
4. Sterilize the adapter [ → 14].

65 45 490 D3286
14 D3286.201.03.15.23 04.2015
7Conditioning Sirona Dental Systems GmbH
7.4Sterilizing Operating Instructions SPRAYVIT / C8 / E / L / M
7.3.1 Cleaning the nozzle
CAUTION! The media temperatures may become too high if the water
line in the nozzle is clogged. Risk of scalding! Clean the water line (A)
regularly.
✔The nozzle is removed.
➢Insert the cleaning wire provided through the water line in the nozzle
to clean it.
7.4 Sterilizing
Interval _ U S
Intervals:
● Prior to initial operation
● Prior to each subsequent use
Process
Steps _ SPRAYVIT
NOTICE! The valve body is not suitable for use in the steam sterilizer.
✔The multifunctional syringe is cleaned and disinfected.
✔If necessary, the multifunctional syringe can be packed in packaging
suitable for sterilization and storage, e.g. paper/plastic composite
packaging or container.
➢Sterilize the multifunctional syringe in the steam sterilizer with
saturated water vapor.
Unit pressure in bar and psi_US
DAC PROFESSIONAL _ US
Dynamic air removal sterilizers or autoclaves with fractional vacuum are
permitted.
NOTICE! Do not exceed 140°C (284°F), even during the drying phase.
After sterilizing - heading
After sterilizing
Follow-up _ syringe
1. Remove the nozzle and handle sleeve from the steam sterilizer
immediately.
CAUTION! The parts are hot. This may cause burns!
NOTICE! Do not accelerate the cooling process by immersing the
parts in cold water. This can damage the parts.
2. Store all components so that they are protected against
contamination.
3. Sterilize again once the storage period has elapsed.
Temperature: 135 °C (275 °F)
Overpressure: 2.13bar (30.89psi)
Holding time: 3 min
Drying time: min. 20 minutes

65 45 490 D3286
D3286.201.03.15.23 04.2015 15
Sirona Dental Systems GmbH 8Maintenance
Operating Instructions SPRAYVIT / C8 / E / L / M 8.1Replacing O-rings
8Maintenance
Replacing elastomers
Elastomers, e.g. O-rings, must be replaced depending on their degree of
wear.
8.1 Replacing O-rings
SPRAYVIT
Replace O-rings every 3 months.
1. Unscrew ring (A) from the nozzle.
2. Remove O-rings (B) with a hook probe.
3. Slide tool (C), with the new O-ring [ → 17] attached, up to just in front
of the corresponding groove.
4. Insert the O-ring. Do not use any sharp objects.
5. Repeat steps 3-4.
6. Screw ring (A) tightly onto the nozzle.
8.2 Replacing lamps
IMPORTANT: Only SPRAYVIT E / L / M have lamps.
Risk of burning from lamps
CAUTION! The lamp can be hot. Risk of burns! Allow the lamp to cool
down.
1. Switch the treatment center off at the main switch.
2. Detach the handle sleeve from the valve body [ → 10].
3. Use a probe or the like to pry the lamp out of the socket from the
button side.
4. Insert the new lamp, observing the contact surface.
For an LED, the Sirona logo (A) must face upward and must be
legible after it is inserted into the valve body.
Tip: Insert a probe into the hole on the LED and pull the LED into the
valve body until it clicks in place.
8.3 Cleaning heating cartridges
SPRAYVIT L
✔The heating cartridges are contaminated or plugged.
1. Clean the heating cartridges with an interdental brush with a diameter
of 0.5 mm.
2. Check the flow rate.
The flow rate check was successful.
If the flow rate check was not successful, have the treatment center
checked by a service technician.
A
B
C
A

65 45 490 D3286
16 D3286.201.03.15.23 04.2015
8Maintenance Sirona Dental Systems GmbH
8.4Replacing the heating cartridges Operating Instructions SPRAYVIT / C8 / E / L / M
8.4 Replacing the heating cartridges
IMPORTANT: Only SPRAYVIT / L / M has heating cartridges. SPRAYVIT
M has only a water heater.
If heated media no longer heat up, the heating cartridges in the valve
body may be burned out. Replace the defective heating cartridge. The
procedure is identical for both heating cartridges depending on the side.
1. Switch the treatment center off at the main switch.
2. Detach the handle sleeve from the valve body [ → 10].
3. Swing the heating cartridge (A) to the side away from the valve body.
4. Hold the cartridge hose firmly and twist the cartridge to remove it.
5. Insert the new cartridge in reverse order.

65 45 490 D3286
D3286.201.03.15.23 04.2015 17
Sirona Dental Systems GmbH 9Spare parts and consumables
Operating Instructions SPRAYVIT / C8 / E / L / M
9Spare parts and consumables
SPRAYVIT kombi
SPRAYVIT
SPRAYVIT C8
SPRAYVIT E
REF REF
SPRAYVIT nozzle G, long, curved,
without fiber optic
59 92 206 O-ring 1.5 x 1 for heating cartridge 70 41 734
SPRAYVIT nozzle, short, straight,
without fiber optic
59 92 198 O-ring set SPRAYVIT nozzle
● 1 attachment tool
● 10 O-rings 5.5 x 1.03
41 76 751
Casing, right water line 60 02 179
Touch button 63 21 728
Small cleaning wires 24 00 232 Heating cartridge 33 27 132
REF REF
SPRAYVIT nozzle G, long, curved,
without fiber optic
59 92 206 O-ring set SPRAYVIT nozzle
● 1 attachment tool
● 10 O-rings 5.5 x 1.03
41 76 751
SPRAYVIT nozzle, short, straight,
without fiber optic
59 92 198
Casing, right water line 60 02 179
Casing, left water line 60 02 187 Small cleaning wires 24 00 232
Touch button 63 21 728
REF REF
SPRAYVIT nozzle G, long, curved,
with fiber optic
59 92 180 Heating cartridge 33 27 132
SPRAYVIT nozzle, short, straight,
with fiber optic
41 77 783 O-ring 1.5 x 1 for heating cartridge 70 41 734
Casing, right water line 60 02 179 O-ring set SPRAYVIT nozzle
● 1 attachment tool
● 10 O-rings 5.5 x 1.03
41 76 751
Casing, left water line 60 02 187
Touch button 63 21 728
Small cleaning wires 24 00 232 LED 63 22 007

65 45 490 D3286
18 D3286.201.03.15.23 04.2015
9Spare parts and consumables Sirona Dental Systems GmbH
Operating Instructions SPRAYVIT / C8 / E / L / M
SPRAYVIT L
SPRAYVIT M
REF REF
SPRAYVIT nozzle G, long, curved,
with fiber optic
59 92 180 Heating cartridge 33 27 132
SPRAYVIT nozzle, short, straight,
with fiber optic
41 77 783 O-ring 1.5 x 1 for heating cartridge 70 41 734
Casing, right water line 60 02 179 O-ring set SPRAYVIT nozzle
● 1 attachment tool
● 10 O-rings 5.5 x 1.03
41 76 751
Casing, left water line 60 02 187
Touch button 63 21 728
Small cleaning wires 24 00 232 Halogen lamp, brown 59 40 291
REF REF
SPRAYVIT nozzle G, long, curved,
with fiber optic
59 92 180 Heating cartridge 33 27 132
SPRAYVIT nozzle, short, straight,
with fiber optic
41 77 783 O-ring 1.5 x 1 for heating cartridge 70 41 734
Casing, right water line 60 02 179 O-ring set SPRAYVIT nozzle
● 1 attachment tool
● 10 O-rings 5.5 x 1.03
41 76 751
Casing, left water line 60 02 187
Touch button 63 21 728
Small cleaning wires 24 00 232 LED 63 22 007

65 45 490 D3286
D3286.201.03.15.23 04.2015 19
Sirona Dental Systems GmbH 10Storage and transport conditions
Operating Instructions SPRAYVIT / C8 / E / L / M
10 Storage and transport conditions
Protect from
moisture
Sensitive
contents
Relative humidity Air pressure
Temperature After a severe change in
temperature, allow sufficient time
for acclimatization.
kPa

65 45 490 D3286
20 D3286.201.03.15.23 04.2015
11Disposal Sirona Dental Systems GmbH
Operating Instructions SPRAYVIT / C8 / E / L / M
11 Disposal
● According to current information, the product does not contain any
substances that are hazardous to the environment.
Disinfected
● Disinfect the product prior to disposal.
● Observe the applicable disposal regulations for your area.
