Siruba FA Series User manual

FA/LFA/LFR

30 W
1φAC110V±15% 50/60Hz
1φAC220V±15% 50/60Hz
FA-A1
LFA-A1
LFR-A1
FA-A2
LFA-A2
LFR-A2
1.此機種使用單相AC110V或單相
AC220V，若配接錯誤或所提供的電源錯
誤會造成控制器燒毀。
1.Single phase AC110 or AC220V is
applicable to this machine, but if is
connected to the wrong power
voltage or is supplied with the wrong
power, the controller may burn.

單相AC110V或
單相AC220V 電源插座
Single-phase AC110V
or AC220V Socket
PS.LFR才有配備打帶輪組 (LF290-A2/LF290-
A1)。
Only LFR is equipped with the tape
attaching wheel(LF290-A2/LF290-A1)。
1φAC110V±15% 50/60Hz
1φAC220V±15% 50/60Hz
FA-A1
LFA-A1
LFR-A1
FA-A2
LFA-A2
LFR-A2

減少送帶長度
送帶操作說明：
增加送帶長度
圖５/Fig.5
Decrease the
length the tape
Increase the
length the tape
Description of the operation of feeding
the tape
送帶長度調整旋鈕
電源開關
The adjusting knob of feeding the tape
Power switch

檢查電源開關是否開啟
Check if the power switch.
開啟檢查電源開關
Turn on the power switch.
檢查感應馬達(LF362/FA22Q)電源線，連
接在控制板(LF360/FA24Q) CON7的接
點，是否脫落。
Check if the power cord of the sensor
motor(LF362/FA22Q),which is
connected to the contact of the control
board(LF360/FA24Q)CON7,falls off.
檢查馬達送帶機構(LF362/FA22Q、
LF61Q)是否卡住
Check if the tape feeding device
(LF362/FA22Q、LF61Q)is stuck.
檢查控制板(LF360/FA24Q)CON1
PIN1,2有無DC5V電壓
Check if the control board
(LF360/FA24Q) CON1 PIN1,2 has
DC5V voltage.
更換控制板(LF360/FA24Q)
Replace the control board(LF360/FA24Q)
更換電源供應器(LF363)
Replace the power supplier (LF363)

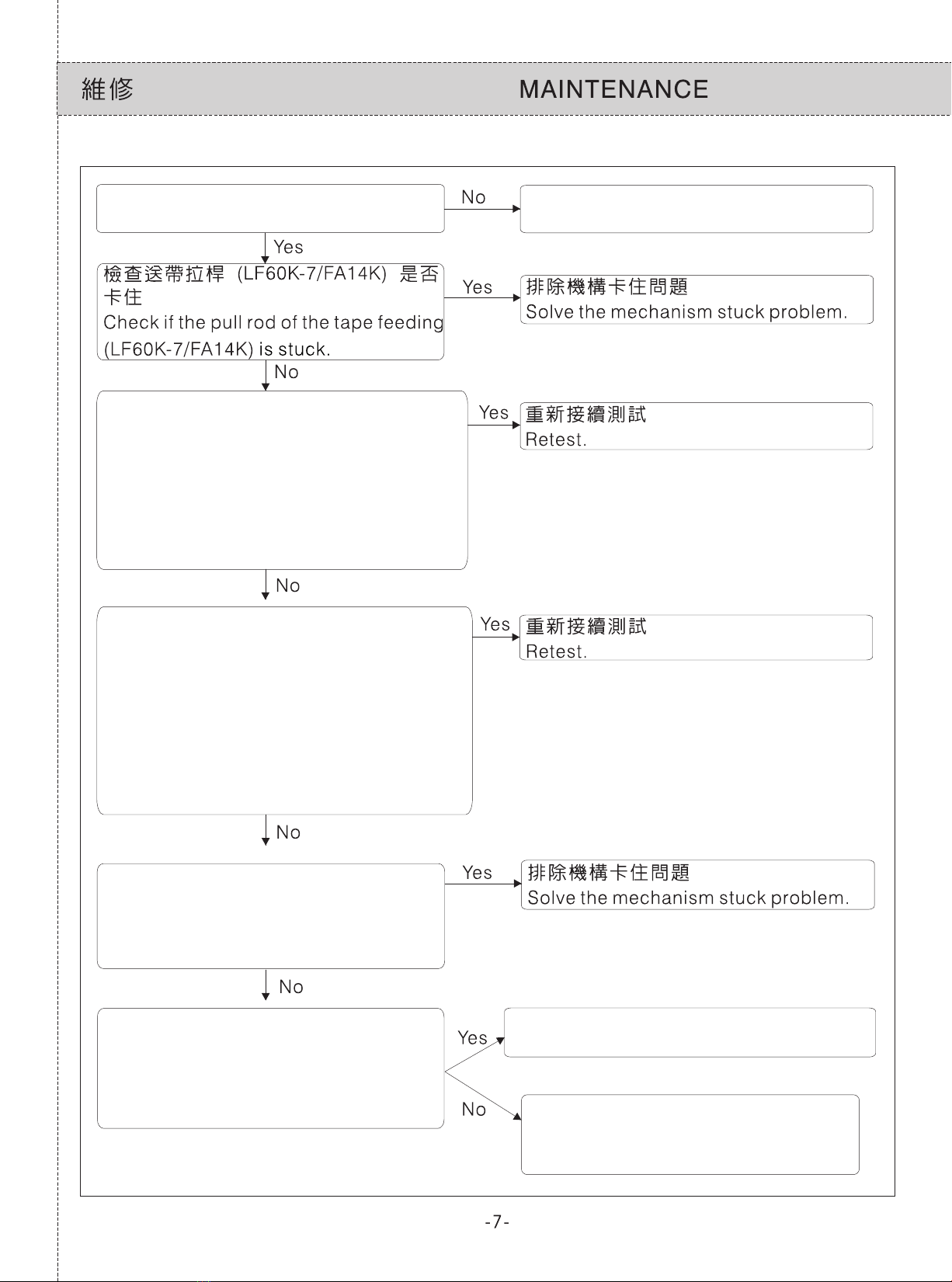

1.送帶馬達無動作： 1.Tape feeding motor doesn’t work：
檢查感應器的訊號線(LF263、LF262)，連
接在控制板(LF360/FA24Q)CON8,CON9的
接點是否脫落。
Check if the sensor signal wire(LF263、
LF262),which is connected to the control
board(LF360/FA24Q)CON8,CON9,falls
off.

檢查送帶拉桿(LF60K-7/FA14K)是否卡
住
Check if the pull rod of the tape
feeding(LF60K-7/FA14K)is stuck.
檢查控制板(LF360/FA24Q)CON1
PIN1,2有無DV5V電壓
Check if the control board
(LF360/FA24Q)CON1 PIN1,2have
DC5V voltage.
更換控制板(LF360/FA24Q)
Replace the control board
(LF360/FA24Q)
更換電源供應器(LF363)
Replace the power Supplier(LF363)
2.打帶馬達無動作： 2.Tape attaching motor doesn’t work：
檢查打帶馬達(LF298)/(LF267)之啟動電
容電源線(LF370)，連接在控制板
(LF360/FA24Q) CON5的接點是否脫
落。
Check if the power cord of the start
capacitor (LF370)of the tape attaching
motor(LF298)/(LF267) connected to
the contact of the control board
(LF360/FA24Q) CON5 loosens.

FA/LFA/LFR規格件表 ● FA/LFA/LFR CONVERSION CHART
