Siruba HF008A User manual

HF008A
使用說明書與零件圖
INSTRUCTIONS BOOK & PARTS LIST

運動部位，謹防工傷事故
Moving part, beware of industrial accident
高壓部位，謹防觸電事故
High voltage, beware of electric shock
高溫部位，謹防燙傷事故
High temperature, beware of burns
禁止
Prohibited
地線的接線表示
Indication of ground wiring
如果忽視此標記而運行了錯誤的機械操作，保養時肯定會引起當事者
或第三者人員重傷或死亡。
如果忽視此標記而運行了錯誤的機械操作，保養時有可能會引起當事
者或第三者人員受傷及造成設備損壞。

索引 INDEX 頁/PAGE
一般安全事項 GENERAL SAFETY INSTRUCTIONS 1
重要安全事項 IMPORTANT SAFETY INSTRUCTIONS 3
特別事項 WARNING 7

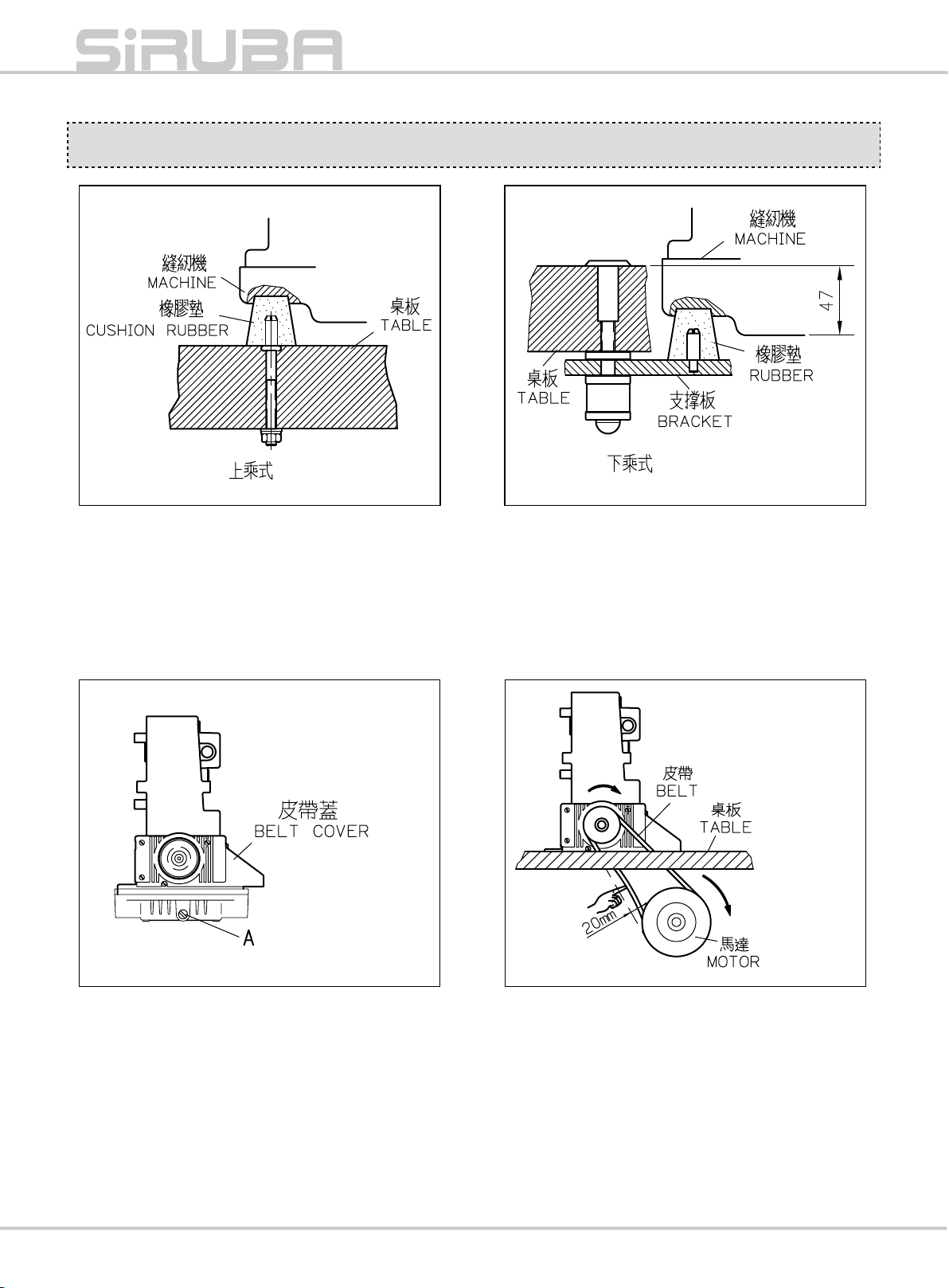

機器如何安裝 INSTALLATION OF MACHINE 8
潤滑油之注入與更換 LUBRICANT OIL FILLING AND REPLACEMENT 9
針之更換 REPLACE NEEDLES 10
穿線之方法 THREADING 11
控線之調整 HREAD TENSION ADJUSTMENT 12

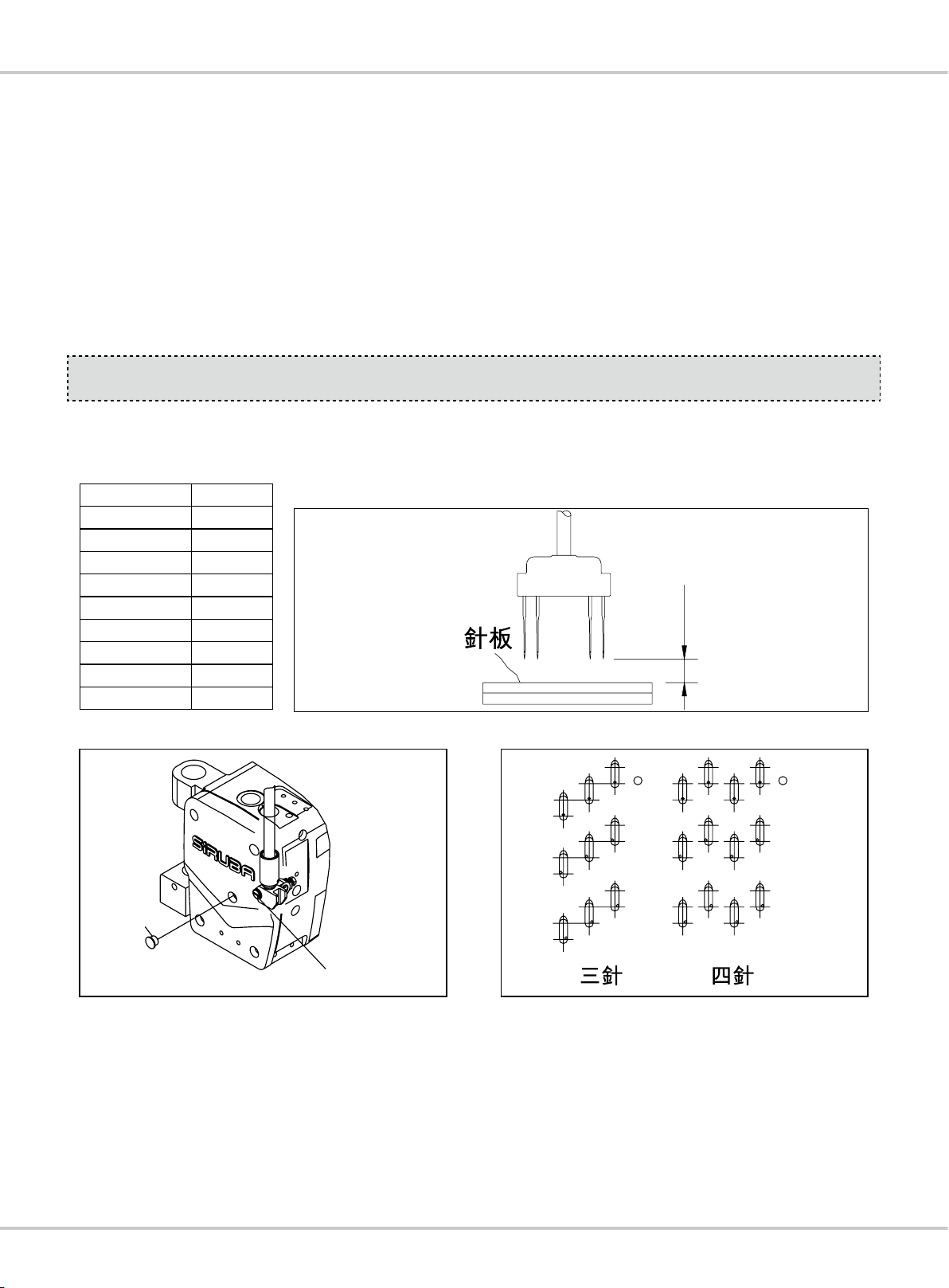

針高度之調整 NEEDLE POSITION ADJUSTMENT 13

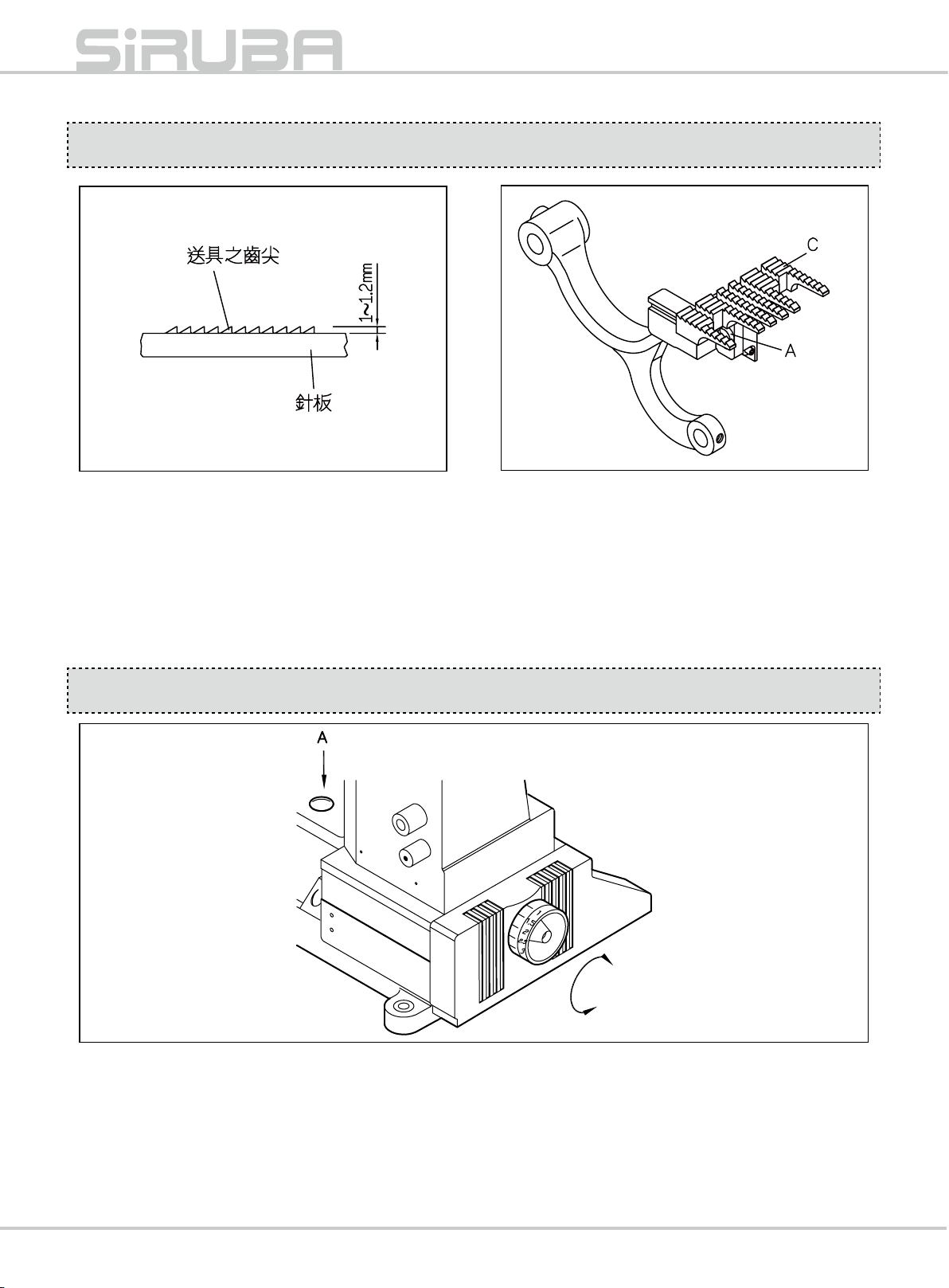

送具調整 FEED DOG ADJUSTMENT 14
縫距之調整 STITCH LENGTH ADJUSTMENT 14
護針片調整 NEEDLE GUARD ADJUSTMENT 15
針與勾針之時位關係 TIMING OF NEEDLES AND LOOPERS MOVEMENT 15
押具壓力強度之調整 ADJUSTING THE PRESSURE OF PRESSER FOOT 18
勾針線張力之調整 ADJUSTING LOOPER THREAD´S TENSION 18
後拉引輪調整 REAR PULLER ADJUSTMNET 19
後拉滾輪供給量之調整 ADJUSTING OF REAR PULLER FOR FEEDING LENGTH 20
上下滾輪間隙調整 ADJUSTING GAP OF TOP AND LOWER ROLLERS 20
桌板圖 TABLE CUT-OUT DIAGRAM 22
規格件表 GAGE PARTS LIST 26
零件圖 PARTS LIST 27
4
Introduction

一般安全事項說明 GENERAL SAFETY
INSTRUCTIONS
警告！
當使用這台機器，基本安全預防應恆被遵守
，以減輕火災、電擊、或是個人傷害的風險
。包含以下注意事項。
在操作這台機器之前，請閱讀所有說明並且
緊記於心。
1. 保持工作場所清潔
雜亂的環境與椅子會招引危害。
2. 考量工作場所環境
勿暴露電源於雨水之中、勿在溼氣重的地方
或潮濕的場所使用機械器具。保持工作場所
良好整齊。當有引發火災或爆炸危險時，勿
使用電源工具。
3. 免於電擊危害
避免身體接觸地線或是接地表面。(即：
管線，發熱物體，以及冷凍庫 )
4. 勿使孩童接近
不要讓訪客接觸工具或是延伸管線。
5. 適當的穿著
不要穿著寬鬆衣物或是穿戴珠寶，這可能被
活動零件拉扯而導致危險。穿戴護髮套可包
住長髮。
6. 不要任意拉扯電線
絕不要用電源端拉扯機器，或是從插座猛拉
電線來拔掉電線。使電線遠離熱源、油類或
是尖銳邊緣。
7. 謹慎保養機器
遵從指示來添加潤滑油或是更換附件。定期
檢測工具用線，如果有所損害，請使用合格
的維修器具來修復。
Warning!
When using this machine, basic safety
Precautions should always be followed to
reduce the risk of fire, electric shock and
personal injury, including the followings.
Read all these instructions before
operating this product and save these
instructions.
1. Keep work area clean
Cluttered areas and benches invite
injuries.
2. Consider work area environment
Do not expose power to rain. Do not use
machine tools in damp or wet locations.
Keep work area well lit.
Do not use power tools where there is risk
to cause any fire or explosion.
3. Guard against electric shock
Avoid body contact with earthed or
grounded surfaces (e.g. Pipes, radiators,
ranges refrigerators.)
4. Keep children away
Do not let visitors touch the tool or
extension code.
5. Dress properly
Do not wear loose clothing or jewelry,
they can be caugh in moving parts. Wear
protecting hair covering to contain long
hair.
6. Do not abuse the cord
Never carry the machine by cord or yank
it to disconnect it from the socket. Keep
the cord away from heat, oil, and sharp
edges..
7. Maintain machine with care
Follow instructions for lubrication and
changing accessories. Inspect tool cord
periodically. If damaged, have it repaired
by an authorized service facility.
P1
Introduction

8. 中斷機器電源
當不使用機器時、維修前、以及更換配件
時。
9. 避免誤啟動
不要以手指置於啟動開關上之後，搬運一個
已插入電源的工具。確定在插電之前，電源
開關是關閉的。
10. 檢查損害零件
在進一步使用器具之前，應該小心檢查並
確認損傷的零件或是穿戴保護器具來確認
零件會正確運轉並且呈現應有功能。
11. 警告
除了在這本使用說明手冊中建議的功能之
外，任何附件或是配件的使用，都可能會
導致個人傷害的危險。
12. 由合格人員來修理器具
所以修理工作應由合格的人員使用原始個
別零件來作修理。
連接電源的特別警示 !
1. 只可與有 "CE" 認證的按壓啟動裝置連接這
台機器。
2. 遵守此使用說明手冊來安裝控制裝置。
3. 在操作過程中，永遠保持機器適當的接地。
4. 在調整、更換零件、或是維修保養之前，必
須確定將插頭由插座拔出，以預防任何機器
意料之外的啟動而造成危害。
8. Disconnect machine
When not in use, before servicing and
when changing accessories.
9. Avoid unintentional starting
Do not carry a plug-in tool with a finger on
the switch. Ensure the power switch is off
when plugging in.
10. Check damaged parts
Before further use of the tool, a guard or
other part that is damaged should be
carefully checked to determine that it will
operate properly and perform its intended
function.
11. Warning
The use of any accessory or attachment,
other than those recommended in this
instruction manual, may present a risk of
personal injury.
12. Have your tool repaired by a
qualified person
Repairs should only be carried out by
qualified persons using original spare
parts.
SPECIAL WARNING FOR ELECTRIC
CONNECTION!
1. Incorporate this machine only with "CE"
certificate hold-to-run control device.
2. Follow the instruction manual device to
install control device.
3. Always earth machine appropriately
during operation.
4. Before adjustment, parts change or
servicing must be sure to pull out the plug
from socket to prevent the hazard of
unintentionally start of machine.
P2

重要安全事項說明 IMPORTANT SAFETY
INSTRUCTION
恭喜您購買本機器，為了使這台機器能獲
得最佳功能以及安全的操作，務必請正確
的使用這台機器，使用前請仔細閱讀使用
說明書，希望您能長期使用它。請記得將
此說明書放在容易取得的地方。
1. 當您使用機器時，除了以下事項外，請
注意其他基本安全措施。
2. 使用機器前，除了本使用說明書外，
請詳細閱讀其他相關說明書。此外，
請妥善保存此說明書，以便需要時可
以隨時取閱。
3. 先確認機器是符合貴國安全規定及標
準後，再使用機器。
4. 當機器完成操作時，所有安全配備必
須安裝就緒，在缺少所述安全配備下
操作是不被允許的，以免導致人員受
傷。
5. 此機器應由受過適當訓練之操作員操
作。
6. 為了安全，我們建議您配戴安全眼
鏡。
7. 以下情形，請先關閉電源或拔掉插頭 :
(1) 穿針線、導線片、天平等以及更換
梭子時。
(2) 更換針、壓具、針板、送具、頂針
片、車布導板，以及其他附屬配件
時。
(3) 維修工作時。
(4) 離開工作場所或工作場所無人看
顧時。
For operating safely and getting the
best functions of this machine, you must
operate it correctly. Please read and
follow the instructions of this manual,
and keep it at hand for future references.
We are confident that you will enjoy this
machine as much as we enjoy
manufacturing it.
1. Instead of the following instructions,
when you use this machine, please pay
attention to the basic safety measures.
2. Before using this machine, please read
this manual and all related instructions.
In addition, please keep this manual
for future needs.
3. Before using this machine, please
ascertain that it conforms with safety
standards and regulations of your
country.
4. When the machine is ready for
operation, all the safety equipments
must be ready. Operate this machine
without the specified safety devices is
not allowed.
5. This machine must be operated by a
properly trained operator.
6. For your own safety, we suggest you
wearing goggles.
7. Please turn off the power switch
or disconnect it for any one of the
circumstances of the followings:
(1) When threading needle(s), adjusting
thread Take-up(s), thread guide(s),
and/or replacing bobbin(s).
(2) When replacing needles, presser
feet, needle plates, feed dogs,
needle guards, cloth guides and
other parts or accessories.
(3) When repairing.
(4) When the operator leaves the
working place or leaves the
machine unattended.
P3
Introduction

(5) 若使用離合器馬達而無煞車片裝置
時，必須待馬達完全停止。
8. 假如不慎讓機器及配件使用之油或油
脂，接觸到眼睛、皮膚或誤食時，請立
刻以水清洗接觸部位及就診。
9. 請勿擅自碰觸運轉中之零件或配件及注
意機器電源是否已開啟，以免導致人員
受傷。
10. 維修、修改及調整等工作，須由受過
適當訓練的技師或熟手為之。維修時
只許使用指定之零件。
11. 一般維修及檢查工作必須由受過適當
訓練的人員為之。
12. 電子零件維修及保養工作必須由資深
的電子技師為之，或由非常熟練的人
員檢查及指導，當發現零件損壞時，
請立刻停止機器運轉。
13. 在做裝有氣動式零件 (例如氣缸 )機器
的維修及保養工作前，機器連接空壓
機及高壓空氣必須予以關閉及卸除，
機器中殘存高壓氣體必須予以消除，
此外調整及性能檢查只能由受過適當
訓練的技師或熟手為之。
14. 機器使用一段時間，必須定期清理。
(5)If clutch motors without brake pads
are used,must wait until the motor stops
completely.
8. If grease, oil, or any fluid contacts
your skin or eyes by any chance,
please wash the contacted area
completely with clean water and
consult a doctor. Or, swallow a ny
fluid mistakenly,consult a doctor
immediately.
9. Do not touch any functioning parts
and devices. Always attend to whether
power switch is on or off before
operating in order to prevent anyone
from getting hurts.
10. Qualified technicians are required
for adjustment, modification, and
repair. Only use assigned parts for
replacement.
11. Routine maintenance and service
must be performed by well trained
persons, or qualified technicians.
12. Maintain and check the electronic
parts must be done by qualified
electrician or well-trained persons.
If any electronic part damaged or
malfunctioned, stop the machine
immediately.
13. The air house has to be detached
from the machine and the compressor
or air supply has to be cut off before
repairing and servicing the machine
equipped with pneumatic parts such
as an air cylinder. Qualified technicians
or well-trained persons are required
for adjustment and repairs.
14. To ensure the best performance,
periodically clean the machine is
necessary.
P4

15. 為使機器能正常操作以及減少噪音，
機台務必平放地上，機器避免在強烈
噪音的環境下操作。
16. 選用適當的電源插頭，並由電子技師
將其安裝在機器上，且插頭必須插在
接地線之插座上。
17. 機器只允許被使用於指定用途上，其
他用途是不允許的。
18. 修改或變更機器必須依照安全規定及
標準，同時採取有效的安全措施或變
更機器所引起損壞之責。
19. 警告提示以兩種符號標示：
(1) 對操作員或服務人員之傷害危險，也
為了避免觸電之危險，請勿打開馬達
電器箱之外蓋，也不要觸摸電器箱裡
面之零件。
(2) 必須特別注意事項
a. 絕對不可在移動外蓋，手指保護蓋或
安全配件後，進行機器操作，以免
導致人員受傷。
b. 為了避免被機器纏住，當機器運轉
中，您的手、頭髮及衣服，需遠離
手輪；此外這些部位周圍不可放置
任何物品，以免導致人員受傷。
15. In order to operate properly and to
reduce the noise, please place the
machine flat and level on the ground.
Avoid operating the sewing machine
at a noisy surrounding.
16. Select a proper power plug and install
it by an electrician. Please connect the
power plug to a grounded receptacle.
17. This machine can only be used for
the designed purpose. Other uses of
this machine are not allowed.
18. Any modification or conversion made
on this machine must be conformed
with the safety standards and
regulations. Precaution is necessary.
No responsibility will our company
take for damages caused by any
modification or conversion of this
machine without permission.
19. Two safety warning signs are applied
as warning signs:
(1) For the safety of operators and
service persons, please don't open the
cover of any electronic control boxes
of motor or other devices and don't
touch any components inside to avoid
electrical shock hazards.
(2) Always keep in mind:
a. Please never operate this machine
without outer cover, finger guard or
any safety device to avoid physical
injury.
b. Please keep your hair, fingers and
clothes away from the hand wheel
while the machine is in operation,
as well as never put anything near
these parts, to prevent the risk of
injuries by tangled into them.
P5
Introduction

c. 當您打開電源開關後或機器已 在運轉
中，絕不可將您的手放在針的下方或針
線控線桿外蓋中，以免導致人員受傷。
d. 當機器運轉中，梭頭高速轉動，為了避
免對手可能引起之 傷害，必須確定您的
手保持遠離梭頭附近。此外，當更換梭
子時，確定電源開關已關閉，以免導致
人員受傷。
e. 當放置或抬起機器時，小心勿將手置於
機器中，以免導致人員受傷。
f. 為了避免機器突然啟動而引起可能意
外，當機頭傾斜時，請關掉機器電源，
以免導致人員受傷。
g. 如果您的機器是配置伺服馬達，機器於
靜止狀態時，馬達是不會產生噪音的，
為了避免機器突然啟動而引起可能意
外，故請關掉機器電源。
h. 為了避免觸電之危險，請絕不要在移開
電源接地線後操作機器。
i. 為了避免觸電或電子零件損壞而引起之
可能意外，請先切斷電源，再插上或拔
掉插頭。
c. Please never put your fingers under
the needle(s) or in the thread take-up
cover to prevent physical injuries when
you turn on the power switch or operate
the machine.
d. While the machine is in operation, the
hook rotates at a high speed. Please
keep your hands away from the area
of hook to prevent any potential injury
to your hands. In addition, please
make sure to turn off the power of the
machine while changing bobbins.
e. Be careful and do not place your
fingers inside the machine when
placing or lifting the machine head to
avoid possible physical injuries.
f. Please turn off the power before tilting
the machine head to avoid possible
accidents due to abrupt start of this
machine.
g. For machine equipped servo motors,
the motors do not produce noise while
the machines are at rest. Therefore,
please turn off the power of this
accidents due to abrupt start of the
machine.
h. Never operate the sewing machine after
the ground wire is removed to avoid
electrical shock hazards.
i. Please turn the power switch off before
connecting or disconnecting the power
plug to prevent possible accidents due
to electric shock or damaged electronic
components.
P6

特別事項 WARNING
為了避免機器故障及損壞，請先確定以下
事項：
1. 當您安裝好機器後，做第一次機器操作
前，請徹底清潔機器。
2. 清除運送途中累積之灰塵及溢出之油
脂。
3. 確定電壓及馬達相數 ( 單相或三相 ) 安
裝正確。
4. 確定電源插頭正確地接上電源。
5. 當使用電壓與標示電壓不同時，請勿使
用機器。
6. 確定機器轉動方向是否正確。
警告：
在操作或調整本書中所提到之各步驟
前，請先將電源關掉，以免因為機器突
然啟動造成之意外。
Please confirm the followings to avoid
malfunction or damage to this machine.
1. After installing the machine, and before
the first operation, please clean it
completely.
2. Clean all dust and overflowed oil during
transportation.
3. Confirm that the voltage and the phase
(single or 3 phase) of motor are set
correctly.
4. Confirm that the power plug is correctly
connected to the power supply.
5. Never use the machine when the
local voltage type is different from
the marked voltage on the nametag
attached on the machine.
6. Confirm that the rotating direction of
the machine pulley is correct.
Warning:
Before doing any operation or any
adjustment described later in this
manual, please turn the power off to
prevent accidents caused by abrupt
start of the sewing machine.
P7
Introduction

機器如何安裝 INSTALLATION OF MACHINE
1. 依本機器所附桌板裁製圖及零件組合圖所列
之配件，依序安裝防震機座及線架。(圖1.2)
1.With reference to diagrams for table cutting
and mounting parts list, install rubber
cushion and thread stand in sequence.
(Fig. 1.2)
圖1/Fig 1
2. 馬達之轉向為順時針方向 ,皮帶之鬆緊度以
用手指能向內壓 20mm 為宜 ,同時為安全起
見請皮帶蓋必須鎖上。(圖3.4)
3. 皮帶輪及縫合轉速，請參照 (表1)。
2.Motor should turn clockwise with proper
tension for driving belt. It can be checked by
pushing belt inward for 20mm. Please install
belt cover properly for safety purpose.
(Fig. 3. 4)
3.Motor pulley size and sewing speed, please
refer to (Table 1).
圖3/Fig 3
圖2/Fig 2
圖4/Fig 4
P8

潤滑油之注入與更換 LUBRICANT OIL FILLING AND
REPLACEMENT
新機器運裝前均已將油倒盡，因此機器使用前
必須加入潤滑油。
1. 潤滑油之注入：(圖5.6)
*將(A) 旋開，以包裝箱內所附之超高速潤
滑油或選用 MOBlL#10 或ESSO#32 等級
之潤滑油加入，直至油窗 (C) 內之二油標
線中間即可，然後再鎖緊 (A)。
Machine chamber is empty with no oil. Please
fill lubricant oil into new machines before
running.
1.To fill lubricant oil: (Fig. 5.6)
*Loosen Knob (A), fill in with lubricant oil or
its equivalent such as Mobil #10 or Esso
#32. Please fill the oil up between two level
lines on oil lndicator (C) and tighten Knob
(A) up.
P9
Introduction
A
圖5/Fig 5 圖6/Fig 6
注意：
1. 使用新機器最初一個月運轉速度約為最高
速，之 80%，並請選擇正確的馬達皮帶輪尺
寸(表1)。
2. 桌板厚度約 45mm。
3. 馬達規格：離合器馬達，3相2極400 瓦
(1/2HP)。
電源電壓及周波數依當地規定 110 220 380V
或其他額定電壓。
4. 皮帶規格：M型V字皮帶。
Remarks：
1.New machines run a speed at approximately
80% of the Maximum speed in the first month
(Table 1). Be sure to choose proper motor
pulley for your machine.
2.Thckness of Table Top is about 45mm.
3.Specification of motor：Clutch motor 3
phase, 2 poles, 400w (1/2 HP).
Power source, voltage and cycle are
regulated by territory including 110, 220,
380V or other appointed voltages.
4.Driving Belt: M type, V belt.
表1/Table 1
馬達轉速 /分Machine Speed(s.p.m)
馬達皮帶輪的外徑 Motor Pulley Outer Diameter (mm)
60Hz 50Hz
4500 Ø90 Ø105
4000 Ø80 Ø95
3500 Ø70 Ø85

針之更換 REPLACE NEEDLES
*選用針之規格與尺寸請參照 (表2)
1. 旋鬆螺絲 (A) 並取下針。(圖8)
2. 將新針插入針座之針孔至最底端，並使針之
長溝面向自己。
3. 重新鎖緊螺絲 (A)。
4. 如果針安裝不正確，不但會引起跳針，斷線，
還會損壞勾針，務必注意。
*Please refer to (Table 2) for proper needle
sizes.
1.Loosen Screw (A) and take out the used
needle. (Fig. 8)
2.Put new needle into the needle clamp holes
as far as they can go. The groove of needle
should face yourself.
3.Tighten Screw (A).
4.lmproper needle setting will cause skipping
stitches, breaking threads, and damaging
loopers. Please pay attention to needle
installation.
圖7/Fig 7
2. 潤滑油之更換：(圖3)
*將螺絲 (A) 鬆開，使油槽之油完全排出後
再鎖緊。
*為延長本機器之壽命，請於開使用四星期
後更換新油，爾後約四個月更換一次。
3. 濾油器之更換：(圖7)
*本機器特別裝有濾油器，約每使用一個月
後應卸下清洗，必要時得更換新品。
2.To replace lubricant oil：(Fig. 3)
*Loosen screw (A), drain oil from the oil tank
& tighen it up.
*To extend the life of machine, please
replace lubricant oil after the first 4 weeks
operation. Thereafter, replace oil every 4
months.
3.To replace oil filter：(Fig. 7)
*Take filter out and clean up very month.
Replace with new filters if necessary.
P10
表2/Table 2
布料種類 type of fabric 針規格 needle system 針號 needle size
薄.中厚布料 fine,medium
EQUIVALENT SYSTEM UY128GS #80 ～#110
ORGAN UY128GAS #12 ～#18
厚.極厚布料 heavy,extra heavy
EQUIVALENT SYSTEM 62*53 #130
ORGAN TV * 5 #21

穿線之方法 THREADING
圖8/Fig 8
1. 請確實按照圖示之穿線，錯誤之穿線將引起
斷線，跳針或車縫不平坦等現象，請參照穿
線圖。(圖9)

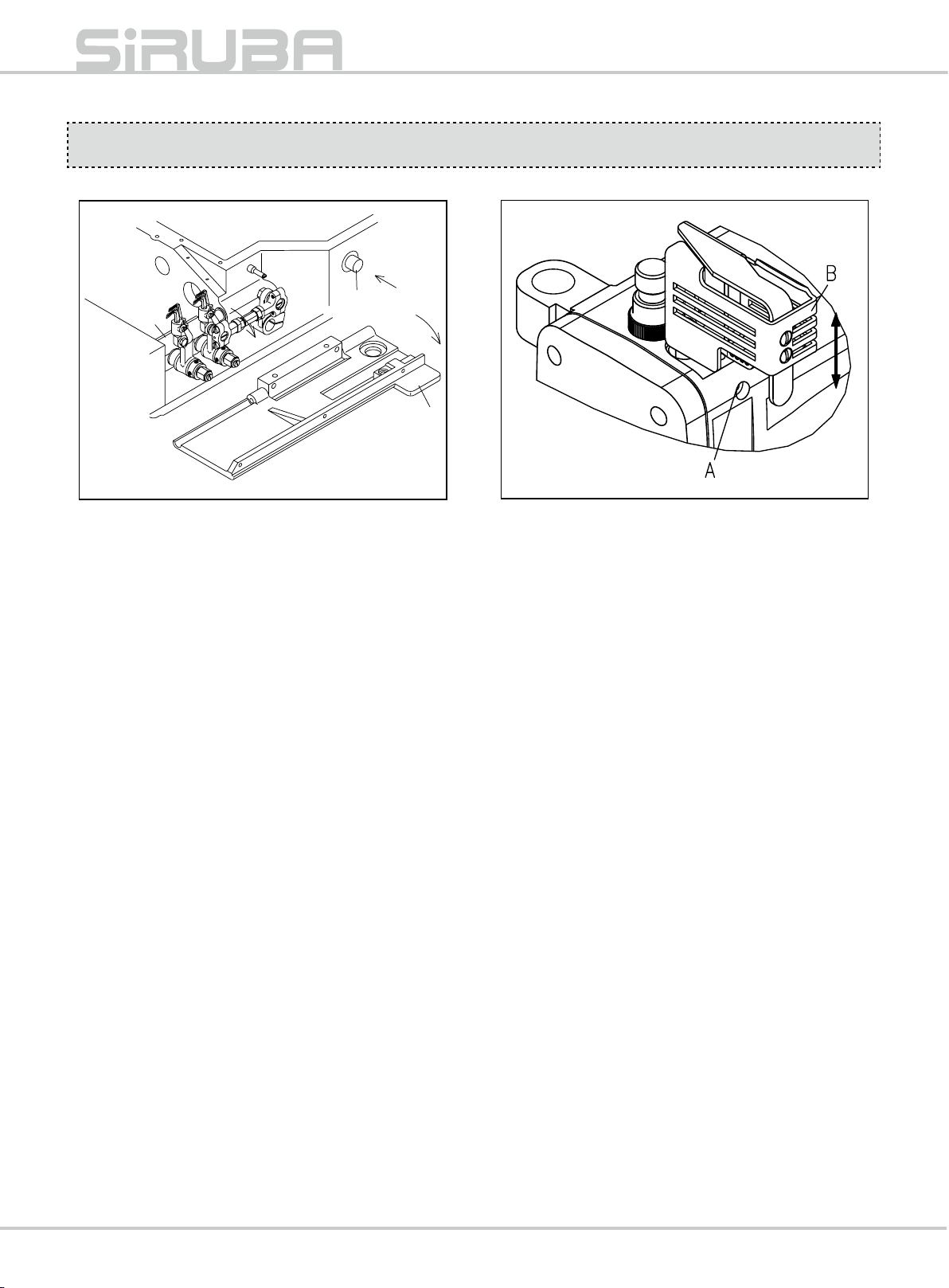

2. 在穿勾針線時，打開前蓋 (A) 旋轉手輪，將
針轉至最高點後再將勾針座心軸控制壓扭
(B) 沿箭頭方向壓入，使勾針座心軸與帶動
連桿分離，然後將勾針座 (C) 向前扳出，即
可進行穿線。(圖10)
1.For needle threading, please thread carefully
as. (Fig. 9) Please note: improper threading
will cause breaking threads, skipping
stitches, and / or undesired sewings.
2.For looper threading open front cover (A),
turn handle wheel till needles at the heightest
point and press (B) as illustrated to let the
looper base spearate from the connecting
rod then move (C) forward and proceed to
threading (Fig. 10)
P11
Introduction
圖9/Fig 9
D
C
B
A
X
Y
E

控線之調整 HREAD TENSION ADJUSTMENT
圖11/Fig 11
1. 控線強弱必須根據車縫布料種類，厚薄，線
及縫距等不同，而做不同之調整。(圖9)
2. 將控線鈕順時針方向旋轉時，線越緊，線張
力越大；反之則越鬆，線張力越小 ;張力超
過規格強度時將會引起斷線和跳針現象。
3. 調整線張力依據使用之線與布面不同，例如：
需調整較大之線張力 -厚布或棉線。
需調整較小之線張力 -薄布或伸縮尼龍線。
4. 針控線桿之調整 (圖11)
針線控線桿 (B) 依縫線使用種類來選擇使用
之狀態，放鬆螺絲 (A) 將(B) 上下移動調整，
在使用伸展性大的縫線時，將 (B) 上移，則
針孔處之線環就會變大，以利勾線。
5. 轉動手輪使針捧位於最低位置時，針線控線
桿(A) 必須成水平狀態，必要時要放鬆螺絲
(B) 調整之。(圖9)
1.Thread tension should be adjusted in
according to fabrics, thickness of fabrics,
material, thread used and stitch length etc.
(Fig. 9)
2.Turn thread-knob clockwise for increasing
thread tension and vice versa. It will be
thread breaking & skipping if the thread
tension excess standard.
3.Adjust the tension of thread according to
the kind of thread and fabrics, Ex：
Increasing thread tension - Heavy weight
fabric or Cotton thread.
Descreasing thread tension - Light weight
fabric Elastic Nylong thread.
4.Take-up lever adjustment (Fig. 11)
The position of Needle Thread Take-up Lever
(B) is adjustable according to thread used.
Loosen screw (A), move Lever (B) up and
down for the optimurn position. For instance,
when using high extension thread, move
Lever (B) upward and vice versa.
5.Turn hand wheel till needle at its lowest
location, needle thread take-up lever (A)
could be horizontal by loosen screw (B) to
adjust it if necessary.(Fig. 9)
P12
C
B
A
圖10/Fig 10

針高度之調整 NEEDLE POSITION ADJUSTMENT
6. 針線控制桿之調整：(圖9)
a. 將螺絲 (C)，鬆開，左右移動至適當距離。
b. 欲將針線調鬆時，將控線桿 (A) 往X方向
移動，反之則往 Y方向移動。
c. 控線片 (D)(E) 上下調整亦有同調整 (A) 控
線桿之效果。
6.The procedures for adjusting of needle
thread take-up levert: (Fig. 9)
a.Loosen Screw (C), move to left or right till
a proper position.
b.To loosen thread, move tension post (A)
toward direction X, oppisite direction Y to
tighten thread.
c.By moving thread tension (D)&(E) up and
down has similiar effect as needle tension
post (A).
2. 打開上方之側蓋橡膠塞 (A)，並鬆開螺絲 (B)，
上下調整針棒之高度後再固定之 (圖13)。
注意：經過調整後，必須再確認每一根針是通
過針板的針孔中央 (圖14)。
2.The position of Needle Bar can be adjusted
：Removing Rubber Cap (A) and loosening
Screw (B), moving Needle Bar up and down,
to proper position and tightening Screw (B),
and insert in Cap (A). (Fig. 13)
Remark:
Be sure that every needle goes through the
center of needle holes on Needle Plate.
(Fig. 14)
P13
Introduction
1. 當針棒升至上死點時，調整針尖與針板面之
距離為 Q (mm)，如 (表3/ 圖12) 所示。
1.Needle tip should be Q (mm) height from
Needle Plate when Needle Bar moves to its
upper dead point. (Table 3 / Fig 12)
機型 /model Q (mm)
02064P 7.5
03064P 11
03071P 11
04085P 11
04095P 11
0464-254P 11.2
0464-191P 11.2
0448-254P 11.2
0664-254P 11.2
mm
Q
圖12/Fig 12
表3/Table 3
B
A
x
x
x
x
圖13/Fig 13 圖14/Fig 14

縫距之調整 STITCH LENGTH ADJUSTMENT
首先確認馬達需關掉，然後壓下縫距調整按鈕
(A)，並轉動皮帶輪，會感覺卡一聲，即按鈕卡
住針距調整組，再轉動皮帶輪至所需之縫距，
欲調長縫距時，將皮帶輪往順時針方向旋轉，
反之則小，再放開此按鈕。(圖17)
Be sure to turn off motor before adjust.
push stitch length Regulator Botton (A) and
turn pulley untill the botton lock in the stitch
regulator. Then, turn pulley again to reach
desired stitch length. Turn pulley clockwise
for longer stitch length, vice versa. Then,
release the botton. (Fig. 17)
送具調整 FEED DOG ADJUSTMENT
送具 (C) 升至上死點時，送具齒尖面與針板面
之距離為 1.0-1.2 mm( 圖15)。
調整時：(圖16)
1. 放鬆送具 (C) 固定螺絲 (A)。
2. 上下移動送具 (C) 使符合上述條件時，再鎖
緊螺絲 (A)。
When Feed Dogs (C) move to the upper dead
point, the distance from the tips of feed dogs to
the face of needle plate is 1.0-1.2 mm. (Fig. 15)
For adjustment：(Fig. 16)
1.Loosen Screw (A) on Feed Dog (C).
2.Move Feed Dog (C) up or down to meet
above requirement then tighten Screw (A).
圖15/Fig 15 圖16/Fig 16
圖17/Fig 17
P14

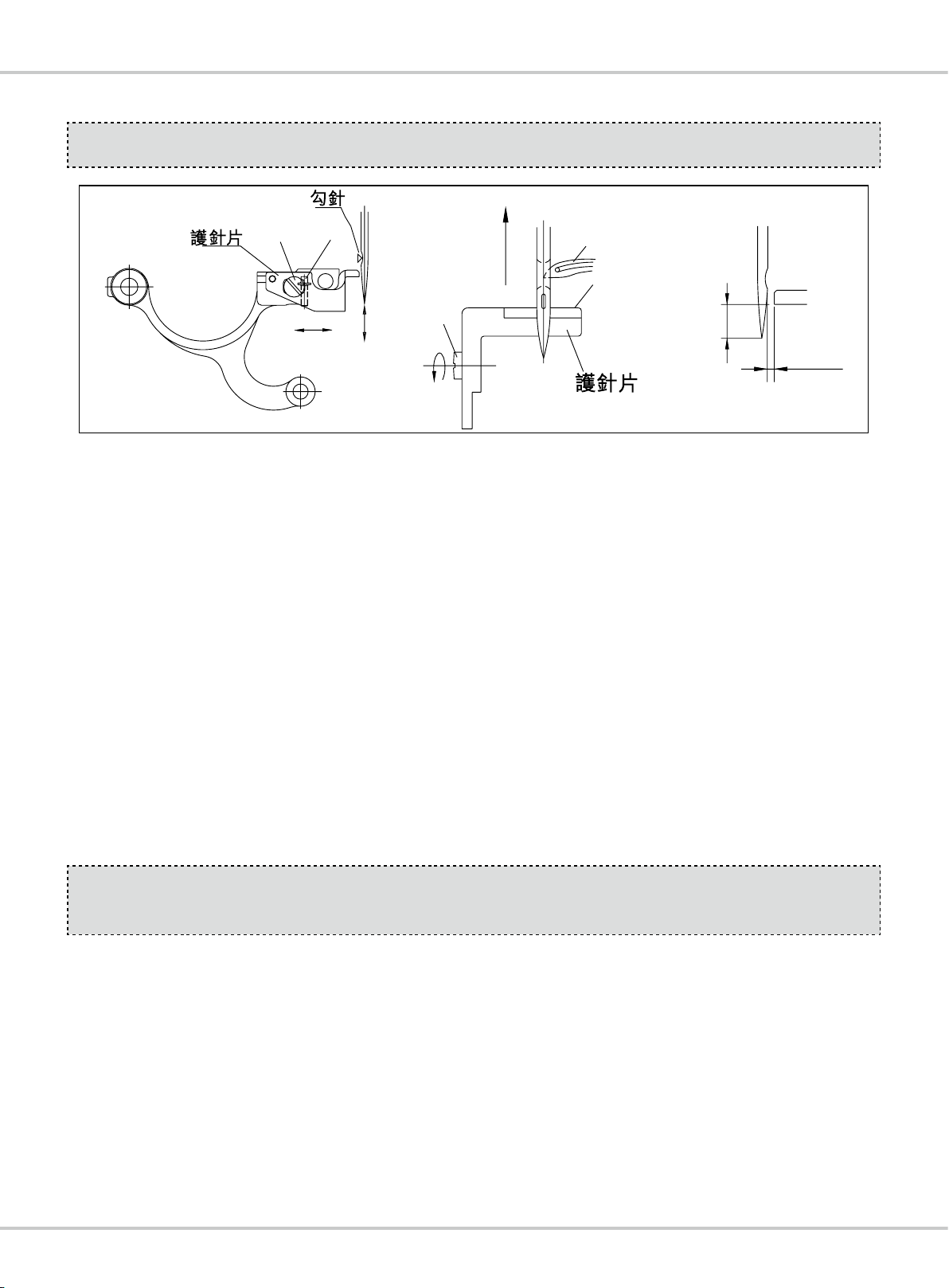

護針片調整 NEEDLE GUARD ADJUSTMENT
0~0.2
YX 3.5±0.3
A
D
C
B
C
圖18/Fig 18
勾針針尖與針孔之會合正確時位關係 CORRECT TIMING BETWEEN THE
LOOPER'S TIP AND NEEDLE'S EYE
針與勾針之時位關係 TIMING OF NEEDLES AND
LOOPERS MOVEMENT
P15
Introduction

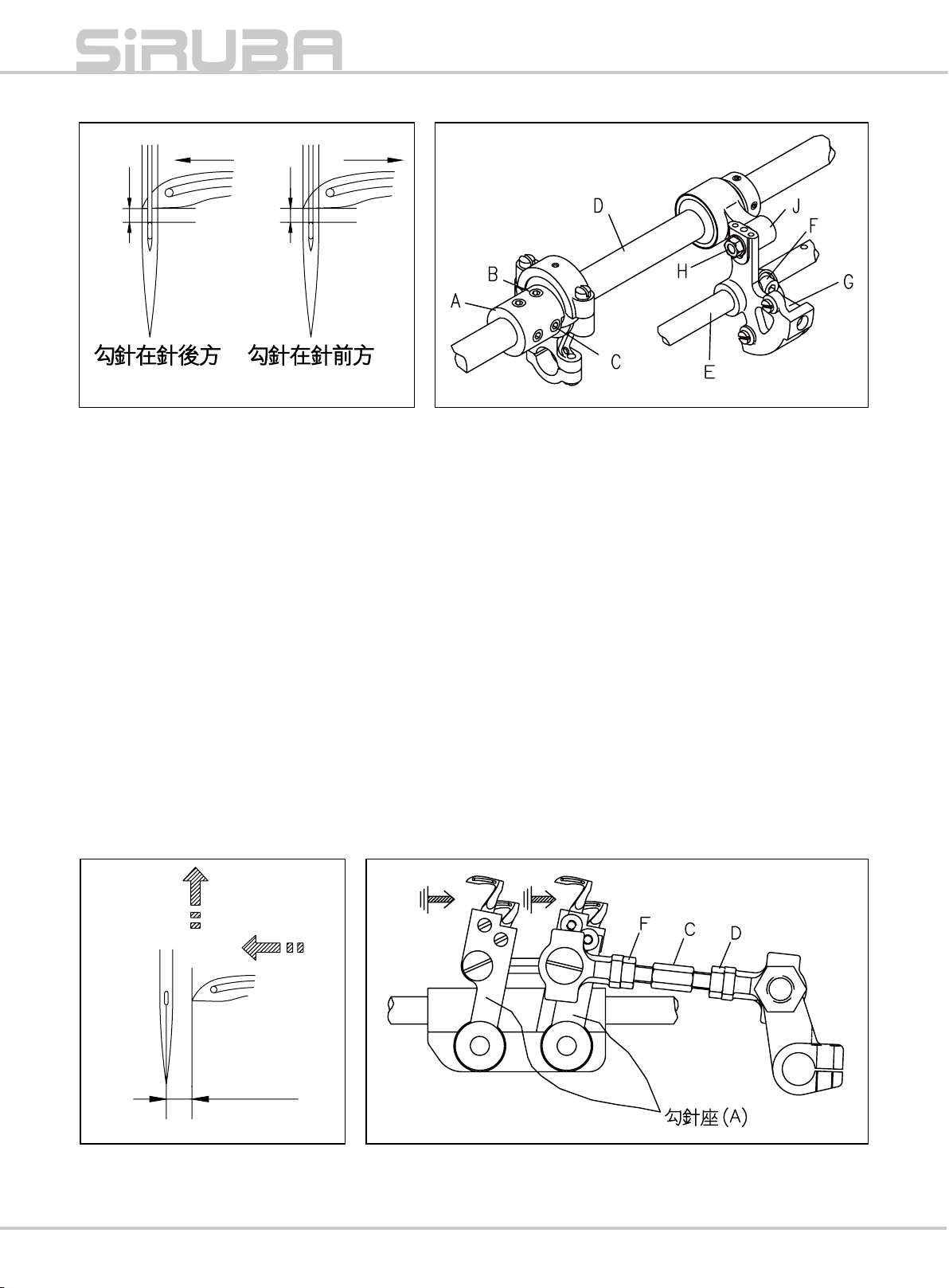

以最大針為基準進行調整，當勾針由右死點往
左移至針後方左緣時，勾針尖與針孔上方距離
(A) 與勾針由左死點往右回移至針前方左緣時，
勾針尖與針孔上方之距離 (B) 均相等時，此時
即正確之時位關係 (圖19)。
The adjusting bases on the biggest needle
specification .The looper moves from dead
right side forward behind the needle, approach
to the left side of needle the distance between
looper's tip and needle's eye (A), and then, the
looper backward front the needle approach to
the left side of needle, the distance between
looper's tip and needles' eye (B). When A=B,
the timing is correct. (Fig. 19)
1. 如(圖18) 所示，以最大針為基準進行調整，
當勾針 (A) 由右往左移，針由下往上時，護
針片 (B) 與針凹槽下緣凸起處，距離約為
0~0.2mm，而針尖與護針器下緣距離為 3.5
±0.3mm。
2. 護針片調整步驟如下：
*鬆開螺絲 (C) 往X或Y方向移動前後位置。
*旋轉螺絲 (D) 可控制護針片上下位置順時
針旋轉則下降，反之則上升。
*調整至圖示位置時，再鎖緊螺絲 (C)。
1.As Demonstration in Figure 18, the
adjustment is operated under the biggest
needle specification. When the looper (A)
moves from right to left, and needle shift
from top to bottom, the distance between
needle guard and convex of needle concave
is about 0-0.2mm, and the distance between
needle peak and bottom of needle guard is
3.5±0.3mm.
2.Procedures to adjust Needle Guide：
*Loosen Screw(C) and move forward/
backward as per direction X、Y.
*Turn Screw (D) till able to control the up-
down position of the needle guide, the
needle will lower when turned clockwise
and the opposite is upper.
*Tighten Screw (C) after adjusted to proper
position.

圖20/Fig 20
調整時：(圖20)
1. 打開蓋板 HA14。
2. 旋轉手輪使勾針移至右死點。
3. 將偏心輪 (A) 之螺絲 (B)、(C) 稍放鬆。
4. 欲加快勾針移動時間，則將手輪逆時針轉
動，反之則順時針轉動。
5. 確認車針與勾針之時位關係是否正確。
6. 依上步驟調整至正確位置再鎖緊螺絲 (B)、
(C)。
7. 螺絲孔 (B) 鎖定，在心軸 (D) 上之凹槽為定
位基準。
8. 時位關係在出廠時已調整好，若非必要請勿
調整 (D) 之位置。
Adjusting procedures: (Fig. 20)
1.Open Cover HA14.
2.Turn Handle Wheel to let Looper move to
right dead point.
3.Loosen Screws (B)、(C) on eccentric (A).
4.To increase Looper approach movement,
turn handle wheel counter-clockwise, if to
decrease, turn clockwise.
5.Make sure the Needle and Looper timing is
correct.
6.After correct adjustment, tighten Screws (B)
、(C).
7.Screw Hole (B) is set as basic point, the
groove on shaft (D) is for setting place.
8.Timing has been set up already, please do
not adjust Shaft (D) unless necessary.
圖22/Fig 22
勾針左右運動調整 ADJUSTING LOOPER MOVEMENT
P16
2mm
2mm
圖19/Fig 19
3-3.2mm
圖21/Fig 21
勾針位於右死點時，勾針針尖至車針側右緣之
距離 (B) 為3~3.2 mm( 圖21)。
The distance (B) between looper's tip and the
right side of needle is 3~3.2 mm. (Fig. 21)
A B
B
