sisel Enda ATSD02 User manual

ENDA ATSD02 Rail Mounted Star-Delta Analog Timer.
* Separate contacts for star and delta connections (OUT1 - OUT2).
* Star connection to remain active time can be adjusted.
* Star-delta switching time can be adjusted.
* 6 Different timing unit for star connection (S, 10S, M, 10M, H, 10H).
* Rail Mounted.
* Screw-terminal connection.
* CE marked according to European Norms.
1 / 2 ATSD02-EN-02-220103
0 ... +50°C/-25 ... +70°C (With no condensation and icing).
OUTPUT CONTROL
ATSD02 - xV
ORDER CODE
ENDA
ATSD02
Y TIME
OFF TIME
Y RANGE
100
200400
0
500
20
10M
10H
H
10S
M
S
.4
.6.8
0
1
.2
Power Led
Power
OUT2 NO
OUT1 Led
OUT2 Led
tY
Power
OUT1 NO
toff tY=Y RANGE x Y TIME
toff=OFF TIME
SİSEL MÜHENDİSLİK ELEKTRONİK SAN. VE TİC. A.Ş.
Şerifali Mah. Y.Dudullu 34775
ÜMRANİYE/İSTANBUL-TURKEY
Tel : [phone] Pbx. Fax : [phone]
url : www.enda.com.tr
Barbaros Cad. No:18
Thank you for choosing ENDA ATSD02 Rail mounted star-delta analog timer.
Product Basic Code
Rail Mounted Star-delta
Analog Timer
Technical Specifications
Read this document carefully before using this device. The guarantee will be expired by device demages if you don't
attend to the directions in user manual. Also we don't accept any compensations for personal injury, material
damage or capital disadvantages.
Max. humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C.
ENVIRONMENTAL CONDITIONS
Max. 2000m
IP20, According to EN 60529
Do not use the device in locations subject to corrosive and flammable gasses.
Height
Ambient/storage temperature
Max. relative humidity
Rated pollution degree
ELECTRICAL CHARACTERISTICS
Scale
EMC
İnsulation test voltage
Supply voltage
Power consumption
Connection
Reset time
Accuracy
Safety requirements
90-250V AC 50/60Hz ; 24V AC/DC 50/60Hz
Max. 10VA
Screw-terminal connection.
Depending on the effect of voltage: max %0.2
EN 61326-1: 2012
EN 61010-1: 2010 (pollution degree 2, overvoltage category II)
3kV AC min. 1 minute, 4,2kV DC min. 1 minute.
For Star connection 0-1. For OFF delay time 0, 20, 100, 200, 400, 500 milliseconds.
Max. 0.04 seconds.
Depending on the set value settings:max %4.5
Depending on the effect of temperature :max %1
OUTPUTS
Control outputs (OUT1/OUT2)
Control output state
Life expectancy for relays
Relay: 250V AC, 10A (for resistive load), NO+NC
Without load 10.000.000 operation; 250V AC, 10A resistive load 50.000 operation.
OUT1 LED lights up when OUT1 relay is turned on, OUT2 LED lights up when OUT2 relay is turned on.
OUT1 and OUT2 LEDs blinks during OFF time.
CONTROL
Timing function
Timing unit
Y TIME : ON time duration for OUT1 Relay. OFF TIME: OFF time duration for OUT1 and OUT2 relays.
Can be adjusted on device.
For Y TIME Second, 10 seconds, minute, 10 minutes, hours, 10 hours can be selected on device.
HOUSING
Mounting
Dimensions
Weight
Enclosure material
Rail mounted (EN 60715, Th35)
W18xH90xD66mm
Approx. 90g (after packaging)
Self extinguishing plastics.
While cleaning the device,solvents (thinner,benzine,acid etc.) or corrosive materials must not be used.
90-250V AC
24V AC/DC
UV
LV
ATSD02 - xV
Supply Voltage

Star-delta switching time selection.
Relay status LED
(OUT1 LED lights up when OUT1 relay is turned on).
Cable size : 1,5mm²
Fuse
F 100 mA
250V AC
NC NC
C C
NO NO
U1 U1
U2 U2
NC NC
C C
NO NO
ENDA
Y TIME
Y RANGE
100
200 400
0
500
20
10S
M
10M H
S
10H
62 mm
66 mm
ATSD02
.4
.6 .8
0
1
.2
OFF TIME
Star connection active time duration selection.
18,5 mm
ENDA
Y TIME
Y RANGE
100
200 400
0
500
20
10S
M
10M H
S
10H
ATSD02
.4
.6 .8
0
1
.2
OFF TIME
8 680407 715046
ENDA
ATSD02-UV
ANALOG STAR-DELTA TIMER
SN: XXXXXXXXX
Made in Turkey
OUT1 / OUT2 :
250V AC 10A
RESISTIVE LOAD
POWER :
90-250V AC
50/60Hz
OUT1
NC NO
C
U1 U2
OUT2
NC NO
C
90 mm 69 mm 45 mm
8 68040 7 71504 6
ENDA
ATSD02-UV
ANALOG STAR-DELTA TIMER
SN: XXXXXXXXX
Made in Turkey
OUT1 / OUT2 :
250V AC 10A
RESISTIVE LOAD
POWER :
90-250V AC
50/60Hz
OUT1
NC NO
C
U1 U2
OUT2
NC NO
C
Star connection active remain time selection.
OUT2
OUT1
.4
.6 .8
0
1
.2
10S
M
10M H
S
10H
2
1
ENDA
ATSD02
OFF TIME
OFFRANGE
.5
.1
.3
.4
.6 .7 .8 .9
0
1
.2
10S
M
10M H
S
10H
OFF TIME
OFF RANGE
.4
.6 .8
0
1
.2
ON TIME
.5
.1
.3
.4
.6 .7 .8 .9
0
1
.2
1

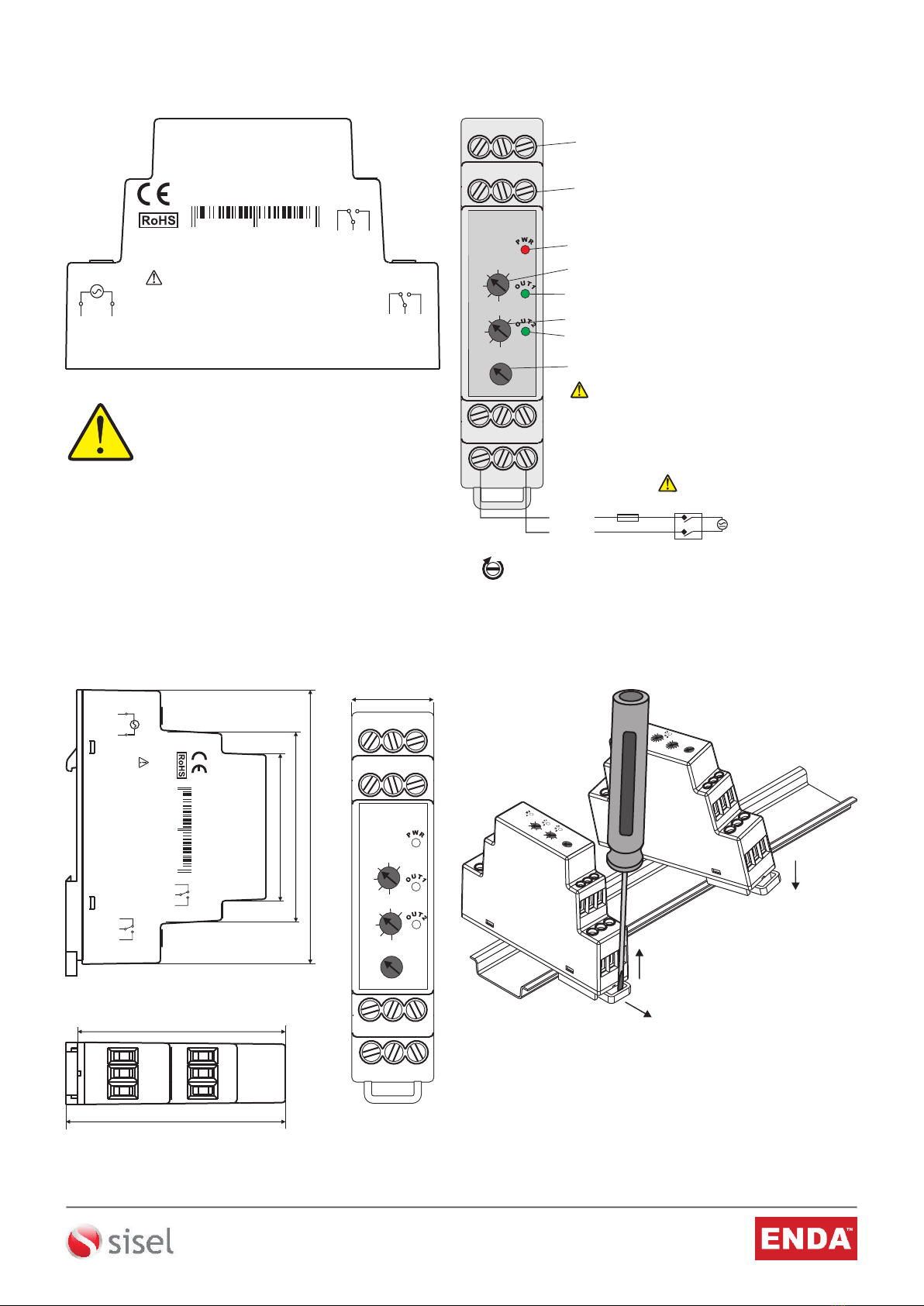

CONNECTION DIAGRAM
ENDA ATSD02 Series timers are rail mounted devices. Make
sure that the device is used only for intended purpose. The
shielding must be grounded on the instrument side. During an
installation, all of the cables that are connected to the device
must be free of energy. The device must be protected against
inadmissible humidity, vibrations, severe soiling and make sure that the
operation temperature is not exceeded. All input and output lines that are not
connected to the supply network must be laid out as shielded and twisted cables.
These cables should not be close to the power cables or components. The
installation and electrical connections must be carried on by a qualified staff and
must be according to the relevant locally applicable regulations.
Supply indicator.
Relay status LED
(OUT2 LED lights up when OUT2 relay is turned on).
1) Mains supply cords shall meet the requirements of IEC
60227 or IEC 60245.
2) In accordance with the safety regulations, the power supply
switch shall bring the identification of the relevant instrument
and it should be easily accessible by the operator.
Phase
Neutral
Fuse should
be connected.
Switch
Holding screw
0.4-0.5Nm.
DIMENSIONS MONTAGE
For mounting the device to the panel :
Push the device in direction 1 , the rails
provide the key to keeping the rail.
SİSEL MÜHENDİSLİK ELEKTRONİK SAN. VE TİC. A.Ş.
Şerifali Mah. Y.Dudullu 34775
ÜMRANİYE/İSTANBUL-TURKEY
Tel : [phone] Pbx. Fax : [phone]
url : www.enda.com.tr
Barbaros Cad. No:18
2 / 2
For removing the device from rail;
Push the rail lock in direction 1 with a
screwdriver and pull the device in
direction 2 .
ATSD02-EN-02-220103
90-250V AC or
10-30V DC/8-24V AC
