SJÖBLOMS 030-2030 User manual
Ver 200319
USER MANUAL
Chassis for stretchers
For model
030-2030
NOTE!
The operator must read the user manual
carefully BEFORE the product is used,
to avoid unnecessary risks to the patient and operator.
Stretcher Chassis Table of contents
TABLE OF CONTENTS
Foreword
Warranty
Important information
1. Function Description
1.1 General description
2. Operation
2.1 Height adjustment
2.2 The function of the castors
2.3 Adjusting the top
3. Maintenance & Cleaning
3.1 Routine checks
3.2 Cleaning
3.3 Lubrication scheme
3.4 Solutions for lubrication, cleaning and disinfecting
4. Technical specification
4.1 Dimensions
4.2 Labels on the product
5. EU-Declaration of Conformity
6. Contact details
Stretcher Chassis Foreword, warranty, information
FOREWORD
Welcome as the owner of a product manufactured by Sjöbloms Sjukvårdsutrustning
AB. We hope that you will be pleased and satisfied with our quality product.
If a problem should arise with this or any of our products, you are always welcome
to contact us, and our service department will assist you with the expertise needed
to solve the problem.
The user manual contains all the information needed to use, maintain and service
the product. The document is continuously updated as the products are modified.
Therefore we reserve against possible changes in the user manual.
WARRANTY
Sjöbloms provides a two-year warranty for material, design and manufacturing
defects, provided the products are not subjected to tampering or excessive wear.
For the guarantee to apply, the product must have been used in accordance with
the user manual, and the maintenance performed as specified.
IMPORTANT INFORMATION
This product is intended for professional medical use. The user manual should be
read carefully before using the product, to avoid unnecessary risks for the patient
and operator.
The user manual contains warnings where there is a risk of personal injury, which
should be noted. Improper handling can be fatal.
A warning triangle is shown where particularly important information can be found.
Warning Triangle
Stretcher Chassis Functional description
1. FUNCTIONAL DESCRIPTION
This product is meant for professional use in health care, for transport of the
patient.
It is designed to be a functional and user-friendly tool for the operator and patient.
Note that the product must only be used by competent health professionals who
read the user manual, for correct handling.
General description
Hydraulically height adjustable, chromium-plated all- welded steel tubes.
Easy-rolling semi-soft 150 mm central locking castors, including a directional
locking function.
Stretcher Chassis Operation
Height adjustment
2. OPERATION

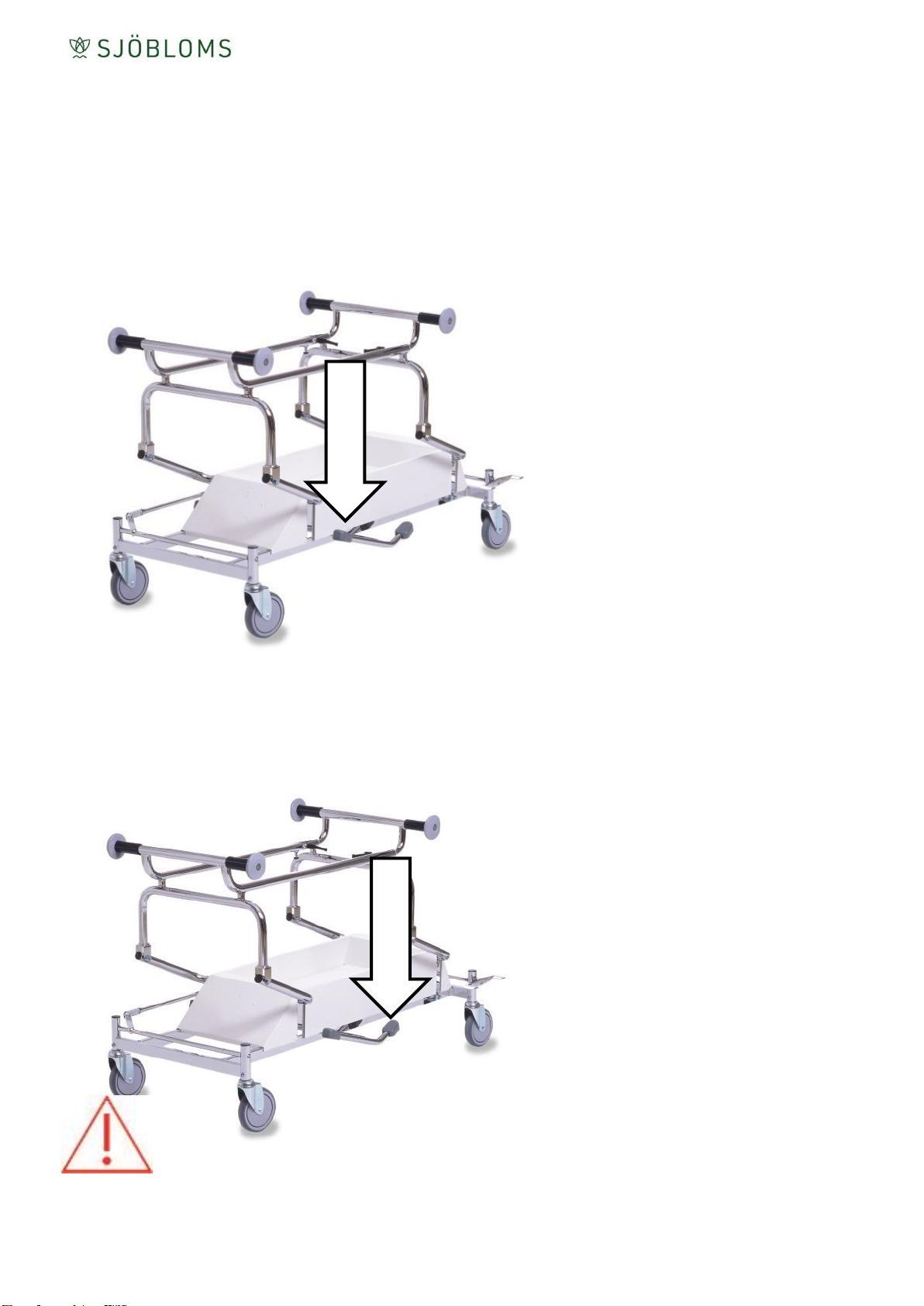

2.1 Height adjustment
To raise the chassis
Pump the longer part of the pedal to raise the chassis to the desired height.
To lower the chassis
Press the shorter part of the pedal to lower the chassis to a desired height.
NOTE!
Ensure that no unauthorized persons are in the couch's working range, as a
pinch hazard exists when raising and lowering the product.
Stretcher Chassis Operation
The function of the castors
2.2 The function of the castors
The chassis is equipped with central locking castors and a directional-locking
function, which helps transporting the chassis straight in long corridors.
Unlocked castors
Directional locked mode
Braked mode
Stretcher Chassis Operation
Adjusting the top

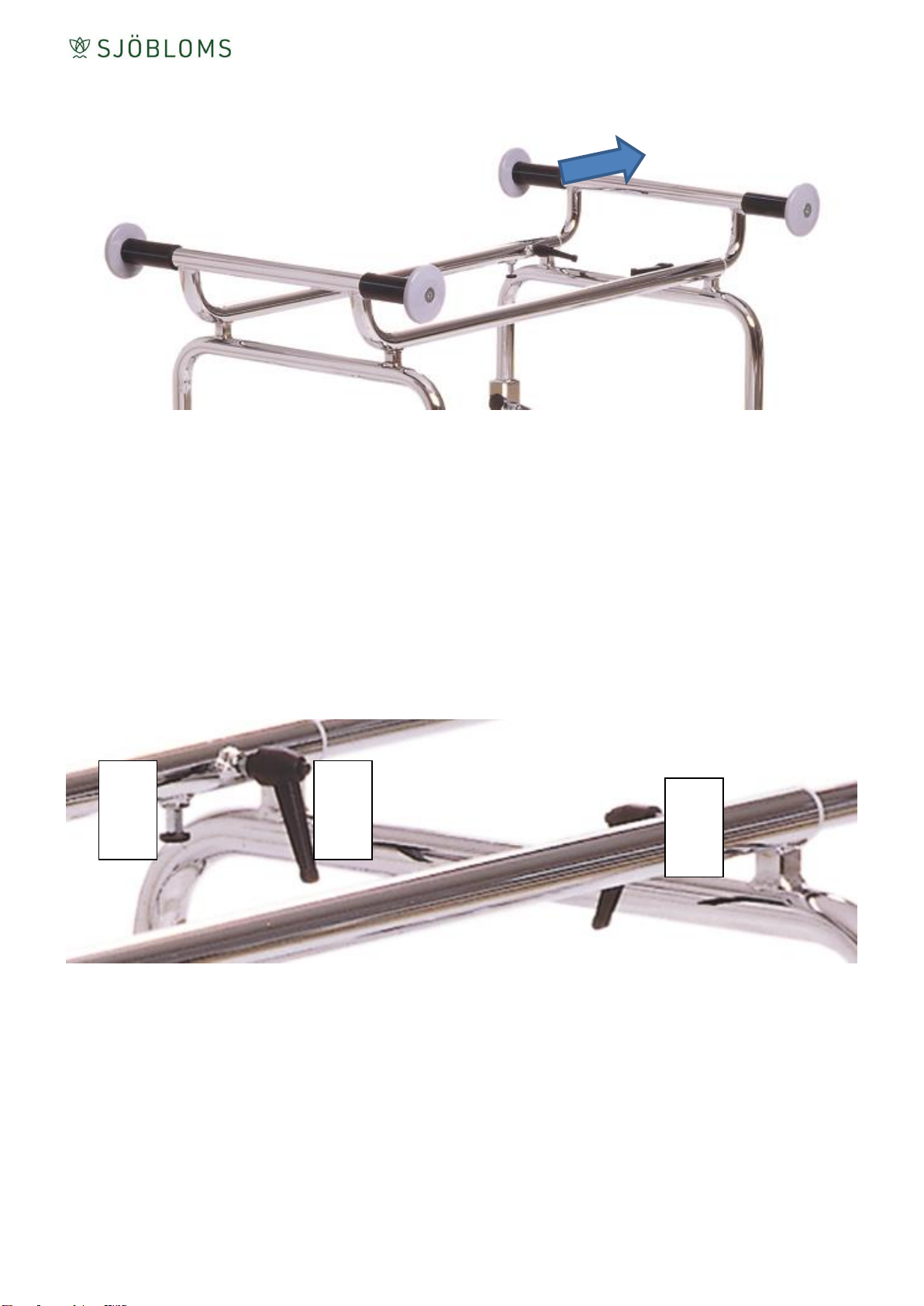

2.2 Adjusting the top
The top is adjusted in length between 102 and 127 cm.
Release the inner tube by unlocking the handle (1). When the inner tube is at its
maximum length, the lock-pin (2) locks the tube.
Pull the pin downwards and move the top. Lock the handles (1) when you have
reached desired length.
1
1
2
Stretcher Chassis Maintenance & Cleaning
Routine checks, cleaning
3. MAINTENANCE & CLEANING
3.1 Routine check-ups
Routine check-ups should be made to ensure proper functionality.
Important!
Failure to perform the following routine can cause the patient and/or operator to
be exposed to unnecessary risks and the couch may have a reduced life expectancy.
Please check all functions and parts on a regular basis.
Check the following:
Any unusual sounds.
Hydraulic pump functions
Castor and castor locking functions.
That joints and fittings are lubricated according to the lubrication chart.
That the fast-locks work as they should.
3.2 Cleaning
May be disinfected.
Stretcher Chassis Maintenance & Cleaning
Lubrication scheme

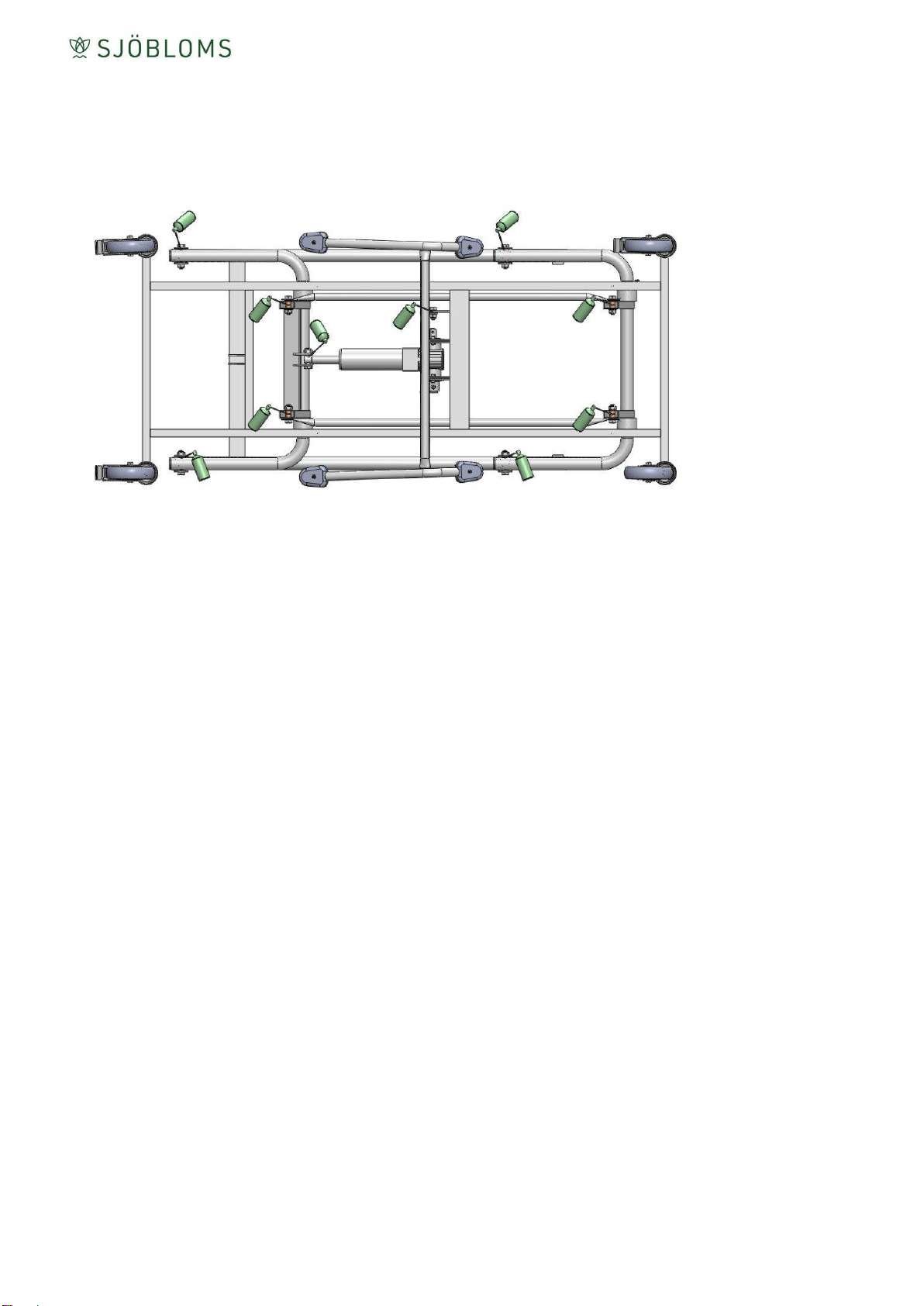

3.3 Lubrication scheme
Lubrication according to the scheme should be performed every 6 months or as needed.
First lock the castors. Have someone help you to tip the couch on the
side, in order to lubricate the moving joints.
Stretcher Chassis Maintenance & Cleaning
Solutions for lubrication, cleaning and disinfecting
3.4 Solutions for lubrication, cleaning and disinfecting
R-1, Cleaning solution for artificial leather
5557001, Lubrication
C068, Disinfection solution, DAX Plus
Cleaning solution Lubrication Disinfection
Stretcher Chassis Technical specifications
Dimensions
4. TECHNICAL SPECIFICATIONS
4.1 Dimensions
Length: 150 cm
Width: 65 cm
Height: 58-94 cm
Weight: 40 kg
Max patient weight: 200 kg
SWL: 220 kg
Stretcher Chassis Technical specifications
Labels on the product
4.5 Labels on the product
The CE label contains the date,
order number, serial number
and our contact information.
Max patient weight 200 kg.
Stretcher Chassis EU-Declaration of Conformity
5. EG-FÖRSÄKRAN OM ÖVERENSSTÄMMELSE
EU-DECLARATION OF CONFORMITY
according to MDD 2007/42/EC including Appendix
and according to CE-marking Directive 93/68/EEC
Type of equipment: Incubator chassis, hydraulic
Manufacturer: Sjöbloms Sjukvårdsutrustning AB
Modell: 030-2030 Product registration number: 13814
The appendix contains documents that have been applied for verification of
compliance.
Manufacturer
Sjöbloms Sjukvårdsutrustning AB
Myrängsvägen 8
S-891 50 ÖRNSKÖLDSVIK
Additional Information Directive for Medical Technical Products
The product complies with the harmonized standards, other standards and
technical specifications listed in the appendix.
Sjöbloms works in accordance with SS-EN ISO 9001:2000 and is second-party
certified for this standard, which ensures consistency between the manufactured
product and the technical documentation.
As a manufacturer we can ensure under our own responsibility that the product
complies with the directives listed above.
Örnsköldsvik 2011-06-22
Karl-Gunnar Sjöblom
Production manager
Stretcher Chassis EU-Declaration of Conformity
Appendix to
Declaration of Conformity
The following harmonized standards have been applied:
Standards Date Listing
SS-EN 60601-1 C1 2010-05-06
SS-EN 60601-1-2 C1 2010-05-06
The following company standards or other technical specifications have been
applied:
Standards Date Listing
LVFS 2009:18 2009-10-08 Relevant requirements of the law on
medical technical devices
Stretcher Chassis Contact Information
6. CONTACT INFORMATION
SJÖBLOMS
Myrängsvägen 8
891 50 Örnsköldsvik
Sweden
Tel: +46 660 105 80
Fax: +46 660 180 00
Web page: www.sjobloms.com
