SJCAM SJ6 LEGEND User manual
GYRO
ANTI-SHAKE
1 6 M PDual Display2K 30 F PS
SJ6 SJ6 SJ6 LEGEND LEGEND LEGEND
TOUCHSCREEN
We believe everyone has a dream. Our mission is to make you express yourself, your vision and dreams in order to make them real, and share them with others. In the last 10 years of experience in Research and Development and Commercialization, we have gained world recognition from customers and retailers, with the ambition to give people the possibility to create, explore and empower their dreams. Having our own factory, controlling the whole production process, and a facility with more than 500 employees, makes us more versatile and able to reach the market fast, ensuring that the highest quality standards are met. It is all about dreams. Dare to join the SJCAM Revolution. -SJCAM CEO
INTRODUCTION
Congratulations on your new SJCAM Action Camera!
We know you’re excited to use your SJ6 LEGEND, please take time to read this manual before doing anything with it. This is the very first touchscreen SJCAM, and there’s plenty you can do, so you need to familiarize yourself with the features now to get the most out of it.It is important to keep your camera’s firmware up to date. You may connect your camera via WiFi to the SJCAM ZONE app to automatically download and install the latest firmware, or visitwww.sjcamhd.com/firmware.
1. This is a high-precision product. Do not drop.2. Do not expose the unit to strong magnetic fields, such as magnets, electrical motors,and machinery that use strong radio waves. 3. Never leave the unit in high temperature areas. Electronics and optics can be damaged under prolonged exposure to heat.4. Do not submerge the camera without putting it in the included waterproof case.5. Avoid extended periods of battery charging. Keep it away from children and pets whilecharging to avoid accidents.
CAUTION!
S6
Model: SJ6 LEGEND Type: Sports Camera Type of Camera: 4K (interpolated)Chipset: Novatek 96660 Sensor: CMOSMax External Card Supported: Micro SD 128G (not included)Screen size: 2.0inch Screen type: LTPSBattery Type: Removable Capacity: 1000mAh Power Supply: 5V 1A Charge way: AC adapter,Car charger,USB charge by PC Working Time: 110 minutes166 degree wide angle lensDecode Format: H.264 Video format: MOV,MP4 Video Resolution: 1080P(30fps),1080P(60fps),2K (30fps),4K (24fps),720P (120fps),720P (30fps),720P (60fps),VGA (240fps) Video Frame Rate: 120fps,25fps,30FPS,60FPS Image Format : JPEG Audio System: Built-in microphone/speaker (AAC)WIFI: Yes G-sensor: Yes Language: Czech,Danish,English,French,German,Hungarian,Italian,Japanese,Korean,Polski,Portuguese,Romanian,Russian,Simplified Chinese,Slovak,Spanish,Traditional Chinese 50Hz,60HzProduct size (L x W x H): 5.90 x 4.10 x 2.11 cm / 2.32 x 1.61 x 0.83 inches Package size (L x W x H): 27.00 x 14.90 x 8.30 cm / 10.63 x 5.87 x 3.27 inchesProduct weight: 0.082 kg Package weight: 0.700 kg
SJ6 LEGEND SPECIFICATIONS
Down ButtonStatus IndicatorsShutter Front LCDPower ButtonMain Touchscreen LCDStatus IndicatorMicro HDMI PortMicrophone HoleSpeakerMicroSD Card SlotMini-USB PortLensShutter ButtonPARTS OF YOUR CAMERA
SJ6 LEGEND SJ6 LEGEND SJ6 LEGEND

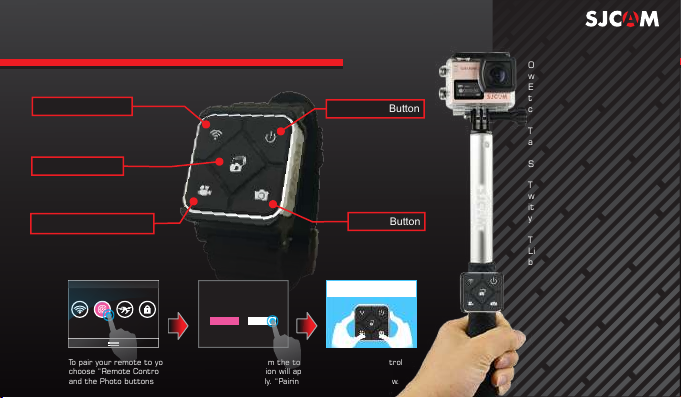

Once your Remote is paired,you will never need to pair it again. Everytime the SJ6 LEGEND is turned on, your SJ Remote can control your camera.The Remote is tested to workat a maximum distance of 30 feet, or 10 meters, Line-Of-Sight.The battery on your Remotewill last you a long time as it only uses power whenyou press any of the buttons.The remote is powered with a Lithium CR2032 button-cellbattery.
WIFI On/Off SwitchRecord Video Start/StopCamera-Off ButtonShutter ButtonBurst Shot Button
Remote Control Pairing?
To pair your remote to your LEGEND: Swipe down from the top > Select Remote Control choose “Remote Control Pairing”. A picture instruction will appear. Press the Videoand the Photo buttons on the Remote simultaneously. “Pairing Completion ID” will show.
SJ SMART REMOTE (Optional)
NO YES
Remote Control Pairing
Remote Control Pairing
Remove the camera from the waterproof case by lifting the clasp from the front side of the case, following the steps shown above(1 & 2).Once free, swing the backdoor open, then pull the camera out from the waterproof case.Plug the MiniUSB cable to the slot on the side of the camera asindicated above, and the other end to a USB wall charger with an output of 5V 1A, or plug it to a computer.Remove your battery by sliding the lock at the bottom of the camera to release the compartment door. Pull the battery out by the ap, plug it to an External Dual Charger Accessory (not shown, sold separately).
Removing the SJ6 from the Waterproof Case.Charging your camera usingthe MicroUSB cable.Removing the battery.222
USB
HDMI
111111222333444555333
MiniUSB Cable
Press and hold the Power/Mode button to turn your camera on. You will hear a beep, indicator LEDs will light up, and the screen will display the SJCAM logo.To turn off your camera, press the Power button once.

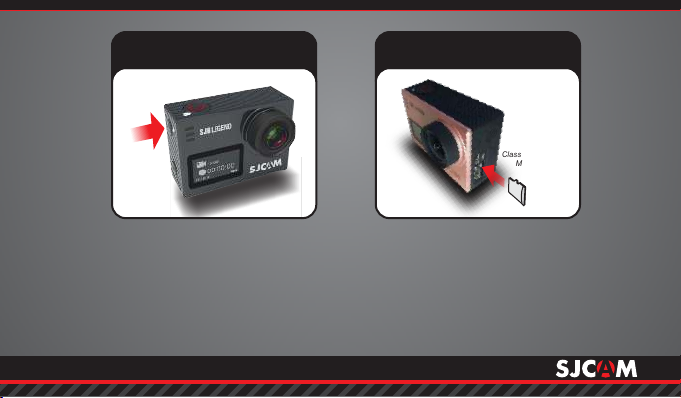

Powering ON/OFF your SJ6Inserting / Removing Memory Cards
Insert a MicroSD card as shown in theillustration above, with the label facing the front of the SJ6, until it clicks into place. To remove, just push it in gently and the card will eject. To make sure you do not lose any data, NOTE:only remove or insert your card while the camera is turned completely off.
The Main ScreenMode in useResolution/FramerateTap/Swipe Up to show other Mode options.Battery Status IndicatorGyro Stabilization (On)Go to SettingsCurrent Mode IconStatus Indicator LightsElapsed Time | Time left on CardGo to Playback Mode
Icon will show what mode you are currently in. The options will vary depending on the mode.Red and Blue lights will indicate the status of the camera operation. Tap this icon to go to the camera’s gallery andview the videos and photos you have recorded.Tap this icon to make changes to the setting for the selected mode, or for General options.An indicator showing that the Gyro Sensoris active. Will not show when turned off.Displays approximate power left on the battery. Battery blinks when almost empty.
The Main Screen has many nested menusavailable by tapping or swiping.Proceed to the next page to see the exploded view of the hidden menus.You can also hide all the icons on screento use the viewfinder without the onscreen icons and indicator labels bytapping anywhere in the middle.
WDRGyro SensorResolutionLoop RecordingFOVVideoVideoLapseSlow RecStillPhotoLapseBurst ModeVideo+photoCar ModeUnderwaterToggles ScreenSettings ScreenPlayback ScreenModes ScreenMain Screen[ViewFinder]
>>>
>>>
These are all the screens nested in the Main Screen. You can tap or swipe to access them.
The Toggles ScreenToggle WiFi On or OffSJ Remote Toggle / Remote PairingToggle FPV ModeLock Screen ToggleSwipe Up to return to Main ScreenTo get here, swipe from the top.
Tap this icon to turn on or turn off WiFi.Pressing the WiFi button on the side of the Legend will also do the same thing.Tap this icon to receive commands from the remote, or to disable it. You can also pair an SJ Remote through here.Turns on/off First Person View. This enables analog TV-Out via USB A/V cable, and will lock all WiFi operations to prevent interference with other FPV equipment.Disables the touchscreen and buttons cannot be accessed.Touch the LCD to show the Unlock screen. Swipe this up to hide the Toggles ScreenSlide the Key icon to the Lock to open.
>>>>>>
>>>>>>

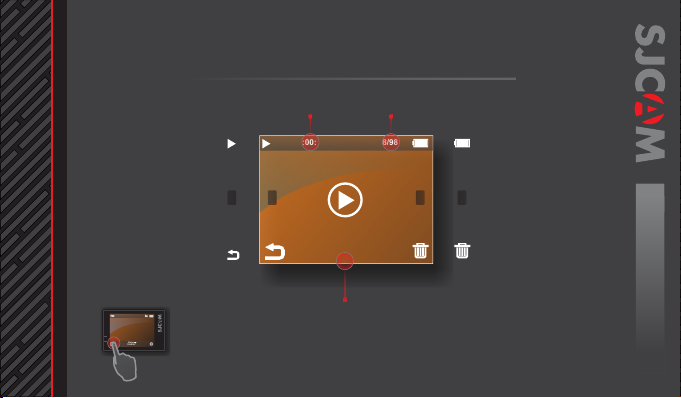

2KThe Playback ScreenBattery Status IndicatorPlayback IconGo to Next FileGo to previous fileDelete Current FileReturn to Main ScreenTo get here, tap this.
Visual indicator that you are in Playback mode.Shows amount of battery charge left.Tap or swipe to get to the previous file.Tap or swipe to get to the next file.Tap to exit Playback Mode and return to Main Screen.Tap to delete the file currently shown on screen.
File ResolutionElapsed TimeFile Number / Total

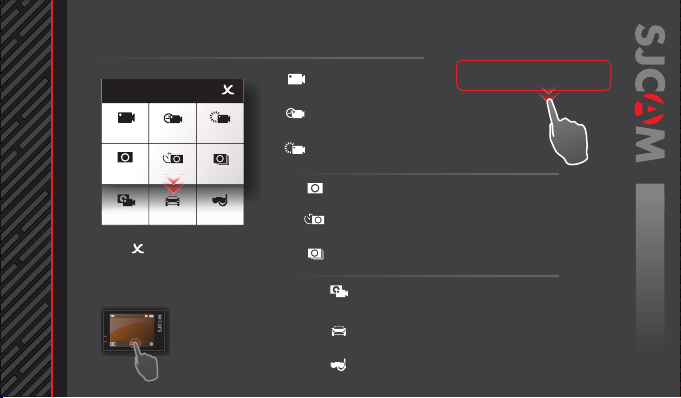

VideoVideoLapseSlow RecStillPhotoLapseBurst ModeVideo+photoCar ModeUnderwaterThe Modes ScreenVideoVideoLapseSlow RecStillPhotoLapseBurst ModeVideo+photoCar ModeUnderwaterTo get here, tap this, or swipe up.
Mode for recording videos.
Exit to Main Screen
Tap this X icon to exit.Still photograph mode.For recording video in slow motion.Timelapse photography stitched on-cam to produce a video.For recording video while a sequence of photos are taken at a set interval.Automatically starts the camera and beginsrecording once the engine is started (Car Charger Cable Accessory required).Adds a tinge of red to photos or videos to eliminate the need for a red-filter when using the camera underwater.[Swipe Left or Right to switch from Photo to Video]Fast multiple succession of snapshots, choose the number of photos desired (Max: 10).A series of still photos for creating timelapse.Each photo will have its own file.
Swipe DOWN to access Video+Photo,Car, and Underwater Modes.
ResolutionLoop RecordingFOVWDRGyro SensorThe Settings ScreenCurrent Mode IconGeneral Settings ButtonExit to Main ScreenCurrent Menu OptionsScroll UP for more options
Icon will show what mode you are currently in. The options will vary depending on the mode.Tap the icon to go to the General Settings.Changes you make will reect on all modes.Tap this X icon to exit.Depending on what mode you are in,the menu options will vary. All the optionsfor the particular mode will show on this side, scroll down for other items.Once set, the settings will be the same for that particular Mode everytime you go backuntil you change it again.
To get here, tap this.Each Mode has its own set of options. Familiarize yourself with each modeand its accompanying menu.
The Front ScreenCurrent Mode IconCamera Activity BallCurrent Time
Icon will show what mode you are currently in. The options will vary depending on the mode.The ball will appear steady when in standby mode.The ball will blink when shooting a video. Displays current time in digits.
17:20:43
Battery Status Indicator
Displays approximate power left on the battery. Battery blinks when almost empty.1080/60
Elapsed Time / Shots Taken
Shows the length of time you are recording.Or the number of images that are stored.
Current Resolution / Frame Rate
Will display the set resolution size and the accompanying frames per second.The SJ6 LEGEND is the first SJCAM that implements a frontLCD display. It gives the user additional information than justhaving LEDs that light up as indicators.
S6
VIDEO MODE OPTIONS
RESOLUTION › Changing to a higher resolution will have more detail in your video at the expense of file size. A lower resolution has a smaller filesize but will have less details in your video. Conversely, a higher resolution will contain more detail. Note:FPS (Frames Per Second) is part of the options in video resolution: The higher the FPS, the more images will be displayed per second, and the smoother the movement in the video is, at the expense of filesize.LOOP RECORDING › Auto-saves your video in small sections, depending on selected length. It will record over your oldest video once there is no more space on your memory card.FOV › Field Of View / Field Of Vision (also known as “Focal Length”) The higher the setting, the wider the angle of the recorded scene becomes.WDR › Automatically adjusts the range of brightness-to-darkness that the camera will record. When turned on, it will help balance your pictures by adjusting the contrasts. Many scenes do not require WDR to be activated, use according to your preference. GYRO SENSOR › Enables active video-stabilization to eliminate shake.AUDIO › Enable or disable recording of sound together with your video. VOLUME › Adjusts how sensitive your camera's microphone becomes. Settings for how soft or how loud sound is recorded with your video.TIME STAMP › When enabled, will display the date and time of your recording.VIDEO FILE FORMAT › Choose between .MOV or .MP4. If you are unsure which to use, choose MP4, as it is more commonly used.
ResolutionLoop RecordingFOVWDRGyro SensorAudioVolumeTime StampVideo File FormatBitrateDouble FilePower On RecordSharpnessWhite BalanceColorEVDistortion Correction
A visual explanation of Field Of View (FOV)
VideoVideoLapseSlow RecStillPhotoLapseBurst ModeVideo+photoCar ModeUnderwaterVideo1
S6

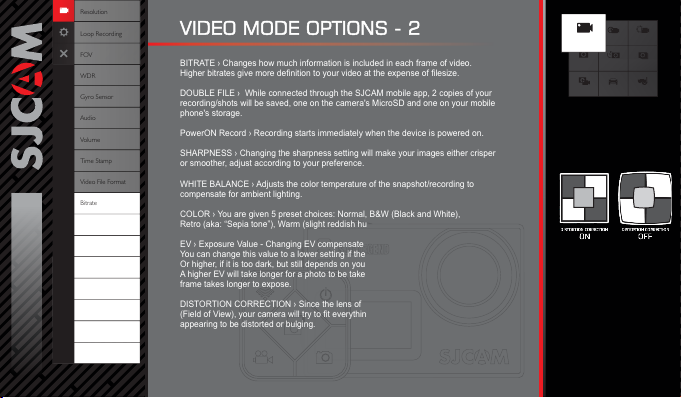

VIDEO MODE OPTIONS - 2
BITRATE › Changes how much information is included in each frame of video. Higher bitrates give more definition to your video at the expense of filesize.DOUBLE FILE › While connected through the SJCAM mobile app, 2 copies of your recording/shots will be saved, one on the camera's MicroSD and one on your mobile phone's storage. PowerON Record › Recording starts immediately when the device is powered on.SHARPNESS › Changing the sharpness setting will make your images either crisper or smoother, adjust according to your preference.WHITE BALANCE › Adjusts the color temperature of the snapshot/recording to compensate for ambient lighting.COLOR › You are given 5 preset choices: Normal, B&W (Black and White), Retro (aka: “Sepia tone”), Warm (slight reddish hue), and Cool (slight bluish hue).EV › Exposure Value - Changing EV compensates for the amount of light that is allowed in. You can change this value to a lower setting if the scene is too bright, to compensate. Or higher, if it is too dark, but still depends on your desired effect. A higher EV will take longer for a photo to be taken, and will add blur to videos as each frame takes longer to expose.DISTORTION CORRECTION › Since the lens of your action camera has a very wide FOV (Field of View), your camera will try to fit everything in, and will result in the center appearing to be distorted or bulging.
ResolutionLoop RecordingFOVWDRGyro SensorAudioVolumeTime StampVideo File FormatBitrateDouble FilePower On RecordSharpnessWhite BalanceColorEVDistortion Correction
A visual explanation of how Distortion Correction works.
VideoVideoLapseSlow RecStillPhotoLapseBurst ModeVideo+photoCar ModeUnderwaterVideo2
S6

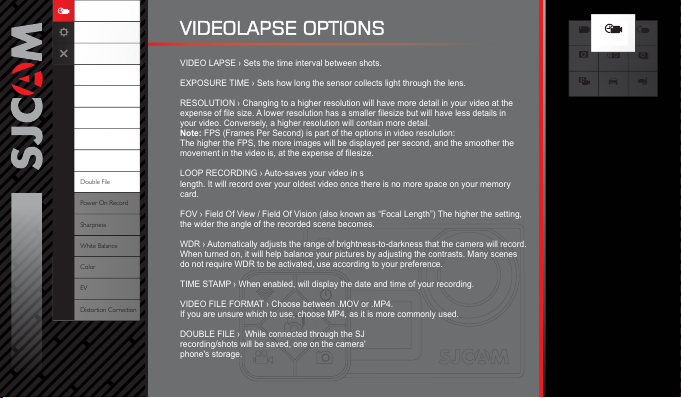

VIDEOLAPSE OPTIONS
VIDEO LAPSE › Sets the time interval between shots.EXPOSURE TIME › Sets how long the sensor collects light through the lens.RESOLUTION › Changing to a higher resolution will have more detail in your video at the expense of file size. A lower resolution has a smaller filesize but will have less details in your video. Conversely, a higher resolution will contain more detail. FPS (Frames Per Second) is part of the options in video resolution: The higher the FPS, the more images will be displayed per second, and the smoother the movement in the video is, at the expense of filesize.LOOP RECORDING › Auto-saves your video in small sections, depending on selected length. It will record over your oldest video once there is no more space on your memory card.FOV › Field Of View / Field Of Vision (also known as “Focal Length”) The higher the setting, the wider the angle of the recorded scene becomes.WDR › Automatically adjusts the range of brightness-to-darkness that the camera will record. When turned on, it will help balance your pictures by adjusting the contrasts. Many scenes do not require WDR to be activated, use according to your preference. TIME STAMP › When enabled, will display the date and time of your recording.VIDEO FILE FORMAT › Choose between .MOV or .MP4. If you are unsure which to use, choose MP4, as it is more commonly used.DOUBLE FILE › While connected through the SJCAM mobile app, 2 copies of your recording/shots will be saved, one on the camera's MicroSD and one on your mobile phone's storage.
Video LapseExposure TimeResolutionLoop RecordingFOVWDRTime StampVideo File FormatDouble FilePower On RecordSharpnessWhite BalanceColorEVDistortion CorrectionVideoVideoLapseSlow RecStillPhotoLapseBurst ModeVideo+photoCar ModeUnderwaterVideoLapse1
S6

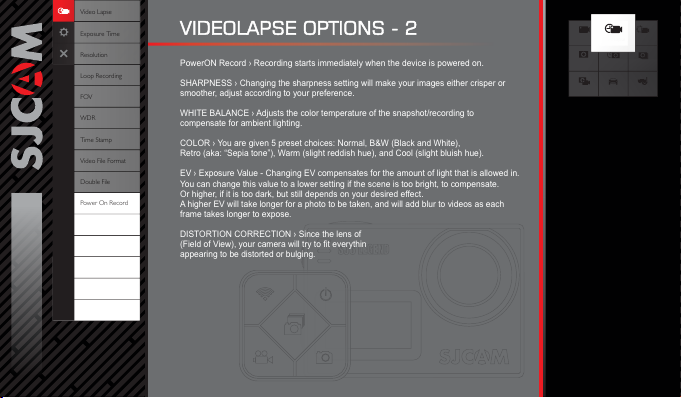

VIDEOLAPSE OPTIONS - 2
PowerON Record › Recording starts immediately when the device is powered on.SHARPNESS › Changing the sharpness setting will make your images either crisper or smoother, adjust according to your preference.WHITE BALANCE › Adjusts the color temperature of the snapshot/recording to compensate for ambient lighting.COLOR › You are given 5 preset choices: Normal, B&W (Black and White), Retro (aka: “Sepia tone”), Warm (slight reddish hue), and Cool (slight bluish hue).EV › Exposure Value - Changing EV compensates for the amount of light that is allowed in. You can change this value to a lower setting if the scene is too bright, to compensate. Or higher, if it is too dark, but still depends on your desired effect. A higher EV will take longer for a photo to be taken, and will add blur to videos as each frame takes longer to expose.DISTORTION CORRECTION › Since the lens of your action camera has a very wide FOV (Field of View), your camera will try to fit everything in, and will result in the center appearing to be distorted or bulging.
Video LapseExposure TimeResolutionLoop RecordingFOVWDRTime StampVideo File FormatDouble FilePower On RecordSharpnessWhite BalanceColorEVDistortion CorrectionVideoVideoLapseSlow RecStillPhotoLapseBurst ModeVideo+photoCar ModeUnderwaterVideoLapse2
S6

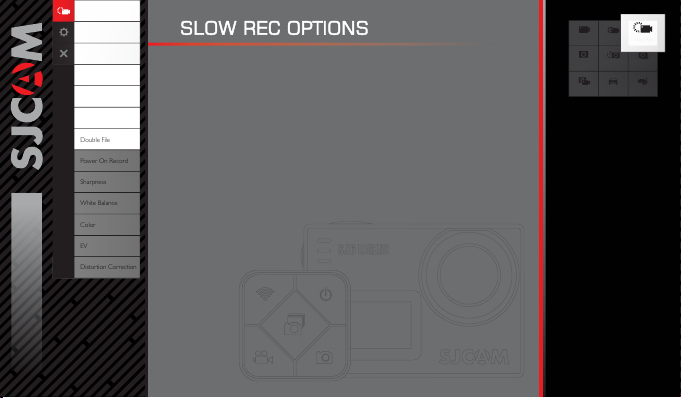

SLOW REC OPTIONSSlow MotionLoop RecordingFOVWDRTime StampVideo File FormatDouble FilePower On RecordSharpnessWhite BalanceColorEVDistortion CorrectionVideoVideoLapseSlow RecStillPhotoLapseBurst ModeVideo+photoCar ModeUnderwater
SLOW MOTION › Sets the speed of the video recording. LOOP RECORDING › Auto-saves your video in small sections, depending on selected length. It will record over your oldest video once there is no more space on your memory card.FOV › Field Of View / Field Of Vision (also known as “Focal Length”) The higher the setting, the wider the angle of the recorded scene becomes.WDR › Automatically adjusts the range of brightness-to-darkness that the camera will record. When turned on, it will help balance your pictures by adjusting the contrasts. Many scenes do not require WDR to be activated, use according to your preference. TIME STAMP › When enabled, will display the date and time of your recording.VIDEO FILE FORMAT › Choose between .MOV or .MP4. If you are unsure which to use, choose MP4, as it is more commonly used.DOUBLE FILE › While connected through the SJCAM mobile app, 2 copies of your recording/shots will be saved, one on the camera's MicroSD and one on your mobile phone's storage.
Slow Rec1
