MANUAL ¬ AIRSPY TL ¬ 11757 + 11770 + 11857 + 11858

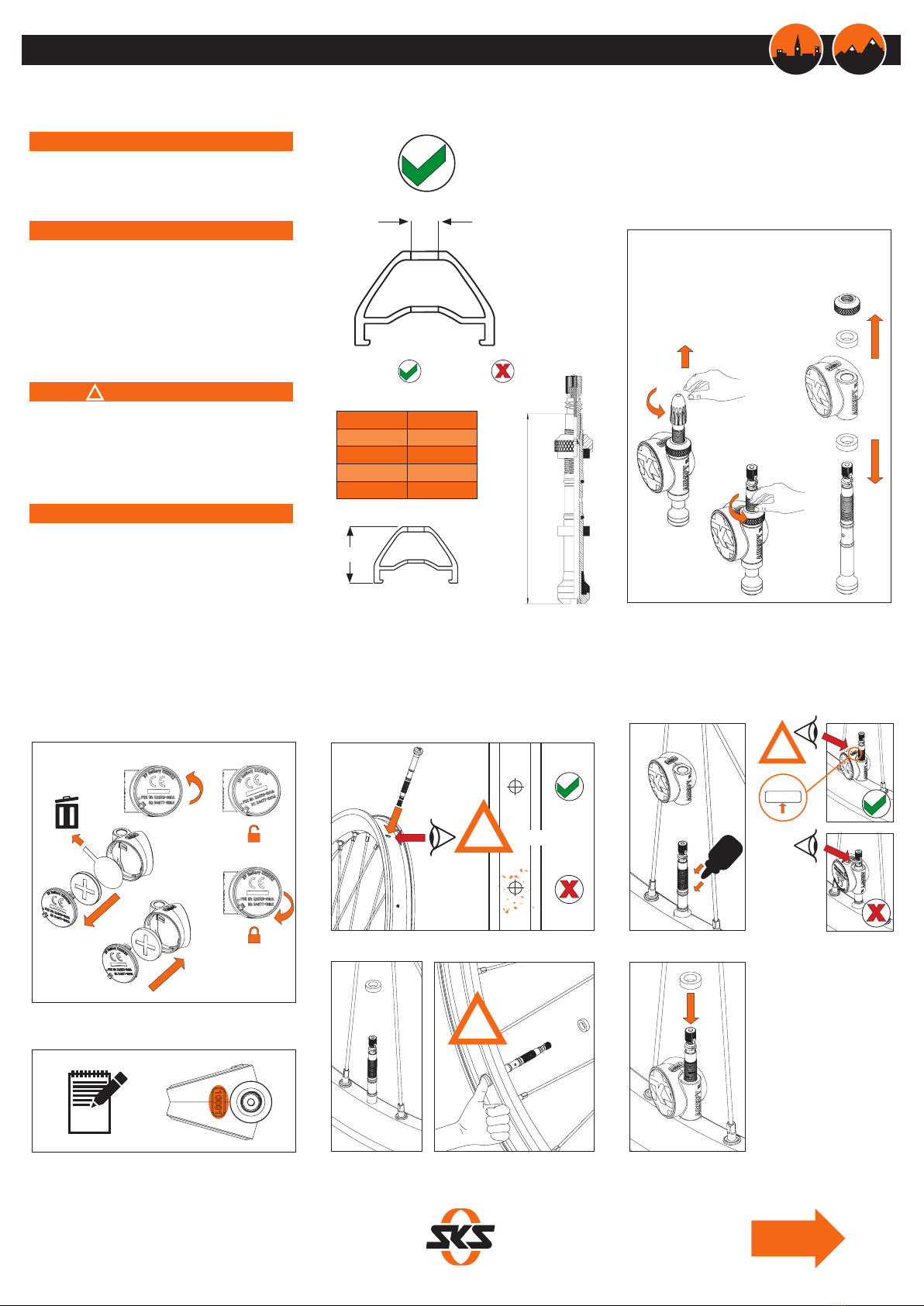

1. preparing the AIRSPY
1.1 dismantling the valve
Release the valve cap and securing nut from the AIRSPY valve and pull
the valve adapter away from the AIRSPY housing.
You must have read and understood the safety instructions provided
with your product before starting with the installation. Incorrectly installed
components present a considerable danger and can result in serious
injury and/or death. Please consult a qualied bicycle mechanic if you
have any questions concerning the installation of these components.
Maintaining the correct tyre pressure has a huge impact on the service
life and safety of tyres. The AIRSPY provides support for the determina-
tion and monitoring of the current tyre pressure. The correct tyre pressure
depends on the model of tyre and can be read on the tyre or requested
from the manufacturer. Pumping up to the correct pressure range and
regular checking of the condition of the tyres is the responsibility of the
user. AIRSPY does not intervene actively in the driving process and can-
not correct uctuations in tyre pressure (e.g. weather related). AIRSPY
will only work correctly if there is adequate battery capacity and use is
appropriate.
Do not use a high-pressure washer. Do not use any acidic or degreasing
agents. Chemical cleaning agents and solvents can permanently dam-
age components.
Batteries must not be burnt under any circumstances. Do not use any
sharp or conductive objects to prise out the battery. Keep the battery out
of the reach of children. Never put the battery in your mouth. You must
consult a doctor immediately if you swallow the battery. The battery must
not be dismantled, damaged or pierced. Please contact the battery man-
ufacturer if you have any questions about the safe handling of batteries.
SAFETY INSTRUCTIONS
NOTE
WARNING
SIMPLIFIED EU DECLARATION OF CONFORMITY
!
The simplied EU declaration of conformity according to Article 10 (9) is
indicated as follows:
SKS GERMANY hereby declares that the AIRSPY radio system
mentioned in these instructions complies with regulation 2014/53 / EU.
The full text of the EU declaration of conformity is available
on the following website:
www.sks-germany.com/service/downloads
Open the battery compartment and remove the protective strip.
Insert the battery and lock the battery cover in place.
Insert the valve into the valve hole.
Check the tubeless sealing tape for damage.
Hold the valve and attach the sensor housing. Serial number points to the
wheel hub. Lightly lubricate the O-rings if necessary.
Hold the valve and put on the 1st seal. Hold the valve and put on the 2nd seal.
1.1 Taking into operation 2. Valve installation
1.2 Make a note of the serial number

GERMANY
ALLROAD MOUNTAIN
T25 2
oder
or
!
DICHTMITTEL
SEALANT
DICHTMITTEL
SEALANT
0°C/32°F
z.B./e.g.: 1,85 BAR/26,8 PSI
40°C/104°F
z.B./e.g.: 2,15 BAR/31,2 PSI
20°C/68°F
z.B./e.g.:
2 BAR/29 PSI
INDOOR
OUTDOOR
DICHTMITTEL
SEALANT
DICHTMITTEL
SEALANT
MAX
MAX
3.
MAX. 8,3 BAR / 120 PSI
BAR/PSI
MANUAL ¬ AIRSPY TL ¬ 11757 + 11770 + 11857 + 11858
The AIRSPY sensor housing should be tted in line with the spokesand
without gap to the rim. Fit the securing nut rmly on the valve adapter.
Preinstal the tyre and add sealant.
Mount tire completely.
3. Setting tyre pressure
The inuence that the temperature has on the tyre pressure:
The air temperature has a noticeable inuence on the tyre pressure. A
temperature increase of 1°C results in a pressure increase of 1/273 of
the pressure that exists at 0°C. This should be taken into account when
adjusting the tyre pressure. For example:
4. Relling with Tubeless sealant
Remove the valve core of the AIRSPY valve. Pick up the AIRSPY
applicator with the tubeless sealant. Insert the AIRSPY applicator
through the valve shaft into the tyre. Inject the tubeless sealant into the
tyre. Pull the applicator out of the valve shaft quickly. Clean the valve
shaft, insert the valve core and tighten it by hand using the Presta valve
tool. Tubeless sealant must not be inserted directly through the valve
shaft into the tyre.
Release the knurled nut of the AIRSPY valve core and open it completely.
Place the pump head completely on the AIRSPY valve and move the lock-
ing lever down. Pump the tyre up to the desired pressure. Unlock the pump
head and pull it away from the AIRSPY valve adapter. Turn the knurled nut
of the AIRSPY valve core until it is tightly in position. Replace the valve cap.

ALLROAD MOUNTAIN
GERMANY
!
SKS MYBIKE APP
5. Using the AIRSPY Tubeless valve without
the AIRSPY sensor
The AIRSPY measures the tyre pressure during the journey and displays
it on the SKS MYBIKE app, which is available free of charge in the app
stores.
DISPLAY ON GARMIN DEVICES
The AIRSPY Connect IQ app can be installed on a compatible device via
the Garmin Connect IQ Store at https://apps.garmin.com or the Garmin
Connect Smartphone app, which is available in the app stores. A list of
compatible devices can be found there as well. Instructions for using the
AIRSPYs on a GARMIN device and for connecting to the app can be
found at https://www.sks-germany.com/en/products/airspy-sv/ -> Manual
USING THE AIRSPY
The AIRSPY must be switched on so that a connection with the display
device can be made. Move the running wheel to switch on the AIRSPY.
TECHNICAL SPECIFICATIONS
Frequency band 2,4 GHz – 2,483 GHz
Max. Transmission power < 100 mW
