Information about the manual and the manufacturer
Information about the manual and the manufacturer
This manual will help you to safely use the COMPIT and COMPIT+/POWER as well as the COMPIT
STEM and COMPIT STEM+ product family. The COMPIT is a smartphone holder for smartphones. The
COMPIT+/POWER consists of a COMPIT and +COM/CHARGER. The +COM/UNIT is a power bank for
smartphones. The COMPIT and the +COM/CHARGER are all referred to hereinafter as the “product”
for short, unless a distinction needs to be made between the different functions of the products.
The +COMPIT/STEM smartphone holder mounts the smartphone under the ahead cap on the
handlebar stem.
Keep the manual to hand
➤ This manual is part of the product.
➤ Always retain this manual.
➤ Hand over this manual if you sell the product or pass it on in any other way.
Features of this manual
Various elements of this manual have defined features.
This allows you to easily distinguish between the following elements:
Normal text
● Lists
➤ Action steps
4

Information about the manual and the manufacturer
Copyright
This manual contains information that is subject to copyright. This manual may not be copied, printed,
filmed, processed, reproduced or distributed in any form, in whole or in part, without the prior written
consent of SKS metaplast Scheffer-Klute GmbH.
©2019 SKS metaplast Scheffer-Klute GmbH
All rights reserved.
Manufacturer’s address
SKS metaplast Scheffer-Klute GmbH
Zur Huberstushalle 4
59846 Sundern / Germany
Tel.: [phone]
Website: sks-germany.com
5

Safety
Safety
Intended use
The product is designed for private use.
The COMPIT is used for mounting a smartphone on the handlebar of a bike.
It is intended for a handlebar with the following diameters.
● 22.2 mm
● 25.4 mm
● 31.8 mm
● 35 mm
The stem width is a maximum of 80 mm (see page 21).
The +COM/CHARGER is additionally included in the scope of delivery for the COMPIT+/POWER.
The +COM/CHARGER is intended for charging a smartphone and can be mounted on the COMPIT.
The smartphone can only be used on the COMPIT and the +COM/CHARGER with a COVER, COVER
ADAPTER or special bag not included in the scope of delivery. Please refer to the Accessories section,
page 32. Intended use also includes observing and following all the information contained in this
manual, particularly the safety instructions. Any other use is expressly considered improper use.
COMPIT STEM
➤ There may be an overhang in the knee area depending on the mounting option.
Attention: risk of falling!
➤ The product should only be mounted by a technically adept person.
If necessary, contact your bicycle dealer or the SKS GERMANY customer service team.
6

Safety
Basic safety instructions
Avoid fire, explosion or electric shock
Severe or fatal injuries caused by explosion, fire or electric shock may be caused
if the product is used improperly.
➤ Check whether the voltage indicated on the power adapter is the same as the local
mains voltage before connecting the adapter to the power supply.
➤ Only use authorised power adapters.
➤ Do not use the power adapter, COMPIT or +COM/CHARGER if they are damaged.
➤ Never open the housing of the +COM/CHARGER. Always have repair work carried
out by qualified specialists.
➤ Do not stick metal labels or other objects onto the +COM/CHARGER.
➤ Do not use the +COM/CHARGER in the vicinity of heated surfaces.
➤ Do not use extension cables or overloaded multi-way sockets.
➤ Ensure that children and persons with reduced mental capabilities only
use the +COM/CHARGER when supervised.
Avoid failure of a pacemaker or another implant
The use of the +COM/CHARGER can lead to the failure of a pacemaker or another implant.
➤ If you have a pacemaker or another implant, consult your doctor or the implant
manufacturer before using the +COM/CHARGER.
7

Warning with the word CAUTION warn of a situation that may result in minor or
moderate injuries.
This information warns of a situation that will result in property damage and
reduced functionality.
Safety
Warnings
Property damage
CAUTION
!
!
ATTENTION
Tips
Tips contain additional information.
i
8

s
Side panels for the docking station 2x
Clamping arms for the COMPIT without an adapter 2x
Screws for mounting the COMPIT with clamping arms on the handlebar
of the bicycle (4x20), 4x
Clamping arms for the COMPIT with an adapter for the Bosch Intuvia
(R: right, L: left) 2x
DESIGNATIONNo.
1
2
3
5
4
Description
Overview of the scope of delivery for the COMPIT
9
1 2
3
4
2
3
4
10 9 8
14
15
6
7
516
11
13 12
For a handlebar
without a central
display
For central displays
(Bosch Intuvia)
COMPIT 35 mm
17 18 19 20

Description
10
3 mm Allen key
Torx® key Tx20
Rubber adapters for a handlebar with a diameter of 31.8 mm, 4x
Rubber adapters for a handlebar with a diameter of 22.2 mm, 4x
Rubber adapters for a handlebar with a diameter of 25.4 mm, 4x
PVC spacers, 4x
Screws for the COMPIT spacers for the docking station; (4x25), 2x
Screws for the COMPIT spacers for the COM/LIGHT; (5x25), 2x
Self locking nuts M4, 2x for the COMPIT adapter
O-rings for the docking station, 2x
Screws for the docking station; (4x18), 2x
Clamping arms COMPIT 35 mm left
Clamping arms COMPIT 35 mm right
Screw M5, 2x
Square nut M5, 2x
DESIGNATIONNo.
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

11
Description
Overview of the scope of delivery for the COMPIT+/POWER
Docking station for mounting the smartphone with a cover
or the +COM/CHARGER
Side panels for the docking station 2x
Clamping arms for the COMPIT without an adapter 2x
Clamping arms for the COMPIT with an adapter for the Bosch Intuvia
(R: right, L: left) 2x
Screws for mounting the COMPIT with clamping arms on the handlebar
of the bicycle (4x20), 4x
TorxR key Tx20
3 mm Allen key
1
2
3
4
5
7
6
DESIGNATIONNo.
12
3
4
2
3
4
10 9 8
14
15
6
7
516
11
13 12
17 18
COMPIT 35 mm
19 20 21 22

12
Description
Rubber adapters for a handlebar with a diameter of 31.8 mm, 4x
Rubber adapters for a handlebar with a diameter of 22.2 mm, 4x
Rubber adapters for a handlebar with a diameter of 25.4 mm, 4x
PVC spacers, 4x
Screws for the COMPIT spacers for the docking station; (4x25), 2x
Screws for the COMPIT spacers for the COM/LIGHT; (5x25), 2x
Self locking nuts M4, 2x for the COMPIT adapter
O-rings for the docking station, 2x
Screws for the docking station; (4x18), 2x
+COM/CHARGER
+COM/CHARGER charging cable
DESIGNATIONNo.
8
9
10
11
12
13
14
15
16
17
18
Clamping arms COMPIT 35 mm left
Clamping arms COMPIT 35 mm right
Screw M5, 2x
Square nut M5, 2x
19
20
21
22

13
Description
Overview of the COM/CHARGER
+COM/CHARGER
+COM/CHARGER charging cable
DESIGNATIONNo.
1
2
Overview of the
COMPIT/STEM
COMPIT/STEM
1
DESIGNATIONNo.
1
1
2

Description
14
Mounting options for the COMPIT and COMPIT+/POWER
COMPIT 35 mm
1 2
3
4
2
3
4
10 9 8
14
15
6
7
516
11
13 12
Requirements
You can mount the COMPIT on a bicycle if your bike meets the following requirements:
22,2 mm
25,4 mm
31,8 mm
35 mm
max. 80 mm
Ø
17 18 21 22

Description
15
Required:

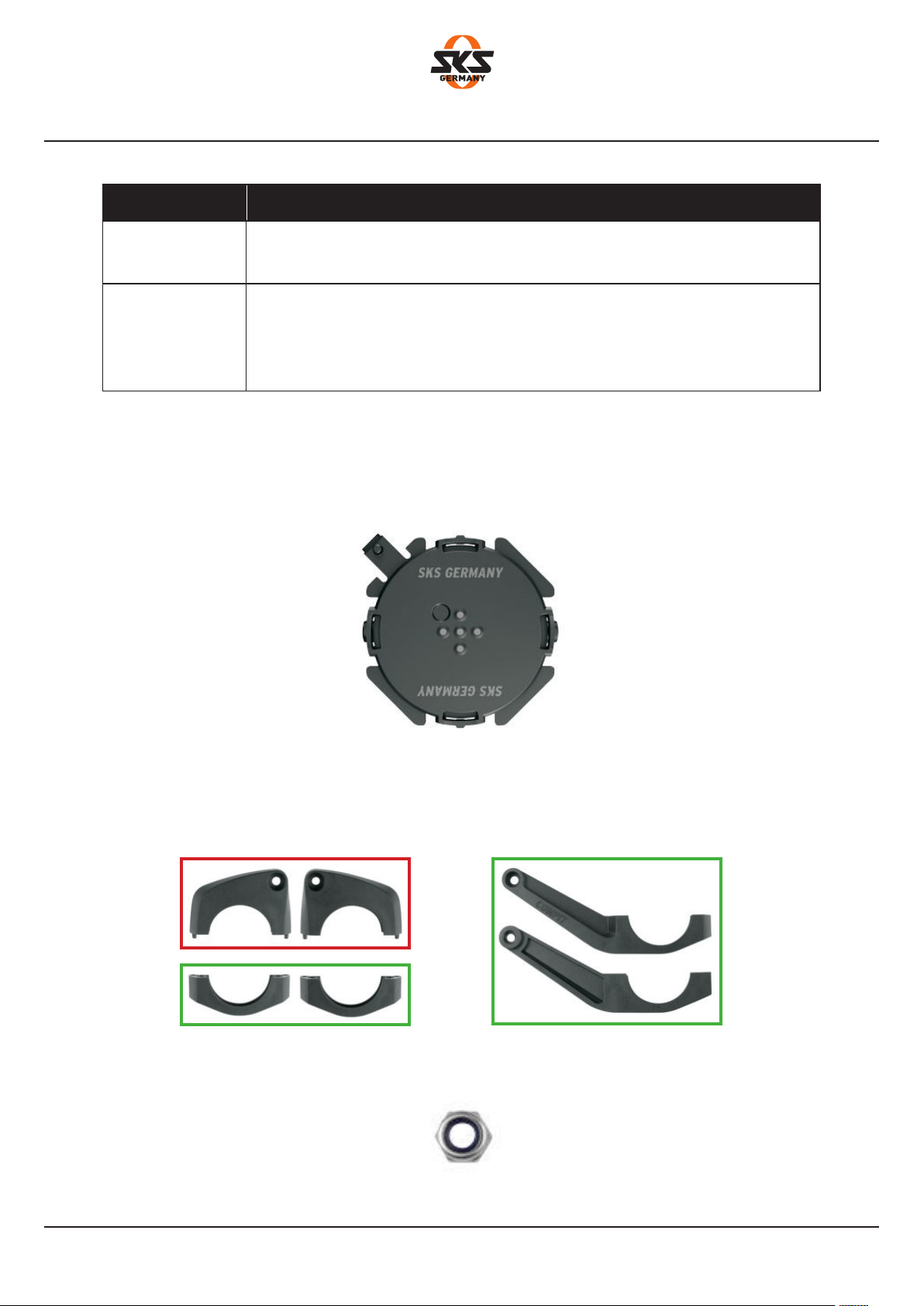

1 Docking station for mounting the smartphone with a cover or the +COM/CHARGER 1x
2 Side panels for the docking station and 3 clamping arms for the COMPIT without an adapter or
4 clamping arms for the COMPIT with an adapter (Bosch Intuvia) (2x each)
14 Self-locking nuts M4, 2x
B
Ø
A maximum stem width of 80 mm. If the stem width is > 49mm,
please use the COMPIT spacers (see page 14)
Handlebar diameter:
22.2 mm · 25.4 mm · 31.8 mm · 35 mm
Designation Explanation
Mounting the adapter plate to handlebar 35 mm
OR
ALWAYS

SKS GERMANY
SKS GERMANY
Description
16

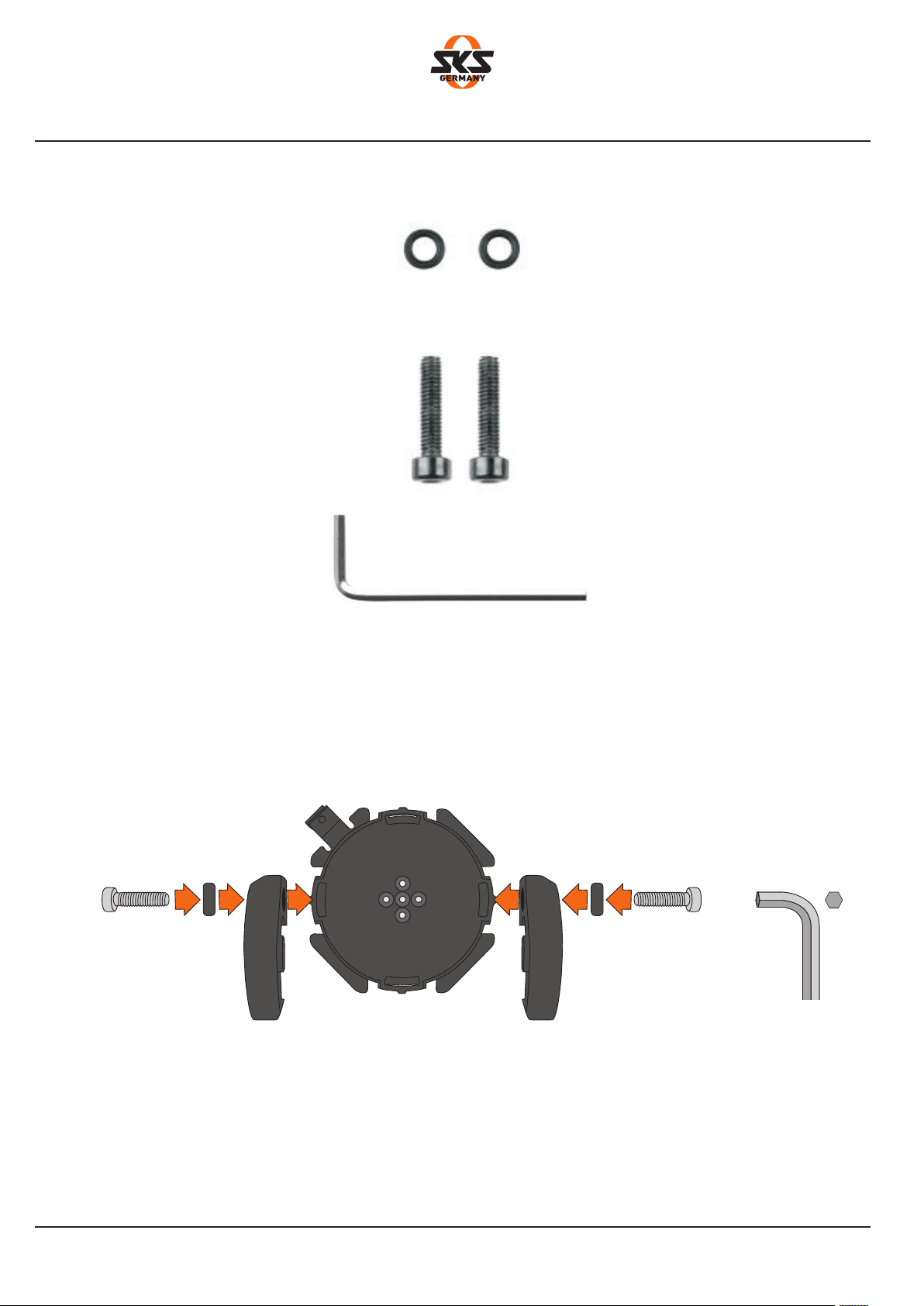

15 O-rings for the docking station
16 Screws for the docking station
6 Allen key, 3 mm
3
2 Nm
616151516
3 3
1

Description
17
Mounting the COMPIT
Proceed as follows to mount the COMPIT on the handlebar of your bike:
➤ Choose the rubber adapters that are suitable for the handlebar of your bike.

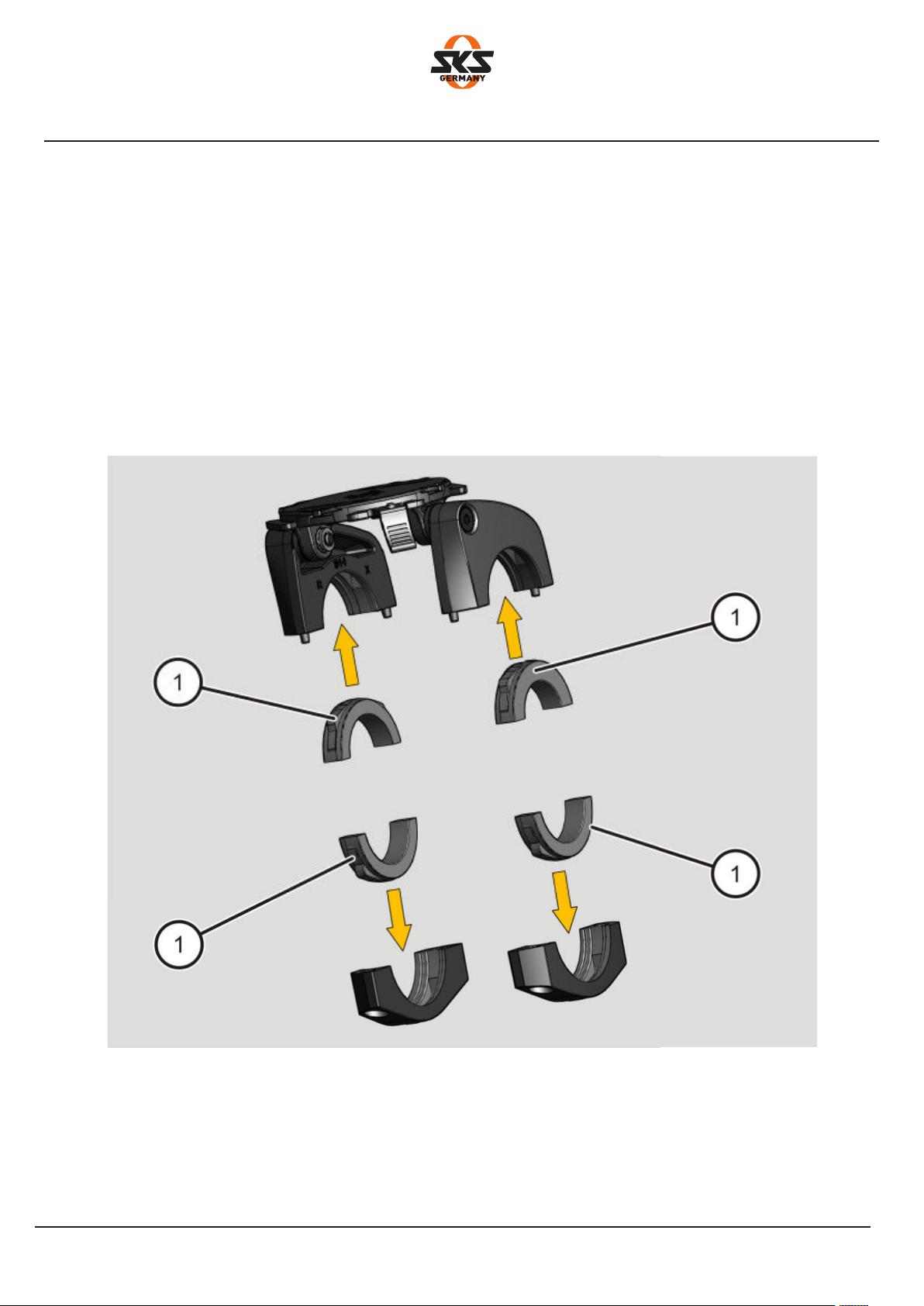

➤ Insert the appropriate rubber adapters (1) into the clamping arms in the direction
of the arrows as shown below.

Description
18
➤ Mount the COMPIT 1 with the clamping arms 3 on the handlebar of the bike.
1
3

Description
19

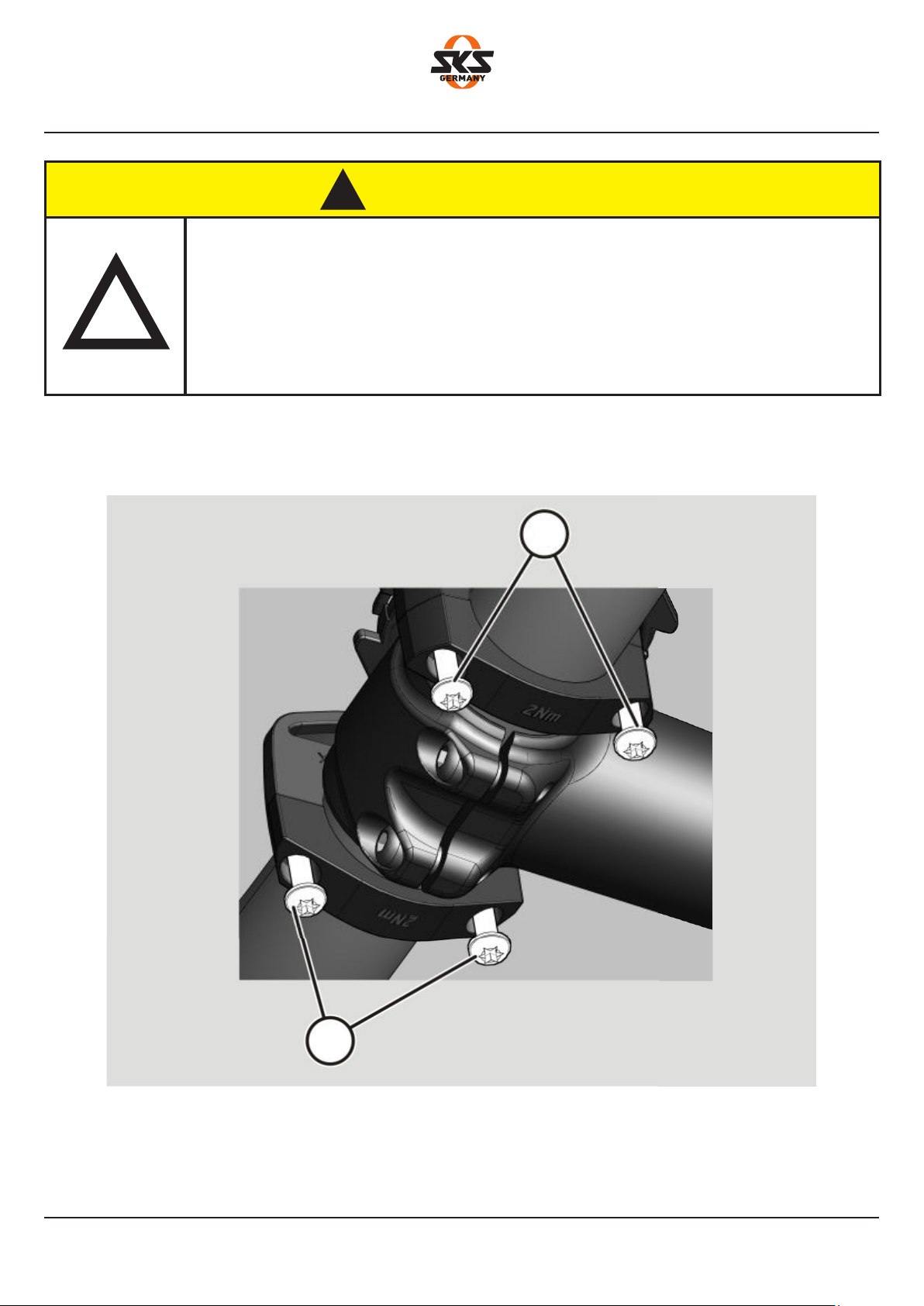

If the screws are not tightened evenly when mounting the COMPIT on the bike,
the COMPIT may come loose from the bike and cause injuries.
➤When mounting the COMPIT, tighten the screws evenly, alternating between
them.
CAUTION
!
!
➤Mount the COMPIT on the handlebar of the bike with a torque wrench. Tighten the screws 5 evenly
(alternating between them) using the torque (2 Nm) indicated on the clamping arms.
ATTENTION! Bosch Intuvia only 1 Nm!
Proceed as follows to remove the COMPIT from the handlebar of the bike:
➤Loosen the screws.
➤Remove the COMPIT with the clamping arms from the handlebar of the bicycle.
5
5

Mounting the COMPIT
20
COMPIT 35 mm Mounting
17 18
Mounting options COMPIT 35 mm
Pre-assembly
