Skutis Corporation Anoa EX+ User manual

User Manual
Revolutionizing
Your Personal Mobility

1 | ANOA EX+ User Manual Copyright owned by Skutis Corporation Pte. Ltd.
Brand Introduction
The Anoa EX+ is Skutis Corporation’s flagship skutis. It is since 2017 distributed
in Southeast Asia and since 2019 produced in Indonesia. The striking design of
the ANOA EX+ is the impressive result of more than 18 years of experience in the
electric kick-scooter/skutis industry. It has various features that were especially
added for the tropical Southeast Asian market. As a result, traffic, speed bumps,
steep or bumpy roads, high temperature, longer distances, and rain are no threat
for the ANOA.
The ANOA got its brand name from the smallest species of buffalo in the world.
The anoa buffalo weighs anything from 150 to 300 kg. It inhabits mainly the
mountains and lowland rainforest of Sulawesi, Indonesia. It matches the power,
colour, and uniqueness of the ANOA skutis brand.
Company Introduction
Skutis Corporation (SC) is one of the leading distributors for e-scooters (skutis)
and accessories in Southeast Asia as well as the first skutis manufacturer in
Indonesia. Under the “Skutis Tours” brand, SC is also organizing guided skutis
sightseeing tours and running a skutis rental business.
Originally from Singapore, SC embodies the latest technical innovation, offering
an efficient, practical and environmentally friendly way of transportation. SC is
determined to provide its customers a complete range of
service, which includes maintenance and provision of
various modern accessories. Sustainability and social
responsibility count to SC’s highest values, which is why SC
is also engaged in social and environmental projects in
Indonesia.

2 | ANOA EX+ User Manual Copyright owned by Skutis Corporation Pte. Ltd.
Contents
General safety guidelines and restrictions……………………………............
3
Safety precautions for lithium-ion battery……………………………………..
5
Product Components………………………………………………………………
7
How to use the Anoa Ex+…………………………………………………………
9
(1) How to assemble……………………………………………………………...
9
(2) How to unfold your skutis…………………………………………………….
10
(3) How to fold your skutis……………………………………………………….
11
(4) How to charge your skutis……………………………………………………
12
(5) Memo space……………………………………………………….................
14
(6) Checklist before using your skutis…………………………………………..
15
(7) How to start your skutis………………………………………………………
17
(8) How to stop your skutis.…..………………………………………………….
18

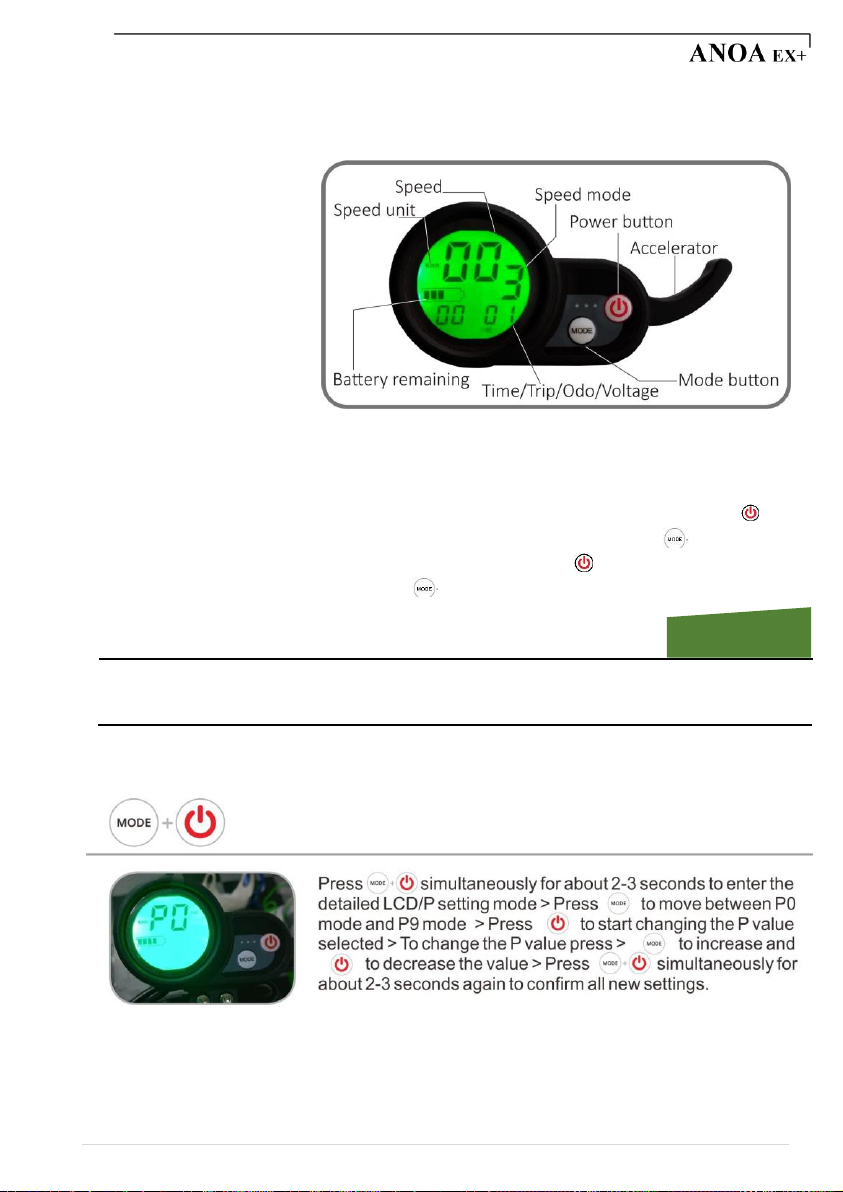

(9) How to control the dashboard / P settings…………………………………
19
Maintenance…………………………………………………………………………
21
Technical Specifications…………………………………………………………..
25
Maintenance Record……………………………………………………………….
26

3 | ANOA EX+ User Manual Copyright owned by Skutis Corporation Pte. Ltd.
General Safety Guidelines and Restrictions
1.Beware of water!
The skutis is not waterproof. Never use it, when it rains or snows or if the road
is wet or icy. Electric devices, motor or battery could get damaged, which can
result in malfunction or fire. Water damages will not be reimbursed; even
during the warranty period.
2. Beware of folding and spinning parts!
If parts of the body, as a finger or hair, get caught in the spinning or folding
parts of the product, this may lead to severe injuries. Before riding, insure that
no loose clothing or shoe lace will be caught in the wheels to prevent
accidents.
3. Don’t tune by yourself. Electric shocks can occur!
Do not open or tune the electric parts (battery, controller or motor system).
This can cause malfunction or fire. In such a case, damages will not be
reimbursed; even during the warranty period.
4.Wear safety equipment and abide by the local road
traffic law!
All vehicles involve risks and require certain safety measures. Make sure to
wear a helmet and further protective gear (e.g. knee and elbow protection)
and follow the local road traffic law.
5. For safety reasons, beginners should practice in a wide area and in slow mode first.
6. This product is designed for one person and it is unsafe to ride with an infant or to
ride with two adult passengers. It can cause accidents and break the product.
7. Keep both hands on the steering handle at all times.
8. Check the operating condition of the brakes regularly and do not use your skutis,
when you are noticing any abnormality.
9. Do not stop the skutis with your foot without using the brakes. Always use the rear
brake. Be careful, as there is a risk of overturning when the front brake is applied
suddenly while riding.

4 | ANOA EX+ User Manual Copyright owned by Skutis Corporation Pte. Ltd.
10. While braking, lean a little bit backwards. While accelerating, lean slightly towards the
front.
11. Remember that the braking distance prolongs in relation to speed.
12. Never ride your skutis in a crowded area, on a steep slope, or on uneven or slippery
surfaces.
13. Slow down before speed bumps or other obstacles to prevent accidents or damaging
the product.
14. The handlebar is designed to change direction and balance. Do not push or pull it
with excessive force. If the handle bar feels loose, stop riding and check the head
bearing. Fasten the bolt or nut if needed, before you continue riding your skutis.
15. Please, only charge your skutis with the dedicated charger provided. A non-compliant
charger will damage the circuit or battery. Such damages will not be reimbursed;
even during warranty period.
16. If your skutis was flooded, disconnect it from the power supply inside the battery box
and do not try to charge it. Your maintenance provider will need to check the skutis
for you. Note that water damage is not covered by any warranty.
17. Do not apply excessive force to the kickstand. Only ride with the kickstand folded up.
18. Children under the age of 14 are prohibited from using the Anoa.
19. Make sure to keep the tire pressure high, as it may get punctured otherwise while
riding. We recommend a pressure of 45 PSI+.
20. Do not do stunts or jumps on the product. Exposing the battery to excessive shock
may result in fire. In case of a crash, remove the battery from the product to check
whether it is still undamaged and working well.

5 | ANOA EX+ User Manual Copyright owned by Skutis Corporation Pte. Ltd.
Safety Precautions for Lithium-Ion Battery
How to manage your lithium battery
1. Only use the charger that was supplied with your skutis to charge the
lithium-ion battery. Using an unauthorized charger could cause fire or
serious damage to the battery.
2. Charge the lithium-ion battery within 0-45 C and discharge within -20-60 C. Charging
and discharging the battery not within the appropriate temperature may damage the
lithium-ion battery.
3. Do not leave the lithium-ion battery in any place exposed to direct sunlight or high
temperature. Always store it in dry places.
4. Charge the lithium-ion battery in a dry, open and well-ventilated place. Do not charge
the battery near inflammable goods.
5. If you bring your skutis in winter from outside to inside, the change of temperature may
cause dew condensation. In this case, do not charge immediately but wait for the
battery to cool down. Otherwise, the battery’s lifetime and capacity might get reduced.
6. If the battery protection circuit is damaged, the battery emits an unusual smell, or the
battery leaks, contact an authorized service center immediately and get technical
support.
7. Keep the lithium-ion battery in a safe place out of the reach of children and pets.
8. Do not reverse the polarity of the battery. This may lead to a short-circuit.
9. Connecting the charger while the skutis is waterlogged creates a very high risk of fire
or electric shocks. In this case, the battery should get checked by an expert, before it
gets charged again.
10.Do not disassemble or incinerate the lithium-ion battery. Dispose the battery as
industrial waste and be careful that no short-circuit occurs in the terminals.
11.If the battery requires replacement after long-term use, replace it with a new one
through an authorized dealer. The discharge capacity of the lithium-ion battery
normally decreases more than 15 % after 300 times of cycle use.
12.You can increase the lifetime of your lithium ion-battery by up to 50% if you only charge
it after it is about 25-40 % empty and if you charge or discharge it in temperatures
between 18 and 25 C.

6 | ANOA EX+ User Manual Copyright owned by Skutis Corporation Pte. Ltd.
13. External temperature has great impact on the battery. The performance of the battery
degrades with lower temperature, which leads to decreased power and riding
distance. However, the battery usually returns to its original state, when the weather
or surrounding temperature gets warmer again.
14. When the product needs to be stored for a long time without using, have the battery
charged around 70-80 %. In any case, the battery should get charged every two to
three months to avoid that the battery loses capacity.
15. If a lithium-ion battery product overheats, smokes, or burns, you must stop charging
and using the product immediately. In such a case, move the product outdoors as
quick as possible, and use a fire extinguisher to extinguish any fire. Do not use water
to extinguish fire on the product, since this can create additional danger!
Battery maintenance in summer
1. Avoid rain or wet roads. The battery and core components may get damaged by
flooding or strong water splashing, which can result in malfunction or fire.
2. Avoid direct sunlight in summer and do not store or charge it in a car trunk or hot
room.
Battery maintenance in winter
1. Avoid snowy, frozen or wet roads. Battery and core components may get
damaged by flooding, which can result in malfunction or fire.
2. Store the battery in a dry place at room temperature (10 –20 °C).
3. In winter, after riding wait for 2 hours to let the battery cool down before charging.

7 | ANOA EX+ User Manual Copyright owned by Skutis Corporation Pte. Ltd.
Product Components
What’s inside the box?
1 Skutis
1 Charger (2A) with Charging Cable
1 Manual Book (might not be included if soft copy was provided)
2 Ignition Keys
1 Allen Key Tool Set (only occasionally included)
1
)
L
C
D
d
a
s
h
b
o
After your skutis is assembled Check your product serial number
After your skutis is unpacked, note
the serial number and keep it to
recognize your personal ANOA
easily. In case your ANOA gets
stolen, the serial number might help
you to get it back.
Please, check if all the components listed above are inside your box immediately. If you
need assistance assembling the product, please contact your authorized service center.

8 | ANOA EX+ User Manual Copyright owned by Skutis Corporation Pte. Ltd.
Important
*To start your skutis put the ignition key into the keyhole, turn the key to the right
side until the voltmeter is on and now push the on/off button for 3 seconds until
your LCD is on too.

9 | ANOA EX+ User Manual Copyright owned by Skutis Corporation Pte. Ltd.
How to use your ANOA EX+
1. How to Assemble Your Skutis
(1) Unpacking Your Skutis
1. Lift the skutis a little bit on the handlebar
first. Then lift the body (deck part) with
both hands slowly.
2. Caution: The inner shaft of the folding
mechanism may get damaged due to
heavy load, when you lift your skutis only
by grabbing the handlebar. Always have
at least one hand under the whole skutis
body.
(2) Installation of LCD
1. The LCD is not attached to the product at
first.
2. Use an Allen key inside the dotted circle
to release the screws.
3. Adjust the position of the LCD as shown
in the picture. Make sure that there is
sufficient space between the finger
throttle and the front wheel disc brake
lever so that you can use both quickly
and conveniently. Then tighten the
screws again with the Allen key to finish.

10 | ANOA EX+ User Manual Copyright owned by Skutis Corporation Pte. Ltd.
2. How to Unfold Your Skutis
(1) Raising the Front Bar
To unfold your skutis, push the folding
lever down and pull the front bar up until
you hear a click. After the front bar is
unfolded, raise the folding lock in the
direction of the arrow and fix it firmly.
(2) Adjusting Height of Handlebar
Unlock the height adjustment lever (QR
lever) and use one finger to push the
metal ball inside the height adjustment
hole into the front stem. Now you can
choose between two different heights.
After you chose your favorite height, the
QR lever must be locked and the metal
ball must be fixed in one of the height
adjustment holes again.
(3) Unfold the Handlebar
To unfold the handlebar, raise it in the
direction of the arrow until it is locked
automatically. After unfolding, make
sure that the folding lock of the front bar
is properly inserted as shown in the
picture.

11 | ANOA EX+ User Manual Copyright owned by Skutis Corporation Pte. Ltd.
How to use your ANOA EX+
3. How to Fold Your Skutis
Folding Lock
4) How to Charge Your Skutis
(3) Folding of the Front Bar
Fold the front bar by pushing it towards
the deck while pressing down the folding
lever.
(2) Pushing the Handlebar Down
After releasing the QR lever as shown in
the picture, push the small metal ball
stopper inside the front bar, while
pushing the handlebar down.
(1) Handlebar Folding/ Opening of
Folding Lock
Fold the handlebar first. To fold the
handlebar put your first hand on the end of
the handle bar grip and use the second
hand to push the automatic handlebar
locking mechanism in the direction of your
first hand. Now push the respective handle
bar down and repeat the process with the
second side of the handlebar. Afterwards,
pull the folding lock in the direction of the
arrow (see photo) to release it.

12 | ANOA EX+ User Manual Copyright owned by Skutis Corporation Pte. Ltd.
4) How to Charge Your Skutis
1. Open the charging port cap and connect the charger to
the charging port. Afterwards, connect the charger into a
standard household power socket.
2. If the charger’s LED light is red, your skutis is getting
charged, but not fully charged yet. If the light is green,
your skutis is either already fully charged or your
charger is not properly connected to either your skutis or
to the power socket.
3. Make sure to close the charging port cap before riding or storing your skutis.
Only open it for charging purposes. Never let the charging port get in touch
with any kind of liquid!
4. When connecting the charger to the charging port, metallic sparks due to the
voltage difference may occur, but this is normal.
5. Make sure to only use the genuine 2A charger. If you are using a non-
standard charger, it can cause electrical malfunctions and serious damage to
the battery.
(1) Standard Charging Method

13 | ANOA EX+ User Manual Copyright owned by Skutis Corporation Pte. Ltd.
1. Do not use the charger and contact your authorized service center if the lamp of the
charger is not turning on, if an external shock occurred, or if the cable or cable cover of
the charger is damaged.
2. Do not use the charger if the charging port or charging cable ends are corroded.
3. While charging, do not put any drink or other liquids that can be easily spilled next to
the charger.
4. While charging, do not operate the motor of the skutis or any other electric devices that
are connected to the battery.
5. Do not use the charger in places with high humidity or flammable materials.
6. Do not modify the charger.
7. A charger failure may cause fire, while charging. Hence, you should disconnect the
charger before you leave the charging place for a long time.
8. If the charging process is not completed after a long time (e.g. more than 14 hours), do
not continue using the charger and contact an authorized service center.
9. Children may only use the charger under the supervision of a guardian.
10. Do not insert metal into the charging hole.
11. After unplugging the charger, do not touch the plug for about 10 seconds.
12. Do not attempt to disassemble, open, crush, bend, deform, perforate, shred or
submerge the charger.
13. Avoid dropping the charger or exposing it to any other kind of excessive shocks.
(2) General Safety Advice for Using the Charger

14 | ANOA EX+ User Manual Copyright owned by Skutis Corporation Pte. Ltd.
MEMO

15 | ANOA EX+ User Manual Copyright owned by Skutis Corporation Pte. Ltd.
How to Use Your ANOA EX+
5) Checklist Before Using Your Skutis
(1) Wear Safety Equipment
This product bears the risk of danger due to high speed.
Safety equipment must be put on before use. All users
must wear a helmet, additional protectors (knee, elbow,
palm), and closed shoes.
(2) For Beginners, Elderly People and Pregnant Women
Beginners and elderly people should only use slow mode
as there is a high risk of causing accidents, when using
high speed. Pregnant women should not ride skutis.
(3) Do Not Accelerate and Lean Backwards While Riding Downhill
If you accelerate while riding downhill, the braking
distance might become too long, which causes danger. If
you are riding downhill for a very long distance, the
brakes may overheat and stop working properly. For
these reasons, you should not accelerate, while riding
downhill. To avoid turning over the front, you should lean
a bit backwards, while braking, and focus on using the
rear brake.
(4) Caution: Motor and Brakes May Cause Fire
The motor and brakes (especially the
disc rotor) increase in temperature while
running which may result in fire.
Before each ride, you have to check, whether your front and rear brake
is operating normally. If you notice any problems, adjust the brake(s)
first. If a brake is damaged or worn, bring it to an authorized service
center.

16 | ANOA EX+ User Manual Copyright owned by Skutis Corporation Pte. Ltd.
(5) Always Lift with Two Hands
Always lift your skutis from the body (deck) with both
hands. The folding part may get damaged if the product
is only lifted by the handle or front bar.
(6) Check Whether All Parts Are Fixed Before Riding
Before riding, always check that the bolts
and nuts are tightened. This is especially
important for the steering bolt on the
bottom of the front fenders, where the front
bar is connected to the front wheel as well
as for the big nuts on the side of your
motor. Parts may loosen due to vibration
from continuous riding. If you lost any part,
stop riding immediately and replace the
part or visit the nearest authorized service
center.
(7) Check Whether the QR Levers Are Fixed Before Riding
Make sure that the QR levers
are correctly fixed (as shown in
the picture) before riding. If any
QR lever is loose, the front bar
may suddenly fold while riding,
which may lead to an accident.
* Stop Riding Immediately, If…
1. …the skutis creates an unusual noise. Consult the nearest authorized service center in
this case.
2. …you feel there is a problem with the operation of the skutis. This may include an error
message on the dashboard, an extraordinary hot motor, malfunction on the brakes, etc.
Please, consult the nearest authorized service center in this case.

17 | ANOA EX+ User Manual Copyright owned by Skutis Corporation Pte. Ltd.
How to Use Your ANOA EX+
6) How to Start Your Skutis 7) How to Stop Your Skutis
(1) Activate the Current Cycle
The first step to start your skutis is to
insert the ignition key into the
keyhole and turn it right. Now you
can activate the LCD (see next
step).
(2) Turning on the LCD/ Speed Modes
Press the red power (on/off) button
on the LCD for three seconds to turn
it on. The speed mode can be altered
by pressing the power button once
and then using the MODE-button to
switch between mode 1, 2 and 3
(fastest). To confirm, press the power
button once again.
(3) Correct Riding Position
After pivoting the kickstand up, find a
stable position on the deck and hold
the handle grip comfortably with both
hands. You need to figure out if you
prefer having your left or right foot in
the front.
(4) Acceleration and Deceleration
Accelerate by using the throttle of the
LCD after your standing with both
your feed on the deck. Usually, you
can only accelerate if you already
made the rear wheel moving a bit by
manually pushing the skutis to the
front. Decelerate and stop by using
both brakes. While accelerating, lean
slightly to the front. While braking,
lean slightly backwards.

18 | ANOA EX+ User Manual Copyright owned by Skutis Corporation Pte. Ltd.
7) How to Stop Your Skutis
(1)Do Not Only Use the Front Brake
If you want to decelerate slowly, use
mainly the rear brake (left brake lever).
Be careful as there is a risk of
overturning when only the front brake is
applied while riding.
(2) Stop Safely and Smoothly
Use the front and rear brake levers
together to stop smoothly and safely.
When braking strongly, do not forget to
lean backwards and to bend your knees
a bit.
(3)Regenerative Electric Drum Brake
System
Use the LCD settings to choose the
strength of your electric drum brake
system or whether you would like to
switch it off (default = switched on with
full strength). The electric brake is
applied by using the rear brake (left)
lever, which increases the braking
power and recharges your battery.
(4) Check Your Brakes Regularly
Be sure to check for any deterioration
on the brake cables (bending,
disconnection, etc.) before riding. Do not
use your skutis if the braking force drops
considerably and let the brakes be
inspected and repaired immediately.

19 | ANOA EX+ User Manual Copyright owned by Skutis Corporation Pte. Ltd.
Anoa EX+ User Manual
How to Use Your ANOA EX+
8) How to Control
the Dashboard
Please note, that the slow start setting P7 (start mode) does not work if you selected speed
mode 1.
When speed mode 3 (high speed) is selected during acceleration, the speed displayed on the
LCD may temporarily differ to the actual speed.
* When speed mode 3 (high speed) is selected during acceleration, the speed displayed on the
LCD may temporarily differ to the actual speed.
(2) How to Change the Detailed LCD/P Settings
(1) Changing Speed and LCD Modes
Change the speed mode, while the LCD is on. To display the current speed mode, press .
The number for the speed mode will start blinking. Then press multiple times to set the speed
(L1 = low speed, L2 = medium speed, L3 = high speed). Press to confirm. To switch through
the other LCD modes just click repeatedly .
Information
