Skytron 3600B UltraSlide User manual

SURGICALTABLE
3600B UltraSlide
OPERATORSMANUAL
REV 8/05

Page 1
TABLE OF CONTENTS
Title Page
EQUIPMENT LABELS AND SPECIFICATIONS..................................................................................... 2
3600B UltraSlide General Purpose Surgical Table Specifications.......................................................... 3
SPECIAL USER ATTENTION................................................................................................................. 4
SECTION I INTRODUCTION.................................................................................................................. 8
1-1. General................................................................................................................................. 8
1-2. Power Requirements............................................................................................................ 8
1-3. Pendant Control Unit ............................................................................................................ 9
1-4. Floor Lock/Brake System ..................................................................................................... 9
SECTION II OPERATION..................................................................................................................... 10
2-1. Electrical Power................................................................................................................... 10
2-2. AC 120V Operation ............................................................................................................. 10
2-3. Battery Operation ................................................................................................................ 11
2-4. Automatic Shut-Off.............................................................................................................. 11
2-5. Charging the Battery ...........................................................................................................11
2-6. Positioning Functions .......................................................................................................... 12
a. Floor Lock/Brake system...............................................................................................12
b. Trendelenburg ............................................................................................................... 13
c. Lateral Tilt...................................................................................................................... 13
d. Back Section..................................................................................................................14
e. Elevation........................................................................................................................ 14
f. Top Slide ....................................................................................................................... 14
g. Leg Section.................................................................................................................... 15
h. Flex Positioning ............................................................................................................. 15
i. Kidney Lift...................................................................................................................... 16
j. Return To Level............................................................................................................. 16
k. Beach Chair...................................................................................................................16
2-7. Emergency Back-up controls .............................................................................................. 17
2-8. Emergency Brake Release.................................................................................................. 18
2-9. Head Section....................................................................................................................... 18
2-10. Leg and Back Section Removal .......................................................................................... 19
2-11. Positioning........................................................................................................................... 19
SECTION III MAINTENANCE............................................................................................................... 22
3-1. Preventive Maintenance.....................................................................................................22
3-2. Cleaning Recommendations .............................................................................................. 22
3-3. Service ............................................................................................................................... 23
REV 8/05
Although current at the time of publication, SKYTRON’s policy of continuous development makes this
manual subject to change without notice.

Page 2
INDICATES DANGEROUS VOLTAGE, 120 V, 60 Hz
CLASS I DEFIBRILLATION PROOF, TYPE B EQUIPMENT- IPX4 RATED.
INTERNALLY POWERED EQUIPMENT
PROTECTIVE GROUNDING.
IN ORDER TO ENSURE PROPER GROUNDING RELIABILITY,
THIS TABLE MUST BE CONNECTED TO A PROPERLY GROUNDED
HOSPITAL GRADE OUTLET.
CONNECTION FOR NEUTRAL CONDUCTOR SUPPLIED
UNIT TO BE USED ONLY IN SPECIFIED ENVIRONMENTAL CONDITIONS
IPX4
V
TEMPERATURE: 15˚ - 30˚ C (60˚ - 85˚ F)
ENCLOSURE CLASS
VOLTAGE RATING OF THE UNIT
A
AMPERAGE RATING OF THE UNIT
HZ
FREQUENCY OF THE UNIT
ATTENTION, CONSULT MANUAL FOR FURTHER INSTRUCTIONS.
INDICATES SPECIAL USER ATTENTION.
POWERED BY BATTERY
BATTERY TYPE: SEALED
LEAD ACID 12V, VALVE REGULATED
16AH, 10HR (530W/10MIN)
15 AMP INTERNAL CIRCUIT BREAKER
POWERED BY AC VOLTAGE
AC VOLTAGE
HUMIDITY: 30% - 60% RELATIVE HUMIDITY, NON CONDENSING
TYPE B
EQUIPMENT
N
EQUIPMENT LABELS AND SPECIFICATIONS
15A

Page 3
3600B UltraSlide General Purpose Surgical Table Specifications
Electrical Specifications
Power requirements
Current Leakage
Power Cord
120 VAC, 60Hz, 450 Watts
Less than 100 micro amps
15 feet w/hospital grade
connector (removable)
12-1/2" 18-1/4" 25" 23"
14-1/2"
19-3/4"
5-3/4"
3"
82"
TOP VIEW
90˚
60˚
14-1/2"
40-3/4"
SIDEVIEW
8-3/4"
5-3/4"
19"
22"
42-1/2" MAX
24" MIN
ENDVIEW
ENTELA CERTIFIED
TO UL2601-1
CAN/CSA601.1, IEC 60601-2-46
SERIAL NUMBER TAG

Page 4
The extreme positioning capabilities of the 3600B
UltraSlideTable requiresspecial attentionfor pos-
sibleinterferencepoints when usingmultiplefunc-
tion positioning. As with the operation of any
surgical table, a certain amount of care should be
exercised to position the patient safely. Although
the thick pads and sheets substantially protect the
patient,pinchpoints,locatedatthejointsofthetop
section should always be considered. BE SURE
THAT THE ARMS, HANDS AND FINGERS OF
THE PATIENT AND THOSE OF THE OPERAT-
ING ROOM PERSONNEL ARE CLEAR OF ALL
MOVINGPARTSBEFOREMOVINGTHETABLE.
Properrestraintsshouldalwaysbeusedforpatient
safety.
Certain accessories such as the Uro-Drain Tray,
Armboards and X-Ray top can be damaged when
changing the position of the table top sections.
Always look first to see if a desired movement is
going to interfere with any accessories in use.
The operator has the ultimate responsibility of
preventing damage to the table and surrounding
equipment or possible injury to the patient or staff.
The operator must ensure proper positioning is
maintained to prevent compromising respiration,
nerve pathways or circulation.
In general, common sense will dictate when there
is a potential hazard.
The following precautions should be reviewed
by all personnel prior to operating the table.
A routine Instructional Program should be
implemented by the facility for proper usage
instructions for all personnel that may operate
this table.
WARNING
Indicatesapossibilityofpersonalinjury.
CAUTION
Indicates a possibility of damage to
equipment.
NOTE
Indicatesimportantfactsorhelpfulhints.
NOTE
Activating any function button will acti-
vatethebrakesystem. UsingtheTABLE
UP function to set the brakes provides
a visual assurance that the brakes are
locked without altering the table posi-
tion, except when emergency brake is
released.
WARNING
Possibleexplosionhazardexistsiftable
isusedinthepresenceofFLAMMABLE
ANESTHETICS.
NOTE
An equalization terminal is located un-
der the main power panel. This is pro-
vided as an alternate pathway to re-
duce the risk of static shock hazards.
Always follow recommended ground-
ing procedures to ensure patient and
staff safety.
NOTE
The table will operate correctly on bat-
tery power with the power cord con-
nectedtoa walloutletor disconnected.
NOTE
Battery Operation must be turned OFF
at the pendant control. It cannot be
turned OFF using the main power
switch.
NOTE
TurningtheMain PowerSwitchONwill
changethe table operationto 120VAC
power.
NOTE
When the red light starts to blink (indi-
cating low power in battery) the table
will operate for approximately 5 con-
tinuous minutes, typically long enough
to use the table for the rest of the day.
SPECIAL USER ATTENTION

Page 5
NOTE
The charging system operates ONLY
when the table is in AC120V operation
mode.
NOTE
The table can be operated on 120VAC
power while the battery is being re-
charged.
NOTE
If the table is stored for a period greater
than 6 months, the batteries should be
removed and stored in a dry, clean con-
dition at a storage temperature of 68° F
(20° C). Batteries should be recharged
every 6 months of product storage.
WARNING
DO NOT unlock brakes when a patient
is on the table. An uneven patient
weight load may cause instability.
NOTE
Withanevenlydistributedpatientweight
load, all table positioning functions will
operate smoothly and quietly with a
patient weight of up to 800 pounds.
WARNING
To maximize patient safety, utilize
properrestraintmethodsduringextreme
Trendelenburg positioning.
WARNING
To maximize patient safety, utilize
properrestraintmethodsduringextreme
lateral tilt positioning.
NOTE
If the table top is slid toward the foot
end, the back section will not go below
horizontal. Anaudiblealarmwillsound.
NOTE
To prevent damage to the kidney lift, a
safety interlock prevents the back sec-
tion from going more than 45° above
horizontal if the kidney lift is not all the
waydown. Anaudiblealarmwillsound.
NOTE
If the leg section is positioned more
than 45° below horizontal, the top will
not slide toward the head end. An
audible alarm will sound.
NOTE
If the leg section is below horizontal,
slide toward head is limited to 7-1/2"
NOTE
If the back section is positioned below
horizontal, the top will not slide toward
the foot end. An audible alarm will
sound.
CAUTION
The Leg section may hit the table base
or the floor if both the leg and elevation
systems are placed in their full down
position.
NOTE
If the top is slid toward the head end
lessthan7-1/2",thelegsectionwillonly
go down 45°. An audible alarm will
sound.If thetop isslid towardthe head
end more than 7-1/2", the leg section
will not go below horizontal.
SPECIAL USER ATTENTION

Page 6
NOTE
Ifthe topisslid towardthe footend, the
FLEX function will not operate. An
audible alarm will sound.
NOTE
To prevent damage to the kidney lift, a
safety interlock prevents the kidney lift
from going up if the back section is 45°
abovehorizontal. Anaudiblealarmwill
sound .
NOTE
Elevation and brake system functions
are not affected by the return to level
function.
NOTE
The table top must be centered or slid
towardthefootendfortheBeachChair
function to operate.
CAUTION
The safety interlock system is not op-
erational when the emergency back-
up control switches are used.
CAUTION
The EMERGENCY BRAKE LOCK
switch does not activate the brake sys-
tem timer. The switch must be held
until the brakes are completely locked,
approximately 10 seconds.
NOTE
The emergency back-up control
switches will function when the table is
operating on 120VAC power, battery
power, or turned off.
NOTE
The Emergency Brake Release Valve
must be closed and tightened (clock-
wise) before activating any function.
•If the Emergency Brake Release Valve
hasbeenoperated,theUNLOCKbutton
on the pendant control will have to be
pressed before brakes will lock again.
NOTE
To make the Back Section easier to
handle, remove the Head Section, pad
and X-ray top prior to removing the
Back Section. Remove the pad and X-
ray top prior to removing the Leg Sec-
tion.
WARNING
Ensure that the Leg and Back sections
are properly engaged and secured to
pins before use to prevent injury.
NOTE
TheLegand Backsectionsare labeled
forproper orientation. The Legsection
cannotbeinstalledontheBacksection
pins.
SPECIAL USER ATTENTION

Page 7
CAUTION
Thoroughly read and follow the
manufacturer's directions for all clean-
ing fluids. DO NOT use cleaners con-
taining phenolics.
CAUTION
When using spray cleaners DO NOT
spray fluids directly into electrical re-
ceptacles or micro switches.
CAUTION
Beforereplacingpadsonthetable,make
sure the pads and all mating surfaces
are completely dry. Moisture trapped
between the pads and mating surfaces
may cause distortion of table tops.
WARNING
Consult manufacturer's instructions
when using high frequency surgical
equipment,cardiacdefibrillatorandcar-
diac defibrillator monitors.
WARNING
Whenanantistaticpathwayisrequired,
thetablehastobeusedonanantistatic
floor.
WARNING
The antistatic properties of the table
aredependentontheuseoftheoriginal
pad set which was furnished with the
tableoranalternate approvedreplace-
ment.
WARNING
Certain accessories may limit weight
capacities.CheckwithyourSKYTRON
representative.
NOTE
Always follow current AORN Journal
Guidelines to ensure proper cleaning
and disinfection procedure.
WARNING
AlwaysfollowOSHAblood-bornepatho-
gens standards for protective clothing,
including gloves, masks and eye pro-
tectionwhencleaningthesurgicaltable.
SPECIAL USER ATTENTION

Page 8
main power ON/OFF switch is located on the
electricalpanelonthefrontedgeofthetablebase.
See figure 1-2.
The battery charging indicator and foot control
connectorare also locatedon the electricalpanel.
Figure 1-1. 3600B UltraSlide
1-1. General
SKYTRON’s3600BUltraSlide SurgicalTableisan
electro-hydraulicallyoperated,generalpurposesur-
gical table. See figure 1-1.
The electro-hydraulic positioning functions oper-
ated by the hand-held, push button, pendant con-
trol unit are: Trendelenburg, lateral tilt, back sec-
tion, elevation, leg section, top slide, flex/reflex,
kidney lift, return to level, beach chair and the floor
lock/brake system.
Manual controls are provided for head section
positioning, emergency brake release, back sec-
tion removal and leg section removal.
1-2. Power Requirements
The 3600B UltraSlide Surgical Table requires a
120VAC, 60 Hz electrical power supply. The table
is equipped with a removable 15 foot long power
cord with a three prong, hospital grade plug. The
SECTION I INTRODUCTION
Figure 1-2. Electrical Panel
REMOVABLE
LEG SECTION
SEAT
SECTION
REMOVABLE
BACK SECTION
HEAD
SECTION
SIDE
RAIL
HEAD SECTION
LOCKING KNOB
PENDANT CONTROL
STORAGE BRACKET
SERVICE
ACCESS COVER
POWER
CORD
MAIN POWER
SWITCH EMERGENCY
BRAKE RELEASE
FLOOR/LOCK
BRAKE (4)
PENDANT
CONTROL
LEG SECTION
RELEASE LEVER
(RECESSED)
MAIN POWER
SWITCH BATTERY
INDICATOR FOOT CONTROL CONNECTOR
POWER
CORD

Page 9
1-3. Pendant Control Unit
The hand-held pendant control unit (figure 1-3)
has a non-slip rubber cover which assures a posi-
tivegripduringuse. Aspringcliphangerislocated
on the back of the control for storage. When the
PendantControlisnotinuse,itshouldbestoredon
a convenient side or end rail. A bracket is located
under the table top next to the pendant control
connectorforstorageofthePendantControlwhen
the table is not in use and during cleaning. See
figure 1-4.
Figure 1-3. Pendant Control Unit
Figure 1-4. Pendant Control Storage Bracket
The function push buttons are identified with ab-
breviated descriptions for all functions. See figure
1-5. When illuminated the Trendelenburg and
tableupbuttonsarered,theremainingbuttonsare
all green.
Figure 1-5. Function Buttons
1-4. Floor Lock/Brake System
The floor lock/brake system consists of four self-
leveling,hydraulic brakecylinderswhichraiseand
support the table base off from the casters. Press
theTABLEUPbuttononthependantcontroltoset
thetable’sbrakes. Anelectronictimer willactivate
the brake system until the brakes are completely
set, approximately 8-10 seconds.
NOTE
Activating any function button will acti-
vatethebrakesystem. UsingtheTABLE
UP function to set the brakes provides
a visual assurance that the brakes are
locked without altering the table posi-
tion, except when emergency brake is
released.
POWER
INDICATOR
FUNCTION
BUTTONS
SIDE RAIL
CLIP
BACK
SECTION
PENDANT CONTROL
STORAGE BRACKET
SEAT
SECTION
AC120V POWER ON
INDICATOR LIGHT
(GREEN)
TABLE UP
(BRAKE LOCK)
LATERAL
TILT LEFT
BACK UP
LEG UP
SLIDE HEAD
FLEX
KIDNEY
LIFT UP
RETURN
TO LEVEL
BATTERY
LATERAL
TILT RIGHT
BACK DOWN
TABLE DOWN
LEG DOWN
SLIDE FOOT
REFLEX
KIDNEY
LIFT DOWN
BEACH
CHAIR
BRAKE
UNLOCK
REVERSE
TRENDELENBURG
TRENDELENBURG

Page 10
2-1. Electrical Power
The 3600B table will operate on either 120 VAC or
battery power.
WARNING
Prior to operating the table, observe
alltablecaution labelsandreviewthe
SPECIALUSERATTENTIONsection
in the front of this manual.
WARNING
Possibleexplosionhazardexistsiftable
isusedinthepresenceofFLAMMABLE
ANESTHETICS.
NOTE
An equalization terminal is located un-
der the main power panel. This is pro-
vided as an alternate pathway to re-
duce the risk of static shock hazards.
Always follow recommended ground-
ing procedures to ensure patient and
staff safety.
2-2. AC 120V Operation
Use the following procedures to operate the table
on 120 VAC power.
a. Make sure the Power cord is securely at-
tachedto the table.Toinstall thepowercord, align
the cord connector with the base connector, insert
thecordandtwistclockwisetolockthecordintothe
connector. See figure 2-1. Plug the cord into a
properly grounded, Hospital Grade, 120 VAC out-
let. Makesurethepowercordisroutedtotheoutlet
to prevent it from being in the way of operating
personnel.
b.ActivatethePOWERSWITCHlocatedonthe
electrical panel. The switch will illuminate.
SECTION II OPERATION
Figure 2-1. Electrical Panel
Figure 2-2. Pendant Control
The pendant control buttons and the green AC
120V, POWER indicator light located in the upper
right corner of the pendant control will illuminate.
See figure 2-2.
c.Thetableisnowreadyfor120VACoperation.
MAIN POWER
SWITCH
TWIST TO
LOCK
FOOT CONTROL
CONNECTOR
BATTERY
INDICATOR
POWER
CORD
EQUALIZATION
GROUNDING TERMINAL
AC120V POWER ON
INDICATOR LIGHT
(GREEN)

Page 11
2-5. Charging the Battery
Batteries should be charged:
• When the table is placed into initial
service
• As indicated by Battery Indicator
• Every week under normal service
conditions
a. Battery Indicator The Battery Indicator
consists of ten lighted bars, 3 red, 4 yellow and 3
green. See figure 2-3. Each bar represents a
percentage of the battery charge condition. When
all ten bars are illuminated, the batteries are fully
charged. The following list shows the battery
charge level as indicated by the lighted bars;
3 green 100% -Fully charged
2 green 89%
1 green 78%
4 yellow 67%
3 yellow 56%
2 yellow 45% -Needs Charging (BATT
indicator on pendant will flash)
1 yellow 34% -Needs Charging
3 red 23% -Needs Charging
(poor performance)
2 red 12% -Needs Charging
(intermittent performance)
1 red 1% -Needs Charging
(inoperable)
During charging, the bars will light in sequence to
the respective charge level, turn off and light in
sequence again.
2-3. Battery Operation
a. Make sure the Main Power Switch indicator
light, on the electrical panel, are OFF. See figure
2-2. If the indicator light is ON, turn AC120V
operation OFF with the main power switch.
NOTE
The table will operate correctly on bat-
tery power with the power cord con-
nectedtoa walloutletor disconnected.
b. Press the BATT button on the hand-held
pendant control. The pendant control buttons, the
red BATTERY indicator light, located in the upper
right corner of the pendant control and the Battery
Indicator on the electrical panel will illuminate.
c. The table is now ready for BATTERY opera-
tion.
d. To extend the battery charge life, turn the
BATTERY power OFF with the pendant control
when the table is not going to be used.
NOTE
Battery Operation must be turned OFF
at the pendant control. It cannot be
turned OFF using the main power
switch.
2-4. Automatic Shut-Off
a. To prevent unnecessary discharge of the
battery, a timer is built into the battery circuit. This
timerwillautomaticallyshutthebatterypowerOFF
after 1½ hours of table inactivity.
b. To turn the table ON again, press the BATT
button on the pendant control, the pendant control
buttons and the red indicator light will illuminate.
NOTE
TurningtheMain PowerSwitchONwill
changethe table operationto 120VAC
power.
Figure 2-3. Battery Indicator
BATTERY
INDICATOR

Page 12
Figure 2-4. Pendant Control Function Buttons
a. FloorLock/Brake System. To activate the
brakes without affecting table positioning, press
the TABLE UP button. See figure 2-5. The
elevation cylinder will not function until the brakes
are completely extended.
b. If the battery needs to be charged when
operating the table on battery power, the red indi-
catorlightonthependantcontrolwillbegintoblink.
NOTE
When the red light starts to blink (indi-
cating low power in battery) the table
will operate for approximately 5 con-
tinuous minutes, typically long enough
to use the table for the rest of the day.
NOTE
The charging system operates ONLY
when the table is in AC120V operation
mode.
c.To rechargethebattery,makesurethepower
cord is connected, plugged into a 120VAC wall
outlet and the main POWER SWITCH - ON.
NOTE
The table can be operated on 120VAC
power while the battery is being re-
charged.
d. Afull batterycharge willlastapproximately2
weeks under normal operating conditions. How-
ever, it is recommended to charge the batteries at
theend of eachweekto establishanormal routine
protocol. Leadacid batterieslast longerif theyare
notpermitted tofullydischarge. Thetable features
(2) 12 volt, sealed, lead acid batteries which re-
quire no manual maintenance. Lead acid gel bat-
teries, under a proper charging program, feature
an approximate normal life of 4 years.
NOTE
If the table is stored for a period greater
than 6 months, the batteries should be
removed and stored in a dry, clean con-
dition at a storage temperature of 68° F
(20° C). Batteries should be recharged
every 6 months of product storage.

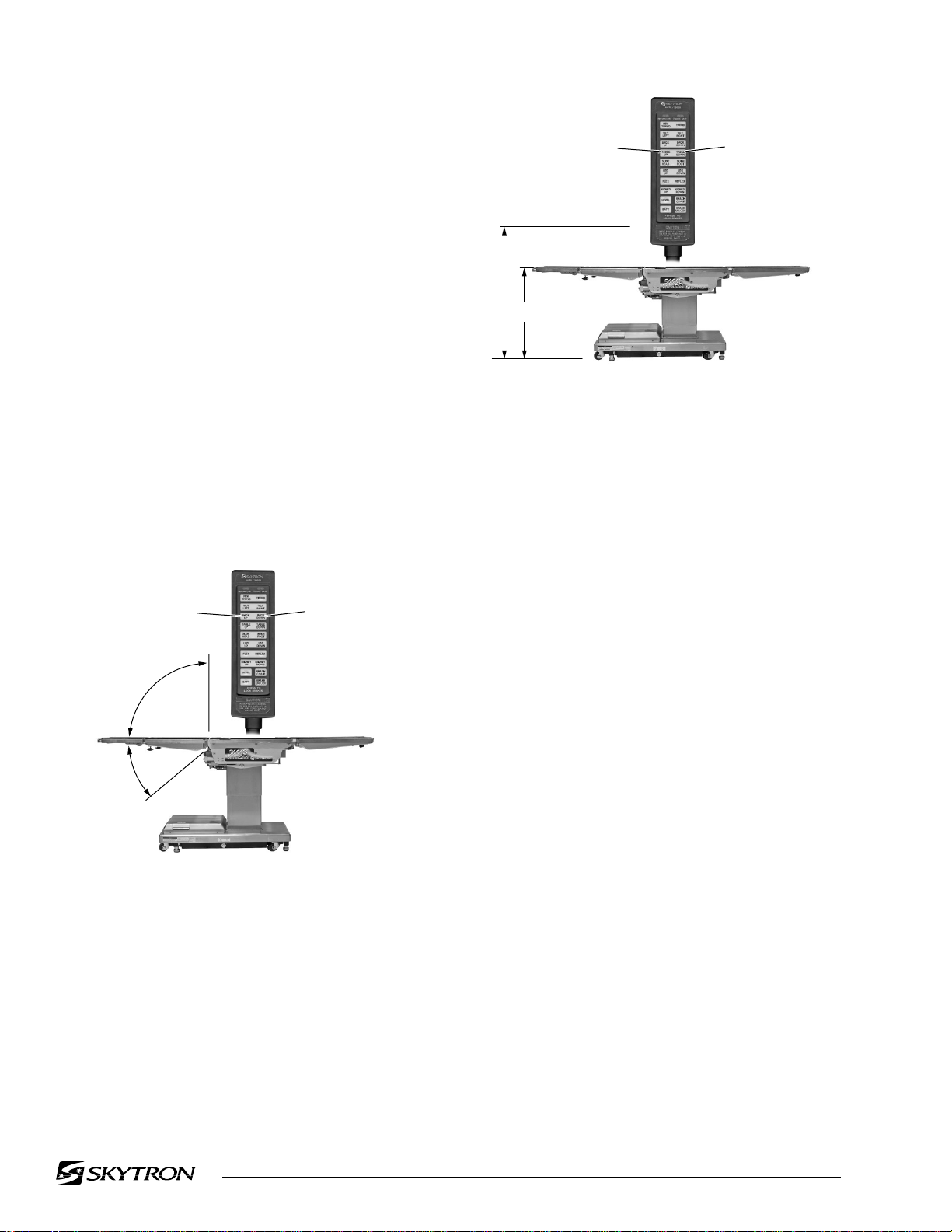

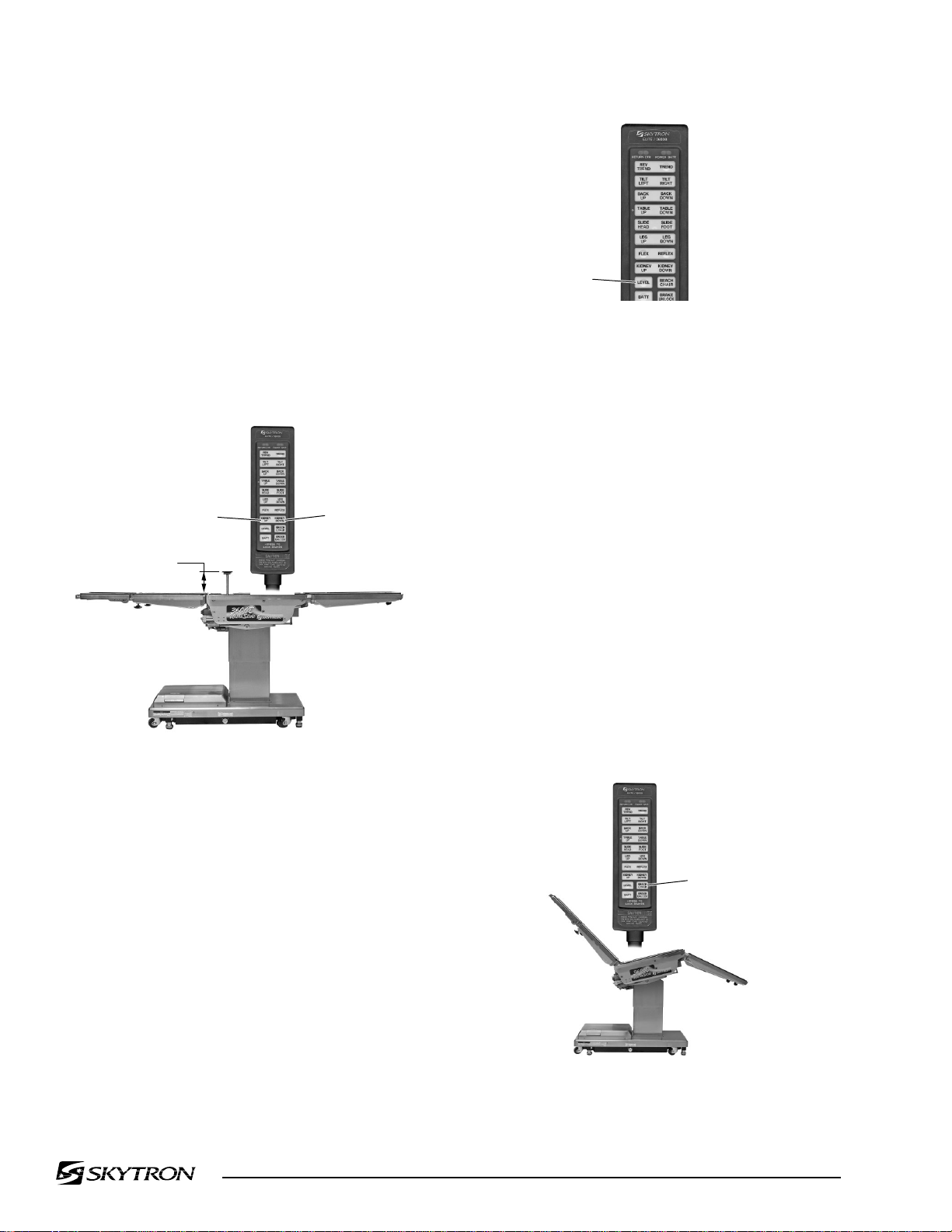

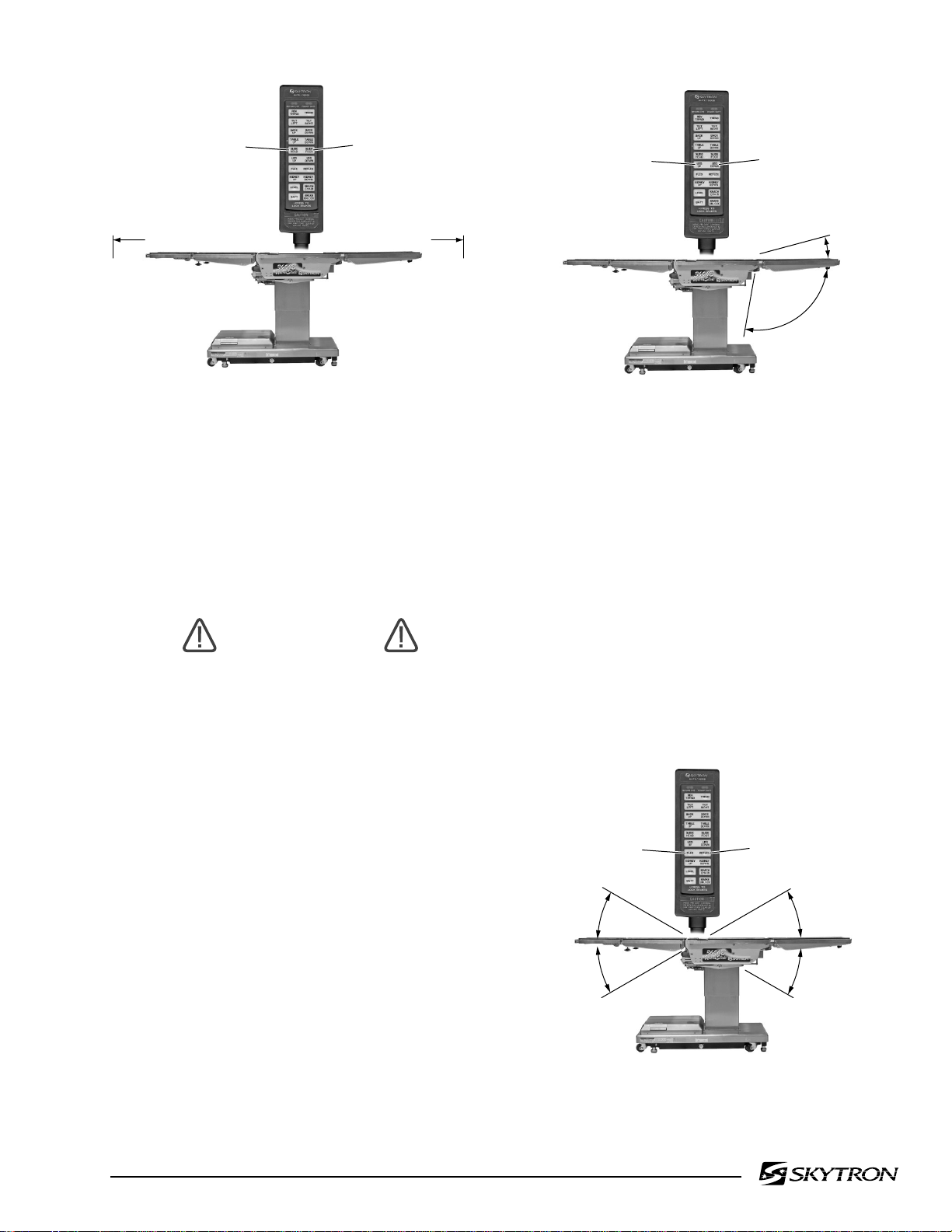

2-6. Positioning Functions
The hand-held pendant control (figure 2-4) acti-
vates the following table functions:
Figure 2-5. Brake System Activation
AC120V POWER ON
INDICATOR LIGHT
(GREEN)
TABLE UP
(BRAKE LOCK)
LATERAL
TILT LEFT
BACK UP
LEG UP
SLIDE HEAD
FLEX
KIDNEY
LIFT UP
RETURN
TO LEVEL
BATTERY
LATERAL
TILT RIGHT
BACK DOWN
TABLE DOWN
LEG DOWN
SLIDE FOOT
REFLEX
KIDNEY
LIFT DOWN
BEACH
CHAIR
BRAKE
UNLOCK
REVERSE
TRENDELENBURG
TRENDELENBURG
TABLE UP
(BRAKE LOCK)
BRAKE
UNLOCK

Page 13
PresstheBRAKEUNLOCKbuttononthependant
controltoreleasethefourself-levelingbrakefeetin
orderto movethe table. See figure2-5. Thebrake
delay circuit automatically retracts the brake sys-
tem. It takes approximately 7-8 seconds to totally
release the system.
WARNING
DO NOT unlock brakes when a patient
is on the table. An uneven patient
weight load may cause instability.
NOTE
Withanevenlydistributedpatientweight
load, all table positioning functions will
operate smoothly and quietly with a
patient weight of up to 800 pounds.
b. Trendelenburg. To place the table in a
Trendelenburg (head down) position, press the
TREND button (figure 2-6). To place the table in a
reverse Trendelenburg (head up) position, press
the REV TREND button. Trendelenburg position-
ing of up to 30° may be obtained.
WARNING
To maximize patient safety, utilize
properrestraintmethodsduringextreme
Trendelenburg positioning.
Figure 2-6. Trendelenburg Positioning
c. Lateral Tilt. To achieve lateral tilt right (as
viewed from the head end of the table), press the
TILTRIGHTbutton(figure2-7). Toachievelateraltilt
left,presstheTILTLEFTbutton. Tiltofupto30°may
be obtained.
WARNING
To maximize patient safety, utilize
properrestraintmethodsduringextreme
lateral tilt positioning.
Figure 2-7. Lateral Tilt Positioning
30˚
30˚
REVERSE
TRENDELENBURG TRENDELENBURG
30˚ 30˚
LATERAL
TILT LEFT LATERAL
TILT RIGHT

Page 14
Figure 2-9. Elevation Function
f. Top Slide. To movethe table toptoward the
head end, press the SLIDE HEAD button. From
center position, the top will slide up to 9-1/2". See
figure 2-10.
NOTE
If the leg section is positioned more
than 45° below horizontal, the top will
not slide toward the head end. An
audible alarm will sound.
NOTE
If the leg section is below horizontal,
slide toward head is limited to 7-1/2"
To move the table top toward the foot end, press
theSLIDEFOOTbutton. Fromcenterposition,the
top will slide up to 13-1/2". Slide function will stop
and RETURN CTR Indicator will illuminate when
table is centered.
NOTE
If the back section is positioned below
horizontal, the top will not slide toward
the foot end. An audible alarm will
sound.
d. Back Section. To raise the back section,
press the BACK UP button (figure 2-8). The back
section will raise up to 90° above horizontal. To
lower the back section, press the BACK DOWN
button. Thebacksectionwillgodownto40°below
horizontal.
NOTE
If the table top is slid toward the foot
end, the back section will not go below
horizontal. Anaudiblealarmwillsound.
NOTE
To prevent damage to the kidney lift, a
safety interlock prevents the back sec-
tion from going more than 45° above
horizontal if the kidney lift is not all the
waydown. Anaudiblealarmwillsound.
Figure 2-8. Back Section Positioning
e. Elevation. To raise table top, press the
TABLE UP button (figure 2-9). The table will lift a
patient weight of 1,000 pounds up to a maximum
height of 42-1/2" (46-1/2" with X-Ray top and 2"
pad). To lower the table top, press the TABLE
DOWN button. The table top will go down to a
minimum height of 24" (minus pad).
90˚
40˚
BACK UP BACK DOWN
42-1/2"
TABLE
UP TABLE
DOWN
24"

Page 15
Figure 2-10. Top Slide
g. Leg Section. Tolowerthelegsection,press
the LEG DOWN button (figure 2-11). The leg
section will go down to 100° below horizontal. To
raise the leg section, press the LEG UP button.
The leg section will go up to 15° above horizontal.
CAUTION
The Leg section may hit the table base
or the floor if both the leg and elevation
systems are placed in their full down
position.
NOTE
Ifthetopisslidtowardtheheadendless
than 7-1/2", the leg section will only go
down45°. Anaudible alarmwillsound.
If the top is slid toward the head end
morethan7-1/2",thelegsectionwillnot
go below horizontal.
9-1/2"
SLIDE HEAD SLIDE FOOT
13-1/2"
Figure 2-11. Leg Section Positioning
h. Flex Positioning. To place the table top in
a flex position from horizontal, press the FLEX
button (figure 2-12). To return the table top to a
horizontal position or into a reflex position, press
the LEVEL or REFLEX button.
NOTE
Ifthe topisslid towardthe footend, the
FLEX function will not operate. An
audible alarm will sound.
100˚
15˚
LEG UP LEG DOWN
FLEX REFLEX
Figure 2-12. Flex/Reflex Positioning

Page 16
RETURN
TO LEVEL
BEACH
CHAIR
Figure 2-14. Return To Level
k. Beach Chair. To place the top in the beach
chair position from a level position, press the
BEACH CHAIR button (figure 2-15). The back
section will raise, the leg section will lower and the
Trendelenburg positioning will function simulta-
neously. The functions will stop when Trendelen-
burg reaches it limit.
NOTE
The table top must be centered or slid
towardthefootendfortheBeachChair
function to operate.
Figure 2-13. Kidney Lift Positioning
j. Return To Level. To return the table top to a
level position, press the LEVEL button (figure 2-14).
NOTE
Elevation and brake system functions
are not affected by the return to level
function.
i. Kidney Lift. To raise the built-in kidney lift,
press the KIDNEY UP button (figure 2-13). Up to
5-3/4" of lift can be achieved. Press the KIDNEY
DOWN button to lower the kidney lift.
NOTE
To prevent damage to the kidney lift, a
safety interlock prevents the kidney lift
from going up if the back section is 45°
abovehorizontal. Anaudiblealarmwill
sound .
Figure 2-15. Beach Chair Positioning
5-3/4"
KIDNEY UP KIDNEY DOWN

Page 17
CAUTION
The EMERGENCY BRAKE LOCK
switch does not activate the brake sys-
tem timer. The switch must be held
until the brakes are completely locked,
approximately 10 seconds.
NOTE
The emergency back-up control
switches will function when the table is
operating on 120VAC power, battery
power, or turned off.
c. Switches are provided for Trendelenburg,
lateral tilt, back section, elevation, leg section,
kidney down and brake lock. These switches are
spring-loaded so they return to the neutral or
center position when released.
Figure 2-16. Emergency Controls Location
b. In the event of either a power failure or a
problem with the hand-held pendant control, the
table can be operated using the emergency back-
up switches. Simply push the desired emergency
switch in the appropriate direction to operate the
table functions. See figure 2-17.
CAUTION
The safety interlock system is not op-
erational when the emergency back-
up control switches are used.
Figure 2-17. Emergency Back-Up Controls
2-7. Emergency Back-up Controls
a. Theemergencyback-upcontrolswitches are
located under the access door on the service
access cover in the table base. See figure 2-16.
FUNCTION CONTROL
ACCESS DOOR
REV
TREND TILT RIGHT BACK UP TABLE UP LEG UP BRAKE LOCK
TREND TILT
LEFT BACK DOWN TABLE DOWN LEG DOWN KIDNEY DOWN

Page 18
2-9. Head Section
a. Aquickrelease positioningbarlocatedunder
and to the front of the head section (figure 2-19) is
used to raise or lower the head section. Pull the
release bar toward the head end to allow the
section to pivot up or down. Positioning from 60°
above horizontal to 90° below horizontal in 15°
incrementsisavailable. Releasethebartolockthe
head section in position.
Figure 2-18. Emergency Brake Release
NOTE
The Emergency Brake Release Valve
must be closed and tightened (clock-
wise) before activating any function.
•If the Emergency Brake Release Valve
hasbeenoperated,theUNLOCKbutton
on the pendant control will have to be
pressed before brakes will lock again.
2-8. Emergency Brake Release.
In case of a power failure or an electrical problem
within the table, the emergency brake release
systemcanbeusedtomovethetable. Thecontrol
knob for this function is located on the side of the
table base and is identified by an EMERGENCY
BRAKE RELEASE label. Turn the knob counter-
clockwise to release the brakes. See figure 2-18.
Figure 2-19. Head Section Adjustment
b. By loosening two locking knobs beneath the
back section, an additional 2" of longitudinal ad-
justment can be achieved. If desired, the head
section may be removed by loosening the locking
knobsandpullingitstraightoutofthebacksection.
3600B UltraSlide Table has the capability of at-
taching the head section to the leg section for use
as a foot extension ONLY. Do Not reverse the
patient on the table without first consulting with
SKYTRON.
Two locking knobs are located on the inside of the
leg section for securing the head section. See
figure 2-20.
Figure 2-20. Repositioning Head Section
(for use as a Foot Extension)
SERVICE ACCESS
COVER
POWER
CORD EMERGENCY
BRAKE RELEASE
BRAKE (4)
HEAD SECTION
RELEASE BAR
HEAD
SECTION
FOOT/LEG
SECTION
LOCKING
KNOB LOCKING
KNOB
