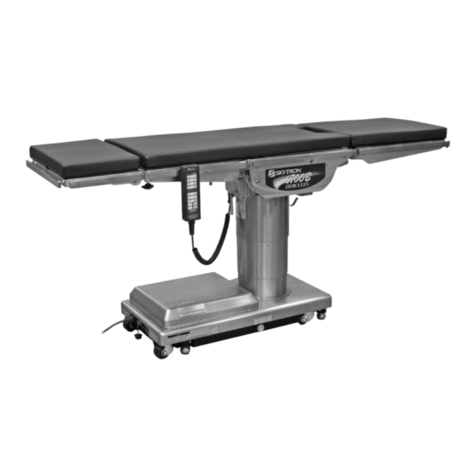

Skytron ELITE 6002 User manual

27
ELITE SERIES SURGICALTABLES
INCLUDING BATTERY MODELS
MODEL 6002/6002B
OPERATORS MANUAL

23
MODEL ELITE 6002
SKYTRON STANDARD LIMITED WARRANTY
SKYTRON, a Division of the KMW Group, Inc. (SKYTRON) warrants all new products sold by it directly or through a dealer or other
authorized representative, with exception to replacement parts, spares, bulbs (surgical lights), pads, and accessory items (surgical tables)
to be free from defects in material or workmanship, under normal use and service, for a period of two (2) years. This warranty shall include
the cost of repair or replacement of defective parts including the cost of service labor and travel time to the site of equipment use. Delays
caused by the user in accessing the equipment for repair will be chargeable at the normal hourly rate for service by SKYTRON’s authorized
service representative. The warranty period shall begin with the initial operation or one (1) year after receipt of the product, whichever shall
occur first.
Replacement parts, spares, bulbs (surgical lights), pads and accessory items (surgical tables) are warranted to be free from defects in material
orworkmanship,undernormaluseandservice,foraperiodofninety(90)daysfromreceiptbytheultimateuser,with exception to replacement
parts supplied by SKYTRON, for products under warranty, which shall be covered for any remaining period of the original product warranty,
or for 90 days, whichever is of greater benefit to the ultimate user.
SKYTRON’sresponsibilityandliabilityshallbelimitedtotherepairorreplacementof any part which we, SKYTRON, determine to be defective
withintheapplicablewarrantyperiod. Minoradjustmentsrequiredasaresultofnormalwearduring the use of the product within the warranty
period are not covered under warranty. The labor portion of this warranty is covered by SKYTRON’s Authorized Service Agent. Repairs
made by others are not authorized nor covered by SKYTRON with respect to labor costs.
SKYTRONshallnotbeliableforanyotherexpense,lossordamage,whetherdirect,incidental, consequentialorexemplaryarisinginconnection
with the sale or use of or the inability to use SKYTRON products.
NO EXPRESS WARRANTY IS GIVEN BY SKYTRON WITH RESPECT TO ITS PRODUCTS EXCEPT AS SPECIFICALLY SET FORTH
HEREIN. ANYWARRANTY IMPLIED BY LAW, INCLUDING ANYWARRANTY OFMERCHANTABILITYORFITNESSFORAPARTICULAR
PURPOSE, IS EXPRESSLY LIMITED TO THE TWO-YEAR AND 90-DAY TERMS SET FORTH ABOVE. THE FOREGOING STATEMENTS
OF WARRANTY ARE EXCLUSIVE AND IN LIEU OF ALL OTHER REMEDIES.
No dealer, agent, employee or other representative of SKYTRON is authorized to extend or enlarge this warranty.
2/03
Although current at the time of publication, SKYTRON’s policy of continuous development makes this
manual subject to change without notice.

TABLE OF CONTENTS
Title Page
6002 Series General Purpose Surgical Table Specifications .................................................................. 1
SPECIAL USER ATTENTION ................................................................................................................ 2
SECTION I INTRODUCTION ................................................................................................................. 5
1-1. General......................................................................................................................................... 5
1-2. Power Requirements.................................................................................................................... 5
1-3. Pendant Control Unit .................................................................................................................... 6
1-4. Floor Lock/Brake System............................................................................................................. 6
SECTION II BATTERY TABLE CONTROLS.......................................................................................... 7
2-1. Introduction................................................................................................................................... 7
2-2. Battery Model Table, AC 120V Operation .................................................................................... 7
2-3. Battery Operation ......................................................................................................................... 7
2-4. Automatic Shut-Off....................................................................................................................... 8
2-5. Charging the Battery .................................................................................................................... 8
2-6. Emergency Back-Up Controls ..................................................................................................... 9
SECTION III OPERATION.................................................................................................................... 10
3-1. Electrical Power ......................................................................................................................... 10
3-2. Positioning Functions ................................................................................................................. 10
a. Floor Lock/Brake system ..................................................................................................... 10
b. Trendelenburg ...................................................................................................................... 10
c. LateralTilt ............................................................................................................................. 11
d. Back Section ........................................................................................................................ 11
e. Elevation............................................................................................................................... 11
f. Leg Section........................................................................................................................... 12
g. Flex Positioning .................................................................................................................... 12
h. Return To Level.................................................................................................................... 12
i. Pendant Control Storage ...................................................................................................... 13
3-3. Emergency Brake Release ........................................................................................................ 13
3-4. Head Section.............................................................................................................................. 13
3-5. 180 Degree Table Top Rotation. ................................................................................................ 14
3-6. Kidney Lift................................................................................................................................... 14
3-7. Positioning .................................................................................................................................. 15
3-8. Specialty Positioning .................................................................................................................. 18
SECTION IV MAINTENANCE .............................................................................................................. 20
4-1. Preventive Maintenance............................................................................................................. 20
4-2. Cleaning Recommendations ...................................................................................................... 20
4-3. Service ....................................................................................................................................... 21

1
15"
10" 21-1/2" 24"
13" 20"
75"
76"
TOP VIEW
19-1/2"
60˚
90˚
5-3/4" 3"
8" 35-1/2"
5-3/4"
SIDE VIEW
22"
19"
43" MAX.
28" MIN.
END VIEW
®
Electrical Specifications
Power requirements
Current Leakage
Power Cord
120 VAC, 60Hz, 300 Watts
Less than 100 micro amps
15 feet w/hospital grade connector
(removeable on battery model)
6002 Series General Purpose Surgical Table Specifications

2
The extreme positioning capabilities of the 6002
SeriesTablerequiresspecialattentionforpossible
interference points when using multiple function
positioning. As with the operation of any surgical
table,acertainamountofcareshouldbeexercised
to position the patient safely. Although the thick
pads and sheets substantially protect the patient,
pinchpoints,located at thejointsof the topsection
should always be considered. BE SURE THAT
THE ARMS, HANDS AND FINGERS OF THE
PATIENT AND THOSE OF THE OPERATING
ROOMPERSONNEL ARECLEAROF ALLMOV-
ING PARTS BEFORE POSITIONING THE
TABLE. Proper restraints should always be used
for patient safety.
Certain accessories such as the Uro-Drain Tray,
Armboards and X-Ray top can be damaged when
changing the position of the table top sections.
Always look first to see if a desired movement is
going to interfere with any accessories in use.
The operator has the ultimate responsibility of
preventing damage to the table and surrounding
equipment or possible injury to the patient or staff.
In general, common sense will dictate when there
is a potential hazard.
The following precautions should be reviewed
by all personnel prior to operating the table.
A routine Instructional Program should be
implemented by the facility for proper usage
instructions for all personel that may operate
this table.
WARNING
Indicatesapossibilityofpersonalinjury.
CAUTION
Indicates a possibility of damage to
equipment.
NOTE
Indicatesimportantfactsorhelpfulhints.
WARNING
Risk of electrical shock. Make sure
power cord is disconnected prior to
accessing fuses.
NOTE
Activating any function button will acti-
vatethebrakesystem. UsingtheTABLE
UP function to set the brakes provides
a visual assurance that the brakes are
locked. As the brake cylinders are
extending, the entire table will move
slightly. When the table top begins to
elevate, the brakes are fully locked.
WARNING
DO NOT unlock brakes when a patient
is on the table. An uneven patient
weight load may cause instability.
•Neveroperatethetablewithoutensur-
ing that the brakes are set.
WARNING
Possibleexplosionhazardexistsiftable
isusedinthepresenceofFLAMMABLE
ANESTHETICS.
NOTE
The table will operate correctly on bat-
tery power with the power cord con-
nectedtoawalloutletordisconnected.
NOTE
Battery Operation must be turned OFF
at the pendant control. It can not be
turnedOffusingthemainpowerswitch.
NOTE
Ifthetableisstoredforaperiodgreater
than 6 months, the batteries should be
removed and stored in a dry, clean
condition at a storage temperature of
68° F (20° C). Batteries should be re-
charged every 6 months of product
storage.
SPECIAL USER ATTENTION

3
NOTE
When the amber light starts to blink
(indicatinglowpowerinbattery)thetable
willoperateforapproximately5continu-
ous minutes, typically long enough to
use the table for the rest of the day.
NOTE
The charging system operates ONLY
when the table is in AC120V operation
mode.
NOTE
The table can be operated on 120VAC
power while the battery is being re-
charged. ThegreenAC120Vindicator
light(onthependantcontrol)willillumi-
nate confirming 120VAC operation.
NOTE
The emergency back-up control
switches will function when the table is
operating on 120VAC power, battery
power, or turned off.
NOTE
Themainpowerswitchcanbeplacedin
the OFF position to completely deacti-
vatealltablefunctionsifrequiredduring
certain procedures or in case of emer-
gency.
NOTE
Withanevenlydistributedpatientweight
load, all table positioning functions will
operate smoothly and quietly with a
patient weight of up to 600 pounds.
Refer to section 3-8 for specialty posi-
tioning.
WARNING
DO NOT unlock brakes when a patient
is on the table. An uneven patient
weight load may cause instability.
WARNING
To maximize patient safety, utilize
properrestraintmethodsduringextreme
Trendelenburgpositioning.
WARNING
To maximize patient safety, utilize
properrestraintmethodsduringextreme
lateraltiltpositioning.
CAUTION
To prevent damage to the kidney lift,
make sure the kidney lift is completely
down before raising the back section.
WARNING
The Leg section may hit the table base
or the floor if both the leg and elevation
systems are placed in their full down
position.
NOTE
Elevation and brake system functions
are not affected by the return to level
function.
NOTE
The Emergency Brake Release Valve
must be closed and tightened (clock-
wise) before activating any function.
•IftheEmergencyBrakeReleaseValve
has been operated, the UNLOCK but-
ton on the pendant control will have to
bepressedbeforebrakeswilllockagain.
NOTE
Normal table top position is with the
head(andback)sectionoverthepower
cord end of the base.
WARNING
Always lock the table top in position
after rotation. DO NOT rotate the top
with an unevenly distributed patient
weight load as instability may result.
SPECIAL USER ATTENTION

4
NOTE
Always follow current AORN Journal
Guidelines to ensure proper cleaning
and disinfection procedure.
CAUTION
Cautionshouldbetakenwhencleaning
the table to prevent excessive fluid en-
try into electrical connectors.
WARNING
AlwaysfollowOSHAblood-bornepatho-
gens standards for protective clothing,
including gloves, masks and eye pro-
tectionwhencleaningthesurgicaltable.
CAUTION
Thoroughly read and follow the
manufacturer's directions for all clean-
ing fluids. DO NOT use cleaners con-
tainingphenolics.
CAUTION
When using spray cleaners DO NOT
spray fluids directly into electrical re-
ceptacles or micro switches.
CAUTION
Beforereplacingpadsonthetable,make
sure the pads and all mating surfaces
are completely dry. Moisture trapped
betweenthe pads andmatingsurfaces
may cause distortion of table tops.
WARNING
•MakesuretheTOPROTATIONLOCK
HANDLE is tightened and the brakes
are set before transferring the patient.
•Exercise caution with the table top
rotated90°tothebasesinceanimprop-
erly distributed patient load may cause
the table to be tipped over.
CAUTION
To prevent damage to the kidney
lift,make sure the kidney lift is com-
pletely down before raising the back
section. See figure 3-18.
WARNING
Consult manufacturer's instructions
when using high frequency surgical
equipment,cardiacdefibrillatorandcar-
diac defibrillator monitors.
WARNING
Whenanantistaticpathwayisrequired,
thetablehastobeusedonanantistatic
floor.
WARNING
Theantistaticpropertiesofthetableare
dependentontheuseoftheoriginalpad
set which was furnished with the table
or an alternate approved replacement.
WARNING
Certain accessories may limit weight
capacities, check with your SKYTRON
representative.
WARNING
To ensure patient safety, certain posi-
tioning techniques and some accesso-
ries should NOT be used when a
patient'sweightexceeds500 pounds.
SPECIAL USER ATTENTION

5
edgeofthebase. Seefigure1-2. Themainpower
ON/OFF switch is located on the electrical enclo-
sure.
WARNING
Risk of electrical shock. Make sure
power cord is disconnected prior to
accessing fuses.

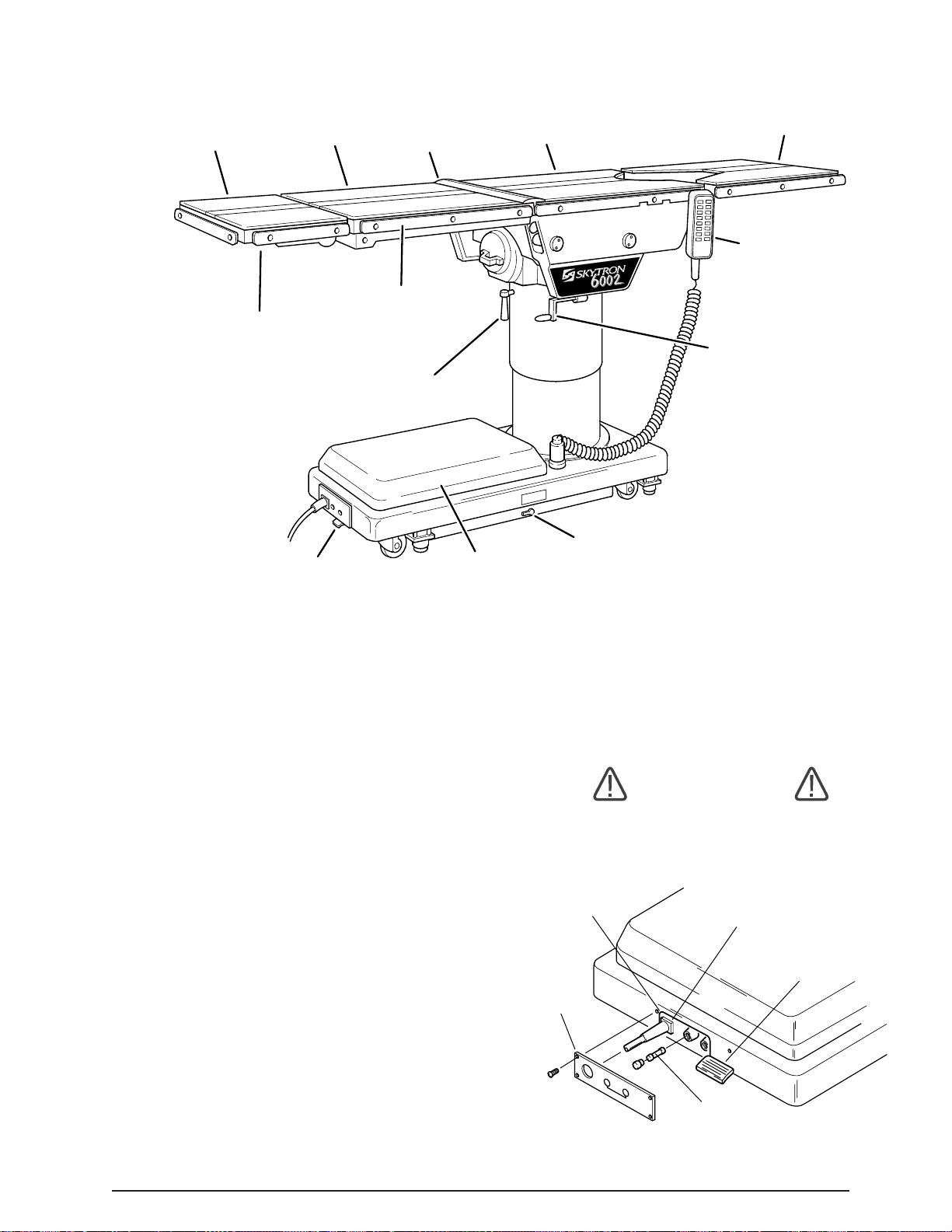

MODEL 6002
HEAD
SECTION BACK
SECTION KIDNEY
LIFT
SEAT
SECTION
KIDNEY LIFT
HAND CRANK
SERVICE ACCESS
COVER
MAIN POWER
SWITCH
TOP ROTATION
HANDLE
SIDE
RAIL
HEAD SECTION
RELEASE BAR
(NOT SHOWN)
LEG
SECTION
PENDANT
CONTROL
EMERGENCY BRAKE
RELEASE
Figure 1-1. Elite 6002
1-1. General
SKYTRON’s Elite 6002 Series Surgical Tables are
electro-hydraulicallyoperated,generalpurposesur-
gical tables. See figure 1-1.
The electro-hydraulic positioning functions oper-
atedbythehand-held,pushbutton,pendantcontrol
unit are: trendelenburg, lateral tilt, back section,
elevation,legsection,flex/reflex,returntolevel,and
the floor lock/brake system.
Manualcontrolsareprovidedforheadsectionposi-
tioning,tabletoprotation,emergencybrakerelease
and kidney lift.
1-2. Power Requirements
The Elite 6002 Series Surgical Tables require a
120VAC, 60 Hz electrical power supply. The table
is equipped with a 15 foot long power cord with a
standard three prong, hospital grade plug. The
electrical protection fuses are located behind a
cover plate in the electrical enclosure on the front Figure 1-2. Power Switch and Fuse Location
SECTION I INTRODUCTION
ELECTRICAL
ENCLOSURE POWER
CORD
MAIN POWER
SWITCH
(2) FUSES
10 Amp FA
COVER
PLATE

6
Thefunctionpushbuttonsareidentifiedwithabbre-
viated descriptions for all functions. See figure 1-
5. TheTrendelenburgandtableupbuttonsarered,
the remaining buttons are all black.
1-4. Floor Lock/Brake System
The floor lock/brake system consists of four self-
leveling,hydraulicbrake cylinders whichraiseand
support the table base off from the casters. Press
theTABLEUPbuttononthependantcontroltoset
thetable’sbrakes. Anelectronic timer will activate
the brake system until the brakes are completely
set, approximately 8-10 seconds.
NOTE
Activating any function button will acti-
vatethebrakesystem. UsingtheTABLE
UP function to set the brakes provides
a visual assurance that the brakes are
locked. As the brake cylinders are
extending, the entire table will move
slightly. When the table top begins to
elevate, the brakes are fully locked.
To unlock the brakes, press the BRAKE UNLOCK
button and release. The brakes will retract auto-
matically in approximately 7-8 seconds.
WARNING
DO NOT unlock brakes when a patient
is on the table. An uneven patient
weight load may cause instability.
•Neveroperatethetablewithoutensur-
ing that the brakes are set.

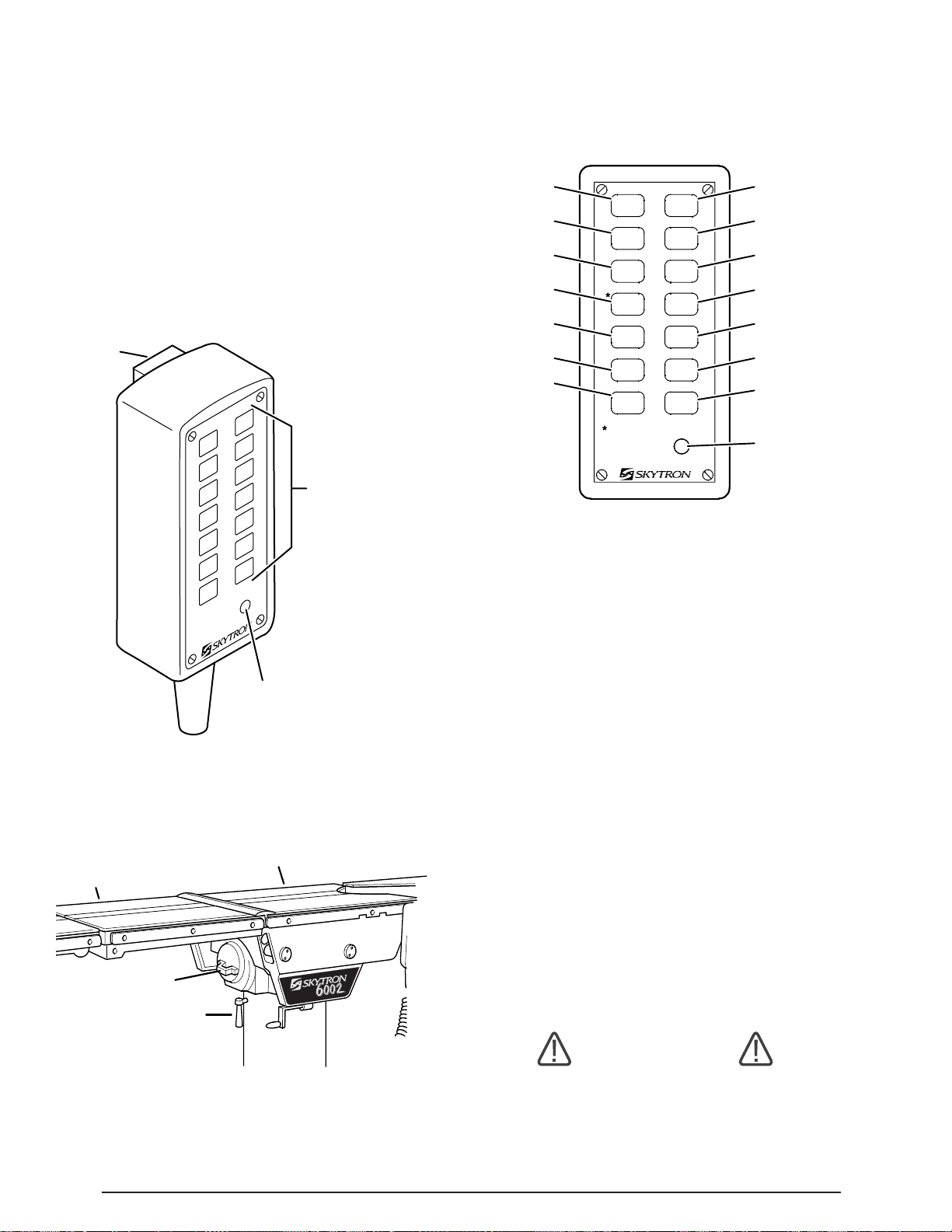

1-3. Pendant Control Unit
Thehand-heldpendantcontrolunit(figure1-3)has
a non-slip rubber cover which assures a positive
grip during use. A spring clip hanger is located on
the back of the control for storage. When the
PendantControlisnotinuse,itshouldbestoredon
a convenient side or end rail. A bracket is located
under the table top for storage of the Pendant
Control when the table is not in use and during
cleaning. See figure 1-4.
TREND
TILT
RIGHT
BACK
DOWN
TABLE
DOWN
LEG
DOWN
REFLEX
BRAKE
UNLOCK
REV.
TREND
TILT
LEFT
BACK
UP
TABLE
UP
LEG
UP
FLEX
POWER ON
RETURN
*
PRESSTO LOCK BRAKES
*
CLIP
FUNCTION
BUTTONS
POWER
INDICATOR
BACK
SECTION
SEAT
SECTION
TOP ROTATION
HANDLE
PENDANT CONTROL
STORAGE BRACKET
Figure 1-4. Pendant Control Storage Bracket
REVERSE
TRENDELENBURG TRENDELENBURG
LATERAL
TILT LEFT LATERAL
TILT RIGHT
BACK UP BACK DOWN
TABLE UP TABLE DOWN
LEG DOWN
REFLEX
BRAKE
RELEASE
POWER ON
INDICATOR
POWER ON
PRESSTO LOCK BRAKES
RETURN
FLEX REFLEX
BRAKE
UNLOCK
LEG
DOWN
LEG
UP
TABLE
UP
BACK
UP
TILT
LEFT TILT RIGHT
TREND
REV.
TREND
BACK
DOWN
TABLE
DOWN
LEG UP
FLEX
RETURN
Figure 1-5. Function Push Buttons
Figure 1-3. Pendant Control Unit

7
2-1. Introduction
Theoperation ofthe 6002B, BatteryModel tableis
identical to the line powered models except for the
functionsrequiredtooperateonbatterypower.The
following section explains the differences for the
battery powered models.
WARNING
Prior to operating the table, observe all
table caution labels and review the
SPECIAL USER ATTENTION section
in the front of this manual.
WARNING
Possibleexplosionhazardexistsiftable
isusedinthepresenceofFLAMMABLE
ANESTHETICS.
2-2. Battery Model Table, AC 120V Operation
Thebatterymodeltableswilloperateoneither120
VAC or battery power. Use the following proce-
dures to operate the table on 120 VAC power.
a. Be sure the power cord is plugged into a
properly grounded, Hospital Grade, 120VAC out-
let.Makesurethepowercordisroutedtotheoutlet
to prevent it from being in the way of operationg
personnel.
b. Activate the POWER SWITCH located on the
electricalpanel. Seefigure2-1.ThegreenAC120V,
Power-On indicator light located in the lower right
corner of the pendant control will illuminate. See
figure 2-2.
SECTION II BATTERY TABLE CONTROLS
2-3. Battery Operation
a. Make sure the green, AC 120V, Power-On
indicatorlight,onthehand-heldpendantcontrol,is
OFF. See figure 2-2. If the indicator light is ON,
depress the main power ON/OFF switch, located
on the electrical enclosure to turn AC120V opera-
tion OFF. NOTE
The table will operate correctly on bat-
tery power with the power cord con-
nectedtoawalloutletordisconnected.
b. Press the BATT button on the hand-held
pendant control. The amber BATTERY indicator
light,locatedin thelowerleft corner ofthependant
control,will illuminate. Thisconfirms that thetable
is now being operated with battery power.
c. The table is now ready to operate on battery
power. Refer to Section 3 for operation.
d. To extend the battery charge life, turn the
BATTERY power OFF with the pendant control
when the table is not going to be used.
NOTE
Battery Operation must be turned OFF
at the pendant control. It can not be
turnedOffusingthemainpowerswitch.
Figure 2-2. Pendant Control
Figure 2-1. Main Power Switch

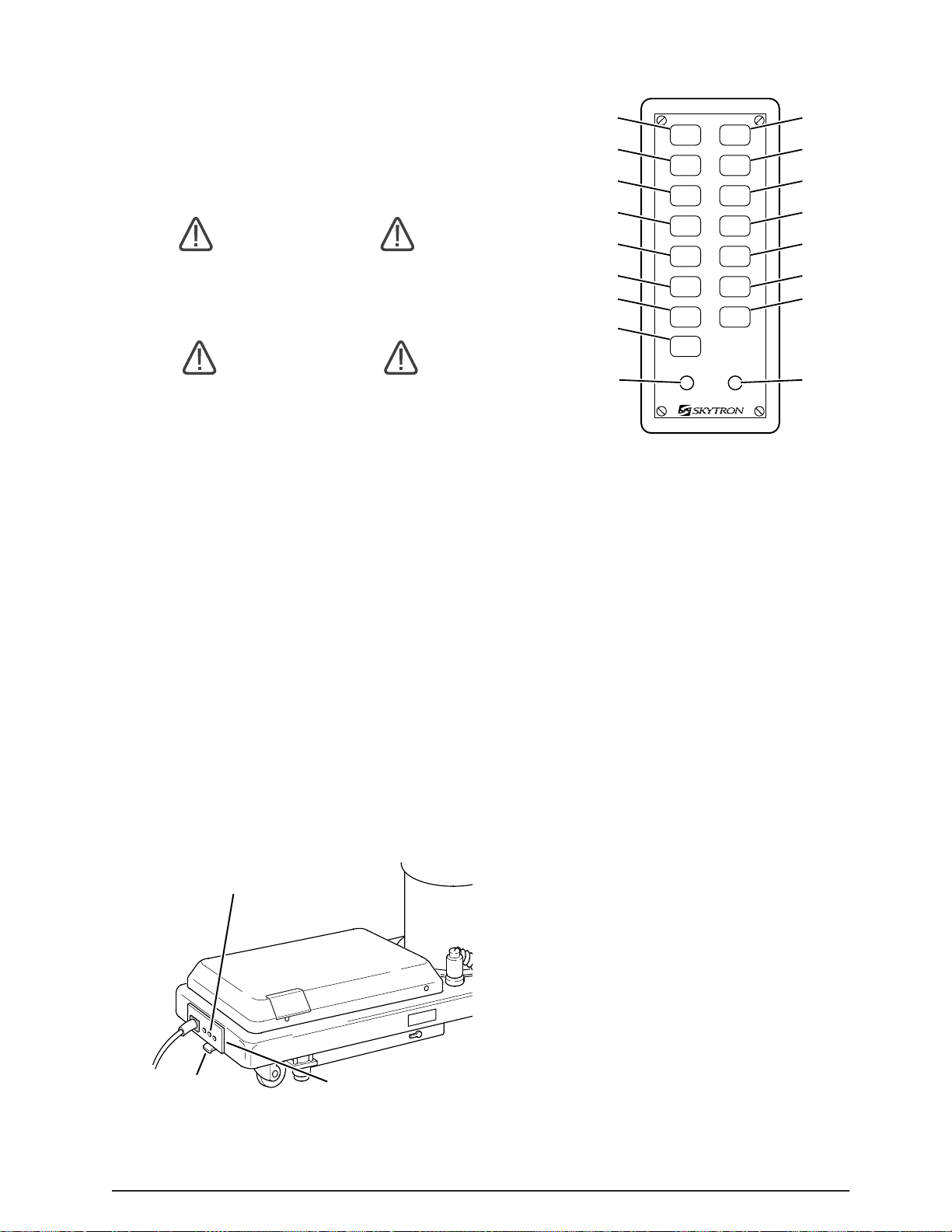

BATTERY CHARGING
INDICATOR LIGHT
MAIN POWER SWITCH ELECTRICAL ENCLOSURE
REV.
TREND TREND
TILT
LEFT TILT
RIGHT
BACK
UP BACK DOWN
TABLE
UP TABLE DOWN
LEG
UP LEG DOWN
FLEX REFLEX
RETURN
BRAKE
UNLOCK
POWER ON
REVERSE
TRENDELENBURG
LATERAL
TILT LEFT
BACK UP
TABLE UP
LEG UP
FLEX
RETURN
TRENDELENBURG
LATERAL
TILT RIGHT
BACK DOWN
TABLE DOWN
LEG DOWN
REFLEX
BRAKE
RELEASE
AC120V POWER ON
INDICATOR LIGHT
(GREEN)
*
PRESS TO LOCK BRAKES
BATTERY
BATTERY POWER
INDICATOR LIGHT
(AMBER)
BATT
BATTERY ON/OFF
SELECTOR BUTTON
*

8
2-4. Automatic Shut-Off
a. To prevent unnecessary discharge of the
battery, a timer is built into the battery circuit. This
timerwillautomaticallyshutthebatterypowerOFF
after 3-4 hours of table inactivity.
b. Toturnthetable“ON”again,simplypressthe
BATTbuttononthependantcontrolandtheamber
indicator light will illuminate. Select any control
button to operate the table.
2-5. Charging the Battery
Batteries should be charged:
•When the table is placed into initial
service
•Asindicatedbyredindicatorlightblink-
ing
•Every week in normal service
NOTE
Ifthetableisstoredforaperiodgreater
than 6 months, the batteries should be
removed and stored in a dry, clean
condition at a storage temperature of
68° F (20° C). Batteries should be re-
charged every 6 months of product
storage.
a. If the battery needs to be charged when
operating the table on battery power, the amber
indicator light on the pendant control will begin to
blink. At this time the battery needs to be re-
charged.
NOTE
When the amber light starts to blink
(indicating low power in battery) the
table will operate for approximately 5
continuous minutes, typically long
enough to use the table for the rest of
the day.
NOTE
The charging system operates ONLY
when the table is in AC120V operation
mode.
NOTE
The table can be operated on 120VAC
power while the battery is being re-
charged. ThegreenAC120Vindicator
light(onthependantcontrol)willillumi-
nate confirming 120VAC operation.
b. To recharge the battery simply plug the
power cord into a 120VAC wall outlet, if not
already plugged in. Turn the main power ON/
OFF switch ON by depressing it. The green
battery charging light, located next to the power
cord,will illuminate.
c. A full battery charge will last approximately 2
weeks under normal operating conditions. How-
ever, it is recommended to charge the batteries at
theend ofeach weekto establisha normal routine
protocol. Lead acid batteries last longer if they are
notpermitted to fullydischarge. Thetablefeatures
(2)12volt,sealed,leadacidbatterieswhichrequire
no manual maintenance. Lead acid gel batteries,
under a proper charging program, feature an ap-
proximate normal life of 4 years.

9
b. In the event of either a power failure or a
problem with the hand-held pendant control, the
table can be operated using the emergency back-
up switches. Simply push the desired emergency
switch in the appropriate direction to operate the
tablefunctions. Seefigure2-4.Theseswitchesare
spring-loadedsotheyreturntotheneutralorcenter
position when released.
Figure 2-4. Emergency Back-Up Controls
a. Theemergencyback-upcontrolswitchesare
located under the access door on the service
access cover in the table base. See figure 2-3.
NOTE
The emergency back-up control
switches will function when the table is
operating on 120VAC power, battery
power, or turned off.

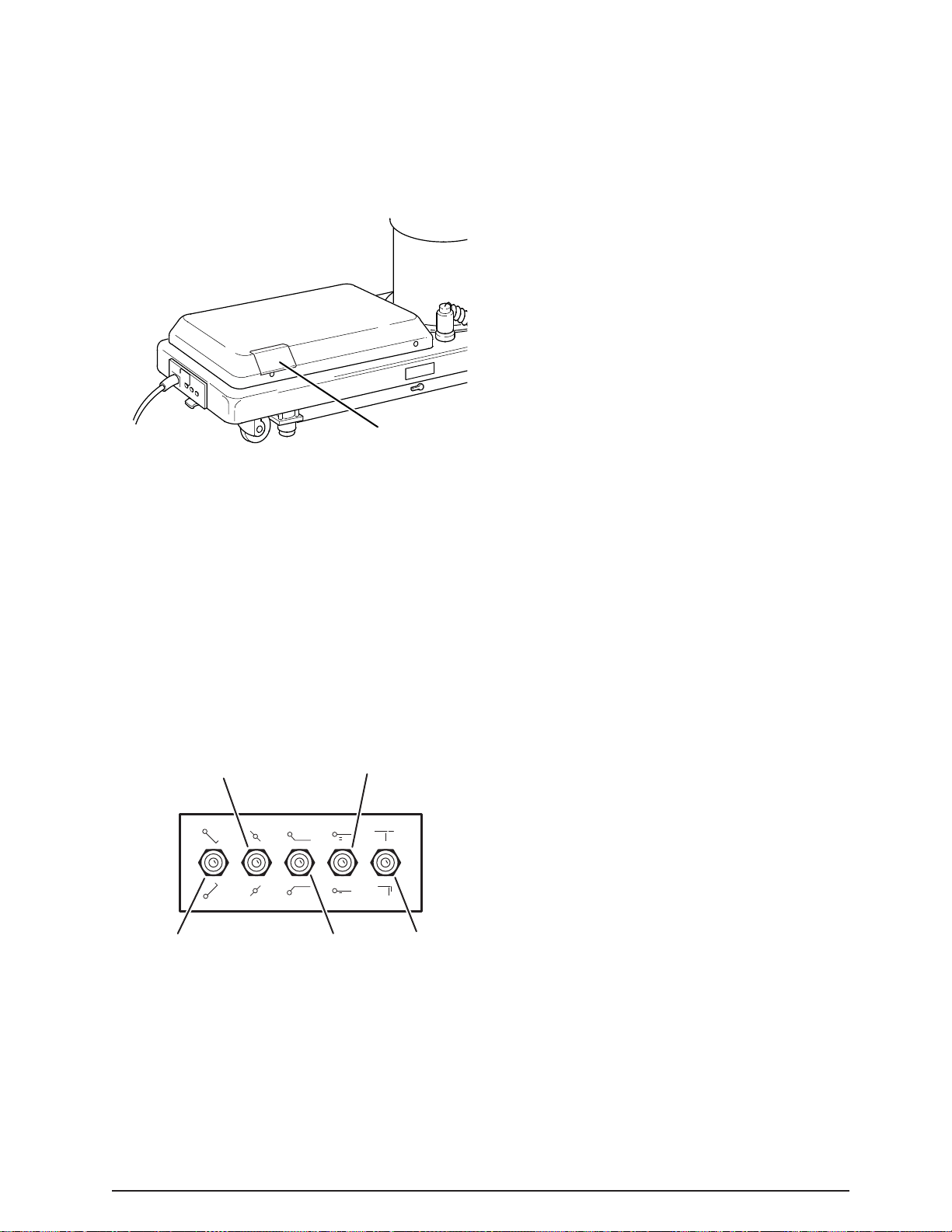

2-6. Emergency Back-up Controls
FUNCTION CONTROL
ACCESS DOOR
LAT.TILT
LEFT/RIGHT
TREND
REV.TREND BACK UP/DOWN LEG UP/DOWN
TABLE
UP/DOWN
Figure 2-3. Emergency Controls Location

10
a. Floor Lock/Brake System. To activate
thebrakeswithoutaffectingtablepositioning,press
the TABLE UP button. See figure 3-3. The
elevationcylinder will notfunctionuntil thebrakes
are completely extended.
Press the BRAKE UNLOCK button on the pen-
dantcontrol to releasethe four self-levelingbrake
feetinordertomovethetable. Seefigure3-3.The
brakedelaycircuitautomaticallyretractsthebrake
system with just one press of the BRAKE UN-
LOCKbutton. Ittakesapproximately7-8seconds
to totally release the system.
WARNING
DONOTunlockbrakeswhenapatient
is on the table. An uneven patient
weight load may cause instability.
b.Trendelenburg. Toplacethesurgicaltable
in a Trendelenburg (head down) position, press
the TREND button (figure 3-4). Trendelenburg
positioningofupto30°maybeobtained. Toplace
the table in a reverse trendelenburg (head up)
position,pressthe REVTRENDbutton. Reverse
Trendelenburg positioning of up to 30° may be ob-
tained.
REVERSE
TRENDELENBURG TRENDELENBURG
LATERAL
TILT LEFT LATERAL
TILT RIGHT
BACK UP BACK DOWN
TABLE UP TABLE DOWN
LEG DOWN
REFLEX
BRAKE
RELEASE
POWER ON
INDICATOR
POWER ON
PRESSTO LOCK BRAKES
RETURN
FLEX REFLEX
BRAKE
UNLOCK
LEG
DOWN
LEG
UP
TABLE
UP
BACK
UP
TILT
LEFT TILT RIGHT
TREND
REV.
TREND
BACK
DOWN
TABLE
DOWN
LEG UP
FLEX
RETURN
TABLE UP
BRAKE
RELEASE
POWER ON
PRESSTO LOCK BRAKES
RETURN
FLEX REFLEX
BRAKE
UNLOCK
LEG
DOWN
LEG
UP
TABLE
UP
BACK
UP
TILT
LEFT TILT RIGHT
TREND
REV.
TREND
BACK
DOWN
TABLE
DOWN
3-1. Electrical Power
a. Check to be sure the power cord is plugged
intoaproperlygrounded,HospitalGrade,120VAC
outlet. Makesurethepowercordisroutedsoasto
prevent it from being in the way of the operating
personnel.
b. Depress “Main Power ON/OFF” switch on
theelectricalenclosure. Seefigure3-1.Thegreen
POWER ON indicator light on the pendant control
should now be illuminated.
NOTE
Themainpowerswitchcanbeplacedin
the OFF position to completely deacti-
vatealltablefunctionsifrequiredduring
certain procedures or in case of emer-
gency.
Figure 3-1. Main Power Switch
3-2. Positioning Functions
The hand-held pendant control (figure 3-2) acti-
vates the following table functions:
SECTION III OPERATION
Figure 3-3. Brake System Activation
MAIN
POWER SWITCH
POWER
CORD
ELECTRICAL
ENCLOSURE
NOTE
Withanevenlydistributedpatientweight
load, all table positioning functions will
operate smoothly and quietly with a
patient weight of up to 600 pounds.
Referto section3-8 forspeciality posi-
tioning.
Figure 3-2. Pendant Control Unit

11

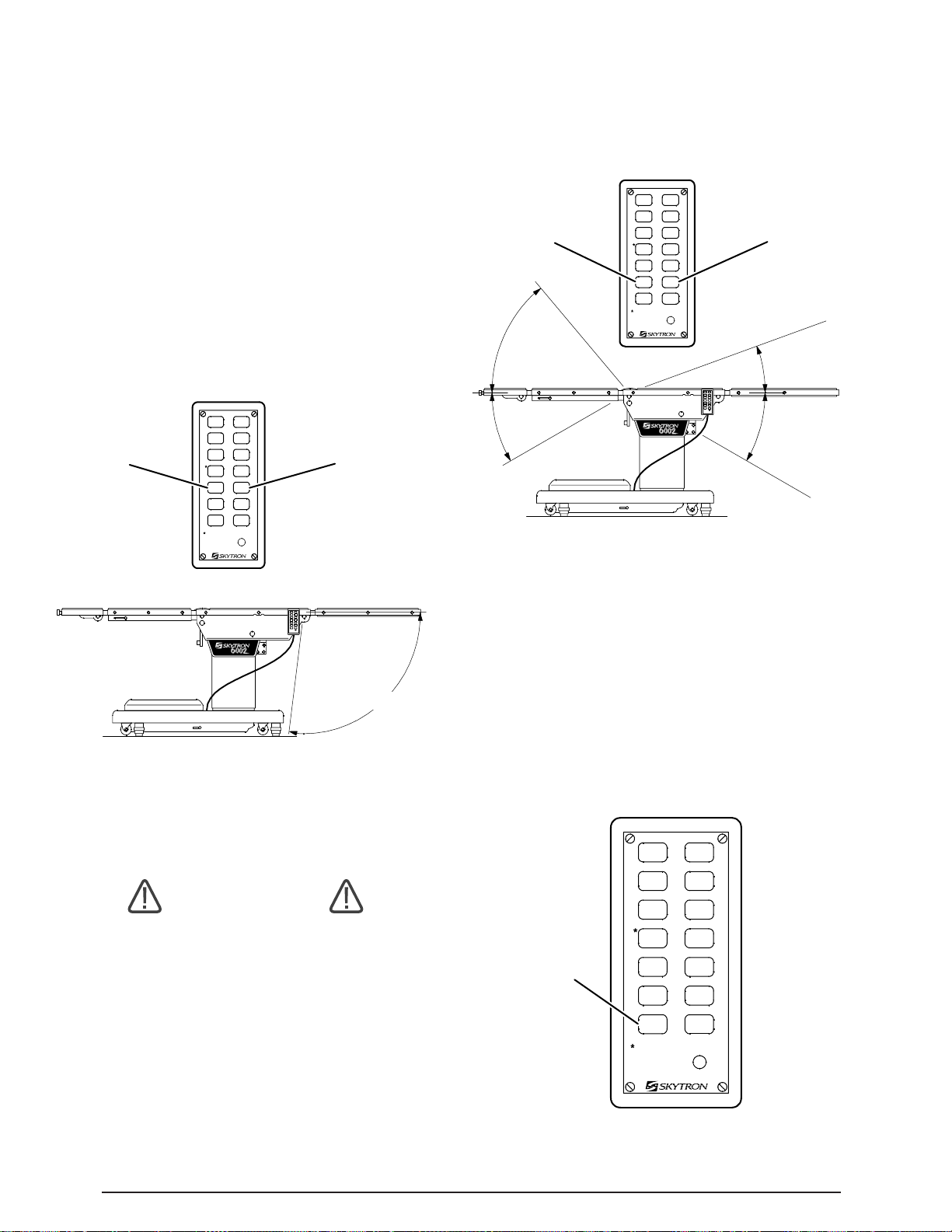

Figure 3-4. Trendelenburg Positioning
c. Lateral Tilt. To achieve lateral tilt right (as
viewed from the head end of the table), press the
TILTRIGHTbutton(figure3-5). Tiltofupto30°may
be obtained. To achieve lateral tilt left, press the
TILTLEFTbutton. Tiltofupto30°maybeobtained.
WARNING
To maximize patient safety, utilize
properrestraintmethodsduringextreme
lateraltiltpositioning.
CAUTION
To prevent damage to the kidney lift,
make sure the kidney lift is completely
down before raising the back section.
Figure 3-6. Back Section Positioning
e. Elevation. To raise table top, press the
TABLE UP button (figure 3-7). The table will lift a
patient weight of 600 pounds up to a maximum
height of 43". To lower the table top, press the
TABLE DOWN button. The table top will go down
to a minimum height of 28".
Figure 3-7. Elevation Function
TABLE-UP
43"
28"
TABLE-DOWN
POWER ON
PRESS TO LOCK BRAKES
RETURN
FLEX REFLEX
BRAKE
UNLOCK
LEG
DOWN
LEG
UP
TABLE
UP
BACK
UP
TILT
LEFT TILT RIGHT
TREND
REV.
TREND
BACK
DOWN
TABLE
DOWN
WARNING
To maximize patient safety, utilize
proper restraint methods during ex-
treme Trendelenburg positioning.
REVERSE
TRENDELENBURG TRENDELENBURG
POWER ON
PRESS TO LOCK BRAKES
RETURN
FLEX REFLEX
BRAKE
UNLOCK
LEG
DOWN
LEG
UP
TABLE
UP
BACK
UP
TILT
LEFT TILT RIGHT
TREND
REV.
TREND
BACK
DOWN
TABLE
DOWN
30˚
30˚
LATERAL
TILT LEFT LATERAL
TILT RIGHT
POWER ON
PRESS TO LOCK BRAKES
RETURN
FLEX REFLEX
BRAKE
UNLOCK
LEG
DOWN
LEG
UP
TABLE
UP
BACK
UP
TILT
LEFT TILT RIGHT
TREND
REV.
TREND
BACK
DOWN
TABLE
DOWN
30˚ 30˚
BACK UP BACK DOWN
POWER ON
PRESS TO LOCK BRAKES
RETURN
FLEX REFLEX
BRAKE
UNLOCK
LEG
DOWN
LEG
UP
TABLE
UP
BACK
UP
TILT
LEFT TILT RIGHT
TREND
REV.
TREND
BACK
DOWN
TABLE
DOWN
90˚
40˚
d. Back Section. To raise the back section,
press the BACK UP button (figure 3-6). The back
section will raise up to 90° above horizontal. To
lower the back section, press the BACK DOWN
button. Thebacksectionwillgodownto40°below
horizontal.
Figure 3-5. Lateral Tilt Positioning

12
Figure 3-8. Leg Section Positioning
WARNING
The Leg section may hit the table base
or the floor if both the leg and elevation
systems are placed in their full down
position.
Figure 3-10. Return To Level
RETURN
TO LEVEL
POWER ON
PRESSTO LOCK BRAKES
RETURN
FLEX REFLEX
BRAKE
UNLOCK
LEG
DOWN
LEG
UP
TABLE
UP
BACK
UP
TILT
LEFT TILT RIGHT
TREND
REV.
TREND
BACK
DOWN
TABLE
DOWN
g. FlexPositioning. Toplacethetabletopina
flexpositionfromhorizontal,presstheFLEXbutton
(figure 3-9). To return the table top to a horizontal
position or into a reflex position, press the RE-
TURN or REFLEX button.
Figure 3-9. Flex/Reflex Positioning
h. Return To Level. To return the table top to
a level position, press the RETURN button (figure
3-10).
NOTE
Elevation and brake system functions
are not affected by the return to level
function.
f. Leg Section. To lower the leg section press
theLEGDOWNbutton(figure3-8). Thelegsection
willgodownto105°belowhorizontal. To raise the
leg section, press the LEG UP button. The leg
section will go up to horizontal.
LEG UP
105˚
LEG DOWN
POWER ON
PRESSTO LOCK BRAKES
RETURN
FLEX REFLEX
BRAKE
UNLOCK
LEG
DOWN
LEG
UP
TABLE
UP
BACK
UP
TILT
LEFT TILT RIGHT
TREND
REV.
TREND
BACK
DOWN
TABLE
DOWN
FLEX REFLEX
POWER ON
PRESSTO LOCK BRAKES
RETURN
FLEX REFLEX
BRAKE
UNLOCK
LEG
DOWN
LEG
UP
TABLE
UP
BACK
UP
TILT
LEFT TILT RIGHT
TREND
REV.
TREND
BACK
DOWN
TABLE
DOWN

13
LEG
SECTION HEAD
SECTION
LOCKING
KNOB
LOCKING
KNOB
PENDANT CONTROL
STORAGE BRACKET
i. Pendant Control Storage. When the Pen-
dant Control is not in use, it should be stored on a
convenient side or end rail. A bracket is located
under the table top for storage of the Pendant
Control when the table is not in use and during
cleaning. See figure 3-11.
Figure 3-11. Pendant Control Storage
Bracket
3-4. Head Section
a. Aquickreleasepositioningbarlocatedunder
and to the front of the head section (figure 3-13) is
used to raise or lower the head section. Pull the
release bar toward the head end to allow the
section to pivot up or down. Positioning from 75°
above horizontal to 90° below horizontal in 15°
incrementsisavailable. Releasethebartolockthe
head section in position.

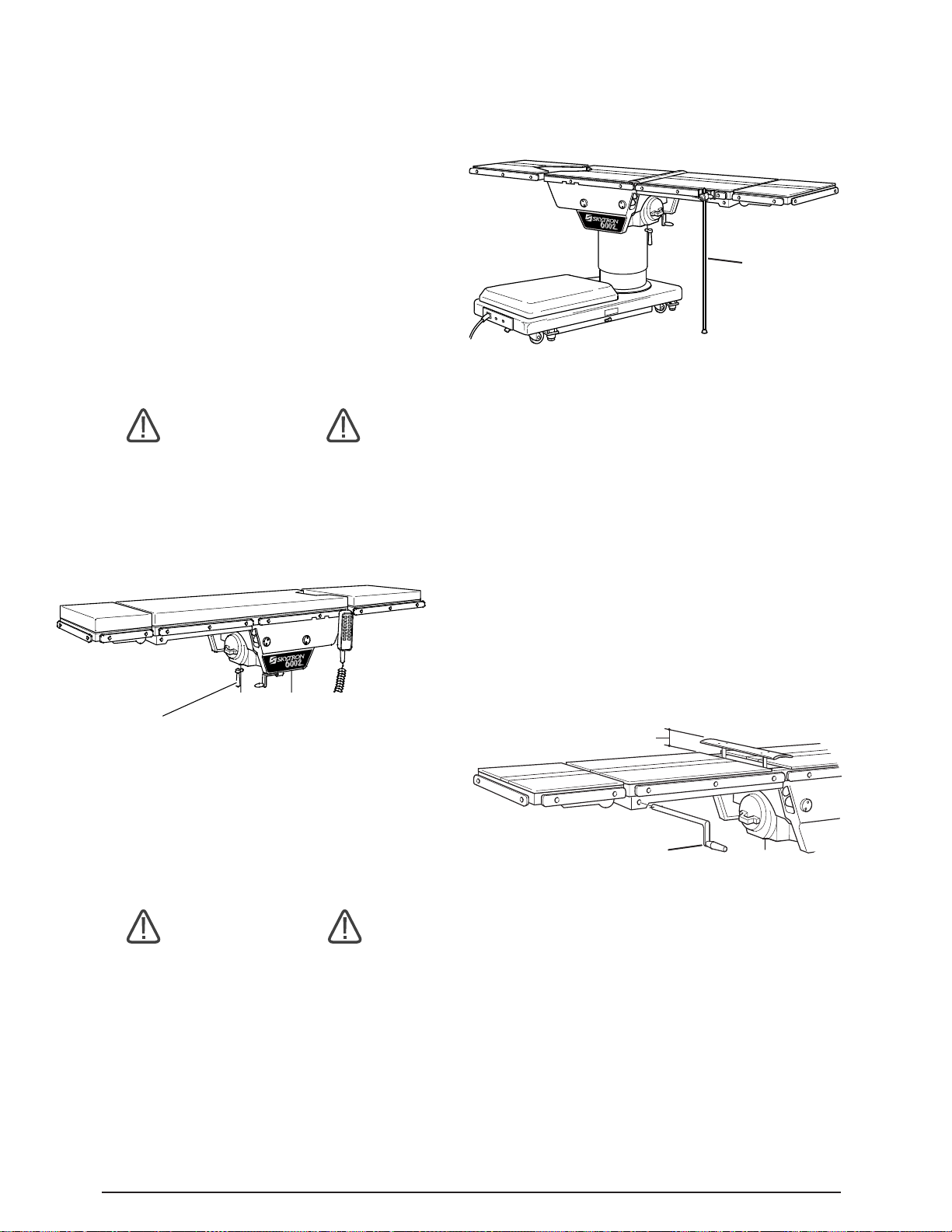

Figure 3-13. Head Section Adjustment
b. Bylooseningtwolockingknobsbeneaththeback
section, an additional 5" of longitudinal adjustment
canbeachieved. Ifdesired,theheadsectionmaybe
removed by loosening the locking knobs and pulling
itstraightoutofthebacksection.6002SeriesTables
havethecapabilityofattachingtheheadsectiontothe
legsectionforuseasafootextensionONLY. DoNot
reversethepatientonthetablewithoutfirstconsulting
with SKYTRON. Two locking knobs are located on
the inside of the leg section for securing the head
section. See figure 3-14.
Figure 3-14. Repositioning Head Section
•IftheEmergencyBrakeReleaseValve
has been operated, the UNLOCK but-
ton on the pendant control will have to
be pressed before brakes will lock
again.
3-3. Emergency Brake Release.
In case of a power failure or an electrical problem
within the table, the emergency brake release
systemcanbeusedtomovethetable. Thecontrol
lever for this function is located on the side of the
table base and is identified by an EMERGENCY
BRAKE RELEASE label. Turn the lever counter-
clockwise to release the brakes. See figure 3-12.
NOTE
The Emergency Brake Release Valve
must be closed and tightened (clock-
wise) before activating any function.
HEAD SECTION
RELEASE BAR
EMERGENCY
BRAKE RELEASE
BRAKE (4)
SERVICE
ACCESS COVER
Figure 3-12. Emergency Brake Release

14
3-5. 180 Degree Table Top Rotation.
NOTE
Normal table top position is with the
head(andback)sectionoverthepower
cord end of the base.
a. Thetabletopcanbehorizontallyrotated180°
without having to rotate the entire table. To rotate
thetop, turn the TOP ROTATIONLOCK HANDLE
counterclockwise (figure 3-15), grasp the table by
theheadendandrotatethetop180°counterclock-
wise. LockthetopinpositionbytighteningtheTOP
ROTATION LOCK HANDLE clockwise.
WARNING
Always lock the table top in position
after rotation. DO NOT rotate the top
with an unevenly distributed patient
weight load as instability may result.
Figure 3-15. 180 Degree Top Rotation
b. The use of the optional support rod allows
the table top to be rotated 90° from the base. See
figure3-16.
WARNING
•MakesuretheTOPROTATIONLOCK
HANDLE is tightened and the brakes
are set before transferring the patient.
•Exercise caution with the table top
rotated90°tothebasesinceanimprop-
erly distributed patient load may cause
the table to be tipped over.
3-6. Kidney Lift
a. Thebuilt-inkidney lift isoperatedbya manual
hand crank system and allows 5-3/4 inches of lift.
See figure 3-17. The hand crank is stored in a
bracket on the lower right hand side frame (as
viewed from the head end of the table).
HAND CRANK
5-3/4" MAX
SUPPORT
ROD
Figure 3-16. 90 Degree Top Rotation
TOP ROTATION
LOCK HANDLE
Figure 3-17. Optional Kidney Lift

15
WARNING
Consult manufacturer's instructions
when using high frequency surgical
equipment,cardiacdefibrillatorandcar-
diac defibrillator monitors.
WARNING
Whenanantistaticpathwayisrequired,
thetablehastobeusedonanantistatic
floor.
WARNING
Theantistaticpropertiesofthetableare
dependentontheuseoftheoriginalpad
set which was furnished with the table
or an alternate approved replacement.
3-7. Positioning

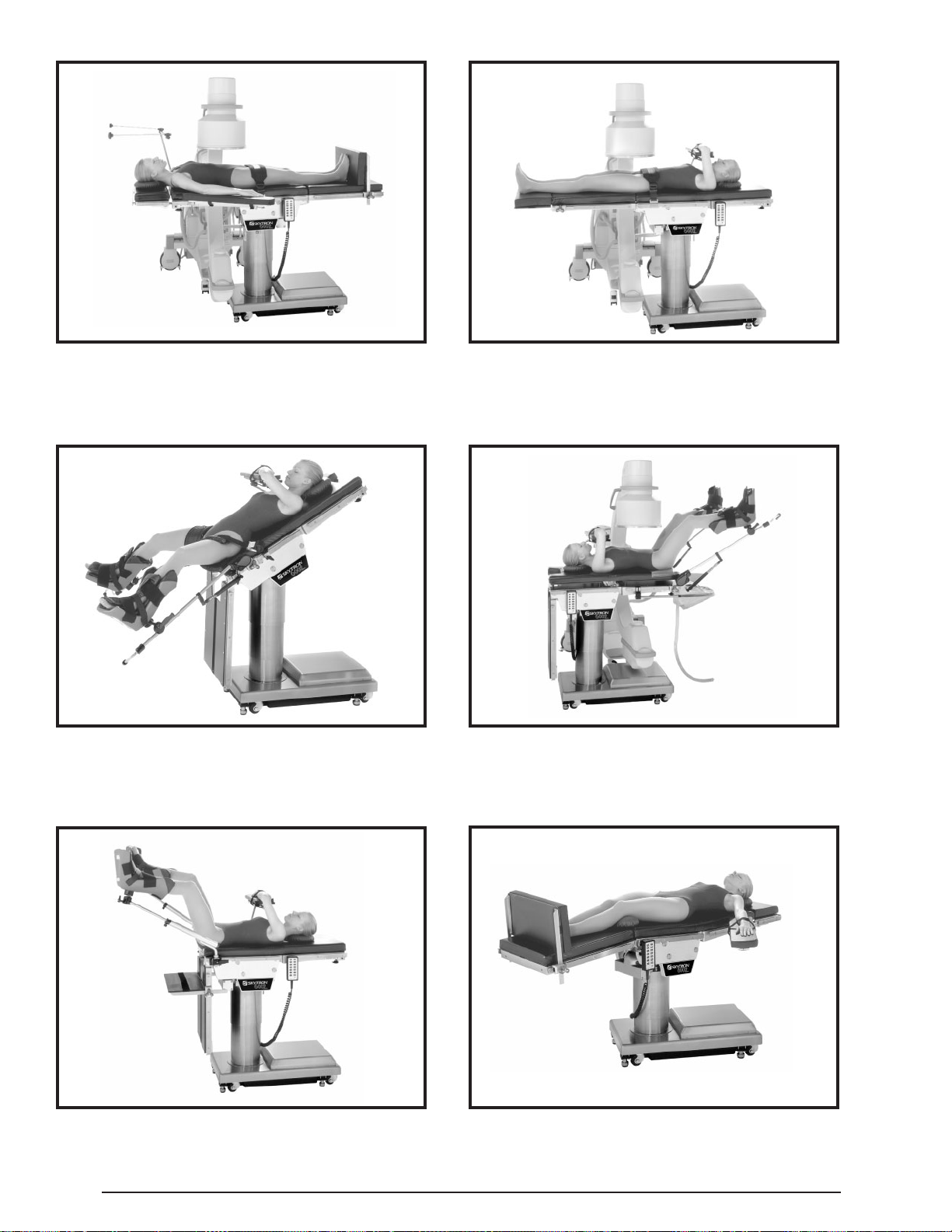

The use of certain optional accessories available
from SKYTRON further extend the positioning
capabilitiesofthe6002SeriesTables. Refertothe
following "Positioning Guidelines" or contact your
SKYTRON representative for further details.
WARNING
Certain accessories may limit weight
capacities. check with your SKYTRON
representative.
Refer to paragraph 3-8 for specialty accessories
and positioning for patients over 500 lbs.
b. To operate, connect the handle to the drive
mechanism on right side of the back section. Ro-
tate the handle clockwise to raise the lift and
counterclockwise to lower it.
CAUTION
To prevent damage to the kidney lift,
make sure the kidney lift is completely
down before raising the back section.
See figure 3-18.
BACK
SECTION
SEAT
SECTION
Figure 3-18.

16
6002 Series Patient Positioning Guidelines
OB/GYNAccessories: RaisedArmboard(2-020-01-1),
Ankl-LockStirrups(4-010-04-1),10"FootExtension(4-
030-13).
Ophthalmic/ENTAccessories: StandardArmboard(2-
010-02)and2"Sof-Pad(2-010-02-2S),10"FootExtension
(4-030-13)and2"Pad(4-030-13-2P).
UpperBodyImagingAccessories: "L"TypeAnesthesia
Screen(6-020-04-1),StandardArmboard(2-010-02)and
2" Pad (2-010-02-2P), Snap Strap (6-010-42), 10" foot
Extension(4-030-13)and2"Pad(4-030-13-2P).
LowerBodyImagingAccessories: Multi-TaskArmboard
with Pad (2-020-02), Snap Strap (6-010-42), 10" Foot
Extension(4-030-13)and2"Pad(4-030-13-2P).
LapNissenAccessories: Multi-TaskArmboardwithPad
(2-020-02),NissenStrap(6-010-51),LevitatorStirrups(4-
090-03-1).
Ureteroscopy/CystoAccessories: Mult-TaskArmboard
withPad(2-020-02),LevitatorStirrups(4-090-03-01),Uro
Catcher(4-040-14),UroCatcherPouch(4-040-14-10).

17
6002 Series Patient Positioning Guidelines
Thoracic/KidneyAccessories: StandardArmboard(2-
010-02),and2"Pad(2-010-02-2P),Multi-TaskArmboard
with Pad (2-020-02), Snap Strap (6-010-42), Universal
Patient Positioners (3-010-03), 10" Foot Extension (4-
030-13)and2"Pad(4-030-13-2P).
NeurosurgeryAccessories: Multi-TaskArmboardwith
Pad(2-020-02),SnapStrap(6-010-42),10"FootExtension
(4-030-13),andPad(4-030-13-2P).
ShoulderAccessories: ShoulderArthroscopyPositioner
(3-040-06),LateralBrace(3-010-04),Multi-TaskArmboard
with Pad (2-020-02), Snap Strap (6-010-42), 10" Foot
Extension (4-030-13),and2"Pad(4-030-13-2P).
HipAccessories: Multi-TaskArmboardwithPad(2-020-
02),StandardArmboard(2-010-02)and2"Pad(2-010-02-
2P),SnapStrap(6-010-42),UniversalPatientPositioner
(3-010-03).
LumbarAccessories: Multi-TaskArmboardwithPad(2-
020-02),SafetyStrap(6-010-50). Vascular/OrthopedicAccessories: Multi-TaskArmboard withPad(2-020-02),UniversalSplitLegwith2"Pad(pair)
(4-030-60).
