SURGICALTABLE
MODEL 1700
OPERATORS MANUAL

18

19
MODEL 1700
SKYTRON STANDARD LIMITED WARRANTY
SKYTRON, a Division of the KMW Group, Inc. (SKYTRON) warrants all new products sold by it directly or through a dealer or other
authorized representative, with exception to replacement parts, spares, bulbs (surgical lights), pads, and accessory items (surgical tables)
to be free from defects in material or workmanship, under normal use and service, for a period of two (2) years. This warranty shall include
the cost of repair or replacement of defective parts including the cost of service labor and travel time to the site of equipment use. Delays
caused by the user in accessing the equipment for repair will be chargeable at the normal hourly rate for service by SKYTRON’s authorized
service representative. The warranty period shall begin with the initial operation or one (1) year after receipt of the product, whichever shall
occur first.
Replacement parts, spares, bulbs (surgical lights), pads and accessory items (surgical tables) are warranted to be free from defects in material
orworkmanship,undernormaluseandservice,foraperiodofninety(90)daysfromreceiptbytheultimateuser,with exception to replacement
parts supplied by SKYTRON, for products under warranty, which shall be covered for any remaining period of the original product warranty,
or for 90 days, whichever is of greater benefit to the ultimate user.
SKYTRON’sresponsibilityandliabilityshallbelimitedtotherepairorreplacementof any part which we, SKYTRON, determine to be defective
withintheapplicablewarrantyperiod. Minoradjustmentsrequiredasaresultofnormalwearduring the use of the product within the warranty
period are not covered under warranty. The labor portion of this warranty is covered by SKYTRON’s Authorized Service Agent. Repairs
made by others are not authorized nor covered by SKYTRON with respect to labor costs.
SKYTRONshallnotbeliableforanyotherexpense,lossordamage,whetherdirect,incidental, consequentialorexemplaryarisinginconnection
with the sale or use of or the inability to use SKYTRON products.
NO EXPRESS WARRANTY IS GIVEN BY SKYTRON WITH RESPECT TO ITS PRODUCTS EXCEPT AS SPECIFICALLY SET FORTH
HEREIN. ANYWARRANTY IMPLIED BY LAW, INCLUDING ANY WARRANTY OFMERCHANTABILITYORFITNESSFORAPARTICULAR
PURPOSE, IS EXPRESSLY LIMITED TO THE TWO-YEAR AND 90-DAY TERMS SET FORTH ABOVE. THE FOREGOING STATEMENTS
OF WARRANTY ARE EXCLUSIVE AND IN LIEU OF ALL OTHER REMEDIES.
No dealer, agent, employee or other representative of SKYTRON is authorized to extend or enlarge this warranty.
12/03
Although current at the time of publication, SKYTRON’s policy of continuous development makes this
manual subject to change without notice.

18

1
TABLE OF CONTENTS
Title Page
EQUIPMENT LABELS AND SPECIFICATIONS .................................................................................... 2
1700 Surgical Table Specifications .......................................................................................................... 3
SPECIAL USER ATTENTION ................................................................................................................ 4
SECTION I INTRODUCTION ................................................................................................................. 7
1-1. General......................................................................................................................................... 7
1-2. Power Requirements.................................................................................................................... 7
1-3. Pendant Control Unit .................................................................................................................... 8
1-4. Floor Lock/Brake System............................................................................................................. 8
SECTION II OPERATION....................................................................................................................... 9
2-1. Electrical Power ........................................................................................................................... 9
2-2. Positioning Functions ................................................................................................................... 9
a. Floor Lock/Brake system ..................................................................................................... 10
b. Trendelenburg ...................................................................................................................... 10
c. LateralTilt ............................................................................................................................. 10
d. Back Section ........................................................................................................................ 11
e. Elevation............................................................................................................................... 11
f. Leg Section........................................................................................................................... 11
2-3. Emergency Brake Release ........................................................................................................ 12
2-4. Head Section.............................................................................................................................. 12
2-5. 180 Degree Table Top Rotation. ................................................................................................ 13
2-6. Positioning.................................................................................................................................. 14
SECTION III MAINTENANCE ............................................................................................................... 16
3-1. Preventive Maintenance............................................................................................................. 16
3-2. Cleaning Recommendations ...................................................................................................... 16
3-3. Service ....................................................................................................................................... 17

2
INDICATES DANGEROUS VOLTAGE, 120 V, 60 Hz
CLASS I DEFIBRILLATION PROOF, TYPE B EQUIPMENT- IPX4 RATED.
INTERNALLY POWERED EQUIPMENT
PROTECTIVE GROUNDING.
IN ORDER TO ENSURE PROPER GROUNDING RELIABILITY,
THIS TABLE MUST BE CONNECTED TO A PROPERLY GROUNDED
HOSPITAL GRADE OUTLET.
CONNECTION FOR NEUTRAL CONDUCTOR SUPPLIED
UNIT TO BE USED ONLY IN SPECIFIED ENVIRONMENTAL CONDITIONS
IPX4
V
TEMPERATURE: 15˚ - 30˚ C (60˚ -85˚ F)
ENCLOSURE CLASS
VOLTAGE RATING OF THE UNIT
A
AMPERAGE RATING OF THE UNIT
HZ
FREQUENCY OF THE UNIT
ATTENTION, CONSULT MANUAL FOR FURTHER INSTRUCTIONS.
INDICATES SPECIAL USER ATTENTION.
POWERED BY AC VOLTAGE
AC VOLTAGE
HUMIDITY: 30% - 60% RELATIVE HUMIDITY, NON CONDENSING
TYPE B
EQUIPMENT
N
EQUIPMENT LABELS AND SPECIFICATIONS

3

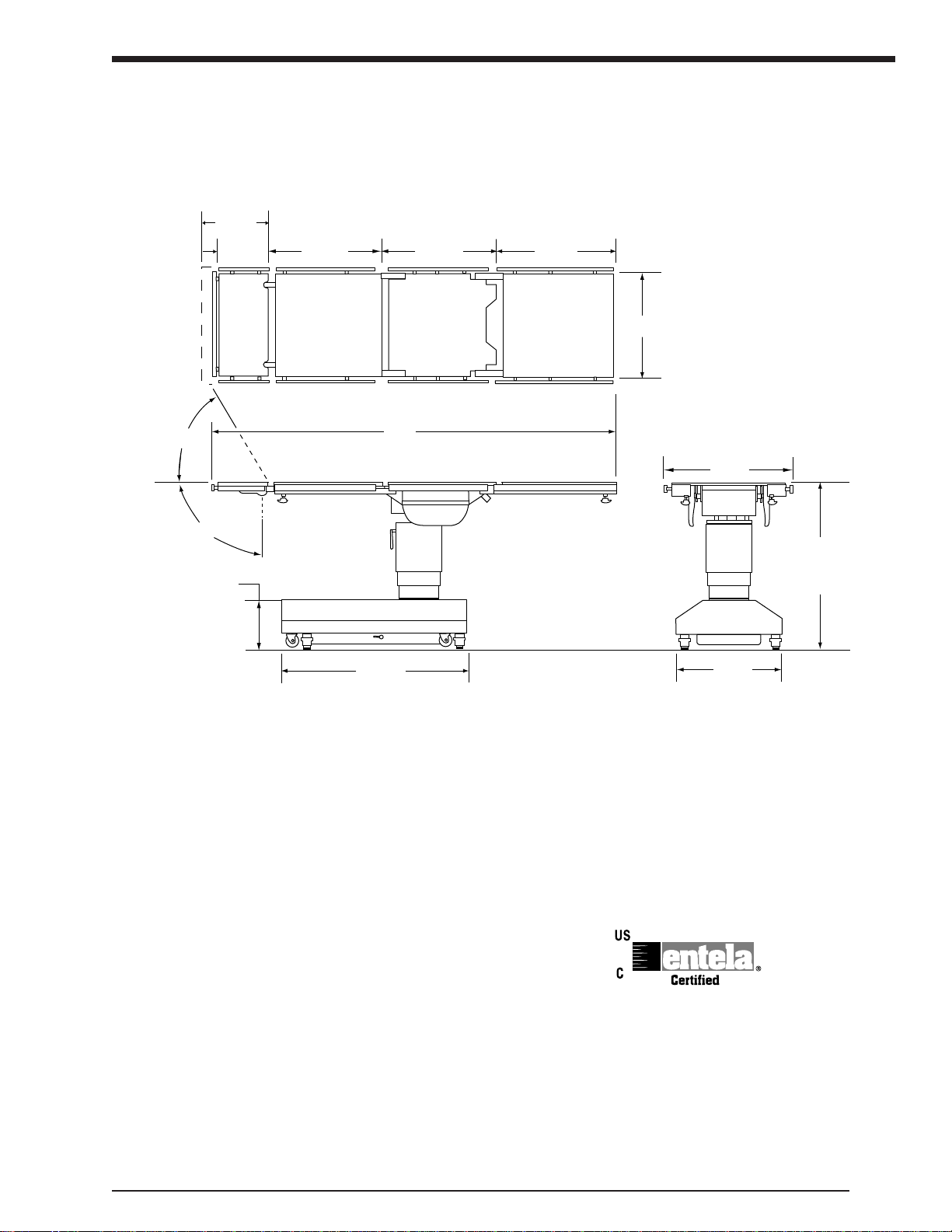

TOPVIEW
SIDEVIEW ENDVIEW
90˚
60˚
9-1/2" 22" 21-1/2" 22"
14-1/2"
76"
8-3/4"
35-1/2" 19"
22"
19-3/4"
39" Max
29" Min
Electrical Specifications
Power requirements
Current Leakage
Power Cord
ENTELA CERTIFIED
TO UL2601-1
CAN/CSA601.1, IEC 60601-2-46
120 VAC, 60Hz, 300 Watts
Less than 100 micro amps
15 feet w/hospital grade connector(removeable)
1700 Surgical Table Specifications

4
The positioning capabilities of the 1700 Table
requiresspecialattentionfor possible interference
pointswhenusingmultiplefunctionpositioning. As
with the operation of any surgical table, a certain
amountofcareshouldbe exercisedtoposition the
patientsafely. Althoughthethick padsand sheets
substantially protect the patient, pinch points, lo-
cated at the joints of the top section should always
be considered. BE SURE THAT THE ARMS,
HANDS AND FINGERS OF THE PATIENT AND
THOSE OF THE OPERATING ROOM PERSON-
NEL ARE CLEAR OF ALL MOVING PARTS BE-
FORE POSITIONING THE TABLE. Proper re-
straints should always be used for patient safety.
Certain accessories such as the Armboards and
Table Side Extensions can be damaged when
changing the position of the table top sections.
Always look first to see if a desired movement is
going to interfere with any accessories in use.
The operator has the ultimate responsibility of
preventing damage to the table and surrounding
equipment or possible injury to the patient or staff.
In general, common sense will dictate when there
is a potential hazard.
The following precautions should be reviewed
by all personnel prior to operating the table.
A routine Instructional Program should be
implemented by the facility for proper usage
instructions for all personnel that may operate
this table.
In every case it is recommended to keep the
equipment away from disturbance sources in-
cludingelectromagneticfieldsinordertoavoid
any possible instability and malfunctioning of
the equipment.
SPECIAL USER ATTENTION
WARNING
Indicatesapossibilityofpersonalinjury.
CAUTION
Indicates a possibility of damage to
equipment.
NOTE
Indicatesimportantfactsorhelpfulhints.

5
WARNING
DO NOT unlock brakes when a patient
is on the table. An uneven patient
weight load may cause instability.
WARNING
To maximize patient safety, utilize
properrestraintmethodsduringextreme
Trendelenburgpositioning.
WARNING
To maximize patient safety, utilize
properrestraintmethodsduringextreme
lateraltiltpositioning.
WARNING
The Leg section may hit the table base
or the floor if both the leg and elevation
systems are placed in their full down
position.
NOTE
Normal table top position is with the
head(andback)sectionoverthepower
cord end of the base.
WARNING
Always lock the table top in position
after rotation. DO NOT rotate the top
with an unevenly distributed patient
weight load as instability may result.
WARNING
Make sure the TOP ROTATION LOCK
HANDLE is tightened and the brakes
are set before transferring the patient.
WARNING
Risk of electrical shock. Make sure
power cord is disconnected prior to
accessing fuses.
NOTE
Activating any function button will acti-
vatethebrakesystem. UsingtheTABLE
UP function to set the brakes provides
a visual assurance that the brakes are
locked. As the brake cylinders are
extending, the entire table will move
slightly. When the table top begins to
elevate, the brakes are fully locked.
WARNING
DO NOT unlock brakes when a patient
is on the table. An uneven patient
weight load may cause instability.
WARNING
Never operate the table without ensur-
ing that the brakes are set.
NOTE
Themainpowerswitchcanbeplacedin
the OFF position to completely deacti-
vatealltablefunctionsifrequiredduring
certain procedures or in case of emer-
gency.
NOTE
Withanevenlydistributedpatientweight
load, all table positioning functions will
operate smoothly and quietly with a
patient weight of up to 500 pounds.
SPECIAL USER ATTENTION

6
WARNING
Exercise caution with the table top ro-
tated 90° to the base since an improp-
erly distributed patient load may cause
the table to be tipped over.
WARNING
AlwaysfollowOSHAblood-bornepatho-
gens standards for protective clothing,
including gloves, masks and eye pro-
tectionwhencleaningthesurgicaltable.
CAUTION
Thoroughly read and follow the
manufacturer's directions for all clean-
ing fluids. DO NOT use cleaners con-
tainingphenolics.
CAUTION
When using spray cleaners DO NOT
spray fluids directly into electrical re-
ceptacles.
CAUTION
Beforereplacingpadsonthetable,make
sure the pads and all mating surfaces
are completely dry. Moisture trapped
betweenthe pads andmating surfaces
may cause distortion of table tops.
SPECIAL USER ATTENTION
WARNING
Consult manufacturer's instructions
when using high frequency surgical
equipment,cardiacdefibrillatorandcar-
diac defibrillator monitors.
WARNING
Whenanantistaticpathwayisrequired,
thetablehastobeusedonanantistatic
floor.
WARNING
Theantistaticpropertiesofthetableare
dependentontheuseoftheoriginalpad
set which was furnished with the table
or an alternate approved replacement.
WARNING
Certain accessories may limit weight
capacities, check with your SKYTRON
representative.
NOTE
Always follow current AORN Journal
Guidelines to ensure proper cleaning
and disinfection procedure.
CAUTION
Cautionshouldbetakenwhencleaning
the table to prevent excessive fluid en-
try into electrical connectors.

7
MAIN POWER
SWITCH
POWER
CORD
Figure 1-1. Elite 1700
1-1. General
SKYTRON’sElite1700SurgicalTableisanelectro-
hydraulically operated, general purpose surgical
table. See figure 1-1.
The electro-hydraulic positioning functions oper-
atedbythehand-held,pushbutton,pendantcontrol
unit are: Trendelenburg, lateral tilt, back section,
elevation, leg section and the floor lock/brake sys-
tem.
Manualcontrolsareprovidedforheadsectionposi-
tioning and table top rotation.
1-2. Power Requirements
The Elite 1700 Surgical Table requires a 120VAC,
60Hzelectricalpowersupply. Thetableisequipped
with a removable 15 foot long power cord with a
standardthreeprong,hospitalgradeplug.Themain
power ON/OFF switch is located on the electrical
panel. See figure 1-2. Figure 1-2. Power Switch and Fuse Location
SECTION I INTRODUCTION
LEG SECTION
SEAT
SECTION
BACK SECTION
HEAD
SECTION
SIDE
RAIL
HEAD SECTION
LOCKING KNOB
TOP ROTATION
HANDLE
SERVICE
ACCESS COVER
POWER
CORD
MAIN POWER
SWITCH
FLOOR/LOCK
BRAKE (4)
EMERGENCY
BRAKE RELEASE
PENDANT
CONTROL

8

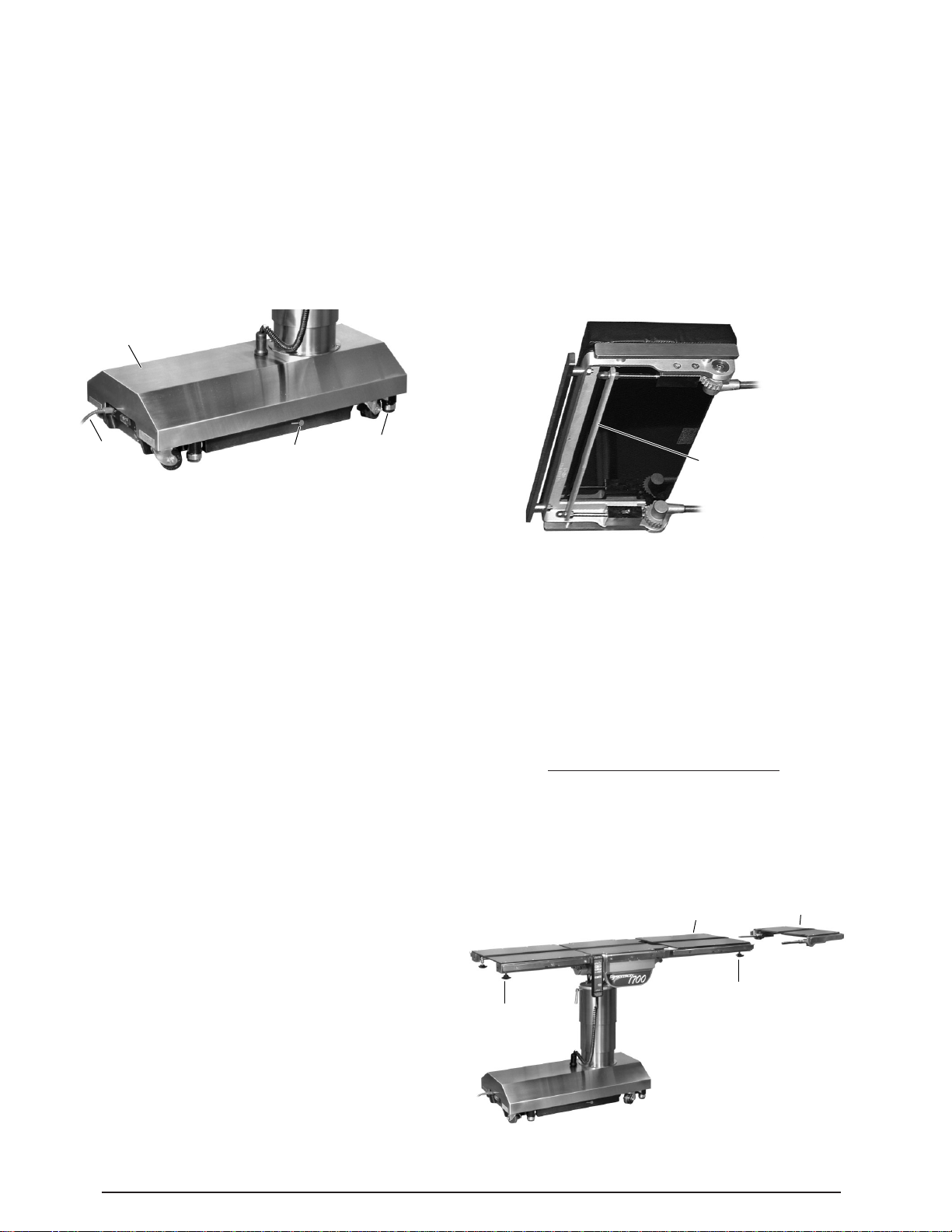

1-4. Floor Lock/Brake System
The floor lock/brake system consists of four self-
leveling,hydraulicbrake cylinders whichraiseand
support the table base off from the casters. Press
theTABLEUPbuttononthependantcontroltoset
thetable’sbrakes. Anelectronic timer willactivate
the brake system until the brakes are completely
set, approximately 8-10 seconds.
NOTE
Activating any function button will acti-
vatethebrakesystem. UsingtheTABLE
UP function to set the brakes provides
a visual assurance that the brakes are
locked. As the brake cylinders are
extending, the entire table will move
slightly. When the table top begins to
elevate, the brakes are fully locked.
To unlock the brakes, press the BRAKE UNLOCK
button and release. The brakes will retract auto-
matically in approximately 7-8 seconds.
WARNING
DO NOT unlock brakes when a patient
is on the table. An uneven patient
weight load may cause instability.
WARNING
Never operate the table without ensur-
ing that the brakes are set.

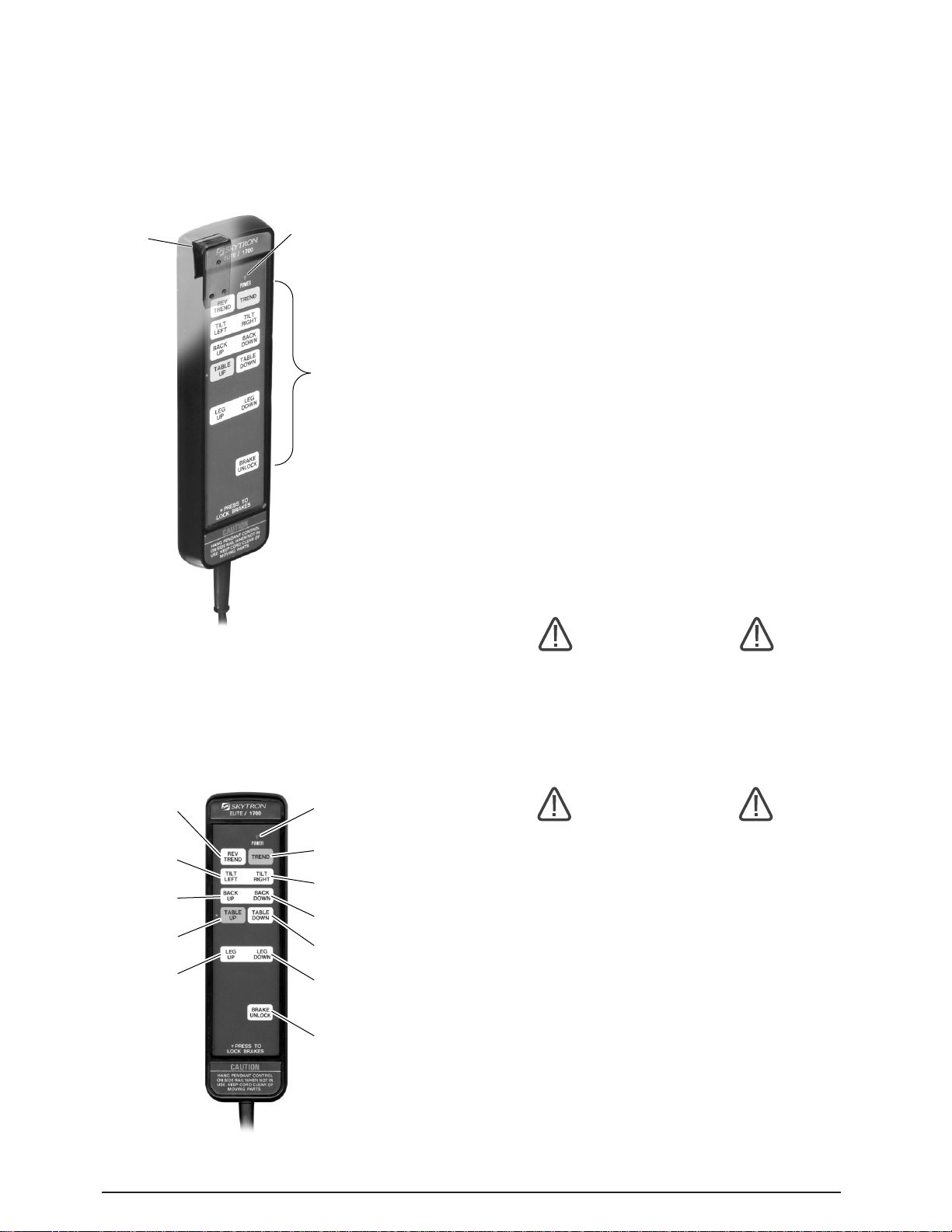

1-3. Pendant Control Unit
Thehand-heldpendantcontrolunit(figure1-3)has
a spring clip hanger located on the back of the
control for storage. When the Pendant Control is
notinuse,it should bestoredonaconvenient side
or end rail.
Thefunctionpushbuttonsareidentifiedwithabbre-
viateddescriptionsforallfunctions. Seefigure1-4.
TheTrendelenburgandtableupbuttonsareorange,
the remaining buttons are all white.
Figure 1-4. Function Push Buttons
Figure 1-3. Pendant Control Unit
AC120V POWER ON
INDICATOR LIGHT
(GREEN)
TABLE UP
(BRAKE LOCK)
LATERAL
TILT LEFT
BACK UP
LEG UP
LATERAL
TILT RIGHT
BACK DOWN
TABLE DOWN
LEG DOWN
BRAKE
UNLOCK
REVERSE
TRENDELENBURG
TRENDELENBURG
SIDE RAIL
CLIP
POWER
INDICATOR
FUNCTION
BUTTONS

9
SECTION II OPERATION
2-1. Electrical Power
a. Check to be sure the power cord is plugged
intoaproperlygrounded,HospitalGrade,120VAC
outlet. Makesurethepowercordisroutedsoasto
prevent it from being in the way of the operating
personnel.
b. Depress "Main Power ON/OFF" switch on
the electrical panel. See figure 2-1. The green
POWER ON indicator light on the pendant control
should now be illuminated.
NOTE
Themainpowerswitchcanbeplacedin
the OFF position to completely deacti-
vatealltablefunctionsifrequiredduring
certain procedures or in case of emer-
gency.
Figure 2-1. Main Power Switch
AC120V POWER ON
INDICATOR LIGHT
(GREEN)
TABLE UP
(BRAKE LOCK)
LATERAL
TILT LEFT
BACK UP
LEG UP
LATERAL
TILT RIGHT
BACK DOWN
TABLE DOWN
LEG DOWN
BRAKE
UNLOCK
REVERSE
TRENDELENBURG
TRENDELENBURG
2-2. Positioning Functions
The hand-held pendant control (figure 2-2) acti-
vates the following table functions:
Figure 2-2. Pendant Control Unit
NOTE
Withanevenlydistributedpatientweight
load, all table positioning functions will
operate smoothly and quietly with a pa-
tient weight of up to 500 pounds.
MAIN POWER
SWITCH
POWER
CORD

10
c. Lateral Tilt. To achieve lateral tilt right (as
viewedfrom the head end ofthe table),press the
TILT RIGHT button (figure 2-5). Tilt of up to 25°
maybeobtained. Toachievelateraltiltleft,press
the TILT LEFT button. Tilt of up to 25° may be
obtained.
WARNING
To maximize patient safety, utilize
proper restraint methods during ex-
treme lateral tilt positioning.
25˚
25˚
REVERSE
TRENDELENDURG TRENDELENDURG

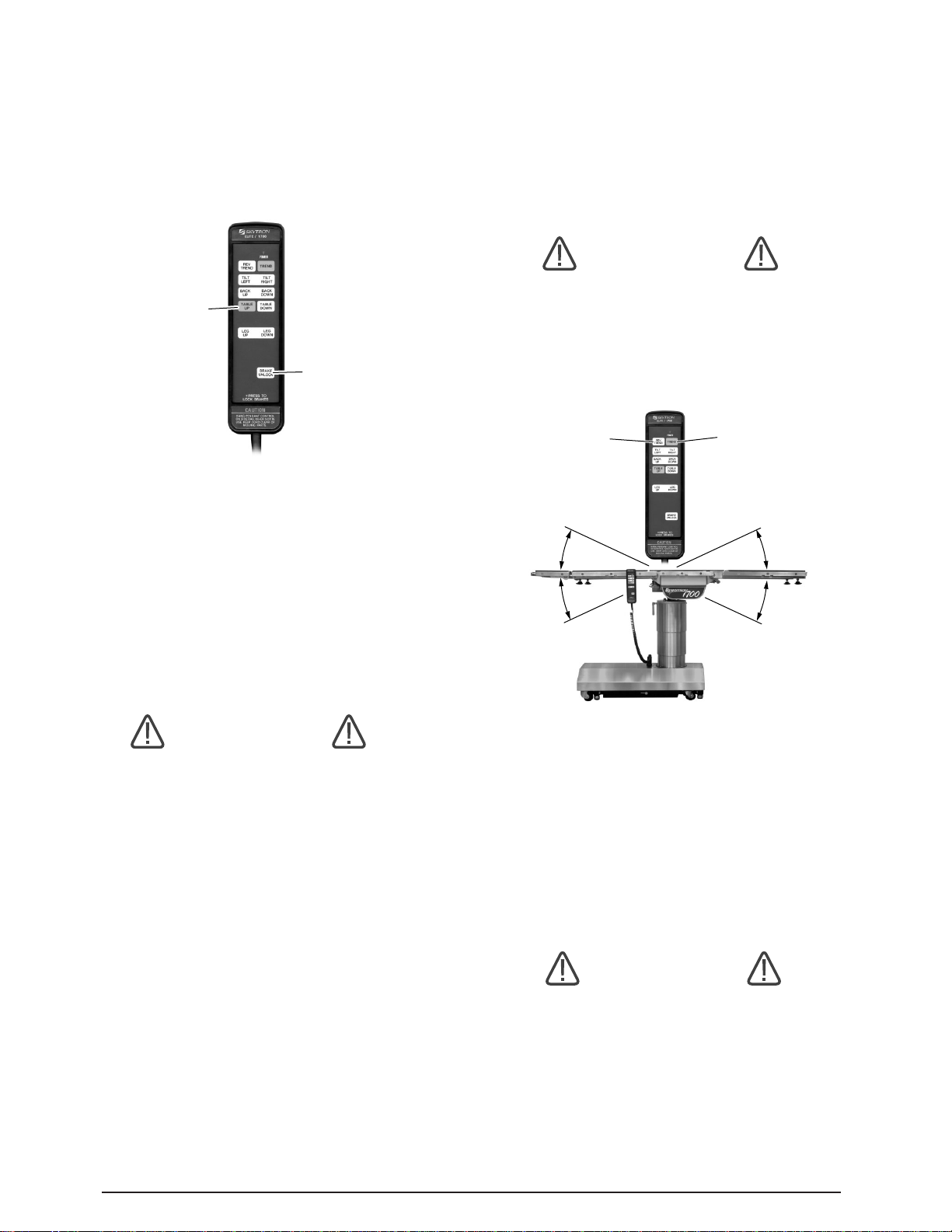

Figure 2-3. Brake System Activation
Press the BRAKE UNLOCK button on the pendant
control to release the four self-leveling brake feet in
order to move the table. See figure 2-3. The brake
delay circuit automatically retracts the brake sys-
tem with just one press of the BRAKE UNLOCK
button. Ittakesapproximately7-8secondstototally
release the system.
WARNING
DO NOT unlock brakes when a patient
isonthetable. Anunevenpatientweight
load may cause instability.
b.Trendelenburg. Toplacethesurgicaltablein
a Trendelenburg (head down) position, press the
TRENDbutton(figure2-4). Trendelenburgposition-
ingof up to25° maybe obtained. Toplace the table
inareverseTrendelenburg(headup) position,press
the REV TREND button. Reverse Trendelenburg
positioningof up to25° may beobtained.
WARNING
To maximize patient safety, utilize
proper restraint methods during ex-
treme Trendelenburg positioning.
TABLE UP
(BRAKE LOCK)
BRAKE
UNLOCK
a. Floor Lock/Brake System. To activate the
brakes without affecting table positioning, press the
TABLE UP button. See figure 2-3. The elevation
cylinder will not function until the brakes are com-
pletely extended.
Figure 2-4. Trendelenburg Positioning

11
f. Leg Section. To lower the leg section press
theLEGDOWNbutton(figure2-8). Thelegsection
will go down to 90° below horizontal. To raise the
leg section, press the LEG UP button. The leg
section will go up to horizontal.
Figure 2-5. Lateral Tilt Positioning
d. Back Section. To raise the back section,
press the BACK UP button (figure 2-6). The back
section will raise up to 60° above horizontal. To
lower the back section, press the BACK DOWN
button. Thebacksectionwillgodownto30°below
horizontal.
LATERAL
TILT LEFT LATERAL
TILT RIGHT
25˚25˚
30˚
60˚
BACK UP BACK DOWN
TABLE
UP TABLE
DOWN
39" 29"
Figure 2-6. Back Section Positioning
e. Elevation. To raise table top, press the
TABLE UP button (figure 2-7). The table will lift a
patient weight of 500 pounds up to a maximum
height of 39". To lower the table top, press the
TABLE DOWN button. The table top will go down
to a minimum height of 29".
90˚
LEG UP LEG DOWN
Figure 2-8. Leg Section Positioning
WARNING
The Leg section may hit the table base
or the floor if both the leg and elevation
systems are placed in their full down
position.
Figure 2-7. Elevation Function

12
Figure 2-10. Head Section Adjustment
b. By loosening two locking knobs beneath the
back section, an additional 5" of longitudinal adjust-
ment can be achieved. If desired, the head section
mayberemovedbylooseningthelockingknobsand
pullingitstraightoutofthebacksection.1700Tables
havethecapabilityofattachingtheheadsectiontothe
legsectionforuseasafootextensionONLY. DoNot
reversethepatientonthetablewithoutfirstconsulting
with SKYTRON. Two locking knobs are located on
the inside of the leg section for securing the head
section. See figure 2-11.
LEG
SECTION HEAD
SECTION
LOCKING
KNOB
LOCKING
KNOB
2-3. Emergency Brake Release
In case of power failure or an electrical problem
within the table, the emergency brake release
system can be use to move the table. The control
lever for this function is located on the side of the
table base and is identified by an EMERGENCY
BRAKE RELEASE label. Turn the lever counter-
clockwise to release the brakes. See figure 2-9.
Figure 2-9. Emergency Brake Release
NOTE
The Emergency Brake Release Valve
must be closed and tightened (clock-
wise) before activating any function.
•IftheEmergencyBrakeReleaseValve
hasbeenoperated,theUNLOCKbutton
on the pendant control will have to be
pressed before brakes will lock again.
2-4. Head Section
a. Aquickreleasepositioningbarlocatedunder
and to the front of the head section (figure 2-10) is
used to raise or lower the head section. Pull the
release bar toward the head end to allow the
section to pivot up or down. Positioning from 60°
above horizontal to 90° below horizontal in 15°
incrementsisavailable. Releasethebartolockthe
head section in position.
Figure 2-11. Repositioning Head Section
HEAD SECTION
RELEASE BAR
SERVICE ACCESS
COVER
POWER
CORD BRAKE (4)
EMERGENCY
BRAKE RELEASE

13
Figure 2-13. 90 Degree Top Rotation
WARNING
Consult manufacturer's instructions
when using high frequency surgical
equipment,cardiacdefibrillatorandcar-
diac defibrillator monitors.
WARNING
Whenanantistaticpathwayisrequired,the
table has to be used on an antistatic floor.
WARNING
Theantistaticpropertiesofthetableare
dependentontheuseoftheoriginalpad
set which was furnished with the table
or an alternate approved replacement.
WARNING
Makesure the TOPROTATION LOCK
HANDLE is tightened and the brakes
are set before transferring the patient.
2-5. 180 Degree Table Top Rotation.
NOTE
Normal table top position is with the
head(andback)sectionoverthepower
cord end of the base.
a. Thetabletopcanbehorizontallyrotated180°
without having to rotate the entire table. To rotate
thetop, turn the TOP ROTATION LOCK HANDLE
counterclockwise (figure 2-12), grasp the table by
theheadendandrotatethetop180°counterclock-
wise. LockthetopinpositionbytighteningtheTOP
ROTATION LOCK HANDLE clockwise.
WARNING
Always lock the table top in position
after rotation. DO NOT rotate the top
with an unevenly distributed patient
weight load as instability may result.
TOP ROTATION
LOCK HANDLE
SUPPORT
ROD
Figure 2-12. 180 Degree Top Rotation
b. The use of the optional support rod allows
the table top to be rotated 90° from the base. See
figure2-13.
WARNING
Exercise caution with the table top ro-
tated 90° to the base since an improp-
erly distributed patient load may cause
the table to be tipped over.

14
2-6. Positioning
The use of certain optional accessories available
from SKYTRON further extend the positioning
capabilitiesofthe1700Table.Refertothefollowing
Positioning Guidelines or contact your SKYTRON
representative for further details.
WARNING
Certain accessories may limit weight
capacities.CheckwithyourSKYTRON
representative.

15
1700 Patient Positioning Guidelines
Upper Body Imaging Ophthalmic/ENT
Shoulder Arthroscopy Knee Arthroscopy
OB/GYN & C-Section Rectal/ Hemorrhoidectomies

16
3-2. Cleaning Recommendations
NOTE
Always follow current AORN Journal
Guidelines to ensure proper cleaning
and disinfection procedure.
CAUTION
Cautionshouldbetakenwhencleaning
the table to prevent excessive fluid en-
try into electrical connectors.
Thefollowingproceduresshouldbefollowedwhen
cleaning the surgical table between cases.
Place table top in level position prior to starting
cleaning procedure.
WARNING
AlwaysfollowOSHAblood-bornepatho-
gens standards for protective clothing,
including gloves, masks and eye pro-
tectionwhencleaningthesurgicaltable.
Remove major contaminants from the table with
disposablematerialsfollowingappropriatebiohaz-
ard waste disposal procedures.
Remove all table pads and place them on a flat
surface for cleaning.
CAUTION
Thoroughly read and follow the
manufacturer's directions for all clean-
ing fluids. DO NOT use cleaners con-
tainingphenolics.
Apply cleaning fluid liberally to top and sides of
each pad and wipe with a clean lint-free cloth.
Using a clean, damp, lint-free cloth, wipe the pads
to remove the cleaning fluid.
Using a clean, dry, lint-free cloth, wipe the pads to
remove all moisture.
3-1. Preventive Maintenance
Thefollowingpreventivemaintenancechecksand
services are recommended to ensure the service-
ability and proper operation of your SKYTRON
Surgical Table.
a. During normal cleaning, a general visual
examination should be made checking for leaks,
loose bolts or parts, and cracked, chipped, or
missing paint. Any necessary repairs should be
made.
b. Semi-annually the following checks and
services should be performed:
1. Checkallhydraulicfittings,mini-valvesand
slave cylinders for proper operation and
any signs of leaks.
2. Check the hydraulic speed controls and
adjust if necessary.
3. Pressure check (with a gauge) the pres-
sure relief valve.
4. Checkall mechanical adjustmentsand ad-
just as necessary.
5. Check hydraulic fluid level.
6. Lubricate the slider assembly.
SECTION III MAINTENANCE
