Repair Parts and Maintenance Guide
The information contained in this document is subject to change without notice.
Act-O-Matic®Showerhead
AC-51 2.5 4021000
Self-cleaning chrome plated
showerhead without (less) thumb
screw volume control and universal
ball joint. Pressure compensating
2.5 gpm/9.4 Lpm maximum ow
control. All brass construction. 1/2’’
I.P.S. inlet.

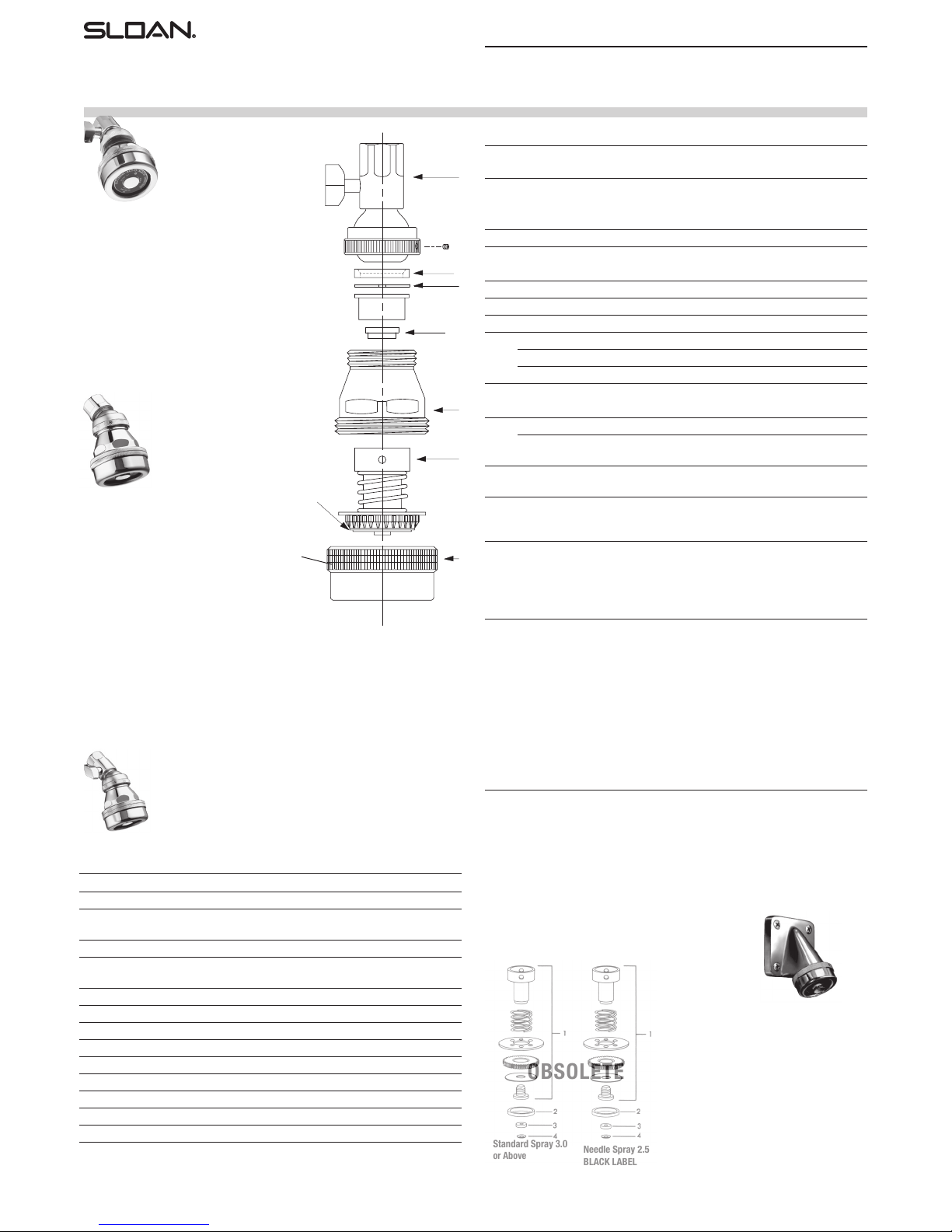

PARTS FOR ACT-O-MATIC®SHOWERHEAD AC-11/AC-51 2.5 & 2.0, 1.8
Item
No. Code No. Part No. Description
1. 3328026 SH-1007-A Ball Joint Coupling with Volume Control†
0328059 AC-18-AV Ball Joint Coupling less Volume Contro
0328213 AC-313-A 1.8 Gallon Flow Control
2. 0328205 AC-313-A 2.0 Gallon Flow Control Assembly*
3. 5328010 SH-1000-A SH-3 Gasket – 24 per package
0328010PK SH-3 Single Gasket
4. 0328063 SH-45 Spacer*
0328209 C2A Piston Assembly for Showerhead
5. 0328001 SH-1 Body‡
6. 4328470 SH-1003-A Piston Assembly†– OBSOLETE
0328209 AC-2-A-1.8 1.8 Piston Assembly – Shower Head
0328207 AC-2-A-2.0 2.0 Piston Assembly – Needle Spray†
4328466 SH-1002-A Piston Assembly – Needle Spray†
2.5 gpm Piston & Gasket (1 & 3)
7. 0328004 SH-2 Coupling Ring‡– OBSOLETE
0328005 SH-2-N Coupling Ring – Needle Spray‡SH-1002-A –
available in SH-1008-A for 2.0 & 2.5 gpm
— 432846 SH-1008-A Repair Kit for Needle Spray Showerhead
includes Items Nos. 2-5 at left (2.5 gpm).
† Includes SH-3 gasket.‡ Chrome plated. Consult factory for other available nishes.* supplied only with 2.0 High
Efciency Showerhead models.
FLOW CONTROL MODEL CONVERSION
To convert an older Act-O-Matic showerhead to a ow control model,
use repair kit SH-1008-A. Repair Kit contains gasket (item 2), piston
assembly – needle spray (item 4) and coupling ring – needle spray (item 5).
NEEDLE SPRAY
NOTE: To properly repair an Act-O-Matic showerhead, it is important to
identify needle spray part designs. Shower heads with 3 gpm (11 Lpm) or
2.5 gpm (9.4 Lpm) ow controls produced since 1985 use needle spray
piston assembly and a needle spray coupling ring. Needle spray shower
heads can be identied by the following: coupling ring (SH-2-N) has groove
on knurled diameter; plus an “N” marked on the back of the black spray
disc in the piston assembly. When repairing an Act-O-Matic shower head
with a ow control it is important to identify whether the part is of the needle
spray design.
SLOAN ACT-O-MATIC®MODELS
In accordance with Federal and State water conservation requirements, all
Sloan Act-O-Matic showerheads manufactured after January 1, 1994 are
available only with an integral 2.5 gpm (9.4 Lpm) ow control. Replacement
components will continue to be available for non-ow control Act-O-Matic
showerhead models. Act-O-Matic showerheads rated at 3 gpm (11 Lpm)
should be repaired using the components shown for the current
2.5 gpm (9.4 Lpm) models.
For Sloan Act-O-Matic model 100 series
shower-heads (discontinued in 1970) use
piston assembly SH-1003-A and SH-2-N.
MODEL AC-51/AC-11
WITH VOLUME CONTROL SHOWN
GROVE INDICATES
SH-2-N.
(NO GROOVE
INDICATES
OBSOLETE SH-2)
3.0 GPM OR ABOVE
1
2
5
6
7
SHOWERHEAD REPAIR KITS
Code No. Part No. Description
For Standard Spray
4328470 N/A Repair Kit for Standard Spray Showerhead
includes Items Nos. 1-4 (below)
For Needle Spray
4328466 SH-1002-A Repair Kit for Needle Spray Showerhead
includes Items Nos. 1-4 (below)
Additional Repair Items
0328326PK SH-72 CP Ball Joint
0328068 SH-2N Coupling Ring Needle Spray (2.5 gpm)
4328004 SH-1015-A 1.8 Repair Kit (Flow Control Only)
4328001 SH-1014-A 2.0 Repair Kit (Flow Control Only)
4328469 SH-1008-A 2.5 Conversion Kit
4328287 SH-1004-A 2.5 Repair Kit - 2.5 Flow Control & SH-3
0328097 AC1A - 2.5 Shower Body Assembly (2 & 7 on Chart)
0328206 AC1A - 2.0 Shower Body Assembly (2 & 7 on Chart)
Standard Spray 3.0
or Above
Needle Spray 2.5
BLACK LABEL
OBSOLETE
3
4
LABELS:
BLUE COLOR 1.8
GREEN COLOR 2.0
BLACK COLOR 2.5
BLUE COLOR 3.0
OR ABOVE
AC-11-2.0 4020130
Self-cleaning chrome plated showerhead with
thumb screw volume control and universal ball
joint. Pressure compensating 2.0 gpm/7.5 Lpm
maximum ow control. All brass construction. 1/2’’
I.P.S. inlet.
AC-11-1.8 4020132
Self-cleaning chrome plated showerhead with
thumb screw volume control and universal ball
joint. Pressure compensating 1.8gpm/6.8 Lpm
maximum ow control. All brass construction. 1/2’’
I.P.S. inlet.
AC-51 1.8 4021031
Self-cleaning chrome plated
showerhead without (less) thumb
screw volume control and universal
ball joint. Pressure compensating
1.8 gpm/6.8 Lpm maximum ow
control. All brass construction. 1/2’’
I.P.S. inlet.
AC-11 4020100
Self-cleaning chrome plated showerhead with thumb
screw volume control and universal ball joint. Pressure
compensating 2.5 gpm/9.4 Lpm maximum ow control.
All brass construction. 1/2’’ I.P.S. inlet.

291
Repair Parts and Maintenance Guide
The information contained in this document is subject to change without notice.
Act-O-Matic®Showerhead
AC-450 4024500 AC-460 4024600
AC-450 4024531 (1.8 gpm) AC-460 4024631 (1.8 gpm)
Institutional style self-cleaning showerhead similar Sloan Act-O-Matic
institutional style models.
In accordance with Federal and State water conservation requirements, all
Sloan Act-O-Matic®showerheads manufactured after January 1, 1994 are
available only with an integral 2.5 gpm (9.4 Lpm) ow control. All model
variations of AC-450/AC-460 Act-O-Matic showerheads can be repaired
using the SH-1009-A repair kit (see above). When repairing an older AC-450
without a ow control, install the 2.5 gpm (9.4 Lpm) ow control supplied with
the repair kit.
SH-1009-A-2.5 REPAIR KIT FOR AC-450
MODEL SHOWERHEAD INCLUDES:
Item Description
1. Showerhead Spray Disc Assembly
2. Spray Disc O-ring-SH-513
3. Adjustment Screw O-ring-SH-75
4. Pipe Fitting O-ring-SH-512
5. 2.5 gpm (9.4 Lpm) Flow Control Kit
Code No. 0328375, Part SH-313-A
1.8 gpm (6.8 Lpm) Flow Control Kit
Code No. 0325377
Note: Items 2, 3 and 4 are also available in
O-ring replacement kit SH-1001-A.
SERVICING INSTRUCTIONS
1. Remove showerhead from wall by unscrewing two (2) cap screws. Use
5/32’’ allen head wrench.
2. Remove adjustment screw from showerhead body.
3. Remove spray disc assembly by pushing through back of
showerhead body.
4. Clean inside of showerhead body of all sediment and replace all
O-ring seals.
5. Replace (or add) ow control in pipe tting.
6. Replace spray disc assembly and reassemble showerhead in
reverse order.
TO CLEAN SPRAY DISC ASSEMBLY:
1. Disassemble showerhead according to
servicing instructions shown above.
2. Use spanner wrench or pliers to
disassemble spray disc assembly
(see exploded view).
3. Clean sediment and debris from
all components.
4. Replace with repair kit
Code No. 4328471,
part SH-1009-A if necessary.
For 2.5 Gpm use code No. 4328006
For 1.8 Gpm use SH-1017-A
SPRAY DISC
ASSEMBLY
Item 1
(see above
illustration)
SHOWERHEAD FLOW CONTROLS
Code No. Part No. Description
For Standard Showerheads
4328285 AC-300-A B-4 4 Gallon Flow Control for Showerhead
Models AC-10, AC-11, AC-51 And AC-75 –
OBSOLETE
4328287 AC-310-A B-3 3 Gallon Flow Control for Showerhead
Models AC-10, AC-11, AC-51 And AC-75 –
OBSOLETE
For Institutional Showerheads
4328290 AC-320-A B-4 4 Gallon Flow Control for Showerhead
Models AC-450 – OBSOLETE
4328289 AC-325-A B-3 3 Gallon Flow Control for Showerhead
Models AC-450 – OBSOLETE
Additional Repair Items
4328002 SH-1019-A Disc & Flow Control (converts to 2.0)
4328003 SH-1020-A 2.0 Flow Control Kit
4328210 SH-1010-A 2.5 Flow Control Repair Kit
4328471 SH-1009-A 2.5 Repair Kit
4328005 SH-1016-A 1.8 Flow Control Repair Kit
4328006 SH-1017-A 1.8 Showerhead Repair Kit
0328373PK SH-514 CP Oval Head Allen Screw 1/4”-20
0328372 SH-513 O-ring 2x2-1/4” x 1/8” Pipe Adaptor o-ring
0328371 SH-512 O-ring 2-1/8” x 2 3/8” x 1/8” Spray Disc o-ring
0328385PK SH-502N CP Spherical Ring Needle Spray
0328080PK SH-37 CP Phillips Wood Screw #14 x 1 1/2”
1
SPRAY DISC ASSEMBLY
PIPE FITTING
4-SH-512 (0328371) O-ring pipe
adaptor 2 1/8” x 2 3/8” x 1/8”
3-SH-75 (5328336) (12 pk)
Adjustment Screw O-ring
5/16” x 7/16” x 1/16”
SH-507 (0328365PK)
Adjustment Screw
2-SH-513 (0328372)
Spray Disc O-ring
2” x 2 1/4” x 1/8”
5-SH-511
(0328370PK)
Pipe Adaptor 1/2” SH-514
(0328373PK)
Ovel Head Allen Screw
1/4”-20
