Sloan EFX-6 Series User manual

Repair Parts and Maintenance Guide
131
Faucets and Soap Dispensers
The information contained in this document is subject to change without notice.

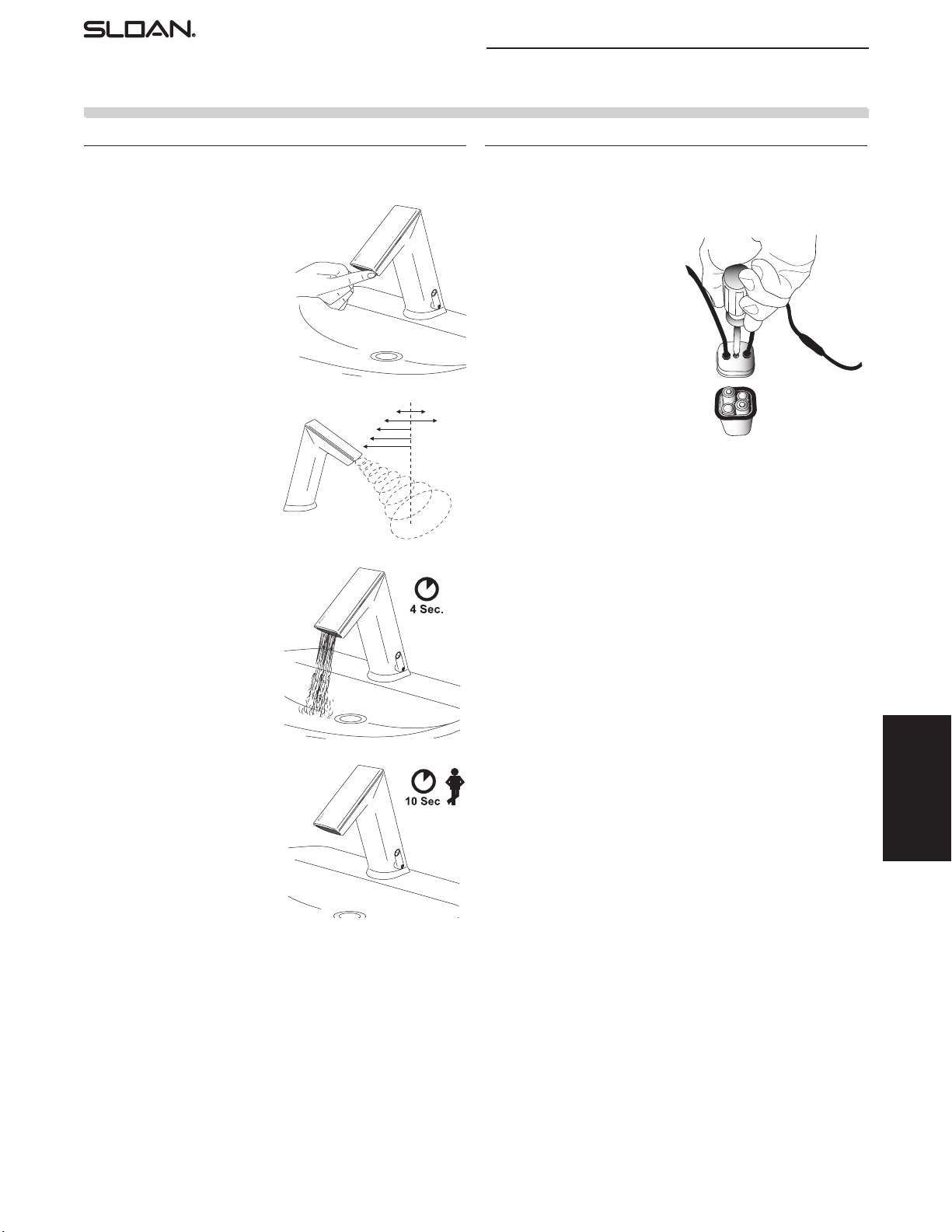

BASYS™
Infrared Sensor Activated

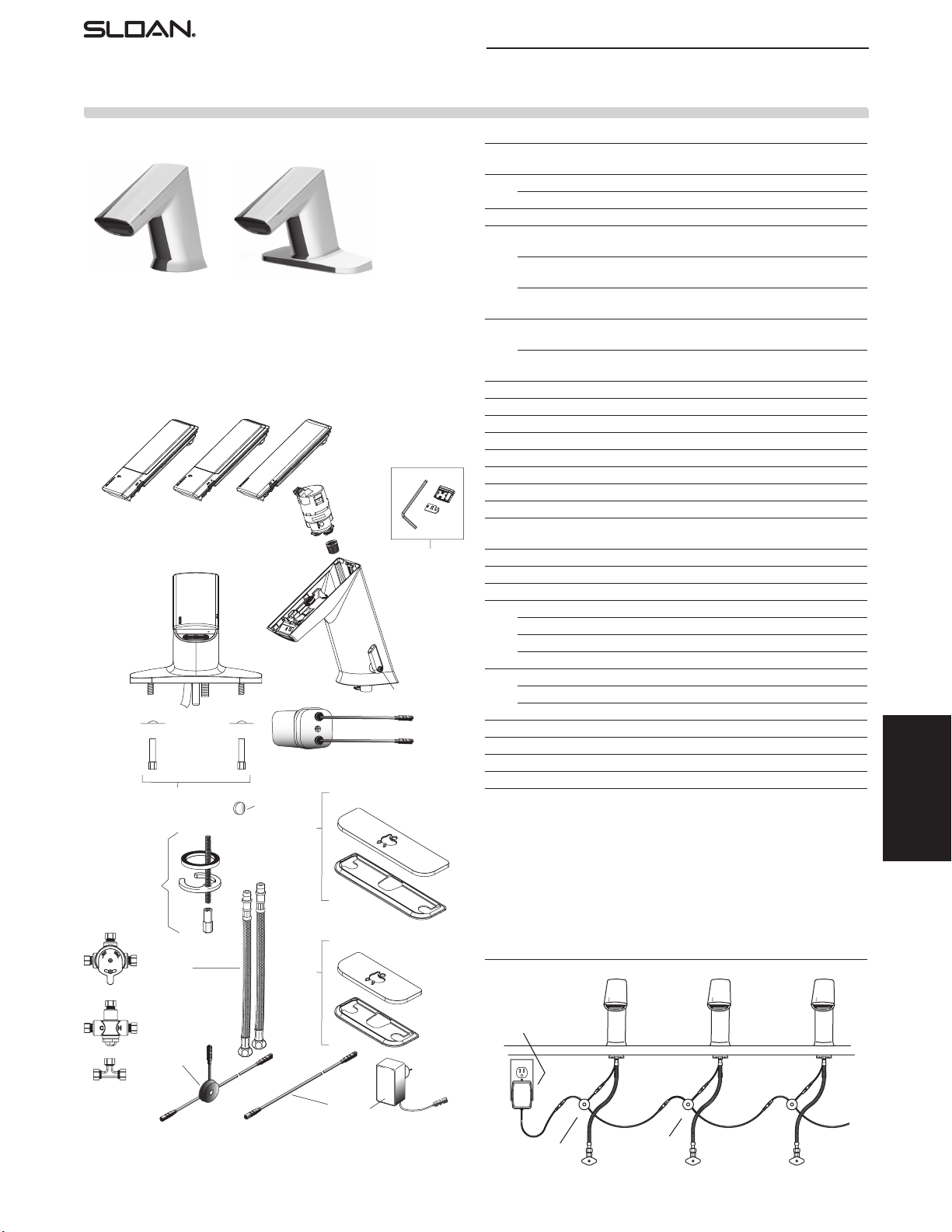

PARTS LIST—BASYS FAUCETS
Item
No. Code No. Part No. Description
1A. —— Low Pedestal Faucet Assembly*
—— Low Pedestal Faucet Assembly with Mixer*
1B. —— Low Integrated Base Faucet Assembly†
2. 3324104 EFX-1002-A 0.5 gpm/1.9 Lpm Multi-Lam Spray Head (includes
insert, o-ring, 2.5 mm allen key, and removal tool)
3324103 EFX-1001-A 1.5 gpm/5.7 Lpm Aerated Stream Insert (includes
insert, o-ring, 2.5 mm allen key, and removal tool)
3324102 EFX-1000-A 1.5 gpm/5.7 Lpm Laminar Stream Insert (includes
insert, o-ring, 2.5 mm allen key, and removal tool)
3. —EFX-37 0.5 gpm/1.9 Lpm Solenoid Valve Caddy
Assembly — Low (Green)
—EFX-38 1.5 gpm/5.7 Lpm Solenoid Valve Caddy
Assembly — Low (Blue)
4. 0324019 EFX-19 Strainer (Filter)
5. 3324117 EFX-23-A Battery Pack Assembly
6A. 3324119 EFX-1-A Crown Assembly
6B. 3324121 EFX-3-A Solar Crown Assembly
6C. 3324120 EFX-4-A Solar Crown with LCD Assembly
7. —— Mixer Handle Assembly (for EFX-3 IR models only)
8. —EFX-25 Handle Cap (for EFX-3 IR models only)
9A. 0335000 EAF-1 Faucet Mounting Kit (for pedestal model only)
9B. —EFX-21-A Faucet Mounting Kit (for integrated base model
only)
10. 3325023 EAF-1008 13” (330 mm) Flexible Supply Hoses (2)
11. 3324101 EFX-26-A Trim Plate for 8” Centerset Sink
12. 3324100 EFX-20-A Trim Plate for 4” Centerset Sink
13. 0324027 EFX-27 Plug-in Adapter (US)
—EFX-28 Plug-in Adapter (EU)
—EFX-29 Plug-in Adapter (UK)
0335037 EAF-37 Box Type Votage Adapter
14. 0335024 EAF-24-A 11-13/16” (300 mm) Extension Cable
0335025 EAF-25-A 47-1/4” (1200 mm) Extension Cable
0335015 EAF-17-A 126” (3200 mm) Extension Cable
15. 0335023 EAF-23-A Splitter
16. 3326009 MIX-60-A Mechanical, Below Deck Mixing Valve
17. 0326045 MIX-135-A Thermostatic, Below Deck Mixing Valve
18. 3365461 ETF-617-A Bak-Chek Tee
NOTE: If changing ow rate caddy and spray insert must be changed in conjunction.
† Single Supply faucets include Bak-Chek®
*Integral Base model not available with integral to faucet side mixer; single supply faucets include Bak-Chek®
— in Item No. column = Not shown in illustration
— in Code No. and Part No. column = Not sold separately
2
3
4
1A
1B
5
9B
8
9A
10 12
11
15
14 13
16
17
18
6C 6B 6A
7
Electrical Connection for up to Six (6) Faucets Using One (1) Adapter
EFX-3XX SERIES EFX-6XX SERIES
DAISY CHAIN
ELECTRICAL CABLE
DAISY CHAIN
ELECTRICAL
CABLE
TO ADDITIONAL
FAUCETS
(6 MAX.)
ADAPTER

Repair Parts and Maintenance Guide
132 The information contained in this document is subject to change without notice.
Faucets and Soap Dispensers
BASYS™
Infrared Sensor Activated

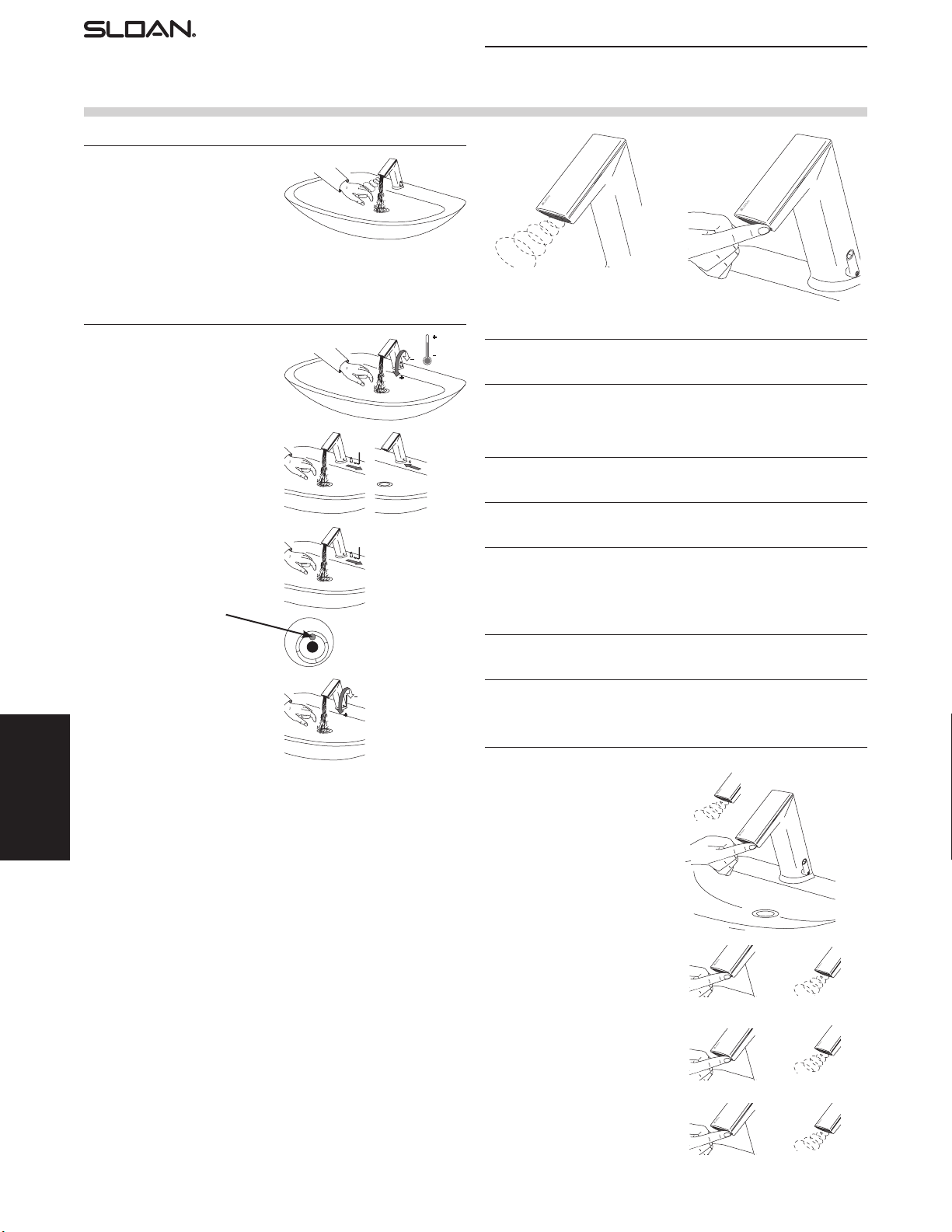

As the user’s hands enter the
beam’s effective range, the beam
is reected back into the sensor
receiver and activates the solenoid
valve allowing water to ow from
the faucet. Water will ow until
the hands are removed or until the
faucet reaches its automatic time
out limit setting.
OPERATION
SET AND FIX TEMPERATURE AND ADJUST HOT LIMIT STOP
Adjust lever to set temperature.
OPTIONAL – To x temperature,
set lever to the desired position,
then remove lever and plug hole
with cap.
2.5 mm
Faucet may be adjusted in 10º
increments.
2.5 mm
This feature will operate the faucet
every 12 or 24 hours since last
use, if not used to prevent stagnant
water conditions.
Default purge duration is two
minutes.
Consult factory regarding other
timing options.
IR activation (see above). Cover IR
clic approximately 24 sec. (ignore
LED indications during this period).
Release when requested program
is reached. (See diagram to right).
Programming mode will time out
after 2 minutes if no changes are
made.
12/24 LINE PURGE FEATURE
1x 24 sec
...1x
...2x
...3x
+ ...
Activate 12HR
Deactivate
Activate 24HR
1x 24 sec
...1x
...2x
...3x
+ ...
Activate 12HR
Deactivate
Activate 24HR
Optional Hot Limit Stop Adjustment
– To adjust the hot/cold mix (factory
set at 50/50) remove the lever.
Check to make sure dot is in
center position before beginning
adjustment.
2.5 mm
Steps to Default IR
Function Activate Function Setting Clic
IR Activation Cover IR clic approximately for 2 sec. –– ––
until LED will ash GREEN 1x - then remove
nger from IR clic (Active for 5 sec.)
Cleaning IR activation; Cover IR clic 2x - conrmation 2 min. ––
Mode of the function is active by a couple ashes
by the LED; to return to normal operation cover
IR clic 1x or the faucet will automatically return
to normal function after 2 min.
12/24 Line See below. Off Off
Purge 12HR
Feature 24HR
Sensor See page 130. 6 1-8
Range
Adjustment
Reset IR activation; Cover IR clic 2x; LED will ash 5x Manually ––
Electronics Cover IR clic 1x for 5 sec. until LED
ashes 4x, then remove nger from IR clic
Wait for 20 sec.
(After 10 sec. water will ow for 6 sec.
and automatically adjust to environment)
Security Off After 90 seconds (max) of hand and/or object On ––
within sensor appears permanent, waterow
will stop and will remeasure environment
Please contact factory for more extensive programming options.

Repair Parts and Maintenance Guide
133
Faucets and Soap Dispensers
The information contained in this document is subject to change without notice.
Wait, until LED ashes GREEN.
2x +
1x 5 sec
1x
2x
3x
4x
6x - Factory Setting
7x
8x
5x
2x +
1x 5 sec
1x
2x
3x
4x
6x - Factory Setting
7x
8x
5x
2x +
1x 5 sec
1x
2x
3x
4x
6x - Factory Setting
7x
8x
5x
2x +
1x 5 sec
1x
2x
3x
4x
6x - Factory Setting
7x
8x
5x
BASYS™
Infrared Sensor Activated
Factory setting is appropriate for the majority of applications and should not
require resetting unless under extreme situations.
IR Activation (see page 129).
To enter programming mode
place nger on IR clic for 2 times
then remove. Light on side of
crown should blink red to indicate
programming mode.
Cover IR clic until LED ashes 4x -
hold on until LED ashes 1x to 8x,
from minimum to maximum range.
See diagram below. Release when
requested range is reached.
SENSOR RANGE ADJUSTMENT BATTERY REPLACEMENT
NOTE: Replace Battery when LED1 indicator ashes red each time faucet
is in use or when faucet stops functioning. LED1 is identied by the battery
symbol.
NOTE: Turning off water is not necessary.
Loosen cover screw and remove
cover from battery pack.
Install four (4) AA-size batteries
(supplied) as indicated by the (+)
and (–) symbols inside the battery
compartment.
Replace battery pack lid and tighten
with screwdriver.
NOTE: Insure batteries are installed
with proper polarity. The cover
of the case indicates polarity of
batteries. Improper polarity will not
harm the faucet. Improper polarity
will cause the faucet not to operate.

Repair Parts and Maintenance Guide
134 The information contained in this document is subject to change without notice.
Faucets and Soap Dispensers
BASYS™
Infrared Sensor Activated

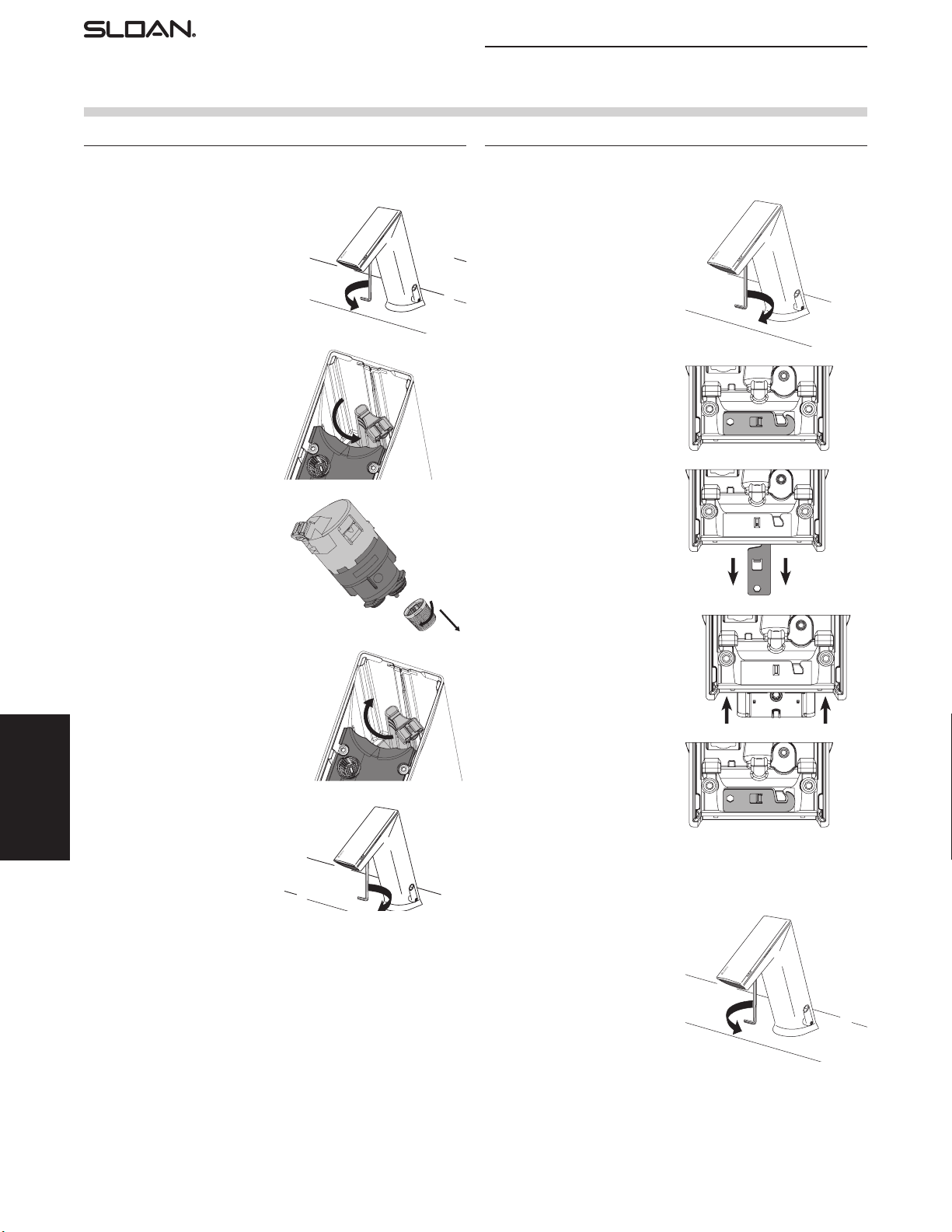

NOTE: Turning off water is not necessary, due to integrated automatic stop
valve.
Rotate solenoid assembly counter-
clockwise through a 45º angle.
Pull solenoid caddy from faucet.
NOTE: Strainer can be removed,
cleaned and replaced at this time.
Insert new solenoid caddy at a 45°
angle.
Rotate solenoid caddy clockwise to
align with arrow, locking the unit
and opening water path.
Remove crown by loosening hex
screw located on underside of spout
and slide crown down and lift off.
NOTE: Screw is captive within
faucet body and will not fall out.
REPLACING THE SOLENOID STRAINER (FILTER)
Slide on crown and secure.
NOTE: Turning off water is not necessary, due to integrated automatic stop
valve.
Retrieve spray removal tool located
near the spray insert.
Insert spray removal tool into spray
slot by sliding hook end of key
between faucet spout and insert.
Pull insert out of faucet once
hooked.
Remove crown by loosening hex
screw located on underside of spout
and slide crown down and lift off.
NOTE: Screw is captive within
faucet body and will not fall out.
REPLACE SPRAY INSERT
UNLOCK
LOCK
Install new insert.
NOTE: If changing to a different
flow rate solenoid caddy must
be changed in conjunction.
Return spray removal tool to storage
location.
NOTE: This can only be done once
spray head is installed. This will
lock the spray head in place.
NOTE: If spray head is inserted
incorrectly – key will not lock in
properly. Turn faucet on to push
insert out and re-install.
Slide on crown and secure.
UNLOCK
LOCK

Repair Parts and Maintenance Guide
135
Faucets and Soap Dispensers
The information contained in this document is subject to change without notice.
BASYS™
Infrared Sensor Activated
Remove crown by loosening hex
screw located on underside of spout
and slide crown down and lift off.
NOTE: Screw is captive within
faucet body and will not fall out.

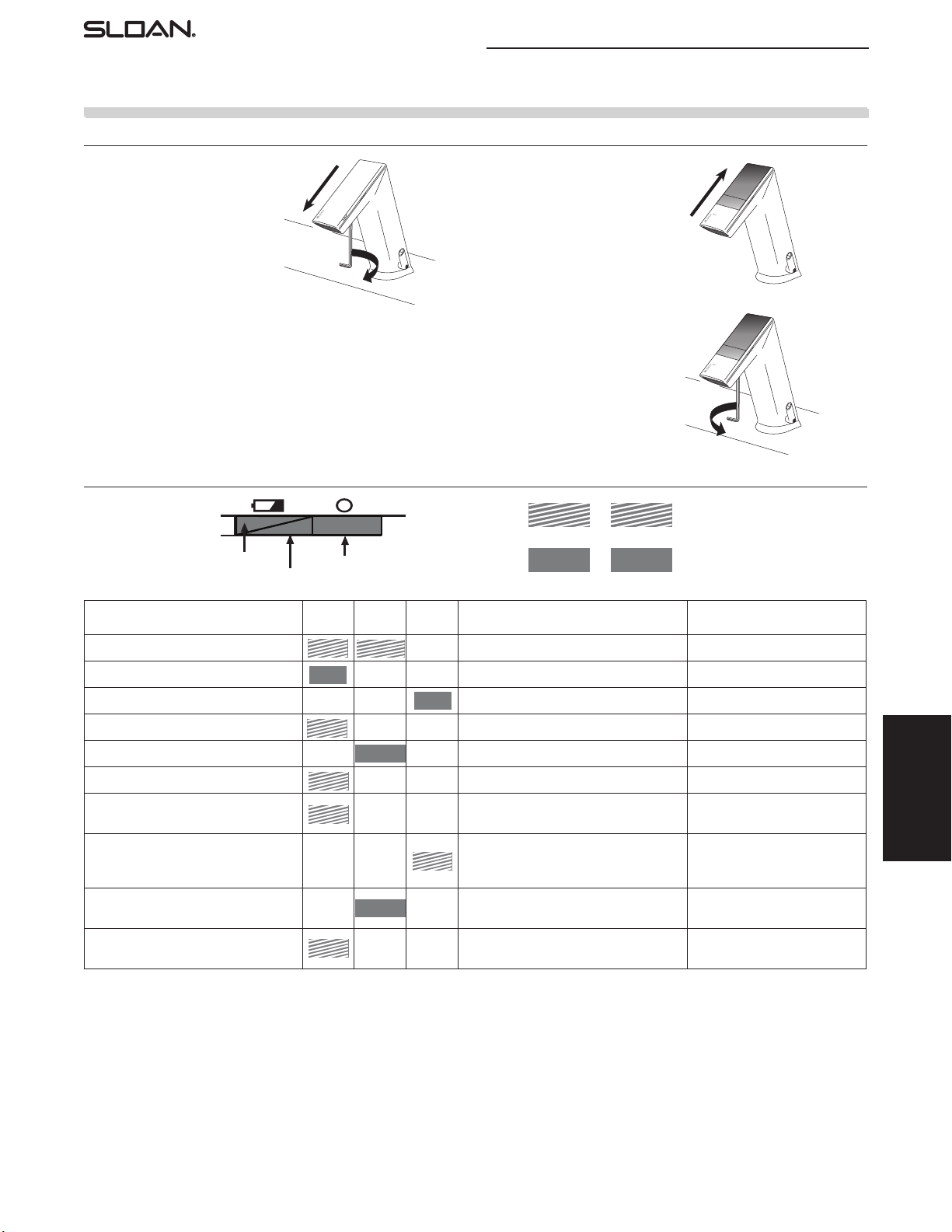

UPGRADE FAUCET FUNCTIONALITY
LED DISPLAY DIAGNOSTIC CODES
UNLOCK
LOCK LOCK
UNLOCK
LOCK LOCK
UNLOCK
LOCK
LOCK
Place new crown on faucet by sliding
onto spout and tightening hex screw
on underside of spout.
NOTE: All electronics are fully
encapsulated in the crown
and thus protected from the
environment and easy to replace
or upgrade.
RED GREEN
RED GREEN
RED
RED
RED
RED
RED
GREEN
GREEN
GREEN
RED
RED
RED
RED LED1
GREEN LED2
RED LED3
Function LED1 LED2 LED3 Description 1 Description 2
Start Up Boot LED1 and LED2 alternate blinking Fast Toggle
Battery Check after Start Up LED1 on for 2 sec, if battery greater than 3.5V
Line Power Check after Start Up LED3 on for 2 sec, if line power greater than 3.5V
IR Adjust Process LED1 blinking while IR adjusts Few seconds
IR Adjust IR LED2 on for 2 sec, if adjustment OK
Battery Low LED1 blinks 3x, if battery is less than warning level Only while in detection mode
Battery Empty LED1 double ashes 3x, if battery is
less than empty level Only while in detection mode
Valve Error
LED3 double ashes 3x, if valve
current error; ash after the 3rd error,
off after the 3rd good operation
Flashes after the 3rd error, off
after the 3rd good operation
IR Activation LED2 on for 2 sec, if IR-click has been activated After 5 sec. automatically back to
operating mode
Cleaning Mode LED1 4-in-1 ash, if cleaning mode is activated During “Cleaning Mode” is activated
Permanent 4-in-1 ashes
COLOR LEDs BLINKING
COLOR LEDs ON

Repair Parts and Maintenance Guide
136 The information contained in this document is subject to change without notice.
Faucets and Soap Dispensers
BASYS™
Infrared Sensor Activated
1. Red LED in spout does not blink 2 seconds after battery
installation.
A. Battery placement incorrect or batteries have been discharged.
B. Ensure batteries are installed properly. Check the orientation of each
battery matches the positive (+) and negative (–) symbols shown on
the battery compartment.
2. Faucet DOES NOT function.
A. Adhesive packaging label afxed over sensor eye.
B. Remove adhesive label from sensor eye.
3. Faucet delivers water in an uncontrolled manner.
A. Faucet is not working properly.
B. Clean sensor window; if problem persists contact Sloan Tech Support.
4. Faucet DOES NOT deliver any water when sensor is activated.
INDICATOR: Solenoid valve produces an audible “CLICK”.
A. Water supply stop(s) closed.
Open water supply stop(s).
B. Strainer is clogged.
Remove, clean, and reinstall strainer. Replace strainer, if needed (refer
to page 131).
5. Solenoid valve DOES NOT produce an audible “CLICK”.
A. Batteries low (battery powered models).
Replace batteries (refer to battery replacement on page 130).
B. Power failure (hardwire models). Check power supply.
6. Faucet delivers only a slow flow or dribble when sensor is
activated.
A. Water supply stop(s) are partially closed. Completely open water
supply stop(s).
7. Faucet DOES NOT stop delivering water or continues to drip after
user is no longer detected.
A. Faucet is not working properly.
B. Clean sensor window; if problem persists contact Sloan Tech Support
(see below).
8. LED indicator blinks RED when faucet is in use.
A. Batteries low (battery powered models).
B. Replace batteries (refer to battery replacement on page 132).
9. The water temperature is too hot or too cold on a faucet
connected to hot and cold water supply lines.
A. Supply stops are not adjusted properly. Adjust supply stops.
B. For models with integral side mixing valve–Mixing valve is set
improperly for the water temperature desired. Rotate mixing valve
handle clockwise to decrease water temperature or counterclockwise
to increase water temperature.
C. Inadequate hot water supply. Adjust supply stops.
CARE AND CLEANING
DO NOT USE abrasive or chemical cleaners
(including chlorine bleach) to clean faucets that
may dull the luster and attack the chrome or
special decorative nishes. Use ONLY mild soap
and water, then wipe dry with clean cloth or towel.
While cleaning the bathroom sink, protect the
faucet from any splattering of cleaner. Acids
and cleaning uids will discolor or remove
chrome plating.
When assistance is required, please contact
Sloan Technical Support at: 1-888-SLOAN-14 (1-888-756-2614).
TROUBLESHOOTING GUIDE
