SMA RoofCommKit-P2-US User manual

RoofCommKit-P2-US-IA-xx-10 | 112604-00.01 | Version 1.0
SMA ROOFTOP COMMUNICATION KIT
(RoofCommKit-P2-US)

RoofCommKit-P2-US-IA-xx-102
ENGLISH Installation manual ...................................................................3
ESPAÑOL Instrucciones de instalación ...................................................24
FRANÇAIS Instructions d’installation........................................................46

Legal Provisions
SMA Solar Technology America LLC
Installation manual RoofCommKit-P2-US-IA-xx-10 3
Legal Provisions
No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any
form or by any means, be it electronic, mechanical, photographic, magnetic or otherwise, without
the prior written permission of SMA Solar Technology America LLC.
Neither SMA Solar Technology AmericaLLC nor SMA Solar Technology Canada Inc. makes
representations, express or implied, with respect to this documentation or any of the equipment
and/or software it may describe, including (with no limitation) any implied warranties of utility,
merchantability, or fitness for any particular purpose. All such representations or warranties are
expressly disclaimed. Neither SMA Solar Technology AmericaLLC nor its distributors or dealers nor
SMA Solar Technology Canada Inc. nor its distributors or dealers shall be liable for any indirect,
incidental, or consequential damages under any circumstances.
The exclusion of implied warranties may not apply in all cases under some statutes, and thus the
above exclusion may not apply.
Specifications are subject to change without notice. Every attempt has been made to make this
document complete, accurate and up-to-date. Readers are cautioned, however, that product
improvements and field usage experience may cause SMA Solar Technology America LLC and/or
SMA Solar Technology Canada Inc. to make changes to these specifications without advance
notice, or per contract provisions in those cases where a supply agreement requires advance
notice. SMA shall not be responsible for any damages, including indirect, incidental or
consequential damages, caused by reliance on the material presented, including, but not limited to,
omissions, typographical errors, arithmetical errors or listing errors in the content material.
Trademarks
All trademarks are recognized, even if not explicitly identified as such. Missing designations do not
mean that a product or brand is not a registered trademark.
SMASolar TechnologyAmerica LLC
6020 West Oaks Blvd.
Suite 300 Rocklin, CA 95765 U.S.A.
SMA Solar Technology Canada Inc.
2425 Matheson Blvd. E
7th Floor
Mississauga, ON L4W 5K4
Canada
Status: 11/17/2017
Copyright©2017SMA Solar Technology America LLC. All rights reserved.
ENGLISH

Important Safety Instructions SMA Solar Technology America LLC
Installation manualRoofCommKit-P2-US-IA-xx-104
Important Safety Instructions
SAVE THESE INSTRUCTIONS
This manual contains important instructions for the following products:
• RoofCommKit-P2-US (SMA Rooftop Communication Kit)
• SB3.0-1SP-US-40 (Sunny Boy 3.0-US)
• SB3.8-1SP-US-40 (Sunny Boy 3.8-US)
• SB5.0-1SP-US-40 (Sunny Boy 5.0-US)
• SB6.0-1SP-US-40 (Sunny Boy 6.0-US)
• SB7.0-1SP-US-40 (Sunny Boy 7.0-US)
• SB7.7-1SP-US-40 (Sunny Boy 7.7-US)
This manual must be followed when using this product.
The product is designed and tested in accordance with international safety requirements, but as
with all electrical and electronic equipment, certain precautions must be observed when installing
and/or operating the product. To reduce the risk of personal injury and to ensure the safe
installation and operation of the product, you must carefully read and follow all instructions,
cautions and warnings in this manual.
Warnings in this Document
A warning describes a hazard to equipment or personnel. It calls attention to a procedure or
practice, which, if not correctly performed or adhered to, could result in damage to or destruction
of part or all of the equipment and/or other equipment connected to the equipment or personal
injury.
DANGER
Safety information that, if not avoided, will result in death or serious injury.
WARNING
Safety information that, if not avoided, could result in death or serious injury.
CAUTION
Safety information that, if not avoided, can result in minor or moderate injury.
NOTICE
Safety information that, if not avoided, can result in property damage.
Warnings on this Product
The following symbols are used as product markings with the following meanings.
ENGLISH

General Warnings
SMA Solar Technology America LLC
Installation manual RoofCommKit-P2-US-IA-xx-10 5
General Warnings
WARNING
All electrical installations must be carried out in accordance with the local electrical standards
and the National Electrical Code® ANSI/NFPA70 or the Canadian Electrical Code®
CSAC22.1. This document does not replace and is not intended to replace any local, state,
provincial, federal or national laws, regulations or codes applicable to the installation and use of
the product, including without limitation applicable electrical safety codes. All installations must
conform with the laws, regulations, codes and standards applicable in the jurisdiction of
installation. SMA assumes no responsibility for the compliance or non-compliance with such laws
or codes in connection with the installation of the product.
The product contains no user-serviceable parts.
For all repair and maintenance, always return the unit to an authorized SMA Service Center.
Before installing or using the product, read all of the instructions, cautions, and warnings in this
manual.
Wiring of the product must be made by qualified personnel only.
ENGLISH

Table of Contents SMA Solar Technology America LLC
Installation manualRoofCommKit-P2-US-IA-xx-106
Table of Contents
1 Information on this Document................................................. 7
1.1 Validity........................................................................................................................ 7
1.2 Target Group.............................................................................................................. 7
1.3 Symbols ...................................................................................................................... 7
1.4 Typographies.............................................................................................................. 7
2 Safety ........................................................................................ 8
2.1 Intended Use .............................................................................................................. 8
2.2 Safety Information...................................................................................................... 9

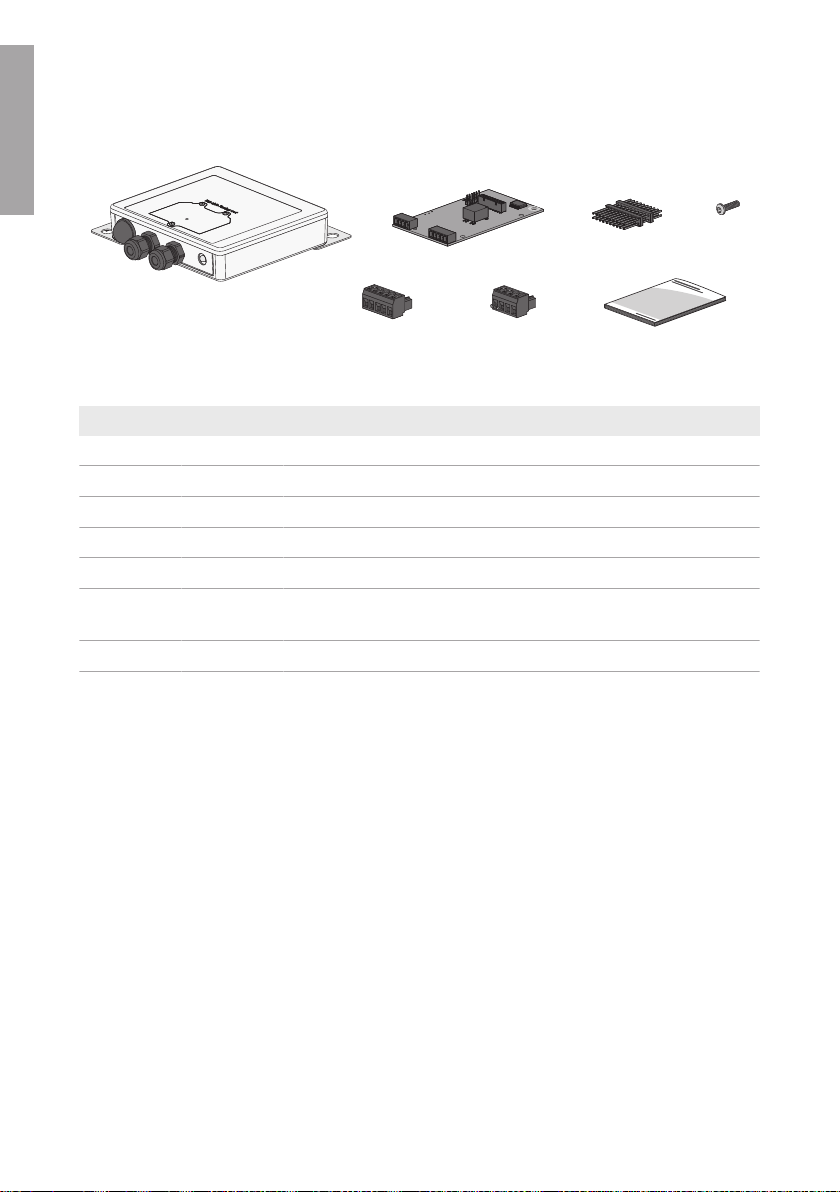

3 Scope of Delivery..................................................................... 12
4 Mounting................................................................................... 13
4.1 Mounting position ...................................................................................................... 13
4.2 Installing the Module ................................................................................................. 13
4.3 Mounting the Gateway ............................................................................................. 15
5 Connection................................................................................ 17
5.1 Connecting the Gateway .......................................................................................... 17
6 Commissioning the Rooftop Communication Kit ................... 20
7 Disposing of the Product.......................................................... 21
8 Contact ...................................................................................... 22
9 Compliance Information.......................................................... 23
ENGLISH

1 Information on this Document
SMA Solar Technology America LLC
Installation manual RoofCommKit-P2-US-IA-xx-10 7
1 Information on this Document
1.1 Validity
This document describes the assembly and installation of approved accessories in SMA inverters.
This document supplements the documents that are enclosed with each inverter and does not
replace any locally applicable codes or standards. Read and observe all documents supplied with
the inverter.
This document applies to the SMARooftopCommunicationKit (RoofCommKit-P2-US).
1.2 Target Group
The tasks described in this document must only be performed by qualified persons. Qualified
persons must have the following skills:
• Knowledge of how an inverter works and is operated
• Training in how to deal with the dangers and risks associated with installing and using
electrical devices and installations
• Training in the installation and commissioning of electrical devices and installations
• Knowledge of the applicable standards and directives
• Knowledge of and compliance with this document and all safety information
1.3 Symbols
Symbol Explanation
Information that is important for a specific topic or goal, but is not
safety-relevant
Indicates a requirement for meeting a specific goal
Desired result
A problem that might occur
1.4 Typographies
Typography Use Example
bold • Terminals
• Slots
• Parameters
• Elements on the user interface
• Elements to be selected
• Elements to be entered
• The value can be found in
the field Energy.
• Select Settings.
• Enter 10 in the field
Minutes.
>• Connects several elements to be
selected
• Select Settings > Date.
[Button]• Button to be selected or pressed • Select [Next].
ENGLISH

2 Safety SMA Solar Technology America LLC
Installation manualRoofCommKit-P2-US-IA-xx-108
2 Safety
2.1 Intended Use
The SMARooftopCommunicationKit is a communication set for TS4 module technology
components. The SMARooftopCommunicationKit enables direct connection of the inverter to the
Gateway.
SUNNY PORTAL/
SUNNY PLACES
INTERNET
TS4 GATEWAY
(GTWY)
...
...
...
UTILITY GRID
PV GENERATOR
ROUTER
PV INVERTER
with ROOFTOP
COMMUNICATION KIT
AC
DC Ethernet RS485 Radio

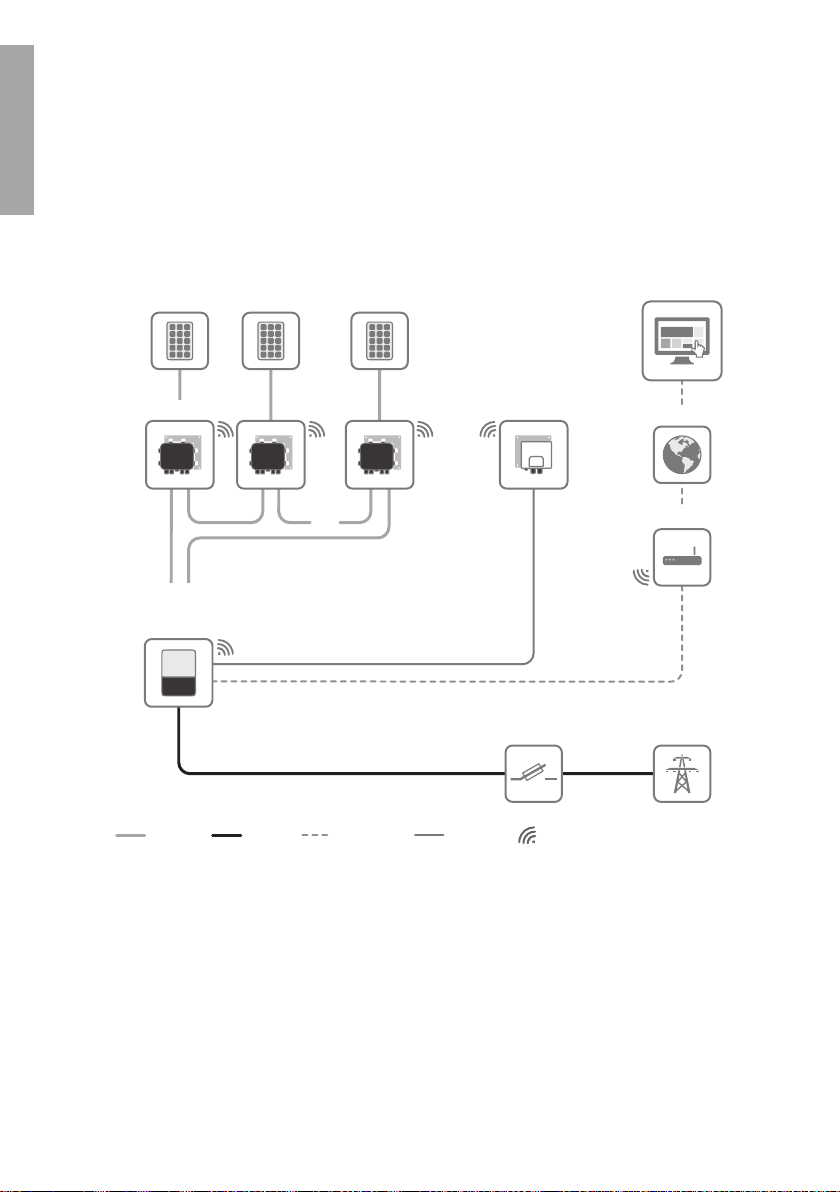

Figure 1 : System overview
The SMARooftopCommunicationKit must only be installed in the following SMAinverters with a
firmware version higher than 2.03.01.R:
• SB3.0-1SP-US-40 (Sunny Boy 3.0-US)
• SB3.8-1SP-US-40 (Sunny Boy 3.8-US)
• SB5.0-1SP-US-40 (Sunny Boy 5.0-US)
• SB6.0-1SP-US-40 (Sunny Boy 6.0-US)
• SB7.0-1SP-US-40 (Sunny Boy 7.0-US)
• SB7.7-1SP-US-40 (Sunny Boy 7.7-US)
ENGLISH

2 Safety
SMA Solar Technology America LLC
Installation manual RoofCommKit-P2-US-IA-xx-10 9
The inverter still complies with the standard after the product has been installed.
The product is approved for the US and Canadian market.
All components must remain within their permitted operating ranges and their installation
requirements at all times.
Use this product only in accordance with the information provided in the enclosed documentation
and with the locally applicable standards and directives. Any other application may cause
personal injury or property damage.
Alterations to the product, e.g. changes or modifications, are only permitted with the express written
permission of SMA. Unauthorized alterations will void guarantee and warranty claims and in most
cases terminate the operating license. SMA shall not be held liable for any damage caused by
such changes.
Any use of the product other than that described in the Intended Use section does not qualify as the
intended use.
The enclosed documentation is an integral part of this product. Keep the documentation in a
convenient place for future reference and observe all instructions contained therein.
2.2 Safety Information
This section contains safety information that must be observed at all times when working on or with
the product.
To prevent personal injury and property damage and to ensure long-term operation of the product,
read this section carefully and observe all safety information at all times.
DANGER
Danger to life due to high voltages of the PV array
When exposed to light, the PV array generates dangerous DC voltage, which is present in the
DC conductors and the live components of the inverter. Touching the DC conductors or the live
components can lead to lethal electric shocks.
• Prior to performing any work on the inverter, always disconnect the inverter from voltage
sources on the AC and DC sides as described in the inverter manual. When doing so, note
that even if the DC load-break is switched off, there will be dangerous direct voltage present
in the DC conductors of the inverter.
CAUTION
Increased electromagnetic radiation through the antenna
During operation, the antenna produces an electromagnetic field and can interfere with other
devices (e.g., pacemakers) due to electromagnetic interference.
• Persons must not remain closer than 20 cm (8 in) to the antenna for long periods of time.
ENGLISH

2 Safety SMA Solar Technology America LLC
Installation manualRoofCommKit-P2-US-IA-xx-1010
NOTICE
Damage to seals on the enclosure lids in subfreezing conditions
If you open the enclosure lids when temperatures are below freezing, the enclosure seals can be
damaged. Moisture can penetrate the product then.
• Only open the enclosure lid if the ambient temperature is not below 0°C (32°F).
• If a layer of ice has formed on the seal of the lid when temperatures are below freezing,
remove it prior to opening the enclosure lids (e.g. by melting the ice with warm air).
Observe the applicable safety regulations.
NOTICE
Damage to the inverter or product due to electrostatic discharge
Touching electronic components can cause damage to or destroy the inverter or the product
through electrostatic discharge.
• Ground yourself before touching any component.
NOTICE
Damage to the inverter due to moisture ingress during electrical installation
• Never open the inverter when it is raining or snowing, or the humidity is over 95%.
• For attaching the conduits to the enclosure, only use UL-listed rain-tight conduit fittings for
wet locations.
• Seal all unused openings tightly.
NOTICE
Damage to communication assembly in the inverter due to an interruption in
the voltage supply during the firmware update
The firmware update to a version higher than 2.03.01.R may take approx. 30minutes. The
inverter must be continually supplied with voltage for the entire course of the firmware update.
• Ensure that the inverter is supplied with voltage during the firmware update to a version
higher than 2.03.01.R.
ENGLISH

2 Safety
SMA Solar Technology America LLC
Installation manual RoofCommKit-P2-US-IA-xx-10 11
After installation of the Rooftop Communication Kit, the secure power
supply operation is no longer supported.
The Rooftop Communication Kit supports the Rapid Shutdown function. A rapid shutdown is
triggered in the event of a grid failure or an interruption of the AC supply of the inverter. Thus
the supply of the outlet for secure power supply operation is no longer possible.
• If a switch and an outlet for secure power supply operation are connected to the inverter,
the connections for the secure power supply operation have to be removed from the
inverter before installation of the Rooftop Communication Kit:
– Disconnect the inverter from all voltage sources (see inverter manual).
– Remove the conductors of the outlet for secure power supply operation from the
terminal block SPS. To release the conductors from the terminals, open the terminals
with a flat-blade screwdriver (blade width: 3.5°mm (0.14°in)).
– Screw out the screws from the SPS terminal block using a flat-blade screwdriver
(blade width: 3.5mm (0.14in)) and pull the terminal block out of the slot.
– Remove the equipment grounding conductor of the outlet for secure power supply
operation from the equipment grounding terminal. To do this, remove the screw with
a Torx screwdriver (TX 25) and remove the equipment grounding conductor from the
inverter; screw each screw back in with a Torx screwdriver (TX 25).
– For secure power supply operation, remove the plug with the switch conductors from
the SPS slot of the communication assembly.
– Pull all conductors for secure power supply operation out of the inverter and uninstall
the switch and outlet of secure power supply operation.
Electrical installations
All electrical installations must be carried out in accordance with the local standards and the
National Electrical Code® ANSI/NFPA 70 or the Canadian Electrical Code® CSA C22.1.
• Before connecting the inverter to the utility grid, contact your local grid operator. The
electrical connection of the inverter must be carried out by qualified persons only.
• Ensure that no cables used for electrical connection are damaged.
ENGLISH

3 Scope of Delivery SMA Solar Technology America LLC
Installation manualRoofCommKit-P2-US-IA-xx-1012
3 Scope of Delivery
A
G
B
EF
CD
Figure 2 : Components included in the scope of delivery
Position Quantity Designation
A 1 Gateway
B 1 Module
C 1 20-pole pin strip for mounting the module
D 1 Fastening screw (M5, TX25)
E 1 5-pole terminal block for connecting the Gateway
F 1 4-pole terminal block including 6.8 kOhm resistance in the terminal
points 1 and 2.
G 1 Installation manual
ENGLISH

4 Mounting
SMA Solar Technology America LLC
Installation manual RoofCommKit-P2-US-IA-xx-10 13
4 Mounting
4.1 Mounting position
DISPLAY
BAT
Max. 30V DC
USB
FCC ID: SVF-KP
IC: 9440A-KP20
MFR
AB
X1 X2
A
B
Figure 3 : Communication assembly in the inverter with mounting position for the module
Position Designation
A Communication assembly
BModule slot M2
4.2 Installing the Module
NOTICE
Damage to the inverter due to moisture ingress during electrical installation
• Never open the inverter when it is raining or snowing, or the humidity is over 95%.
• For attaching the conduits to the enclosure, only use UL-listed rain-tight conduit fittings for
wet locations.
• Seal all unused openings tightly.
Procedure:
1. DANGER
Danger to life due to high voltages of the PV array
When exposed to light, the PV array generates dangerous DC voltage, which is present in
the DC conductors and the live components of the inverter. Touching the DC conductors or
the live components can lead to lethal electric shocks.
• Prior to performing any work on the inverter, always disconnect the inverter from
voltage sources on the AC and DC sides as described in the inverter manual. When
doing so, note that even if the DC load-break is switched off, there will be dangerous
direct voltage present in the DC conductors of the inverter.
ENGLISH

4 Mounting SMA Solar Technology America LLC
Installation manualRoofCommKit-P2-US-IA-xx-1014
2. Remove the enclosure lid of the DC Connection Unit. Unscrew all screws with a Torx
screwdriver (TX25) and remove the enclosure lid carefully forward.
3. Set the screws and the enclosure lid aside and store safely.
4. Plug the pin strip with the long pin side into the
socket terminal strip on the back of the module.
5. Plug the module into the module slot M2. Perform the following steps:
• Guide the three guide pins on the
communication assembly through the holes in
the module.
• Carefully push the module down on the upper
edge and on the connection sockets until it
audibly snaps into both side locking tabs of the
communication assembly. The plug on the back
of the module is automatically pushed into the
socket terminal strip of the communication
assembly.
CLICKCLICK
ENGLISH

4 Mounting
SMA Solar Technology America LLC
Installation manual RoofCommKit-P2-US-IA-xx-10 15
6. Screw tight the fastening screw with a Torx
screwdriver (TX 25) on the module (torque: 1.5Nm
(13 in-lb)). This additionally fixes the module in
place and grounds it in the inverter enclosure.
4.3 Mounting the Gateway
Mounting position
☐ The range of the wireless communication of the Gateway is approximately 15m (50ft). The
Gateway should be mounted in the center of the PV array.
15 m (50 ft)
Figure 4 : Mounting position of the Gateways in the PV array
Procedure:
1. For installation on the back of the PV module proceed as follows:
• Attach the bracket on the rear side.
ENGLISH

4 Mounting SMA Solar Technology America LLC
Installation manualRoofCommKit-P2-US-IA-xx-1016

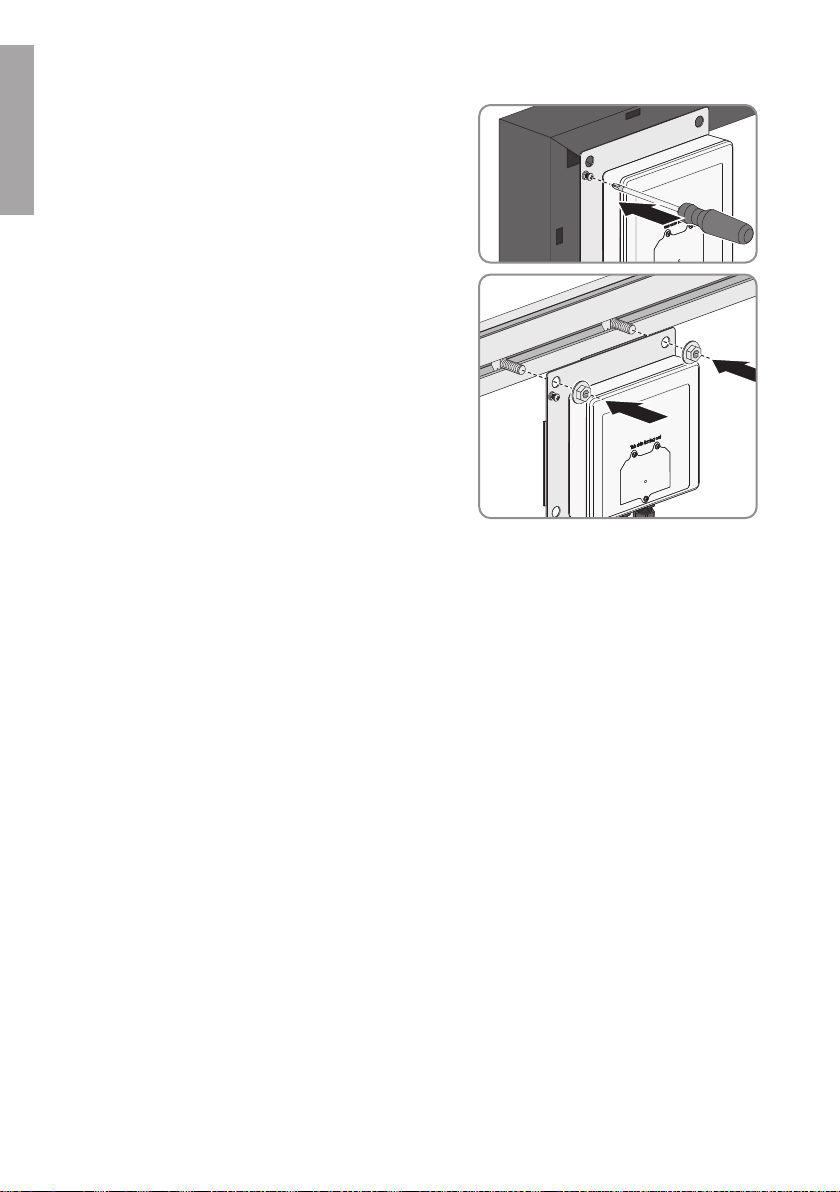

• Tighten the screw using a cross-head
screwdriver (size 2).
2. When mounting on the frame construction, put the
bracket of the Gateway on two screws that are
anchored on the frame construction and attach the
Gateway with suitable washers and nuts (hole
diameter in the bracket of the Gateway: 9mm
(0.35in)). The cable glands at the Gateway must
face downwards. This will ensure that no moisture
can penetrate the Gateway.
3. Ensure that the Gateway is securely in place.
4. Install additional Gateways if required. Note that a maximum of threeGateways can be
connected to one module.
ENGLISH

5 Connection
SMA Solar Technology America LLC
Installation manual RoofCommKit-P2-US-IA-xx-10 17
5 Connection
5.1 Connecting the Gateway
Requirements:
☐ If several Gateways are present in the system, these have to be connected to each other prior
connection to the module in the inverter.
☐ A maximum of threeGateways can be connected to one module in the inverter.
☐ A terminator must be plugged into the last gateway in the row.
Cabling plan of the Gateways:
B A
_+B A _+ B A _+ B A _+B A _+ B A _+
B A
_+B A _+
+− B A S
Figure 5 : Cabling plan of the Gateways with module in the inverter
Cable requirements:
☐ Number of insulated conductor pairs and insulated conductor cross-section: at least
2x2x0.22mm² (2x2x24AWG)
☐ The conductor must be shielded.
☐ The conductors must be twisted-pair.
☐ UV-resistant for outdoor use
☐ The conductors lengths in the inverter must be as short as possible. This prevents contact with
live conductors.
☐ If the conductor is to be installed without conduit, the conductor has to be suited for outdoor
use.
☐ If the conductor is to be installed in a conduit together with live conductors, the conductor has
to be insulated for 600V.
ENGLISH

5 Connection SMA Solar Technology America LLC
Installation manualRoofCommKit-P2-US-IA-xx-1018
Assignment of the terminal block:
Terminal block Clamping position Assignment
A B CD E
A -
B +
C B
D A
E S (Shield)
Procedure:
1. If the conductor is installed in a separate conduit, mount the conduit to the enclosure opening:
• Remove the sealing plugs from the network connection opening on the inverter.
• Insert the conduit fitting into the opening and tighten from the inside using the counter nut.
• Attach the conduit to the conduit fitting.
2. Guide the conductors from the conduit into the inverter. In the process, install the conductors in
the inverter such that they do not come into contact with AC conductor.
3. Strip off the conductor insulation by 7mm (0.28in).
4. In the case of fine stranded wire, provide the conductors with a bootlace ferrule.
5. The terminal block with resistor must be inserted for proper operation.
If the terminal block with resistor is not inserted, the system will not function properly.
• Plug the 4-pole terminal block with
inserted resistor into the jack RSI/SPS on
the module.
--RSI-- --SPS--
6. Connect the conductors to the terminal points of the
terminal block in accordance with the labeling and
tighten the screw terminals with the screwdriver.
− + B A S
2
1
7. Ensure that the conductors sit securely in the terminal point of the terminal block.
ENGLISH

5 Connection
SMA Solar Technology America LLC
Installation manual RoofCommKit-P2-US-IA-xx-10 19
8. Plug the terminal block into the jack RS485 on the
module.
RS485 PORT
--RSI-- --SPS--
ENGLISH

6 Commissioning the Rooftop Communication Kit SMA Solar Technology America LLC
Installation manualRoofCommKit-P2-US-IA-xx-1020
6 Commissioning the Rooftop Communication Kit
1. Commission the inverter (see inverter manual).
2. Activate the user interface of the inverter (see the inverter manual).
3. Start the installation assistant (see the inverter manual).
4. Select the step Configuration of module technology and fill out the individual tabs. In the
last step Status, check the correct configuration.
5. Checking the Rapid Shutdown function of the TS4-R components:
• Ensure that the inverter feeds into the utility grid.
• Turn off the AC circuit breaker. As a result, the Rapid Shutdown function is tripped.
• Measure voltage on the DC inputs of the inverter or watch the display or the LEDs. The
Rapid Shutdown function works properly when the voltage drops to < 30V within 30
seconds and the display and LEDs have gone out after 90 seconds. If the voltage is >
30V and the display and LEDs have not gone out after 90 seconds, the Rapid Shutdown
function is not working properly and the system should not be put into operation. In this
case, check the installation.
6. Register the system in SunnyPortal and detect the TS4-R components in SunnyPortal
(www.SunnyPortal.com).
ENGLISH
