Smarteh LPC-2.CH1M User manual

USER MANUAL
Longo programmable controller
LPC-2.CH1M
Card Holder module
Version 3
SMARTEH d.o.o. / Poljubinj 114 / 5220 Tolmin / Slovenia / Tel.: [phone] / e-mail: [e-mail] / www.smarteh.si

Longo programmable controller LPC-2.CH1M
Written by SMART H d.o.o.
Copyright © 2017, SMART H d.o.o.
User Manual
Document Version: 3
May, 2017
i

Longo programmable controller LPC-2.CH1M
STANDARDS AND PROVISIONS: Standards, recommendations,
regulations and provisions of the country in which the devices will
operate, must be considered while planning and setting up electrical
devices. Work on 100 .. 240 V AC network is allowed for authorized
personnel only.
DANG R WARNINGS: Devices or modules must be protected from
moisture, dirt and damage during transport, storing and operation.
WARRANTY CONDITIONS: For all modules LONGO LPC-2 – if no
modifications are performed upon and are correctly connected by
authorized personnel – in consideration of maximum allowed
connecting power, warranty of 24 months is valid from the date of
sale to the end buyer, but not more than 36 months after delivery
from Smarteh. In case of claims within warranty time, which are based
on material malfunctions the producer offers free replacement. The
method of return of malfunctioned module, together with description,
can be arranged with our authorized representative. Warranty does
not include damage due to transport or because of unconsidered
corresponding regulations of the country, where the module is
installed.
This device must be connected properly by the provided connection
scheme in this manual. Misconnections may result in device damage,
fire or personal injury.
Hazardous voltage in the device can cause electric shock and may
result in personal injury or death.
N V R S RVIC THIS PRODUCT YOURS LF!
This device must not be installed in the systems critical for life (e.g.
medical devices, aircrafts, etc.).
If the device is used in a manner not specified by the manufacturer,
the degree of protection provided by the equipment may be impaired.
Waste electrical and electronic equipment (W ) must be collected
separately!
LONGO LPC-2 complies to the following standards:
•MC: N 61000-6-3:2007 + A1:2011, N 61000-6-1:2007, N 61000-
3-2:2006 + A1:2009 + A2: 2009, N 61000-3-3:2013
•LVD: I C 61010-1:2010 (3rd d.), I C 61010-2-201:2013 (1st d.)
Smarteh d.o.o. operates a policy of continuous development.
Therefore we reserve the right to make changes and improvements to
any of the products described in this manual without any prior notice.
MANUFACTUR R:
SMART H d.o.o.
Poljubinj 114
5220 Tolmin
Slovenia
ii

Longo programmable controller LPC-2.CH1M
Longo programmable controller LPC-2.CH M
1 D SCRIPTION...................................................................................1
2 F ATUR S.......................................................................................2
3 OP RATION.....................................................................................3
3.1 Parameters..............................................................................3
4 INSTALLATION..................................................................................4
4.1 Connection scheme....................................................................4
4.2 Mounting frame selection............................................................6
4.3 Mounting instructions.................................................................7
4.4 Module labeling........................................................................8
5 T CHNICAL SP CIFICATIONS.................................................................9
6 CHANG S .....................................................................................10
7 NOT S..........................................................................................11
iii

Longo programmable controller LPC-2.CH1M
DESCRIPTION
LPC-2.CH1M RFID reader is intended to be used as presence registering device and key-card holder.
Module also provides push buttons (PB) for activating requested messages. This messages are
convenient to notify personnel (e.g. occupied, do not disturb).
Once a person has entered to the room, the key-card should be inserted to the CH1M card slot1. If
card ID for correspondent room is valid, several actions can be started (e.g. room light and air
conditioning switched on).
CH1M module features two PB with which customer is able to activate notification to the personnel.
One PB activates “DO NOT DISTURB” message and the other PB activates “ROOM S RVIC ” request.
LPC-2.CH1M module can be modified on customer request: custom front label, push buttons
changed, L Ds added, housing color. Please contact manufacturer for more information.
LPC-2.CH1M reads unique ID (UID) from standard ISO/I C 14443 A/MIFAR .
1 To achieve most reliable RFID card reading results use Smarteh RFID Mifare cards.
RFID Mifare card must be inserted at least 40 mm deep into LPC-2.CH1M card slot in a time period between 1 .. 3 seconds.
1

Longo programmable controller LPC-2.CH1M
2 FEATURES

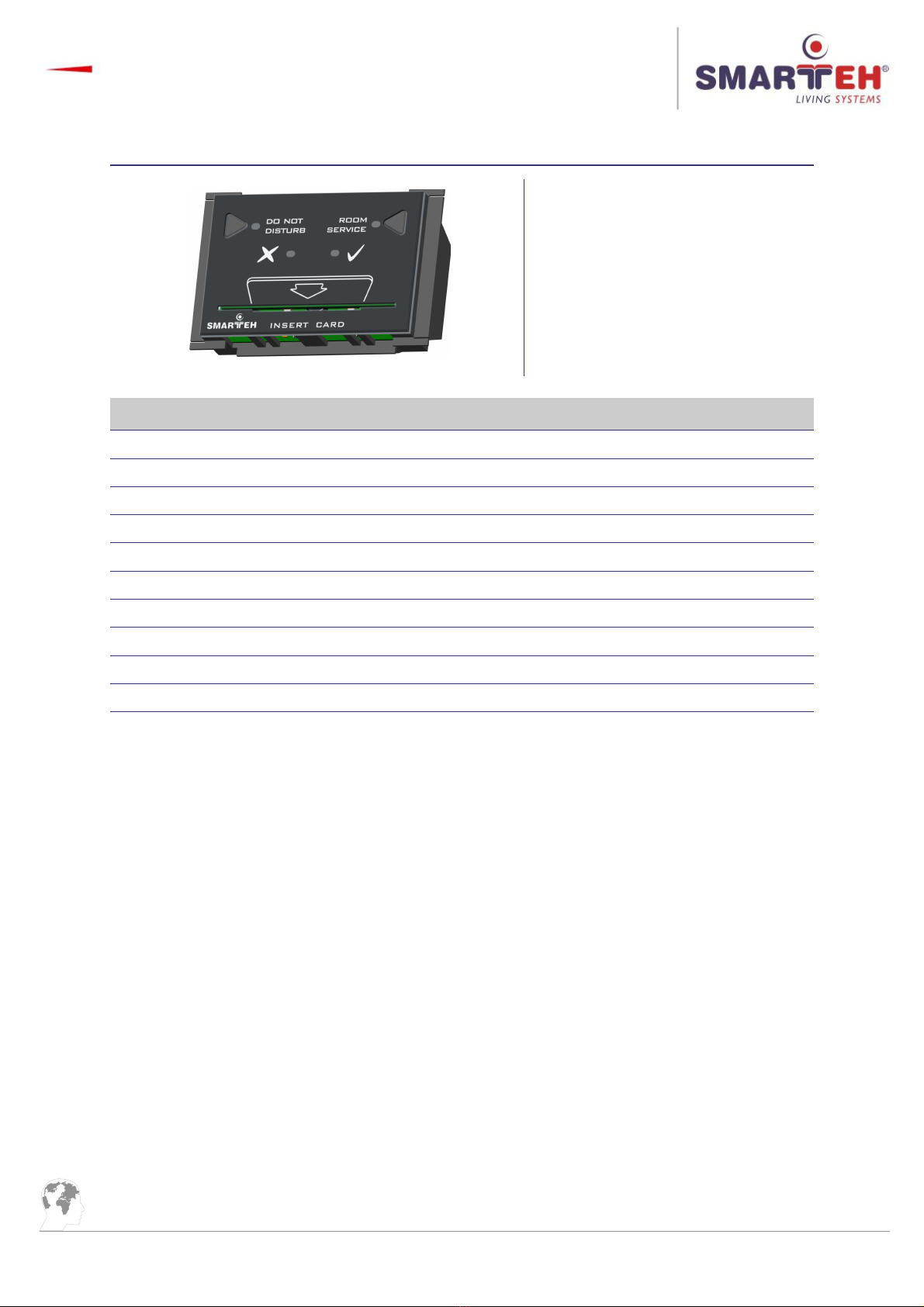

Figure 1: LPC-2.CH1M.
Table : Features
RFID reader
RFID card slot
Adjustable L D intensity
L Ds for showing activated messages & requests: do not disturb, room service
2 push buttons for activating messages & requests: do not disturb, room service
OK “ √ ” L D
FAULT “ X ” L D
Power L D
Internal fault L D
Internal built-in buzzer
2

Longo programmable controller LPC-2.CH1M
3 OPERATION
Operation of the CH1M module is also dependent on parameters received on RS-485 communication
channel.
If RFID card is inserted into slot, reader tries to resolve RFID tag code. If code is read successfully,
module activates status iIDNew and sends RFID code in iIDW1-iIDW7 status fields. Code is send out
until key-card is removed from slot.
While iIDNew status is active and oOK or oFault is activated, corresponding L D is turned on. (L D3
OK or L D4 fault respectively). This state is sustained until key-card is removed.
ach press on a PB1 or PB2 toggles status iDNDist or iRServ respectively. By activating commands
oOkLD, oFaultLD oDNDist, oRServ corresponding L D is turned-on (L D3, L D4, L D1, L D2).
CH1M module L D's intensity can be adjusted from main module application also. By default their
intensity is set to 75%. While oEnInts status is active, L D's intensity can be adjusted by changing
oLdInts parameter.
3. Parameters
If parameter is set to logical “1”, is considered to be active, enabled or set. If parameter has
logical value “0” is considered to be inactive, disabled, or cleared.
Parameter can be status or command. Parameter as status means that CH1M module is sending
information to main module. On the other hand, command represents request from main module to
module.
iComm: Normal state is “0”. If set, there is communication error or no communication established.
iIDNew: When new RFID tag is recognized while inserted into CH1M slot, this status is set active till
RFID card is not removed from the CH1M slot.
iDNDist: Active status denotes user has requested “do not disturb” message to be displayed - L D1
iRServ: Active status denotes user has requested “room service” message to be displayed - L D2
oBuzz: While this command is active, buzzer is active.
oOK: Command for authorization of RFID code.
oFault: Command for rejecting authorization of RFID code.
oDNDist: Command for activation of “do not disturb” message, do not disturb L D1 is toggled
oRServ: Command for activation of “room service” request, room service request L D2 is toggled
oOkLD: While this command is active, OK L D4 is set.
oFaultLD: While this command is active, fault L D3 is set.
oEnInts: nables changing L D's intensity together with oLdInts value.
oLdInts: Command for setting L D intensity. Only valid while oEnInts active.
iIDW1: Upper (most significant) third of RFID code (UID0, UID1)
iIDW2: Middle third of RFID code (UID2, UID3)
iIDW3: Middle third of RFID code (UID4, UID5)
iIDW4: Lower (least significant) third of RFID code (UID6, UID7)
3

Longo programmable controller LPC-2.CH1M
4 INSTALLATION
4. Connection scheme
Figure 2: Connection scheme
4

Longo programmable controller LPC-2.CH1M
Table 2: K
K1.1 GND Ground
K1.2 10 .. 24 V DC Power supply input
K1.3 RS-485 A Data receive/send line A
K1.4 RS-485 B Data receive/send line B
Table 3: LEDs & Buttons
L D1: blue do not disturb On: request active
Off: no request
L D2: blue room service On: request active
Off: no request
L D3: red FAULT “ X ” On: RFID key standard NOK or ID card number wrong
Off: No tag in proximity
L D4: green OK “ √ ”On: RFID key standard OK and ID card number valid
Off: No tag in proximity
L D5: red Communication On: RS-485 communication fault
Off: RS-485 communication OK
L D6: green Power supply On: power supply OK
Off: power supply missing or power off
PB1 do not disturb each press toggles request on/off
PB2 room service each press toggles request on/off
Table 4: S
RS-485
ADDRESS Switch Switch 2
0 OFF OFF
1 OFF ON
2 ON OFF
3 ON ON
5

Longo programmable controller LPC-2.CH1M
4.2 Mounting frame selection
Frame, suitable for CH1M module insertion, should be modular one at least 3 gang wide. Be careful
to have corresponding flush-mounting box provided on the place where module will be positioned.
Smarteh has verified following lines to be compatible with LPC-2.CH1M module:
●Bticino – Living, Light
●Gewiss – Playbus, System
●Vimar – Plana, Idea
●Tem – Modul Soft, Modul Line
●Master
Frames of other vendors most probably suits as well, but they were not verified by Smarteh. Before
installation verify compatibility of non listed frames.
Module housing has a fin on each side, which can be easily removed with knife cutter or pliers. This
adaptation enables housing to be build in various frame formats with two different depths. With
regard to frame used you may remove fin for housing to fit in. RFID module should not be positioned
close to conductive areas (e.g.: metal frames and metal cover plate).
Figure 3: Module with
removable fin.
6

Longo programmable controller LPC-2.CH1M
4.3 Mounting instructions
Figure 4: Housing dimensions
Dimensions in millimeters.
All connections, module attachments and assembling must be done while
module is not connected to the main power supply.
Module should not be mounted outdoors.
Module should be positioned in the wall inside of the room. Avoid direct
sunlight or positioning near heating/cooling source object.
Several RFID panels should not be mounted close to each other. Minimum
distance to next panel is at least 30 cm. This restriction also applies in
case of mounting panels on both sides of the same wall. Adequate shielding
material and provisions could be used to avoid interference between
panels.
RFID panel should not be positioned close to conductive areas (e.g.: metal
frames and metal cover plate).
Mounting instructions:
1. Set the correct RS-485 address (S1 switch) for LPC-2.CH1M (refer to the Table 4).
2. Connect interconnection cable to the connector K1. Max. allowed tractive force is 30 N.
3. Put the LPC-2.CH1M in mounting frames.
4. Cover LPC-2.CH1M with cover plate.
LPC-2.CH1M connects to the main module on its RS-485 port using interconnection cable. When more
special modules (e.g. LPC-2.CR1, LPC-2.CH1, LPC-2.DP1) are connected to main module, splitter is
also required (e.g. SPL-2).
NOTE: Signal wires must be installed separately from power and high voltage wires in accordance
with general industry electrical installation standard.
7

Longo programmable controller LPC-2.CH1M
4.4 Module labeling
Table 5: Labels
Label 1 (sample): Label 2 (sample):
Label description:
•LPC-2.CH M is the full product name
•P/N: 225CH113V02002 is the part number
•225 – general code for LPC-2 product family,
•CH1M – short product name,
•10 – year of code opening
•V - denotes flush frame mounting module
•01 – derivation code
•001 – version code (reserved for future HW and/or SW firmware upgrades).
•D/C: 10/10 is the date code.
•01 – week and
•10 – year of production
•S/N: CH1-S9-1000000003 is the serial number.
•CH1 – short product name,
•S9 – user code (test procedure, e.g. Smarteh person xxx),
•10 – year (last two cyphers)
•00000003 – current stack number; previous module would have the stack number
00000002 and the next one 00000004.
8
LPC-2.CH1M
P/N:225CH1130V02002
D/C: 01/10
S/N: CH1-S9-1000000003

Longo programmable controller LPC-2.CH1M
5 TECHNICAL SPECIFICATIONS
Table 6: Technical specifications
Power supply from main module
Interconnection connector type RJ-12 6/6
Power consumption 1 W
RFID type ISO/I C 14443 A/MIFAR 2
Max. reading distance RFID card must be inserted into LPC-2.CH1M2
Dimensions (W x H x D) 75 x 49 x 29 mm
Weight 40 g
Ambient temperature 0 to 50 °C
Ambient humidity max. 95 %, no condensation
Maximum altitude 2000 m
Mounting position horizontal
Transport and storage temperature -20 to 60 °C
Protection class IP 20
2 To achieve most reliable RFID card reading results use Smarteh RFID Mifare cards.
RFID Mifare card must be inserted at least 40 mm deep into LPC-2.CH1M card slot in a time period between 1 .. 3 seconds.
9

Longo programmable controller LPC-2.CH1M
6 CHANGES
The following table describes all the changes to the document.
Date V. Description
30.05.17 3 Technical data update.
23.12.15 2 Pictures update.
01.06.14 1 The initial version, issued as LPC-2.CH1M module UserManual.
10

Longo programmable controller LPC-2.CH1M
7 NOTES
11
