SMC Networks ZXP7-X1-ASSISTA Series User manual

Doc. no. TQ1230001-OM105
PRODUCT NAME
Vacuum gripper unit
MODEL / Series / Product Number
ZXP7  -  -X1*-ASSISTA
The outward appearance showed on this manual is an example of the vacuum gripper unit with
suction cups which is indicated by the product number: ZXP7A-ZPB25JS-X1-ASSISTA. Refer to the
suction cup catalog for the detail of other applicable suction cups.

-1-
No. TQ1230001-OM105
Contents
Safety instructions…………………………………………………………………………………………………..2
1. Parts included in the package...............................................................................................................6
2. Names of Parts of the Product..............................................................................................................7
3. Specifications .......................................................................................................................................8
3.1. Specifications...............................................................................................................................8
3.2. Flow rate / Exhaust characteristics ............................................................................................9
3.3. How to calculate theoretical lifting force..................................................................................10
3.4. How to order...............................................................................................................................11
4. Mounting ............................................................................................................................................12
5. Dimensions.........................................................................................................................................16
5.1. Vacuum gripper unit ..................................................................................................................16
5.2. Center of gravity ........................................................................................................................17
5.3. Suction cup with adapter...........................................................................................................18
6. How to change the number of cups ....................................................................................................20
6.1 Change to 1 cup (with flange) ....................................................................................................20
6.2 Change to 1 cup (without flange)...............................................................................................21
6.3 Change to 2 cups ........................................................................................................................22
7.Maintenance........................................................................................................................................23
7.1. Maintenance for vacuum gripper unit.......................................................................................23
7.2. Maintenance for suction cup.....................................................................................................24
8.Precautions .........................................................................................................................................25
8.1 Air supply..................................................................................................................................25
8.2 Vacuum gripper unit precautions............................................................................................25
8.3 Suction cup precautions..........................................................................................................27
9.Trouble shooting..................................................................................................................................30

-2-
No. TQ1230001-OM105
Safety Instructions
These safety instructions are intended to prevent hazardous situations and/or equipment damage.
These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.”
They are all important notes for safety and must be followed in addition to International Standards
(ISO/IEC)*1) , and other safety regulations.
*1) ISO 4414: Pneumatic fluid power -- General rules relating to systems.
ISO 4413: Hydraulic fluid power -- General rules relating to systems.
IEC 60204-1: Safety of machinery -- Electrical equipment of machines .(Part 1: General requirements)
ISO 10218: Manipulating industrial robots -Safety.
etc.
Caution
Caution indicates a hazard with a low level of risk which, if not avoided, could result
in minor or moderate injury.
Warning
Warning indicates a hazard with a medium level of risk which, if not avoided, could
result in death or serious injury.
Danger
Danger indicates a hazard with a high level of risk which, if not avoided, will result
in death or serious injury.
Warning
1. The compatibility of the product is the responsibility of the person who designs the equipment
or decides its specifications.
Since the product specified here is used under various operating conditions, its compatibility with specific
equipment must be decided by the person who designs the equipment or decides its specifications based on
necessary analysis and test results.
The expected performance and safety assurance of the equipment will be the responsibility of the person who
has determined its compatibility with the product.
This person should also continuously review all specifications of the product referring to its latest catalog
information, with a view to giving due consideration to any possibility of equipment failure when configuring the
equipment.
2. Only personnel with appropriate training should operate machinery and equipment.
The product specified here may become unsafe if handled incorrectly.
The assembly, operation and maintenance of machines or equipment including our products must be performed
by an operator who is appropriately trained and experienced.
3. Do not service or attempt to remove product and machinery/equipment until safety is
confirmed.
1.The inspection and maintenance of machinery/equipment should only be performed after measures to
prevent falling or runaway of the driven objects have been confirmed.
2.When the product is to be removed, confirm that the safety measures as mentioned above are implemented
and the power from any appropriate source is cut, and read and understand the specific product precautions
of all relevant products carefully.
3. Before machinery/equipment is restarted, take measures to prevent unexpected operation and malfunction.
4. Contact SMC beforehand and take special consideration of safety measures if the product is
to be used in any of the following conditions.
1. Conditions and environments outside of the given specifications, or use outdoors or in a place exposed to
direct sunlight.
2. Installation on equipment in conjunction with atomic energy, railways, air navigation, space, shipping,
vehicles, military, medical treatment, combustion and recreation, or equipment in contact with food and
beverages, emergency stop circuits, clutch and brake circuits in press applications, safety equipment or
other applications unsuitable for the standard specifications described in the product catalog.
3. An application which could have negative effects on people, property, or animals requiring special safety
analysis.
4.Use in an interlock circuit, which requires the provision of double interlock for possible failure by using a
mechanical protective function, and periodical checks to confirm proper operation.

-3-
No. TQ1230001-OM105
Safety Instructions
Caution
The product is provided for use in manufacturing industries.
The product herein described is basically provided for peaceful use in manufacturing industries.
If considering using the product in other industries, consult SMC beforehand and exchange
specifications or a contract if necessary.
If anything is unclear, contact your nearest sales branch.
Limited warranty and Disclaimer/Compliance Requirements
The product used is subject to the following “Limited warranty and Disclaimer” and “Compliance
Requirements”.
Read and accept them before using the product.
Limited warranty and Disclaimer
1.The warranty period of the product is 1 year in service or 1.5 years after the product is
delivered,whichever is first.2)
Also, the product may have specified durability, running distance or replacement parts.
Please consult your nearest sales branch.
2. For any failure or damage reported within the warranty period which is clearly our
responsibility, a replacement product or necessary parts will be provided.
This limited warranty applies only to our product independently, and not to any other damage
incurred due to the failure of the product.
3. Prior to using SMC products, please read and understand the warranty terms and disclaimers
noted in the specified catalog for the particular products.
2) Suction cups are excluded from this 1 year warranty.
A suction cup is a consumable part, so it is warranted for a year after it is delivered.
Also, even within the warranty period, the wear of a product due to the use of the suction
cup or failure due to the deterioration of rubber material are not covered by the limited
warranty.
Compliance Requirements
1. The use of SMC products with production equipment for the manufacture of weapons of
mass destruction(WMD) or any other weapon is strictly prohibited.
2. The exports of SMC products or technology from one country to another are governed by
the relevant security laws and regulation of the countries involved in the transaction. Prior
to the shipment of a SMC product to another country, assure that all local rules governing
that export are known and followed.
Caution
SMC products are not intended for use as instruments for legal metrology.
Measurement instruments that SMC manufactures or sells have not been qualified by type approval
tests relevant to the metrology (measurement) laws of each country.
Therefore, SMC products cannot be used for business or certification ordained by the metrology
(measurement) laws of each country.

-4-
No. TQ1230001-OM105
■Explanation of Symbols
Sym bol
Definition
Things you must not do.
Instructions are provided as a drawing or sentence next to the symbol.
Things you must do
Instructions are provided as a drawing or sentence next to the symbol.
■Operator
1. This Operation Manual is intended for those who have knowledge of machinery using pneumatic equipment, and
have sufficient knowledge of assembly, operation and maintenance of such equipment.
Only those persons are allowed to perform assembly, operation and maintenance.
2. Read and understand this Operation Manual carefully before assembling, operating or providing maintenance to
the product.
■Safety Instructions
Warning
Disassembly
prohibited
Do not disassemble, modify (including the replacement of board) or repair other than
instructed in this manual.
Otherwise, an injury or failure can result.
Do not
Do not operate the product outside of the specifications.
Do not use for flammable or harmful fluids.
Fire, malfunction, or damage to the product can result.
Please check the specifications before use.
Do not
Do not use in an atmosphere containing flammable or explosive gases.
Fire or an explosion can result.
The product is not designed to be explosion proof.
Do not
Do not use the product in a place where static electricity is a problem.
Otherwise failure or malfunction of the system can result.
Do not
Do not cut off the power and compressed air supplied to this product while it is operating.
Otherwise it can cause injury due to dropping of workpieces or damage to the system.
Instruction
If using the product in an interlocking circuit
- Provide a double interlocking system, for example a mechanical system.
- Check the product for proper operation.
Otherwise malfunction can result, causing an accident.
Instruction
The following instructions must be followed during maintenance
- Turn off the power supply
- Stop the air supply, exhaust the residual pressure in piping and verify that the air is
released before performing maintenance work.
It may cause an injury.

-5-
No. TQ1230001-OM105
Caution
Do not touch
Do not touch the terminals and connectors while the power is on.
Otherwise electric shock, malfunction or damage to the switch can result.
Instruction
Perform sufficient trial run.
Otherwise, injury or damage to the system can result due to suction failure depending on
the conditions of the suction of the workpiece or the pressure switch settings.
Perform sufficient verification before using this product.
Instruction
After maintenance is complete, perform appropriate functional inspections and leak test.
Stop operation if the equipment does not function properly or there is leakage of fluid.
If there is leakage from parts other than the piping, the product might be broken.
Cut off the power supply and stop the fluid supply.
Do not supply fluid if there is leakage.
Safety cannot be assured in the case of an unexpected malfunction.
■ Precautions for Handling
Follow the instructions given below for selecting and handling of the vacuum gripper unit.
Product specifications
- It is recommended to use compressed air which purity class is 2:6:3 of ISO8573-1:2010.
- The applicable fluid is air.
Do not use a fluid containing chemicals, synthetic oils including organic solvent, salt and corrosive gases.
Otherwise, damage to the vacuum gripper unit and malfunction can result.
- Use the specified operating pressure.
- Reserve a space for maintenance.
Design the system allowing the required space for maintenance.
- Use the specified voltage. Otherwise failure or malfunction can result.
-Do not exceed the specified maximum allowable load. Otherwise it can cause damage or shorten the life of the product.
- Design the product to prevent reverse current when the circuit is opened or the product is forced to operate for
operational check. Reverse current can cause malfunction or damage the product.
Operating environment
- Do not use in an environment where corrosive gases, chemicals, sea water, water or steam are present.
- Do not use the product in a place where the product could be splashed by oil or chemicals.
If the product is to be used in an environment containing oils or chemicals such as coolant or cleaning solvent, even for a
short time, the solenoid valve or pressure switch may be adversely affected (damage, malfunction, or hardening of the
cable and lead wires).
- Do not use in an area where surges are generated.
When there are machines or equipment that generate large surge near the pressure switch (magnetic type lifter, high
frequency inductive furnace, motor, etc.), this can result in deterioration and damage of the internal elements. Take
measures against the surge sources, and prevent the lines from coming into close contact.
- Do not use a load which generates surge voltage.
When a surge-generating load such as a relay or solenoid is directly driven, use the product with a surge absorbing
element built-in.
- Mount the product in a location that is not affected by vibration or impact.
It will cause failure or malfunction.
- Do not use the product in an environment that is exposed to temperature cycle.
Heat cycles other than ordinary changes in temperature can adversely affect the inside of the product.
- Do not expose the product to direct sunlight.
If using in a location directly exposed to sunlight, protect the product from the sunlight.
- Keep within the specified operating fluid and ambient temperature range.
Operation under low temperature may lead to damage or operation failure due to frozen moisture in the fluid or air.
Protection against freezing is necessary. Mounting of an air dryer is recommended for elimination of drainage and water.
Avoid abrupt temperature changes even within the specified temperature range.
- Do not use in a location where the product is exposed to radiant heat from surrounding heat sources.
Insufficient air quality may cause operation failure.
-
3
-

-6-
No. TQ1230001-OM105

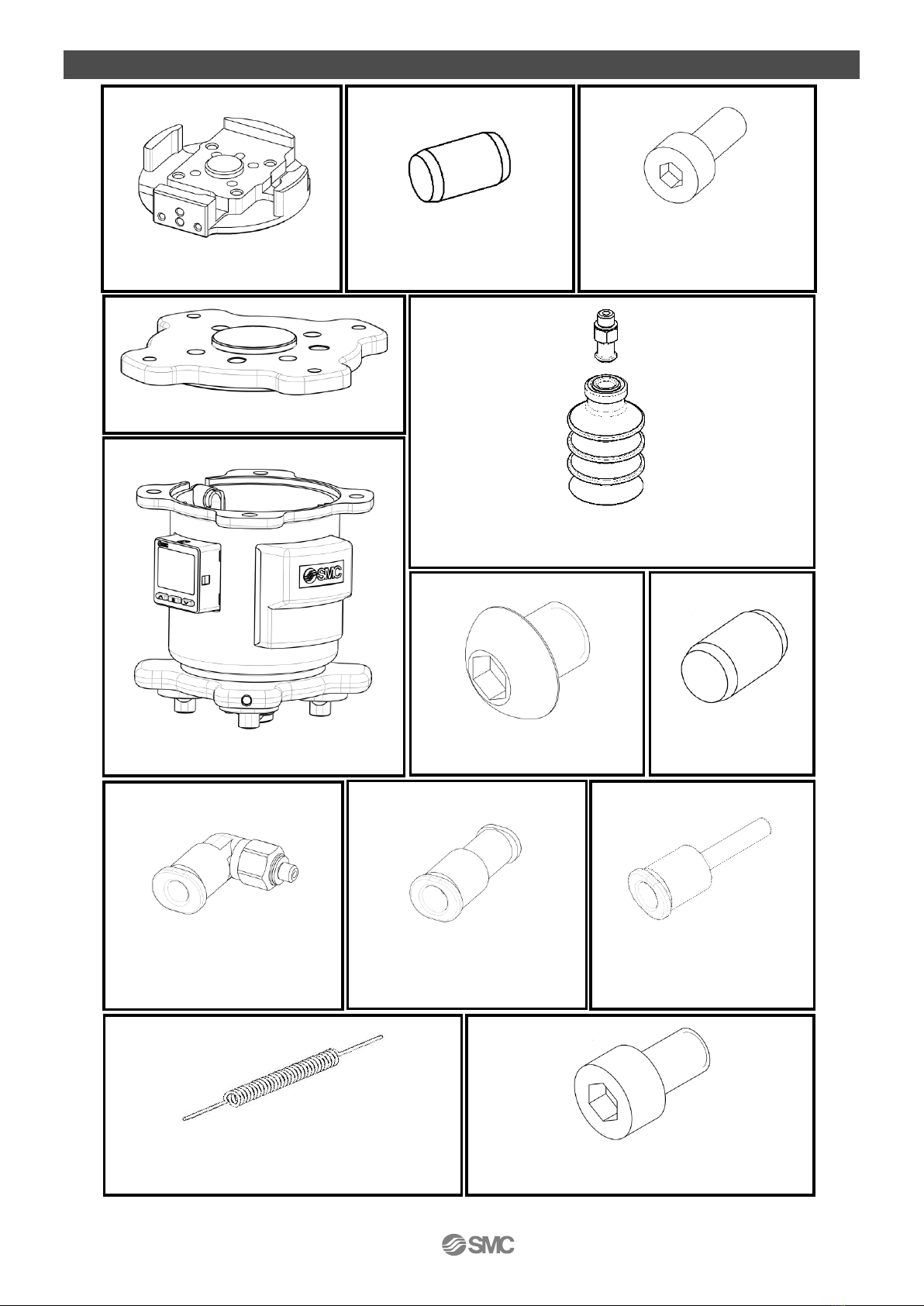

1. Parts included in the package
Vacuum gripper unit: 1 pc.
Suction cup with adapter 4 pcs.
(When “ suction cup series” is selected.)
Hexagon socket head cap
screw (M6x10) 8 pcs.
Robot mounting flange 1 pc.
Parallel pin (6x10)
1 pc.
Pluging bolt (M6x6) 4 pcs.
Connector storage flange 1 pc.
Parallel pin (5×10) 1 pc.
For mounting the connector
storage flange
Hexagon socket head cap screw
(M5×10) 4 pcs.
For mounting the connector
storage flange
Male elbow
(KQ2L04-M3G1) 1 pc.
Different diameter straight
(KQ2H04-06A1) 1 pc.
Plug-in reducer
(KQ2R06-04A1) 1 pc.
Coil tube
(TCU0604B-1) 1 pc.

-7-
No. TQ1230001-OM105
2. Names of Parts of the Product
Robot connector
Digital pressure switch
Parallel pin
Connector storage flange
Parallel pin
Air supply port
Parallel pin
O-ring
(Compliant with ISO 9409-1-50-4-M6)
Robot mounting flange
Bracket Ass’y
Suction cups with adapter
Cup mounting flange
(With mesh)
(Compliant with ISO 9409-1-50-4-M6)
Internal details
(Compliant with ISO 9409-1-31.5-4-M5)

-8-
No. TQ1230001-OM105
3. Specifications
3.1. Specifications
■Product specifications
Common
Mechanical interface (Accessory bracket assembly)
Compliant with ISO 9409-1-31.5-4-M5
Fluid
Air
Operating temperature range[°C]
5 to 50
Connector type
M12 8 pin (Plug)
Weight [g]
ZXP7N-X1*-ASSISTA
793
ZXP7A-X1*-ASSISTA
1018
Example)
ZXP7A-ZPB25JS-X1*-ASSISTA
1071 note1)
Max. workload [kg] Note2)
7
Impact / Vibration resistance [m/s2] Note3)
150 / 30
Air supply port(P)
One touch fitting (Φ6) Internal
Power supply voltage [V]
DC24 ± 10%
Vacuum
ejector
Max. vacuum pressure [kPa] note4)
-84
Max. suction flow [L/min(ANR)] note4)
17
Air consumption [L/min(ANR)] note4)
57
Supply pressure range [MPa]
0.3 to 0.55
Standard supply pressure [MPa] note5)
0.5
Valve
Model
V114
Pressure
switch
Model
ZSE20-*-*-M5-A1
Rated pressure range [kPa]
0 to -101
Display Accuracy [%]
±2 F.S. ±1 digit
(Ambient temperature at 25°C ±3°C)
Repeatability [%]
±0.2 F.S. ±1 digit
Temperature characteristics [%]
±2 F.S. (Standard on 25°C)
Applicable suction cups
Refer to “3.4. How to order”
Note 1) The weight changes by the selected suction cup. Refer to “3.4 How to order”.
Note 2) Limited by the cup diameter, mounting orientation or workpiece. The weight of the workpiece shall be maximum
workload or less.
Gripping or transfer of workload exceeding the maximum workload leads to the decrease of vacuum due to air leakage.
Note 3) Impact resistance: The characteristics are satisfied after tested one time in each of the X, Y and Z directions without
energization. (Initial value)
Vibration resistance: The characteristics are satisfied after tested a one sweep in each of the X, Y and Z directions at 10
to 500 Hz without energization. (Initial value)
Note 4) Values at the standard supply pressure. Values are based on standard of SMC measurements. They depend on
atmospheric pressure (weather, altitude, etc.) and measurement method.
Note 5) This shows the pressure just before the supply (P) port.
The performance such as vacuum pressure may reduce, depending on supply air capacity, the piping volume (piping
length and diameter) and affection of air consumption of other devices which operate at the same time.

-9-
No. TQ1230001-OM105

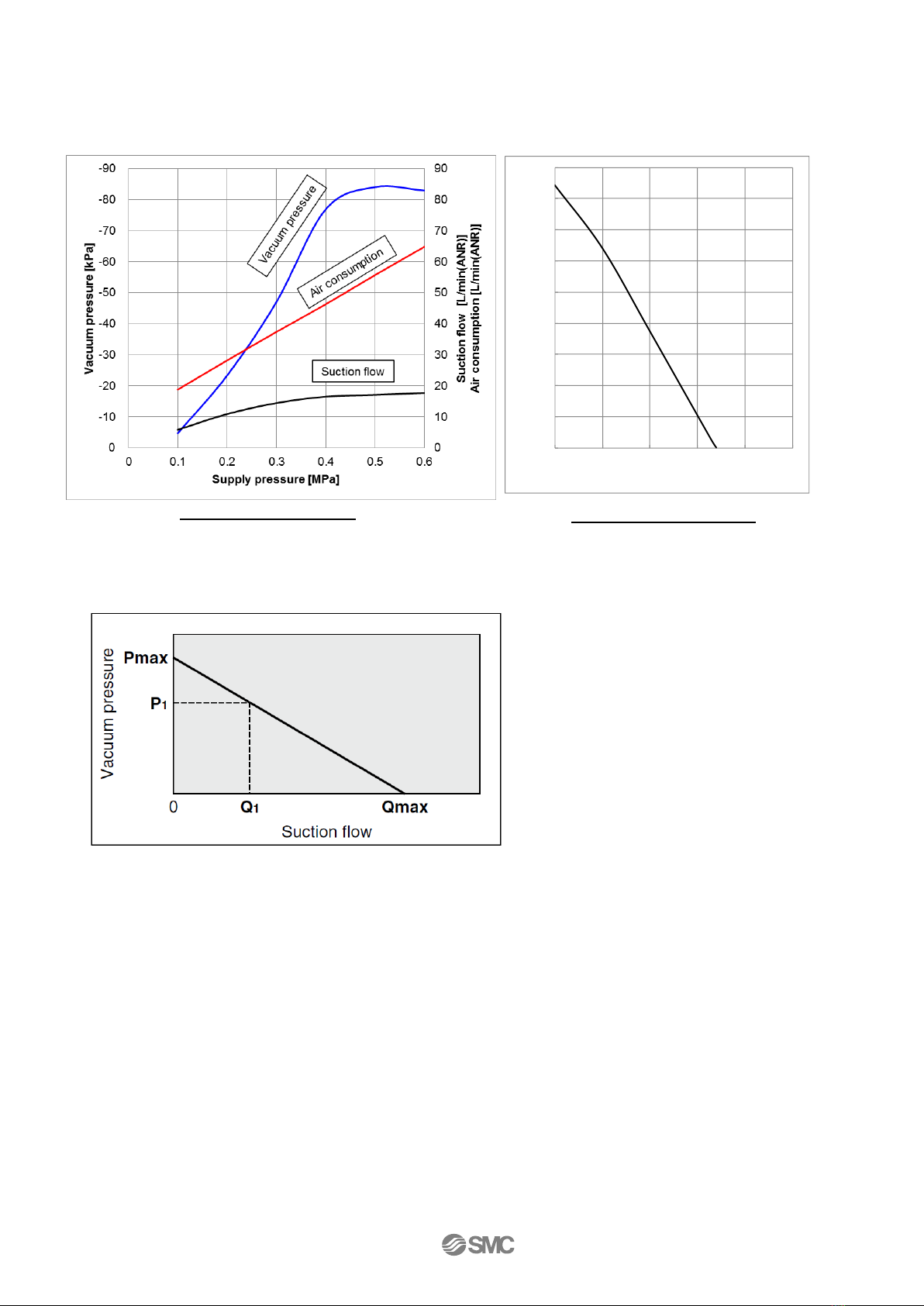

3.2. Flow rate / Exhaust characteristics
■Flow rate / Exhaust characteristics.
The flow rate characteristics correspond to the standard supply pressure (0.5MPa).
* The actual suction flow at the point of suction varies depending on the piping conditions to the vacuum port.
■How to read the flow rate characteristics Graph
Flow rate characteristics are expressed in ejector vacuum pressure and suction flow. If suction flow changes,
the vacuum pressure will also be changed. Normally this relationship is expressed in ejector standard
operating pressure use. In the graph, Pmax is maximum vacuum pressure and Qmax is maximum suction
flow. The values are specified according to catalog use. Changes in vacuum pressure are expressed in the
below order.
1. When the ejector suction port is covered and made airtight, the suction flow becomes zero and vacuum
pressure is at the maximum value (Pmax).
2. When the suction port is opened gradually, air can flow through, (air leakage), suction flow increases, but
vacuum pressure decreases. (condition P1 and Q1)
3. When the suction port is opened further and fully opened, suction flow moves to the maximum value
(Qmax), but vacuum pressure is near zero (atmospheric pressure).
As described above, the vacuum pressure changes when the suction flow changes. In other words, when
there is no leakage from the vacuum port, the vacuum pressure can reach its maximum, but as the
amount of leakage increases, the vacuum pressure decreases. When the amount of leakage and the
maximum suction flow become equal, the vacuum pressure becomes almost zero.
In the case when a ventilative or leaky workpiece should be gripped, take note that vacuum pressure will
not rise.
Flow rate characteristics
Exhaust characteristics
-90
-80
-70
-60
-50
-40
-30
-20
-10
00 5 10 15 20 25
Vacuum pressure [kPa]
Suction flow [L/min(ANR)]

-10-
No. TQ1230001-OM105
3.3. How to calculate theoretical lifting force
This manual shows how to calculate theoretical lifting force only. Refer to the catalog of suction cups forfurther
detail of suction cup selection method.
■How to calculate theoretical lifting force
The theoretical lifting force of a cup can be found by calculation or from the theoretical lifting force table.
Calculation
Theoretical lifting force table
The theoretical lifting force (not including the safety factor) can be determined by the cup diameter and vacuum
pressure.
The required lifting force can then be determined by dividing the theoretical lifting force by the safety factor t.
Lifting force = Theoretical lifting force / t
Theoretical lifting force (Theoretical lifting force = P x S x 0.1)
Cup diameter (Φ8 to Φ32) [N]
Cup diameter [mm]
Φ8
Φ10
Φ13
Φ16
Φ20
Φ25
Φ32
S: Cup area [cm2]
0.50
0.79
1.33
2.01
3.14
4.91
8.04
Vacuum
pressure
[kPa]
-85
4.2
6.6
11
17
26
41
68
-80
4.0
6.2
10
16
25
39
64
-75
3.7
5.8
10
15
23
36
60
-70
3.5
5.5
9.3
14
22
34
56
-65
3.2
5.1
8.6
13
20
31
52
-60
3.0
4.7
8.0
12
18
29
48
-55
2.7
4.3
7.3
11
17
27
44
-50
2.5
3.9
6.7
10
15
24
40
-45
2.2
3.5
6.0
9.0
14
22
36
-40
2.0
3.1
5.3
8.0
12
19
32
W: Lifting force [N]
P: Vacuum pressure [kPa]
S: Cup area [cm2]
t: Safety factor Horizontal lifting: 4 or more
Vertical lifting: 8 or more
Cup

-11-
No. TQ1230001-OM105
･See the table below for the suction cup part combination.
･Refer to the catalog of suction cup on the SMC website for the detail of suction cup.
ZXP7(A,N) - (3) (4) (5) (6) (7) -X1*-ASSISTA
Aplicable cup Mass and part number for suction cup part for separate order
N
（NBR）
S/SF
(Silicone
rubber）
U
(Urethan
rubber）
F
(FKM）
ZP 08 U * ZPT08U*-A6 4 4 4 4 ZP08U*
ZP 08 B * ZPT08B*-A6 4 4 4 4 ZP08B*
ZP 10 UT * ZPT10UT*-A6 4 4 4 4 ZP10UT*
ZP 13 UT * ZPT13UT*-A6 4 4 4 4 ZP13UT*
ZP 16 UT * ZPT16UT*-A6 4 4 4 4 ZP16UT*
ZP 10 U * ZPG10U*-7A-X2 7 7 7 7 ZP10U*
ZP 13 U * ZPG13U*-7A-X2 7 7 7 8 ZP13U*
ZP 16 U * ZPG16U*-7A-X2 7 7 7 8 ZP16U*
ZP 20 U * ZPG20U*-7A-X2 9 10 10 10 ZP20U*
ZP 25 U * ZPG25U*-7A-X2 10 10 10 11 ZP25U*
ZP 32 U * ZPG32U*-7A-X2 10 11 11 12 ZP32U*
ZP 10 C * ZPG10C*-7A-X2 7 7 7 7 ZP10C*
ZP 13 C * ZPG13C*-7A-X2 7 7 7 7 ZP13C*
ZP 16 C * ZPG16C*-7A-X2 7 7 7 8 ZP16C*
ZP 20 C * ZPG20C*-7A-X2 9 10 10 11 ZP20C*
ZP 25 C * ZPG25C*-7A-X2 10 10 10 11 ZP25C*
ZP 32 C * ZPG32C*-7A-X2 10 11 11 12 ZP32C*
ZP 10 B * ZPG10B*-7A-X2 7 7 7 8 ZP10B*
ZP 13 B * ZPG13B*-7A-X2 7 8 8 8 ZP13B*
ZP 16 B * ZPG16B*-7A-X2 8 8 8 9 ZP16B*
ZP 20 B * ZPG20B*-7A-X2 11 11 11 13 ZP20B*
ZP 25 B * ZPG25B*-7A-X2 11 12 12 14 ZP25B*
ZP 32 B * ZPG32B*-7A-X2 14 15 15 18 ZP32B*
ZP 20 UT * ZPG20UT*-7A-X2 4 4 4 4 ZPT1-A6 ZP2-20UT*
ZP 16 J * ZPG16J*-7A-X2 8 8 8 9 ZPT2-7A-X2 ZP2-16J*
ZP B25 J * ZPGB25J*-7A-X2 14 15 15 18 ZP2-B25J*
ZP B30 J * ZPGB30J*-7A-X2 18 19 19 25 ZP2-B30J*
ZP3P 20 JT2 SF ZP3PG20JT2SF-7A-X2 -21 - - ZP3P-20JT2SF-W
ZP3P 20 JT2 SF MZP3PG20JT2SF-M-7A-X2 -21 - - ZP3P-20JT2SF-WM
ZP3P 32 JT2 SF ZP3PG32JT2SF-7A-X2 -48 - - ZP3P-32JT2SF-W
ZP3P 32 JT2 SF MZP3PG32JT2SF-M-7A-X2 -48 - - ZP3P-32JT2SF-WM
ZP3P 20 JT5 SF ZP3PG20JT5SF-7A-X2 -23 - - ZP3P-20JT5SF-WG
ZP3P 25 JT5 SF ZP3PG25JT5SF-7A-X2 -25 - - ZP3P-25JT5SF-WG
ZP3P 32 JT5 SF ZP3PG32JT5SF-7A-X2 -54 - - ZP3PA-T2JT-7A-X2 ZP3P-32JT5SF-WG
Note) Material symbol ”N”, “S”, “U”, or “F” is put in * of the product number.
ZP3PA-T1JT-7A-X2
(3)
Series
(4)
Diameter
(5)
Form
(6)
Material
ZP3PA-T2JT-7A-X2
Suction cup with adapter
(7)
Attachment
ZP3PA-T1JT-7A-X2
Suction cup
Part number
Mass for each material (g/pc.)
ZPT1-A6
ZPT2-7A-X2
ZPT3-7A-X2
Adapter
ZPT2-7A-X2
ZPT3-7A-X2
ZPT2-7A-X2
ZPT3-7A-X2
ZPT3-7A-X2
3.4. How to order
■Vacuum Gripper unit
1

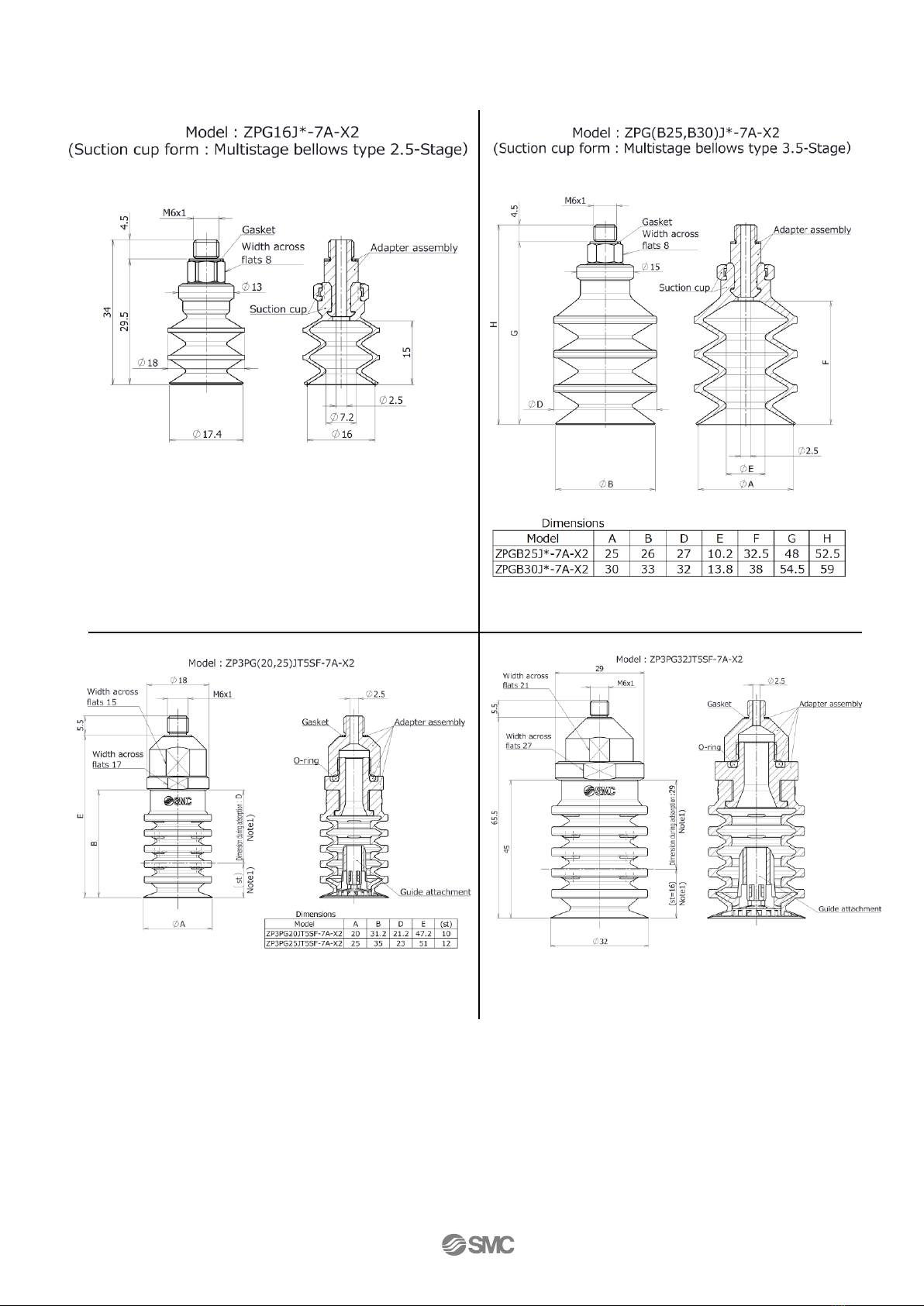

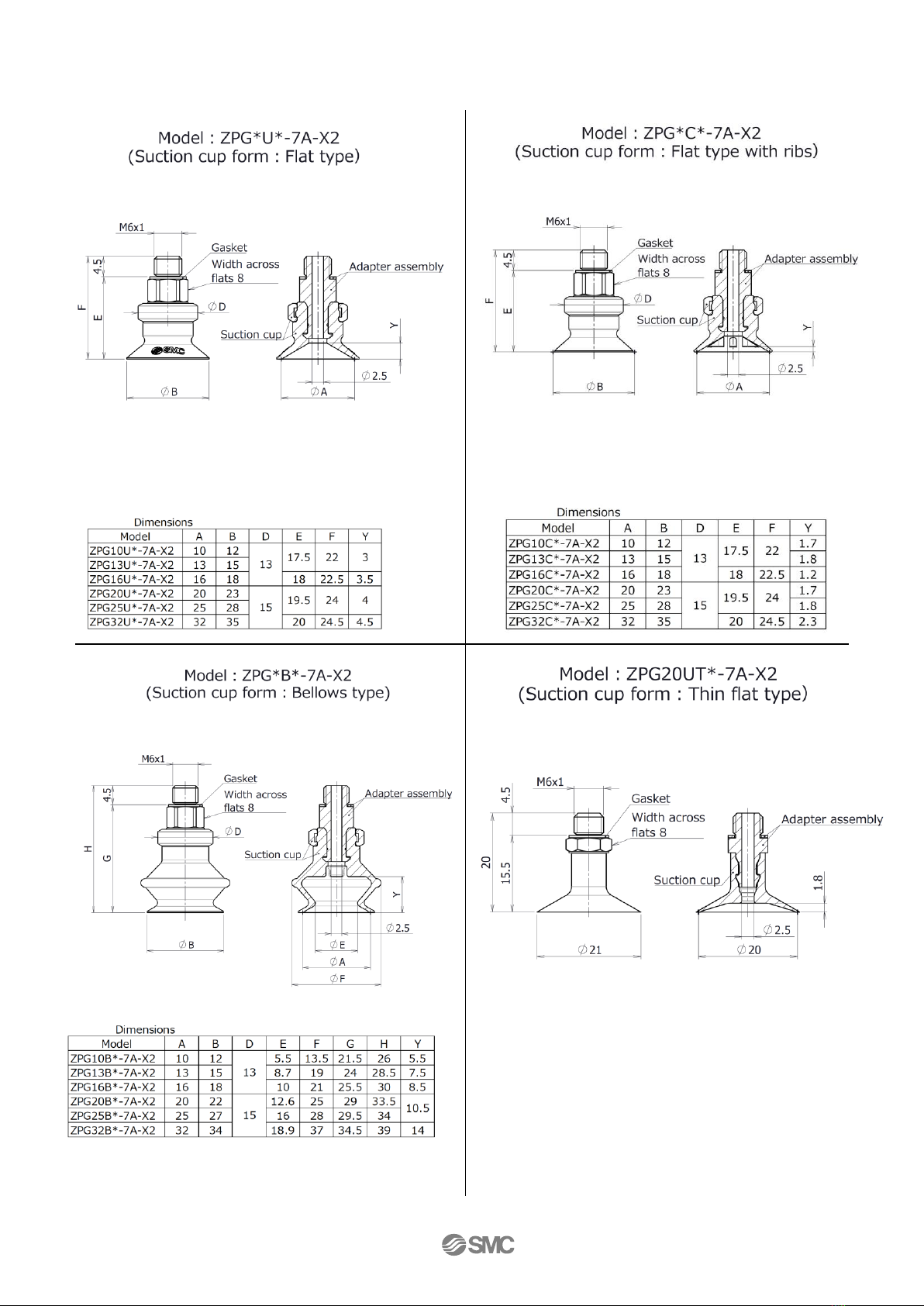

■Suction cup parts / How to order and Weight
Suction cup part 1 Refer to “Applicable suction cup with adapter”.
With Flange
Without Flange
(42)
）
How to order
1) Unit size 3) Suction cup series 5) Cup form 7) Attachment *3
Symbol Size Symbol Series Symbol Form Symbol Attachment
7 75mm ZP Standard U Flat Nil With (Guide) attachment
ZP3P Bellows for film adsorption C Flat with ribs M With mesh attachment
2) Cup mounting flange shape Nil Without cup B Bellows
Symbol Shape UT Thin flat
AWith flange (42 ㎜ x 42 ㎜) 4) Cup diameter J Multi stage bellows
N None Symbol Dia. JT2 2.5 stage bellows 8)Pressure switch output/unit specification
08 Φ8 JT5 5.5 stage bellows Symbol
Pressure switch output/unit specification
10 Φ10 Nil Without cup Nil NPN/With unit selection function *4
13 Φ13 A NPN/SI unit only Note *5
16 Φ16 6) Material B NPN/With unit selection function (Initial value psi) *4
20 Φ20 Symbol Material C PNP/With unit selection function *4
25 Φ25 N NBR D PNP/SI unit only *5
B25 Φ25 S
Silicone rubber (White) *2
EPNP/With unit selection function (Initial value psi) *4
B30 Φ30 U Urethane rubber
32 Φ32 F FKM
Nil Without cup SF Silicone rubber (Blue) *2
Nil Without cup
Model ZXP 7 * - * * * * * - X1 * - ASSISTA
① ② ③ ④ ⑤ ⑥ ⑦
⑧
Vacuum gripper unit
*2 Silicone material compliant with the
FDA (USA Food and Drug Administration)
regulation 21CFR§177.
*3 Apply to the cup form "JT*" only.
But the symbol "M" applies for the up shape
"JT2" only.
*4 Under the New Measurement law, salse of switchs
with the unit selection function have not been allowed
for use in Japan.
*5 Fixed: kPa, MPa
For Mitsubishi Electric Corporation collaborative robot MELFA ASSISTA

-12-
No. TQ1230001-OM105
4. Mounting
Perform the mounting of the vacuum gripper unit and accessories by following bellow.

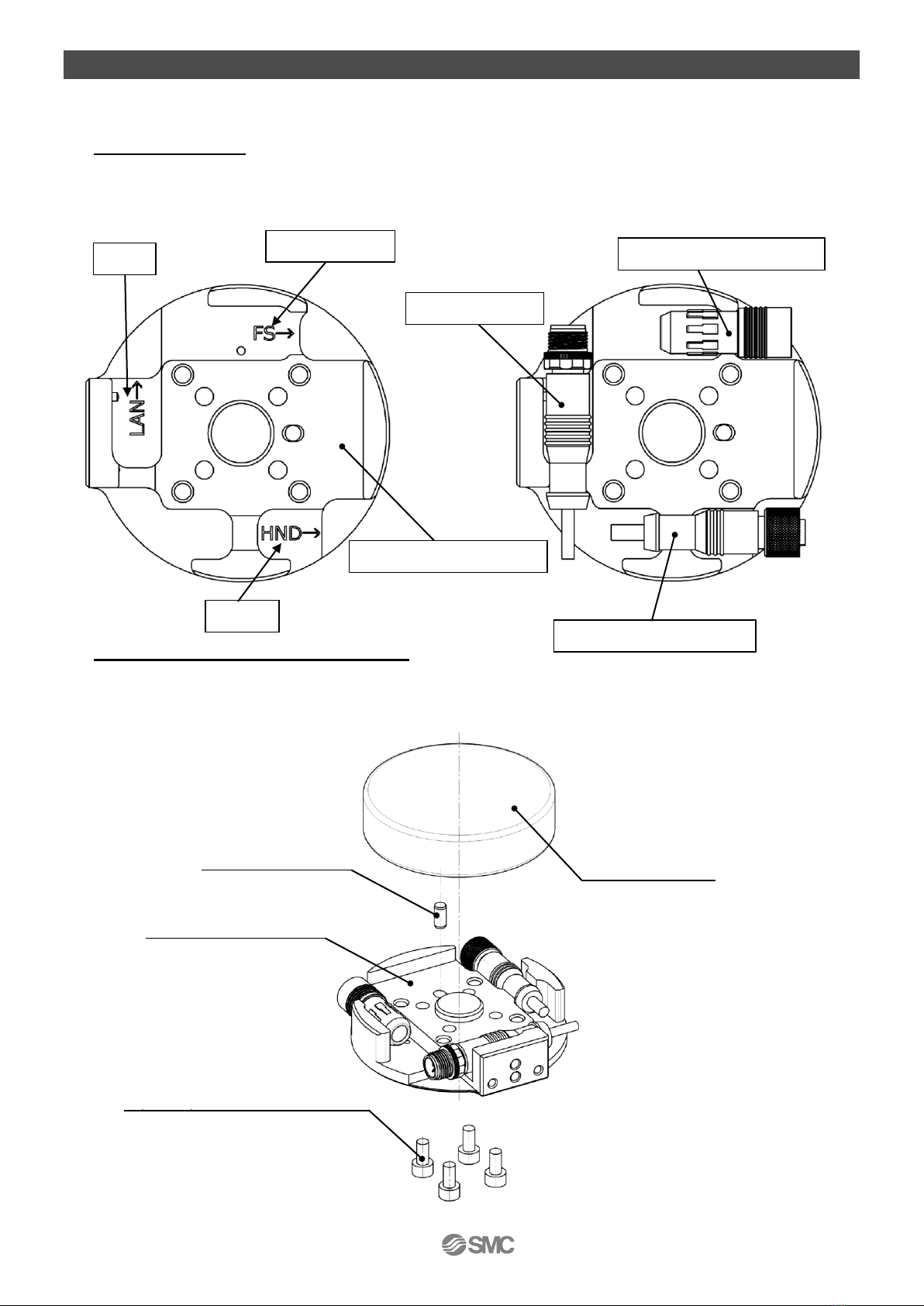

①Connector storage
Set the three connectors at the end of the robot arm according to the characters printed on the flange.
The connection part of the connectors are set in the direction of the arrows.
②Mounting the connector storage flange
Mounting a parallel pin to the end of the robot arm, and mount the connector storage flange with the
attached hexagon socket head cap screw. (Tightening torque: 3.0 ± 0.3 N・m)
LAN
Force Sensor
HAND
LAN Connector
Force sensor connector
Electric hand connector
Connector storage flange
Robot arm end
Parallel pin (5x10)
Connector storage flange
Hexagon socket head cap
screw(M5x10)
(M5x10)
Tightening Torque：3.0±0.3N・m

-13-
No. TQ1230001-OM105
③Mounting the vacuum gripper unit
Before mounting the product, adjust the position of the robot arm so that it is easy to mount the
product.
1) Mount parallel pin (6x10) to connector storage flange mounted in ②, and mount robot mounting
flange with the attached hexagon socket head cap screw(M6x10).
(Tightening torque：5.2±0.5N・m)
2) Mount vacuum gripper unit to robot mounting flange with hexagon socket head cap screw(M6x10)
so that the protrusion of robot mounting flange and the notch of vacuum gripper unit match.
Parallel pin (6x10)
Robot mounting flange
Connector storage flange
Robot arm end
M12 connector cable
Notch
Hexagon socket head cap
screw(M6x10) (8 places)
(M5x10)
Tightening torque：5.2±0.5N・m

-14-
No. TQ1230001-OM105
M12 Connector pin assign
* Set the polarity of the robot output to the selected switch polarity
(NPN/PNP).
④Connector connection
Mount M12 connector cable to electric hand connector as below figure.
Refer to the table below about M12 connector pin assign.
Pin no.
Wire
color
Function
1
White
Power supply voltage (GND)
2
Brown
Power supply voltage (24V)
3
-
N.C.(Non connection)
4
Yellow
Pilot valve for supply 
5
-
N.C.(Non connection)
6
-
N.C.(Non connection)
7
Blue
Pressure switch output
8
-
N.C.(Non connection)
M12 connector cable
Electric hand connector
M12 Connector pin assign

-15-
No. TQ1230001-OM105
⑤Mounting of piping joints and coil tubes
1) Remove secondary piping plug (No.1 to No.4) in one place and mount the attached
One-touch fitting (KQ2L04-M3G1).
2) Mount the attached plug-in reducer (KQ2R06-04A1) to One-touch fitting (KQ2L04-M3G1),
and piping the coil tube (TCU0604B-1) to both plug-in reducer and vacuum gripper unit.
3) Remove truss screw (M4,4 places) on the base of the robot body and slowly remove the
base cover.
Depending on the posture of the robot body, it may be difficult to remove the base cover.
Change the posture of the robot in advance by jog to make it easier to work.
4) Take out the Φ4 tube (No.1 to No.4) and Φ6 tube (white) from the opening.
5) Connect the Φ4 tube tubing No. should be the same as the airport No. to which the
one-touch fitting is connected in step 1 above and white Φ6 tubing with a one-touch fitting.
(KQ2H04-06A1)
Circuit diagram
Air pressure supply (P) port
Applicable tubing O.D.: Φ6
Piping the coil tube
TCU0604B-1
Mount the plug-in reducer
(KQ2R06-04A1)
truss screw
Base cover
Φ4 tube
Φ6 tube
KQ2H04-06A1

-16-
No. TQ1230001-OM105
Supply valve

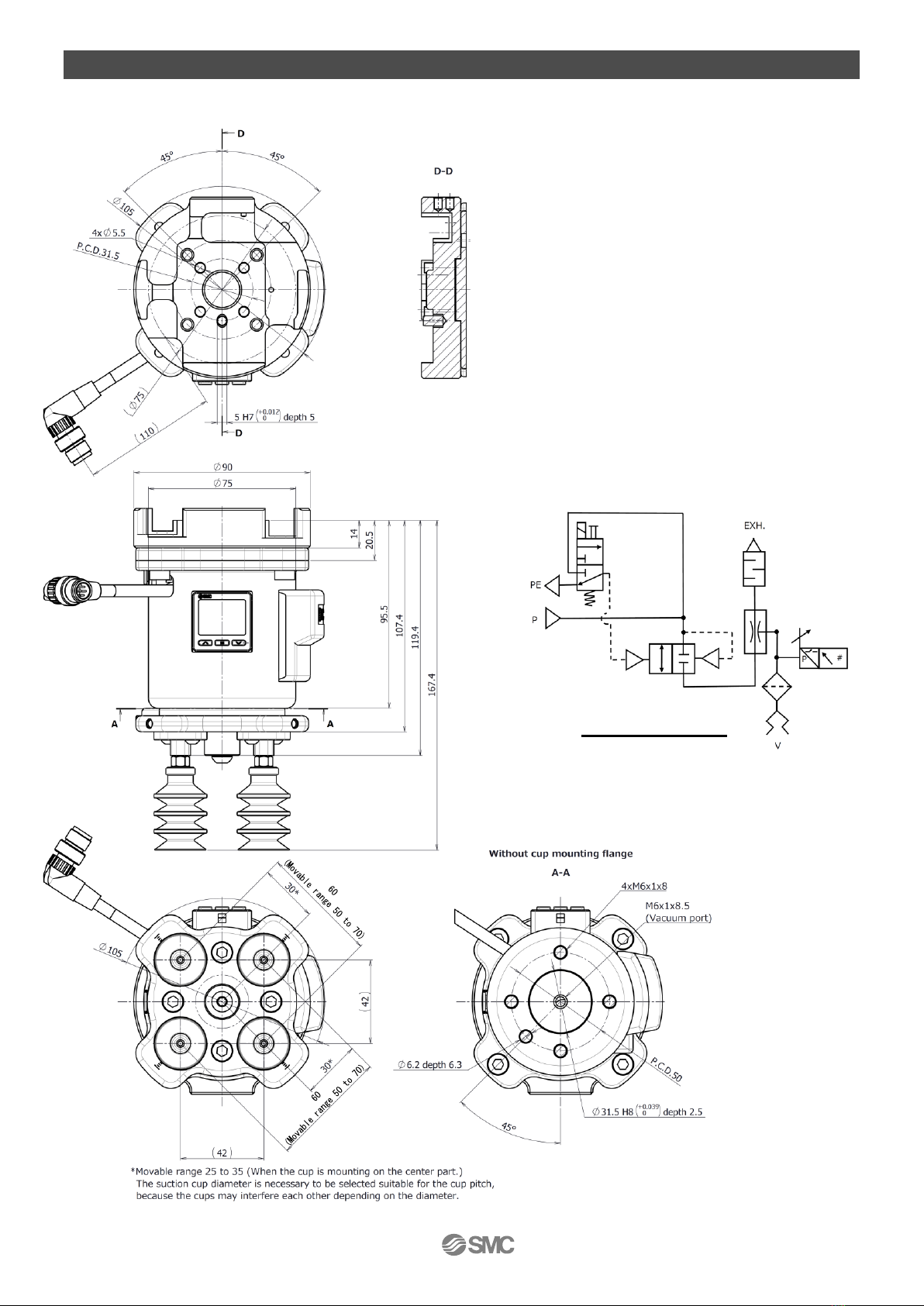

5. Dimensions
5.1. Vacuum gripper unit
Circuit diagram
Digital pressure switch
ZSE20-*-*-M5-A1
Pilot valve for supply
V114(N.C.)

-17-
No. TQ1230001-OM105

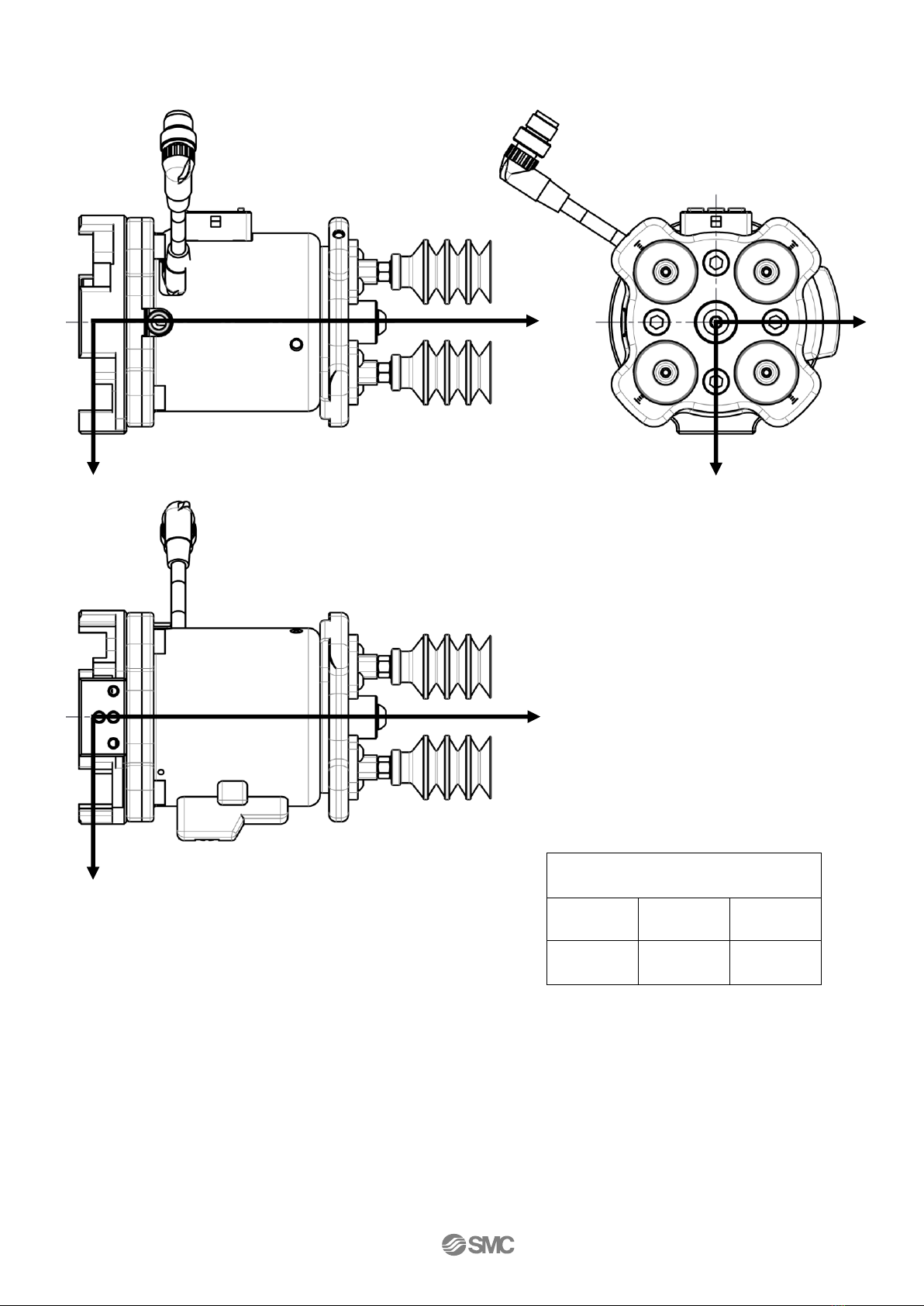

5.2. Center of gravity (ZXP7A-ZPB25JN-X1-ASSISTA)
Center of gravity
X
Y
Z
-2.5
-1.63
58.28
Z
X
Y
X
Y
Z

-18-
No. TQ1230001-OM105
5.3. Suction cup with adapter
*It is shown here for representative model only. See the suction cup catalog for the other models.

-19-
No. TQ1230001-OM105
Note1) “D” and (st) indicate the reference value during gripping at vacuum pressure: -85[kPa].
