SMC Networks PTE-100-C User manual

Current and voltage relay testing unit to 250 A
with integrated independent variable voltage channel
User’s Manual
PTE-100-C PRO
REFERENCE: FAAVMV02PR
EDITION: May 16 th, 2019
VERSION: 7

USER’S MANUAL
2
Quality is the core reference for EuroSMC’s activities, aimed to fully satisfy our
customers’ needs and expectations.
DISCLAIMER
The information, product specifications, and technical data contained in this
document imply no contractual binding to EuroSMC’s responsibility. The user is
the sole responsible for the application of the products mentioned in this
document. EuroSMC explicitly exonerates itself from liability to accidents or
unwanted results, directly or indirectly derived from mistakes made in the
writing of this document. Copying or reproducing all or part of this document is
not allowed without the explicit written permission from EuroSMC. Due to
continuing development and quality improvements, EuroSMC reserves the
right to make changes in their products without notice.

PTE-100-C PRO
3
INDEX
PTE-100-C PRO PACKING LIST..................................... 6
INTRODUCTION......................................................... 8
GENERAL OVERVIEW................................................... 9
Technology ............................................................................9
Power Section Design ..............................................................9
Auxiliary Voltage Supply.........................................................10
Measurement and Control .....................................................10
The PTE-FCN variable voltage channel ....................................11
DESCRIPTION ............................................................12
MAIN AC SUPPLY ...................................................................12
Main Protection Fuses............................................................12
POWER OUTPUT SECTION.....................................................13
Output ON/OFF buttons .......................................................13
Regulation Variac..................................................................13
Current output taps ...............................................................14
0-250 VAC voltage tap (OUT 1) .............................................14
0-350 VDC voltage tap (OUT 2).............................................14
Display #2...........................................................................15
Displaying the used output .....................................................15
Current tap selection. ............................................................16
Power Section Alarms ............................................................16
AUXILIARY VOLTAGE..............................................................17
Out 3: 0-250 Vdc.................................................................17
Out 3’s Automatic Protections.................................................17
Out 4: 110 Vac....................................................................17
TIMER SECTION .....................................................................18
Monitor Inputs ......................................................................18
Time Display ........................................................................18
Timer control........................................................................19
Timer start/stop modes ..........................................................19
SPECIAL FUNCTIONS.............................................................20
MEASUREMENT FUNCTIONS................................................21
CONTROL FUNCTIONS.......................................................22

USER’S MANUAL
4
COMMUNICATIONS .............................................................23
Serial RS-232 port ................................................................ 23
PTE-BUS.............................................................................. 23
OPERATION ..............................................................24
CURRENT AND VOLTAGE INJECTION....................................24
AC Current Injection ............................................................. 24
Overload protection.............................................................. 26
Voltage Injection................................................................... 26
AUXILIARY POWER.................................................................27
Out 3 variable DC auxiliary supply.......................................... 27
Out 4 fixed AC auxiliary supply............................................... 28
TESTING OPERATION TIME....................................................28
The Monitor Input................................................................. 30
Timer control........................................................................ 30
Pulse Length Measurement..................................................... 31
SPECIAL MEASUREMENT AND CONTROL FUNCTIONS .........31
Voltmeter and Frequency Meter .............................................. 32
Output Current-related Measurements .................................... 32
Protecting your relay against test-related accidents .................... 33
Testing Instantaneous Overcurrent .......................................... 34
Pre-setting a current value...................................................... 36
CALIBRATING THE PTE-100-C PRO ........................................37
Required equipment.............................................................. 37
General Calibration Procedure............................................... 38
SPECIFICATIONS .......................................................39
Output Characteristics........................................................... 39
Special Functions.................................................................. 39
Meas. functions .................................................................... 40
Voltage Supply ..................................................................... 40
Physical Dimensions.............................................................. 40
GENERAL DIAGRAM...................................................41
FRONT PANEL ...........................................................42
THE PTE-FCN VOLTAGE MODULE ...............................43
DESCRIPTION ........................................................................43

PTE-100-C PRO
5
Powering the PTE-FCN ..........................................................43
Power output........................................................................43
BUTTONS AND LEDS............................................................44
Alarm indicators....................................................................45
INTERNAL PROTECTIONS .....................................................45
POWER-UP STATE ................................................................46
Working with the PTE-FCN module.........................................46
Adjusting the LCD screen’s contrast........................................46
PTE-FCN TECHNICAL CHARACTERISTICS ...............................47
PTE-FCN FRONT PANEL .........................................................48
AFTER SALES SUPPORT ...............................................49
WARRANTY ............................................................................49
CUSTOMER SUPPORT.............................................................49
OTHER EUROSMC PRODUCTS ...............................................49

USER’S MANUAL
6
PTE-100-C PRO PACKING LIST
1 PTE-100-C unit
1 PTE-FCN module1
1 Nylon bag
1 AC supply cord
6 2-meter, 2.5 mm2section test leads (3 black, 3 red)
2 2-meter, 10 mm2section test leads (1 black, 1 blue)
1 2-meter RS-232 communications cable to PC
2 6-mm to 4-mm plug adapters
4 Clips up to 50A (2 black, 2 red)
4 Clips up to 10A (2 black, 2 red)
2 5 x 20 mm, 100 mA, FAST fuses
2 5 x 20 mm, 0.5 A, Standard fuses
2 5 x 20 mm, 12,5 A, FAST fuses
2 5 x 20 mm, 16 A, FAST fuses *
2 5 x 20 mm, 20 A, Standard fuses
1 Calibration Software CD-ROM
1 Warranty Registration Form
1 Measurements Certificate
1 This user’s manual
*Only with 110 Vac equipments.
1Refer to the PTE-FCN VOLTAGE MODULE section at the end of this handbook for
details and operation instructions of this add-on.

PTE-100-C PRO
7
Module PTE-FCN
1 PTE-FCN Unit
1 AC supply cord
2 Connection cables (1 black, 1 red)
1 Earth wire connection Cable
1 BUS-PTE interconnection Cable
2 5 x 20 mm, 0,75 A Fuses
1 European 0,5 A, FAST Fuse
2 European 1 A, FAST Fuses
2 European 1,25 A, FAST Fuses

USER’S MANUAL
8
INTRODUCTION
The PTE-100-C PRO Relay Test Set is designed to test protective relays
based on single-phase current and /or voltage measurement.
Its small size, excellent output power and accuracy, quality features, and
ease of use, make this product one of the best choices available in its kind.
To achieve this goal, EUROSMC collected the opinion and suggestions of
various professionals and companies of recognized prestige and experience
in protective relay maintenance and commissioning. As a result, the PTE-
100-C PRO features the following unique characteristics:
•Robust mechanical and electrical construction.
•Great portability.
•Built-in measurement features to avoid carrying a large number of
instruments.
•Results printout capability, when taking notes is usually difficult.
•Software-assisted closed-case calibration with a Windows PC.
•Functions to protect the relay being tested.
•Easy, intuitive operation.
The PTE-100-C PRO includes all the accessories needed for testing, such as
cables, clips, nylon bag for transport, spare fuses etc. as standard equip-
ment.
We appreciate your suggestions about the PTE-100-C PRO and this ma-
nual, in our commitment to improve our quality. Our technical staff will be
pleased to help you on any difficulties or questions that you may have.
Thank you for choosing EuroSMC products.
EUROSMC, S.A.
Pol. Ind. P-29 Calle Buril 69
28400 Collado Villalba. MADRID (SPAIN)
TEL: [phone]. FAX: [phone]
www.smcint.com

PTE-100-C PRO
9
GENERAL OVERVIEW
Technology
The PTE-100-C PRO combines state-of-the-art digital technology with the
traditional regulation method based on a variable autotransformer and
transformer.
Analogue and digital electronics convert signals in- and out from the unit in
order to be processed and displayed by an 8-bit microprocessor.
The power section is based mainly on electromechanical components.
The unit’s layout is arranged in modules and the number of moving parts is
kept to a minimum for easy and safe operation.
Power Section Design
Classical, direct regulation and transformers are used to generate and con-
trol the high 1,000-VA power output, as shown in the following diagram:
1. An internal relay connects the main power supply to the variac un-
der no-load conditions.
2. The single-phase variable autotransformer (Variac) regulates the
voltage at the primary winding of the output power transformer.
3. A static switch (Triac) guarantees a clean connection and discon-
nection of the Variac from the power transformer’s input.
4. A toroidal transformer guarantees the insulation of the output from
the main power supply.
5. A current measurement transformer, with one primary winding and
two secondaries with 250:1 and 50:1 respective ratios, is con-

USER’S MANUAL
10
nected to the ‘zero’ output tap of the power transformer. Measure-
ment range switching is automatic.

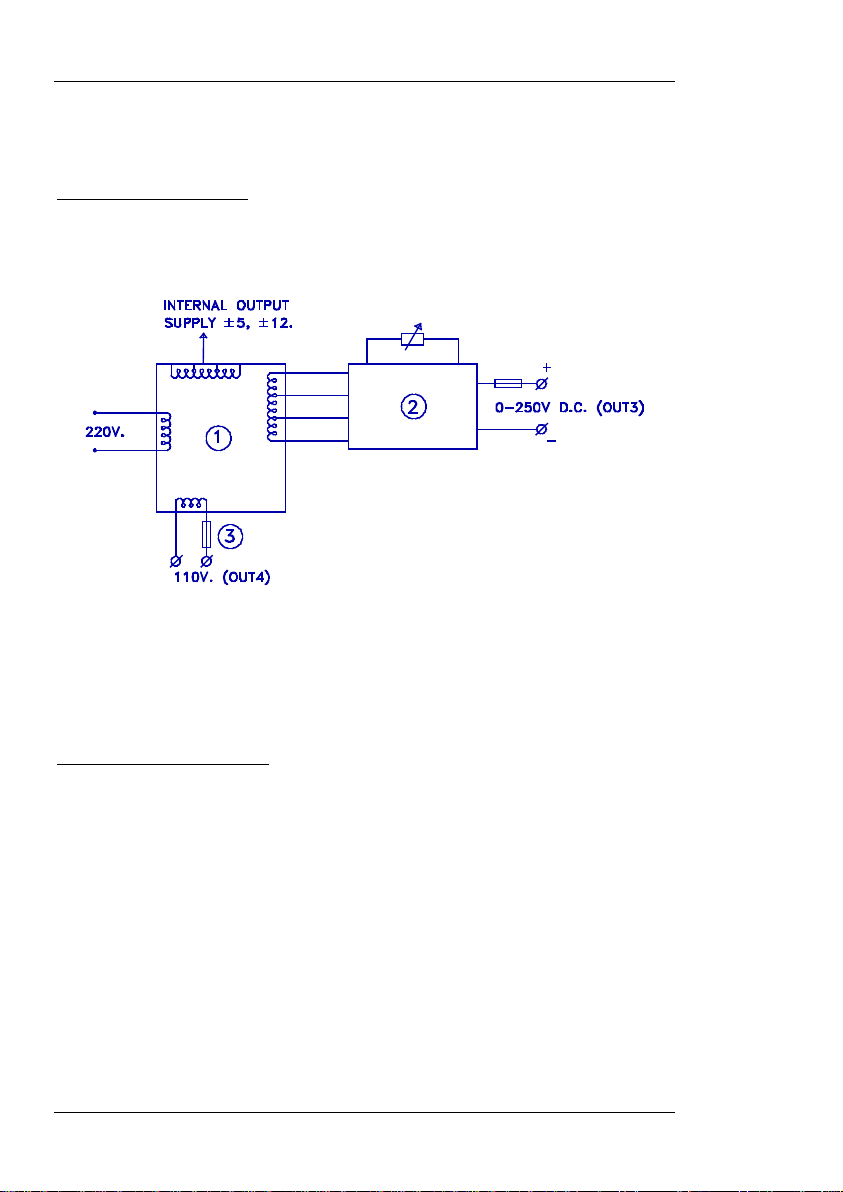

Auxiliary Voltage Supply
By means of a transformer with multiple secondary windings, the PTE-100-C
PRO features two independent auxiliary voltage outputs:
•Out 3 is a variable 0-250 VDC stabilized, electronically protected
supply with a dedicated ON/OFF switch, and
•Out 4 is a fixed 110 VAC. This fuse-protected output is permanent-
ly active whenever the equipment is switched on.
Measurement and Control
Analogue input is converted to digital values before it is processed and dis-
played. The following external or internal analogue magnitudes are meas-
ured:
•Voltage.
•Current.
•Phase angle.
•Temperature.
Displayed and/or used values like Impedance or Power are automatically
calculated from these magnitudes by the microcontroller.

PTE-100-C PRO
11
The same micro-controller processes all the user’s control actions like output
on/off, the timer activation, the selection and display of function values, and
the protective alarms.
The PTE-FCN variable voltage channel
This add-on, installed inside the PTE-100-C PRO’s lid, provides an addi-
tional voltage source that is variable in amplitude, frequency and phase
angle. The PTE-FCN module is an efficient, accurate and stable amplifier-
based voltage source that provides a high quality output.
The PTE-FCN must be powered from the built-in fix
ed 110 VAC
auxiliary output of the PTE-100-C PRO only. Use the supplied razor-
type bipolar cord for this purpose. The use of any other source to
power the PTE-FCN
module can permanently damage it and is not
covered by the warranty.
Using the PTE-FCN’s variable voltage output in combination with the variac-
regulated power channel of the PTE-100-C PRO, you can test directional
relays, distance / impedance relays, synchronism and frequency relays,
among many others.
Refer to the “PTE-FCN” chapter at the end of this manual for instructions
how to use the independent variable voltage channel.

USER’S MANUAL
12
DESCRIPTION
All the elements in the front panel of the PTE-100-C PRO are thoroughly
described here. In-depth explanation of their use is given in the Operation
section.
Many buttons, namely those that perform a different function when held
down, effectively actuate when released, rather than when pressed. These
buttons will produce a “secondary function” when pressed until an audible
beep is heard.
We will now describe the PTE-100-C PRO along the following sections:
MAIN AC SUPPLY
POWER OUTPUT SECTION
AUXILIARY VOLTAGE
TIMER SECTION
SPECIAL FUNCTIONS
COMMUNICATIONS

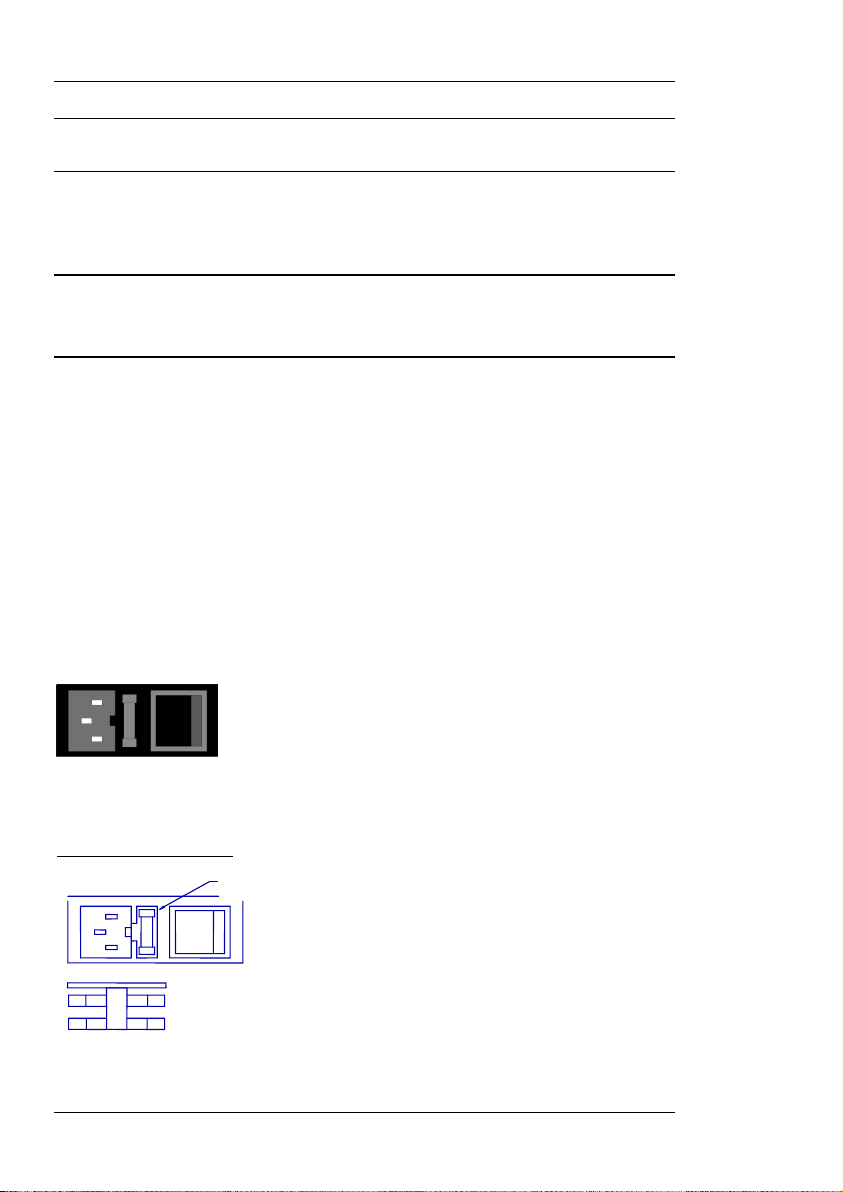

MAIN AC SUPPLY
An AC supply block at the lower left-hand corner of
the front panel groups the power cord plug, a fuse
holder and the main on/off switch. Internal filters
prevent most AC perturbations from leaking into the
unit. The OFF position is indicated by a tiny circle in one of the faces of the
main switch.
Main Protection Fuses
The active (12A, Fast) fuse and a spare fuse
are included in the fuse holder. All the fuses
accessible from the front panel are standard,
5x20 mm cylindrical, and their current rating
and type are clearly printed.
SPARE FUSE
ACTIVE FUSE
FUSE

PTE-100-C PRO
13
REPLACE BLOWN FUSES WITH IDENTICAL ONES ONLY. DAMAGE
RESULTING FROM INCORRECT FUSE REPLACEMENT IS NOT COVERED
BY THE WARRANTY.
POWER OUTPUT SECTION
This is the right-hand section of the
front panel. It contains the main out-
put control buttons, the regulation
variac, the Display #2, the current
and voltage output taps, the tap selec-
tor, the displayed output selector and
a few associated and alarm LEDs:
Output ON/OFF buttons
These buttons connect and disconnect the main power ouput,
i.e. the current output taps and the Out 1 and Out 2 voltage
taps. A red LED indicates the following output states:
OFF: The output has been intentionally switched off
ON: The output has been intentionally switched on
BLINK: The output has been switched off by the unit. This will
be further explained under the OPERATION section.
Regulation Variac
This knob controls the output level of the current and
voltage power taps. The numerical 0-10 round scale is
provided as a positional reference only. The actual
output level is shown in Display #2 and, at any given
regulator position, its value always depends on the
connected impedance. Regardless of the regulator’s
position, no power will be output when the output control switch is OFF.
Always handle this regulator with care.
ON
OFF

USER’S MANUAL
14
A harmful amount of current could be injected into the connected
l
oad if you accidentally switch the output ON with the variac in a
position other than zero.
Current output taps
At the top of the power output section, four current injection taps are pro-
vided to adapt the
current output
characteristics to
the connected
load, as well as to
facilitate the output
level regulation.
Tap zero is the common reference. If you are testing with currents ranging
from 0 to 50 A AC, for example, connect the load between the common
tap and the tap labeled “50 A / 20 V”. If you are using 4 mm bananas, you
will need the supplied 6-mm to 4-mm plug adapters for the common tap
and the 100 A tap.
Press these adapters all the way down before pulling them up for
removal.
0-250 VAC voltage tap (OUT 1)
Out 1 is located on the left immediately underneath the
variac knob. Output from this tap is measured and
regulated in AC volts. Maximum throughput current is
4A in non-continuous service.
0-350 VDC
Out 2 is located on the right of Out 1. Its output is
measured and regulated in DC volts. Polarity is indi-
cated by the black (negative) and red (positive) plug
colors.
voltage tap (OUT 2)
A standard 19 mm plug can be used with this pair of
connectors. All these taps and connectors comply to
the latest international standards and electrical safety
regulations.
0 100A/10V 50A/20V 25A/40V 5A/200V
Out 1
0-250 Vac
Max. 4A
Out 2
0-350 Vdc
Max. 2.8A

PTE-100-C PRO
15
Display #2
All the PTE-100-C PRO output magnitudes are shown on Display #2, lo-
cated above the variac’s knob:
The units in which the various possible readings are represented are labeled
on the right edge ot this LED display:
INDICATORS
UNITS
A Current in Amps.
V Voltage in Volts.
% Percentage of the nominal current.
The following measurements can be read on this display:
•Output current in Amperes.
•AC or DC voltage present in Out 1 or Out 2 power taps and also
in Out 3 auxiliary DC voltage tap (regulated independently).
•Percentage of the ‘nominal’ current value entered in Display #1 by
means of the “%” special function.
The floating decimal point is automatically placed to accommodate the
reading to the working regulation range.
Displaying the used output
Variable output magnitudes are shown in Display #2, used as an ammeter
by default. Since there are several output taps but only one display, you
need to select the tap to be displayed by pressing the corresponding display
assignment buttons:
Press this button to view the voltage present in Out 1 (variable
0-250 VAC).
Press this button to view the voltage present in Out 2 (variable
0-350 VDC).
Out 2
Out 1

USER’S MANUAL
16
Press this button to view the voltage present in Out 3 (auxiliary
variable 0-250 VDC). Out 3,
located in the center section of
the PTE-100-C PRO panel, is switched on, regulated and pro-
tected independently from the other outputs.
A green LED above its tap will identify the displayed output. If you want to
lock the Display #2 to Out1, Out2 or Out3, press the corresponding dis-
play selection button and hold it for 5 seconds until you hear a beep. To
return to the normal ammeter function, give a brief press to any of these
buttons.
Current tap selection.
The PTE-100-C PRO cannot detect which of the current taps is
connected the load to. Though the current value shown by Dis-
play #2 is common to the four taps, some special functions, overload pro-
tections and calculations require that the current output tab to which the
load is actually connected is identified to the unit. Press this key to sequen-
tially signal the 100 A, 50 A, 25 A or 5 A tap in use.
Though this will not affect the output current nor the value shown in Display
#2, we strongly recommend you to do it whenever you move your connections
to a different current output.
Power Section Alarms
The PTE-100-C PRO’s power section is protected form over-heating and
from overload. These conditions will automatically switch the power output
off and will be signaled by these two orange-colored 3-mm LEDs:
•I Therm. An internal sensor will protect the unit from overheating. This
alarm automatically disappears when the unit cools down to
normal temperature. Operation can then be resumed.
•I Lim. This protection operates when the upper limit of the selected
current tap, or the limit optionally set with the “Ilim” special
function, whichever is lowest, has been exceeded.
Up to 250 A can be attained from the 100A/10V tap for 3 seconds
before the unit’s thermal protection trips.
Refer to the duty cycle
chart in the CURRENT AND VOLTAGE INJECTION chapter to learn
more on how to get currents higher than 100 A from this tap.
Out 3
Tap

PTE-100-C PRO
17
AUXILIARY VOLTAGE
Auxiliary Outputs are intended as general purpose vol-
tage supplies, rather than actual power sources. These
outputs are also galvanically isolated from each other
and from the main power supply.
Out 3: 0-250
Out 3 is located on the center section of the front panel.
Polarity of this d. c. output is color-coded in its 4 mm
connectors: black (negative) and red (positive).
Vdc
This auxiliary output has its own regulation knob and an
ON/OFF button with a red LED that will lit when the
output is active.
Out 3’s Automatic Protections
An orange-color LED will blink and the output will be
suspended while Out 3 is short-circuited. In case of over-
heating, the LED will be lit steadily. Both alarms will be
cleared and the output will be automatically resumed
when conditions return to normal.
Out 4: 110 Vac
Out 4, the fixed 110V AC auxiliary output
located next to the AC supply block, is active
whenever the unit is switched on.
Out 3 and Out 4 are protected by two 5x20
mm, 0.5 A fuses located on the left side of
the AC supply block. To open the fuse holder, press and turn
90º anti-clockwise with a small screwdriver.
REPLACE BLOWN FUSES WITH IDENTICAL ONES ONLY. DAMAGE
RESULTING FROM INCORRECT FUSE REPLACEMENT IS NOT COVERED
BY THE WARRANTY
Out 3
0-250 Vdc
Max. 0.25 A
Out 4
0-110 Vac
Max. 0.3 A

USER’S MANUAL
18
TIMER SECTION
The PTE-100-C PRO’s digital Timer display is located on the left hand sec-
tion of the front panel, along with its control buttons and status LEDs.
Monitor Inputs
Tested relay’s operation is detected
by means of two inputs:
1.
A BLACK/GREEN input for
dry (non-energized) contact
monitoring, and
2. A BLACK/RED input for
vol
tage signals of up to
250 Vac/dc maximum.
Both inputs are protected by 0.1 A FAST type 5x20 mm. fuses. Press and
turn the fuse holder 90º counter clockwise to replace a blown fuse.
REPLACE BLOWN FUSES WITH IDENTICAL ONES ONLY. DAMAGE
RESULTING FROM INCORRECT FUSE REPLACEMENT IS NOT COVERED
BY THE WARRANTY
Time Display
Time values resulting from tests are shown in Display #1 with a maximum
resolution of 1 millisecond.
Display #1 is a multi-function display. Besides time values in seconds or
cycles of the AC supply line, it can show various measurement units that are
automatically labeled at its right hand edge:

PTE-100-C PRO
19
SYMBOLS
UNITS
S Seconds.
CY Cycles of the main AC supply line.
Hz Hertz (Frequency)
V Volts in a.c. (steady) or d.c. (flashing)
O Phase Angle Degrees.
ΩOhms
VA Power in Volt amperes
A Amperes
The floating decimal point is automatically placed to accommodate the
reading to the working measurement range’s accuracy.
Timer control
The following buttons are used to control the PTE-100-C PRO’s timer opera-
tion and various start/stop logics:
Successive presses of this button change the start and stop modes
of the timer. The various options are represented by different
combinations of the START and STOP LEDs on the left side of the
button. Refer to the Timer Start and Stop Modes section below.
Use this button to toggle the displayed time between seconds and
cycles (of the power line’s frequency).
This button returns the timer to zero and re-enables the automatic
power shut off. Injection will not stop automatically upon relay
operation if the timer is not previously reset. Please refer to the
Operation section for a more in-depth description of this feature.
Timer start/stop modes
You can adapt yourself to different timing conditions by setting up the vari-
ous combinations of start and stop events for the PTE-100-C PRO’s timer.
The default combination –first and third LEDs- sets the timer to start when the
current or voltage output are connected and to stop when operation is de-
tected at the monitor’s dry or wet contact inputs. Use the MODE button to
toggle between the available combinations:
Reset
Display
Mode

USER’S MANUAL
20
Upper LED: the timer will start w
hen injection is switched on.
Lower LED: the timer will start when injection is switched off.
Upper LED: the timer will stop when the monitor is set to ac-
tive. Lower LED: the timer will stop when the monitor is set to
inactive.
Pulse mode measures the time elapsed between two opposite
monitor events.
Upper LED (positive pulse): The timer will start when a moni-
tor condition appears and will stop when it disappears.
Lower LED (negative pulse): The timer will start when an exist-
ing monitor condition disappears and will stop when it comes
back.
•Monitor Monitor detection occurs when a contact is closed between
the BLACK/GREEN or a voltage appears between the
BLACK/RED monitor input connectors.
SPECIAL FUNCTIONS
The following buttons provide access to the
special measurement and control functions
grouped in the shaded area underneath
Display #1. These functions are provided to
complement the main unit’s features and to
simplify frequent in-field operations.
Press this button to access or exit the special functions listed be-
low. When done, press it again for normal operation. Two LEDs
labeled Ch. (chrono) and Func. will identify the active operation
mode. When in the special functions mode, Display#1 will tem-
porarily show measurement and setup values
related to each function. Any displayed time
value will be restored when backing up to
normal mode.
