SMC Networks PTE-100-C User manual

Current and voltage relay testing unit to 250 A
USER’S MANUAL
PTE-100-C
REFERENCE: FAAVMV02
EDITION: May 17 th, 2013
VERSION: 10
Quality is the core reference for EuroSMC’s activities, aimed to fully satisfy our
customers’ needs and expectations.
DISCLAIMER
The information, product specifications, and technical data contained in this
document imply no contractual binding to EuroSMC’s responsibility. The user is
the sole responsible for the application of the products mentioned in this
document. EuroSMC explicitly exonerates itself from liability to accidents or
unwanted results, directly or indirectly derived from mistakes made in the
writing of this document. Copying or reproducing all or part of this document is
not allowed without the explicit written permission from EuroSMC. Due to
continuing development and quality improvements, EuroSMC reserves the right
to make changes in their products without notice.

INDEX
PTE-100-C PACKING LIST .......................................... 5
INTRODUCTION......................................................... 6
GENERAL OVERVIEW ................................................. 7
Technology .................................................................................7
Power Section Design ..................................................................7
Auxiliary Voltage Supply...............................................................8
Measurement and Control ...........................................................8
DESCRIPTION ........................................................... 10
MAIN AC SUPPLY ...............................................................10
Main Protection Fuses................................................................10
POWER OUTPUT SECTION .................................................11
Output ON/OFF buttons...........................................................11
Regulation Variac ......................................................................11
Current Output taps ..................................................................12
0-250 VAC voltage tap (OUT 1) ................................................12
0-350 VDC voltage tap (OUT 2)................................................12
Display #2................................................................................13
Displayed Output selector..........................................................13
Current tap selection..................................................................14
Power Section Alarms ................................................................14
AUXILIARY VOLTAGE .........................................................15
Out 3: 0-250 Vdc Auxiliary Output ............................................15
Out 3 Overload Alarm ..............................................................15
Out 4: 110 Vac Auxiliary Output ...............................................15
TIMER SECTION ..................................................................16
Monitor Input ............................................................................16
Time Display .............................................................................16
Timer control.............................................................................17
Timer start/stop modes ..............................................................17
SPECIAL FUNCTIONS..........................................................18
MEASUREMENT FUNCTIONS ...................................................19
CONTROL FUNCTIONS...........................................................20
COMMUNICATIONS ...........................................................21

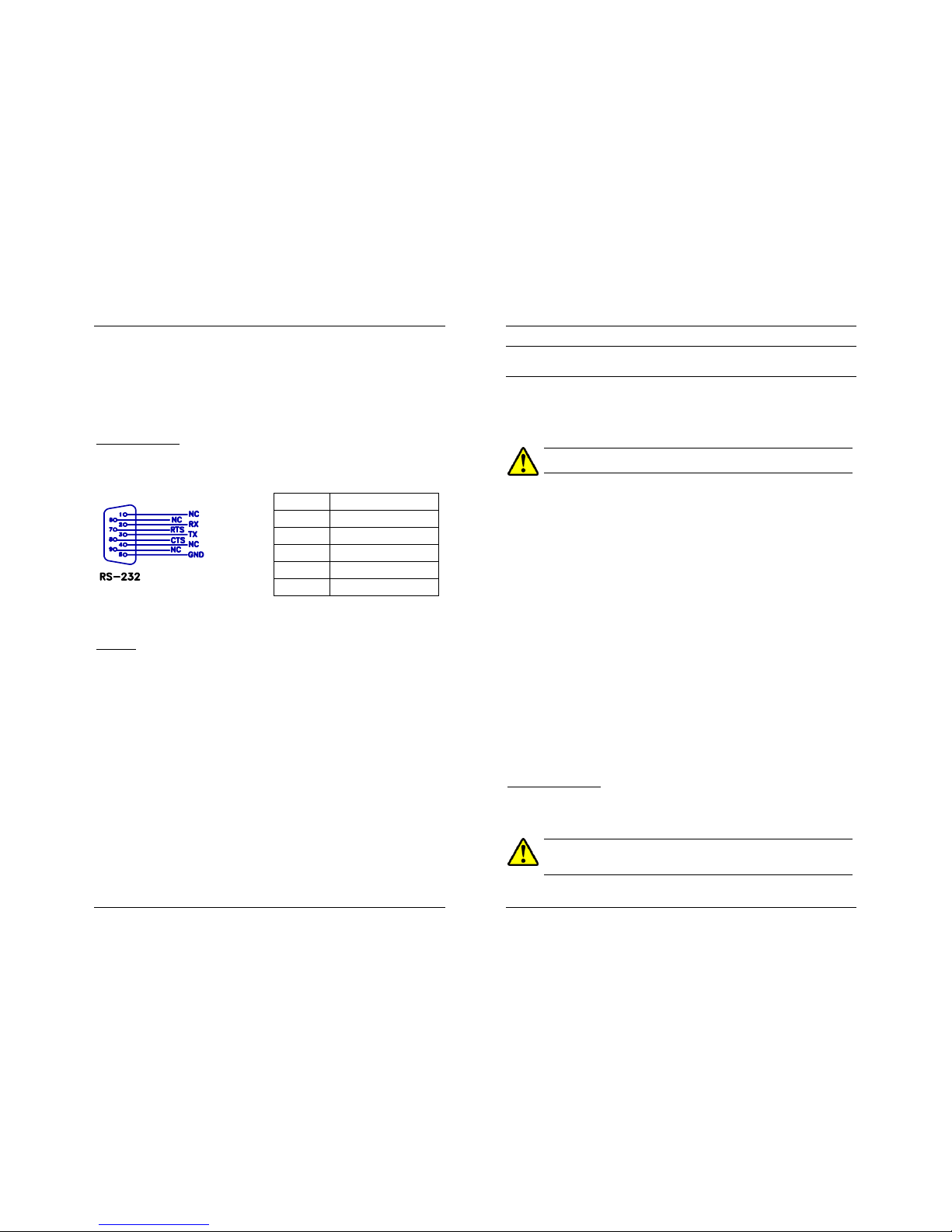

Serial RS-232 port .....................................................................21
PTE-BUS ...................................................................................21
OPERATION ............................................................. 22
CURRENT AND VOLTAGE INJECTION............................... 22
AC Current Injection ..................................................................22
Overload protection ..................................................................24
Voltage Injection........................................................................24
AUXILIARY POWER ............................................................ 25
Out 3 variable DC auxiliary supply.............................................25
Out 4 fixed AC auxiliary supply ..................................................26
TIME MEASUREMENT......................................................... 26
The Monitor ..............................................................................28
Timer start/stop modes ..............................................................28
SPECIAL MEASUREMENT AND CONTROL FUNCTIONS .... 29
Voltimeter and Frequency Meter.................................................30
Output Current-related measurements………………………….30
Protecting your relay against test-related accidents ......................32
Testing instantneous over current……………………………….32
Pre-setting a current value..........................................................34
CALIBRATING THE PTE-100-C........................................... 35
Required equipment ..................................................................35
General Calibration Procedure ..................................................35
SPECIFICATIONS ...................................................... 37
Output Characteristics…………………………………………..37
Special Functions…………………………………………………37
Measurement functions…………………………………………38
Voltage Supply ..........................................................................38
Physical Dimensions...................................................................38
AFTER SALES SUPPORT ............................................ 39
WARRANTY ........................................................................ 39
CUSTOMER SUPPORT ........................................................ 39
OTHER EUROSMC PRODUCTS ........................................... 39
GENERAL DIAGRAM ................................................ 40
FRONT PANEL .......................................................... 41

PTE-100-C
5
PTE-100-C PACKING LIST
1 PTE-100-C unit
1 Nylon bag
1 AC supply cord
6 2-meter, 2.5 mm2section test leads (3 black, 3 red)
2 2-meter, 10 mm2section test leads (1 black, 1 blue)
1 2-meter RS-232 communications cable to PC
2 6-mm to 4-mm plug adapters
4 Clips up to 50A (2 black, 2 red)
4 Clips up to 10A (2 black, 2 red)
2 5 x 20 mm, 100 mA, FAST fuses
2 5 x 20 mm, 0.5 A, Standard fuses
1 Calibration Software CD-ROM
2 Case Key
1 Warranty Registration Form
1 Measurements Certificate
1 This user’s manual
USER’SMANUAL
6
INTRODUCTION
The PTE-100-C Relay Test Set is designed to test protective relays based on
single-phase current and /or voltage measurement.
Its small size, excellent output power and accuracy, quality features, and
ease of use, make this product one of the best choices available in its kind.
To achieve this goal, EUROSMC collected the opinion and suggestions of
various professionals and companies of recognized prestige and experience
in protective relay maintenance and commissioning. As a result, the PTE-
100-C features the following unique characteristics:
Robust mechanical and electrical construction.
Great portability.
Built-in measurement features to avoid carrying a large number of
instruments.
Results printout capability, when taking notes is usually difficult.
Software-assisted closed-case calibration with a Windows PC.
Functions to protect the relay being tested.
Easy, intuitive operation.
The PTE-100-C includes all the accessories needed for testing, such as ca-
bles, clips, nylon bag for transport, spare fuses etc. as standard equipment.
We appreciate your suggestions about the PTE-100-C and this manual, in
our commitment to improve our quality. Our technical staff will be pleased
to help you on any difficulties or questions that you may have.
Thank you for choosing EuroSMC products.
EUROSMC, S.A.
Pol. Ind. P-29 Calle Buril 69
28400 Collado Villalba. MADRID (SPAIN)
TEL: [phone]. FAX: [phone]
www.eurosmc.com

PTE-100-C
7
GENERAL OVERVIEW
Technology
The PTE-100-C combines state-of-the-art digital technology with the tradi-
tional regulation method based on a variable autotransformer and trans-
former.
Analogue and digital electronics convert signals in- and out from the unit in
order to be processed and displayed by an 8-bit microprocessor.
The power section is based mainly on electromechanical components.
The unit’s layout is arranged in modules and the number of moving parts is
kept to a minimum for easy and safe operation.
Power Section Design
Classical, direct regulation and transformers are used to generate and con-
trol the high 1,000-VA power output, as shown in the following diagram:
1. An internal relay connects the main power supply to the variac un-
der no-load conditions.
2. The single-phase variable autotransformer (Variac) regulates the
voltage at the primary winding of the output power transformer.
3. A static switch (Triac) guarantees a clean connection and discon-
nection of the Variac from the power transformer’s input.
4. A toroidal transformer guarantees the insulation of the output from
the main power supply.
5. A current measurement transformer, with one primary winding and
two secondaries with 250:1 and 50:1 respective ratios, is connect-
USER’SMANUAL
8
ed to the ‘zero’ output tap of the power transformer. Measurement
range switching is automatic.
Auxiliary Voltage Supply
By means of a transformer with multiple secondary windings, the PTE-100-C
features two independent auxiliary voltage outputs:
Out 3 is a variable 0-250 VDC stabilized, electronically protected
supply with a dedicated ON/OFF switch, and
Out 4 is a fixed 110 VAC. This fuse-protected output is permanent-
ly active whenever the equipment is switched on.
Measurement and Control
Analogue input is converted to digital values before it is processed and dis-
played. The following external or internal analogue magnitudes are meas-
ured:
Voltage.
Current.
Phase angle.
Temperature.
Displayed and/or used values like Impedance or Power are automatically
calculated from these magnitudes by the microcontroller.

PTE-100-C
9
The same micro-controller processes all the user’s control actions like output
on/off, the timer activation, the selection and display of function values, and
the protective alarms.
USER’SMANUAL
10
DESCRIPTION
All the elements in the front panel of the PTE-100-C are thoroughly de-
scribed here. In-depth explanation of their use is given in the Operation
section.
Many buttons, namely those that perform a different function when held down,
effectively actuate when released, rather than when pressed. These buttons will
produce a “secondary function” when pressed until an audible beep is heard.
We will now describe the PTE-100-C along the following sections:
MAIN AC SUPPLY
POWER OUTPUT SECTION
AUXILIARY VOLTAGE
TIMER SECTION
SPECIAL FUNCTIONS
COMMUNICATIONS
MAIN AC SUPPLY
An AC supply block at the lower left-hand corner of
the front panel groups the power cord plug, a fuse
holder and the main on/off switch. Internal filters
prevent most AC perturbations from leaking into the
unit. The OFF position is indicated by a tiny circle in one of the faces of the
main switch.
Main Protection Fuses
The active (12A, Fast) fuse and a spare fuse
are included in the fuse holder. All the fuses
accessible from the front panel are standard,
5x20 mm cylindrical, and their current rating
and type are clearly printed.
SPARE FUSE
ACTIVE FUSE
FUSE

PTE-100-C
11
REPLACE BLOWN FUSES WITH IDENTICAL ONES ONLY. DAMAGE
RESULTING FROM INCORRECT FUSE REPLACEMENT IS NOT COVERED
BY THE WARRANTY.
POWER OUTPUT SECTION
This is the right-hand section of the
front panel. It contains the main out-
put control buttons, the regulation
variac, the Display #2, the current
and voltage output taps, the tap selec-
tor, the displayed output selector and
a few associated and alarm LEDs:
Output ON/OFF buttons
These buttons connect and disconnect the main power ouput,
i.e. the current output taps and the Out 1 and Out 2 voltage
taps. A red LED indicates the following output states:
OFF: The output has been intentionally switched off
ON: The output has been intentionally switched on
BLINK: The output has been switched off by the unit. This will
be further explained under the OPERATION section.
Regulation Variac
This knob controls the output level of the current and
voltage power taps. The numerical 0-10 round scale is
provided as a positional reference only. The actual
output level is shown in Display #2 and, at any given
regulator position, its value always depends on the
connected impedance. Regardless of the regulator’s
position, no power will be output when the output control switch is OFF.
Always handle this regulator with care.
ON
OFF
USER’SMANUAL
12
A harmful amount of current could be injected into the connected
load if you accidentally switch the output ON with the variac in a
position other than zero.
Current output taps
At the top of the power output section, four current injection taps are provid-
ed to adapt the
current output
characteristics to
the connected
load, as well as to
facilitate the output
level regulation.
Tap zero is the common reference. If you are testing with currents ranging
from 0 to 50 A AC, for example, connect the load between the common
tap and the tap labeled “50 A / 20 V”. If you are using 4 mm bananas, you
will need the supplied 6-mm to 4-mm plug adapters for the common tap
and the 100 A tap.
Press these adapters all the way down before pulling them up for
removal.
0-250 VAC voltage tap (OUT 1)
Out 1 is located on the left immediately underneath the
variac knob. Output from this tap is measured and
regulated in AC volts. Maximum throughput current is
4A in non-continuous service.
0-350 VDC voltage tap (OUT 2)
Out 2 is located on the right of Out 1. Its output is
measured and regulated in DC volts. Polarity is indicat-
ed by the black (negative) and red (positive) plug col-
ors.
A standard 19 mm plug can be used with this pair of
connectors. All these taps and connectors comply to
the latest international standards and electrical safety
regulations.
0100A/10V
50A/20V
25A/40V
5A/200V
Out 1
0-250 Vac
Max. 4A
Out 2
0-350 Vdc
Max. 2.8A

PTE-100-C
13

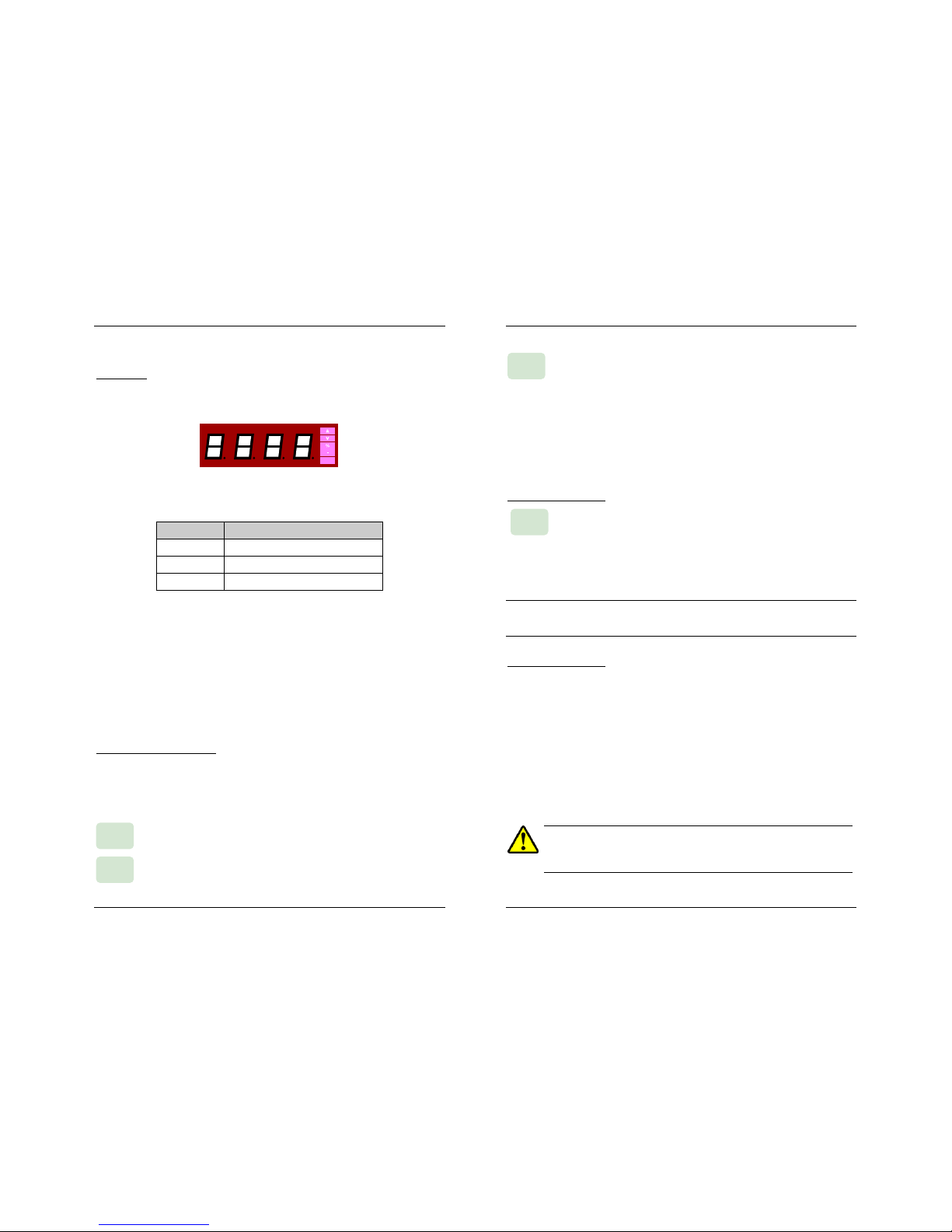

Display #2
All the PTE-100-C output magnitudes are shown on Display #2, located
above the variac’s knob:
The units in which the various possible readings are represented are labeled
on the right edge ot this LED display:
INDICATORS UNITS
A Current in Amps.
V Voltage in Volts.
% Percentage of the nominal current.
The following measurements can be read on this display:
Output current in Amperes.
AC or DC voltage present in Out 1 or Out 2 power taps and also
in Out 3 auxiliary DC voltage tap (regulated independently).
Percentage of the ‘nominal’ current value entered in Display #1 by
means of the “%” special function.
The floating decimal point is automatically placed to accommodate the
reading to the working regulation range.
Displaying the used output
Variable output magnitudes are shown in Display #2, used as an ammeter
by default. Since there are several output taps but only one display, you
need to select the tap to be displayed by pressing the corresponding display
assignment buttons:
Press this button to view the voltage present in Out 1 (variable
0-250 VAC).
Press this button to view the voltage present in Out 2 (variable
0-350 VDC).
Out 2
Out 1
USER’SMANUAL
14
Press this button to view the voltage present in Out 3 (auxiliary
variable 0-250 VDC). Out 3, located in the center section of
the PTE-100-C panel, is switched on, regulated and protected
independently from the other outputs.
A green LED above its tap will identify the displayed output. If you want to
lock the Display #2 to Out1, Out2 or Out3, press the corresponding dis-
play selection button and hold it for 5 seconds until you hear a beep. To
return to the normal ammeter function, give a brief press to any of these
buttons.
Current tap selection.
The PTE-100-C cannot detect which of the current taps is con-
nected the load to. Though the current value shown by Display
#2 is common to the four taps, some special functions, overload protections
and calculations require that the current output tab to which the load is
actually connected is identified to the unit. Press this key to sequentially sig-
nal the 100 A, 50 A, 25 A or 5 A tap in use.
Though this will not affect the output current nor the value shown in Display #2,
we strongly recommend you to do it whenever you move your connections to a
different current output.
Power Section Alarms
The PTE-100-C’s power section is protected form over-heating and from
overload. These conditions will automatically switch the power output off
and will be signaled by these two orange-colored 3-mm LEDs:
•I Therm. An internal sensor will protect the unit from overheating. This
alarm automatically disappears when the unit cools down to
normal temperature. Operation can then be resumed.
•I Lim. This protection operates when the upper limit of the selected
current tap, or the limit optionally set with the “Ilim” special
function, whichever is lowest, has been exceeded.
Up to 250 A can be attained from the 100A/10V tap for 3 seconds
before the unit’s thermal protection trips. Refer to the duty cycle chart
in the CURRENT AND VOLTAGE INJECTION chapter to learn more on
how to get currents higher than 100 A from this tap.
Out 3
Tap

PTE-100-C
15
AUXILIARY VOLTAGE
Auxiliary Outputs are intended as general purpose volt-
age supplies, rather than actual power sources. These
outputs are also galvanically isolated from each other
and from the main power supply.
Out 3: 0-250 Vdc
Out 3 is located on the center section of the front panel.
Polarity of this d. c. output is color-coded in its 4 mm
connectors: black (negative) and red (positive).
This auxiliary output has its own regulation knob and an
ON/OFF button with a red LED that will lit when the
output is active.
Out 3’s Automatic Protections
An orange-color LED will blink and the output will be
suspended while Out 3 is short-circuited. In case of over-
heating, the LED will be lit steadily. Both alarms will be
cleared and the output will be automatically resumed
when conditions return to normal.
Out 4: 110 Vac
Out 4, the fixed 110V AC auxiliary output
located next to the AC supply block, is active
whenever the unit is switched on.
Out 3 and Out 4 are protected by two 5x20
mm, 0.5 A fuses located on the left side of
the AC supply block. To open the fuse holder, press and turn
90º anti-clockwise with a small screwdriver.
REPLACE BLOWN FUSES WITH IDENTICAL ONES ONLY. DAMAGE
RESULTING FROM INCORRECT FUSE REPLACEMENT IS NOT COVERED
BY THE WARRANTY
Out 3
0-250 Vdc
Max. 0.25 A
Out 4
0-110 Vac
Max. 0.3 A
USER’SMANUAL
16
TIMER SECTION
The PTE-100-C’s digital Timer display is located on the left hand section of
the front panel, along with its control buttons and status LEDs.
Monitor Inputs
Tested relay’s operation is detected by means of two inputs:
1. A BLACK/GREEN input for dry (non-energized) contact monitoring,
and
2. A BLACK/RED input for voltage signals of up to 250 Vac or 250
Vdc maximum.
Both inputs are protected by 0.1 A FAST type 5x20 mm. fuses. Press and
turn the fuse holder 90º counter clockwise to replace a blown fuse.
REPLACE BLOWN FUSES WITH IDENTICAL ONES ONLY. DAMAGE
RESULTING FROM INCORRECT FUSE REPLACEMENT IS NOT COVERED
BY THE WARRANTY
Time Display
Time values resulting from tests are shown in Display #1 with a maximum
resolution of 1 millisecond.
Display #1 is a multi-function display. Besides time values in seconds or
cycles of the AC supply line, it can show various measurement units that are
automatically labeled at its right hand edge:

PTE-100-C
17
SYMBOLS UNITS
S Seconds.
CY Cycles of the main AC supply line.
Hz Hertz (Frequency)
V Volts in a.c. (steady) or d.c. (flashing)
O Phase Angle Degrees.
ΩOhms
VA Power in Volt amperes
A Amperes
The floating decimal point is automatically placed to accommodate the
reading to the working measurement range’s accuracy.
Timer control
The following buttons are used to control the PTE-100-C’s timer operation
and various start/stop logics:
Successive presses of this button change the start and stop modes
of the timer. The various options are represented by different
combinations of the START and STOP LEDs on the left side of the
button. Refer to the Timer Start and Stop Modes section below.
Use this button to toggle the displayed time between seconds and
cycles (of the power line’s frequency).
This button returns the timer to zero and re-enables the automatic
power shut off. Injection will not stop automatically upon relay
operation if the timer is not previously reset. Please refer to the
Operation section for a more in-depth description of this feature.
Timer start/stop modes
You can adapt yourself to different timing conditions by setting up the vari-
ous combinations of start and stop events for the PTE-100-C’s timer. The
default combination –first and third LEDs- sets the timer to start when the
current or voltage output are connected and to stop when operation is de-
tected at the monitor’s dry or wet contact inputs. Use the MODE button to
toggle between the available combinations:
Reset
Display
Mode
USER’SMANUAL
18
Upper LED: the timer will start when injection is switched on.
Lower LED: the timer will start when injection is switched off.
Upper LED: the timer will stop when the monitor is set to ac-
tive. Lower LED: the timer will stop when the monitor is set to
inactive.
Pulse mode measures the time elapsed between two opposite
monitor events.
Upper LED (positive pulse): The timer will start when a moni-
tor condition appears and will stop when it disappears.
Lower LED (negative pulse): The timer will start when an exist-
ing monitor condition disappears and will stop when it comes
back.
Monitor Monitor detection occurs when a contact is closed between
the BLACK/GREEN or a voltage appears between the
BLACK/RED monitor input connectors.
SPECIAL FUNCTIONS
The following buttons provide access to the spe-
cial measurement and control functions grouped
in the shaded area underneath Display #1.
These functions are provided to complement the
main unit’s features and to simplify frequent in-
field operations.
Press this button to access or exit the special functions listed be-
low. When done, press it again for normal operation. Two LEDs
labeled Ch. (chrono) and Func. will identify the active operation
mode. When in the special functions mode, Display#1 will tem-
porarily show measurement and setup values
related to each function. Any displayed time
value will be restored when backing up to
normal mode.

PTE-100-C
19
Once in the functions mode, press this button briefly to go down
to the next function. You cannot back up. Measurement functions
display a steady LED and control functions display a flashing LED.
In measurement functions, press and hold this button for 5 se-
conds to access a secondary measurement mode. Refer to the
Operation section for a detailed description of each function.
Control functions (for example, injected current limit) require nu-
merical input. Use these buttons to enter a value in Display #1.
If you press and hold both buttons for 5 seconds or more while in
the normal Ch. mode, the serial RS-232 communications port will
be activated, enabling the connection of a printer or a computer
as explained later.
Use this button to confirm entered values or to activate/deactivate
control functions.
While in the normal Ch. Mode, it will print the displayed values to
a connected serial printer.
These are the available functions in Func. mode:
MEASUREMENT FUNCTIONS
Normal measurement Secondary measurement
Vmon AC or DC voltage at the
monitor’s BLACK/RED input
Mains AC voltage
Fmon Frequency at the monitor’s
BLACK/RED input in Hertzs
Mains AC frequency
Vtap AC Voltage at the used
current tap in Volts
NONE
Ztap Impedance connected at the
used current tap in Ohms.
Press ENTER to store the
measured value in memory
(read Preset function below)
4-wire Impedance at the
used current tap (voltage is
measured at BLACK/RED
monitor input)
Enter/Print
Function
USER’SMANUAL
20
φAngle of the impedance
connected to the used cur-
rent tap, in 0-360 degree
notation
Angle between the injected
current and the voltage
present at the BLACK/RED
monitor input
SApparent power at the used
current tap in VAs
Apparent power at the used
current tap in VAs, reading
voltage drop at the
BLACK/RED monitor input
CONTROL FUNCTIONS
Description Usage
%Percentage regulation mode.
Display #2 will show a per-
cent value rather than Am-
peres.
Set the nominal current
value in Display #1 and
activate/deactivate with
ENTER
Imax Peak current ammeter
mode. Display #2 will show
the maximum injected cur-
rent.
Select the function and use
ENTER to activate / deacti-
vate.
Ilim Current limit. Protect the
tested device against acci-
dental overcurrent.
Set the maximum allowed
current in Display #1 and
activate/deactivate the
protection with ENTER
Tlim Time limit. Protect the tested
device against accidental
overheating.
Set the time limit in Display
#1 and activate/deactivate
the protection with ENTER
Preset Adjust a current value in
Display #2 using the variac
before switching the output
on.
Activate / deactivate with
ENTER.
The load’s impedance must
be previously stored using
the |Z| function.

PTE-100-C
21
COMMUNICATIONS
The PTE-100-C features two different means of communicating with other
equipment: standard RS-232 and EuroSMC’s proprietary PTE-BUS commu-
nications. Both connectors are located on the center of the front panel
above the EuroSMC logo.
Serial RS-232 port
This standard DB-9 male connector is compatible with common serial de-
vices such as printers, data terminals and computers. Following is the RS-
232 pinout:
1,4,6,9: NC Not connected
5: GND Earth ground
2: RX Input DATA
3: TX Transmitted DATA
7: RTS Output - Ready to Send
8: CTS Input – Clear to Send
The unit is supplied with the appropriate cable for connection to a serial
printer or to a computer.
PTE-BUS
The PTE-100-C can be linked to other EuroSMC’s products over this special,
high-speed applications bus, in order to extend their capabilities. Thanks to
this advanced concept of modularity, the user can interconnect two or more
PTE units to build a sophisticated test platform that is more powerful and
capable than the individual sets used, whenever complex relay testing or
assistance from a computer is required.
USER’SMANUAL
22
OPERATION
As a test instrument, you basically use the PTE-100-C to adjust and apply
some electrical magnitudes to the tested device and to measure its response
time or other test results. Directions to use the features described in the pre-
vious section are given here.
DO NOT USE THE PTE-100-C FOR REAL TESTING BEFORE READING
AND FULLY UNDERSTANDING THIS SECTION.
CURRENT AND VOLTAGE INJECTION
You inject AC current into a load by applying AC voltage to it. Some tests
require current (Amperes) regulation and other require voltage (Volts) regu-
lation.
The various power outputs have been designed and built into the PTE-100-
C with these test requirements in mind. Therefore, to perform a current test,
the receiver must be connected to the appropriate current tap and regula-
tion must be done in Amperes. This is the default operation mode of the
PTE-100-C. Conversely, for voltage tests, we will connect the test object to
Out 1 or Out 2 and will set the Display #2 to voltage reading by means of
the corresponding display assignment button.
In any case, the electrical magnitudes to which the tested device is exposed
depend on the following factors:
1) the used output
2) the variac’s position
3) the connected impedance
AC Current Injection
To inject AC current, follow these steps:
1. Turn the variac knob to its leftmost position dialed “0”.
A harmful amount of current could be injected into the connected load
if you accidentally switch the output ON with the variac in a position
other than zero.

PTE-100-C
23
2. Connect the receptor’s input between the common (“0”) and the
current output tap that best accommodates the needed test range.
Always use the appropriate current range tap. This will keep distortion to a
minimum and will make regulation easier.
3. Use the button to identify the used tap to the instrument.
The PTE-100-C does not detect the current tap you are using, unless
you ‘flag’ it using the TAP button. Some measurement and protective
functions will not work if the green LED under the used tap is not lit.
4. Disconnect any unneeded cables from the unit.
5. Press briefly and release to ensure that current taps, rather
than voltage taps, are selected for display. The “A” indicator should
lit at the right edge of Display #2.
6. Press the button to switch the output on. Its red LED will lit
and some non-zero reading will be shown in Display #2, unless
you have left the output circuit open.
Display #2 needs about 2 seconds to stabilize itself. The decimal point will be
automatically placed to the biggest accuracy possible for the selected output.
All the power current and voltage outputs are energized when you
switch the injection ON, even though Display #2 shows ZERO.
Likewise, the voltage present in each tap depends directly on the
knob’s position. You cannot regulate each tap independently.
Regulate the injected current turning the variac knob gently while you ob-
serve Display #2.
If you want to use percentage regulation, set a nominal value in Display #1
using the “%” function and activate the percentage mode pressing .
If you want to know the voltage present at the selected current tap, activate
the Vtap function to have it shown on Display #1.
Enter/Print
ON
Out 1
Tap
USER’SMANUAL
24
If more than one current or voltage tap is connected to a receiver, the readings
at Display #2 will be meaningless.
Overload protection
If injected current exceeds by more than 10% the limit printed above the
used tap, the output will be stopped automatically. The ON/OFF LED will
then blink and the maximum output current value (or percentage) will be
held in Display #2. With the 100A/10V Current Tap, however, this protec-
tion is timed inversely to the amount of excess, according to the table below.
Maximum current allowed through this tap is roughly 250 Amps.
Output Current Maximum Injection Time
<110A Until Thermal Overload Alarm Trips.
110 To 150A 10 Seconds.
150 To 210A 5 Seconds.
210 To 250A 3 Seconds.
>250A Immediate Trip by I lim Alarm.
Voltage Injection
The procedure is identical to current injection with only a few exceptions:
1. Connect your relay’s voltage input to Out 1 (AC voltage) or Out 2
(DC voltage) as required.
2. Have the appropriate tap (Out 1 or Out 2) shown in Display #2 by
pressing and holding the or buttons until you
hear a beep.
The button is irrelevant now because we are using the voltage out-
puts only.
All the power current and voltage outputs are energized when you
switch the injection ON, even though Display #2 shows ZERO.
Likewise, the voltage present in each tap depends directly on the
knob’s position. You cannot regulate each tap independently.
Tap
Out 2Out 1

PTE-100-C
25
AUXILIARY POWER
Auxiliary power is commonly intended to energize the devices under test, or
to polarize electrical reference components, rather than for actual injection
of test magnitudes. Auxiliary electronics are not dimensioned nor calculated
for big power values. The PTE-100-C features two auxiliary voltage outputs:
one variable 0-250 VDC (Out 3) and one fixed 110 VAC voltage (Out 4).
The most important differences between these outputs and the test outputs
(current taps, voltage output 1, and voltage output 2) are:
Out 3 and Out 4 are completely independent from each other and
from the power current and voltage Out 1 and Out 2 taps.
Out 3 and Out 4 are not automatically shut off during the test pro-
cedure.
Timer operation is not directly affected by these auxiliary outputs.
Out 3 variable DC auxiliary supply
Out 3 is a variable 0-250 V stabilized DC supply. This means that its output
level greatly withstands fluctuations at the mains supply and at the power
outputs. Out 3 is protected by a dedicated fuse and an electronic protection
against short circuits and overloads. Before connecting any device to Out 3,
do the following:
1. Press and hold until you hear a beep. The green
LED under its small regulation knob will lit. This will bind
Display #2 to this output.
2. Turn the small regulation knob all the way counter clock-
wise to set it to the minimum position.
3. Activate Out 3’s output pressing briefly. The asso-
ciated red LED will lit.
4. Adjust the required DC voltage level shown in Display #2
and set the output back off pressing again.
5. Connect the device to be energized to the black (-)/red
(+) taps according to the device’s polarity and restore the
output pressing again.
ON
ON
ON
Out 3
USER’SMANUAL
26
6. Check the level again on Display #2 and readjust if re-
quired.
7. You can now press briefly again to re-assign Dis-
play #2 to its default current output reading. This will not
affect the voltage output from Out 3.
Out 4 fixed AC auxiliary supply
This 110 V fixed AC supply is often used to energize some relays and as a
phase reference for various test procedures. Out 4 is usually 110 VAC and
is protected by the fuse labeled "OUT 4".
110 V AC are present in Out 4 whenever the unit is switched ON
TESTING OPERATION TIME
Relay testing is usually as simple as simulating electrical fault conditions at
the relay’s input, assessing operation and measuring its operation time. This
takes an accurate timer that starts when the power output is initiated and
stops when the relay trips, i.e., its output contact closes. The power output
will be stopped automatically upon tripping, too, and the applied current or
voltage and resulting operation time will be displayed and hold by Display
#2 and Display #1 respectively. This is how the PTE-100-C works essential-
ly.
Out 3

PTE-100-C
27
So these are the basic steps for a time test:
1. Switch the PTE-100-C’s power output and turn the variac all
the way to the left to reach the “0” position.
2. Connect the relay’s measurement input (to where the CT or VT out-
put is normally connected) to the appropriate current or voltage
output tap.
3. If you are doing a current based test, choose the current tap that
better accommodates the regulation range, turn its ‘flag’ LED on
using the key and give a short press to to ensure
that current, rather than voltage output, is displayed in Display #2.
If you are using a voltage output instead, press and hold
or accordingly until a beep is heard to lock it to Display
#2.
4. Connect the relay’s trip contact to the PTE-100-C’s dry
(black/green) monitor input. This is for dry contact monitoring. If
you are detecting relay operation by means of a contact that is un-
der voltage, use the black and red connectors instead.
5. Switch the power output and gently turn the variac clockwise
until the desired test value is displayed.
6. Switch power , the timer and power again
to start the test. If the adjusted test value is in the operating range of
the relay, it will eventually trip at the monitor input, the timer will
stop and the power output to the relay will be suspended (note that
the red output LED is now blinking).
7. You will then be able to write down the values held by Display #1
(time) and Display #2 (operating voltage or current). Repeat steps
5 thru 6 for as many different current or voltage test values you
need to time.
OFF
ON
RESET
OFF
ON
Out 1Tap
Out 2
Out 1
USER’SMANUAL
28
The Monitor Input
In its most typical implementation, a relay is said to operate when, upon
detection of a fault, it closes its output contact to trip a circuit breaker, thus
clearing the fault. The PTE-100-C will simulate the presence of a circuit
breaker by means of its trip monitor, that will automatically stop both the
timer and the power output when the relay operates, thus completing the
fault clearance cycle.
The monitor will only stop the injection and the timer if it is connected
to the relay’s output and you have pressed the button
before switching the output on.
Monitor activation is signaled by a red LED labeled Monitor at the left edge
of Display #1. This takes place when –
a) some voltage within the 3 to 250 V AC or DC range drops be-
tween the BLACK / RED monitor taps, or
b) a dry contact (the most common case) closes between the BLACK /
GREEN monitor taps. This input is protected by a dedicated fuse
that will blow immediately if any voltage is applied.
REPLACE BLOWN FUSES WITH IDENTICAL ONES ONLY. DAMAGE
RESULTING FROM INCORRECT FUSE REPLACEMENT IS NOT COVERED
BY THE WARRANTY
Timer control
As commented above, the timer will start when you activate the power out-
put and will stop when the Monitor is activated. This is the timer’s default
start/stop mode, but you have more options that correspond to the various
combinations of the green event LEDs at the left of Display #1. To under-
stand timer modes, we need to distinguish between positive and negative
events:
RESET

PTE-100-C
29
Activating the power output, closing a monitored contact or detect-
ing a voltage drop are positive events. Positive events are labeled
with an upward ( )arrow.
Automatic disconnection of the power output, opening a closed
contact of clearing an existing voltage at the monitor inputs are
negative events. These are labeled with a downward ( )arrow.
A wide choice of combinations between positive and negative events provide
great freedom to accommodate various test conditions and relay types by
selecting the class of event that must start or stop the instrument’s timer or
the power output. If, for example, the operation contact of the tested relay is
connected to a circuit under voltage, you can connect it in parallel to the
black and red monitor connectors and select a negative event for the timer’s
STOP mode, since any voltage present between these connectors will disap-
pear when the contact is closed upon relay’s operation.
You only need to press the button sequentially to toggle among the
timer’s various START/STOP event combinations.
Pulse Length Measurement
Timer start is usually associated with some action on the power output
switch, but an additional special mode allows the timer to be started and
stopped when monitor changes occur. This is the pulse length measurement
mode, with two options: positive and negative pulse. Select positive ()
pulse to measure the time lapse between activation and deactivation of the
monitor. Select negative ( )pulse to measure between the deactivation
and re-activation of the monitor.
Remember: monitor activation is signaled by the red LED labeled “Monitor”
on the left of Display #1.
SPECIAL MEASUREMENT AND CONTROL FUNCTIONS
A number of convenience features have been built into the PTE-100-C to
make its operation easier, sometimes saving the user from carrying addi-
tional instrumentation.
Access to these functions is located in a shaded area underneath Display
#1, which is used to view measured values and to enter control settings.
Mode
USER’SMANUAL
30
Press the button to toggle between Ch. (chrono) to Func. (function)
mode. The contents of Display #1 will change from timer readings to func-
tion-related readings and vice versa when you set back and forth from nor-
mal mode to function mode. Now, press the button briefly to navi-
gate sequentially throughout the functions list. The first 6 functions in the list
(from Vmon to S) are measurement functions, and the remaining 5 (from %
to Preset) are control functions, used to modify the default operation of some
PTE-100-C’s features.
Voltmeter and Frequency Meter
If you need to measure the voltage or the frequency of an external source
between 0 to 250 Vac or 250 Vdc, proceed as follows:
1) Enter the Func. Mode by pressing the button and press the
button repeatedly until the green LED near Vmon is lit.
2) Apply the voltage that you want to measure between the BLACK
and RED connectors of the Monitor Input. The value will be shown
in Display #1 with a “V” at its right edge, which will blink for DC
voltage.
3) If you are measuring AC, press once to jump to Fmon and
see the frequency in Hertzs.
If, rather than an external signal, you want to perform these measurements
on the unit’s AC supply line, press and hold the while in the above
mentioned functions until you heard a beep to activate (and further deacti-
vate) their secondary measurement mode.
Output Current-related Measurements
The injected current quantity is shown on the Display #2 during the tests, but
you can also obtain several useful measurements related to the connected
load and its nature on Display #1, such as applied voltage, impedance’s
modulus, impedance’s angle and apparent power.
Function
Function
Function
Function

PTE-100-C
31
To read the voltage applied to the load while you are injecting current, do
the following:
1) Toggle to Func. mode using the button and press
as necessary to navigate to Vtap.
2) Connect the load to an appropriate current tap and flag this tap
using the button, if not yet done. Check that the variac is
in its minimum (“0”) position now.
3) Press the button to activate the output and turn the variac
gently clockwise to regulate the current injection to the desired val-
ue on the Display #2. The applied voltage will be shown at Display
#1 simultaneously.
To measure the impedance of the connected load, follow the same steps as
above but use the |Z|tap this time. The connected impedance’s modulus
will be shown in Display #1. For greater accuracy, this measurement can
be done following the 4-wire method using the secondary mode of the
|Z|tap function:
1) Connect both sides of the connected load in parallel to the
BLACK/RED monitor inputs.
2) While you are placed at the |Z| tap function, press the
key and hold it down until a beep is heard and the function’s LED
starts blinking. You are now using the secondary measurement
mode. In this mode, the measurement is performed using the value
of the injected current and the voltage drop measured at the con-
nected load.
Impedance measurement requires a minimum amount of current (at least 10
per cent of the selected tap’s range) to be injected to the load. Non-linear
loads, i.e. those that exhibit impedance changes with time because of large
reactive components, cannot be accurately measured with this function.
Protecting your relay against test-related accidents
I lim and T lim functions automatically disconnect the output when the in-
jected current or the ON time exceed a pre-established limit respectively.
Function
ON
Tap
Function
USER’SMANUAL
32
You enter a current and/or time limit into Display #1 while placed in the
appropriate function using the and buttons and then acti-
vate/deactivate the protection with the button. These functions are
primarily provided as a means to protect sensitive devices against accidental
overheating.
The output will be cut off when the applied current exceeds the specified limit
by a 10 per cent. While the Tlim protection applies to the time for which the
output is ON, The Ilim protection works only with the current taps, not with the
voltage taps Out1 or Out2.
Testing Instantaneous Overcurrent
Instantaneous elements trip usually before the PTE-100-C’s digital ammeter
stabilizes itself on the Display #2, thus being impossible to know the real
current value that has caused the relay to operate.
Furthermore, some instantaneous protections are set to such a high current
value that it might damage the relay if sustained during the time that it usu-
ally takes to regulate with a reasonable accuracy.
If you meet any or both of these situations when testing instantaneous over-
current relays, use the I max, I lim and T lim functions as follows:
1) Check first that the unit’s output is deactivated and the variac is
placed at its minimum “0” position.
2) Connect the current input from the relay to the current output tap
that best accommodates the intended injection values. Flag the se-
lected output by means of the button. Connect also now
the relay’s trip contact to the PTE-100-C’s black/green monitor in-
puts, so that the unit can detect the relay’s operation and stop the
test appropriately. Refer to the Timer control section above for de-
tails on how to setup the various timer start/stop modes.
3) Place yourself at the Imax function and activate it by pressing
briefly. Its LED indicator will toggle from slow to fast blink-
ing. In the Imax mode, the PTE-100-C’s ammeter works upwards
only, i.e., it shows the maximum injected current since the last time
Enter/Print
Tap
Enter/Print

PTE-100-C
33
the output was switched on, and it does it at a very high speed. You
can now exit from Func. mode.
4) If you wish to avoid injecting an excessive amount of current acci-
dentally while regulating your test current, use the Ilim function as
described in Protecting Your Relay.
5) Do the same with the Tlim function entering the longest time for
which you know it is safe to sustain the above specified current limit
through your relay while you are regulating the test current. Do not
forget to press to effectively activate this one and the Ilim
protection (LED should toggle from slow to fast blinking). The speci-
fied time should be longer than the expected instantaneous opera-
tion time.
6) After you exit the Func. mode, the LEDs next to these three functions
should be steadily lit. Otherwise, back up to Func. mode, navigate
to the function and press to toggle its LED to fast blinking.
7) Do NOT press now. Switch the output and try to
reach the instantaneous setting for the current before the Tlim pro-
tection operates and the output is suspended.
8) Retry step 7) until you achieve the desired value for the instantane-
ous test setting in Display #2.
9) Press to zero the timer out and to set the unit to suspend
the output automatically upon relay’s operation.
10) Press to start the test. The relay should operate before the
time specified for Tlim elapses, and the injection will be automati-
cally suspended. The resulting operation time and current will be
shown by displays #1 and #2 respectively.
11) Check the relay’s consistency by repeating steps 9) and 10) a cou-
ple of times and write the results down.
12) Repeat steps 7 thru 11 for each current value that you need to test.
ON
RESET
ON
RESET
Enter/Print
Enter/Prin
t
USER’SMANUAL
34
Pre-setting a current value
If your test object’s load is consistently linear, the Preset function provides a
method to set a current value while the output switch is in the OFF position.
When Preset is active, the unit calculates the current that would result from
each position of the regulation knob at the ‘flagged’ current tap over the
connected impedance. This theoretical value is shown in Display #2 though
no current is actually being injected. This is possible by applying the formula
||/|||| ZVI

where |V| is the voltage that corresponds to the present position of the
variac at the current tap where impedance |Z| has been previously meas-
ured and stored (see Measurement Functions at the DESCRIPTION chapter).
This calculated current adjustment is useful when you need to test one relay
over multiple settings in the same current tap. Beware, though, that the ac-
curacy of this calculation is compromised when the connected load has a
substantial amount of reactive (inductive or capacitive) components.
If you want to regulate the current before activating the output, do the fol-
lowing:
1) Check that the output is switched off and the variac is at its mini-
mum (“0”) position.
2) Connect the load to the current output that best accommodates the
regulation range and flag it using the button.
3) Go to the |Z|tap function using the and buttons.
4) Without exiting the Func. mode, activate the unit’s output and regu-
late it to a minimum 10 percent of the intended test current’s upper
limit. For example, if you are going to test between 5 and 20 A,
regulate a little bit more than 2 A now.
5) Display #1 will be showing the measured impedance as you regu-
late the current. Press now to save it into memory and
switch the output off.
6) From now on, as long as you don’t move the test load to a different
tap, you can toggle the Preset function on and off to acti-
Enter/Print
Function
Tap

PTE-100-C
35
vate/suspend the theoretical current calculation in Display #2. To
do this, just switch to Func. mode, navigate to the Preset function
and press the button. If two beeps are heard instead of
one, repeat above steps 3) and 4) to properly measure and store
the connected impedance value in memory and try again.
While Preset is active, compare the displayed current values at Display #2
before and after pressing to activate the output. This will help you
estimate the amount of error introduced by the nature of the load and the
measurement and calculation method. The Preset function is provided as a
means to help you save some regulation time. Refer to Special Functions at
the DESCRIPTION section for details on the use of the Preset and |Z|tap
functions.
CALIBRATING THE PTE-100-C
One of the microprocessor-supported functions in the PTE-100-C is the
calibration and adjustment process. You don’t need to open the unit or use
any tools to readjust it. Just install the supplied FAA-CAL program on a Win-
dows PC, connect it to the unit’s serial port and follow the instructions to
enter the readings from reference instruments into your PTE-100-C.
Required equipment
To calibrate and adjust the readings of your PTE-100-C you need the fol-
lowing equipment:
RS-232 communications cable (supplied)
FAA-CAL calibration utility (supplied) installed on a Windows PC
Reference measurement instruments
The process consists basically of 1) comparing the readings in the PTE-100-
C’s display to those measured by the reference equipment, 2) entering the
reference value through the program if the one displayed on the PTE-100-C
is out of tolerance, and 3) producing a calibration report.
General Calibration Procedure
When you start FAA-CAL, it scans the available RS-232 ports in the PC for a
connected PTE-100-C. Therefore, first connect your unit to the PC using the
supplied DB-9 cord, switch it on and activate its serial port by pressing
ON
Enter/Print
USER’SMANUAL
36
and until you hear an audible tone and a tiny rectangle is lit
at the right edge of Display #1. Now you can launch the FAA-CAL pro-
gram.
In a few seconds, a small
window will show the con-
nected unit’s serial number.
Click OK to accept and
begin with the calibration
process.
If the serial number of the connected PTE-100-C is new in the FAA-CAL’s
equipment database, the program will create a new record for that unit and
will acquire and save its adjustments into it automatically. This will allow you to
back up to the factory settings in case you make mistakes and render the
equipment unusable accidentally.
FAA-CAL displays a chronological list of all the adjustments done on one or
more PTE-100-C units to the date. To readjust the connected unit, click on
“NEW” and follow the instructions provided with the program. If you wish to
restore a previous set of adjustments to the connected equipment, highlight
the desired line in the list and click on “Send to the Equipment”.

PTE-100-C
37
SPECIFICATIONS
Output
Characteristics
A.C.
CURRENT
A.C.
VOLTAGE
«Out 1»
D.C.
VOLTAGE
«Out 2»
AUX D.C.
VOLTAGE
«Out 3»
AUX D.C.
VOLTAGE
«Out 4»
AVAILABLE
RANGES
0-5 A, 0-25
A, 0-50 A,
0-100A
0-250 Vac 0-350 Vdc 0-250 Vdc 110 Vac
MAX
CONTINUOUS
CURRENT
1,5 A, 5 A,
10 A, 25 A
1 A 0.7 A 0.25 A 0.3 A
MAX
CURRENT FOR
1 MIN.
5 A, 25 A,
50 A, 100 A
3 SECONDS:
250 A
4 A 2.8 A 0.25 A 0.3 A
MAX VOLTAGE
±10%
200 V, 40
V, 20 V, 10
V
250 Vac 350 Vdc 250 Vdc 110 Vac
Special
Functions
PERCENTAGE
CURRENT
REGULATION
TIME LIMIT
(SECONDS)
CURRENT
LIMIT (A)
PRESETTABLE
CURRENT
ADJUSTMENT
RANGE
0.01 – 99.99 0.01-99999 0.1-100.0 0.1-100.0
RESOLUTION 0.01 0.01 0.1 0.1
DISPLAY # 1 & 2 1 1 1 & 2
USER’SMANUAL
38
Meas.
functions
V a.c. V d.c. Frec.
(Hz)
V a.c.
TAP
() POT.
(VA)
IMPED.
(Ω)
TIME
(sec.
)
MIN 0.1 0.1 20.000 0.0001 0.0 00.01 000.01 00.00
1
MAX 250,0 250,0 2000.0 199.9 359.9 99.99 999.99 99.99
9
ACCURACY (10
to 100% of
range)
±1% R
±1dig
±1% R
±1dig
±0.003
Hz
±1 dig
±1% R
±1dig
±2º
±2 dig
±2%
R
±1 dig
±2% R
±1 dig
±0.02
% R
±1
dig
RESOLUTION 0.1 V 0.1 V 0.01 Hz 0.01 V 0.1º 0.01
VA 0.001 0.001
Voltage Supply
230V ±10% (115V ±10% Upon request) 50 Hz - 60 Hz
Physical Dimensions
Height: 200 mm. / width: 300 mm. / depth: 200 mm. Weight: 13.5 Kg.

PTE-100-C
39
AFTER SALES SUPPORT
WARRANTY
This is an expression of trust that our products obtain. based on the reliability
and functionality standards that our customers expect.
The warranty covers the free replacement or repair of defective components
for one year in the terms specified in the supplied warranty statement and
registration card.
Damages resulting from improper handling of the product. use outside the
scope and limits of the product’s specifications. negligence. installation not
in accordance with the standards or warnings listed in the Instructions Man-
ual and servicing or manipulation by unauthorized persons are not covered
by the warranty.
CUSTOMER SUPPORT
EUROSMC guarantees the supply of materials and components for its prod-
ucts up to 3 years after discontinuation. This support is extendable to 5 years
for technical service.
OTHER EUROSMC PRODUCTS
Portable Relay Test Equipment and Software
Primary injection units up to 20.000 A
Digital handheld chronometer.
Digital handheld phase angle meter
Digital Portable microhmeter up to 100 A Test current.
Test systems for automatic miniature circuit breakers.
Voltage and current regulation equipment.
Step & Touch Voltage measurement equipment
USER’SMANUAL
40
GENERAL DIAGRAM
