CONTENTS
INTRODUCTION ........................................................ 7
Symbols used in these instructions ..........................................7
Letters in brackets....................................................................7
Troubleshooting and repairs ....................................................7
IMPORTANT SAFEGUARDS......................................... 7
Designated use.........................................................................8
Instructions..............................................................................8
DESCRIPTION ........................................................... 8
Description of the appliance ....................................................8
Description of milk container and accessories .........................8
Description of control panel.....................................................8
PRELIMINARY CHECKS .............................................. 8
Controls after transport ...........................................................8
Installing the appliance............................................................8
Connecting the appliance ........................................................9
AUTOMATIC CUP TRAY LIGHT ..................................... 9
BUILTIN INSTALLATION.......................................... 10
USING THE APPLIANCE FOR THE FIRST TIME ............. 12
TURNING ON AND HEATING UP ................................ 12
MAKING COFFEE USING COFFEE BEANS .................... 12
CHANGING THE QUANTITY OF COFFEE IN THE CUP ..... 13
AJUSTING THE COFFEE MILL .................................... 14
MAKING ESPRESSO COFFEE WITH PREGROUND COFFEE
INSTEAD OF BEANS ............................................. 14
DELIVERING HOT WATER ......................................... 14
CHANGING THE QUANTITY OF HOT WATER ................ 14
MAKING CAPUCCINO FROTHED MILK AND COFFEE .. 14
MAKING FROTHED MILK WITHOUT COFFEE............. 15
CHANGING THE QUANTITY OF COFFEE AND MILK FOR
CAPPUCCINO .......................................................... 15
CLEANING AND MAINTENANCE ................................ 16
Cleaning the coee maker......................................................16
Cleaning the coee grounds container...................................16

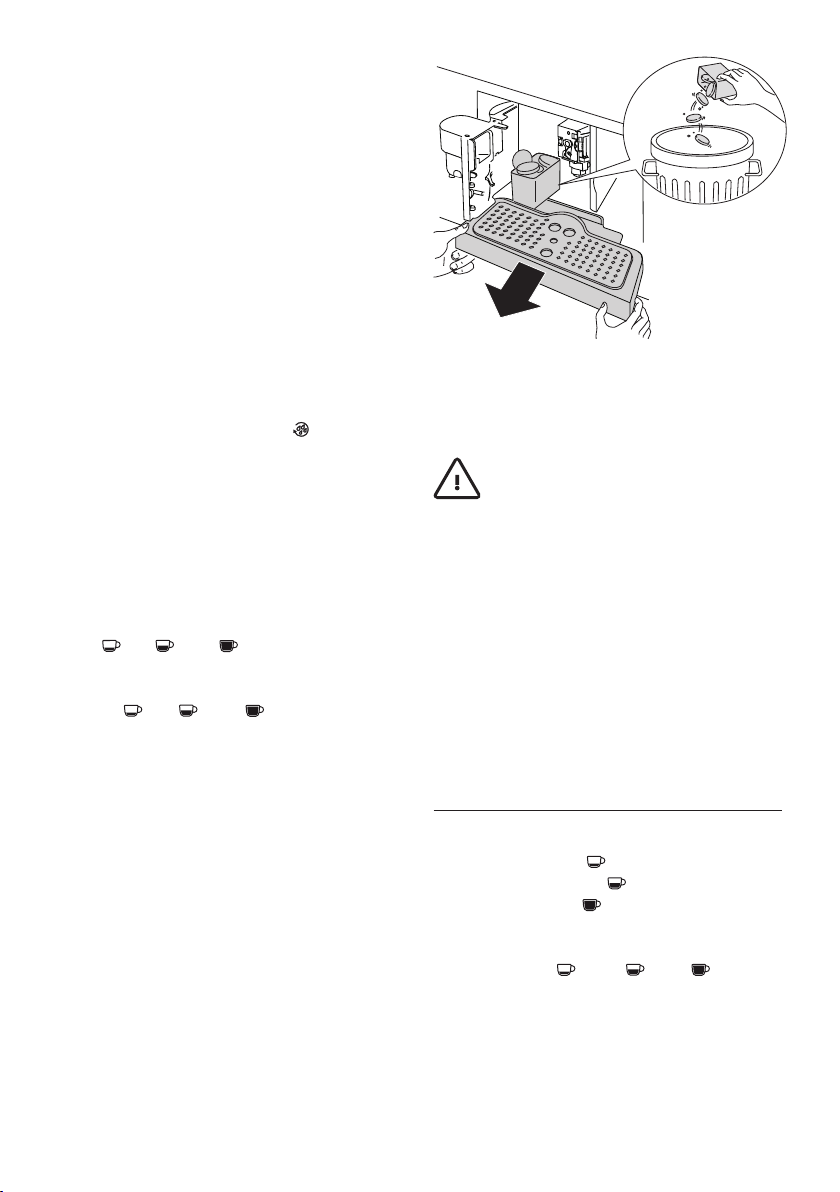

Cleaning the drip tray.............................................................16
Cleaning the water tank.........................................................16
Cleaning the spouts ...............................................................16
Cleaning the pre-ground coee funnel ..................................16
Cleaning the inside of the coee maker.................................16
Cleaning the infuser...............................................................16
Cleaning the milk container...................................................17
CHANGING AND SETTING MENU PARAMETERS .......... 17
Setting the clock ...................................................................18
Setting auto-start time .........................................................18
Descaling ...............................................................................18
Changing coee temperature ................................................19
Changing the length of time the appliance remains on .........19
Setting water hardness .........................................................19
Resetting default values (reset) .............................................19
Washing procedure ................................................................19
CHANGING THE LANGUAGE...................................... 19
TURNING THE APPLIANCE OFF................................. 19
TECHNICAL SPECIFICATION ..................................... 20
DISPOSING OF THE APPLIANCE ................................ 20
DISPLAYED MESSAGES ............................................ 21
TROUBLESHOOTING................................................ 22
RECIPES ................................................................ 23

6 7
INTRODUCTION
Thank you for choosing the automatic coee and cappuccino
maker. We hope you enjoy using your new appliance.
Take a few minutes to read these instructions.
This will avoid all risks and damage to the machine.
Symbols used in these instructions
Important warnings are identied by these symbols.
These warnings must absolutely be respected.
Failure to observe the instructions could result in electric shock,
serious injury, burns, re or damage to the appliance.
Danger!
Failure to observe the warning could result in possibly life
threatening injury from electric shock.
Important!
Failure to observe the warning could result in injury or damage
to the appliance.
Danger of burns!
Failure to observe the warning could result in scalds or burns.
N.B.:
This symbol identies important advice or information for the
user.
Letters in brackets
The letters in brackets refer to the legend in the Description of
the Appliance on page 3.
Troubleshooting and repairs
In the event of problems, rst try and resolve them following
the information given in the sections “Displayed messages”
and “Troubleshooting”. If this does not resolve the problem or
you require further information, you should consult Customer
Services by calling the number given on the “Customer Service”
sheet.
If your country is not among those listed on the sheet, call the
number given in the guarantee. If repairs are required, contact
Customer Services only. The addresses are given in the guaran-
tee certicate provided with the machine.
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precau-
tions should always be followed including the following:
READ ALL INSTRUCTIONS
• Make sure the voltage of your electrical system cor-
responds to the voltage shown on the bottom of the
machine.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse
cord or plug in water or other liquid.
• Close supervision is necessary when any appliance is
used by or near children.
• Unplug from outlet when not in use and before
cleaning. Allow to cool before putting on or taking
o parts.
• Do not operate any appliance with a damaged cord
or plug, or after the appliance malfunctions or has
been damaged in any manner. Return appliance to
the nearest authorized service facility for examina-
tion, repair or adjustment.
• The use of accessory attachments not recom- mend-
ed by the appliance manufacturer may cause inju-
ries.
• Do not let cord hang over edge of table or counter, or
touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or
in a heated oven.
• Extreme caution must be used when moving an ap-
pliance containing hot oil or other hot liquids.
• To disconnect, turn any control to “o”, then remove
plug from wall outlet.
• Do not use appliance for other than intended use.
• The appliance must be properly installed before op-
eration to ensure that no electrical components are
accessible. Ensure that power is not supplied to the
appliance while installation work, repairs or mainte-
nance is performed.
• Be certain your appliance is properly installed and
grounded by a qualied technician. To guarantee the
electrical safety of this appliance, continuity must
exist between the appliance and eective grounding
system. It is imperative that this basic safety require-
ment be met. If there is any doubt, have the electrical

8
system of the house checked by a qualied electri-
cian. The manufacturer can not be held responsible
for damages caused by the lack, or inadequacy, of an
eective grounding system.
• Do not use an extension cord to connect the appli-
ance to electricity. Extension cord doesn’t guar- an-
tee the required safety of the appliance (danger of
overheating).
• Installation work and repairs must be only per-
formed by a trained technician in accordance with
national and local safety regulations. Repairs and
other work by unauthorized persons could be dan-
gerous and may void the warranty.
• Only use original spare parts. Only then can the man-
ufacturer guarantee the safety of this machine.
• Never open the outer casing of the appliance.
Tampering with electrical connections or compo-
nents and mechanical parts is dangerous and may
cause machine damage.
• If the machine is installed in combination with other
appliances, a protective base should be installed be-
tween the appliance and the unit.
• Do not install or use outdoors even if installed in the
display cabinet.
• Only ll the water tank with cold, fresh tap water.
Warm or hot water, or any other liquids may damage
the machine.
• The water should be changed daily to prevent bac-
teria or mold growth.
• Do not use mineral water. Mineral water leads to
heavy calcium buildup in the machine that can dam-
age the unit.
• Do not ll anything but coee beans into the beans
container. Do not ll ground coee in the beans con-
tainer, it will damage the grinding unit.
• Sugar can damage the appliance! Caramelized or
otherwise pre-treated coee beans or other sugar
containing beverages must not be put in the ma-
chine.
• Never place a cup with an alcohol-coee mixture
underneath the coee dispenser. Plastic parts of the
unit could catch re!
• The hot water and steam dispensed could cause
scalding. These functions must be used carefully.
Never hold any parts of the body under the steam
nozzle or the hot water dispenser. The machine must
never be used to clean objects.
• Never use a steam cleaner to clean the appliance.
Pressurized steam could damage electrical com- po-
nents and cause a short circuit.
• The appliances must be descaled regularly with the
supplied descaling tablets. In areas with very hard
water the machine may need to be descaled more
often. The manufacturer cannot be held responsible
for damages resulting from insucient descaling.
• Never make coee, hot water or steam when the ap-
pliance is extracted. Always make sure the appliance
is inactive before extracting it. Failure to observe this
precaution could lead to damage to the appliance!
The only exception is adjusting the coee mill which
must be done with the machine out (see the section
“Adjusting the coee mill”).
SAVE THESE INSTRUCTIONS
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY
Designated use
This appliance is designed and made to prepare coee and heat
drinks. All other use is considered improper.
This appliance is not suitable for commercial use.
The manufacturer is not liable for damage deriving from im-
proper use of the appliance. This appliance can be installed over
a built-in oven if the latter is tted with a cooling fan at the rear
(maximum oven power: 3 kW).
Instructions
Read these instructions carefully before using the appliance.
• Keep these instructions. If the appliance is passed to other
persons, they must also be provided with these instruc-
tions.
• Failure to follow these instructions may result in burns or
damage to the appliance.
The manufacturer is not liable for damage deriving from
failure to respect these instructions.
DESCRIPTION
Description of the appliance
(page 3 - A )
A1. Cup tray
A2. Service door
A3. Coee guide
A4. Coee grounds container

8 9
A5. Infuser
A6. Lights
A7. Control panel
A8. Hot water and steam nozzle
A9. Water tank
A10. Coee spout (adjustable height)
A11. Drip tray
A12. Bean container lid
A13. Container for coee beans
A14. Grinding adjustment knob
A15. Pre-ground coee funnel door
A16. Compartment for measure
A17. Pre-ground coee funnel
A18. Power cable
A19. Main switch
A20. Tray
A21. IEC connector
Description of milk container and accessories
(page 3 - B)
B1. Frothed milk regulator
B2. Milk container handle
B3. CLEAN button
B4. Milk intake tube
B5. Frothed milk spout
B6. Milk frother
B7. Hot water spout
B8. Measure
Description of control panel
(page 3 - C)
A number of buttons on the panel have a double function. This is
indicated in brackets in the description.
C1. Display: guides the user in using the appliance.
C2. MENU button to activate or deactivate menu parameter
setting mode
C3. button to select pre-ground coee
(When in the MENU: NEXT button to display the next menu
parameter).
C4. Rinse button to perform a brief rinse to heat the infus-
er.
(When you access the MENU: “CHANGE” button to modify
menu parameters).
C5. button to deliver hot water.
(When you access the MENU: OK button to conrm menu
parameters).
C6. knob to turn the appliance on and o.
C7. button to select the coee taste
C8. button to deliver one or two cups of short coee
C9. button to deliver one or two cups of standard coee
C10. button to deliver one or two cups of long coee
C11. knob to deliver cappuccino or frothed milk
PRELIMINARY CHECKS
Controls after transport
After removing the packaging, make sure the product is com-
plete and undamaged and that all accessories are present.
Do not use the appliance if it is visibly damaged.
Contact Customer Services.
Installing the appliance
Important! When installing the appliance, respect the
following safety warnings:

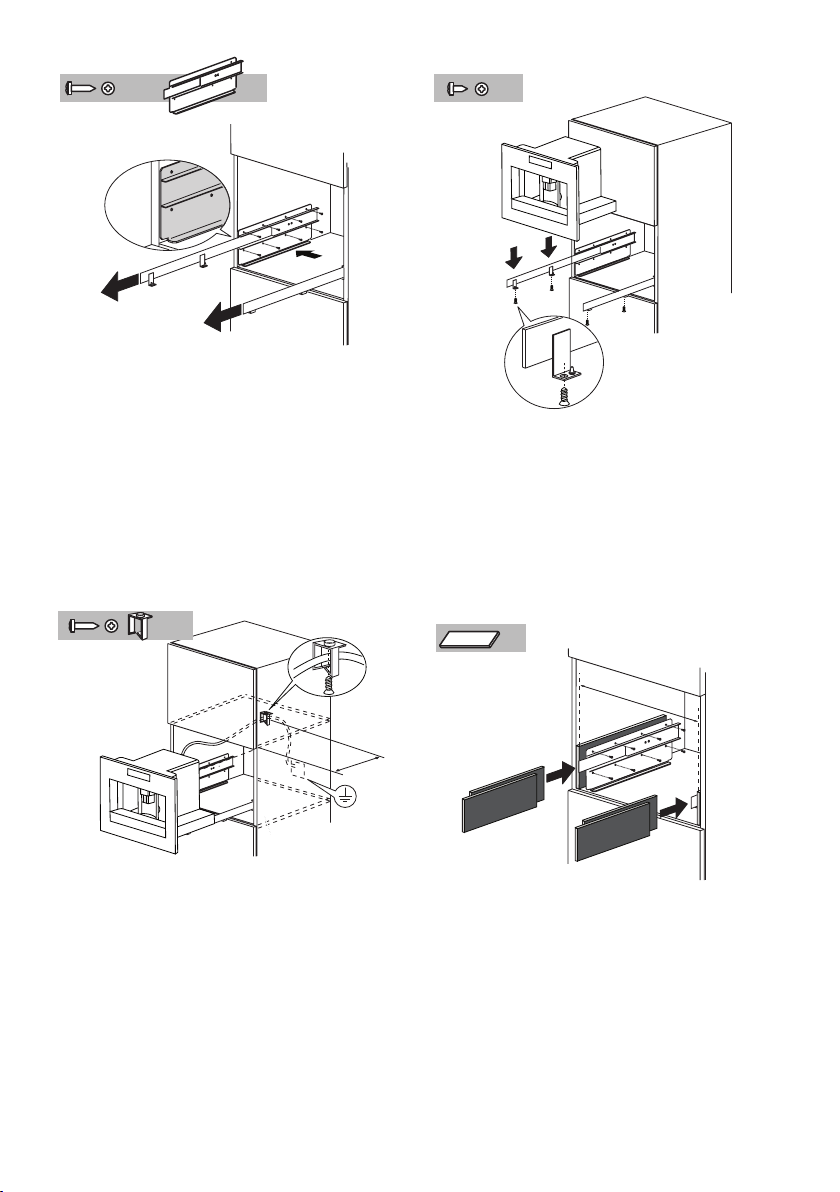

• Installation must be performed by a qualied professional
in compliance with legislation in force in the country of
installation (see section: BUILT-IN INSTALLATION).
• The packing elements (plastic bags, polystyrene foam,
etc.) should be kept out of reach of children as they are a
safety hazard.
• Do not install the appliance in rooms where the temper-
ature may drop to 0°C / 32°F or lower (the water in the
appliance could freeze and cause damage).
• You should customise the water hardness as soon as pos-
sible following the instructions in the “SETTING WATER
HARDNESS”section.
Connecting the appliance
Danger! Check that the mains power supply voltage
corresponds to the value indicated on the appliance rating plate.
Connect the appliance to an eciently earthed and correctly
installed socket with a minimum current rating of 10A only.
If the power socket does not match the plug on the appliance,
have the socket replaced with a suitable type by a qualied pro-
fessional.
To comply with safety directives, an omnipolar switch with a
minimum contact distance of 3 mm / 0.12 in must be installed.
Do not use multiple sockets or extensions.
To learn to use the appliance correctly, the rst time you use it
follow the detailed instructions in the following sections.
Important! Safety cutout devices must be included
in the mains power supply in compliance with the installation
regulations in the country concerned.
AUTOMATIC CUP TRAY LIGHT
When the appliance is turned on, the lights (A6) automatically
