Smeg CS9GMXA User manual

Contents
3
EN
1 Instructions 4
1.1 General safety instructions 4
1.2 Identification plate 5
1.3 Manufacturer liability 5
1.4 Appliance purpose 6
1.5 This user manual 6
1.6 How to read the user manual 6
2 Description 7
2.1 General Description 7
2.2 Cooktop 8
2.3 Control panel 8
2.4 Other parts 9
2.5 Available accessories 10
3 Use 12
3.1 Instructions 12
3.2 First use 13

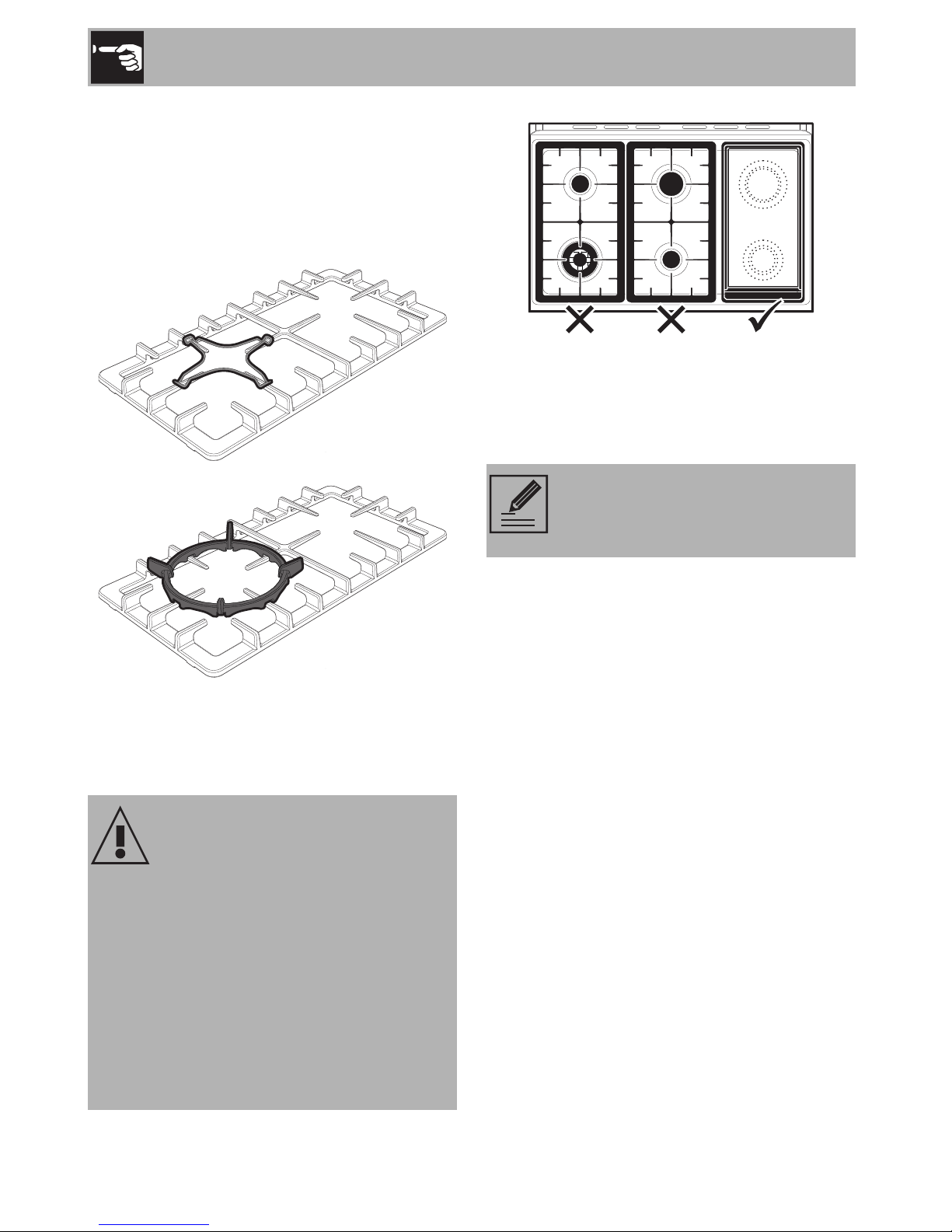

3.3 Using the accessories 14
3.4 Using the cooktop 17
3.5 Using the storage compartment 18
3.6 Using the oven 18
3.7 Cooking advice 20

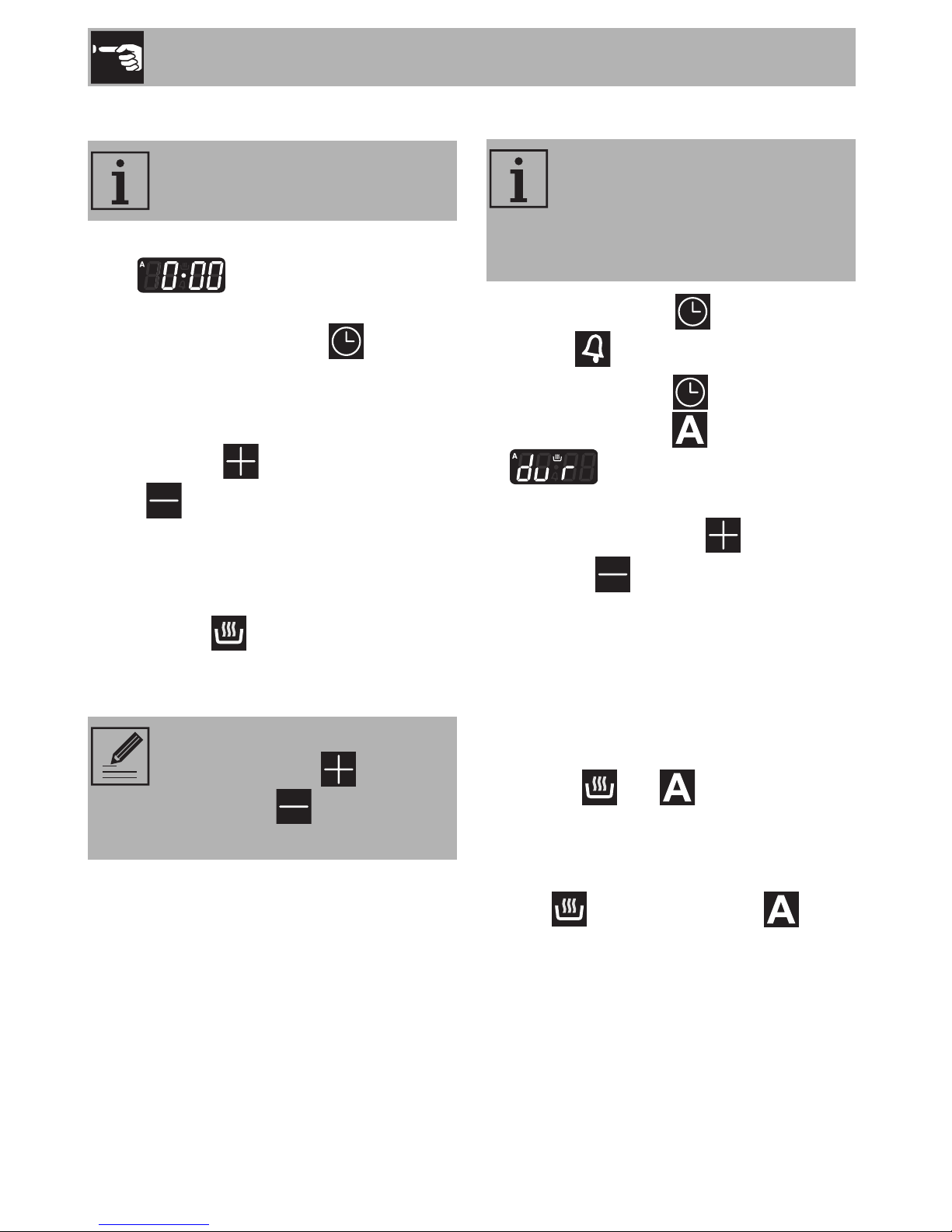

3.8 Programmer clock 21
4 Cleaning and maintenance 26
4.1 Instructions 26
4.2 Cleaning the appliance 26
4.3 Removing the door 28
4.4 Cleaning the door glazing 28
4.5 Removing the internal glass panes 29
4.6 Vapour Clean 30
4.7 Extraordinary maintenance 32
5 Installation 34
5.1 Clearances above and around domestic appliances 34
5.2 Gas connection 35
5.3 Adaptation to different types of gas 38
5.4 Positioning 39
5.5 Electrical connection 45
5.6 For the installer 46
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance's aesthetic and functional qualities.
For further information on the product: www.smeg.com

Instructions
4
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
• Never touch the heating elements
during use.
• Keep children under eight years
of age at a safe distance if they
are not constantly supervised.
• Children must never play with the
appliance.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, as long they
are supervised or instructed by
adults who are responsible for
their safety.
• Never rest metallic objects such
as knives, forks, spoons and lids
on the appliance during use.
• Switch the appliance off
immediately after use.
• Never try to put out a fire or
flames with water: turn off the
appliance and smother the flames
with a fire blanket or other
appropriate cover.
• The appliance must never be
cleaned by unsupervised children.
• Have authorised persons carry
out installation and assistance
interventions according to the
standards in force.
• Do not modify this appliance.
• Do not insert pointed metal
objects (cutlery or utensils) into the
slots in the appliance.
• Do not try to repair the appliance
yourself or without the intervention
of authorised persons.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
• Do not open the storage
compartment when the oven is on
and still hot.
• The items inside the storage
compartment could be very hot
after using the oven.
• Do not spray aerosols in the
vicinity of this appliance while it is
in operation.
• This appliance is not to be
installed in marine craft or in
caravans.
• Do not use or store flammable
materials in the appliance storage
drawer or near the appliance.

Instructions
5
EN
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents on glass parts (e.g.
powder products, stain removers
and metallic sponges).
• Racks and trays have to be
inserted into the side guides until
they come to a complete stop.
The mechanical safety locks that
prevent the rack from being taken
out accidentally have to face
downwards and towards the
oven back.
• Use wooden or plastic utensils.
• Do not seat on the appliance.
• Do not use steam jets for cleaning
the appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations where fats or oils
could be released.
• Never leave objects on the
cooking surface.
• Do not use the appliance to heat
rooms for any reason.
• Remove any food residues or
large spills from previous cooking
operations from the inside of the
oven.
For this appliance
• Before replacing the bulb, switch off
the power supply to the appliance.
• Do not rest any weight or sit on the
open door of the appliance.
• Take care that no objects are stuck in
the doors.
1.2 Identification plate
• The identification plate bears the
technical data, serial number and brand
name of the appliance. Do not remove
the identification plate for any reason.
1.3 Manufacturer liability
The manufacturer declines all liability for
damage to persons or property caused by:
• use of the appliance other than the one
envisaged;
• non-observance of the user manual
provisions;
• tampering with any part of the
appliance;
• use of non-original spare parts.

Instructions
6
1.4 Appliance purpose
• This appliance is intended for cooking
food in the home environment. Every
other use is considered improper.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.5 This user manual
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and in an accessible place for the
whole working life of the appliance.
Read this user manual carefully before using
the appliance.
1.6 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for authorised persons:
installation, operation and
inspection.
Safety instructions
Information
Advice

Description
7
EN
2 Description
2.1 General Description
1 Backguard
2 Cooktop
3 Control panel
4 Oven light
5 Seal
6 Door
7 Fan
8 Storage compartment
Rack/tray support frame shelf

Description
8
2.2 Cooktop
AUX = Auxiliary
SR = Semi-rapid
R = Rapid
UR2 = Ultra rapid
2.3 Control panel
1 Cooktop burner knobs
Useful for lighting and adjusting the cooktop
burners.
Press and turn the knobs anti-clockwise to
the value to light the relative burners.
Turn the knobs to the zone between the
maximum and minimum setting to
adjust the flame.
Return the knobs to the position to turn
off the burners.
2 Indicator light
The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It flashes
regularly to indicate that the temperature set
inside the oven is kept constant.

Description
9
EN
3 Temperature knob
This knob allows you to select the cooking
temperature.
Turn the knob clockwise to the required
value, between the minimum and maximum
setting.
4 Programmer clock
Useful for displaying the current time, setting
programmed cooking operations and
programming the minute minder timer.
5 Function knob
The oven's various functions are suitable for
different cooking modes. After selecting the
required function, set the cooking
temperature using the temperature knob.
2.4 Other parts
Shelves
The appliance features shelves for
positioning trays and racks at different
heights. The insertion heights are indicated
from the bottom upwards (see 2.1 General
Description).

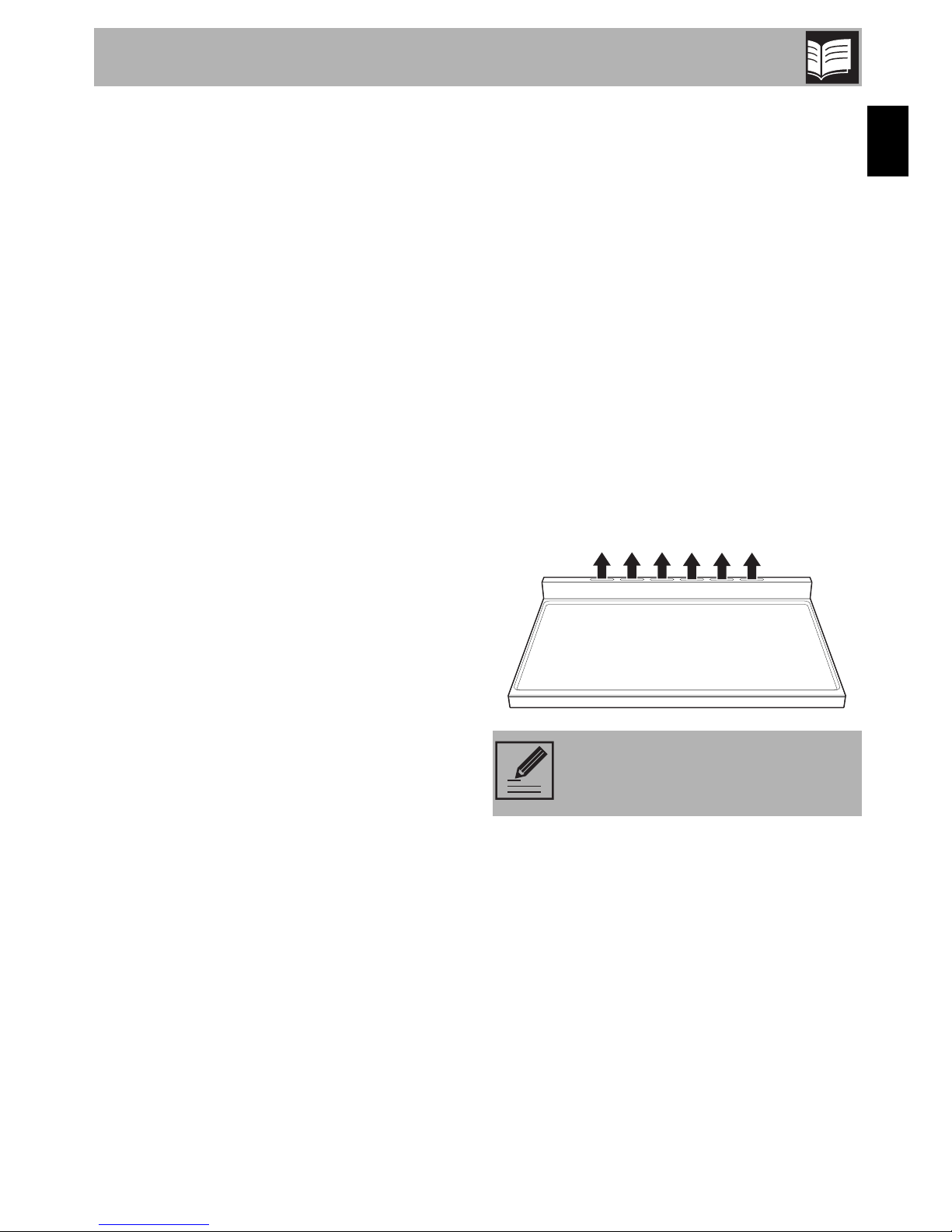

Cooling fan
The fan cools the oven and comes into
operation during cooking.
The fan causes a steady outflow of air that
exits from the rear of the appliance and
which may continue for a brief period of
time even after the appliance has been
turned off.
Interior lighting
The appliance interior lighting comes on:
• When the door is opened
• When any function is selected.
Do not obstruct ventilation
openings and heat dispersal slots.

Description
10

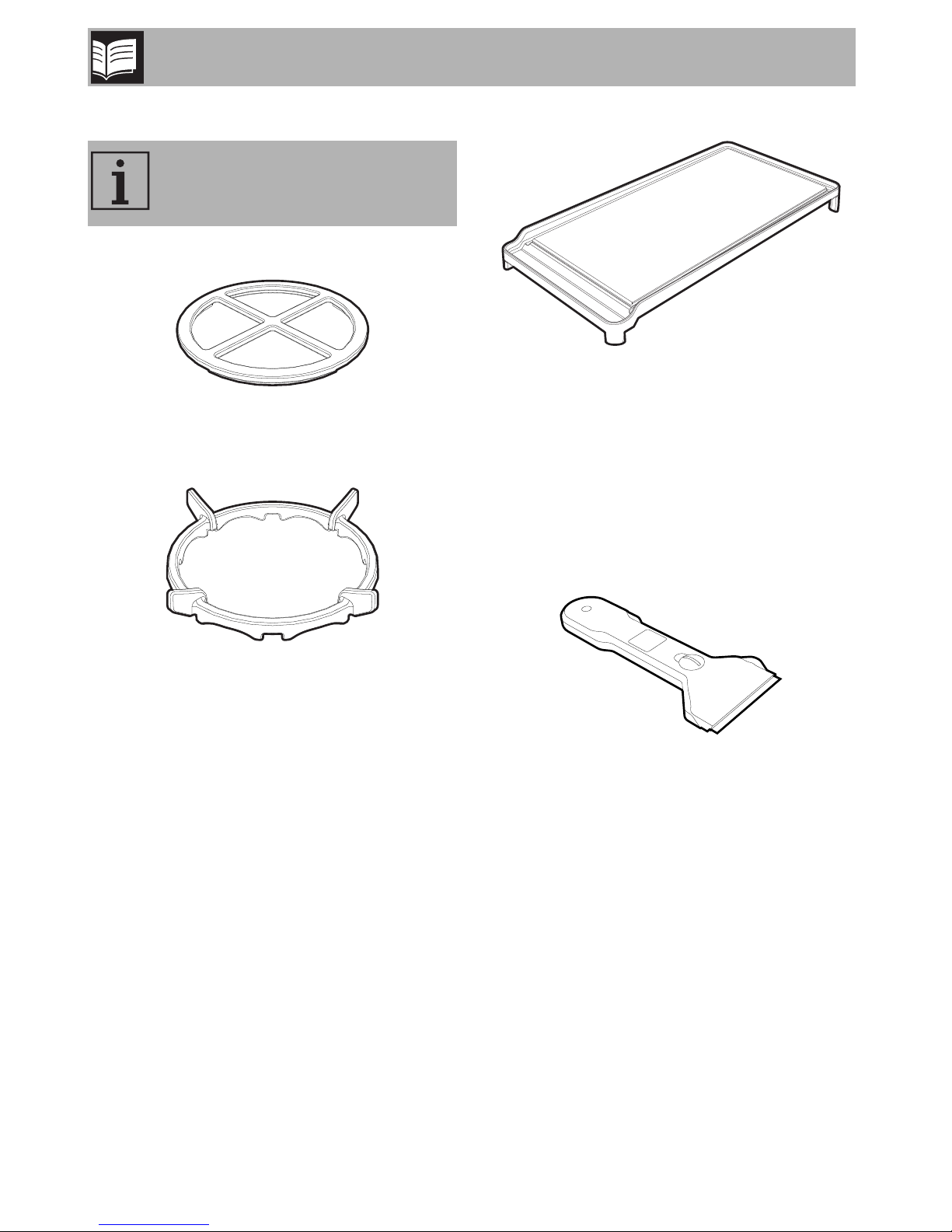

2.5 Available accessories
Ring reducer
Useful when using small cookware.
WOK ring
Useful when using a wok.
Teppanyaki plate (on some models only)
Useful for cooking meat, fish and
vegetables directly on the plate without
adding fats or oils, staying true to the
tradition of Japanese cuisine that seeks to
exalt the natural flavours and aromas of
food ensuring light nourishment while
preserving all nutritional elements.
Scraper (on some models only)
Useful for cleaning the Teppanyaki plate.
Do not use on other surfaces.
Some models are not provided
with all accessories.

Description
11
EN

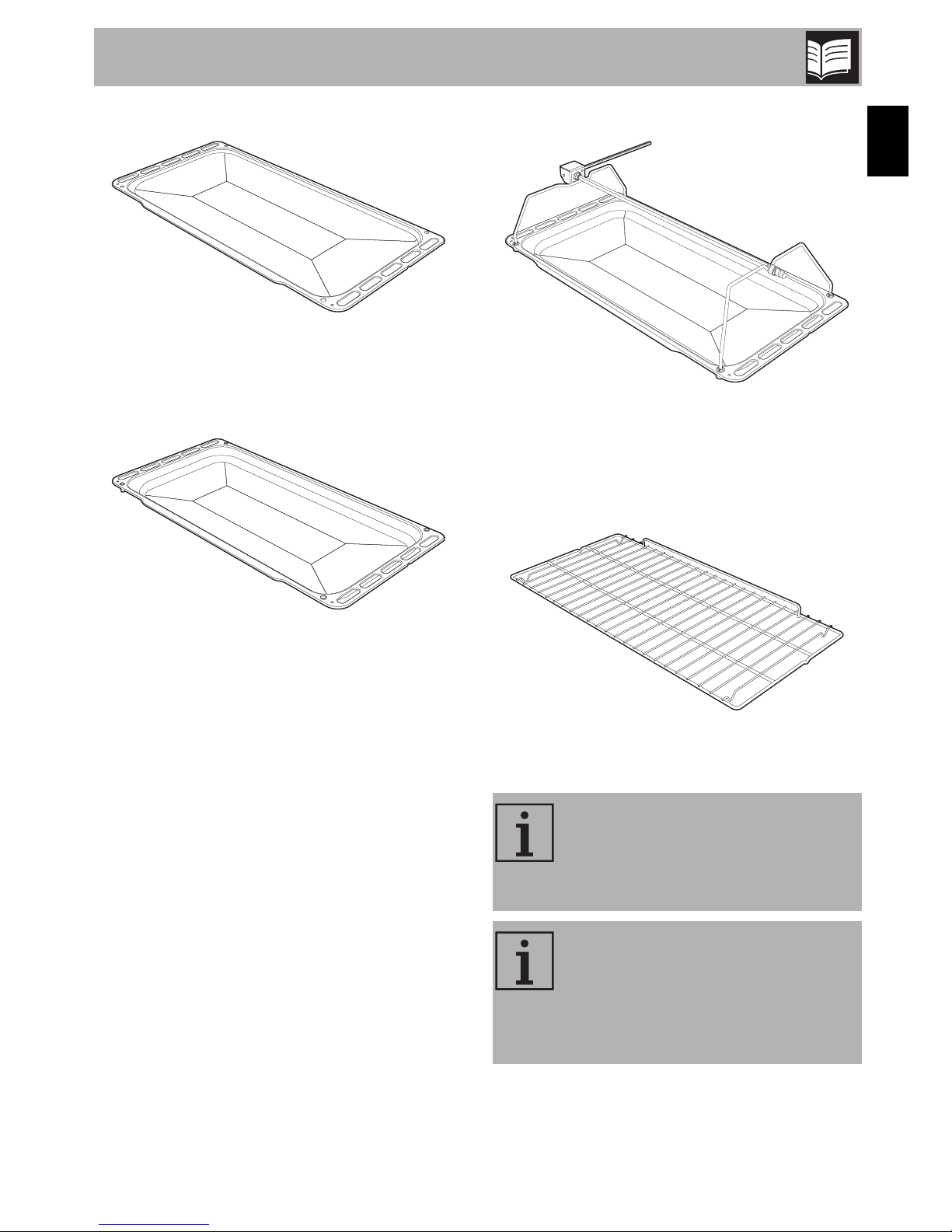

Tray
Useful for collecting fat from foods placed
on the rack above.
Deep tray
Useful for collecting fat from foods placed
on the rack above.

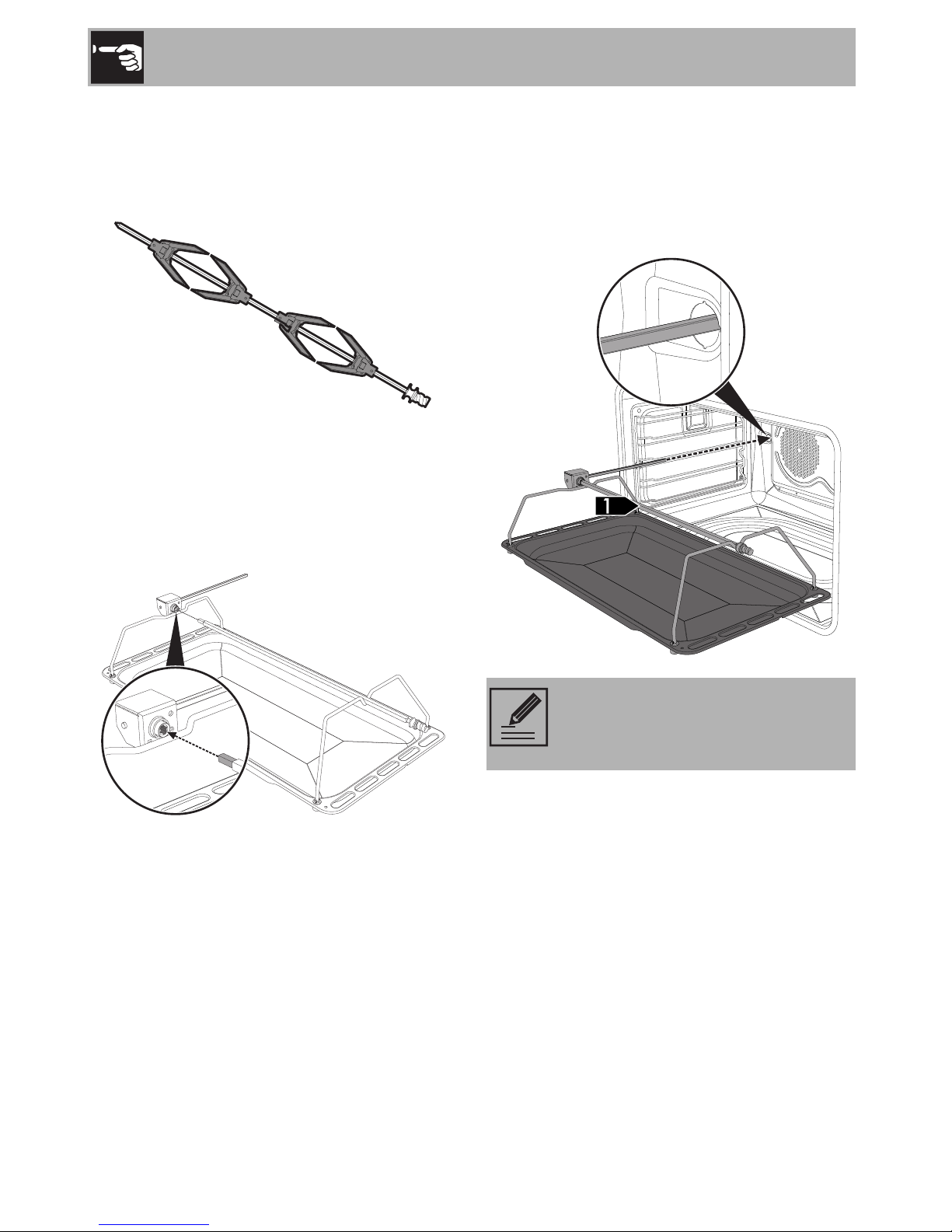

Rotisserie rod (on some models only)
Useful for cooking chicken and all foods
which require uniform cooking over their
entire surface.
Rack
Useful for supporting containers with food
during cooking.
The accessories intended to come
into contact with food are made of
materials that comply with the
provisions of current legislation.
Supplied and optional accessories
can be requested to Authorised
Assistance Centres. Use only
original accessories supplied by
the manufacturer.

Use
12
3 Use
3.1 Instructions
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands wearing heat
resistant gloves when moving food
inside the oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Do not allow children younger than 8
years old to come near the appliance
when in operation.
• If you need to move food or at the end
of cooking, open the door 5 cm for a
few seconds, let the steam come out,
then open it fully.
Improper use
Danger of burns

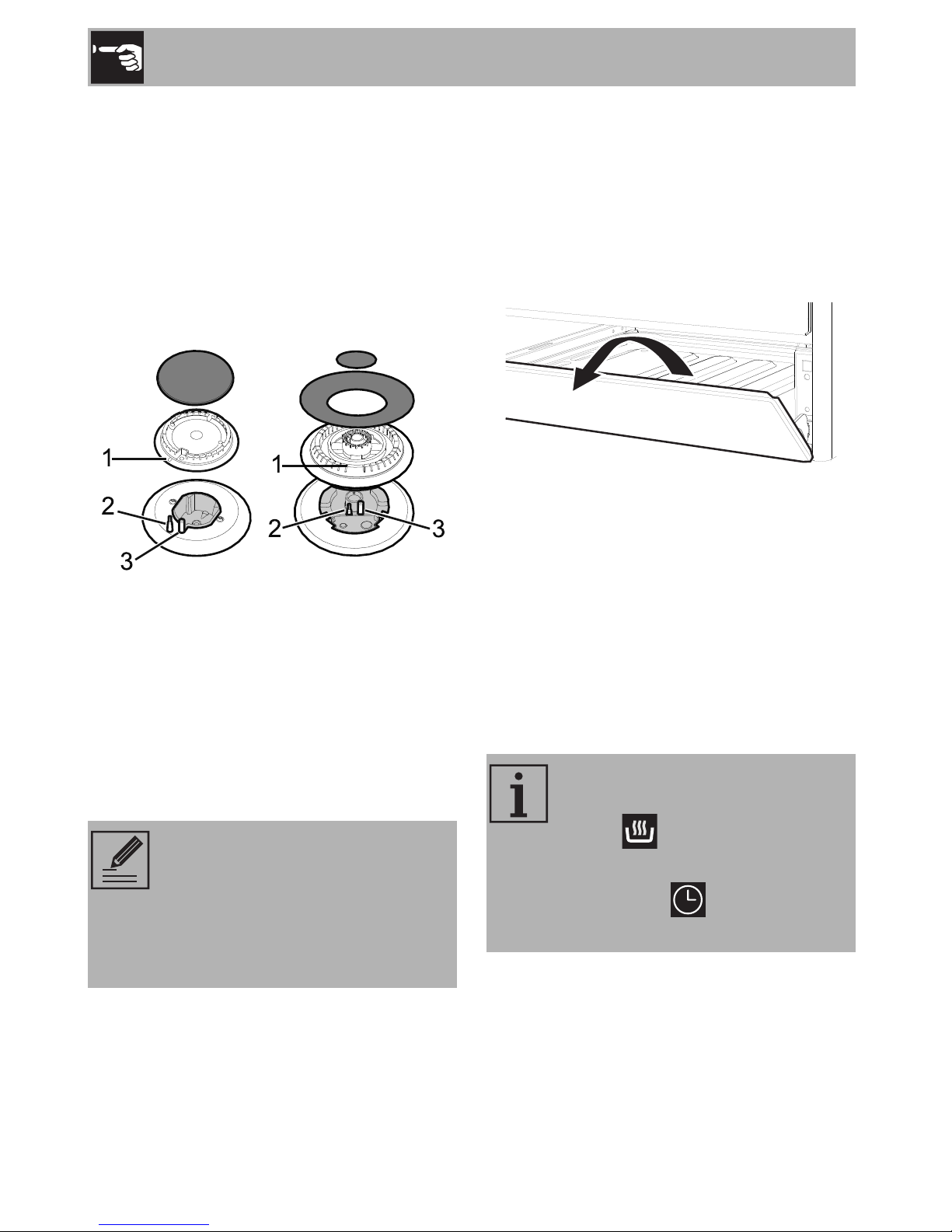

• Make sure that the flame-spreader
crowns are correctly positioned in their
housings with their respective burner
caps.
• Oils and fat could catch fire if
overheated. Be very careful.
Improper use
Risk of damage to surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not use the open door to rest pans or
trays on the internal glass pane.
• Do not pour water directly onto very hot
trays.
• Make sure that the flame-spreader
crowns are correctly positioned in their
housings with their respective burner
caps.
• The cooking vessels or griddle plates
should be placed inside the perimeter of
the cooktop.
• All pans must have smooth, flat bottoms.
• If any liquid does boil over or spill,
remove the excess from the cooktop.
High temperature inside the
storage compartment
Danger of burns
• Do not open the storage compartment
when the oven is on and still hot.
• The items inside the storage
compartment could be very hot after
using the oven.
