Smeg TR103BL User manual

Contents
55
EN
1Instructions 56
1.1 General safety instructions 56
1.2 Appliance purpose 60
1.3 Manufacturer liability 60
1.4 This user manual 61
1.5 Identification plate 61
1.6 Disposal 61
1.7 How to read the user manual 62
2 Description 63
2.1 General Description 63

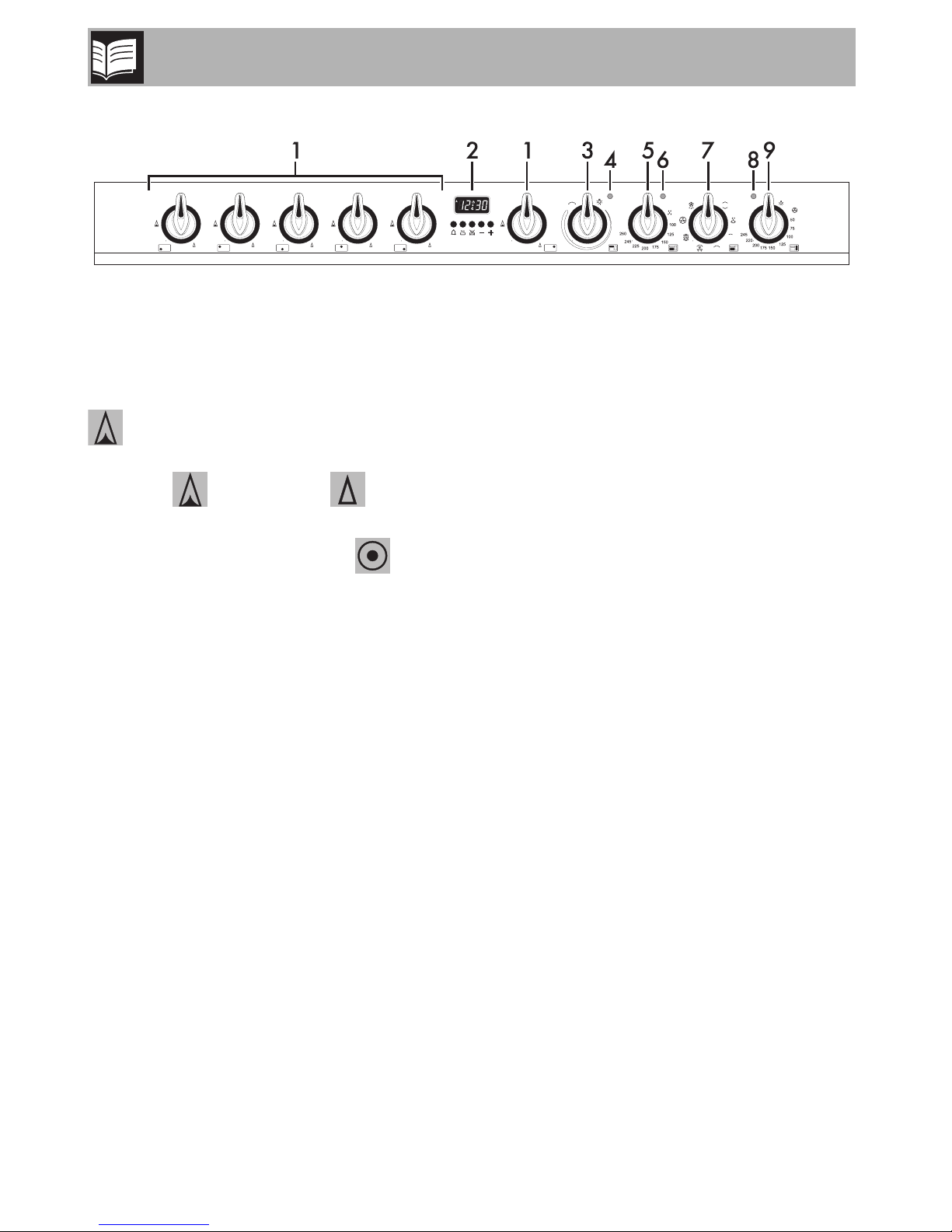

2.2 Control panel 64
2.3 Cooking hob 65
2.4 Other parts 66

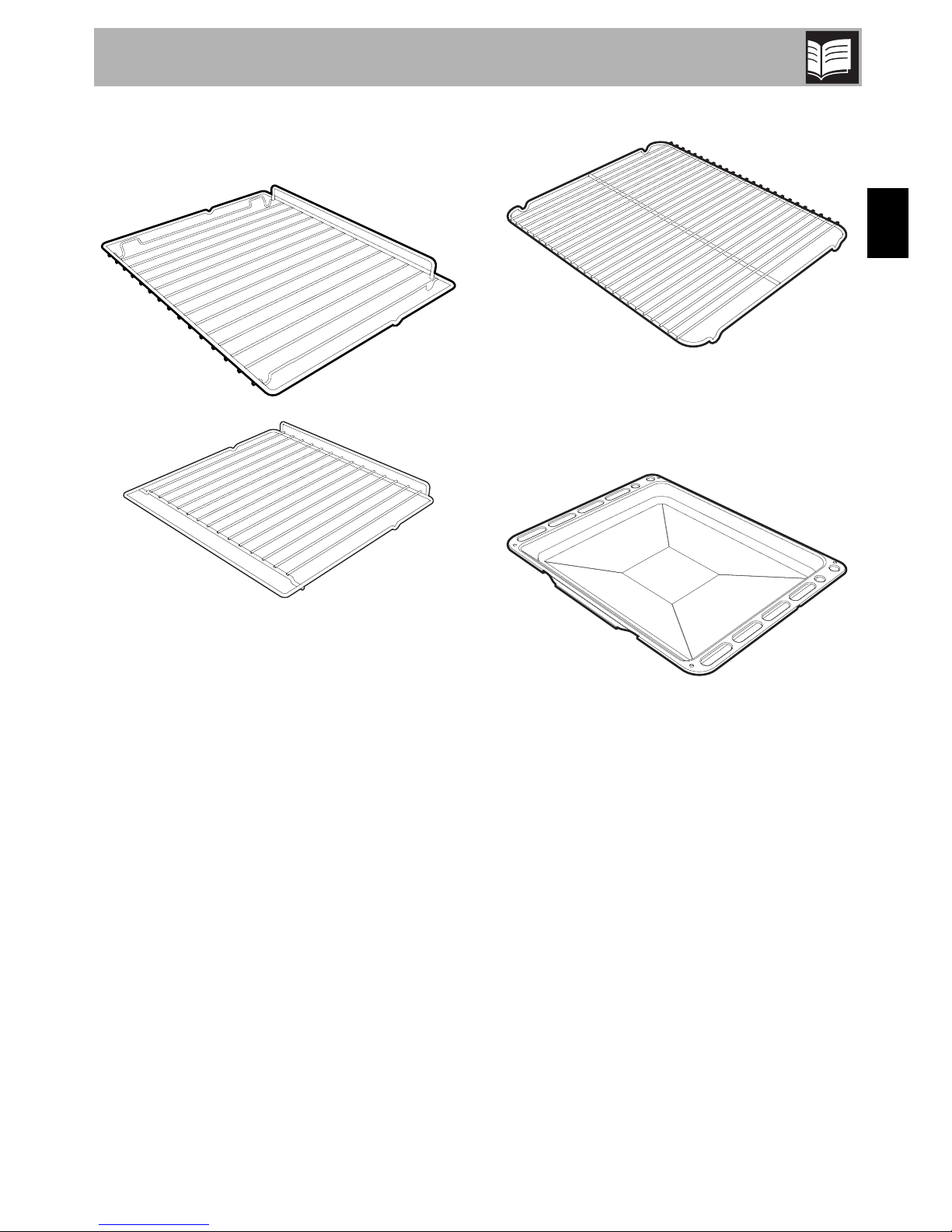

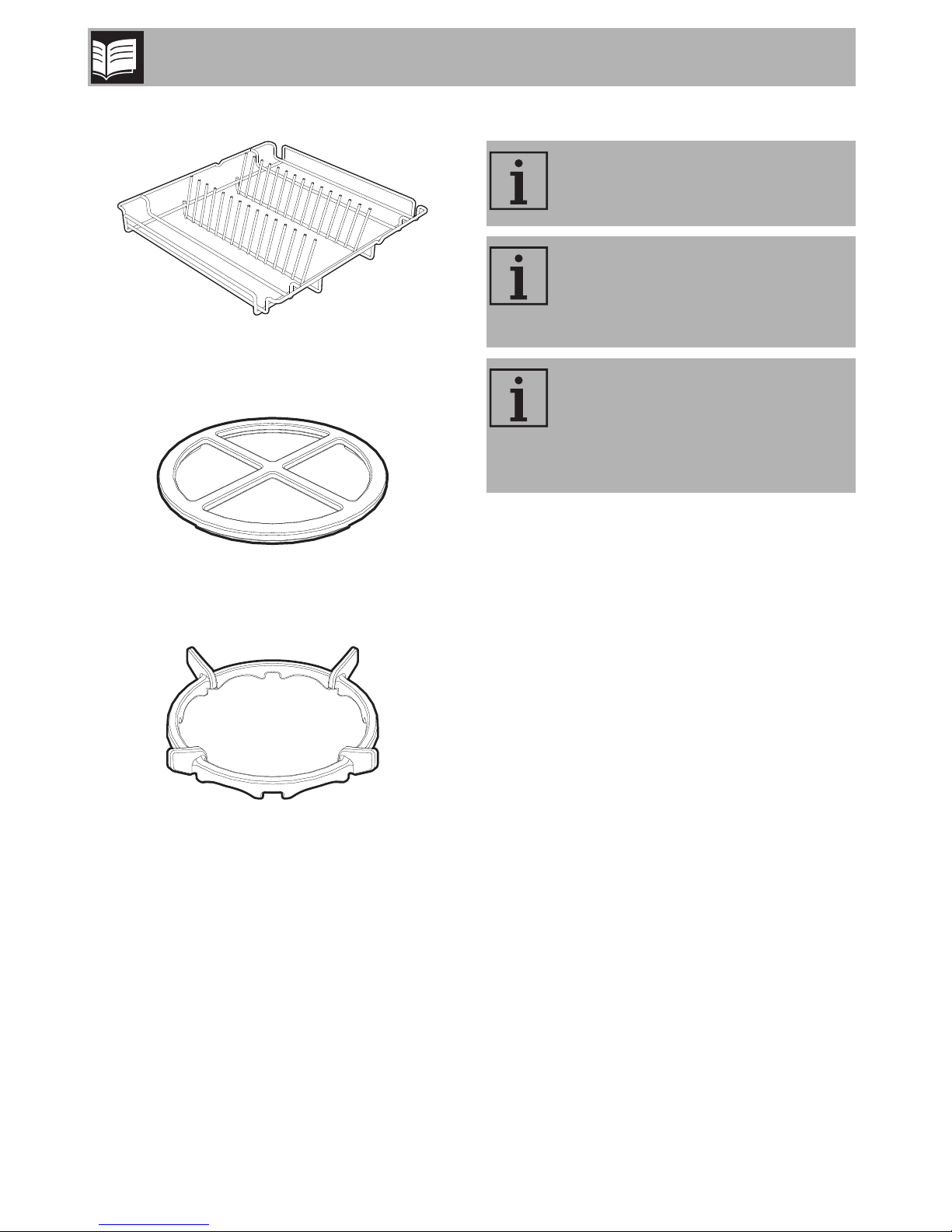

2.5 Available accessories 67
3Use 69
3.1 Instructions 69
3.2 Precautions 70
3.3 First use 70
3.4 Using the accessories 71
3.5 Using the hob 72
3.6 Using the ovens 73
3.7 Cooking advice 77
3.8 Programmer clock 78
4 Cleaning and maintenance 84
4.1 Instructions 84
4.2 Cleaning the hob 84
4.3 Cleaning the doors 85
4.4 Cleaning the oven cavities 87
4.5 Vapor Clean (multifunction oven only) 89
4.6 Extraordinary maintenance 90
5Installation 93
5.1 Gas connection 93
5.2 Positioning 101
5.3 Electrical connection 104
5.4 Instructions for the installer 106
We advise you to read this manual carefully, as it contains all the instructions for maintaining
the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com
TRANSLATION OF THE ORIGINAL INSTRUCTIONS

Instructions
56
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
Never touch the heating elements
during use.
• Protect your hands by wearing
oven gloves when moving food
inside the oven.
• Never try to put out a fire or flames
with water: turn off the appliance
and smother the flames with a fire
blanket or other appropriate
cover.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, provided
that they are supervised or
instructed by adults who are
responsible for their safety.
• Children must never play with the
appliance.
• Keep children under the age of
eight at a safe distance unless they
are constantly supervised.
• Keep children under the age of 8
away from the appliance when it
is in use.
• Cleaning and maintenance must
not be carried out by unsupervised
children.

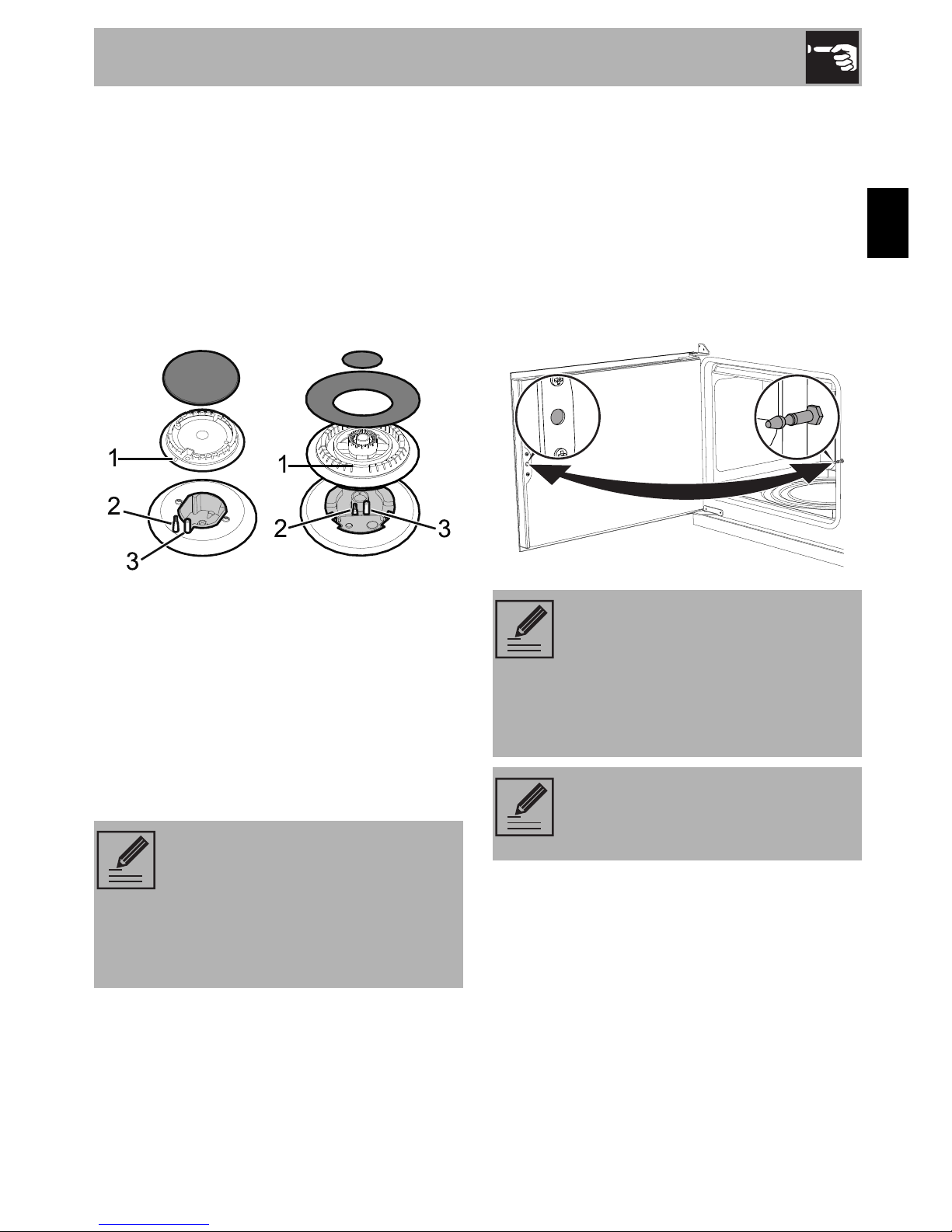

• Make sure that the flame-spreader
crowns are correctly positioned in
their seats with their respective
burner caps.
• Be aware of how rapidly the
cooking zones heat up. Do not
place empty pans on the heat.
Danger of overheating.
• Fats and oils can catch fire if they
overheat. Do not leave the
appliance unattended while
preparing foods containing oils or
fats. If fats or oils catch fire, never
put water on them. Place the lid on
the pan and turn off the relevant
cooking zone.

Instructions
57
EN
• Cooking process should always
be kept under control. A short
cooking process must be
continuously surveyed.
• While cooking do not place metal
objects, such as cutlery or dishes
on the hob surface as they may
overheat.
• Do not insert pointed metal objects
(cutlery or utensils) into the slots in
the appliance.
• Do not pour water directly onto
very hot trays.
• Keep the oven door closed during
cooking.
• If you need to move food or at the
end of cooking, open the door
5 cm for a few seconds, let the
steam come out, then open it fully.
• Do not open the storage
compartment (where present)
when the oven is on and still hot.
• The items inside the storage
compartment could be very hot
after using the oven.
• Do not use or store flammable
materials in the storage
compartment (if available) or near
the appliance.
• Do not use aerosols in the vicinity
of this appliance whilst it is in use.
• Switch off the appliance after use.
• Do not modify this appliance.
• Before any operation on the
appliance (installation,
maintenance, positioning or
movement) always wear PPM.
• Before performing any operation
on the appliance, switch off the
power supply.
• Have qualified personnel carry out
installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.
• Do not pull the cable to remove
the plug.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.

Instructions
58
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Use wooden or plastic utensils.

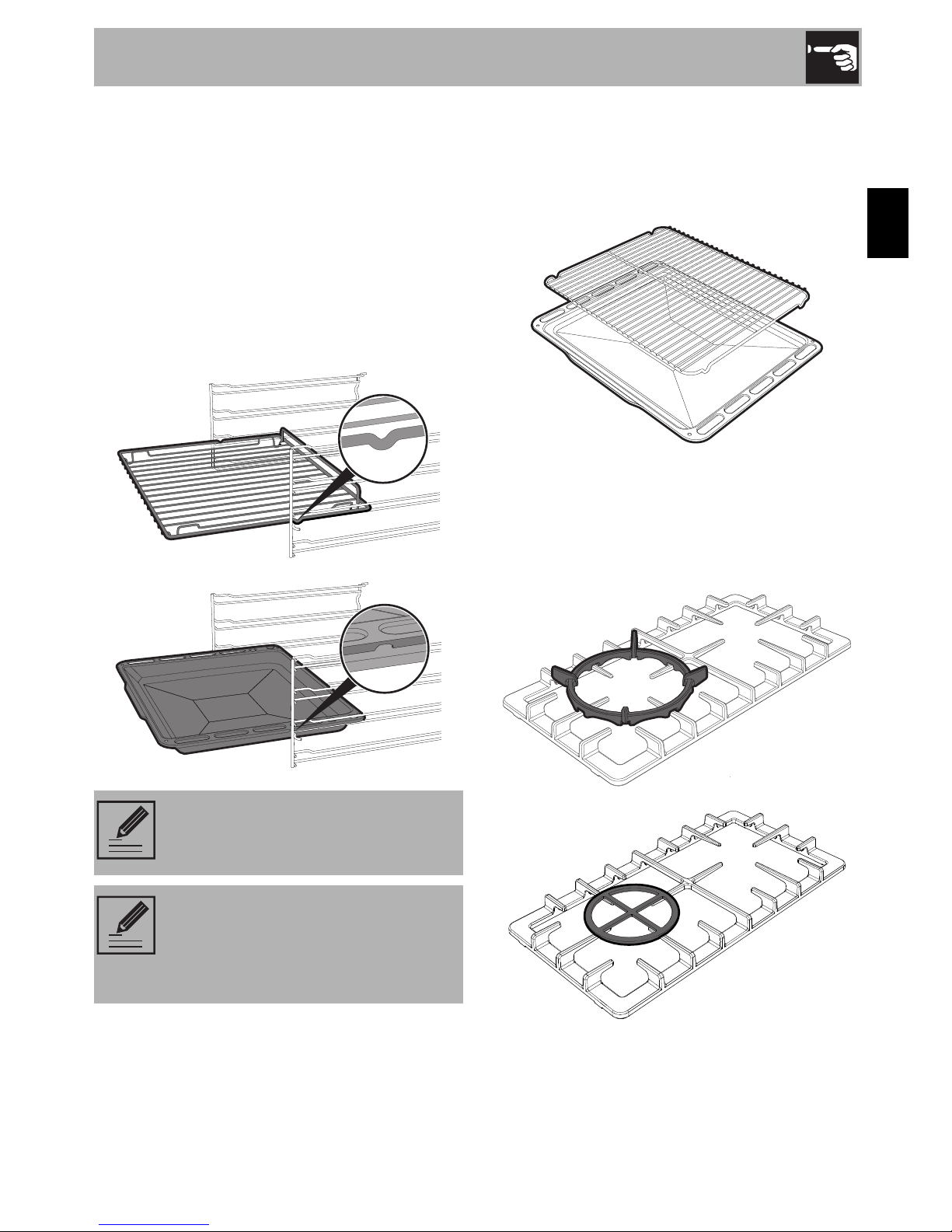

• Racks and trays should be inserted
as far as they will go into the side
guides. The mechanical safety
locks that prevent them from being
removed must face downwards
and towards the back of the oven
• Do not seat on the appliance.
• Do not use steam jets to clean the
appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations where fats or oils could
overheat and take fire. Be very
careful.
• Never leave objects on the
cooking surface.
• Do not use the appliance to heat
rooms for any reason.
• Do not spray any spray products
near the oven.
• Do not use plastic cookware or
containers for cooking.
• Do not put sealed tins or
containers in the oven.
• Remove all trays and racks which
are not required during cooking.
• Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.
• Do not place pans or trays directly
on the bottom of the oven cavity.
• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air circulation
inside the oven cavity.
• Do not use the open door to place
pans or trays on the internal
glazing pane.
• Cooking vessels or griddle plates
should be placed inside the
perimeter of the hob.
• All pans must have smooth, flat
bottoms.

Instructions
59
EN
• If any liquid does boil over or spill,
remove the excess from the hob.
• Take care not to spill acid
substances such as lemon juice or
vinegar on the hob.
• Do not put empty pans or frying
pans on switched on cooking
zones.
• Do not use steam jets to clean the
appliance.
• Do not use rough or abrasive
materials or sharp metal scrapers.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on parts made of steel or
that have metallic surface finishes
(e.g. anodizing, nickel- or
chromium-plating).
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Do not wash the removable
components such as the hob grids,
flame-spreader crowns and
burner caps in a dishwasher.
• Never use the oven door to lever
the appliance into place when
fitting.
• Avoid exerting too much pressure
on the door when open.
• Do not use the handle to lift or
move this appliance.
Installation
• This appliance must not be
installed in a boat or caravan.
• This appliance must not be
installed on a pedestal.
• Position the appliance into the
cabinet cutout with the help of a
second person.
• To prevent any possible
overheating, the appliance should
not be installed behind a
decoration door or a panel.
• Have the gas connection
performed by authorised staff.
• Installation using a hose must be
carried out so that the length of the
hose does not exceed 2 metres
when fully extended for steel hoses
and 1.5 metres for rubber hoses.

Instructions
60
• The hoses should not come into
contact with moving parts and
should not be crushed in any way.
• If required, use a pressure
regulator that complies with
current regulations.
• After carrying out any operation,
check that the tightening torque of
gas connections is between
10 Nm and 15 Nm.
• At the end of the installation, check
for any leaks with a soapy
solution, never with a flame.
• Have the electrical connection
performed by authorised persons.
• The appliance must be connected
to ground in compliance with
electrical system safety standards.
• Use cables withstanding a
temperature of at least 90 °C.
• The tightening torque of the screws
of the terminal board leads must
be 1.5 - 2 Nm.
For this appliance
• Ensure that the appliance is
switched off before replacing the
bulb.
•Donotrestanyweight or sit on the
open door of the appliance.
• Take care that no objects are stuck
in the doors.
1.2 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered inappropriate.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.3 Manufacturer liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• use of the appliance other than
that specified;
• failure to comply with the
instructions in the user manual;
• tampering with any part of the
appliance;
• the use of non-original spare parts.

Instructions
61
EN
1.4 This user manual
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and within the user’s reach for the
whole working life of the appliance.
Read this user manual carefully before using
the appliance.
1.5 Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
1.6 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC,
2002/96/EC, 2003/108/EC).
The appliance does not contain substances
in quantities sufficient to be considered
hazardous to health and the environment, in
accordance with current European
directives.
To dispose of the appliance:
• Cut the power supply cable and remove
it along with the plug.
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it to
the retailer when purchasing an
equivalent product, on a one for one
basis.
Our appliances are packaged in non-
polluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the appliance.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the plastic
bags.

Instructions
62
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice

Description
63
EN
2 Description
2.1 General Description
1 Upstand
2 Cooking hob
3 Control panel
Rack/tray support frames
4 Auxiliary oven light
5 Auxiliary oven seal
6 Auxiliary oven door
7 Multifunction oven door
8 Multifunction oven light
9 Multifunction oven fan
10 Multifunction oven seal
11 Vertical oven seal
12 Vertical oven light
13 Vertical oven door
14 Vertical oven fans

Description
64
2.2 Control panel
1 Hob burner knobs
Used for lighting and adjusting the hob
burners.
Press and turn the knobs anti-clockwise to
in order to light the relative burners.
Turn the knobs to the zone between the
maximum and minimum setting to
adjust the flame.
Return the knobs to the position to turn
off the burners.
2 Programmer clock
For displaying the current time, setting
programmed cooking operations and the
minute minder timer.
3 Auxiliary oven variable grill knob
It turns on the light inside the oven or starts
the grill heating element to a temperature
ranging from a minimum of 50 °C to a
maximum of 245 °C.
4 Auxiliary oven variable grill indicator
light
The indicator light comes on to indicate that
the auxiliary oven is heating up. It turns off
as soon as it reaches the set temperature.
It flashes regularly to indicate that the
temperature set inside the oven is kept
constant.
5 Multifunction oven temperature knob
This knob allows you to select the cooking
temperature and the Vapor Clean
temperature.
Turn the knob clockwise to the required
value, between the minimum and maximum
setting.
6 Multifunction oven indicator light
The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It flashes
regularly to indicate that the temperature set
inside the oven is kept constant.

Description
65
EN
7 Multifunction oven function knob
The oven’s various functions are suitable for
different cooking modes. After selecting the
required function, set the cooking
temperature using the temperature knob.
8 Vertical oven indicator light
The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It flashes
regularly to indicate that the temperature set
inside the oven is kept constant.
9 Vertical oven temperature knob
It turns on the light inside the oven cavity or
starts the circulaire heating elements to a
temperature ranging from a minimum of
50 °C to a maximum of 245 °C.
2.3 Cooking hob
AUX = Auxiliary
SR = Semi-rapid
R= Rapid
UR2 = Ultra-rapid

Description
66
2.4 Other parts
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1, “General
Description”).

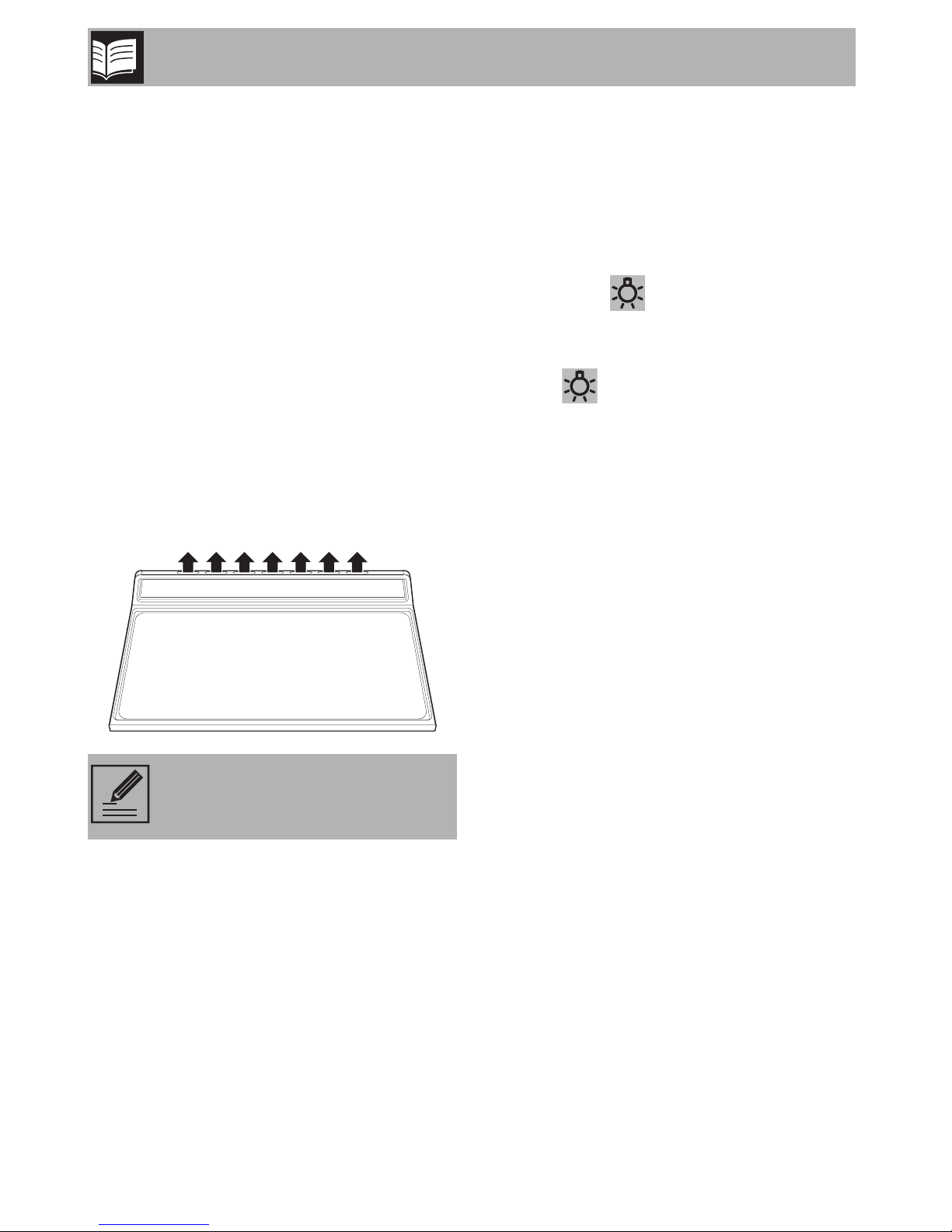

Cooling fan
The fan cools the oven and comes into
operation during cooking.
The fan causes a steady outflow of air that
exits from the rear of the appliance and
which may continue for a brief period of
time even after the appliance has been
turned off.
Interior lighting
The internal light of the appliance comes on
when any function is started:
•Multifunction oven: turn the function
knob to any function.
•Auxiliary oven: turn the variable grill
knob to the symbol or select a
cooking temperature.
•Vertical oven: turn the temperature knob
to the symbol or select a cooking
temperature.
Do not obstruct ventilation
openings and heat dispersal slots.

Description
67
EN
2.5 Available accessories
Rack
Used for supporting containers with food
during cooking.
Tray rack
To be placed over the top of the oven tray;
for cooking foods which may drip.
Deep tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.

Description
68
Plate rack
To be used for warming plates.
Ring reducer
Useful when using small cookware.
Wok ring reducer
Useful when using a wok.
Some models are not provided
with all accessories.
The accessories intended to come
into contact with food are made of
materials that comply with the
provisions of current legislation.
Supplied and optional accessories
can be requested to Authorised
Service Centres. Use only original
accessories supplied by the
manufacturer.

Use
69
EN
3 Use
3.1 Instructions
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands by wearing oven
gloves when moving food inside the
oven.
• Do not touch the heating elements inside
the appliance.
• Do not pour water directly onto very hot
trays.
• Keep children under the age of 8 away
from the appliance when it is in use.
• If you need to move food or at the end
of cooking, open the door 5 cm for a
few seconds, let the steam come out,
then open it fully.
Improper use
Danger of burns
• Make sure that the flame-spreader
crowns are correctly positioned in their
seats with their respective burner caps.
• Oils and fats could catch fire if
overheated. Be very careful.
Improper use
Risk of damage to surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven cavity.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not use the open door to place pans
or trays on the internal glazing pane.
• Do not pour water directly onto very hot
trays.
• Cooking vessels or griddle plates should
be placed inside the perimeter of the
hob.
• All pans must have smooth, flat bottoms.
• If any liquid does boil over or spill,
remove the excess from the hob.

Use
70
3.2 Precautions
A gas leak can cause an explosion.
If you smell gas or there are faults in the gas
system:
• Immediately turn off the gas supply or
close the valve on the gas cylinder.
• Extinguish all open flames and cigarettes.
• Do not turn on power switches or
appliances and do not remove plugs
from power sockets. Do not use phones
or mobile phones inside the building.
• Open the window in order to ventilate
the room.
• Call customer assistance services or your
gas supplier.
Malfunctions
Any of the following indicate a malfunction
and you should contact a service centre.
• Yellowing of the burner plate.
• Damage to kitchen utensils.
• The burners do not ignite properly.
• It is difficult to keep the burners lit.
• The burners go out when the appliance
is in use.
• It is difficult to turn the gas valves.
If the appliance does not work properly,
contact your local Authorised Service
Centre.
3.3 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove and wash all the appliance
accessories (see 4, “Cleaning and
maintenance”).
4. Heat the empty appliance at the
maximum temperature to burn off any
residues left by the manufacturing
process.
High temperature inside the oven
during use
Danger of fire or explosion
• Do not spray any spray products near
the appliance.
• Do not use or leave flammable materials
near the appliance or the storage
compartment.
• Do not use plastic cookware or
containers for cooking.
• Do not put sealed tins or containers in
the oven.
• Never leave the appliance unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.

Use
71
EN
3.4 Using the accessories
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
• The mechanical safety locks that prevent
the rack from being removed
accidentally must face downwards
towards the back of the oven cavity.
Tray rack
The tray rack has to be inserted into the tray.
In this way fat can be collected separately
from the food which is being cooked.
Ring reducers
The ring reducers have to be placed on the
hob grids. Make sure they are positioned
properly.
Gently insert racks and trays into
the oven until they come to a stop.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.

Use
72

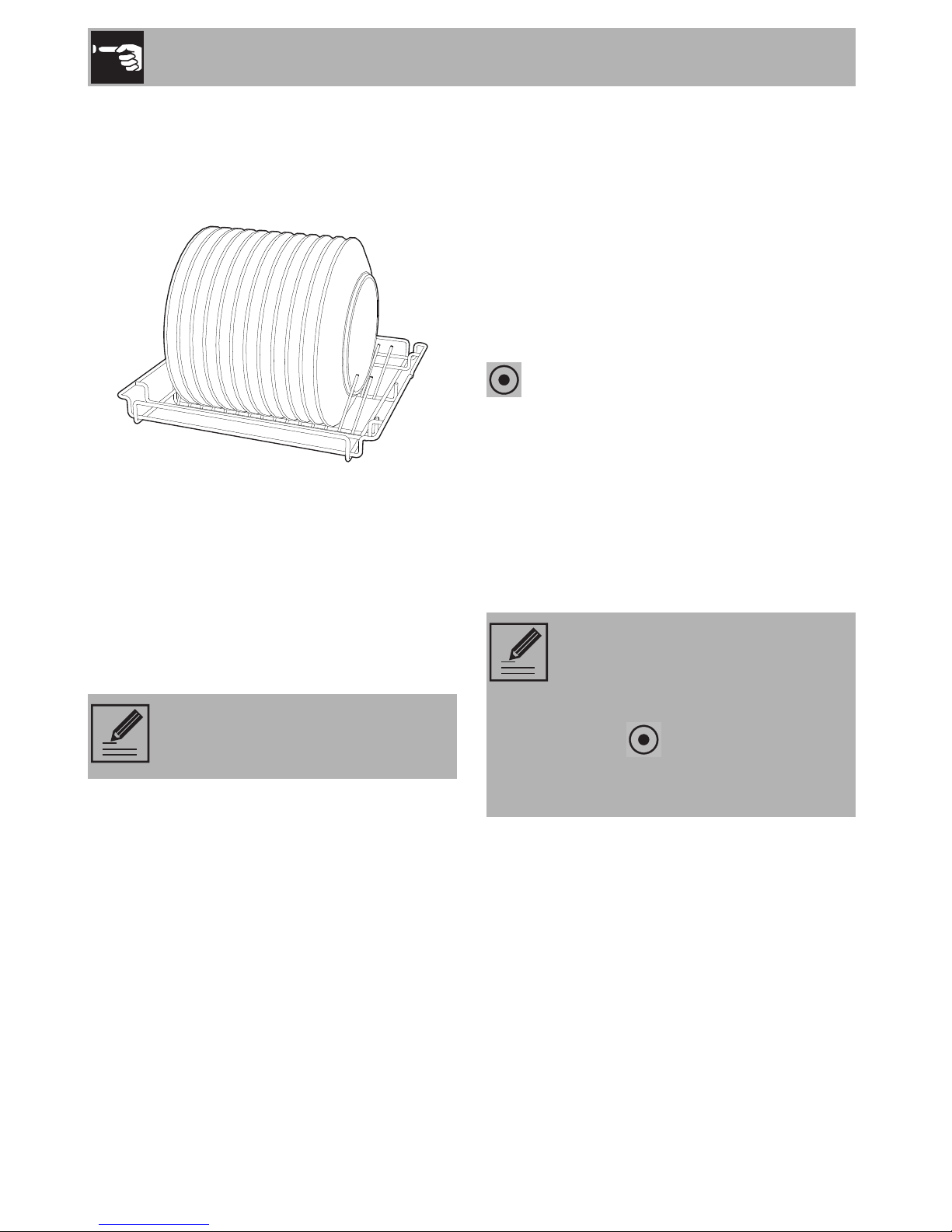

Plate rack
1. Insert the plate rack without plates in the
first shelf of the vertical oven cavity.
2. Position the plates as shown in the figure.
3. Heat the oven to a temperature no
greater than 50 °C for no more than
15 minutes.
4. After heating, extract the support slightly,
leaving it on the rails.
5. Ensure that the support is stable and
balanced, then remove the plates.
3.5 Using the hob
All the appliance’s control and monitoring
devices are located together on the front
panel. The burner controlled by each knob
is shown next to the knob. The appliance is
equipped with an electronic ignition device.
Simply press the knob and turn it anti-
clockwise to the maximum flame symbol,
until the burner ignites. If the burner does not
light in the first 15 seconds, turn the knob to
and wait 60 seconds before trying
again. After lighting, keep the knob pressed
in for a few seconds to allow the
thermocouple to heat up.
The burner may go out when the knob is
released: In this case, the thermocouple has
not heated up sufficiently. Wait a few
moments and repeat the operation. Keep
the knob pressed in longer.
Use oven gloves when handling
cooking zones.
In case of an accidental switching
off, a safety device will be tripped,
cutting off the gas supply, even if
the gas cock is open. Return the
knob to and wait at least
60 seconds before lighting it
again.

Use
73
EN
Correct positioning of the flame-
spreader crowns and burner caps
Before lighting the hob burners, make sure
that the flame-spreader crowns are
correctly positioned in their seats with their
respective burner caps. Make sure that the
holes 1of the flame-spreader crowns are
aligned with the thermocouples 2and
igniters 3.
Practical tips for using the hob
For better burner efficiency and to minimise
gas consumption, use pans with lids and of
suitable size for the burner, so that the
flames do not reach up the sides of the pan.
Once the contents come to the boil, turn
down the flame far enough to ensure that
the liquid does not boil over.
3.6 Using the ovens
Opening and closing the doors of the
multifunction/vertical ovens
The multifunction and vertical ovens are
equipped with a swing door. To open, pull
the door handle towards you. To close,
push the doors until you hear a mechanical
“click”.
Cookware diameters:
•AUX: 12 - 14 cm.
•SR: 16 - 24 cm.
•R: 18 - 26 cm.
•UR2: 18 - 28 cm.
The doors are not held in place
when open and may tend to
reclose. During use, pay attention
not to come into contact with the
internal glass pane to prevent
burns.
Over time the swing doors might
get difficult to open and close.
Grease the hinges.

Use
74
Switching on the multifunction oven
To switch on the multifunction oven:
1. Select the cooking function using the
function knob.
2. Select the temperature using the
temperature knob.
Multifunction oven functions
Ensure that the programmer clock
shows the cooking duration
symbol , otherwise it will not
be possible to turn on the oven.
Press the keys and at the
same time to reset the programmer
clock.
Static
As the heat comes from above and
below at the same time, this system
is particularly suitable for certain
types of food. Traditional cooking,
also known as static cooking, is
suitable for cooking just one dish at
a time. Perfect for all types of roasts,
bread and cakes, and in any case,
particularly suitable for fatty meats
such as goose and duck.
Lower element
The heat coming just from the
bottom allows you to complete the
cooking of foods that require a
higher bottom temperature, without
affecting their browning. Perfect for
cakes, pies, tarts and pizzas.
Small grill
Using only the heat released from
the central element, this function
allows you to grill small portions of
meat and fish for making kebabs,
toasted sandwiches and any types
of grilled vegetable side dishes.
