Smeg PUM610X User manual

V20210225
PUM610X PUM910X
Cooker Hood
Instruction Manual

V20210225
Contents
1…………………………………..………………………………Safety instructions
2…………………………………..………………………………Installation
3…………………………………..………………………………Start using your cooker hood
4…………………………………..………………………………Troubleshooting
5…………………………………..………………………………Maintenance and cleaning
6…………………………………..………………………………Environment protection

V20210225
SAFETY INSTRUCTIONS
This manual explains the proper installation and use of your cooker hood,
please read it carefully before using even if you are familiar with the product.
The manual should be kept in a safe place for future reference.
Never to do:
●Do not try to use the cooker hood
without the grease filters or if the filters
are excessively greasy!
●Do not install above a cooker with a
high level grill.
●Do not leave frying pans unattended
during use because overheated fats or
oils might catch fire.
●Never leave naked flames under the
cooker hood.
●If the cooker hood is damaged, do not
attempt to use.
●Do not flambé under the cooker hood.
●CAUTION: Accessible parts may
become hot when used with cooking
appliances.
●The minimum distance between the
supporting surface for the cooking
vessels on the hob and the lowest part
of the cooker hood. (When the cooker
hood is located above a gas
appliance, this distance shall be at
least 65 cm)
●The air must not be discharged into a
flue that is used for exhausting fumes
from appliances burning gas or other
fuels. Range hoods and other cooking
fume extractors may adversely affect
the safe operation of appliances
burning gas or other fuels (including
those in other rooms) due to back flow
of combustion gases. These gases
can potentially result in carbon
monoxide poisoning. After installation
of a range hood or other cooking fume
extractor, the operation of open flued
gas appliances should be tested by a
competent person to ensure that back
flow of combustion gases does not
occur.
Always to do:
●Important! Always switch off the
electricity supply at the mains during
installation and maintenance such as
light bulb replacement.
●The cooker hood must be installed in
accordance with the installation
instructions and all measurements
followed.
●All installation work must be carried
out by a competent person or qualified
electrician.
●Please dispose of the packing material
carefully. Children are vulnerable to it.
●Pay attention to the sharp edges
inside the cooker hood especially
during installation and cleaning.
●Make sure the ducting has no bends
sharper than 90 degrees as this will
reduce the efficiency of the cooker
hood.
●Warning: Failure to install the screws
or fixing device in accordance with
these instructions may result in
electrical hazards.
●Warning: Before obtaining access to
terminals, all supply circuits must be
disconnected.

V20210225
Always to do:
●Always put lids on pots and pans
when cooking on a gas cooker.
●When in extraction mode, air in the
room is being removed by the cooker
hood. Please make sure that proper
ventilation measures are being
observed. The cooker hood removes
odours from room but not steam.
●There shall be adequate ventilation of
the room when the cooker hood is
used at the same time as appliances
burning gas or other fuels.
●Cooker hood is for domestic use only.
●If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
●This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or lack
of experience and knowledge if they
have been given supervision or
instruction concerning use of the
appliance in a safe way and
understand the hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
Always to do:
●Caution: The appliance and its
accessible parts can become hot
during operation. Be careful to avoid
touching the heating elements.
Children younger than 8 years old
should stay away unless they are
under permanent supervision.
●There is a fire risk if cleaning is not
carried out in accordance with the
instructions.
●Regulations concerning the discharge
of air have to be fulfilled.
●Clean your appliance periodically by
following the method given in the
chapter MAINTENANCE.
●For safety reason, please use only the
same size of fixing or mounting screw
which are recommended in this
instruction manual.
●Regarding the details about the
method and frequency of cleaning,
please refer to maintenance and
cleaning section in the instruction
manual.
●Cleaning and user maintenance shall
not be made by children without
supervision.
●When the cooker hood and
appliances supplied with energy other
than electricity are simultaneously in
operation, the negative pressure in the
room must not exceed 4 Pa(4 x 10-
5bar).
●WARNING: Danger of fire: do not
store items on the cooking surfaces.
●Asteam cleaner is not to be used.
●NEVER try to extinguish a fire with
water, but switch off the appliance and
then cover flame e.g. with a lid or a
fire blanket.

5
INSTALLATION
If you have an outlet to the outside, your cooker hood can be connected as below
picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-
flammable material with an interior diameter of 150mm)
1. Before installation, turn the unit off and unplug it from the outlet.

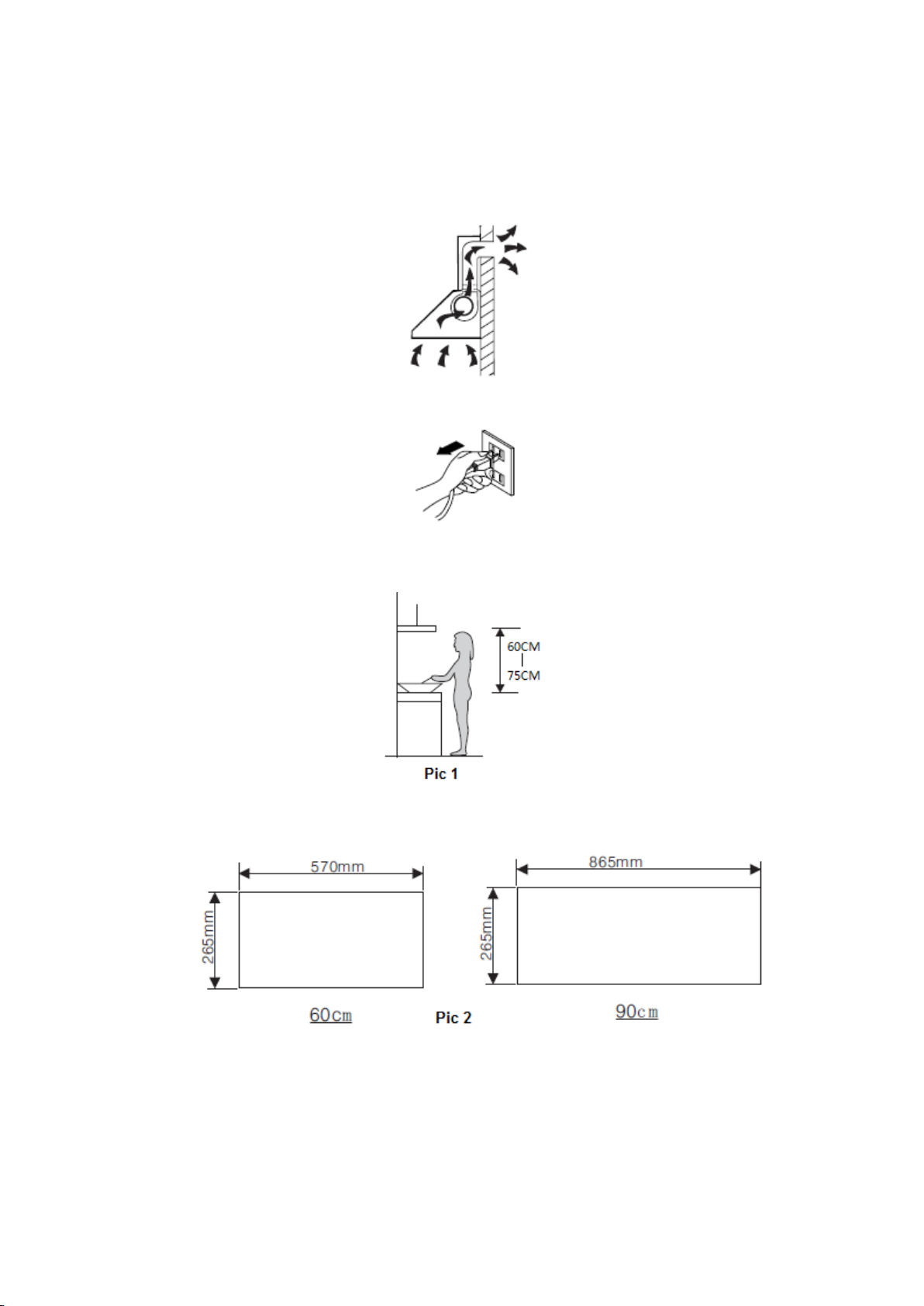

2. The cooker hood should be placed at a distance of 60~75cm above the cooking
hob surface for best effect. See pic 1.
3. Drill a hole in the cupboard, with hole wide 570*265(mm) for 60cm model and hole
wide 865*265(mm) for 90cm model. See pic 2. Make sure the distance between
the edge of the hole and the edge of the cupboard edge is at least 35mm.
4. Take off the aluminium filter and push the hood into the cupboard. Then use a
screwdriver to secure the snap screws and fix the hood body to the cupboard. See
pic 3
5. Fix the expansion pipe to the outlet with a cable tie and lead it to outside. Then Install
aluminum filter. See pic 4. Note: The expansion pipe is not included in the product.

6
WARNING:
For safety reasons, please use only the same
size of fixing or mounting screws
which are
recommended in this instruction manual.
Failure to install the screws or fixing device in
accordance with these instructions may result
in electrical hazards.
Start Using Your Cooker Hood
Electronic button
There are five buttons: (Decrease),(Increase),(Lamp), (Timer),
(Power).See picture above.
1. Power on: After connecting to power, indicator lights will lit on, all the output close
and the hood will enter standby mode.
2. Power button””:
2.1 Press power button “”once, its indicator light will lit on, the hood works at the 1st
speed. The indicator lights of the buttons “”(Increase) and “”(Decrease) will be
on. Press power button again to close it, and the indicator lights will be off. All the
function operation of the hood will be closed, the hood enters into standby mode, and
run by circle.
2.2 The increase button “ ”and lamp button “”can work separately and not
controlled by the power button. When a certain function button is pressed, the hood

7
operates at that function status,excluding timer function.Press power button under any
status, the cooker hood will be switched off without any functions.
3. Press lamp button once, lights will be turn on. Indicator light of lamp button
and power button will lit on. Press lamp button again to turn off the lights.
Indicator light of lamp button and power button will be off. And recycle like
this.
4. (Increase) button:
There are five speeds.
4.1 Press (Increase) button, the cooker hood starts to work at the low speed.The
indicator lights of (Increase) button, (Decrease) button and (Power) button
will be on.
4.2 Press (Increase) button when it works at the 1st speed, the cooker hood works
at the 2nd speed.The indicator lights of (Increase)button, ( Decrease) button
and (Power) button keep bright.
4.3 Press (Increase) button when it works at the 2nd speed, the cooker hood works
at the 3rd speed. The indicator lights of (Increase)button, ( Decrease) button
and (Power) button keep bright.
4.4 Press (Increase) button when it works at the 3rd speed, the cooker hood works
at the 4th speed. The indicator lights of (Increase)button, ( Decrease) button
and (Power) button keep bright.
4.5 Press (Increase) button when it works at the 4th speed, the cooker hood works
at the 5th speed. The indicator lights of (Increase)button will be off. The
( Decrease) button and (Power) button keep bright.
4.6 Press (Increase) button again when it works at the 5th speed, the cooker hood
will still work at the 5th speed.
5. ( Decrease) button
Press (Decrease) button, the cooker hood will decrease one speed, and the
display will show the current working speed. Press (Decrease) button when it
works at the 5th speed, the cooker hood will work at the 4th speed. The indicator
lights of (Increase)button, ( Decrease) button and (Power) button will be
on. Press (Decrease) button when it works at the 4th speed, the cooker hood will
work at the 3rd speed. The indicator lights of (Increase)button, ( Decrease)
button and (Power) button will be on. Press (Decrease) button when it works

8
at the 3rd speed, the cooker hood will work at the 2nd speed. The indicator lights of
(Increase)button, ( Decrease) button and (Power) button will be on. Press
(Decrease) button when it works at the 2nd speed, the cooker hood will work at the
1st speed. The indicator lights of (Increase)button, ( Decrease) button and
(Power) button will be on.When press ( Decrease) button again when it works at
the 1st speed, the cooker hood will turn off and the indicator light will be off.
6. (Timer) button:
6.1 The (Timer) button works when the motor is on only. Pressing the timer button
when standby or separately turning on the lamp button is invalid.The timer setting is 5
mins and the indicator light of this button is on. Press again to close the timer
function ,and the indicator light will be off.The timer could be repeat setting. When the
time is up, the cooker hood will be turn off and the light will be off.
6.2 When the timer is set, if adjusting the speeds, the timer will automatically exit.
TROUBLESHOOTING
Fault Possible Cause Solution
Light on, but motor
does not work
Fan switch turned off
Select a fan switch position.
Fan switch failed Contact service center.
Motor failed Contact service center.
Light does not
work, motor does
not work
House fuses blown Reset/Replace fuses.
Mains power cable is loose or
disconnected
Refit mains power cable to
power outlet.
Switch power outlet on.
Oil leakage
One way valve and the outlet
are not tightly sealed
Take down the one way valve
and seal with sealant.
Leakage from the connection of
chimney and cover Take chimney down and seal.
Lights not working Broken or faulty bulbs Replace bulbs as per this
instruction.
Insufficient suction
The distance between the
cooker hood and the gas top is
too far
Refit the cooker hood to the
correct distance.
The Cooker hood
inclines
The fixing screw is not tight
enough
Tighten the hanging screw and
make it horizontal.

9
NOTE:
Any electrical repairs to this appliance must conform to your local, state and
federal laws.Please contact the service centre if in any doubt before
undertaking any of the above.Always disconnect the unit from the power source when
opening the unit.
MAINTENANCE AND CLEANING
Caution:
• Before maintenance or cleaning is carried out, the
cooker hood should be disconnected from the mains
power supply. Ensure that the cooker hood is switched
off at the wall socket and the plug removed.
• External surfaces are susceptible to scratches and abrasions, so please follow the
cleaning instructions to ensure the best possible result is achieved without damage.
GENERAL
Cleaning and maintenance should be carried out with the appliance cold especially
when cleaning.Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on
the surfaces.
STAINLESS STEEL
The stainless steel must be cleaned regularly (e.g.weekly) to ensure a long life
expectancy.Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may
be used.
NOTE:
Ensure that wiping is done along with the grain of the stainless steel to prevent any
unsightly crisscross scratching patterns from appearing.
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is
clean and well wrung before cleaning. Use a dry soft cloth to remove any excess
moisture left after cleaning.
Important
Using neutral detergents and avoid using harsh cleaning chemicals, strong household
detergents or products containing abrasives,as this will affect the appearance of the
appliance and potentially remove any printing of artwork on the control panel and will
void manufactures warrantee.
GREASE MESH FILTERS
The mesh filters can be cleaned by hand. Soak them for about 3 minutes in water with
a mild detergent and then brush it gently with a soft brush. Do not apply too much
pressure so as to avoid any damage to it.(Leave to dry naturally out of direct sun
light)
Filters should be washed separately to crockery and kitchen utensils. It is advisable

10
not to use rinse aid.
INSTALLING GREASE MESH FILTERS
• To install filters for the following four steps:
- Angle the filter into the slots at the back of the hood.
- Push the button on the handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.
CARBON FILTER-not supplied
Activated carbon filter can be used to trap odors. Normally the activated carbon filter
should be changed every 3 to 6 months according to your cooking habits. The
installation procedure of activated carbon filter is as below:
1. Before installing or replacing the carbon filters, disconnect the mains power to
the unit.
2. Press the filter lock and remove the mesh filter.
3. Turn the carbon filter on both sides of the motor anti-clockwise. Replace the
carbon filters with the new carbon filters.
4. Place the mesh filter.
5. Connect the power supply to the wall socket.
NOTE:
•Make sure the filter is securely locked. Otherwise, it could loosen and cause
danger.
•When activated carbon filter attached, the suction power will be lowered.

11
BULB REPLACEMENT
Important :
!
The bulb must be replaced by the manufacturer, its
service agent or similarly qualified persons.

Always switch off the electricity supply before
carrying out any operations on the appliance. When
handling bulb, make sure it has completely cooled
down before any direct contact with hands.
When handling bulbs hold with a cloth or gloves to
ensure perspiration does not come in contact with
the bulb as this can reduce the life of the bulb.
Note:
Before changing the lights, make sure that the appliance is turned off and
unplugged.
Protect against danger when changing lights, such as wearing gloves.
Changing the lights:
1. Remove the grease filter.
2. Use the hand to press the LED light out.Then slightly pull the light connecting wire
out, and dismantle the terminal of the light connecting wire.
3. Apply the reverse procedure to install the light back.
• ILCOS D code for this lamp is: DSS-1.5/65-S-120/33
– LED modules –rectangle lamp
– Max wattage: 2×1.5W
– Voltage range: DC 12V
– Dimensions:

12
ENVIRONMENTAL PROTECTION:
This product is marked with the symbol on the selective sorting of
waste electronic equipment. This means that this product must not
be disposed of with household waste but must be supported by a
system of selective collection in accordance with Directive
2012/19/EU. It will then be recycled or dismantled to minimize
impacts on the environment, electrical and electronic products are
potentially dangerous for the environment and human health due to
the presence of hazardous substances.For more information,
please contact your local or regional authorities.
NOTE:
The following shows how to reduce total environmental impact (e.g. energy use) of the
cooking process).
(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.
INFORMATION FOR DISMANTLING
Do not dismantle the appliance in a way which is not shown in the user manual. The
appliance could not be dismantled by user. At the end of life, the appliance should
not be disposed of with household waste. Check with your Local Authority or retainer
for recycling advice.
