Smith MV1000S User manual

MV1000S
DUST COLLECTOR
Parts/user Manual
(954) 941-9744
www.SMITHMFG.com
MANUFACTURING
Cutters / Removers / Parts / Support
1-800-653-9311
www.SmithMfg.com
Phone: 954-941-9744 • Fax: 954-545-0348

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
MV1000S
VERSION 10/2016
Dust collector
2
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
INTRODUCTION
Congratulations on purchasing the
MV1000S™ Dust Collector from SMITH
Mfg. Company.
The MV1000S dust collector is a rugged, powerful
unit that is sure to meet your expectations for dust
control.
See technical data below:
BEFORE START-UP,
READ THIS..
Please read all operating instructions, and be
completely familiar with your equipment before
operating. When in doubt, please contact SMITH
Manufacturing Customer Service for operational
details.
Page Contents
2 Index / Introduction
3 Uncrating equipment / Safety Guidelines
4 Your MV1000S Dust collector
5Bag replacement / Ordering / Storage / Troubleshooting
6 Main assembly
7 Motor assembly
8-9 Maintenance Log
10 Limited Equipment Warranty
11 Warranty Activation
INDEX
Voltage 220 V / 60 Hz - Single phase
Power 4050 W (5.3 HP)
Air pressure 3000 mm Aq
Airow 330 c.f.m
Hose 2” (50 mm) Dia.
Weight 175lbs (80kg) (net)
Dimension 27x27x62 in (67x67x155 cm) (LxWxH)
Plastic dust bag 22x32 in (550x800 mm) (LDPE)
Noise 75 dB

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
VERSION 10/2016
MV1000S
Dust collector
3
UNCRATING EQUIPMENT
When you uncrate your equipment, make certain
that the machine has not been damaged and
that all fasteners and guards are properly
tightened.
Please check that the following accessories are
included:
• Hoses
• Elbow
• Pipe
• Floorbrush
• Floornozzle
• Smallbrush
• Dustbag
• Velcrobelt
REMEMBER: Only authorized, experienced and
properly trained personnel should operate this
equipment. Operating personnel should
practice safety at all times and wear protective
gear (gloves, goggles, safety vests, ear plugs,
steel-toe shoes, etc.)
•Alwayswearpersonalsafetyequipmentsuch
as sturdy non-slip boots,ear protection, dust
mask and approved eye protection
•Positionthevacuumintheworkingarea
•Ensuredustcollectionbagistightlyxedtothe
collection cone by the Velcro belt
•Checkthatthevacuumhoseisttedsecurely
to inlet
•EnsurevacuumissettoOFFpositionpriorto
turning on power supply
•Plugvacuumintopowersupplyandswitchon
power supply
•Themachineshouldnotbeusedinareas
wherepotentialforreorexplosionsexist
•Themachineshouldnotbestartedwithoutthe
dust bag attached
•Makesurethehoseorcordarenotpinchedin
doors, fences or the like
Incorrect use of the dust collector can
result in property damage, personal injury,
or death. Be sure to read and follow all
directions and precautions as outlined in
this manual.
SAFETY GUIDELINES

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
MV1000S
VERSION 10/2016
Dust collector
4
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
YOUR MV1000STM DUST COLLECTOR
Please take time to familiarize yourself with the MV1000S™’s controls,
as well as some of the features of your new machine
Motor housing assembly
HEPAlterhousing&body
Cyclone separator
assembly
Velcro belt
(to secure bag)
Dust bag
2 Vac motor switch
ON/OFFswitchforautoltershaking
MUST BE ON DURING OPERATION 1 Vac motor switch

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
VERSION 10/2016
MV1000S
Dust collector
5
DUST BAG REPLACEMENT
Once the dust bag has collected around 44 lb.
(20 kg) of material, replace the bag to avoid lift-
inghazardscausedbyoverlling
Followthestepsbelowforreplacement:
• SwitchthemachinetotheONposition
(you will notice the air is sucked from the
plastic bag)
• Loosenthebeltholdingthedustbag,remove
the dust bag from the body
• Attachedanewbag,tightenthebeltusing
Velcro
• Itisimportanttokeepvacuumrunningduring
the bag changing process. This will keep the
apinthecollectionconeclosedensuringno
dust Will drop our from within the collection
cone when bag replacement is being
performed
STORAGE
ORDERING
To ensure product safety and reliability,
and to maintain your warranty, always use
genuine replacement parts from SMITH
when making repairs to equipment.
When ordering please specify the model
and serial number of the machine. In
addition, give a part number, description,
and quantity as listed on your parts list.
If you have any questions about the
operation of your machine or would like
to order replacement parts, contact your
SMITH
Manufacturing representative directly.
Contact 1-800-653-9311 (954-941-9744)
for information.
Visit our website at
www.smithmfg.com
Unplug machine before storing (do not store
machine while plugged into a power source).
Do not store in a location where there are high
temperatures.
Store away from excessive humidity.
TROUBLESHOOTING
PROBLEM
Possible Reason(s)/Solution(s)
MOTOR DOES NO START
No power, cable or switch defective
MOTOR RUNS BUT NO SUCTION
Hose not connected or blocked
MOTOR RUNS W/ POOR SUCTION
Hose damaged
Filter blocked
Top cover loose
DUST BLOWS FROM MOTOR
Filter loose or defective
ABNORMAL NOISE
Check motor(s)

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
MV1000S
VERSION 10/2016
Dust collector
6
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
SMITH MANUFACTURING SmithMfg.com
MAIN ASSEMBLY
Item P/N Qty Description
1 (see next pg.) 1 Motor assembly
2 (see pg. 8) 1 FilterShakingMotorAssembly
3 * MV.1.891A 1 HEPAlter
4 * MV.1.891A 1 Filtersealring
5 MV.1.016 1 Filterhousing/mainbody
6 MV.1.017 1 Main body seal ring
7 MV.1.018 1 Main body ring
8 MV.1.019 1 Main frame
9 MV.2.25 1 Velcro belt
10 MV.1.20 1 Dust bag 20”x32” (set of 20)
11 MV.HS 2 Vac hoses
12 MV-SA 1 Debris tank
13 MV-SA 1 Dust bag (cyclone)
14 MV-SA 1 Dust bag holder
15 MV-SA 1 Cyclone seal ring
16 MV-SA 1 Cyclone ring
17 MV-SA 1 Cyclone head
18 MV.27 2 Vac extension (MV.29)**
19 MV.26 1 Vac elbow
20 MV.25 1 Vacoornozzle
21 MV.22 1 Vac small brush
22 MV.24 1 Vac large brush (MV.28)**
23 MV-Y 1 Y-Connector
24 MV.23 1 2” (50 mm) Connector
25 VM24 1 2” (50 mm) Hose Coupler ***
*HEPAFilter,FilterSupport,andFilterSealRingsoldasaset.
** Stainless Steel Option
*** Optional
1
2
3
4
5
6
7
9
8
10
11
12
13
14
15
16
17
19
20
21
22
18
NOTE: motor assembly must
bedisconnectedfromlter
shaker before removing
23
24
25

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
VERSION 10/2016
MV1000S
Dust collector
7
MOTOR ASSEMBLY
SMITH MANUFACTURING SmithMfg.com
Item P/N Qty Description
1 MV.1.001 6 Acorn nut
2 MV.1.002 1 Motor housing cover
3 MV.1.003 6 Hex spacer (long)
4 MV.1.004 3 Motor rubber ring (upper)
5 MV.1.005 3 Motor rubber ring (middle)
6 MV.1.06A 3 Motor
7 MV.1.007 6 Hex spacer (short)
8 MV.1.008 3 Plastic net
9 MV.1.009 3 Motor rubber ring (lower)
10 MV.1.010 1 Motor table
11 MV.1.011 6 Flatwasher
12 MV.1.012 6 Hex head cap screw
2
1
3
4
5
6
7
8
9
10
11
12

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
MV1000S
VERSION 10/2016
Dust collector
8
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com

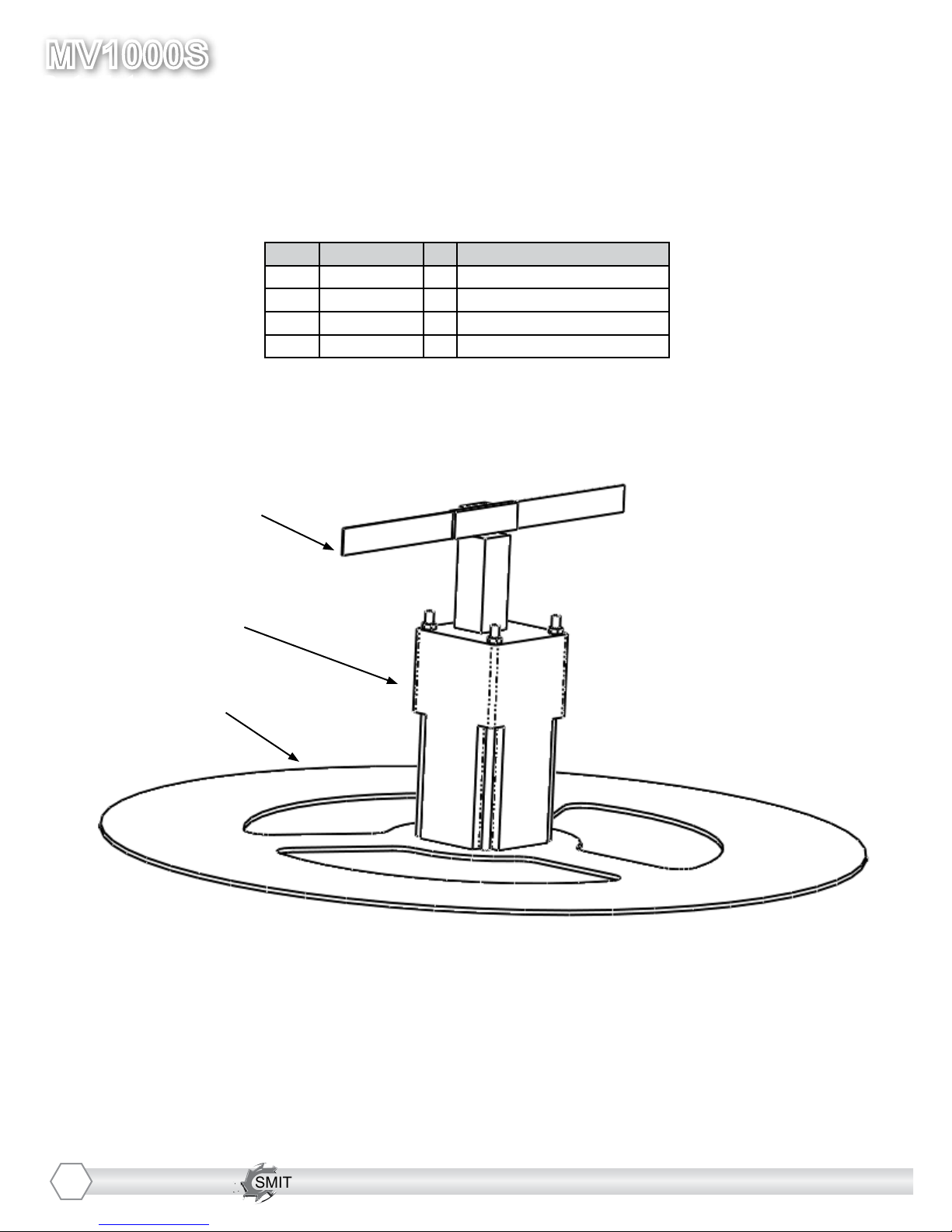

Item P/N Qty Description
1 MV.1.11A 1 FilterShakingBar
2 MV.1.12A 1 FilterShakingMotor
3 MV.1.13A 1 FilterShakingMotorStand
4 MV.1.11AWP 2 Shaker Plastic Inserts (not shown)
FILTER SHAKING MOTOR ASSEMBLY
1
2
3

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
VERSION 10/2016
MV1000S
Dust collector
9
MAINTENANCE LOG
8

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
MV1000S
VERSION 10/2016
Dust collector
10
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
MAINTENANCE LOG
WARRANTY CLAIMS
The manufacturer reserves the right to change or improve the machine design without assuming any
obligation to update any products previously manufactured before this manual. It is the customer’s
responsibility to complete the warranty card and mail it to the seller within 10 days from the date
of purchase. If a failure occurs during the warranty period, the customer must contact the seller
to determine the appropriate action. Any and all transportation charges are to be borne by the
purchaser.
9

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
VERSION 10/2016
MV1000S
Dust collector
11
Limited Equipment Warranty
All statements, technical information and recommendations contained in SMITH’s literature are based on tests believed to be reliable, but the accuracy
or completeness thereof is not guaranteed and the following is made in lieu of all warranties, expressed or implied. SMITH warrants all equipment or part
referenced in this document which is manufactured by SMITH and bearing its name to be free from defects in material and workmanship on the date of
sale to the original purchaser under normal use and maintenance as herein provided. This warranty does not apply to components manufactured by others
such as, but not limited to, bearings and engines; such components that may or may not have their own warranties.
With the exception of any special, extended, or limited warranty published by SMITH, SMITH will, for a period of three months (90 days) from the
dateofsaleoruptovehundred(500)hoursofusebybuyer,whichevershalloccurrst;repairorreplaceanypartoftheequipmentdeterminedby
SMITH to be defective. This warranty applies only when the equipment or part is installed, operated and maintained in accordance with SMITH’s written
recommendations.
SMITH’s sole obligation for any breach of warranty or breach of contract for defects, deliberate or accidental omissions, shall be limited to repairing,
replacing or allowing credit for, at SMITH’s option, any part which, under normal and proper use and maintenance, proves defective in material or
workmanship within warranty period, provided, however, that notice of any such defect or omission and satisfactory proof thereof is promptly given by
buyer to SMITH, and thereafter, such defective part is returned to SMITH with transportation charges prepaid, and SMITH’s examination proves such part
to have been defective. This warranty does not obligate SMITH to bear any transportation charges or personnel time in connection with the replacement
or repair of defective parts. This warranty does not obligate SMITH to bear any expense for travel time or of personnel in connection with any service calls.
SMITHwillnot,inanyevent,beliabletotheuserforanyconsequentialdamagesarisingoutofthissaleforthelossofuse,lostprotsorrevenue,interest,
lost goodwill or work stoppage. SMITH shall not be liable for any injury, loss or damage, direct or consequential, arising out of the use or the inability to use
theproductorforenvironmentalclaims.ItbeingunderstoodthatSMITHhasnomeansofcontrollingtheproductsnaluse;therefore,itshallbebuyer’s
responsibility to determine suitability of product for intended use and buyer assumes all risks and liabilities whatsoever, in connection therewith. In no event
shall SMITH be liable for consequential or special damages. Used products are sold on an “as is” basis, and there is no implied warranty of merchantability
oroftnessforaparticularpurpose,unlessmadeinwritingbyanofceratSMITH’sofce.
This warranty does not cover, and SMITH shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty installation,
misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-SMITH component parts.
Nor shall SMITH be liable for malfunction, damage or wear caused by the incompatibility of SMITH equipment with structures, accessories, equipment
or materials not supplied by SMITH, or the improper design, manufacture, installation, operation or maintenance of structures, accessories, equipment
or materials not supplied by SMITH. This warranty does not apply in respect to damages to any product or accessory or attachment thereof caused by
overloading or other misuse, neglect or accident, nor does this warranty apply to any product or accessory or attachment thereof, which has been repaired
or altered in any way which, in the sole judgment of SMITH, affects the performance, stability or general purpose for which it was manufactured. In the
manufactureofbuyer’sequipment,partsmaybeomittedorequivalentfunctioningequipmentandcomponentsmaybesubstitutedfortheoriginalspecied
equipment upon the sole judgment and discretion of SMITH.
Thiswarrantyisconditionedupon the prepaidreturnoftheequipmentclaimed tobedefectivetoanauthorized SMITHResellerforvericationofthe
claimeddefect.Iftheclaimeddefectisveried,SMITHwillrepairorreplacefreeofchargeanydefectivepartsandreturnofmerchandisebacktothe
customer freight collect. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will be made at a reasonable
charge, which charges may include the costs of parts, labor and transportation.
THIS WARRANTY IS EXCLUSIVEAND IS IN LIEU OFANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
WARRANTYOFMERCHANTABILITYORWARRANTYOFFITNESSFORAPARTICULARPURPOSE.
SMITH’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy (including,
butnotlimitedto,incidentalorconsequentialdamagesforlostprots,lostsales,injurytopersonorproperty,oranyotherincidentalorconsequentialloss)
shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
SMITH MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE,INCONNECTIONWITHACCESSORIES,EQUIPMENT,MATERIALSORCOMPONENTSSOLDBUTNOTMANUFACTUREDBYSMITH.
These items sold, but not manufactured by SMITH (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer.
SMITH will provide purchaser with reasonable assistance in making any claim for breach of these warranties. In no event will SMITH be liable for indirect,
incidental, special or consequential damages resulting from SMITH supplying equipment hereunder, or the furnishing, performance, or use of any products
or other goods sold hereto, whether due to a breach of contract, breach of warranty, the negligence of SMITH, or otherwise.
ADDITIONALWARRANTYCOVERAGE-SMITHdoesprovideextendedwarrantyandwearwarrantyforproducts.
Corrections - typographical or clerical errors contained herein are subject to correction by SMITH.
Assignment - buyer shall not assign or transfer this warranty without SMITH’s written consent.
Entireagreementandapplicablelaw-therightsandobligationsofSMITHandbuyershallbegovernedbythelawsofthestateofFlorida,U.S.A.Inforce
ondatehereof.TheprovisionshereofareintendedbybuyerandSMITHasanalexpressionoftheiragreement,andareintendedalso,asacomplete
andexclusivestatementofalltermsapplycabletobuyer’sorder.Nowaiver,modication,oradditiontoanyofthetermshereofshallbebindingonSMITH,
unlessmadeinwritingbyanofceratSMITH’sofceasstatedherein.Intheeventofconictbetweenbuyer’spurchaseorderandthetermshereof,the
latter shall control. If any provisions herein are to any extent invalid or unenforceable, the remainder of the warranty shall not be effected thereby and shall
be valid and enforceable to the fullest extent permitted by law.
Legal action - buyer shall be responsible for all costs of collection of outstanding indebtedness, including but not limited to attorney’s fees and court costs
to seller. Buyer shall reimburse seller for any and all litigation expenses seller incurs as a result of an unsuccessful buyer claim. The jurisdiction and venue
of the court for any litigation, state or federal, brought by the buyer and/or seller shall be located in venue determined by seller.
Fairlaborstandards-seller’sproductsareproducedintheUnitedStatesandinconformitywithallapplicableprovisionsofthefairlaborstandardsactof
1938 as amended and any regulations and orders of the United States Department of Labor issued thereunder.
Allwrittenandvisualdatacontainedinthisdocumentreectsthemostcurrentproductinformationavailableatthetimeofthispublication.SMITHreserves
the right to make changes at any time without notice.
TOORDER,contactyourSMITHdistributororcall1-800-653-9311toidentifythenearestdistributor.
SMITH Manufacturing Co, Inc.
1610 South Dixie Highway
PompanoBeach,FL33060
www.smithmfg.com
10

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
MV1000S
VERSION 10/2016
Dust collector
12
Check this box to receive special pricing
on your recommended wear parts kit
Organization __________________________________
Name ___________________________________________ JobTitle _______________________________
Phone___________________________________ Email ________________________________________
Address _______________________________________________________________________________
City __________________________________________________________________________________
State __________________________Zip __________________________
SMITH Product _________________________________________________________________________
Machine Serial # __________________________________________________________________________
Date of Purchase (MM / DD / YYYY) _________________________________________________________
Purchased from ___________________________________________________________________________
Signature: ___________________________________
Thank you for purchasing a SMITH. Please complete this form upon receipt of your equipment and prior to use on
the job. A pre-operation inspection is required to activate your warranty. All sections must be completed. Should you
have any questions, please add them to the comments section below. Fax the completed form to (954) 545-0348.
Pre-OPeratiOn insPectiOn (Please check all)
1. No parts or components on the machine appear damaged or lost in shipment. Yes No
2. All bolts and fasteners are in place and tightly secured. Yes No
3. Grease points have been identied for future maintenance requirements and appear lubricated.
Yes No
4. Wheels are operational. Yes No
5. Motor has been started and in good working condition. Yes No
6. All Decals appear in place and securely attached. Yes No
7. Equipment runs and tested to assure all components are operating correctly. Yes No
8. Do you have a Wear Parts Kit with an Extra Cutter set in stock? Yes No
9. Did you join Remove Faster News for tech updates, experience sharing and special offers? Yes No
Comments (add any additional or from above answers below)
____________________________________________________________________________________________
____________________________________________________________________________________________
____________________________________________________________________________________________
1610 South Dixie Highway - Pompano Beach, FL 33060 • Ph: 954-941-9744 • Fax: 954-545-0348 • Email: [email protected] • www.SMITHMFG.com
Pre-OPeratiOn insPectiOn - Warranty activatiOn
PrOduct registratiOn
nOte: All power equipment is warranted directly from the motor/engine manufacturers direct and not from SMITH Manufacturing.
Prior to starting your equipment, please nd the name of your engine/motor repair center for warranty and service:
• Honda: http://engines.honda.com/dealer-locator/
• Subaru: http://robinamerica.com/dealerusacan.aspx
• Leeson: http://www.leeson.com/leeson/servicecenter.do?invoke=viewServiceCenterLocator
• US Motors: http://www.usmotors.com/Contact-Information.aspx
• Kohler: http://www.kohlerengines.com/contact/contact.htm
iMPOrtant: Gas Engine owners: Never tip engine forward which will lock the recoil pull cord until the fuel and oil returns back into
their respective fuel chambers and the carburetor is free before it can be started.
Electric motor owners: To avoid problems, power cord must be connected to the correct current and amperage power rating for the motor.
MV1000S
11

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
SMITH Manufacturing
1610 South Dixie Highway
PompanoBeach,FL33060
TollFree:800.653.9311
Phone: 954.941.9744
Fax:954.545.0348
Email: [email protected]
www.SmithMfg.com
(954) 941-9744
www.SMITHMFG.com
MANUFACTURING
Cutters / Removers / Parts / Support
Table of contents
Other Smith Dust Collector manuals
