SolarEdge RESU10H Prime Series User manual

Installation Guide
Single Phase Energy Hub
Inverter with Prism
Technology
For North America
Version 1.3

Disclaimers
Important Notice
Copyright © SolarEdge Inc. All rights reserved.
No part of this document may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photographic,
magnetic or otherwise, without the prior written permission of SolarEdge Inc.
The material furnished in this document is believed to be accurate and reliable.
However, SolarEdge assumes no responsibility for the use of this material. SolarEdge
reserves the right to make changes to the material at any time and without notice. You
may refer to the SolarEdge web site (https://www.solaredge.com/us/) for the most
updated version.
All company and brand products and service names are trademarks or registered
trademarks of their respective holders.
Patent marking notice: see https://www.solaredge.com/us/patent
The general terms and conditions of delivery of SolarEdge shall apply.
The content of these documents is continually reviewed and amended, where
necessary. However, discrepancies cannot be excluded. No guarantee is made for the
completeness of these documents.
The images contained in this document are for illustrative purposes only and may vary
depending on product models.
Disclaimers 1
Single Phase Energy Hub Inverter with Prism Technology MAN-01-00842-1.3

FCC Compliance
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, you are encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance may void the user’s authority to operate the equipment.
Single Phase Energy Hub Inverter with Prism Technology MAN-01-00842-1.3
2 FCC Compliance

Revision History
Version 1.3 (November 2021)
Added Connecting an External RSDSwitch on page 45.
Version 1.2 (October 2021)
Added reference to the SolarEdge Energy Bank installation guide in Installing the
Battery (Optional) on page 38.
Revision History 3
Single Phase Energy Hub Inverter with Prism Technology MAN-01-00842-1.3

Contents
Disclaimers 1
Important Notice 1
FCC Compliance 2
Revision History 3
HANDLING AND SAFETY INSTRUCTIONS 6
Safety Symbols Information 6
IMPORTANTSAFETYINSTRUCTIONS 7
Photovoltaic Rapid Shutdown System Requirements 12
Chapter 1: Overview 14
StorEdge Solution Components 14
Installation Equipment List 16
Inverter Transport and Storage 17
Chapter 2: Installing the Power Optimizers 18
Safety 18
Package Contents 20
Installation Guidelines 21
Step 1: Mounting and Grounding the Power Optimizers 23
Step 2: Connecting a PV panel to a Power Optimizer 26
Step 3: Connecting Power Optimizers in Strings 26
Step 4: Verifying Proper Power Optimizer Connection 27
Chapter 3: Installing the Inverter 29
Inverter Package Contents 29
Identifying the Inverter 29
Inverter Interfaces 29
Mounting the Inverter 33
Selecting a Residual Current Device (RCD) 36
Chapter 4: Installing the Battery (Optional) 38
Chapter 5: Connecting the Inverter 39
Installing Conduits 39
Connecting the Inverter to ACGrid 40
Connecting the DC Strings to the Inverter 40
Connecting the Battery (Optional) 42
Connecting the Backup Interface (Optional) 43
Connecting the Smart EVCharger (Optional) 44
Connecting an External RSDSwitch 45
Installing the 9V Battery 47
Connecting Multiple Inverters through RS485 48
Single Phase Energy Hub Inverter with Prism Technology MAN-01-00842-1.3
4 Revision History

Chapter 6: Activating, Commissioning and Configuring the System 50
Step 1: Activating the Installation 50
Step 2: Commissioning and Configuring the Installation 51
Step 3: Verifying Proper Activation and Commissioning 53
Configuring Communication with Other Devices 54
Running a Battery Self-test 55
Enabling StorEdge Applications 55
Reporting and Monitoring Installation Data 57
Chapter 7: Setting Up Communication with the Monitoring Platform 60
Communication Options 60
Communication Connectors 62
Removing the Inverter Cover 62
Removing the Safety Unit Cover 63
Creating an Ethernet (LAN) Connection 63
Verifying the Connection 66
Appendix A: Errors and Troubleshooting 67
Identifying Errors 67
Energy Hub Inverter Troubleshooting 68
Troubleshooting Communication 69
Power Optimizer Troubleshooting 70
Single Phase Energy Hub Inverter with Prism Technology - Technical
Specifications 72
Support Contact Information 79
Revision History 5
Single Phase Energy Hub Inverter with Prism Technology MAN-01-00842-1.3

HANDLING AND SAFETY INSTRUCTIONS
Safety Symbols Information
The following safety symbols are used in this document. Familiarize yourself with the
symbols and their meaning before installing or operating the system.
WARNING!
Denotes a hazard. It calls attention to a procedure that, if not correctly
performed or adhered to, could result in injury or loss of life. Do not proceed
beyond a warning note until the indicated conditions are fully understood and
met.
AVERTISSEMENT!
Dénote un risque: il attire l'attention sur une opération qui, si elle n'est pas faite
ou suivi correctement, pourrait causer des blessures ou un danger de mort. Ne
pas dépasser une telle note avant que les conditions requises soient
totallement comprises et accomplies.
CAUTION!
Denotes a hazard. It calls attention to a procedure that, if not correctly
performed or adhered to, could result in damage or destruction of the
product. Do not proceed beyond a caution sign until the indicated conditions
are fully understood and met.
ATTENTION!
Dénote un risque: il attire l'attention sur une opération qui, si elle n'est pas faite
ou suivi correctement, pourrait causer un dommage ou destruction de
l'équipement. Ne pas dépasser une telle note avant que les conditions requises
soient totallement comprises et accomplies.
NOTE
Denotes additional information about the current subject.
IMPORTANTSAFETYFEATURE
Denotes information about safety issues.
Single Phase Energy Hub Inverter with Prism Technology MAN-01-00842-1.3
6 HANDLING AND SAFETY INSTRUCTIONS

IMPORTANTSAFETYINSTRUCTIONS
SAVETHESEINSTRUCTIONS
CONSIGNES DE SÉCURITÉ IMPORTANTES
CONSERVEZ CES INSTRUCTIONS
Warning!
To reduce the risk of injury, read all instructions in this document.
 AVERTISSEMENT!
 Pour réduire le risque de blessure, lisez toutes les instructions de ce document.
WARNING!
The inverter cover must be opened only after switching the inverter ON/OFF/P
switch located at the bottom of the inverter to OFF. This disables the DC voltage
inside the inverter. Wait five minutes before opening the cover. Otherwise, there
is a risk of electric shock from energy stored in the capacitors.
 AVERTISSEMENT!

Ne pas ouvrir le couvercle de l'onduleur avant d'avoir coupé l'interrupteur situé
en dessous de l'onduleur. Cela supprime les tensions CC et CA de l'onduleur.
Attendre cinq minutes avant d’ouvrir le couvercle. Sinon, il y a un risque de
choc électrique provenant de l'énergie stockée dans le condensateur.
WARNING!
Before operating the inverter, ensure that the inverter is grounded properly. This
product must be connected to a grounded, metal, permanent wiring system, or
an equipment-grounding conductor must be run with the circuit conductors
and connected to the equipment grounding terminal or lead on the product.
 AVERTISSEMENT!

Avant d'utiliser l'onduleur monophasé, assurez-vous que l'onduleur est
correctement mis à la terre. Ce produit doit être raccordé à un système de
câblage fixe, métallique, l'équipement-le conducteur de mise à la terre doit être
exécuté avec les conducteurs de circuit et raccordé à l'équipement borne de
mise à la terre ou de plomb sur le produit.
WARNING!
Opening the inverter and repairing or testing under power must be performed
only by qualified service personnel familiar with this inverter.
 AVERTISSEMENT!

L’unité ne doit être ouverte que par un technicien qualifié dans le cadre de
l'installation et de la maintenance.
IMPORTANTSAFETYINSTRUCTIONS 7
Single Phase Energy Hub Inverter with Prism Technology MAN-01-00842-1.3

WARNING!
The Safety Unit meets all requirements for a code-compliant installation of this
system. The DC Disconnect Switch disconnects both the positive and negative
conductors.
 AVERTISSEMENT!

Le sectionneur externe (inclus) repond aux exigences de conformité pour
l’installation de ce système . Le coupeur CC ouvre les conducteurs positifs et
négatifs.
WARNING!
The inverter input and output circuits are isolated from the enclosure. This
system does not include an isolation transformer and should be installed with
an ungrounded PV array in accordance with the requirements of NEC Articles
690.35 and 690.43 National Electric Code, ANSI/NFPA 70, 2011 (and Canadian
Electrical Code, Part I, for installations in Canada).
Equipment grounding is the responsibility of the installer and must be
performed in accordance with all applicable Local and National Codes.
 AVERTISSEMENT!

Les circuits d’entrée et de sortie de l’onduleur sont isolés de l’enveloppe. Ce
système n’inclut pas d’isolation galvanique (transformateur) et devra être
installé sans mise à la terre du champ PV et en accord avec les articles 690.35 et
690.43 du National Electric Code (NEC), ANSI/NFPA 70, 2011 (et du Code
Electrique Canadien, Partie 1, pour les installations faites au Canada).
La mise à la terre des équipements est la responsabilité de l’installateur et doit
être faite en accord avec les toutes les règles locales et nationales applicables.
WARNING!
The inverter must be connected to a dedicated AC branch circuit with a
maximum Overcurrent Protection Device (OCPD) of 50A.
The SE10000H-US and SE11400H-US must be connected to a dedicated AC
branch circuit with a maximum Overcurrent Protection Device (OCPD) of 80A.
 AVERTISSEMENT!

Les onduleurs doivent être connectés à un branchement AC dédié avec un
disjoncteur de 50A.
Les onduleurs SE10000H-US et SE11400H-US doivent être connectés à un
branchement AC dédié avec un disjoncteur de 80A
Single Phase Energy Hub Inverter with Prism Technology MAN-01-00842-1.3
8 IMPORTANTSAFETYINSTRUCTIONS

WARNING!
SolarEdge products can expose you to chemicals including antimony trioxide,
which is known to the State of California to cause cancer. For more information,
go to www.P65Warnings.ca.gov .
AVERTISSEMENT!
Les produits SolarEdge peut vous exposer à des agents chimiques, y compris
trioxyde d'antimoine, identifiés par l'État de Californie comme pouvant causer le
cancer. Pour de plus amples informations, prière de consulter
www.P65Warnings.ca.gov.
CAUTION!
This unit must be operated according to the technical specification datasheet
provided with the unit.
 ATTENTION!

Cette unité doit être utilisée selon les spécifications de fonctionnement, comme
décrit dans la dernière fiche technique des spécifications.
CAUTION!
HEAVY OBJECT. To avoid muscle strain or back injury, use proper lifting
techniques, and if required - a lifting aid.
ATTENTION!
Objet lourd. Pour éviter la fatigue musculaire ou des blessures au dos, utilisez
des techniques de levage appropriées et, si nécessaire - un auxiliaire de levage
lors du retrait.
NOTE
The Safety Unit is NEMAtype 3R rated . Unused conduit openings and glands
should be sealed with appropriate seals.
NOTE
Use only copper conductors rated for a minimum of 75°C/ 167°F.
NOTE
This inverter is provided with an IMI (Isolation Monitor Interrupter) for ground
fault protection.
NOTE
The symbol appears at grounding points on the SolarEdge equipment. This
symbol is also used in this manual.
IMPORTANTSAFETYINSTRUCTIONS 9
Single Phase Energy Hub Inverter with Prism Technology MAN-01-00842-1.3

NOTE
SolarEdge inverters can be installed in sites with an alternative power source
such as a generator. SolarEdge requires installing a physical or electronic
interlock, which will signal to the inverter when the grid has been
disconnected. Interlock procurement, installation, maintenance and support
are the responsibility of the installer. Damage to the inverter due to incorrect
interlock installation or use of an interlock that is incompatible with the
SolarEdge system will render the SolarEdge warranty invalid.
For more information on connecting an alternative power source
to SolarEdge inverter, refer to
https://www.solaredge.com/sites/default/files/se-inverter-
support-of-voltage-sources.pdf.
WARNING!
Before operating the system, ensure that the been grounded properly.
 AVERTISSEMENT!

Avant d'utiliser l'onduleur monophasé, assurez-vous que l'onduleur est
correctement mis à la terre.
WARNING!
When handling the storage system battery, adhere to all manufacturer safety
instructions.
 AVERTISSEMENT!

Durant la manipulation de la batterie, adhérez à toutes les instructions de
sécurité du fabricant.
WARNING!
Before connecting the battery to the inverter, power off the battery.

SolarEdge Energy Bank
1. Toggle off the battery ON/OFF/P switch.
2. Turn off the battery circuit breaker.



Single Phase Energy Hub Inverter with Prism Technology MAN-01-00842-1.3
10 IMPORTANTSAFETYINSTRUCTIONS



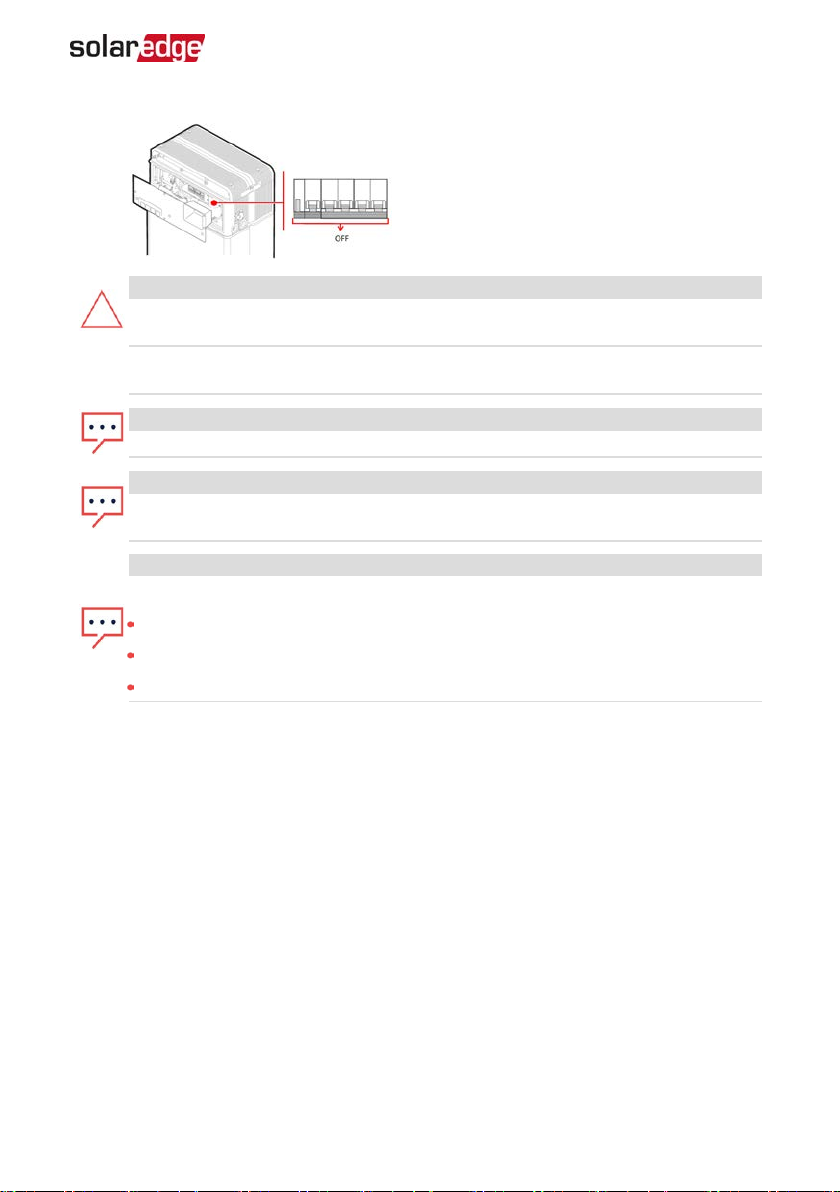

LG Chem Prime Battery
Turn off the circuit breaker.


CAUTION!
This unit must be operated under the specified operating conditions as
described in the technical specifications supplied with the unit.

Cette unité doit être opérée suivant les instructions trouvées dans le manuel
fourni avec le produit.
NOTE
The battery used must be NRTL certified.
NOTE
For battery decommissioning and disposal, follow the manufacturer
requirements and instructions.
NOTE
For inverters with a nameplate up to and including 11.4W:
Maximum short circuit peak current: 78.1A
Maximum short circuit current duration (until current stops): 113msec
Maximum 3-cycle short circuit current RMS value: 60A
IMPORTANTSAFETYINSTRUCTIONS 11
Single Phase Energy Hub Inverter with Prism Technology MAN-01-00842-1.3

Photovoltaic Rapid Shutdown System Requirements
WARNING!
THIS PHOTOVOLTAIC RAPID SHUTDOWN SYSTEM (PVRSS) INCORPORATES
ONE OR MORE PIECES OF EQUIPMENT THAT EXERCISE THE RAPID SHUTDOWN
CONTROL OF PV SYSTEM CONDUCTORS REQUIRED BY SECTION 690.12 OF THE
NEC (NFPA 70). OTHER EQUIPMENT INSTALLED IN OR ON THIS PV SYSTEM
MAY ADVERSELY AFFECT THE OPERATION OF THIS PVRSS. IT IS THE
RESPONSIBILITY OF THE INSTALLER TO ENSURE THAT THE COMPLETED PV
SYSTEM MEETS THE APPLICABLE RAPID SHUT DOWN FUNCTIONAL
REQUIREMENTS. THIS EQUIPMENT MUST BE INSTALLED ACCORDING TO THE
MANUFACTURER’S INSTALLATION INSTRUCTIONS.
SolarEdge inverters and power optimizers installed together form a photovoltaic
rapid shutdown system (PVRSS). All inputs and outputs of the inverter and power
optimizers comply with photovoltaic rapid shutdown requirements for controlled
conductors both inside and outside the array boundary. To form a PV rapid
shutdown system, no more than 30 power optimizers should be installed in series.
Each power optimizer will output around 1 Vdc when rapid shutdown is initiated.
Rapid shutdown time limit is 30 Sec.
This SolarEdge system is compatible with the Grid support interactive compatible
functionality.
All DC and AC conductors served by the power optimizers and inverters are
controlled by the photovoltaic rapid shutdown system. The AC branch circuit
conductors serving the inverter may remain energized until the AC service panel is
de-energized. Installers must provide signage complying with Section 690.56(C) of
the NEC (NFPA 70).
Buildings with rapid shutdown PV systems, complying with NEC 690.56(C), shall
have permanent labels as described in 690.56(C)(1) through (C)(2):
(1)(a) For PV systems that shut down the array and conductors leaving the array:
The title "SOLAR PV SYSTEM EQUIPPED WITH RAPID SHUTDOWN" shall
utilize capitalized characters with a minimum height of 3/8 in. in black on yellow
background, and the remaining characters shall be capitalized with a minimum
height of 3/16 in. in black on white background.
Single Phase Energy Hub Inverter with Prism Technology MAN-01-00842-1.3
12 Photovoltaic Rapid Shutdown System Requirements

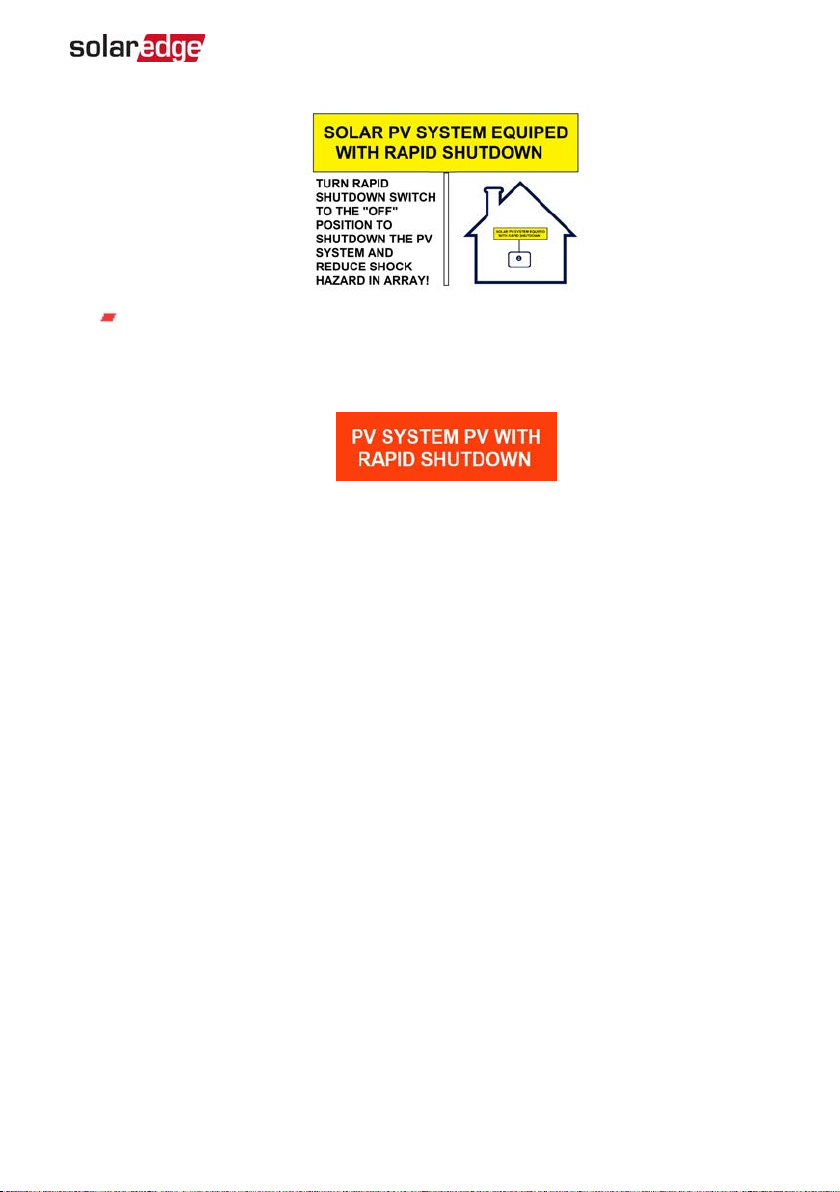

(2) A rapid shutdown switch shall have a label located on or no more than 3 ft
from the switch that includes this wording. The label shall be reflective, with all
letters capitalized and having a minimum height of 3/8 in., in white on red
background.
Photovoltaic Rapid Shutdown System Requirements 13
Single Phase Energy Hub Inverter with Prism Technology MAN-01-00842-1.3

Chapter 1: Overview
The single phase Energy Hub inverter with prism technology is SolarEdge's all-in-one
solution that uses a single phase DC optimized inverter to manage and monitor solar
power generation, energy storage, EV charging and smart energy devices. When
installed with a battery and the Backup Interface, homeowners are automatically
provided with backup power in the event of grid interruption to power home loads. In
addition, solar energy can be stored in a battery for Smart Energy Management
applications such as export control, offering demand response and peak shaving, and
performing time of use shifting for reduced electric bills.

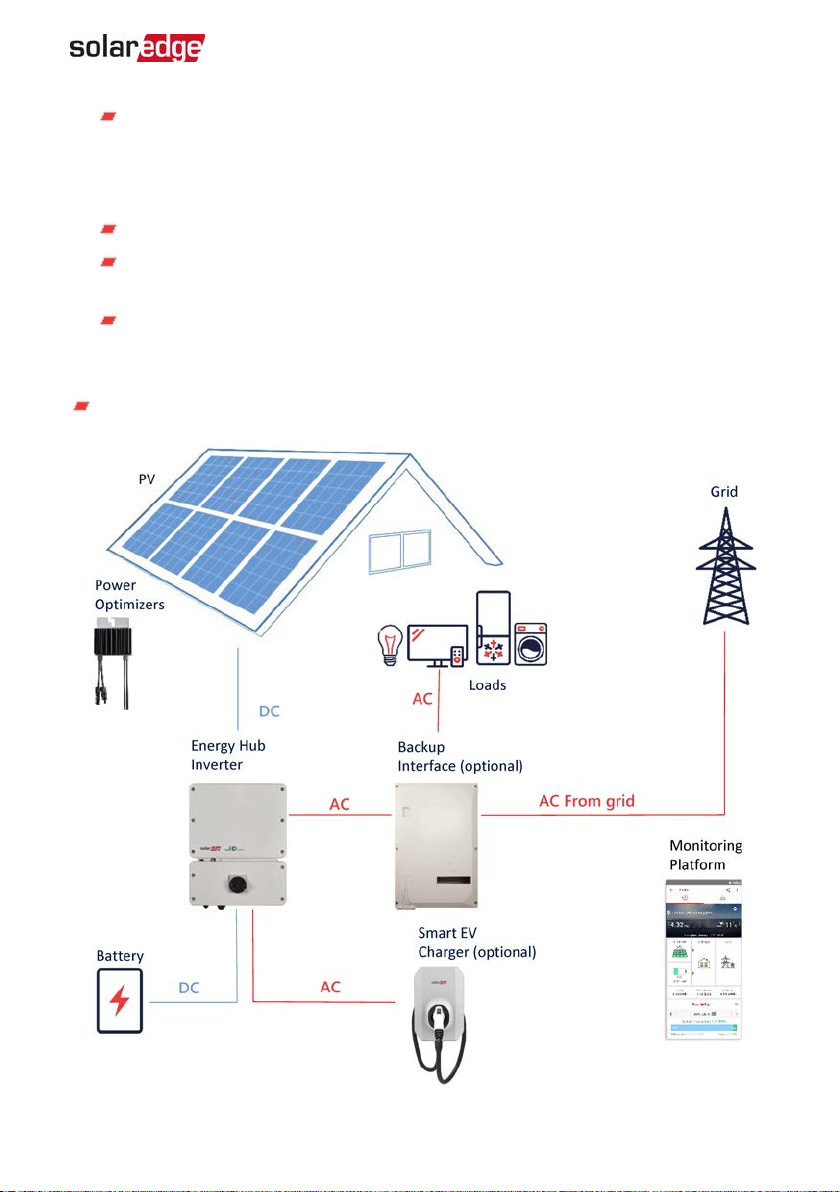

StorEdge Solution Components
Energy Hub inverter - manages battery and system energy, in addition to its
traditional functionality as a DC-optimized PV inverter.
The Safety Unit, located at the bottom of the inverter, allows simple installation and
connectivity to other system components and includes a DC Safety Switch.
One or multiple batteries (optional) - DC-coupled batteries designed to work with
the SolarEdge system. The batteries can be connected to the system optionally.
Supported Batteries
Manufacturer Model Technical Description Mark of Conformity
SolarEdge Energy
Bank
Residential ESS (lithium
ion battery)
UL 1973 / UL9540 / CE / RCM /
(IEC 62619)
LG RESU10H
Prime*
Residential ESS (lithium
ion battery)
UL 1973 / CE / RCM / TUV (IEC
62619)
LG RESU16H
Prime*
Residential ESS (lithium
ion battery)
UL 1973 / CE / RCM / TUV (IEC
62619)
* For compatible inverter PNs, consult SolarEdge..
For the SolarEdge Energy Bank installation guide, see:
https://www.solaredge.com/sites/default/files/se-energy-bank-
installation-guide.pdf
Backup Interface (optional) - controls disconnection of house loads
from the grid and integrates the following components to enable
grid-tied solar backup and Smart Energy Management. The Backup
Interface must be installed to allow the operation of the batteries and inverter
during backup.
Single Phase Energy Hub Inverter with Prism Technology MAN-01-00842-1.3
14 Chapter 1: Overview

Energy Meter - is used by the inverter for export, import, production and
consumption readings, and for Smart Energy Management applications, such
as: export limitation, time-of-use profile programming and maximizing self-
consumption.
Auto-transformer - handles the phase load balancing.
200A microgrid interconnection device - disconnects the house loads from the
grid in case of a power outage.
Generator hardware support - supports connection for up to 15kW single phase
alternative power supply. Generator connection requires supporting inverter
firmware.
Smart EV charger (optional)
Chapter 1: Overview 15
Single Phase Energy Hub Inverter with Prism Technology MAN-01-00842-1.3

NOTE
Additional SolarEdge inverters can be connected over RS485. The inverters will
participate in export limitation, Smart Energy Management and backup
operation.
PV modules connected to power optimizers are not mandatory for charge/
discharge profile programming.
Installation Equipment List
Standard tools can be used during the installation of the SolarEdge system. The
following is a recommendation of the equipment needed for installation:
4 mm Allen torque screwdriver for the inverter enclosure screws
Standard torque flat-head screwdrivers set
Non-contact voltage detector
Cordless drill (with a torque clutch)or screwdriver and bits suitable for the surface
on which the inverter and optimizers will be installed and for opening the Safety
Unit drill guides. Use of an impact driver is not allowed.
Mounting hardware (stainless bolts, nuts, and washers) for attaching:
the mounting brackets to the mounting surface
the power optimizer to the racking (not required for smart modules)
Tools:
Wire cutters
Wire strippers
Voltmeter
Mobile phone with latest SetApp version
For installing the communication options, you may also need the following:
For Ethernet:
CAT6 twisted pair Ethernet cable with RJ45 connector
If using a CAT6 cable spool: RJ45 plug and RJ45 crimper
For RS485 / CAN Bus :
Four- or six-wire shielded twisted pair cable
Watchmaker precision screwdriver set
Single Phase Energy Hub Inverter with Prism Technology MAN-01-00842-1.3
16 Installation Equipment List

Inverter Transport and Storage
Transport the inverter in its original packaging, facing up and without exposing it to
unnecessary shocks. If the original package is no longer available, use a similar box that
can withstand the weight of the inverter (refer to the inverter weight in the specification
datasheet provided with the unit), has a handle system and can be closed fully.
Store the inverter in a dry place where ambient temperatures are -13°F to 140°F /
-25°C to +60°C.
Chapter 1: Overview 17
Single Phase Energy Hub Inverter with Prism Technology MAN-01-00842-1.3

Chapter 2: Installing the Power Optimizers
Safety
WARNING!
The metallic enclosure of the Power Optimizer must be grounded in accordance
with the product's listing and local and national codes.
 AVERTISSEMENT!

L'enceinte métallique de l’optimiseur de puissance doit être mise à la terre en
accord avec les régulations locales et nationales.
WARNING!
When modifying an existing installation, turn OFF the inverter ON/OFF/P
switch and the AC circuit breaker on the main AC distribution panel.
 AVERTISSEMENT!

Avant de faire ces étapes, éteignez l'onduleur monophasé en mettant sur OFF
l'interrupteur ON/OFF/P situé au bas de l'onduleur.
CAUTION!
Power Optimizers are IP68/NEMA6P rated. Choose a mounting location where
Power Optimizers will not be submerged in water.
 ATTENTION!

Les optimiseurs de puissances sont compatibles à la norme IP68/NEMA6P.
Choisissez le lieu de montage tel que l’optimiseur ne puisse pas être submergé
par l’eau.
CAUTION!
The Power Optimizer must be operated according to the technical specifications
provided with the Power Optimizer.
 ATTENTION!

Cette unité doit être opérée suivant les instructions trouvées dans le manuel
fourni avec le produit.
CAUTION!
Cutting the Power Optimizer input or output cable connector is prohibited and
will void the warranty.
 ATTENTION!

Sectionner les cables d’entrées ou de sortie de l’optimiseur est interdit et annule
sa garantie.
CAUTION!
All PV panels must be connected to a Power Optimizer.
Single Phase Energy Hub Inverter with Prism Technology MAN-01-00842-1.3
18 Chapter 2: Installing the Power Optimizers

 ATTENTION!
 Tous les modules doivent être connectés à un optimiseur de puissance.
CAUTION!
If you intend to mount the Power Optimizers directly to the panel or panel
frame, first consult the panel manufacturer for guidance regarding the
mounting location and the impact, if any, on panel warranty. Drilling holes in
the panel frame should be done according to the panel manufacturer
instructions.
 ATTENTION!

Pour installation à même le module ou la monture du module, consultez
d'abord le fabricant du module sur la position et son impact sur la garantie du
module. Le perçage de trous dans le cadre du module devra se faire suivant les
instructions du fabricant.


CAUTION!
Installing a SolarEdge system without ensuring compatibility of the panel
connectors with the Power Optimizer connectors may be unsafe and could cause
functionality problems such as ground faults, resulting in inverter shut down. To
ensure mechanical and electrical compatibility of the Power Optimizer
connectors with the PV panel connectors to which they are connected:
Use identical connectors from the same manufacturer and of the same type
on the Power Optimizers, panels and the inverter DCinput; or
Verify that the connectors are compatible in the following way:
The panel connector manufacturer should explicitly verify compatibility
with the Power Optimizer connectors and the Inverter DC input
connectors.
A third-party test report by one of the listed external labs (TUV, VDE,
Bureau Veritas UL, CSA, InterTek) should be obtained, verifying the
compatibility of the connectors.

For more information, refer to
https://www.solaredge.com/sites/default/files/optimizer-input-
connector-compatibility.pdf

Chapter 2: Installing the Power Optimizers 19
Single Phase Energy Hub Inverter with Prism Technology MAN-01-00842-1.3
