SolarEdge SEK-I Series User manual

Installation Guide
Three Phase Inverter with
Synergy Technology
P/N: SExxK-xxxxIxxxx
For North America
Version 1.0

Disclaimers
Important Notice
Copyright © SolarEdge Inc. All rights reserved.
No part of this document may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photographic,
magnetic or otherwise, without the prior written permission of SolarEdge Inc.
The material furnished in this document is believed to be accurate and reliable.
However, SolarEdge assumes no responsibility for the use of this material. SolarEdge
reserves the right to make changes to the material at any time and without notice. You
may refer to the SolarEdge web site (https://www.solaredge.com/us/) for the most
updated version.
All company and brand products and service names are trademarks or registered
trademarks of their respective holders.
Patent marking notice: see https://www.solaredge.com/us/patent
The general terms and conditions of delivery of SolarEdge shall apply.
The content of these documents is continually reviewed and amended, where
necessary. However, discrepancies cannot be excluded. No guarantee is made for the
completeness of these documents.
The images contained in this document are for illustrative purposes only and may vary
depending on product models.
Disclaimers 1
Three Phase Inverter with Synergy Technology P/N: SExxK-xxxxIxxxx SExxK-xxxxIxxxx

FCC Compliance
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, you are encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance may void the user’s authority to operate the equipment.
Three Phase Inverter with Synergy Technology P/N: SExxK-xxxxIxxxx SExxK-xxxxIxxxx
2 FCC Compliance

Revision History
Version 1.0 (May. 2021)
Initial release
Revision History 3
Three Phase Inverter with Synergy Technology P/N: SExxK-xxxxIxxxx SExxK-xxxxIxxxx

Contents
Disclaimers 1
Important Notice 1
FCC Compliance 2
Revision History 3
HANDLING AND SAFETY INSTRUCTIONS 6
Safety Symbols Information 6
IMPORTANT SAFETY INSTRUCTIONS / CONSIGNES DE SÉCURITÉ
IMPORTANTES 7
Photovoltaic Rapid Shutdown System Requirements 11
Chapter 1: Introducing the SolarEdge Power Harvesting System 13
Power Optimizer 13

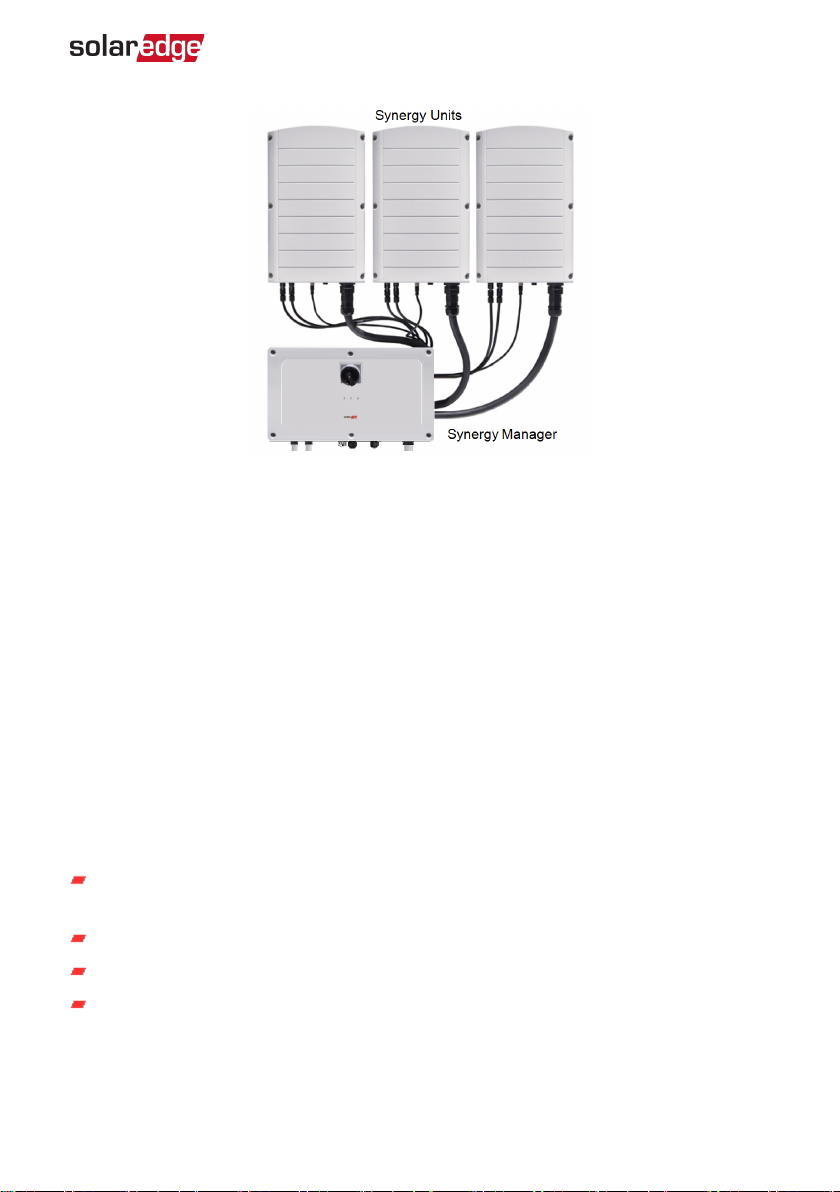

Three Phase Inverter with Synergy Technology 14
Monitoring Platform 15
Designer 15
Installation Tools and Material List 15
Installation Procedure 16
Chapter 2: Installing the Power Optimizers 17
Safety 17
Package Contents 19
Installation Guidelines 19
Step 1: Mounting and Grounding the Power Optimizers 22
Step 2: Connecting a PV module to a Power Optimizer 25
Step 3: Connecting Power Optimizers in Strings 25
Step 4: Verifying Proper Power Optimizer Connection 26
Chapter 3: Installing the Synergy Manager and Synergy Units 28
Synergy Manager Package Contents 28
Synergy Unit Package Contents 28
Identifying the Units 28
Front Interface of Synergy Manager 29
Inverter Interconnection Cable Interfaces 33
Synergy Manager External Cable Interface 34
Synergy Unit Interface Connectors 34
Drilling Conduit Holes 35
Mounting and Connecting the Synergy Manager and Synergy Units 36
Chapter 4: Connecting AC and PV Strings to the Synergy Manager 41
Connecting the ACGrid to the Synergy Manager 41
Connecting the PV Strings to the Synergy Manager 43
Connecting Ground and AC to the Synergy Manager 47
Three Phase Inverter with Synergy Technology P/N: SExxK-xxxxIxxxx SExxK-xxxxIxxxx
4 Revision History

Chapter 5: Activating, Commissioning and Configuring the System 52
On-grid Commissioning of the inverter 53
Step 3: Verifying Proper Activation and Commissioning 55
Pre-commissioning (Off-Grid) 55
Reporting and Monitoring Installation Data 57
Chapter 6: Setting Up Communication with the Monitoring Platform 60
Communication Options 60
Communication Connectors 61
Creating an Local Area Network (LAN) Connection 64
Creating an RS485 Bus Connection 69
RS485 Bus Configuration 72
Verifying the Connection 72
Signaling Options 73
Appendix A: Errors and Troubleshooting 75
Identifying Errors 75
Power Optimizer Troubleshooting 76
Troubleshooting Communication 78
Appendix B: Adding Optional Components 80
AC Surge Protection Device (SPD) 80
DC Surge Protection Device (SPD) 80
Appendix C: Mechanical Specifications 81
Technical Specifications - Three Phase Inverter with Synergy Technology 82
Revision History 5
Three Phase Inverter with Synergy Technology P/N: SExxK-xxxxIxxxx SExxK-xxxxIxxxx

HANDLING AND SAFETY INSTRUCTIONS
Safety Symbols Information
The following safety symbols are used in this document. Familiarize yourself with the
symbols and their meaning before installing or operating the system.
WARNING!
Denotes a hazard. It calls attention to a procedure that, if not correctly
performed or adhered to, could result in injury or loss of life. Do not proceed
beyond a warning note until the indicated conditions are fully understood and
met.
AVERTISSEMENT!
Dénote un risque: il attire l'attention sur une opération qui, si elle n'est pas faite
ou suivi correctement, pourrait causer des blessures ou un danger de mort. Ne
pas dépasser une telle note avant que les conditions requises soient
totallement comprises et accomplies.
CAUTION!
Denotes a hazard. It calls attention to a procedure that, if not correctly
performed or adhered to, could result in damage or destruction of the
product. Do not proceed beyond a caution sign until the indicated conditions
are fully understood and met.
ATTENTION!
Dénote un risque: il attire l'attention sur une opération qui, si elle n'est pas faite
ou suivi correctement, pourrait causer un dommage ou destruction de
l'équipement. Ne pas dépasser une telle note avant que les conditions requises
soient totallement comprises et accomplies.
NOTE
Denotes additional information about the current subject.
IMPORTANTSAFETYFEATURE
Denotes information about safety issues.
Three Phase Inverter with Synergy Technology P/N: SExxK-xxxxIxxxx SExxK-xxxxIxxxx
6 HANDLING AND SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS /
CONSIGNES DE SÉCURITÉ IMPORTANTES
SAVETHESEINSTRUCTIONS / CONSERVEZ CES INSTRUCTIONS
Warning!
To reduce the risk of injury, read all instructions in this document.
 AVERTISSEMENT!
 Pour réduire le risque de blessure, lisez toutes les instructions de ce document.
WARNING!
Using this equipment in a manner not specified by SolarEdge in this document
may impair the protection provided by this equipment.
WARNING!
The inverter cover must be opened only after switching the inverter ON/OFF/P
switch located at the bottom of the inverter to OFF. This disables the DC voltage
inside the inverter. Wait five minutes before opening the cover. Otherwise, there
is a risk of electric shock from energy stored in the capacitors.
 AVERTISSEMENT!

Ne pas ouvrir le couvercle de l'onduleur avant d'avoir coupé l'interrupteur situé
en dessous de l'onduleur. Cela supprime les tensions CC et CA de l'onduleur.
Attendre cinq minutes avant d’ouvrir le couvercle. Sinon, il y a un risque de
choc électrique provenant de l'énergie stockée dans le condensateur.

WARNING!
Before operating the inverter, ensure that the inverter is grounded properly. This
product must be connected to a grounded, metal, permanent wiring system, or
an equipment-grounding conductor must be run with the circuit conductors
and connected to the equipment grounding terminal or lead on the product.
 AVERTISSEMENT!

Avant d'utiliser l'onduleur monophasé, assurez-vous que l'onduleur est
correctement mis à la terre. Ce produit doit être raccordé à un système de
câblage fixe, métallique, l'équipement-le conducteur de mise à la terre doit être
exécuté avec les conducteurs de circuit et raccordé à l'équipement borne de
mise à la terre ou de plomb sur le produit.
WARNING!
Opening the inverter and repairing or testing under power must be performed
only by qualified service personnel familiar with this inverter.
IMPORTANT SAFETY INSTRUCTIONS / CONSIGNES DE SÉCURITÉ
IMPORTANTES 7
Three Phase Inverter with Synergy Technology P/N: SExxK-xxxxIxxxx SExxK-xxxxIxxxx

 AVERTISSEMENT!

L’unité ne doit être ouverte que par un technicien qualifié dans le cadre de
l'installation et de la maintenance.
WARNING!
The DC Safety Unit meets all requirements for a code-compliant installation of
this system. The DC Disconnect Switch disconnects both the positive and
negative conductors.
 AVERTISSEMENT!

Le sectionneur externe (inclus) repond aux exigences de conformité pour
l’installation de ce système . Le coupeur CC ouvre les conducteurs positifs et
négatifs.
WARNING!
The inverter input and output circuits are isolated from the enclosure. This
system does not include an isolation transformer and should be installed with
an ungrounded PV array in accordance with the requirements of NEC Articles
690.35 and 690.43 National Electric Code, ANSI/NFPA 70, 2011 (and Canadian
Electrical Code, Part I, for installations in Canada).
Equipment grounding is the responsibility of the installer and must be
performed in accordance with all applicable Local and National Codes.
 AVERTISSEMENT!

Les circuits d’entrée et de sortie de l’onduleur sont isolés de l’enveloppe. Ce
système n’inclut pas d’isolation galvanique (transformateur) et devra être
installé sans mise à la terre du champ PV et en accord avec les articles 690.35 et
690.43 du National Electric Code (NEC), ANSI/NFPA 70, 2011 (et du Code
Electrique Canadien, Partie 1, pour les installations faites au Canada).
La mise à la terre des équipements est la responsabilité de l’installateur et doit
être faite en accord avec les toutes les règles locales et nationales applicables.
WARNING!
SafeDC complies with IEC60947-3 when installing the system with a worst case
SafeDC voltage (under fault conditions) < 120V.
The worst case voltage is defined as: Voc, max+ (String Length-1)*1V, where:
Voc,max = Maximum Voc (at lowest temperature) of the PV modules in the
string (for a string with multiple modules, use the max value)
String Length = number of Power Optimizers in the string
Three Phase Inverter with Synergy Technology P/N: SExxK-xxxxIxxxx SExxK-xxxxIxxxx
8 IMPORTANT SAFETY INSTRUCTIONS / CONSIGNES DE SÉCURITÉ
IMPORTANTES

WARNING!
SolarEdge products can expose you to chemicals including antimony trioxide,
which is known to the State of California to cause cancer. For more information,
go to www.P65Warnings.ca.gov .
AVERTISSEMENT!
Les produits SolarEdge peut vous exposer à des agents chimiques, y compris
trioxyde d'antimoine, identifiés par l'État de Californie comme pouvant causer le
cancer. Pour de plus amples informations, prière de consulter
www.P65Warnings.ca.gov.
CAUTION!
This unit must be operated according to the technical specification datasheet
provided with the unit.
 ATTENTION!

Cette unité doit être utilisée selon les spécifications de fonctionnement, comme
décrit dans la dernière fiche technique des spécifications.
CAUTION!
HEAVY OBJECT. To avoid muscle strain or back injury, use proper lifting
techniques, and if required - a lifting aid.
ATTENTION!
Objet lourd. Pour éviter la fatigue musculaire ou des blessures au dos, utilisez
des techniques de levage appropriées et, si nécessaire - un auxiliaire de levage
lors du retrait.
NOTE
This inverter is provided with an IMI (Isolation Monitor Interrupter) for ground
fault protection.
NOTE
The symbol appears at grounding points on the SolarEdge equipment. This
symbol is also used in this manual.
IMPORTANT SAFETY INSTRUCTIONS / CONSIGNES DE SÉCURITÉ
IMPORTANTES 9
Three Phase Inverter with Synergy Technology P/N: SExxK-xxxxIxxxx SExxK-xxxxIxxxx

NOTE
SolarEdge inverters can be installed in sites with an alternative power source
such as a generator. SolarEdge requires installing a physical or electronic
interlock, which will signal to the inverter when the grid has been
disconnected. Interlock procurement, installation, maintenance and support
are the responsibility of the installer. Damage to the inverter due to incorrect
interlock installation or use of an interlock that is incompatible with the
SolarEdge system will render the SolarEdge warranty invalid.
For more information on connecting an alternative power source
to SolarEdge inverter, refer to
https://www.solaredge.com/sites/default/files/se-inverter-
support-of-voltage-sources.pdf.
Three Phase Inverter with Synergy Technology P/N: SExxK-xxxxIxxxx SExxK-xxxxIxxxx
10 IMPORTANT SAFETY INSTRUCTIONS / CONSIGNES DE SÉCURITÉ
IMPORTANTES

Photovoltaic Rapid Shutdown System Requirements
This section is applicable to all Three Phase inverters with Synergy Technology having
Synergy Units marked with “R” in the part numbers: SESUK-USRxxxxx.
WARNING!
THIS PHOTOVOLTAIC RAPID SHUTDOWN SYSTEM (PVRSS) INCORPORATES
ONE OR MORE PIECES OF EQUIPMENT THAT EXERCISE THE RAPID SHUTDOWN
CONTROL OF PV SYSTEM CONDUCTORS REQUIRED BY SECTION 690.12 OF THE
NEC (NFPA 70). OTHER EQUIPMENT INSTALLED IN OR ON THIS PV SYSTEM
MAY ADVERSELY AFFECT THE OPERATION OF THIS PVRSS. IT IS THE
RESPONSIBILITY OF THE INSTALLER TO ENSURE THAT THE COMPLETED PV
SYSTEM MEETS THE APPLICABLE RAPID SHUT DOWN FUNCTIONAL
REQUIREMENTS. THIS EQUIPMENT MUST BE INSTALLED ACCORDING TO THE
MANUFACTURER’S INSTALLATION INSTRUCTIONS.
SolarEdge inverters and power optimizers installed together form a photovoltaic
rapid shutdown system (PVRSS). All inputs and outputs of the inverter and power
optimizers comply with photovoltaic rapid shutdown requirements for controlled
conductors both inside and outside the array boundary. To form a PV rapid
shutdown system, no more than 30 power optimizers should be installed in series.
Each power optimizer will output around 1 Vdc when rapid shutdown is initiated.
Rapid shutdown time limit is 30 Sec.
This SolarEdge system is compatible with the Grid support interactive compatible
functionality.
All DC and AC conductors served by the power optimizers and inverters are
controlled by the photovoltaic rapid shutdown system. The AC branch circuit
conductors serving the inverter may remain energized until the AC service panel is
de-energized. Installers must provide signage complying with Section 690.56(C) of
the NEC (NFPA 70).
Buildings with rapid shutdown PV systems, complying with NEC 690.56(C), shall
have permanent labels as described in 690.56(C)(1) through (C)(2):
(1)(a) For PV systems that shut down the array and conductors leaving the array:
The title "SOLAR PV SYSTEM EQUIPPED WITH RAPID SHUTDOWN" shall
utilize capitalized characters with a minimum height of 3/8 in. in black on yellow
background, and the remaining characters shall be capitalized with a minimum
height of 3/16 in. in black on white background.
Photovoltaic Rapid Shutdown System Requirements 11
Three Phase Inverter with Synergy Technology P/N: SExxK-xxxxIxxxx SExxK-xxxxIxxxx

(2) A rapid shutdown switch shall have a label located on or no more than 3 ft
from the switch that includes this wording. The label shall be reflective, with all
letters capitalized and having a minimum height of 3/8 in., in white on red
background.
Three Phase Inverter with Synergy Technology P/N: SExxK-xxxxIxxxx SExxK-xxxxIxxxx
12 Photovoltaic Rapid Shutdown System Requirements

Chapter 1: Introducing the SolarEdge Power
Harvesting System
The SolarEdge power harvesting solution is designed to maximize the power output
from any type of solar Photovoltaic (PV) installation while reducing the average cost
per Watt. Figure 1 shows and the following sections describe the components of the
SolarEdge power harvesting system.

Figure 1: The SolarEdge power harvesting system components
Power Optimizer
The Power Optimizers are DC-DC converters connected to PV modules to maximize
power harvesting by performing independent Maximum Power Point Tracking (MPPT)
at the module level.
The Power Optimizers regulate the string voltage at a constant level, regardless of string
length and environmental conditions.
The Power Optimizers include a safety Voltage function that automatically reduces the
output of each Power Optimizer to 1 Vdc in the following cases:
During fault conditions
The Power Optimizers are disconnected from the inverter
The inverter ON/OFF/P switch is turned OFF
Chapter 1: Introducing the SolarEdge Power Harvesting System 13
Three Phase Inverter with Synergy Technology P/N: SExxK-xxxxIxxxx SExxK-xxxxIxxxx

The DC Disconnect Switch on the Synergy Manager is turned OFF
The safety switch on the Connection Unit is turned OFF
The inverter AC breaker is turned OFF
The Rapid Shutdown (PVRSS)is initiated by one of the following methods:
Inverter AC breaker is turned OFF, or AC to the inverter is disconnected by
another method (intentionally or as result of a fault)
Inverter ON/OFF/P switch is turned OFF
The Connection Unit is turned OFF
Each Power Optimizer also transmits module performance data over the DC power line
to the inverter.
Two types of Power Optimizers are available:
Module add-on Power Optimizer – connected to one or more modules
Smart modules - the Power Optimizer is embedded into a module
Three Phase Inverter with Synergy Technology
The Three Phase Inverter with Synergy Technology (referred to as 'inverter' in this
manual) efficiently converts DC power from the PV modules into AC power that can be
fed into the main ACservice of the site and from there to the grid. The inverter also
receives the monitoring data from each Power Optimizer and transmits it to the
SolarEdge Monitoring platform (requires a land-line or cellular connection to the
Internet).
The inverter is comprised of one Synergy Manager with DC Disconnect Switch for
disconnecting the DCpower, depending on the inverter's model. The Inverter may
include two or three Synergy Units, depending on the inverter's model.
The Synergy Unit are connected to the Synergy Manager via AC, DC and
communication cables.
Each Synergy Unit operates independently and continues to work in case others
stopped operating.
A chain of up to 31 inverters can be set to operate together via Modbus on RS485 line.
When setting a chain of inverters, the inverter that manages communication interface
to the internet is called Leader and the rest are Followers.
Three Phase Inverter with Synergy Technology P/N: SExxK-xxxxIxxxx SExxK-xxxxIxxxx
14 Three Phase Inverter with Synergy Technology

Figure 2: Synergy Manager with three Synergy Units
Monitoring Platform
The monitoring platform enables monitoring the technical and financial performance of
one or more SolarEdge sites. It provides past and online information on the system
performance, both at the system and PV module levels.
Designer
Designer recommends inverter and Power Optimizer selection per site size and enables
report generation. You can create a project in Designer and export the site design with
the string layout to the monitoring platform.
Installation Tools and Material List
Standard tools can be used during the installation of the SolarEdge system.
The following recommend tools is required for installation:
Allen screwdriver for 5mm screw type for the inverter cover, Synergy Manager cover,
and inverter side screws
Standard flat-head screwdrivers set
Non-contact Voltage detector
Cordless drill (with a torque clutch)or screwdriver and bits suitable for the surface
on which the inverter and Power Optimizers are installed and for opening the
Connection Unit drill guides. Use of an impact driver is not allowed
Chapter 1: Introducing the SolarEdge Power Harvesting System 15
Three Phase Inverter with Synergy Technology P/N: SExxK-xxxxIxxxx SExxK-xxxxIxxxx

Ring terminals crimping tool
Wire cutters
Wire strippers
Voltmeter
For installing the communication options, you may also need the following:
For Ethernet:
CAT6 twisted pair Ethernet cable with RJ45 connector
If using a CAT6 cable spool: RJ45 plug and RJ45 crimper
For RS485:
Four- or six-wire shielded twisted pair cable
Watchmaker precision screwdriver set
Installation Procedure
The following procedures, are required for installing and setting up a new SolarEdge
site. Some of these procedures also apply to modification of an existing site.
1. Installing the Power Optimizers
2. Installing the Synergy Manager and Synergy Units
3. Connecting AC and PV Strings to the Synergy Manager
4. Activating, Commissioning and Configuring the System
5. Setting Up Communication with the Monitoring Platform
Three Phase Inverter with Synergy Technology P/N: SExxK-xxxxIxxxx SExxK-xxxxIxxxx
16 Installation Procedure

Chapter 2: Installing the Power Optimizers
Safety
The following notes and warnings apply when installing the SolarEdge Power
Optimizers. Some of the following may not be applicable to smart modules:
WARNING!
The metallic enclosure of the Power Optimizer must be grounded in accordance
with the product's listing and local and national codes.
 AVERTISSEMENT!

L'enceinte métallique de l’optimiseur de puissance doit être mise à la terre en
accord avec les régulations locales et nationales.
WARNING!
When modifying an existing installation, turn OFF the inverter ON/OFF switch,
the Synergy Manager and the AC circuit breaker on the main AC distribution
panel.
 AVERTISSEMENT!

Avant de faire ces étapes, éteignez l'onduleur monophasé en mettant sur OFF
l'interrupteur ON/OFF situé au bas de l'onduleur.
CAUTION!
Power Optimizers are IP68/NEMA6P rated. Choose a mounting location where
optimizers will not be submerged in water.
 ATTENTION!

Les optimiseurs de puissances sont compatibles à la norme IP68/NEMA6P.
Choisissez le lieu de montage tel que l’optimiseur ne puisse pas être submergé
par l’eau.
CAUTION!
This unit must be operated according to the operating specifications provided
with the unit.
 ATTENTION!

Cette unité doit être opérée suivant les instructions trouvées dans le manuel
fourni avec le produit.
CAUTION!
Cutting the Power Optimizer input or output cable connector is prohibited and
will void the warranty.
 ATTENTION!

Sectionner les cables d’entrées ou de sortie de l’optimiseur est interdit et annule
sa garantie.
Chapter 2: Installing the Power Optimizers 17
Three Phase Inverter with Synergy Technology P/N: SExxK-xxxxIxxxx SExxK-xxxxIxxxx

CAUTION!
All PV modules must be connected to a Power Optimizer.
 ATTENTION!

Tous les modules doivent être connectés à un optimiseur de puissance.
CAUTION!
If you intend to mount the Power Optimizers directly to the module or module
frame, first consult the module manufacturer for guidance regarding the
mounting location and the impact, if any, on module warranty. Drilling holes in
the module frame should be done according to the module manufacturer
instructions.
 ATTENTION!

Pour installation à même le module ou la monture du module, consultez
d'abord le fabricant du module sur la position et son impact sur la garantie du
module. Le perçage de trous dans le cadre du module devra se faire suivant les
instructions du fabricant.
IMPORTANTSAFETYFEATURE
Modules with SolarEdge Power Optimizers are safe. They carry only a low safety
voltage before the inverter is turned ON. As long as the Power Optimizers are
not connected to the inverter or the inverter is turned OFF, each Power
Optimizer will output a safe voltage of 1V.
CAUTION!
Installing a SolarEdge system without ensuring compatibility of the module
connectors with the Power Optimizer connectors may be unsafe and could
cause functionality problems such as ground faults, resulting in inverter shut
down. To ensure mechanical compatibility of the SolarEdge Power Optimizers’
connectors with the PV modules’ connectors to which they are connected:
Use identical connectors from the same manufacturer and of the same type
on both the Power Optimizers and on the modules; or
Verify that the connectors are compatible in the following way:
The module connector manufacturer should explicitly verify compatibility
with the SolarEdge Power Optimizer connector; and
A third-party test report by one of the listed external labs (TUV, VDE, Bureau
Veritas UL, CSA, InterTek) should be obtained, verifying the compatibility of
the connectors.
 ATTENTION!
Three Phase Inverter with Synergy Technology P/N: SExxK-xxxxIxxxx SExxK-xxxxIxxxx
18 Safety


Les connecteurs du module doivent être mécaniquement compatibles avec les
optimiseurs de puissance. Sinon, le système SolarEdge installé peut être
dangereux ou causer des problèmes fonctionnels, tels que les défauts de terre,
qui peuvent provoquer un arrêt de l’onduleur. Afin d'assurer la compatibilité
mécanique entre les optimiseurs de puissance SolarEdge et les modules
auxquels ils sont connectés:.
Utiliser des connecteurs identiques du même fabricant et du même type
aussi bien pour les optimiseurs de puissance que pour les modules.
Vérifiez que les connecteurs sont compatibles de la manière suivante:
Le fabricant du connecteur doit explicitement vérifier la compatibilité avec le
connecteur SolarEdge.
Un rapport de test de tierce partie doit être effectué par l’un des laboratoires
externes indiqués ci-dessous:(TUV, VDE, Bureau Veritas UL, CSA,Intertek), qui
vérifiera la compatibilité des connecteurs.

Package Contents
Power Optimizers
Stainless steel grounding lock washers
Installation Guidelines
For the minimum and maximum number of Power Optimizers in a string (string
length), see the Power Optimizer datasheets. Refer to the Designer for string length
verification. The Designer is available on the SolarEdge website at:
https://www.solaredge.com/us/products/installer-tools/designer#/.
Do not use extension cables between a module and a Power Optimizer, between
two modules connected to the same Power Optimizer, or between two Power
Optimizers other than in the following cases:
Between a Power Optimizer and a module:
Residential Power Optimizers P300-P601 - extension cables up to 0.90 m can be
installed per Power Optimizer (0.90 m for DC+ and 0.90 m for DC -).
Power Optimizers with the 4-type suffix in their part number (Pxxx-4xxxxxx) -
extension cables of up to 16 m can be installed per Power Optimizer (8 m for
DC+ and 8 m for DC-).
Chapter 2: Installing the Power Optimizers 19
Three Phase Inverter with Synergy Technology P/N: SExxK-xxxxIxxxx SExxK-xxxxIxxxx
